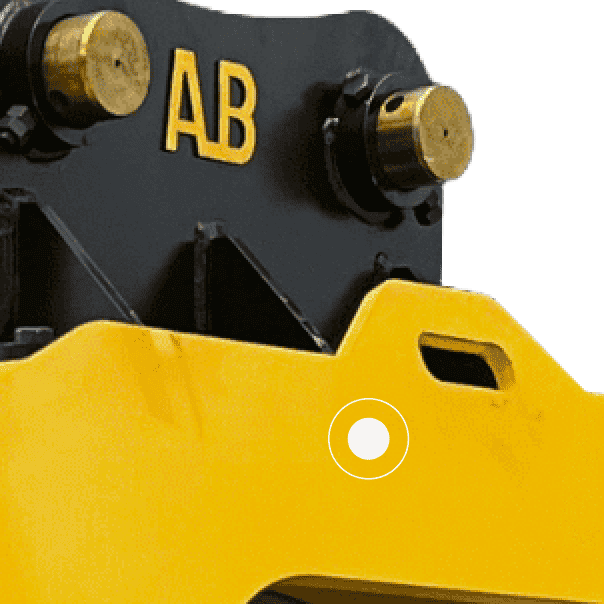

Enhanced wear resistance

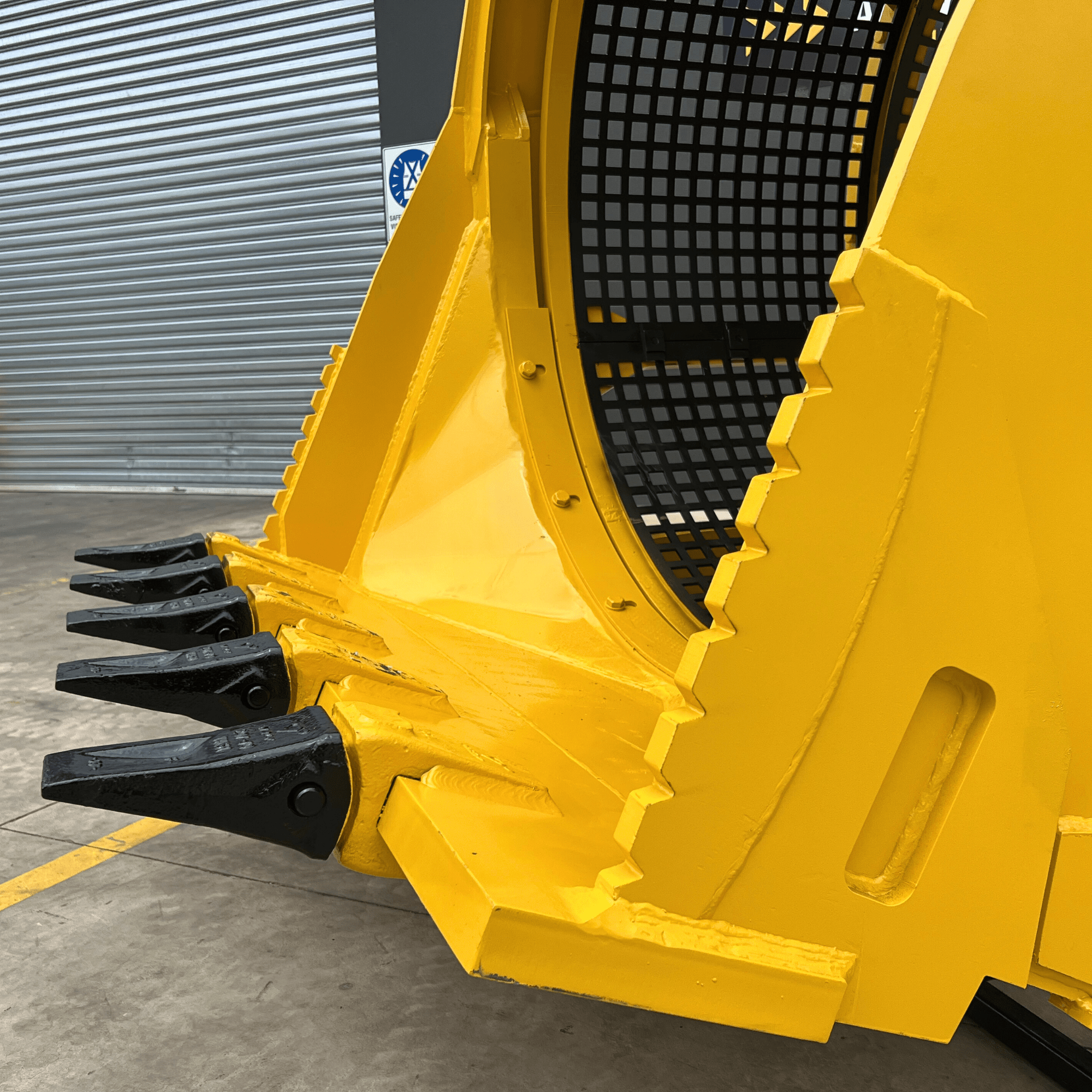

The front lip and side walls, the two zones that take the impact, are 500HBW-grade steel. The rest of the body is NM400 and NM460, so the bucket wears where it is hardest.

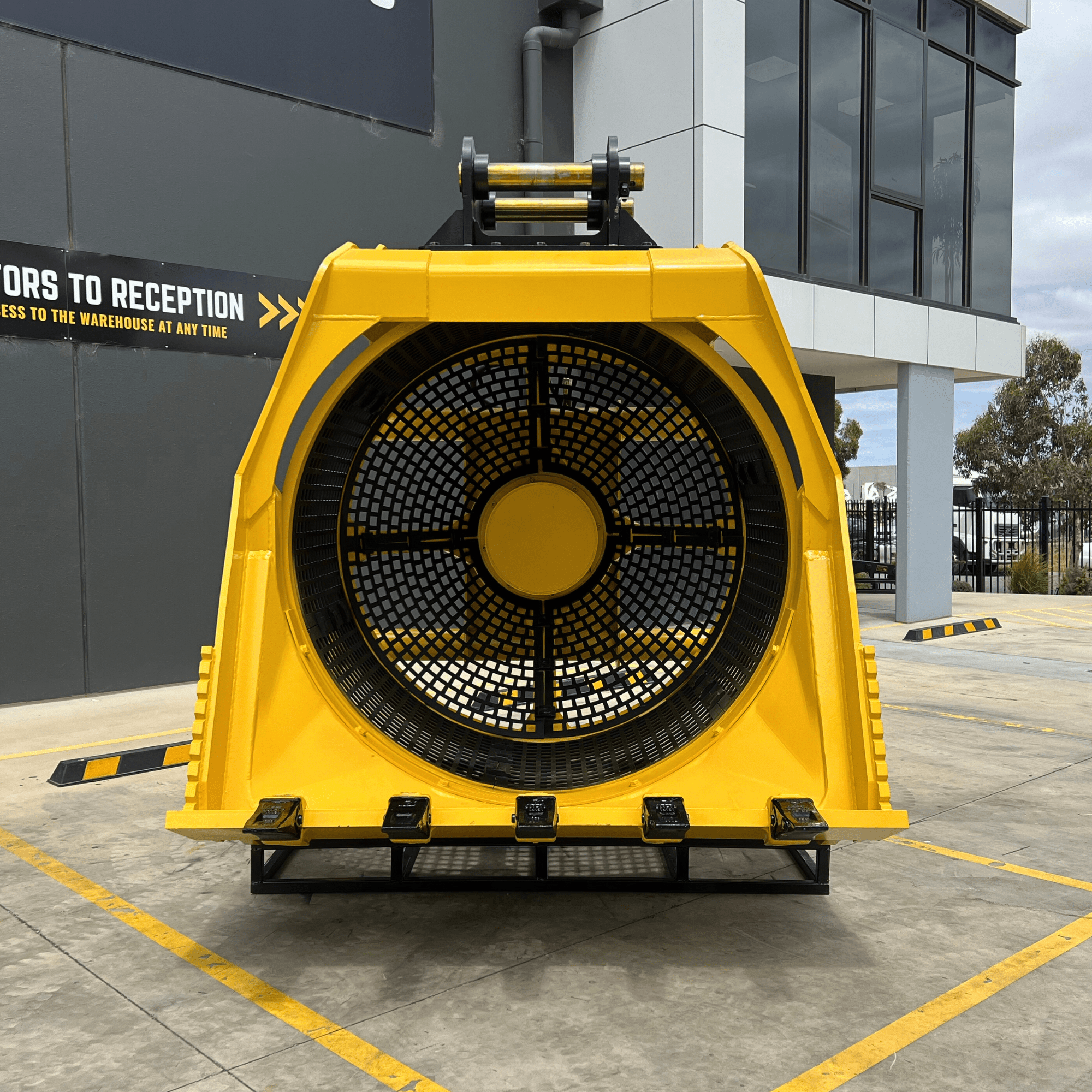

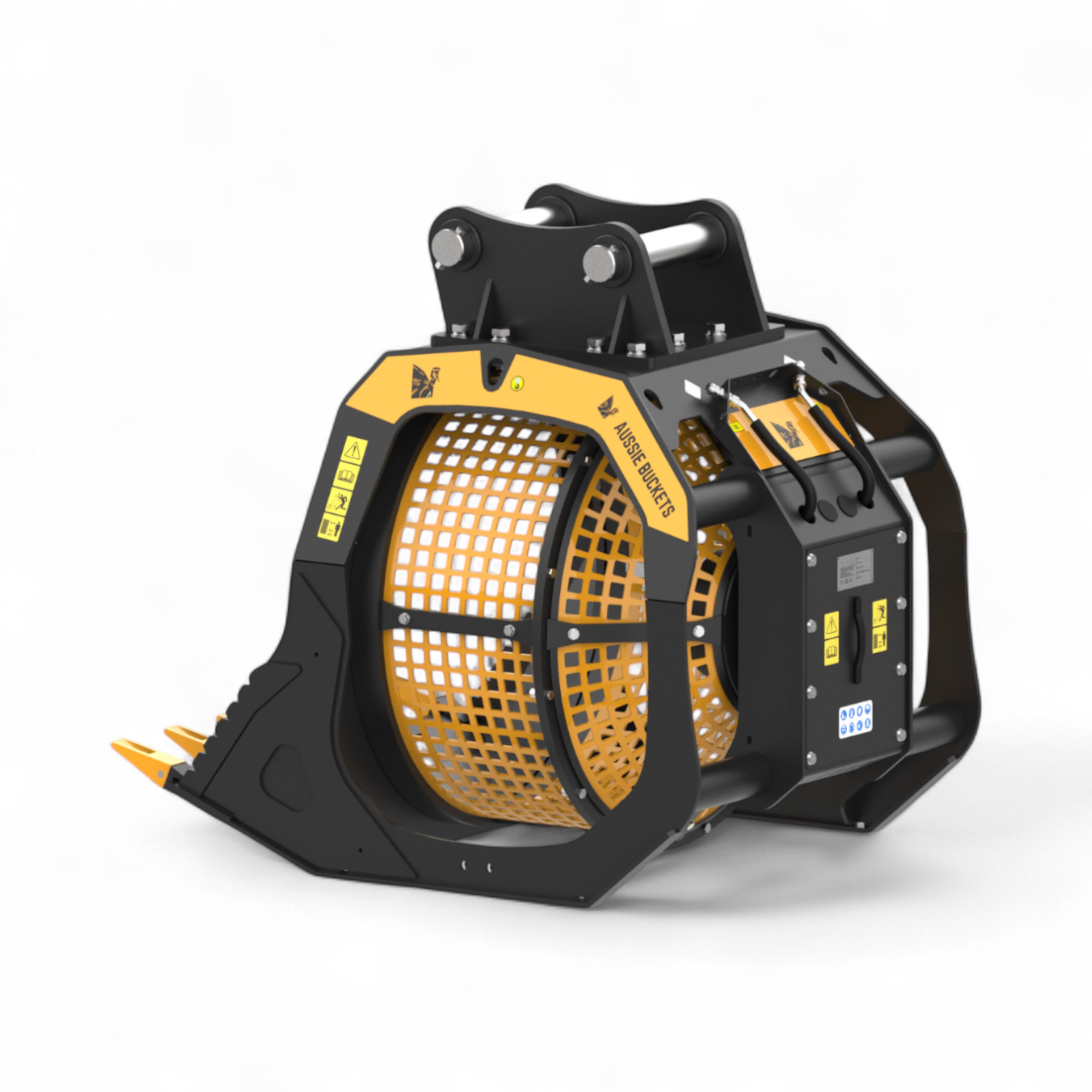

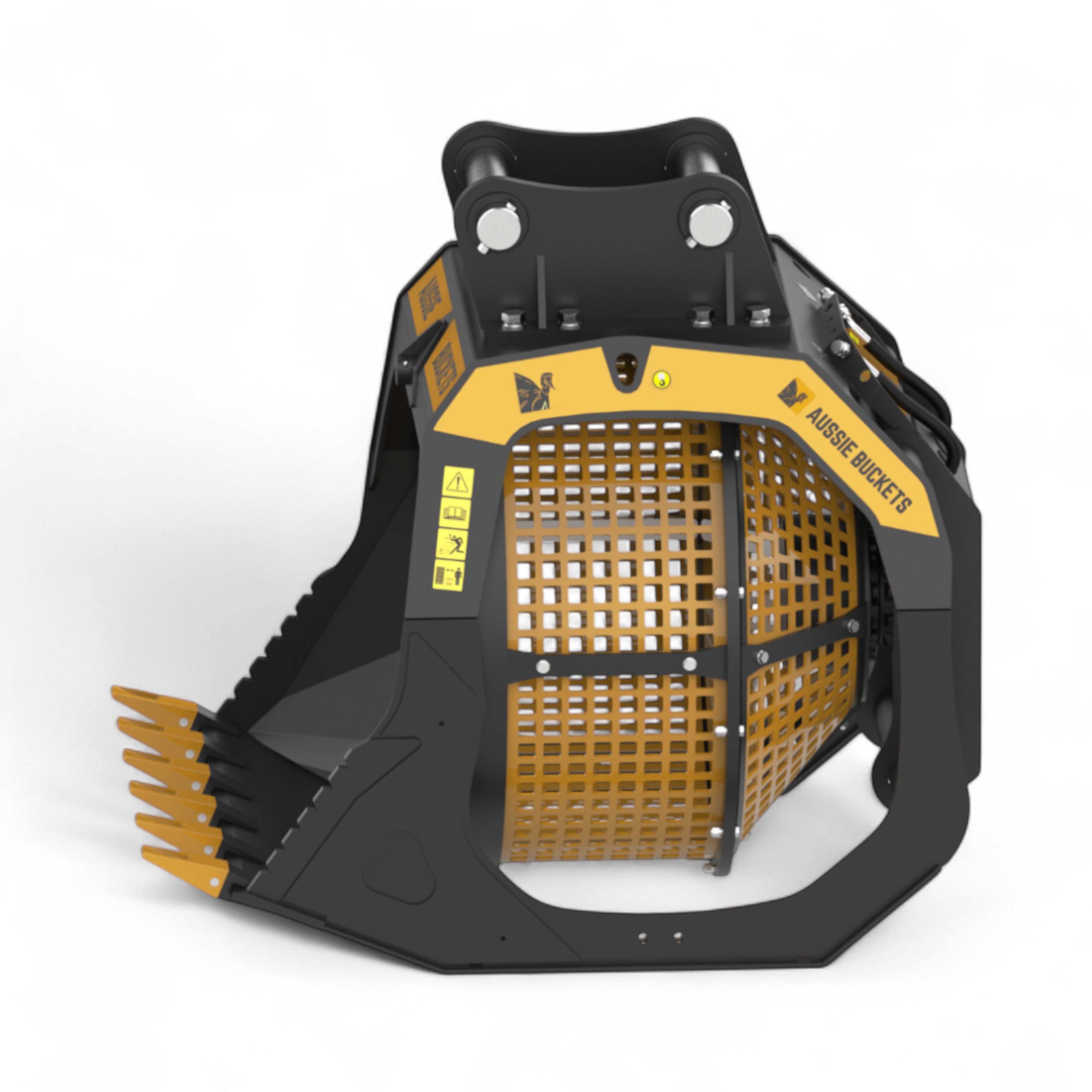

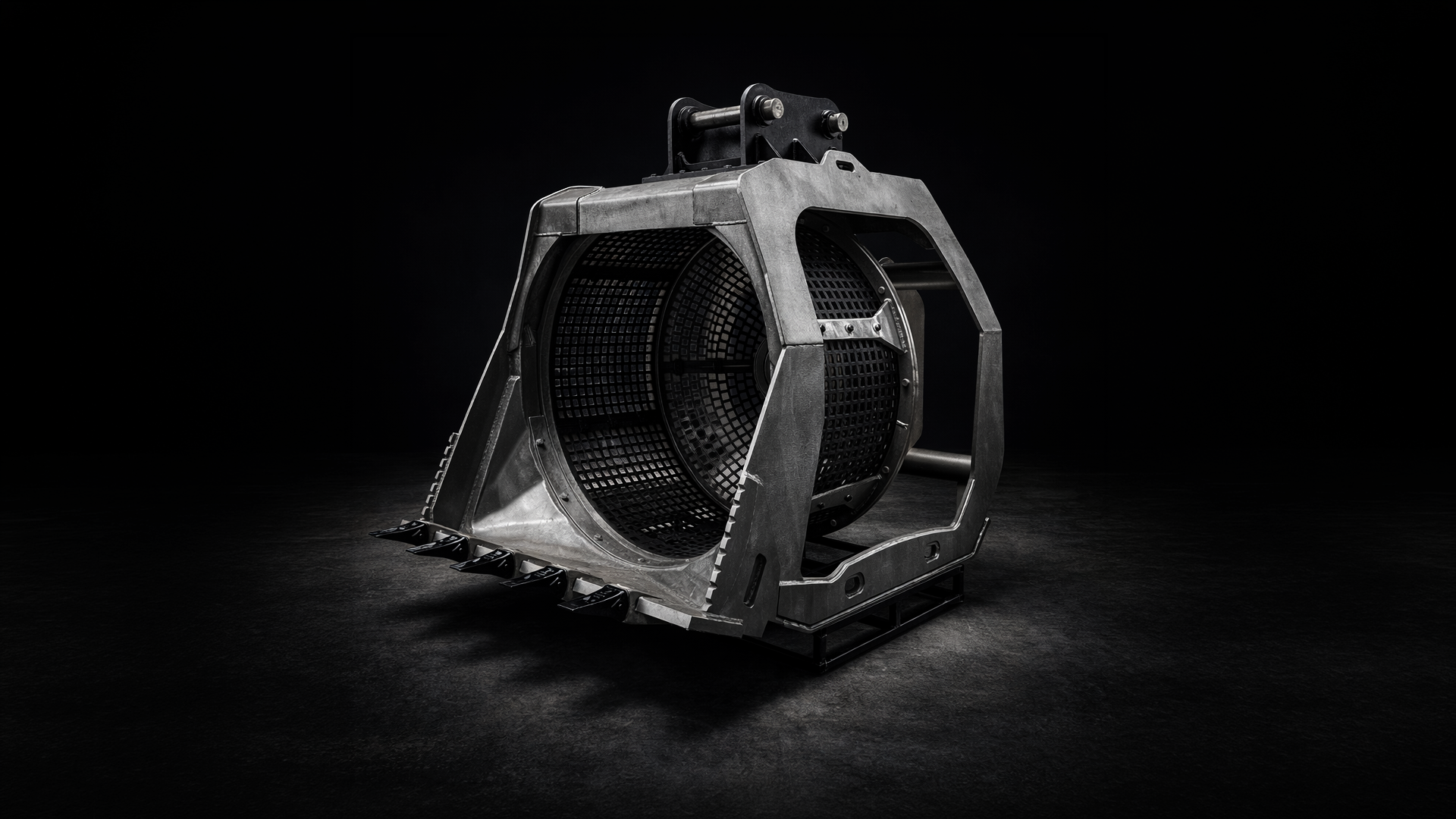

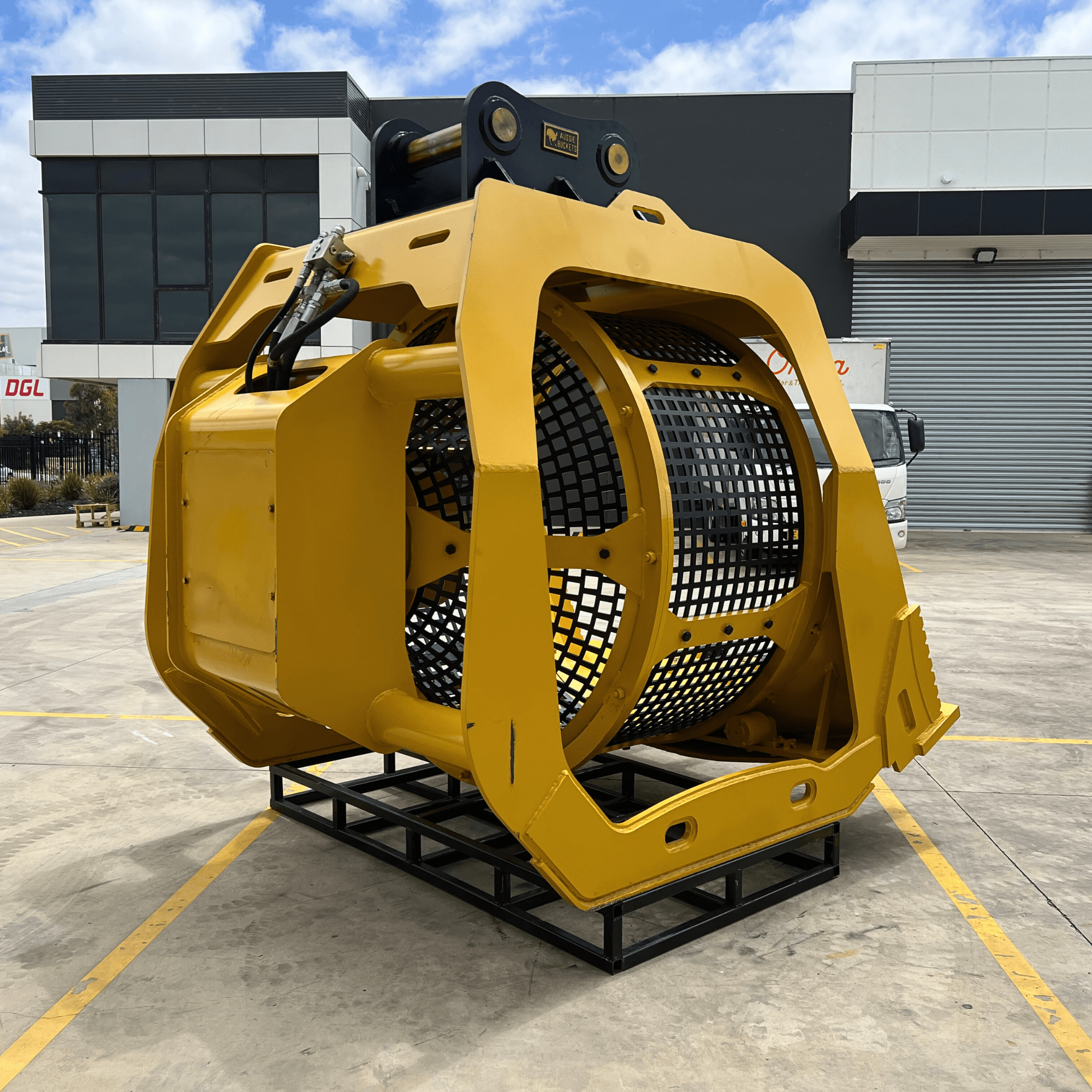

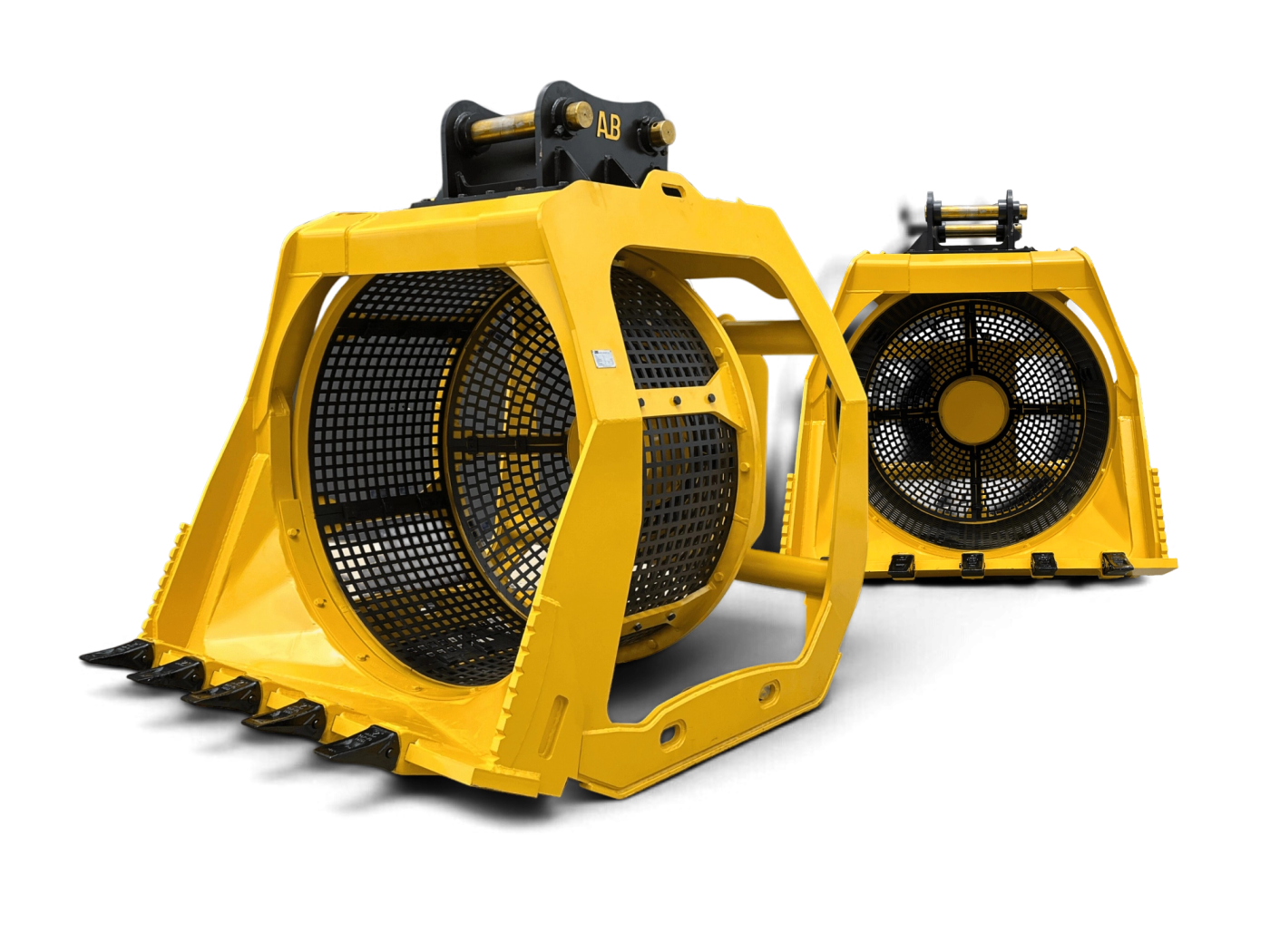

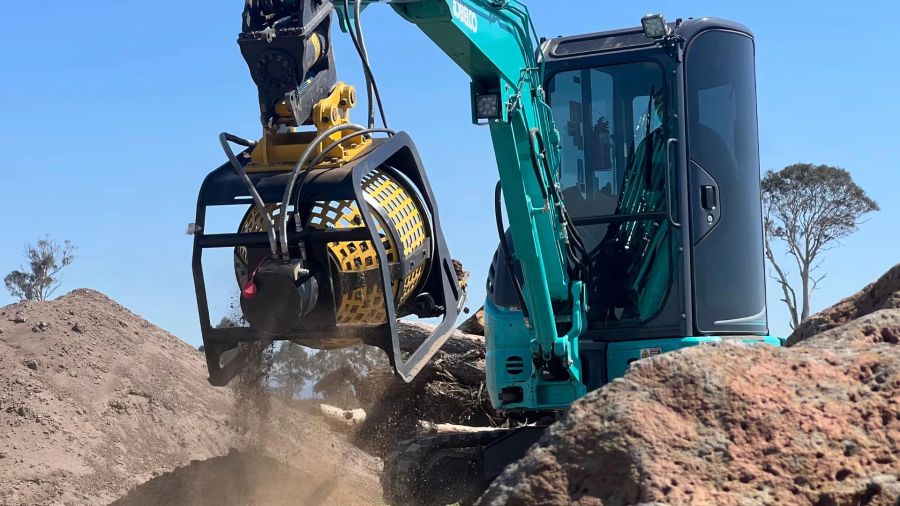

Rotary Screening Bucket
Available for 1.5 – 50T
Grease-free drive. Screens change on site.
Starting from
$8,975
Or with AB 0% Finance from $49/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

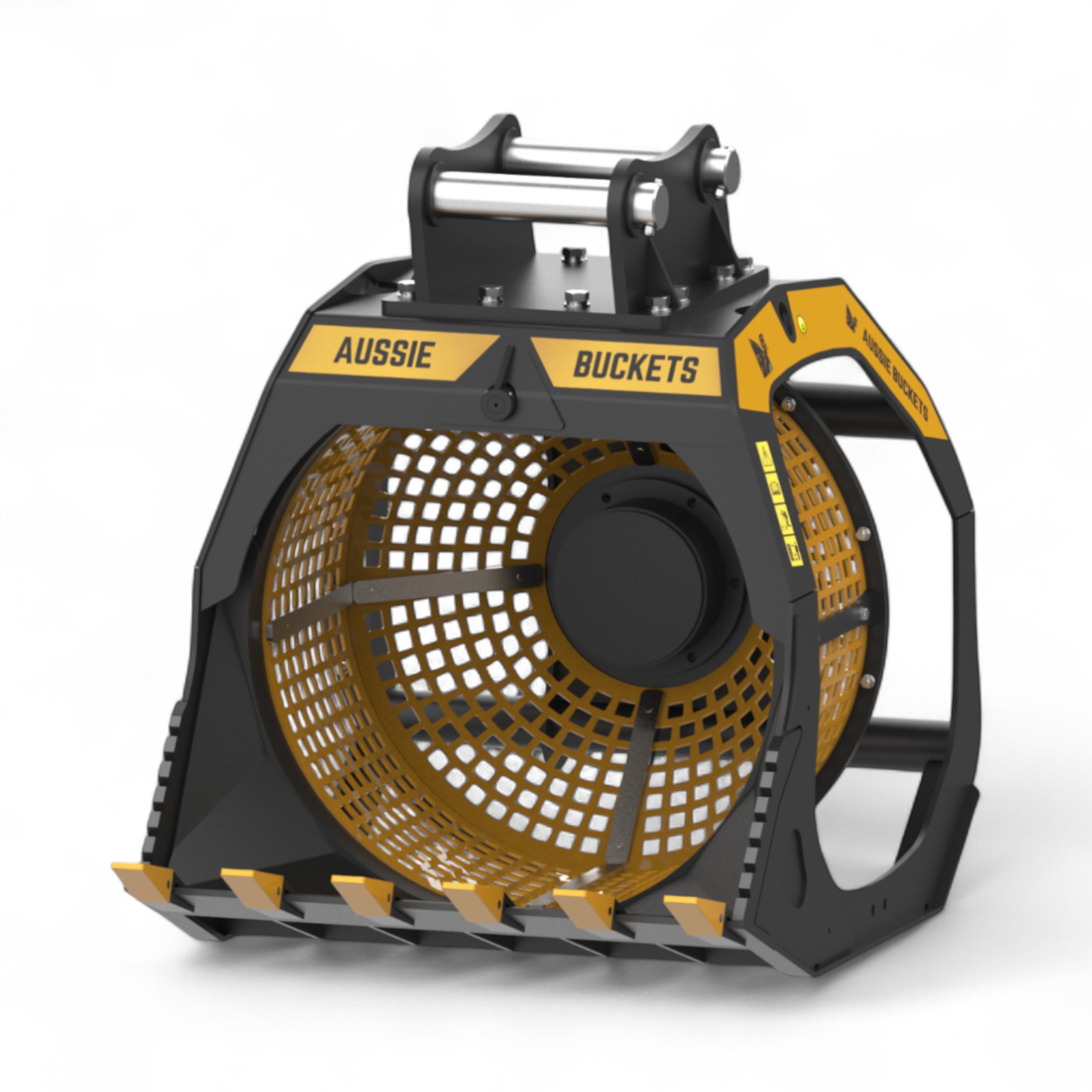

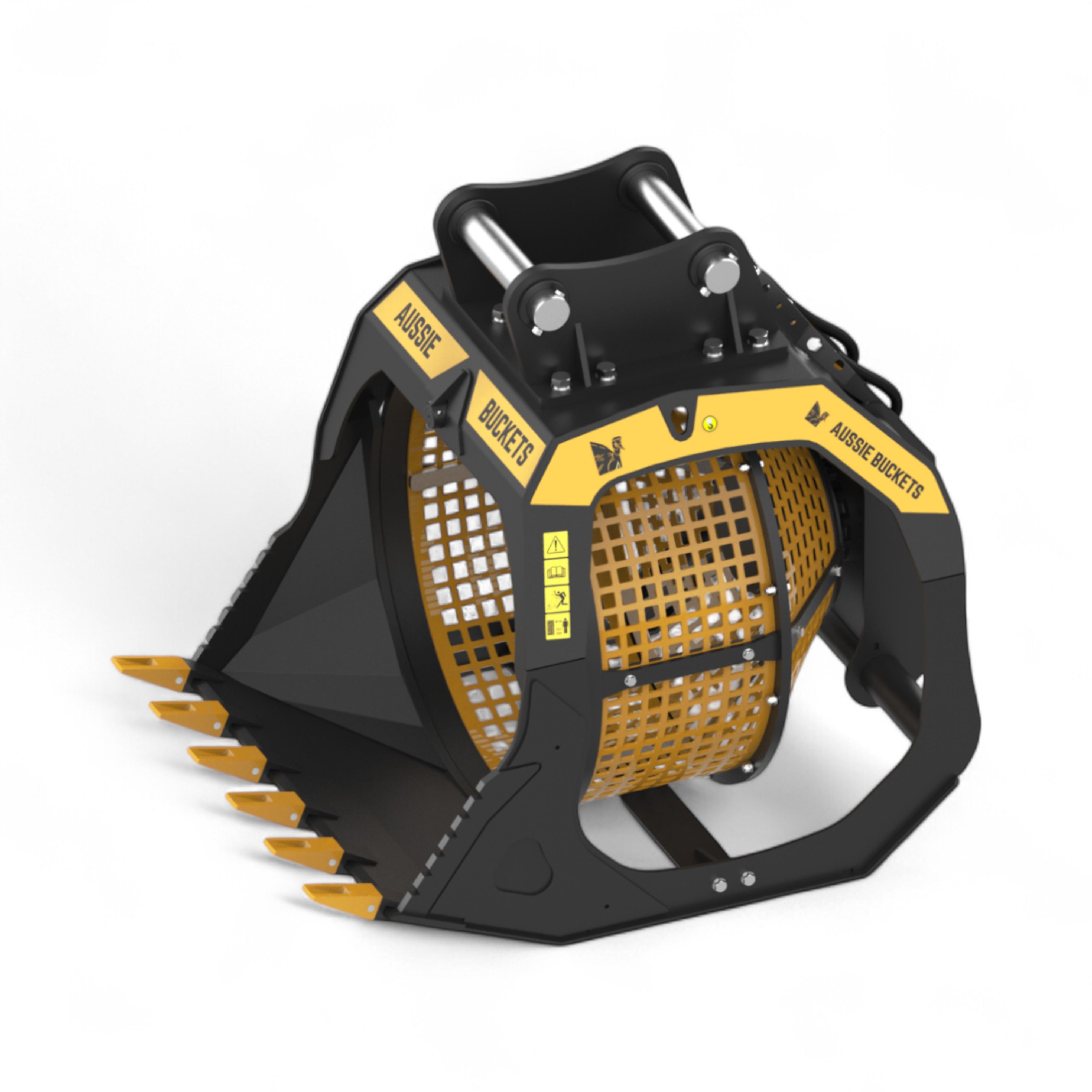

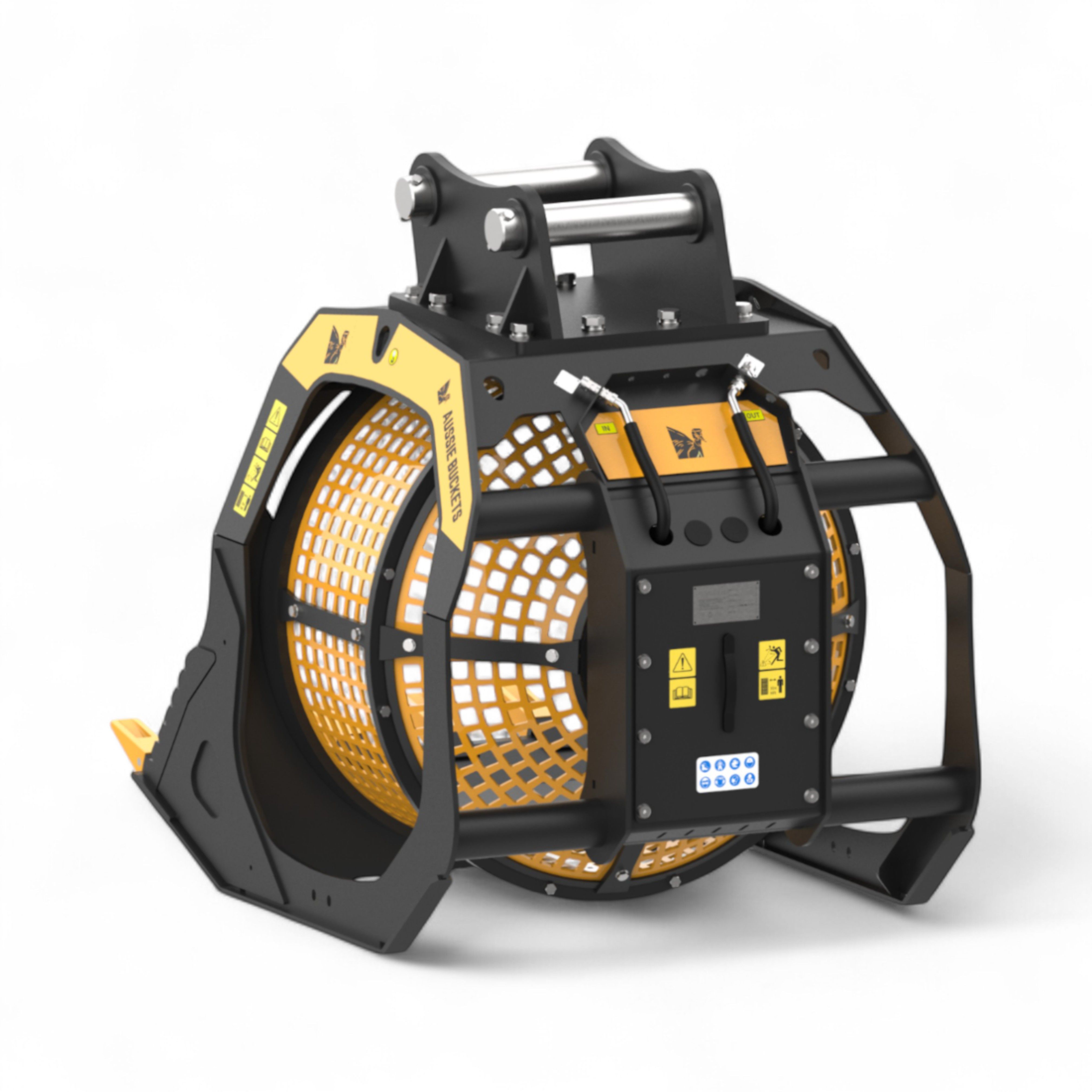

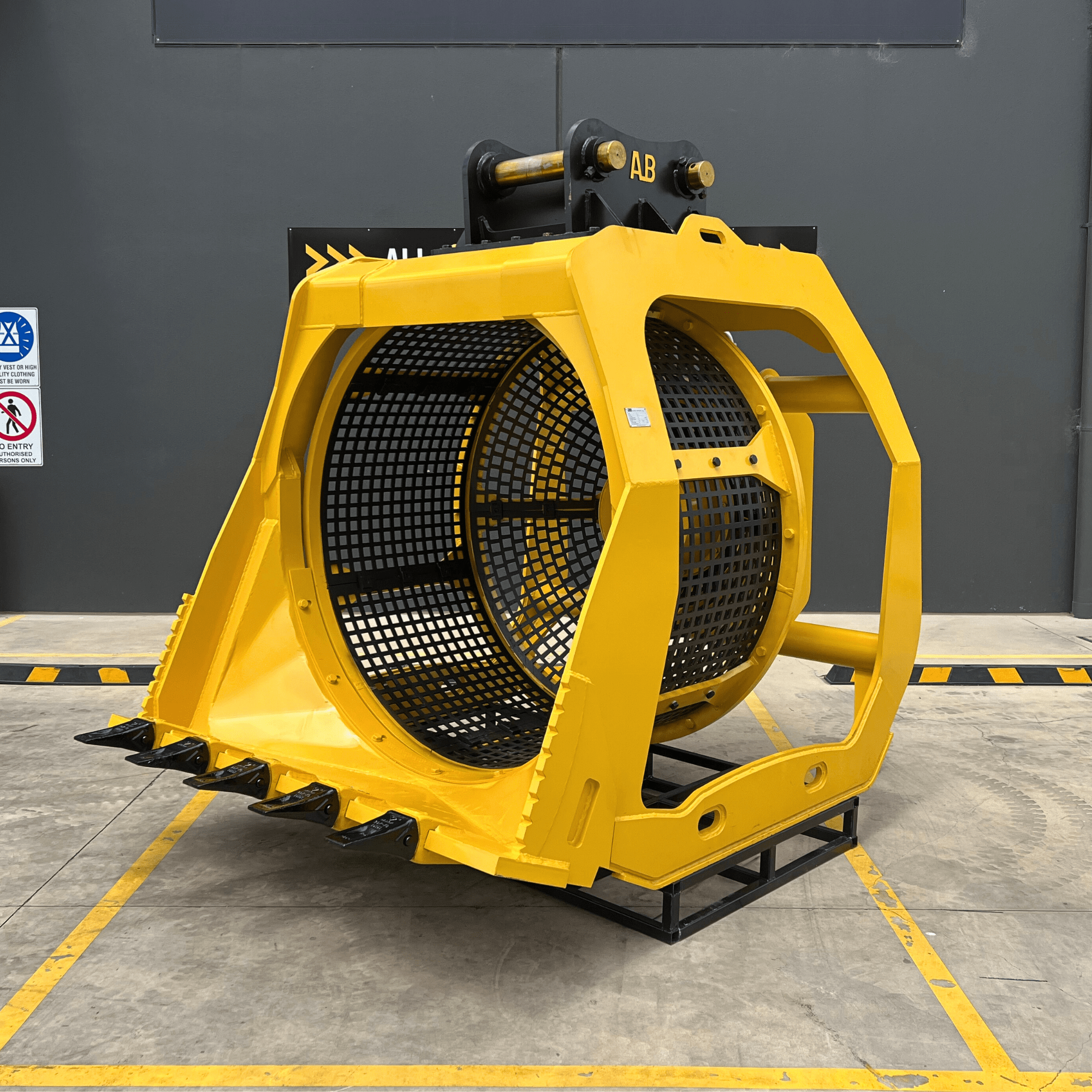

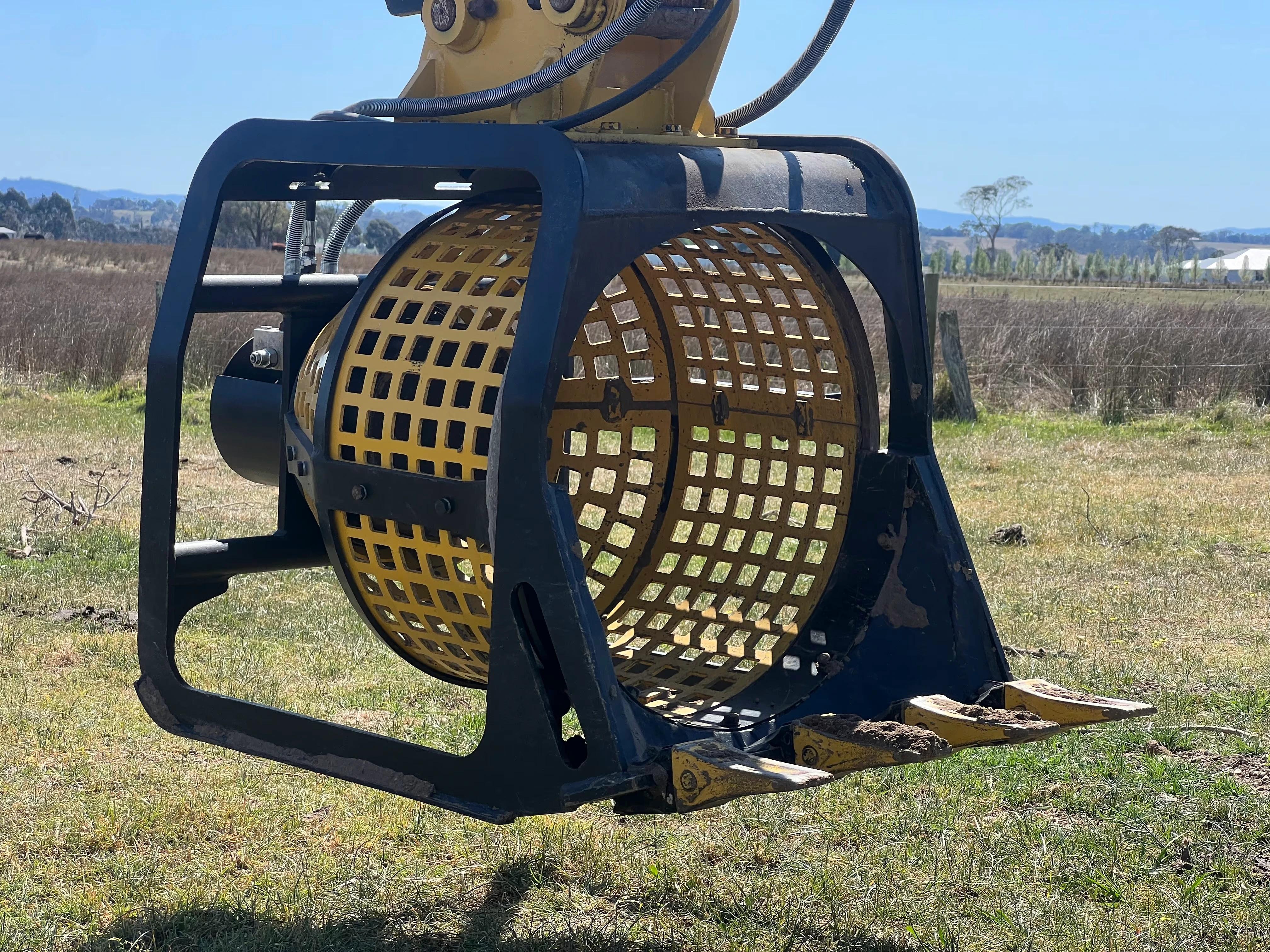

An excavator screening bucket for 1.5–50 tonne machines. Produces a fine and a coarse grade from the same material, with interchangeable screens that swap on site and a drive with no grease points.
Gallery
2 videos · 17 photos
Videos
02

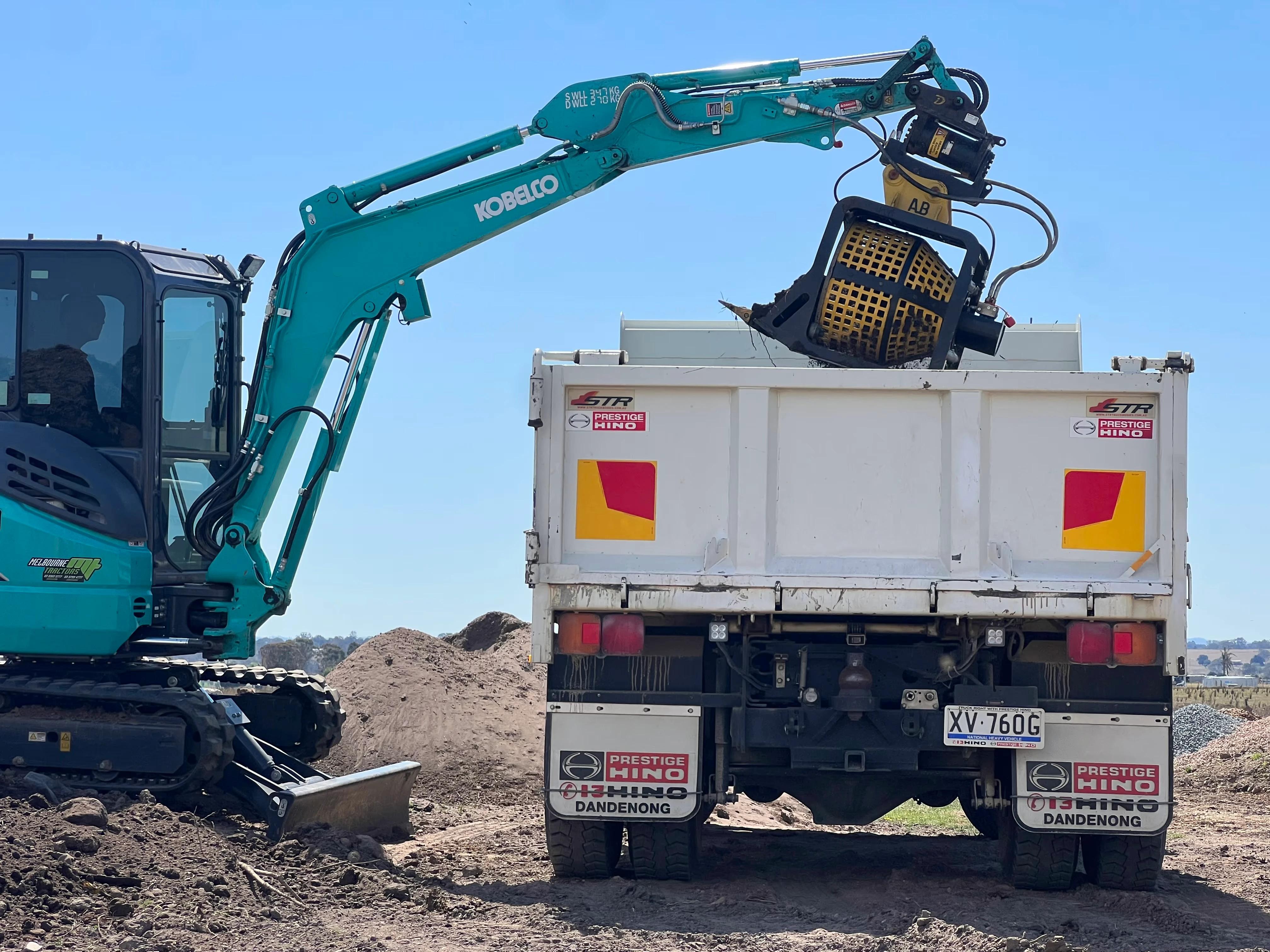

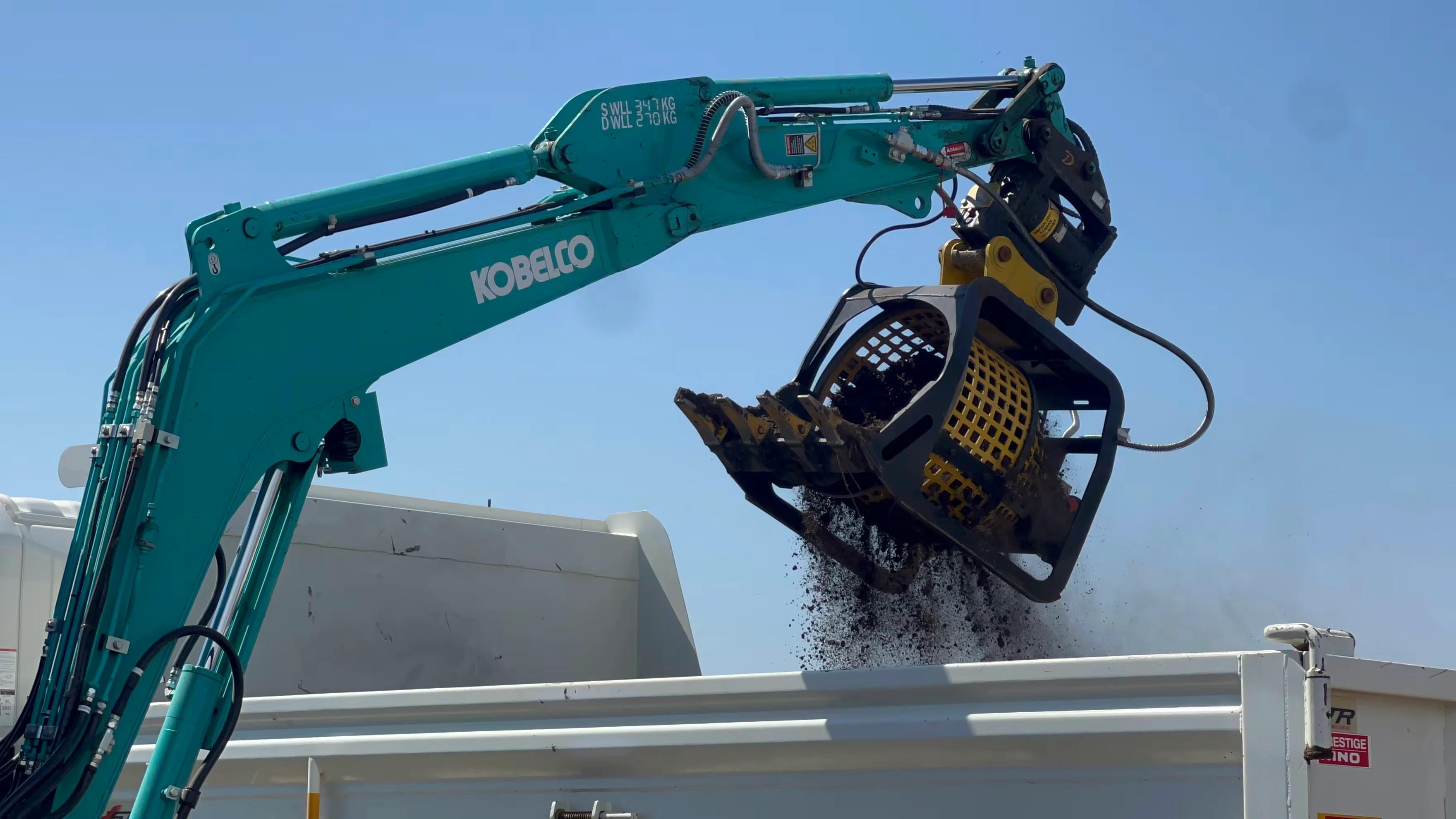

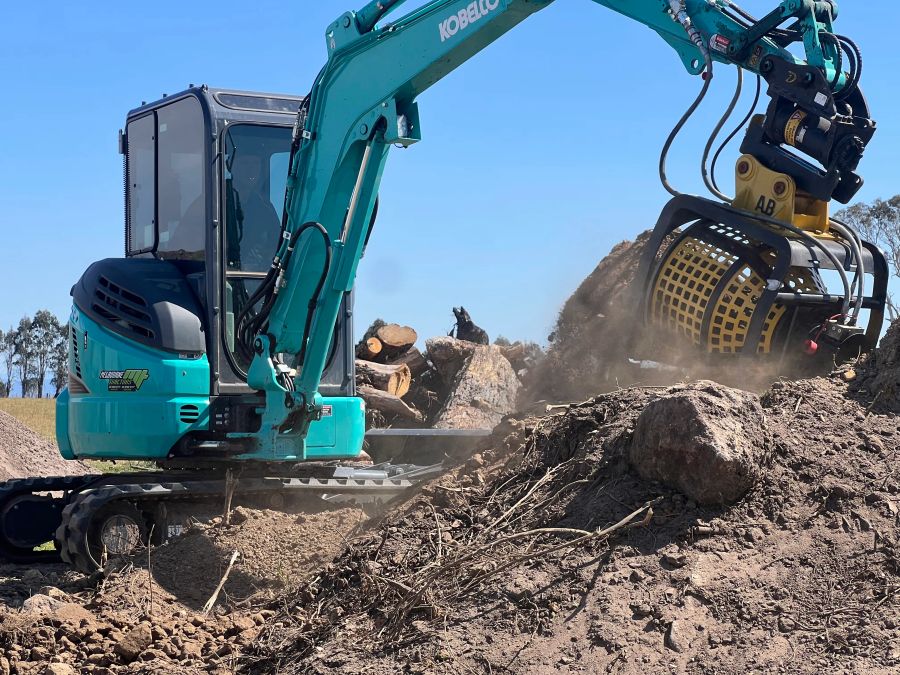

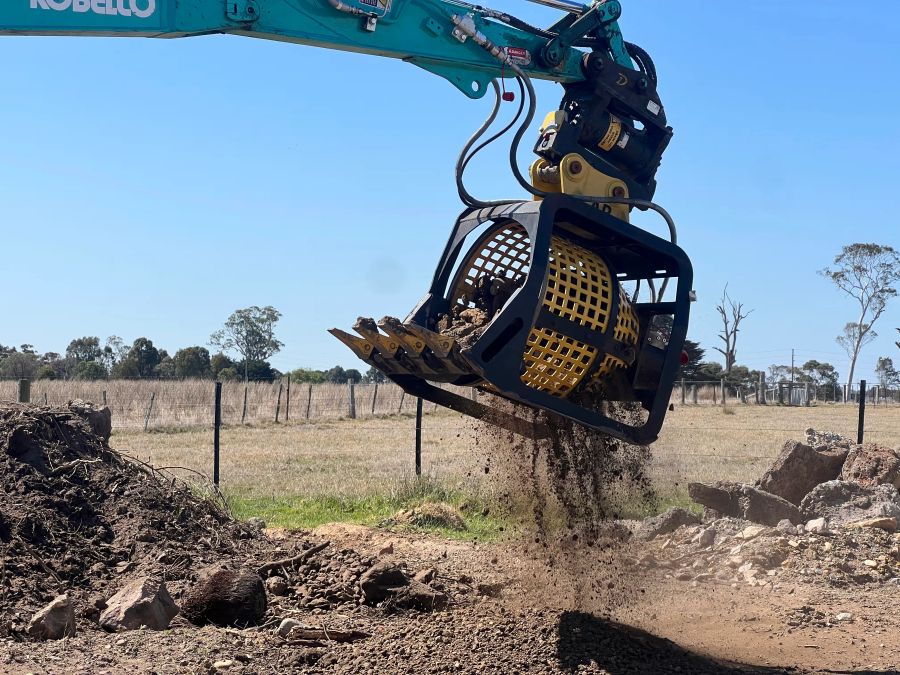

In action
07
Product
10
The difference
EveryEveryAussieAussieBucketsBucketsrotaryrotaryscreeningscreeningbucketbucketisispurpose-builtpurpose-builtforforthethemachinemachineyouyourunrunandandprecision-engineeredprecision-engineeredforforturningturningwhatwhatisisalreadyalreadyononyouryoursitesiteintointoproductproductratherratherthanthanpayingpayingtotocartcartititawayawayandandbuybuyititback.back.AvailableAvailableforfor1.5–50T1.5–50Tmachinesmachinesacrossacrosssevensevenbuilds,builds,withwithscreensscreensfromfrom1010toto120120mmmmthatthatchangechangeononsite.site.
WhatWhatdistinguishesdistinguishesourourRotaryRotaryScreeningScreeningBucketBucketisisitsits500HBW-grade500HBW-gradesteel,steel,interchangeableinterchangeableNM400NM400screens,screens,waterproofwaterproofhydraulichydraulicmotor,motor,replaceablereplaceableskirtingskirtingandandlifetimelifetimegrease-freegrease-freeoperation.operation.ComparedComparedtotootherotherscreeningscreeningbucketsbucketsononthethemarket,market,oneonebucketbucketproducesproducesaafinefinetopsoiltopsoilgradegradeandandaacoarsecoarseaggregateaggregategradegradeininthethesamesameshift,shift,ononaadrivedrivewithwithnonogreasegreasepoints.points.
AllAllRotaryRotaryScreeningScreeningBucketsBucketsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.

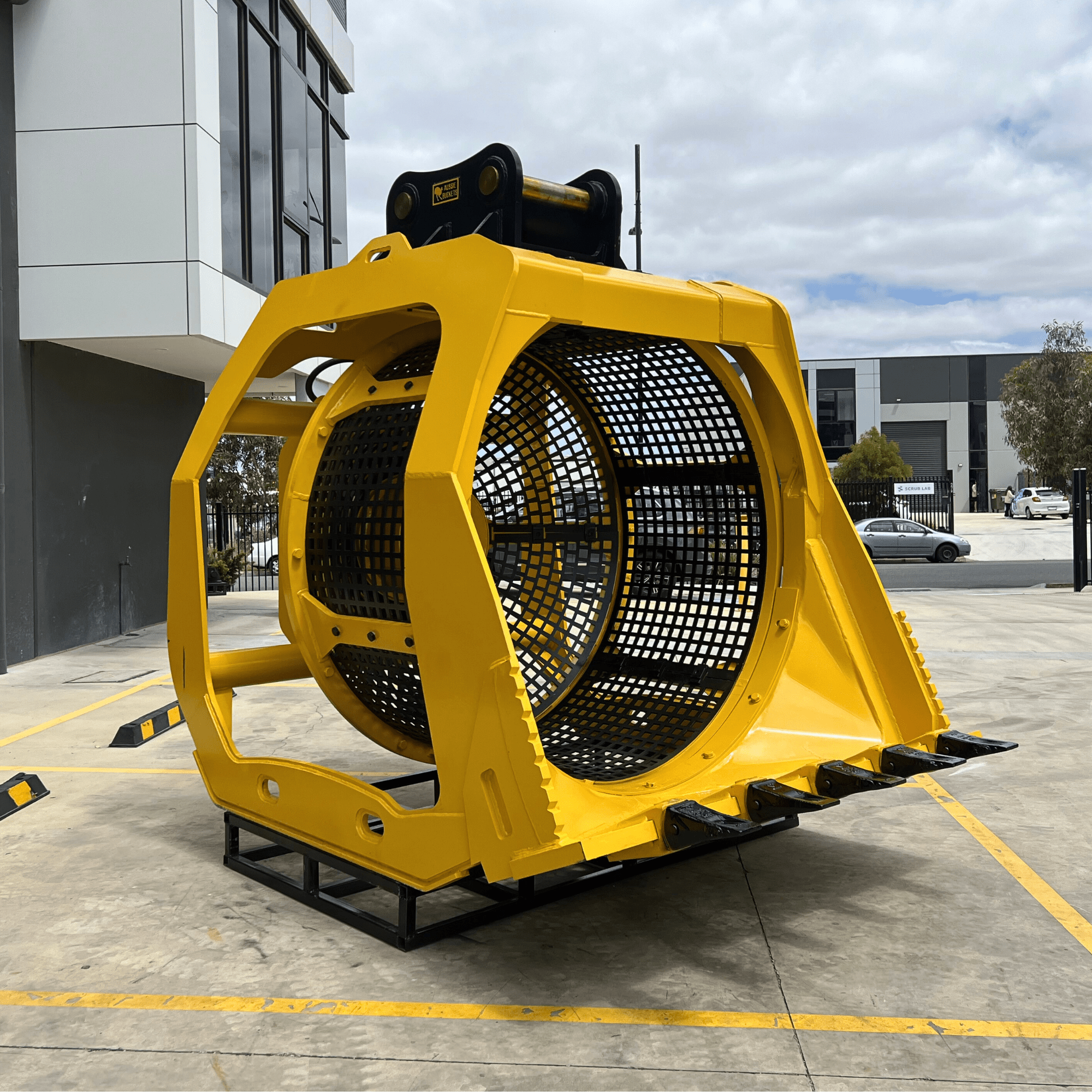

You might know it as a drum screener or soil screening bucket. Built for continuous screening of topsoil, sand, compost and demolition fines. Features 500HBW-grade steel, a waterproof hydraulic motor and interchangeable NM400 screens, and ships with hoses, couplers, one set of screens and replaceable chisel teeth.
Features

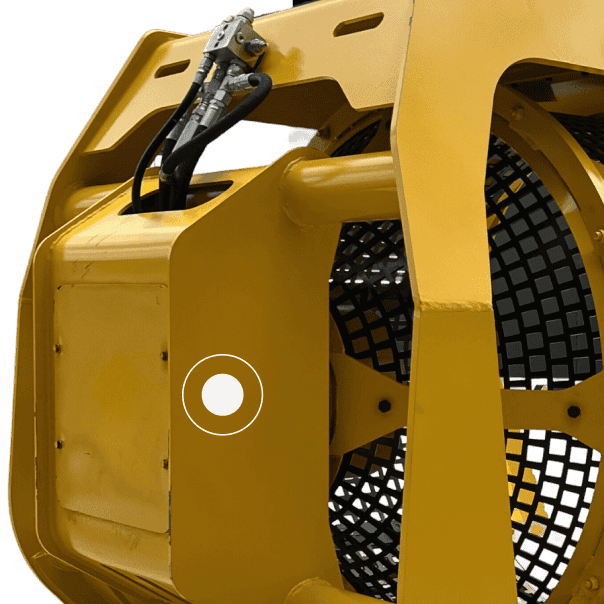

Lifetime grease-free operation
A single central support roller with an integrated greasing circuit carries the drum and turns it smoothly for life, with no grease nipple to draw grit into the bearing.

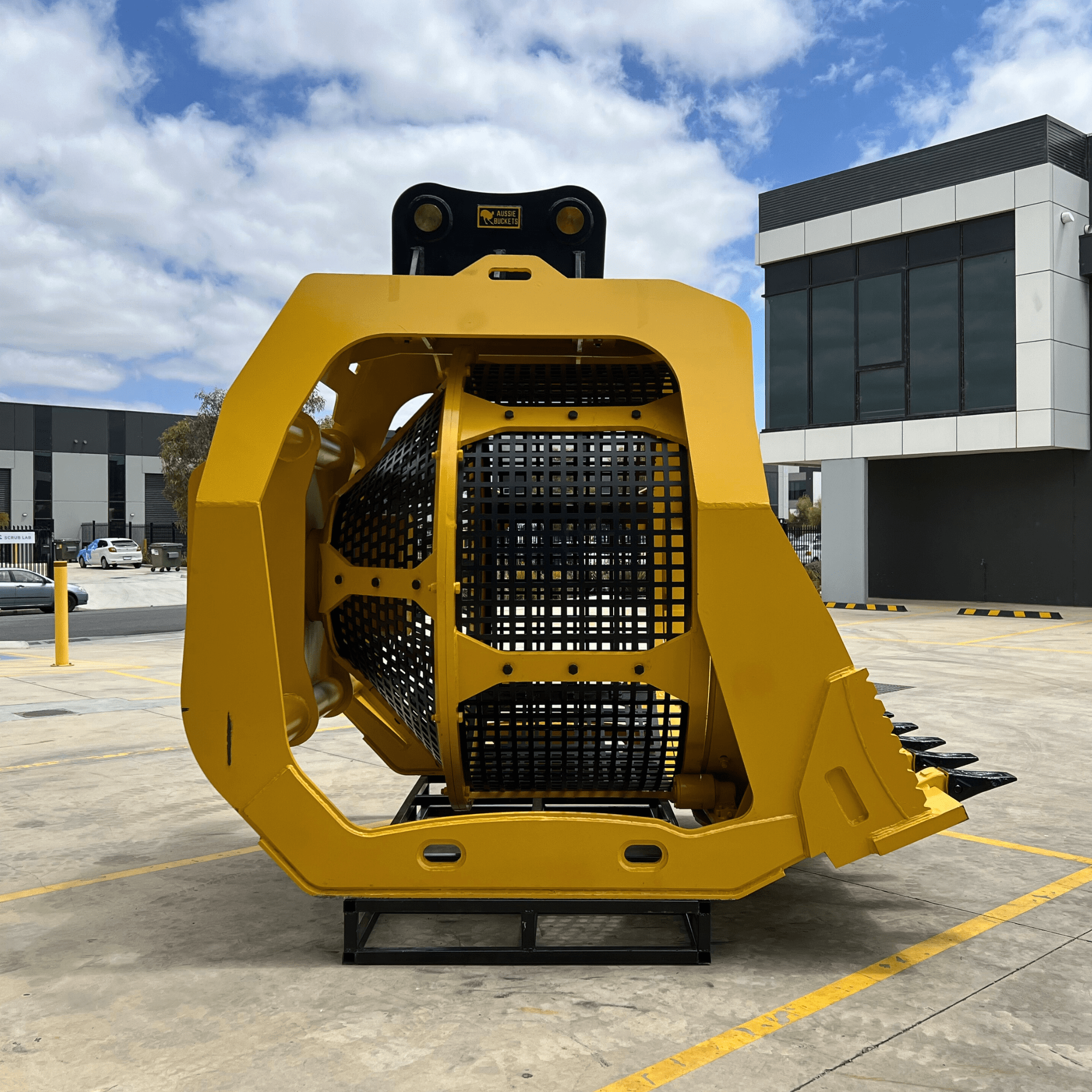

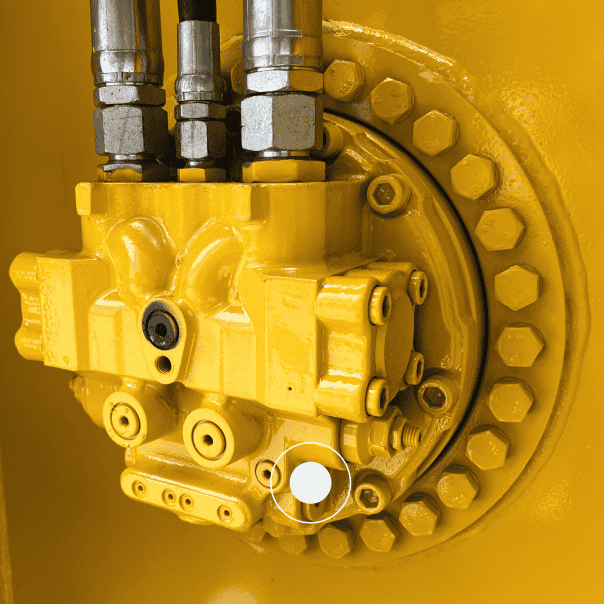

Interchangeable screen system

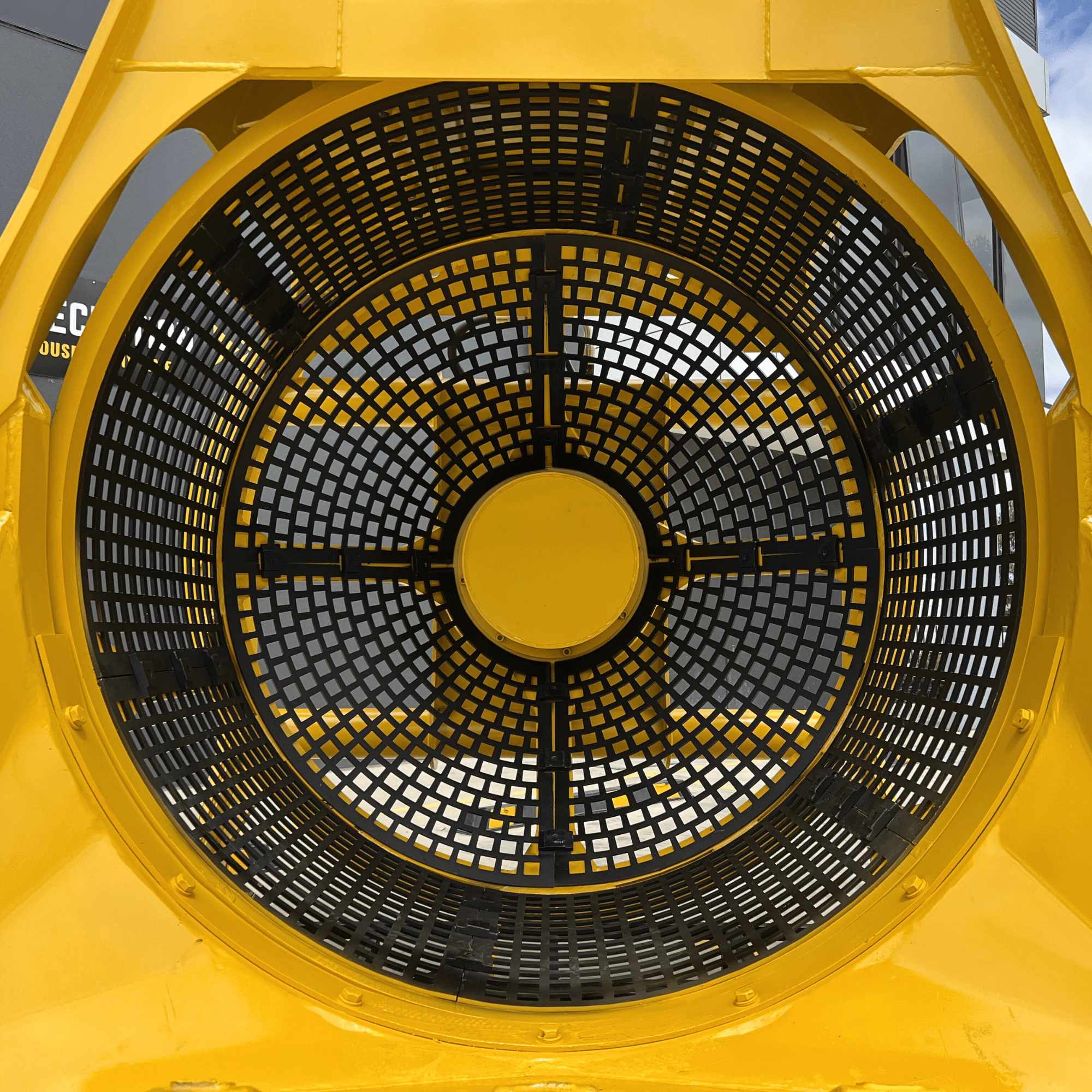

Laser-cut conical NM400 screens from 10 to 120 mm swap on site to change the output grade, with sizes below 10 mm available to order. One bucket, several products.

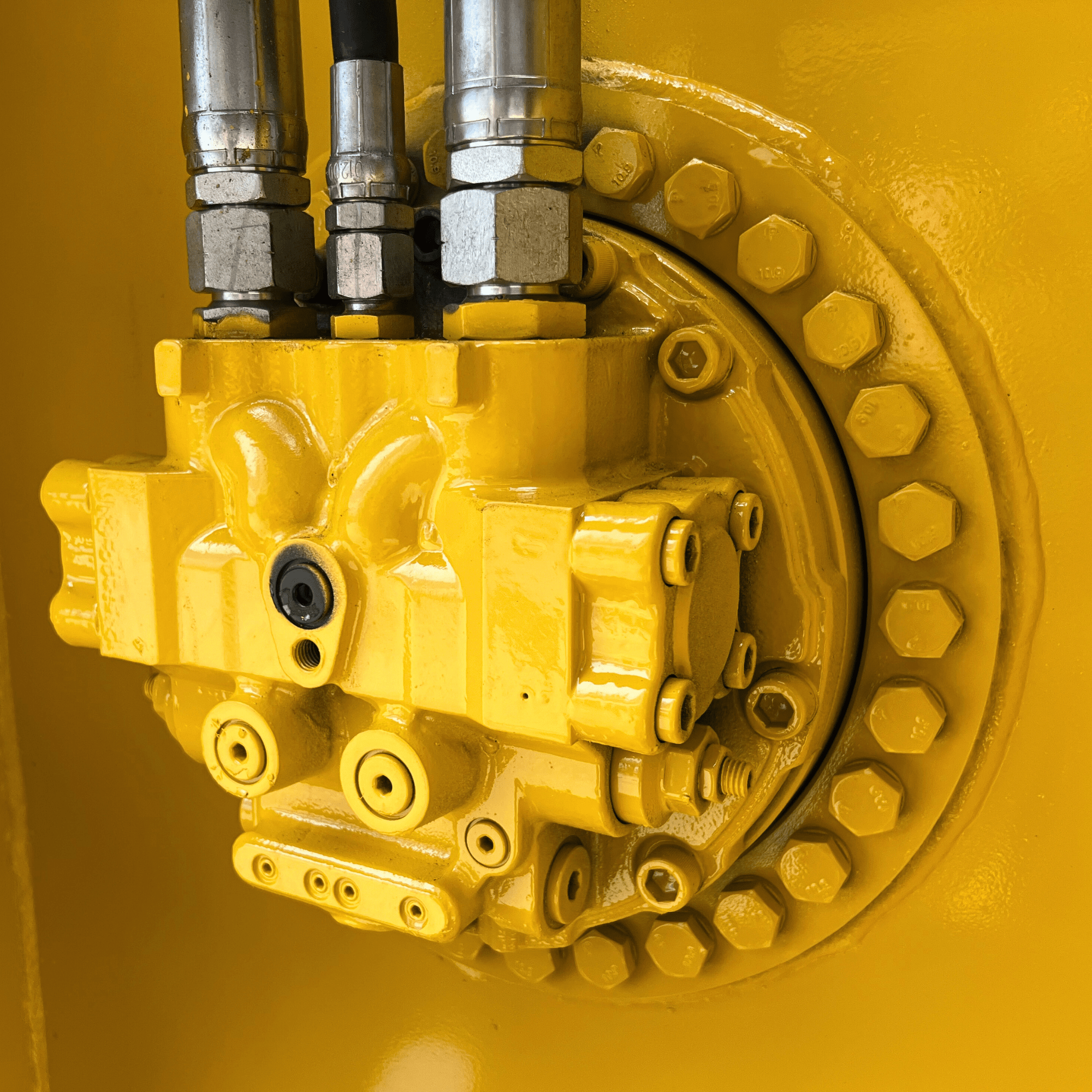

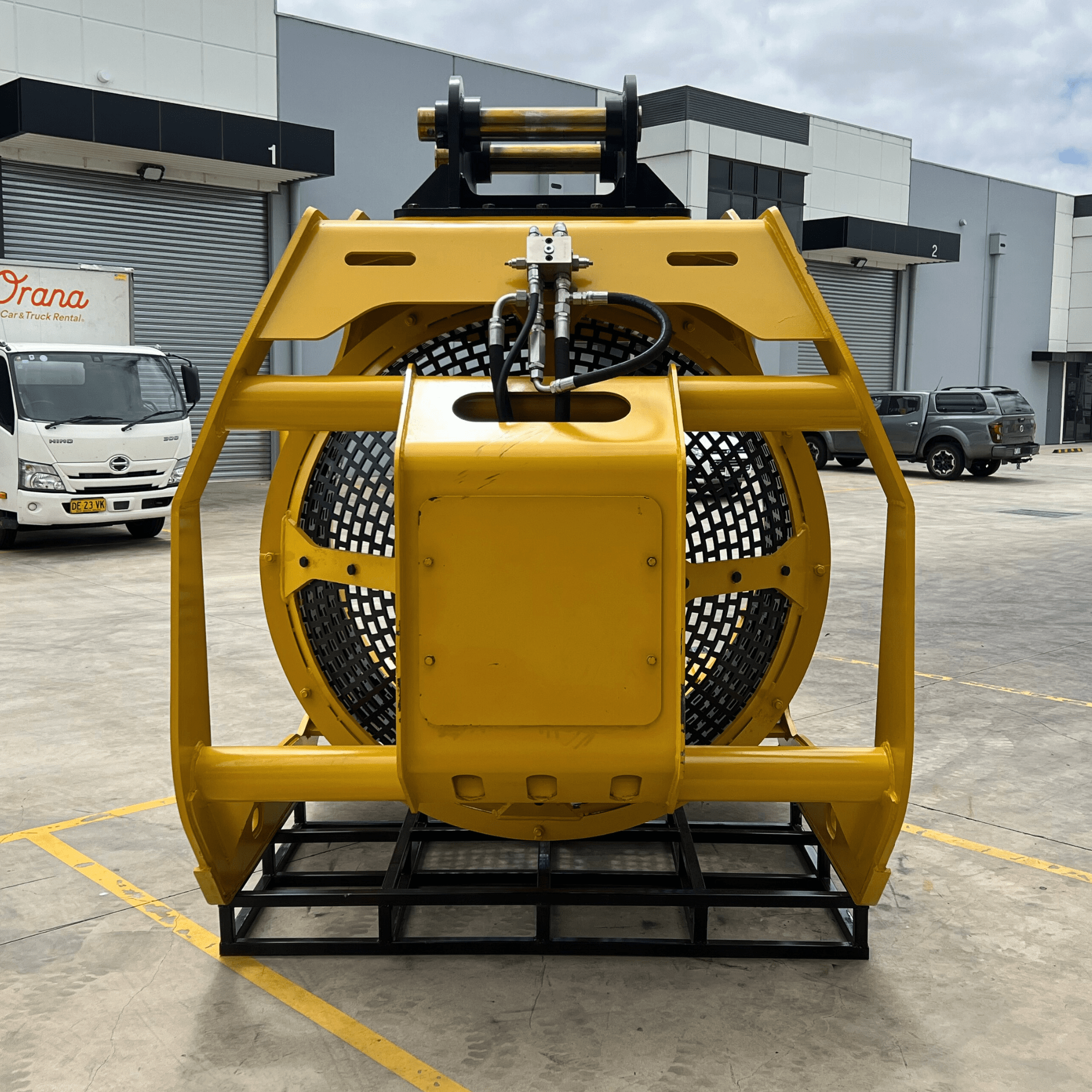

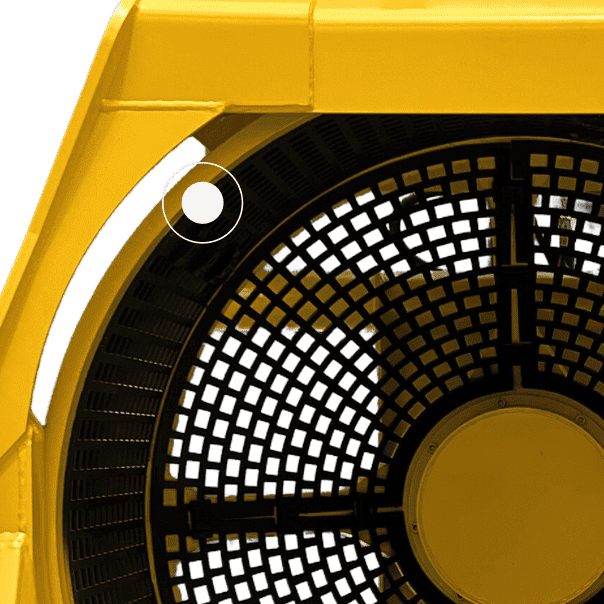

Waterproof hydraulic motor
A low-noise, fully submersible motor makes the bucket waterproof, so it screens saturated material and works in port, dam and wash plant applications without a special build.
Technical Breakdown
Seven build sizes covering 1.5 tonne to 50 tonne machines. Screen diameter, rotation speed, flow rate, pressure, available screen sizes and capacity are listed for each build.
| Excavator size(T) | Screen diameter(mm) | Rotation speed(RPM) | Flow rate(L/min) | Pressure(bar) | Screen sizes(mm) | Capacity(m³) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 1.5 – 3 | 500 | 35 | 20 | 120 | 10 – 60 | 0.095 | 158 |
| 3.5 – 5.5 | 592 | 60 | 30 | 150 | 10 – 60 | 0.1 | 245 |
| 6 – 10 | 700 | 65 | 60 | 220 | 10 – 60 | 0.25 | 530 |
| 11 – 18 | 1,005 | 65 | 80 | 230 | 10 – 120 | 0.4 | 1,020 |
| Excavator size(T) | Screen diameter(mm) | Rotation speed(RPM) | Flow rate(L/min) | Pressure(bar) | Screen sizes(mm) | Capacity(m³) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 19 – 28 | 1,322 | 65 | 110 | 250 | 10 – 120 | 1.0 | 1,920 |
| 29 – 38 | 1,470 | 65 | 110 | 250 | 10 – 120 | 1.54 | 2,430 |
| 40 – 50 | 1,700 | 65 | 120 – 130 | 250 | 10 – 120 | 2.3 | 3,400 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Frequently asked questions
What is an excavator screening bucket? An excavator screening bucket is an attachment with a powered rotating drum that screens soil, sand and aggregate into graded product as it turns. It is also called a rotary screening bucket, drum screener or flip screen bucket. Aussie Buckets rotary screening buckets cover 1.5 to 50 tonne machines across seven builds.
What can a screening bucket process? Topsoil, sand, gravel, compost, demolition fines and contaminated fill. It separates by size into a fine grade and an oversize, which is what turns site spoil into usable product. Wet and sticky material screens more slowly than dry, so allow for that when specifying a build.
Screening bucket or sieve bucket: which do I need? A rotary screening bucket has a powered drum and produces a consistent, graded product from bulk material. A sieve bucket is a static grid bucket with no hydraulics, for separating rock and rubble from spoil as you dig. Graded product takes the screening bucket; sorting oversize out of a dig takes the sieve bucket.
What size screening bucket fits my excavator? Seven builds cover 1.5 to 50 tonne machines, from a 500 mm drum at 0.095 m³ to a 1,700 mm drum at 2.3 m³. Hydraulic flow, not weight alone, decides which build a machine can drive at full drum speed. Send your machine make, model and auxiliary flow figures and we will match the bucket to the circuit.
Can a screening bucket work underwater? The drive is sealed with a waterproof hydraulic motor, which suits wet and saturated material and shallow submerged work. For sustained fully submerged operation, talk to a specialist about the site first, because depth and duration change what should be specified, and we would rather confirm than assume.
Does a rotary screening bucket need greasing? No. The Aussie Buckets drive is grease-free for its lifetime. In wet, gritty screening work a grease point is the usual failure path, because it draws contamination into the bearing. Removing it removes the maintenance step and the failure that follows a missed one.
How much does a screening bucket cost? Aussie Buckets rotary screening buckets start at $8,975. Price moves with machine class and screen specification, and 0% finance is available on approved purchases. Every bucket is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your material.
