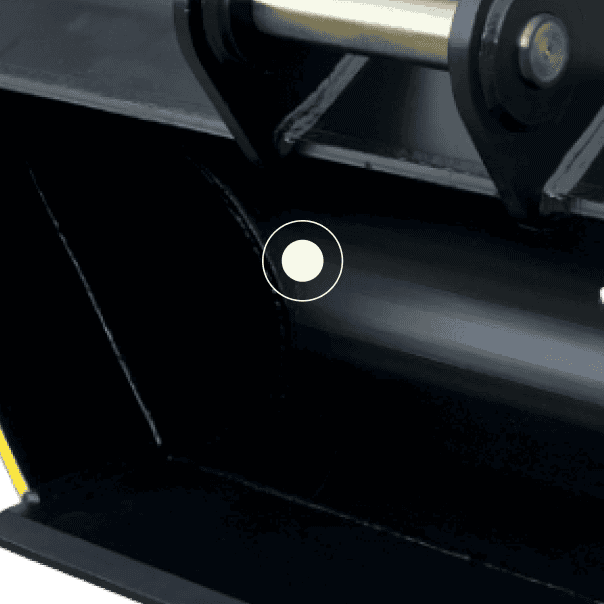

Fully customisable spec
Specify the edge (teeth or bolt-on edge), materials, height, taper and winglets to the job and its compliance requirements, so the trench is cut to spec in a single pass.

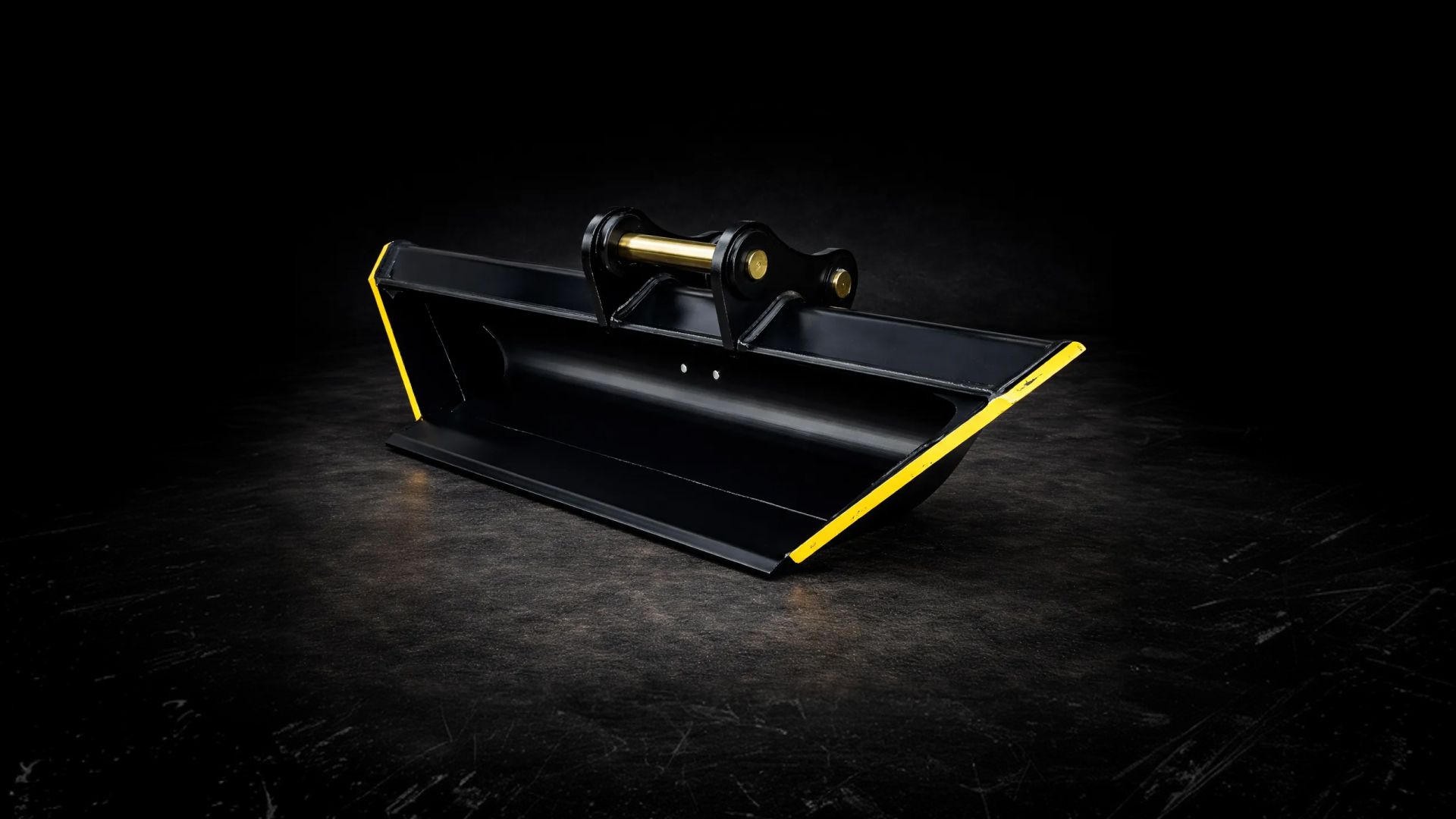

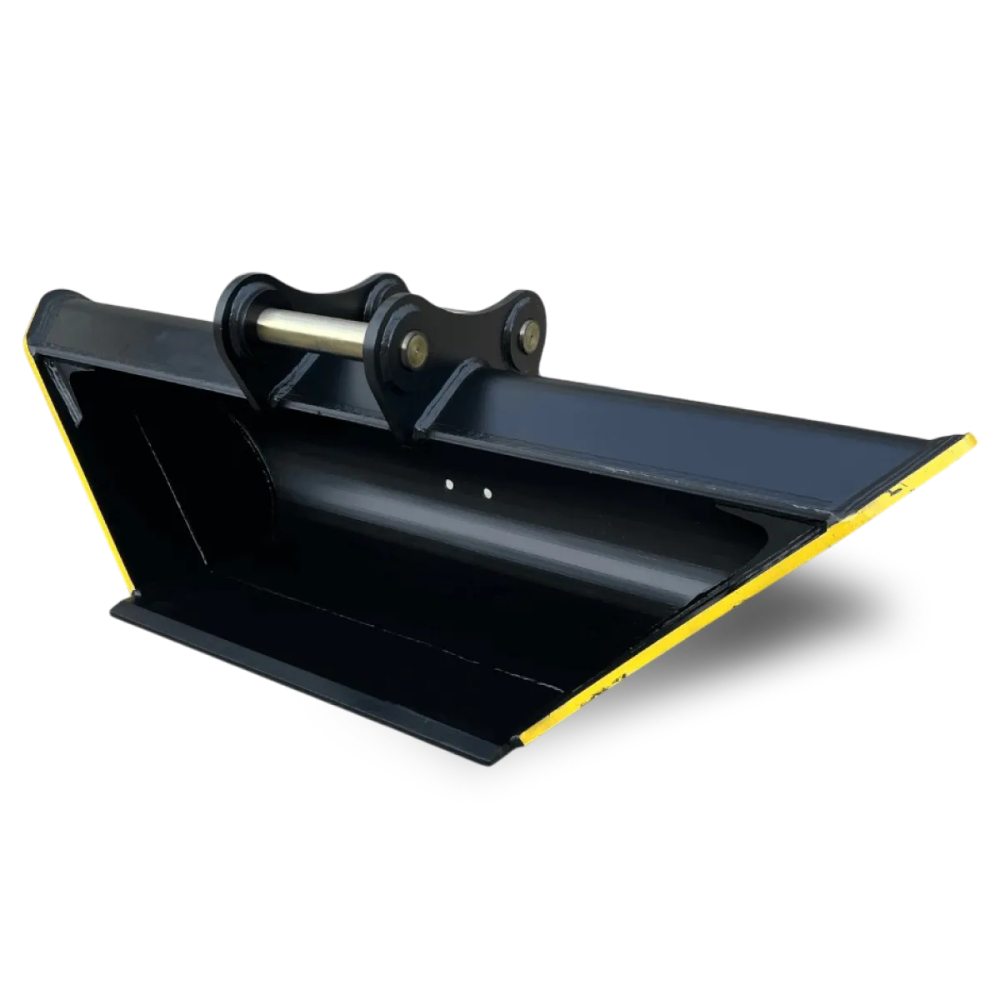

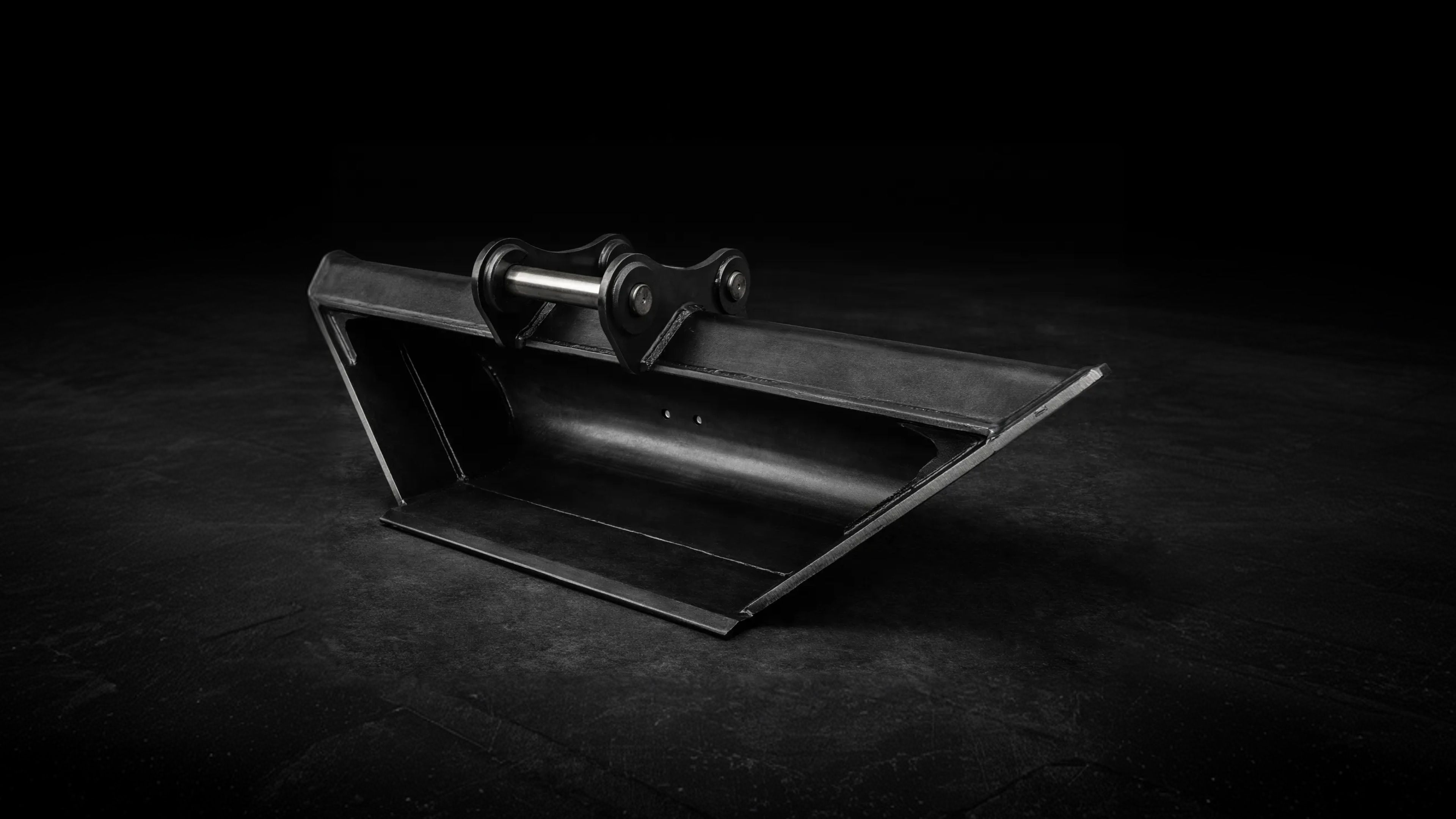

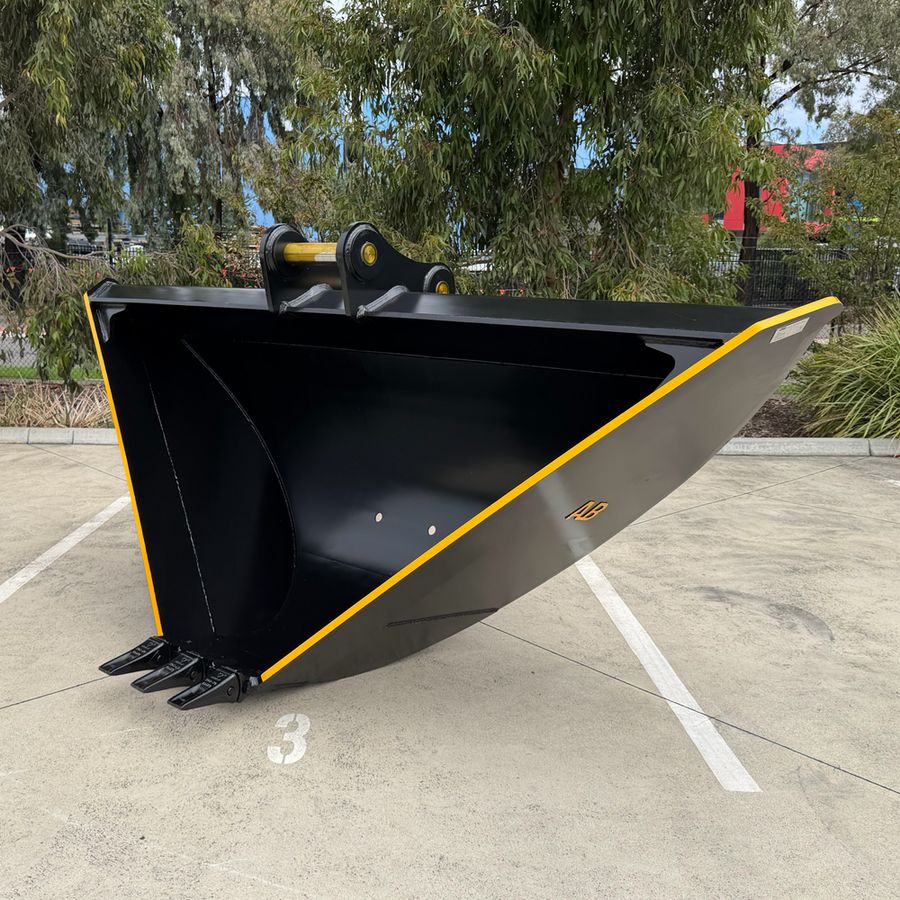

V Bucket
Available for 1.2 – 37T
Cut the trench. Hold the profile.
Starting from
$1,225
Or with AB 0% Finance from $11/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

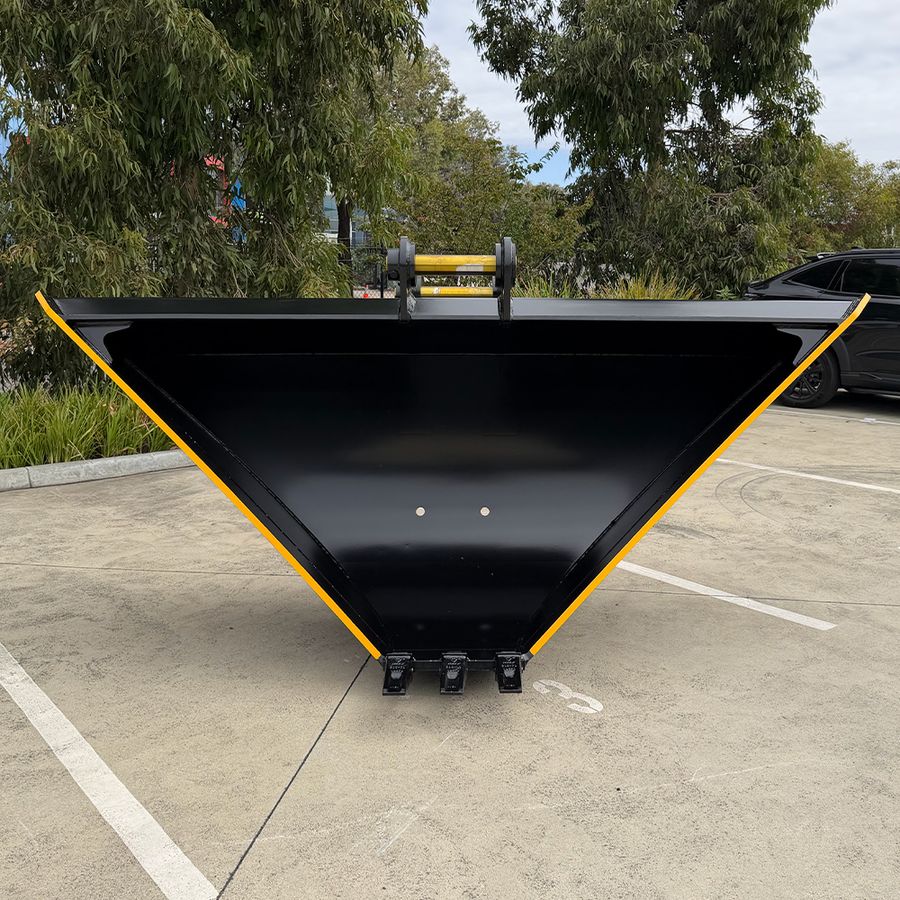

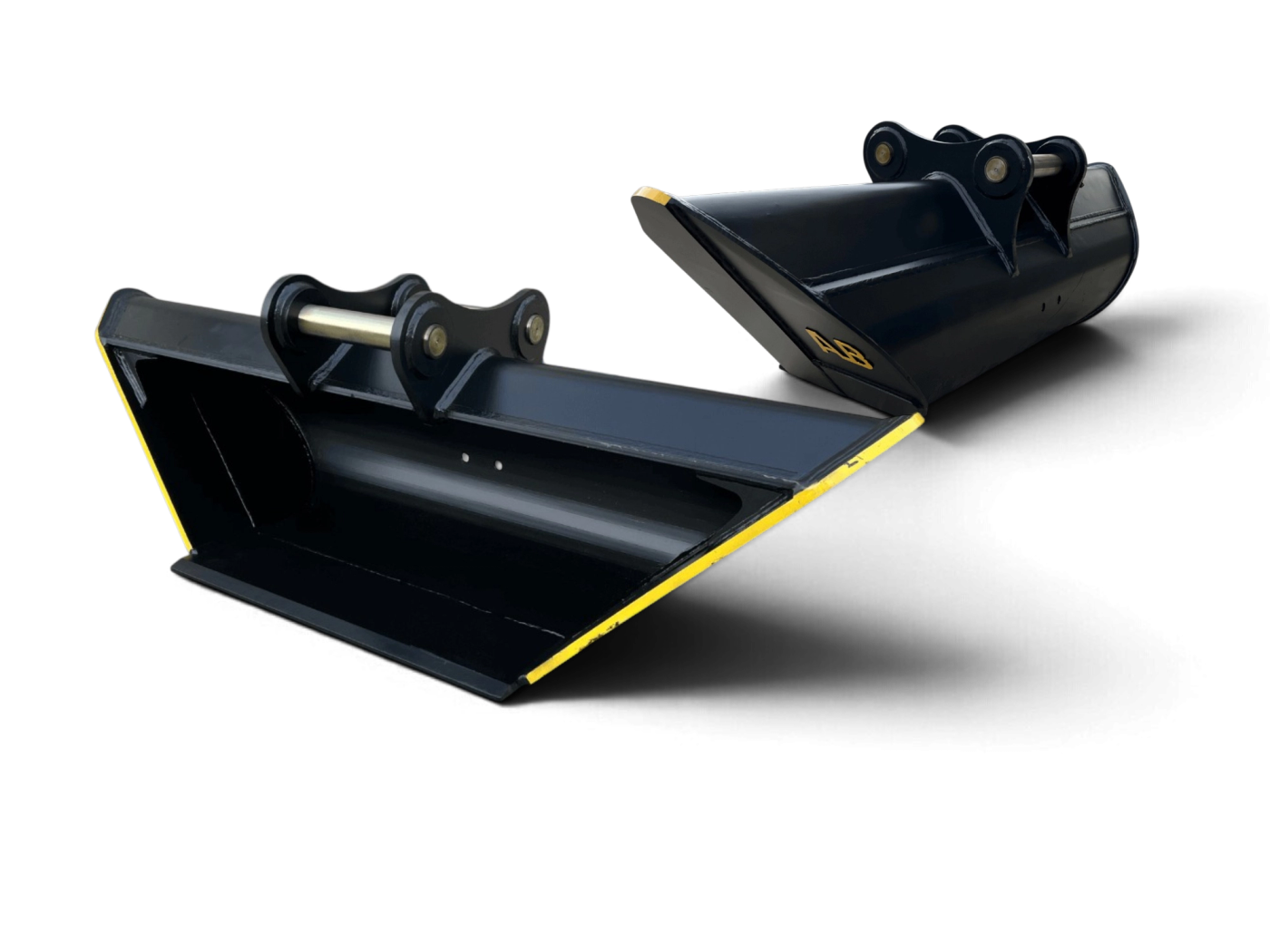

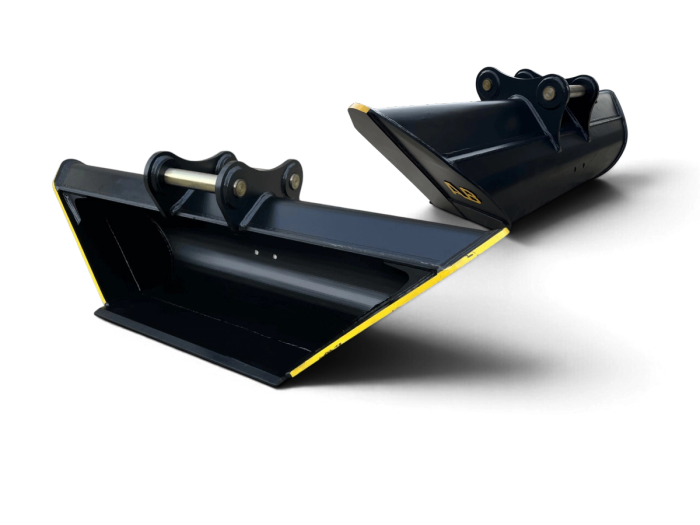

A V bucket for 1.2–37 tonne excavators with 45 or 63 degree sidewalls. Cuts trenches, table drains and pipe trenches to profile as the bucket pulls, so the drain comes out shaped rather than needing a trim pass.

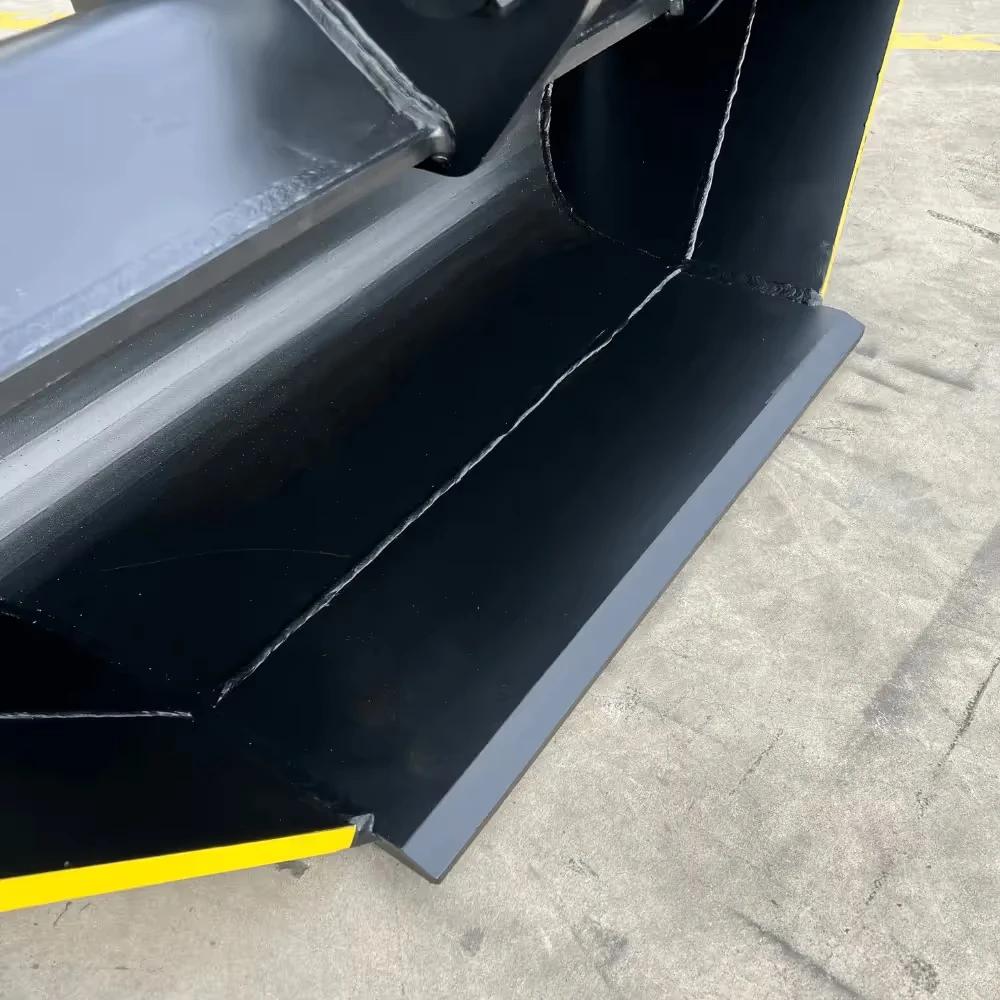

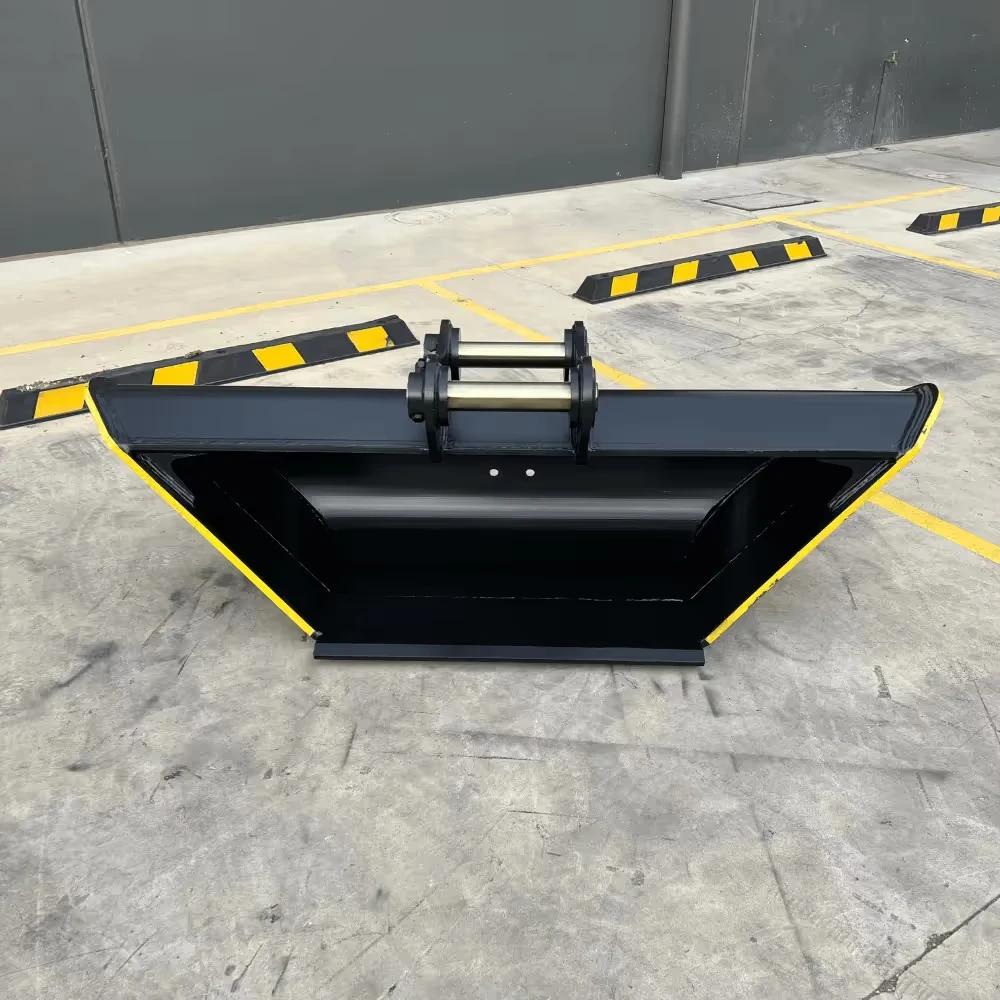

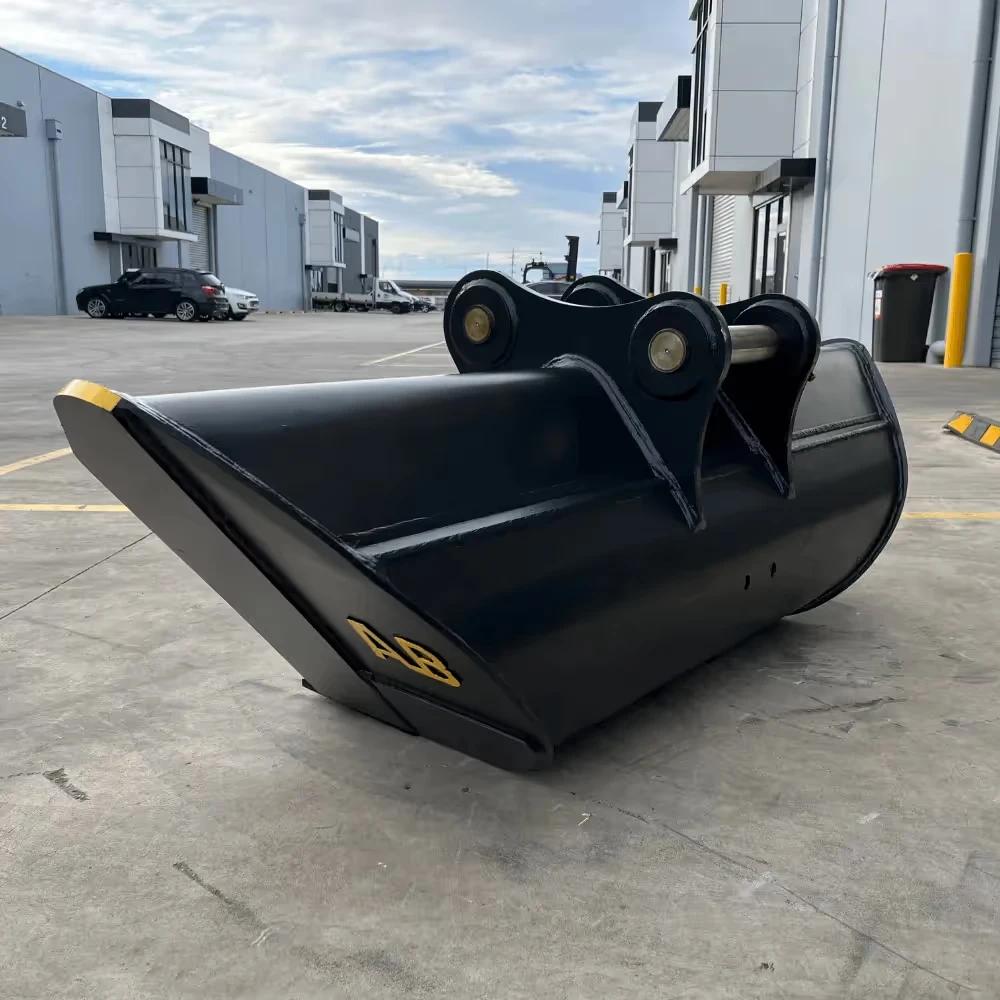

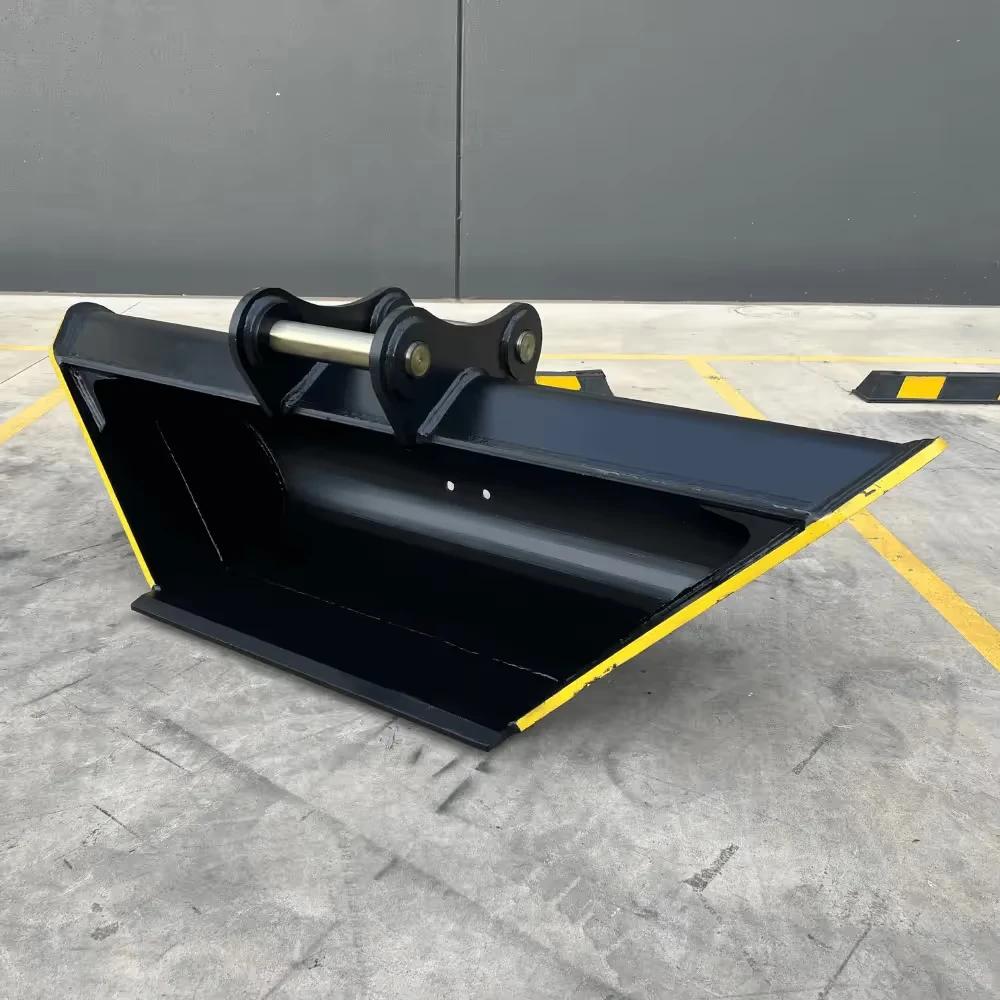

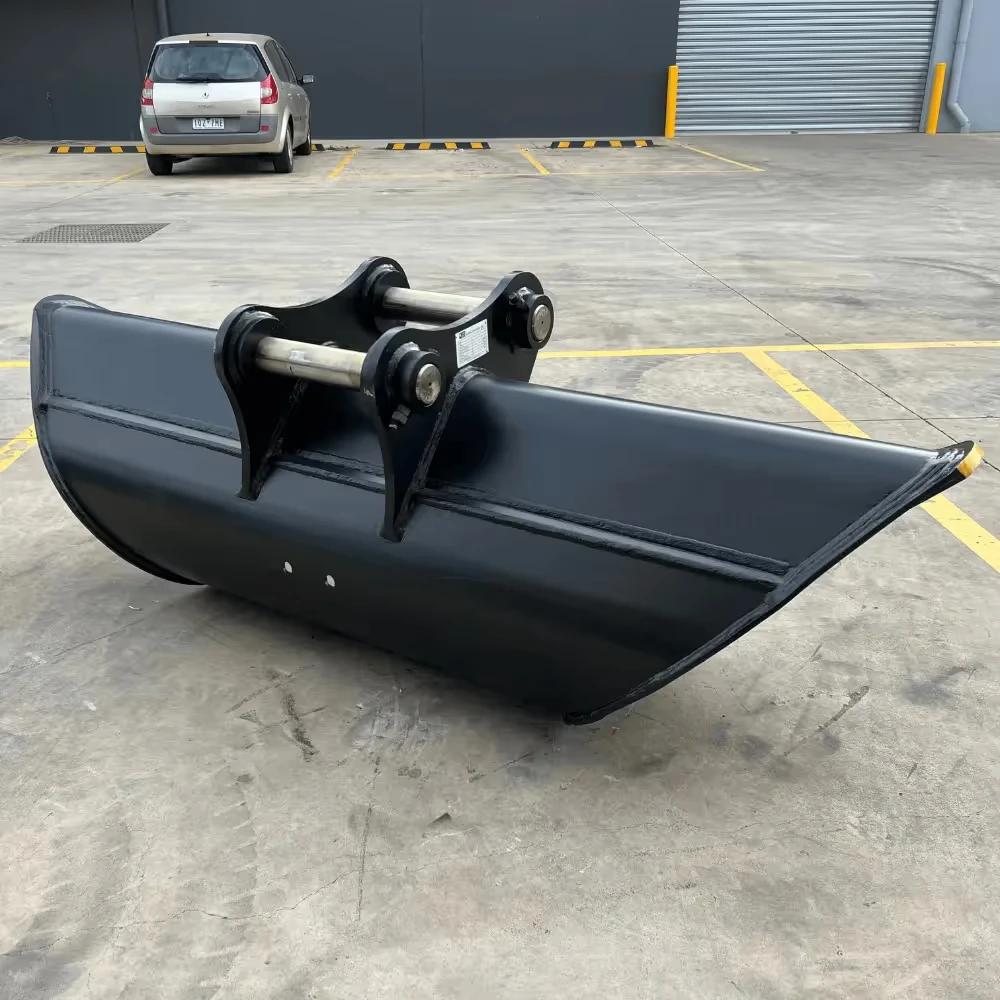

Gallery
11 photos

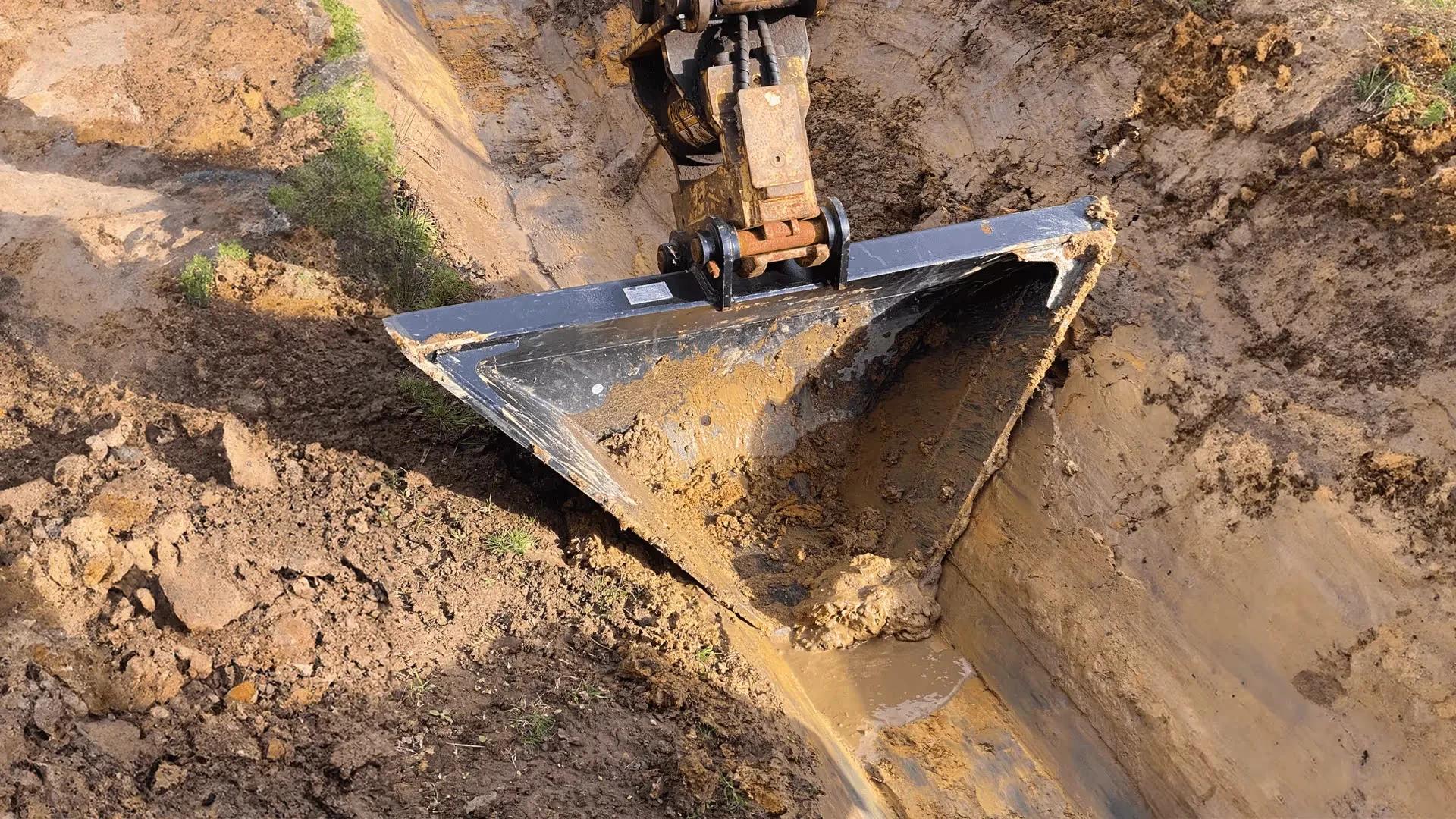

In action
01

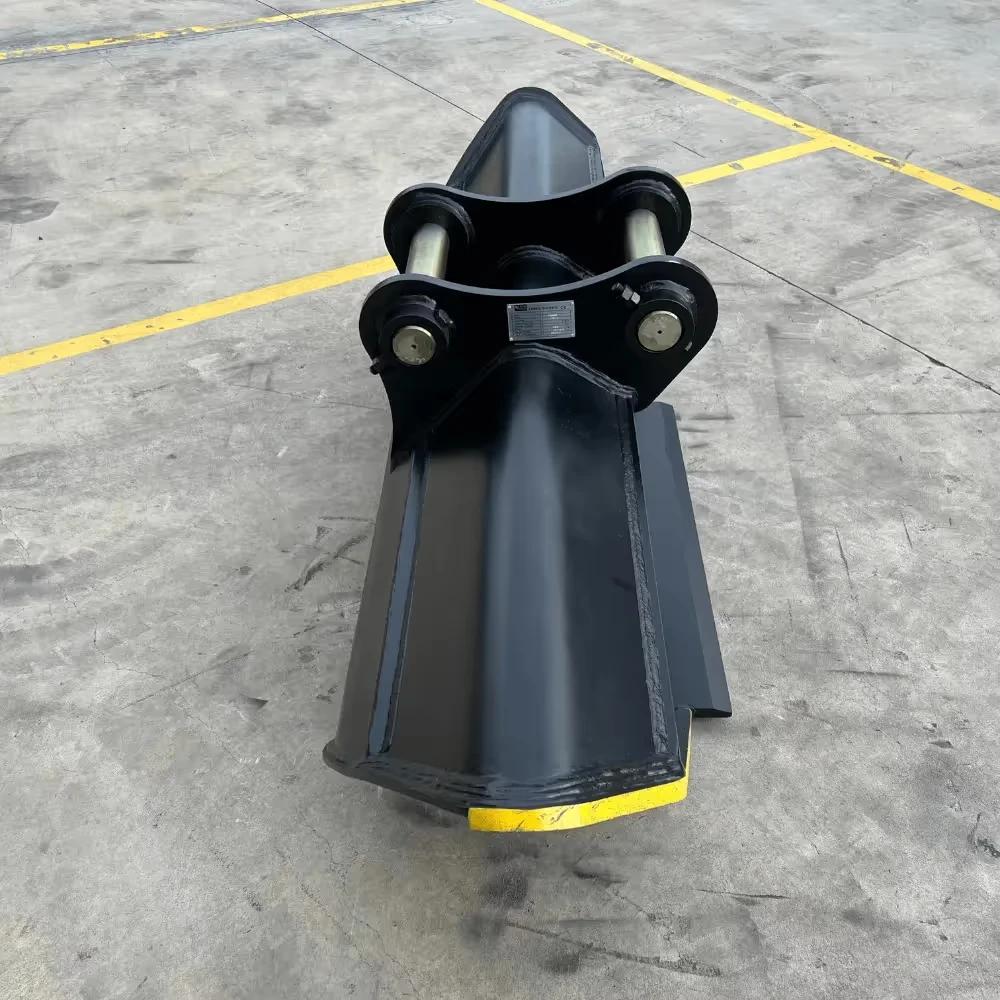

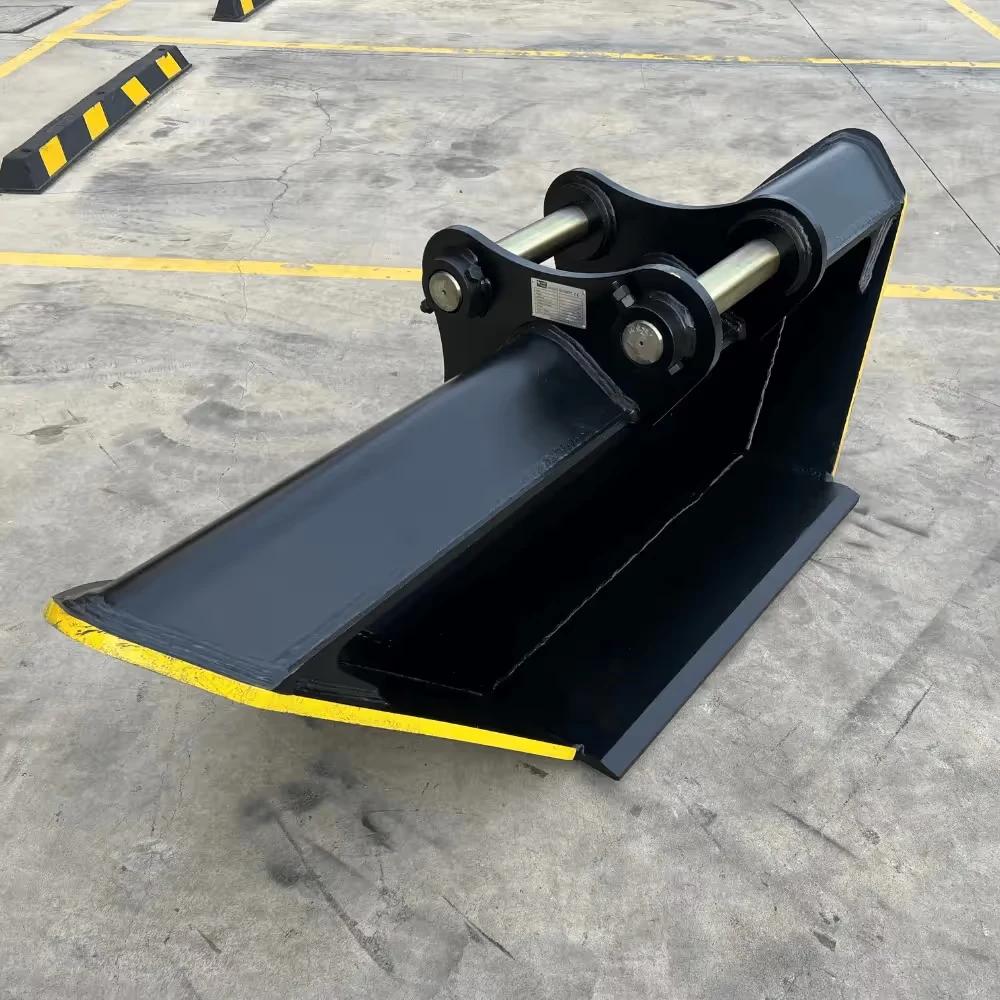

Product
10
The difference
EveryAussieBucketsVbucketispurpose-builtforprecisiontrenching,drainageandpipelaying,wheretheshapeofthetrenchmattersasmuchasthedepth.TheVprofilecutsacleantrenchwallandholdsit,givingyouconsistentdepthcontrolacrosscivilandutilityworkwithoutback-bladingtotidytheprofile.Choosea45or63degreesidewalltomatchthematerialandthetrenchspecyouareworkingto.
Precision-engineeredwithfullspecificationcustomisationacrossteeth,edgesandmaterialgrades,in400-gradesteelwithHardoxandBisalloyoptions,androbot-weldedthroughout.Availableacross1.2–37Tmachines.
AllVBucketsareaccompaniedwithourstandard5-yearwarranty.
Also known as a drain bucket, V drain bucket or trapezoidal bucket, the V Bucket comes in fourteen builds with winglets, a reinforced structure and five-axis robot welding, forming both batters and the invert as the bucket pulls.
Features

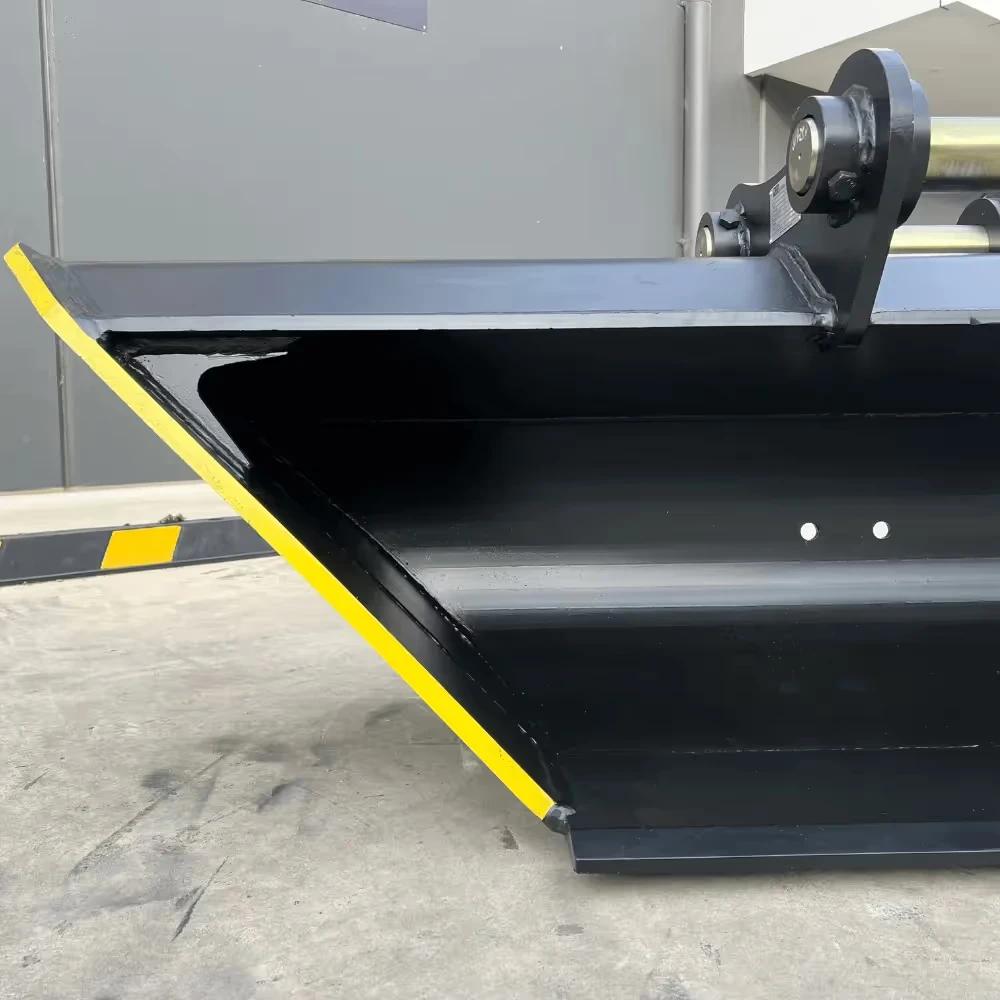

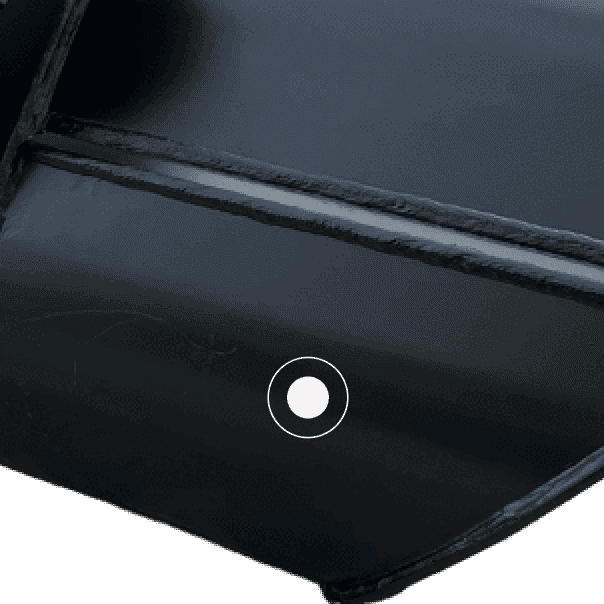

Winglets
Enhance versatility with improved capability to push earth outwards for a cleaner and faster finish.

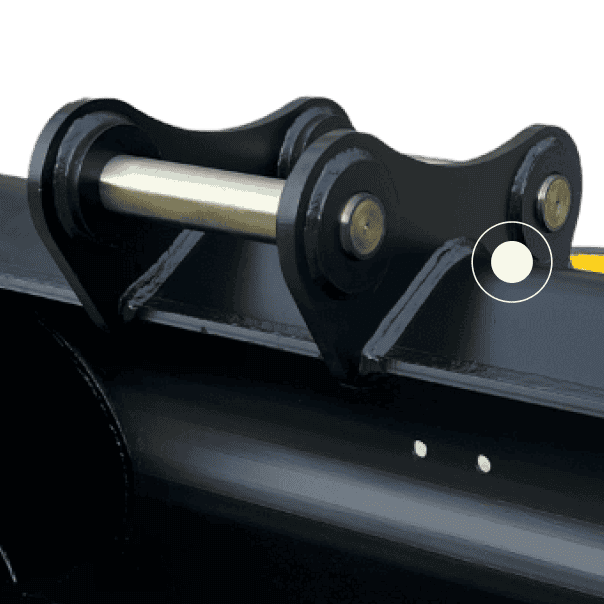

Reinforced structure
Fully integrated head bracket and strategic weld reinforcements throughout the design to improve structural integrity, prevent misshaping and increase attachment longevity.

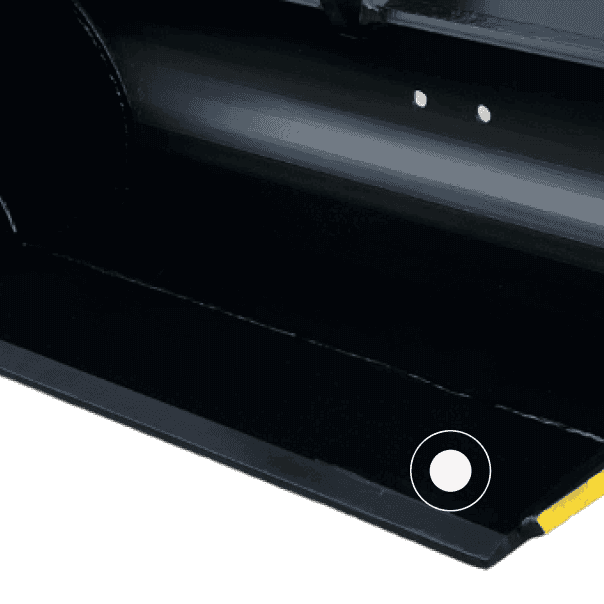

Five axis robot welding
Higher-quality welds with minimal defects, followed by ultrasonic testing to ensure no microscopic discontinuities. Have confidence in the longevity of your equipment.
Technical Breakdown
Fourteen build sizes covering 1.2 tonne to 37 tonne machines, with V angles up to 63 degrees. Top width, bottom width, height, weight and tooth count are listed per build.
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 1,447 | 250 | 600 | 100 | 2 |
| 63 | 863 | 250 | 600 | 81 | 2 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 1,850 | 250 | 800 | 150 | 2 |
| 63 | 1,065 | 250 | 800 | 139 | 2 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 2,100 | 300 | 900 | 280 | 2 |
| 63 | 1,220 | 300 | 900 | 281 | 2 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 2,550 | 350 | 1,100 | 520 | 2 |
| 63 | 1,450 | 350 | 1,100 | 574 | 2 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 2,900 | 350 | 1,275 | 650 | 2 |
| 63 | 1,700 | 350 | 1,325 | 795 | 2 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 3,100 | 500 | 1,300 | 920 | 3 |
| 63 | 1,800 | 500 | 1,300 | 1,072 | 3 |
| Angle(°) | Top width(mm) | Bottom width(mm) | Height(mm) | Weight(kg) | Teeth |
|---|---|---|---|---|---|
| 45 | 3,300 | 500 | 1,400 | 1,100 | 3 |
| 63 | 1,900 | 500 | 1,400 | 1,278 | 3 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Frequently asked questions
What is a V bucket? A V bucket is an excavator bucket with angled sides that cuts a V or trapezoidal profile in a single pass. It is also called a drain bucket or V drain bucket. Aussie Buckets V buckets cover 1.2 to 37 tonne machines with 45 or 63 degree sidewalls, built to the trench spec you are working to.
What is a V bucket used for? A V bucket cuts a V-profile trench for drainage, pipe laying and utility work. The angled sidewalls hold the trench wall profile as you dig, so you get consistent depth and a clean wall in one pass rather than shaping the trench afterwards.
V bucket vs. GP digging bucket: what is the difference? A GP digging bucket has a flat profile built to dig and load, with occasional trenching. A V bucket has angled sidewalls built for one job: a clean trench profile for drainage and pipe laying. Occasional trenching takes the GP bucket; a specified trench profile, or trenching most of the day, takes this one.
What sidewall angle do I need? V buckets come in 45 and 63 degree sidewall variants. The angle you need depends on the material you are trenching and the trench profile you are working to. Get a tailored quote and we will match the angle to your spec.
What is a drain bucket for an excavator? A drain bucket is another name for a V bucket: an excavator bucket with angled sides that cuts drainage to a specified profile in one pass. Some crews use drain bucket to mean a wide flat clean-up bucket instead, so confirm which profile you need when quoting.
What size excavator do I need for a V bucket? This range covers 1.2–37T excavators across fourteen builds, with full specification customisation across teeth, edges and material grades. Get a tailored quote and we will match the bucket to your machine and your trench spec.
How much does an excavator V bucket cost? Aussie Buckets V buckets start at $1,225. Price moves with machine class, V angle and wear specification, and 0% finance is available on approved purchases. Every bucket is protected by a 5-year warranty. Send your machine details and the drainage profile for a tailored quote.
