Available for 0.8 – 36T
Tilts to 180 degrees on the smaller builds.
Starting from $6,975
$4,883
Or with AB 0% Finance from $39/week (ex. GST)

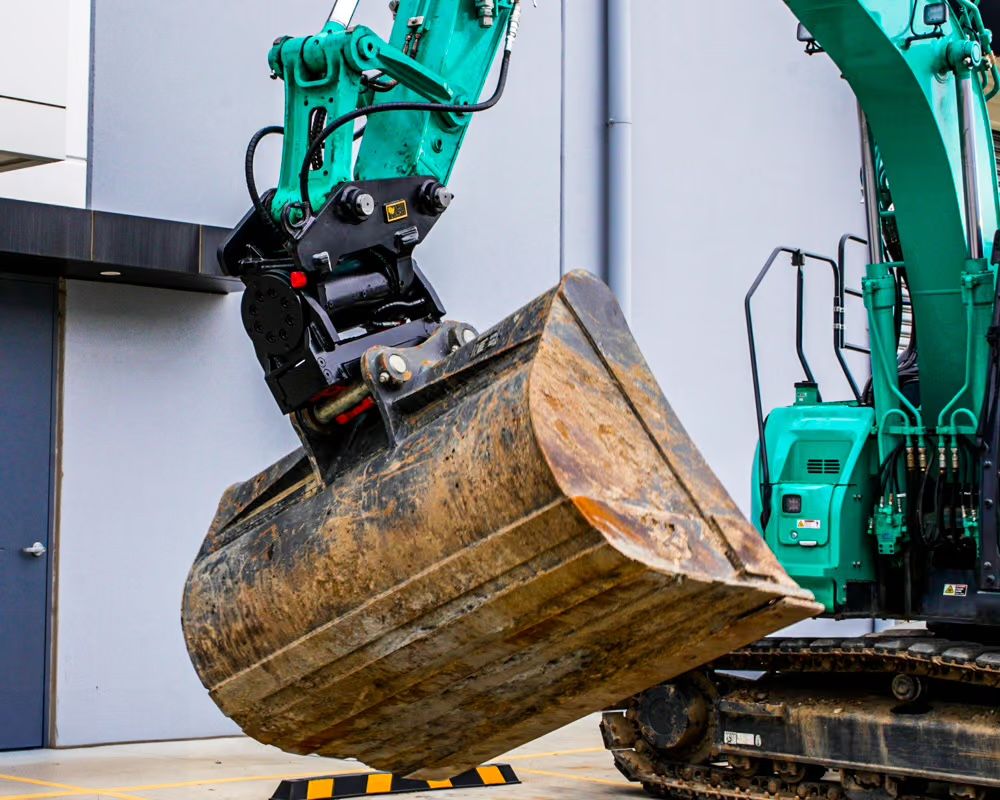

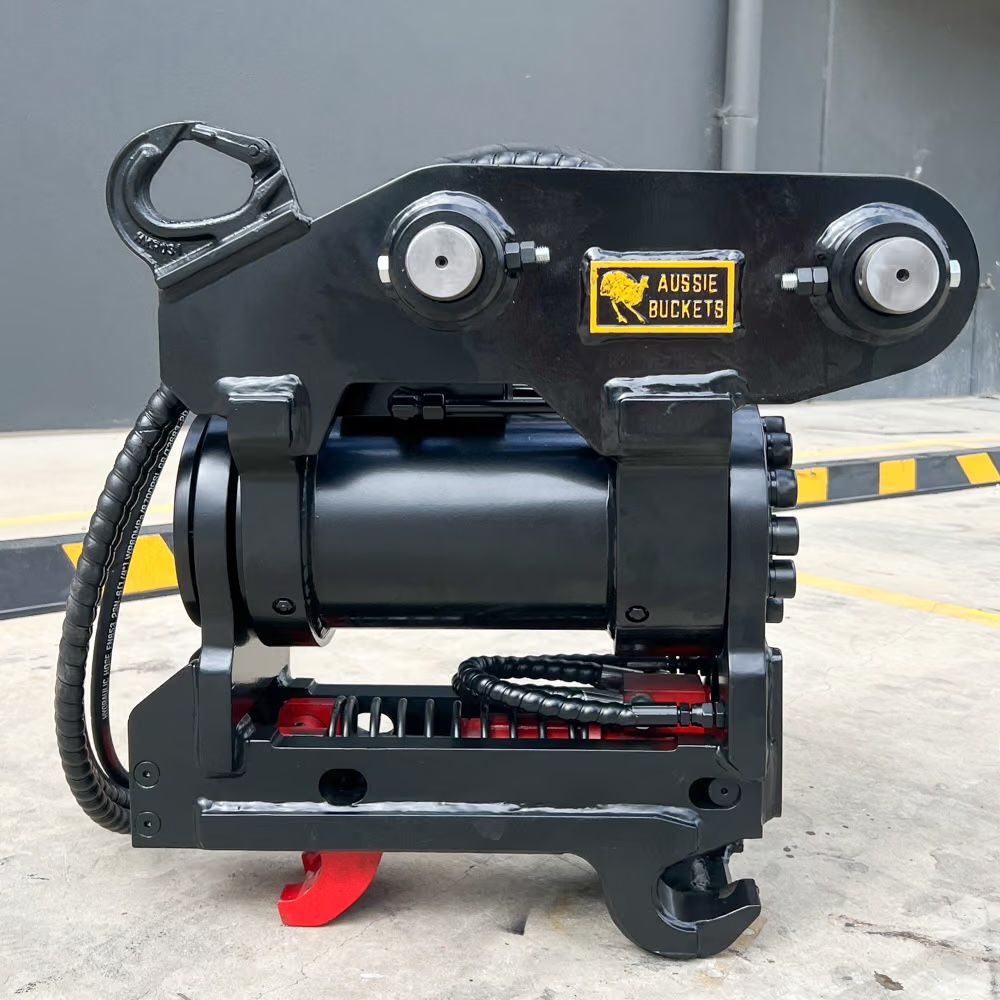

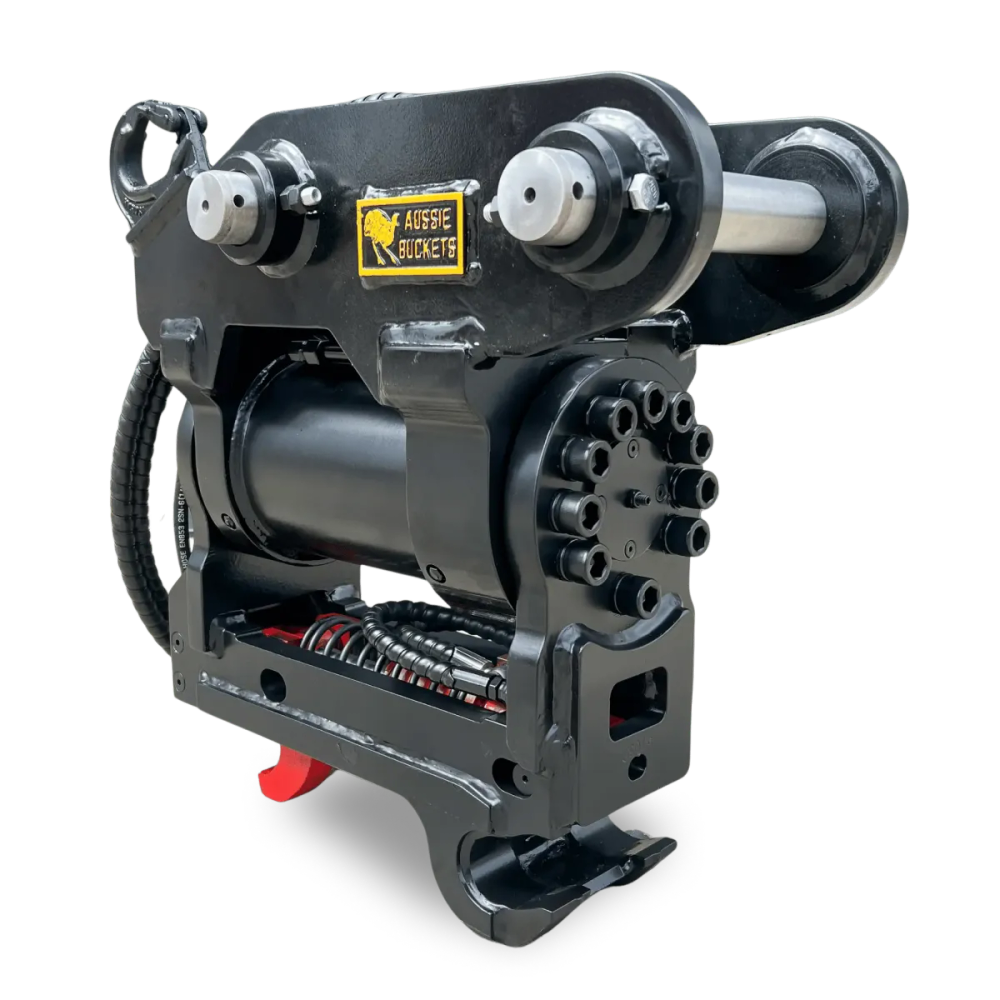

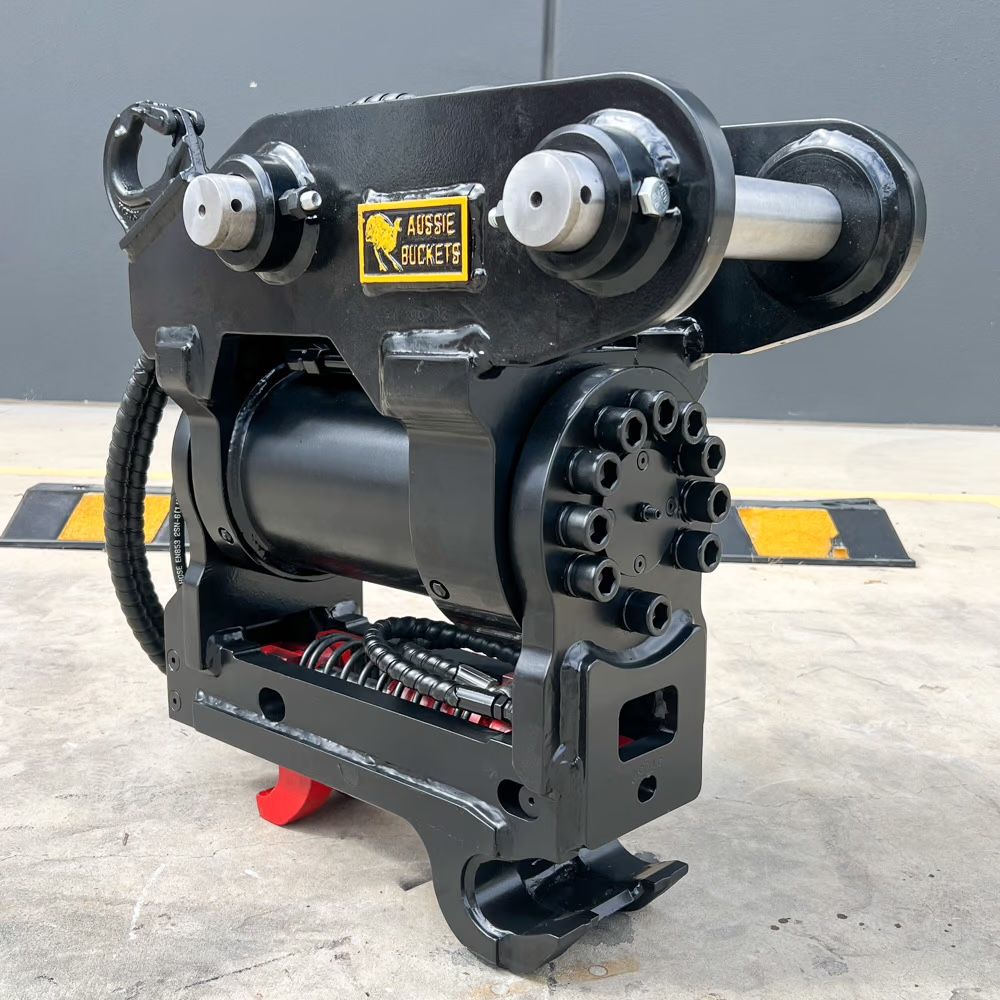

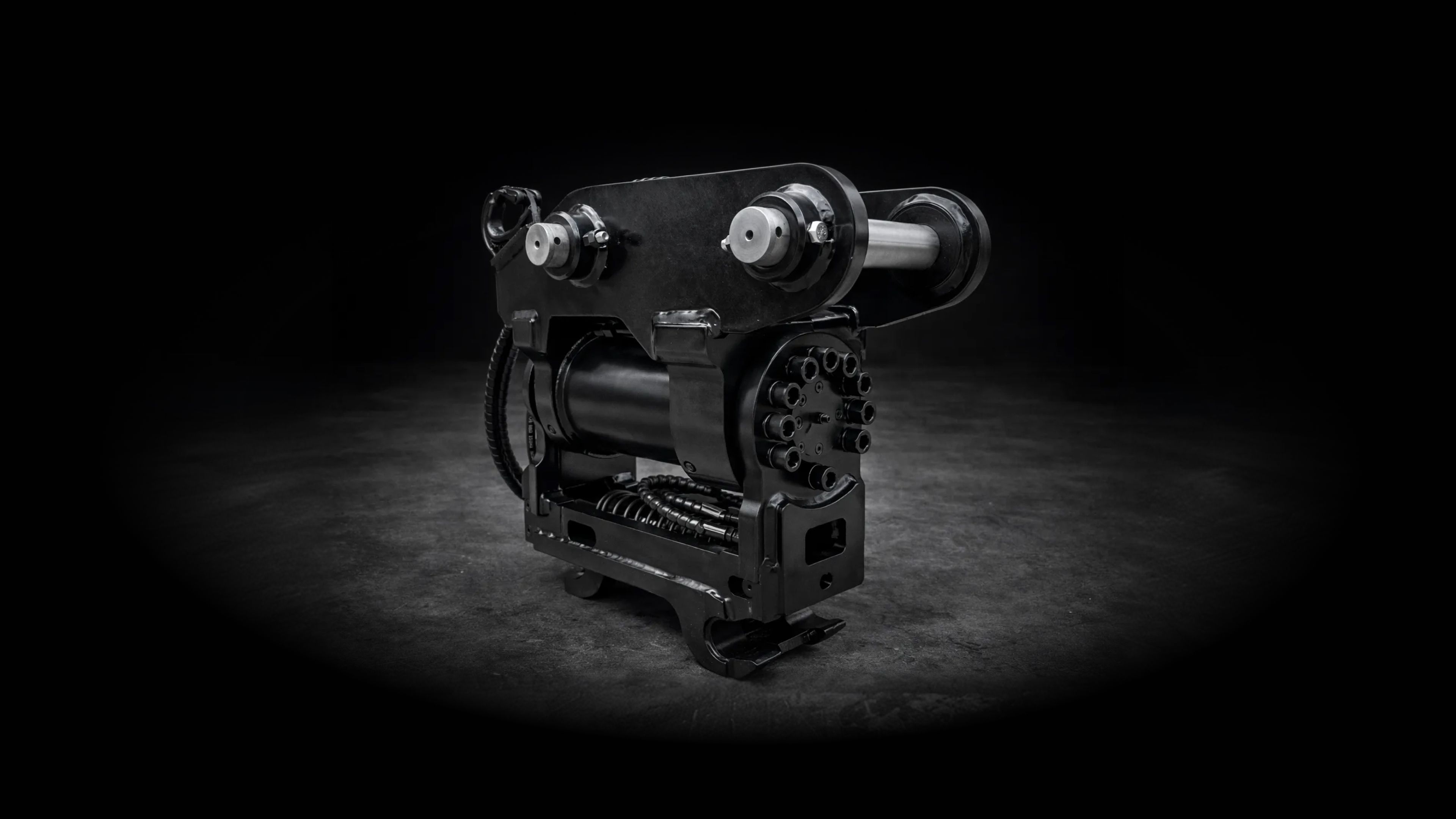

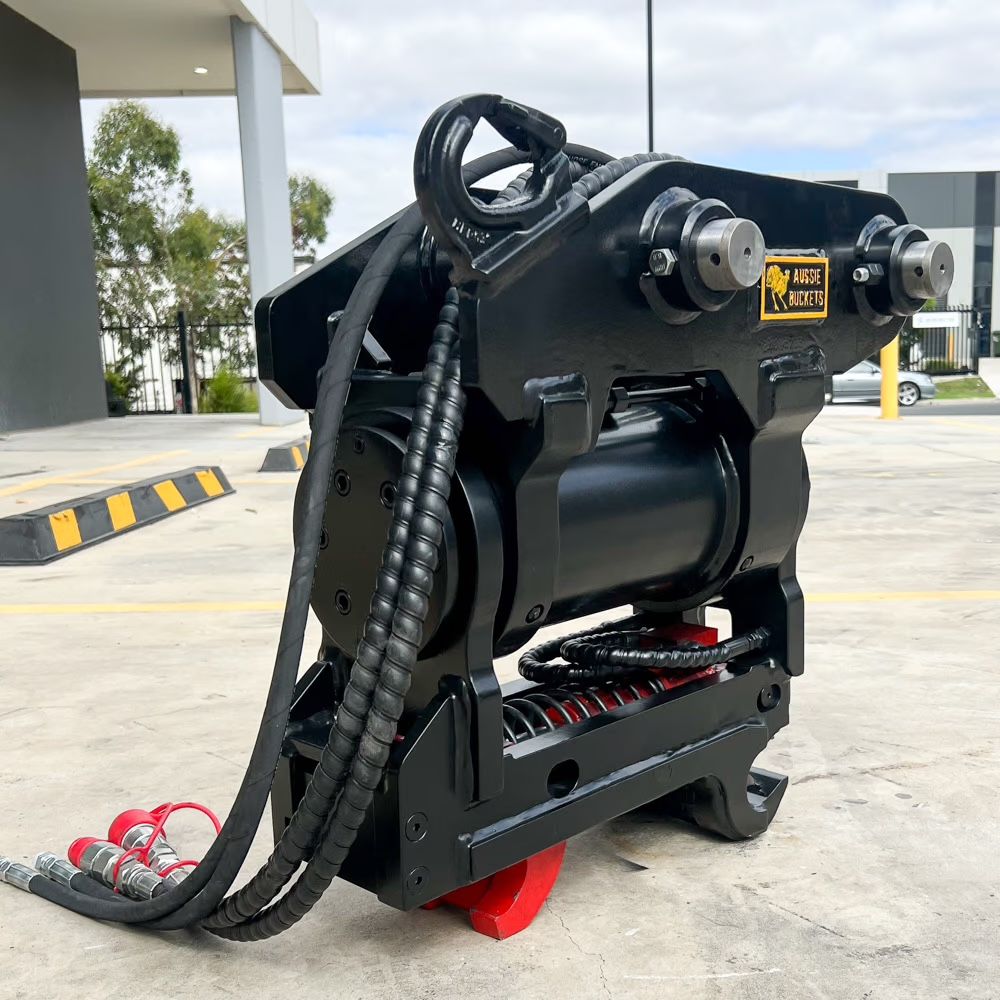

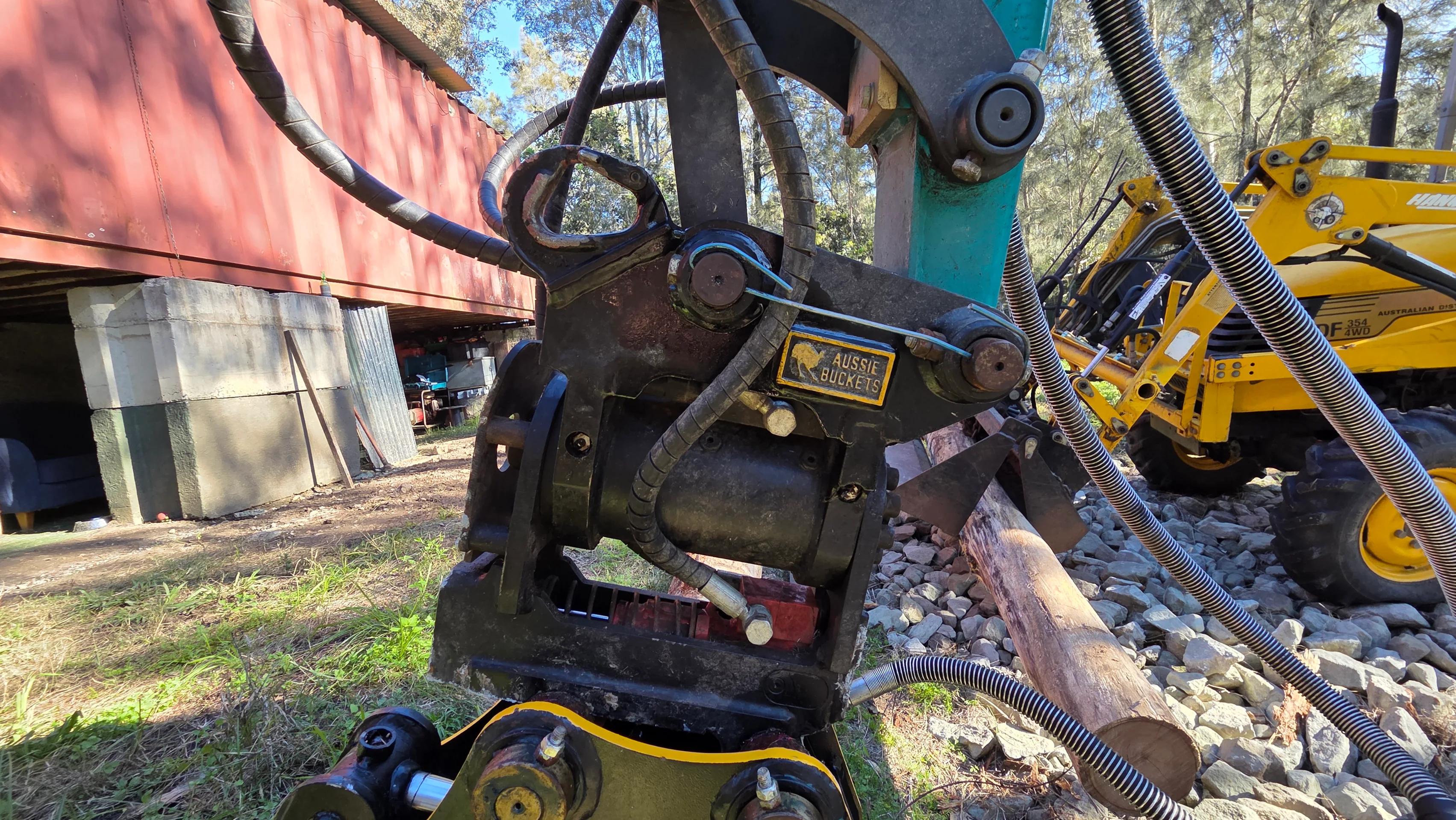

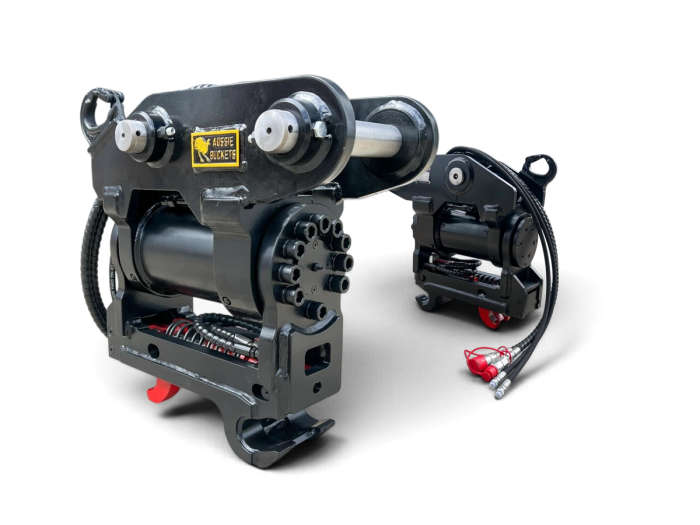

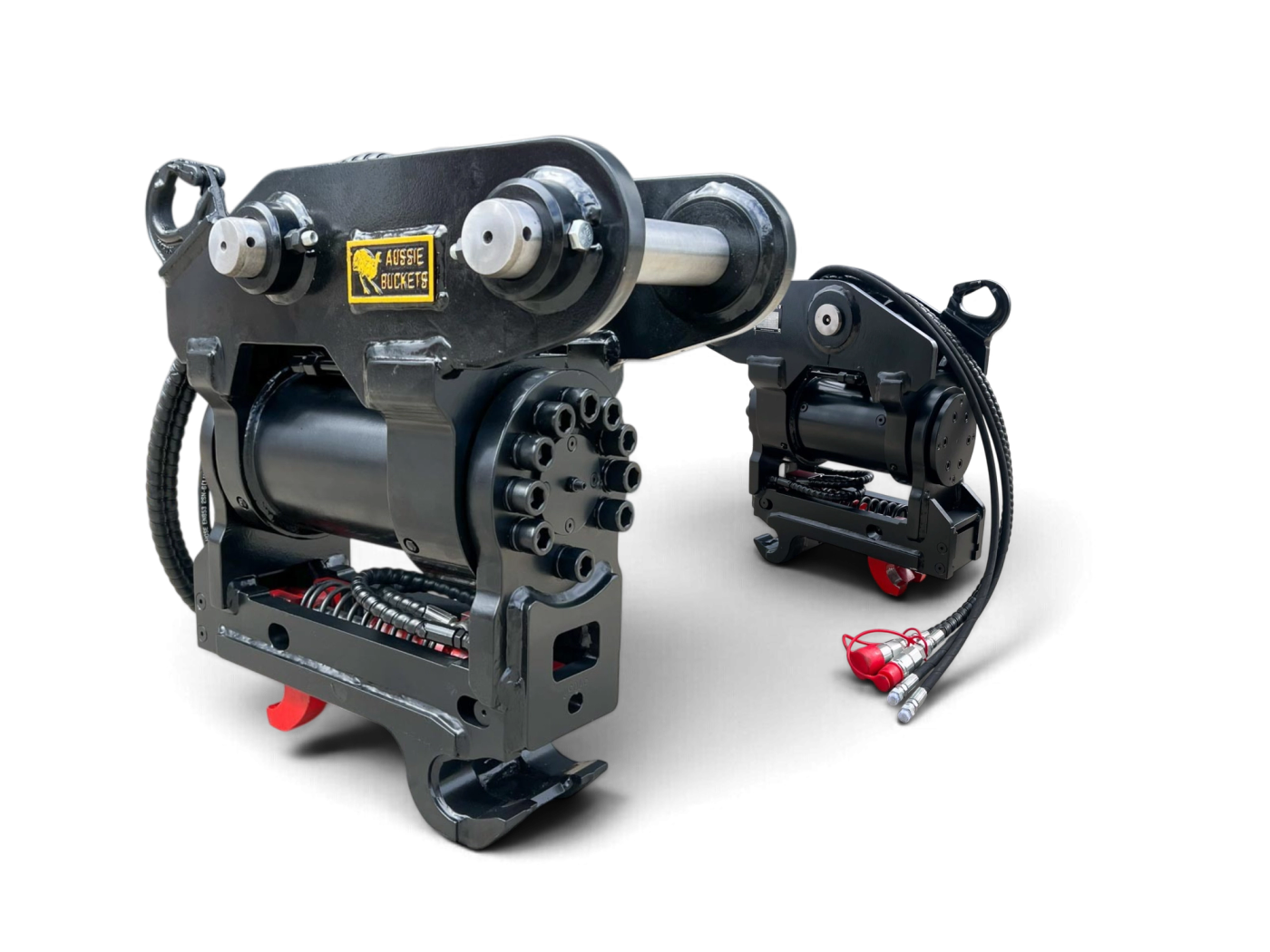

A hydraulic tilting hitch for 0.8–36 tonne excavators. Tilt any attachment to grade without repositioning the machine, and change attachments from the cab. Eight builds with triple mechanical locking.

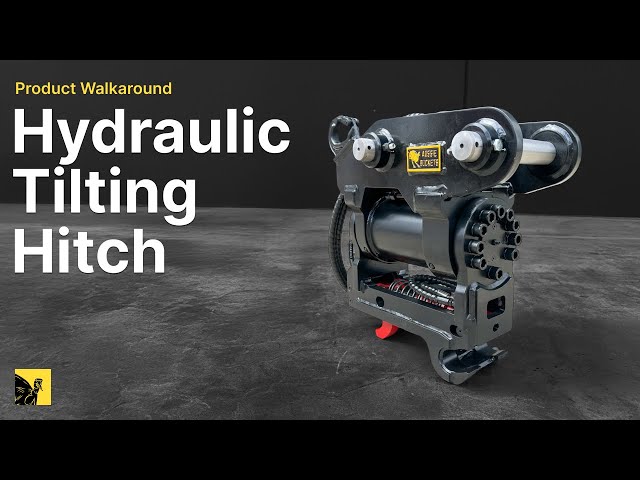

2 videos · 16 photos
02
06
10
The difference
EveryAussieBucketstilthitchispurpose-builttoyourownpindiametersandcentres,andprecision-engineeredfortheworkyoudooffgrade:batters,drainfalls,kerblines,anythingthatwouldotherwisemeantrackingthemachineroundtomeettheangle.Availablefor0.8–36Tmachinesacrosseightbuilds,withpinsfrom25mmto100mm.
WhatdistinguishesourHydraulicTiltingHitchisitstriplelockingsafetysystemandheavy-dutytiltingbuild,compliantwithAustraliandesignstandardsandsuppliedasacompletepackage.Comparedtoothertilthitchesonthemarket,everybuildupto10tonnetiltsafull180degrees.
AllHydraulicTiltingHitchesareaccompaniedwithourstandard5-yearwarranty.
Built for Australian conditions, this Hydraulic Tilting Hitch combines heavy-duty construction, smooth hydraulic operation, and reliable locking for strength and accuracy at any angle.
Features

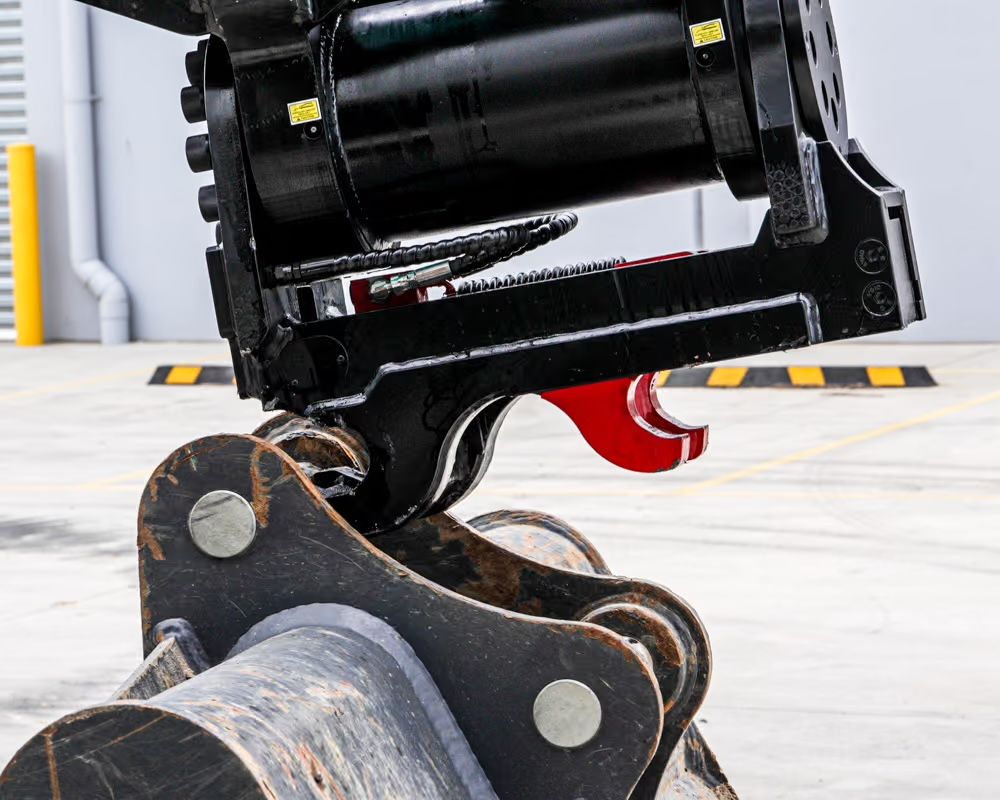

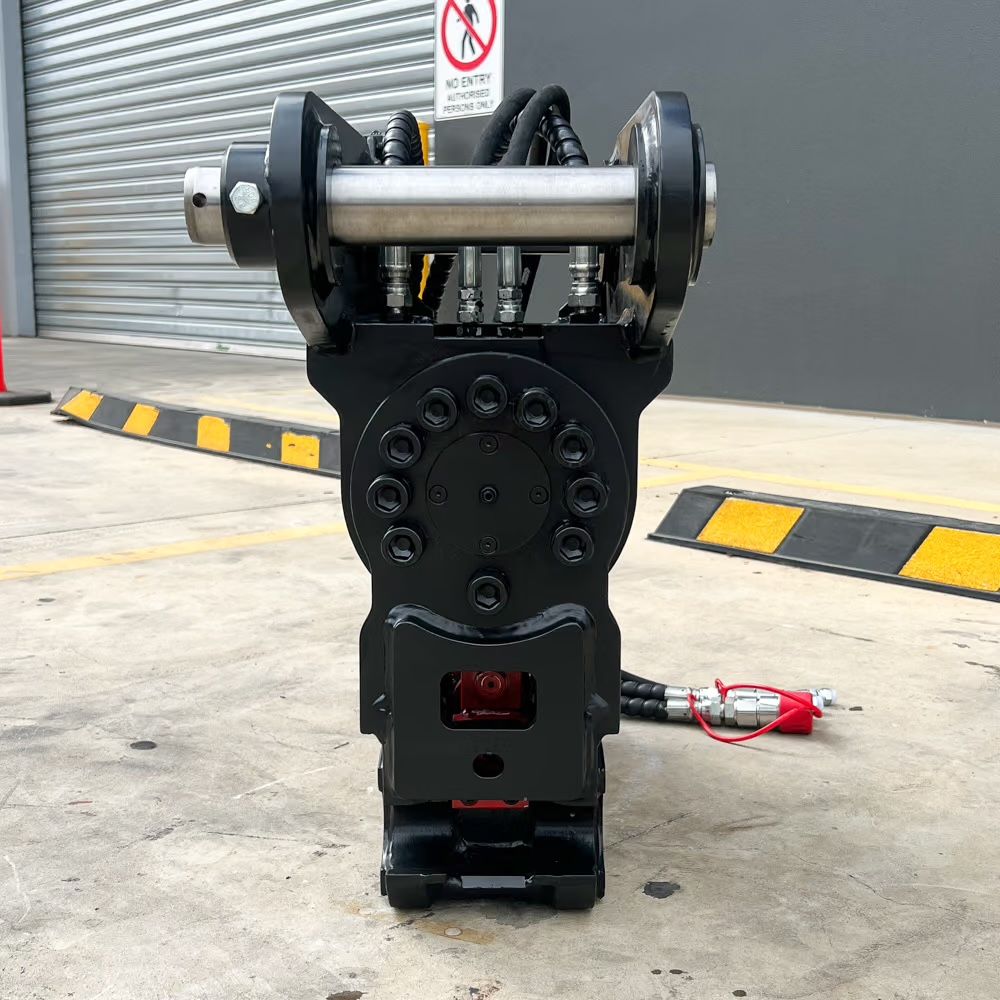

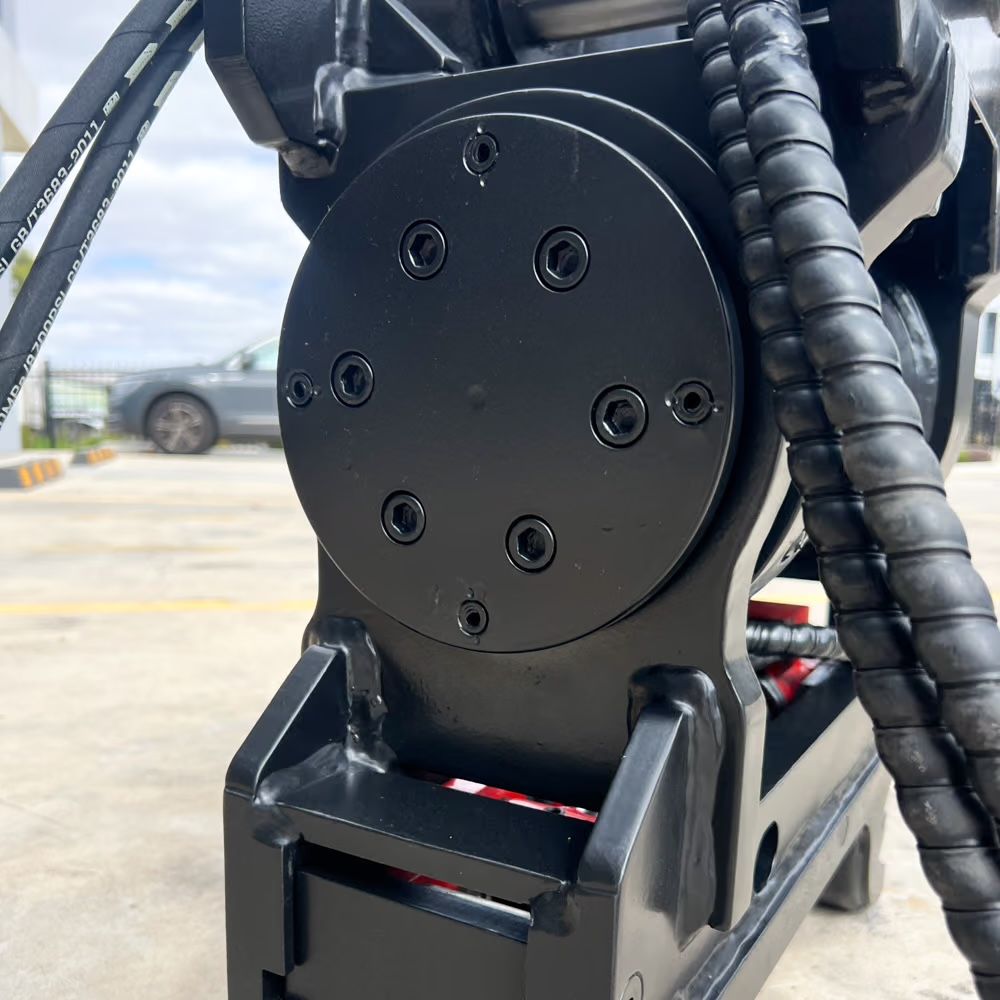

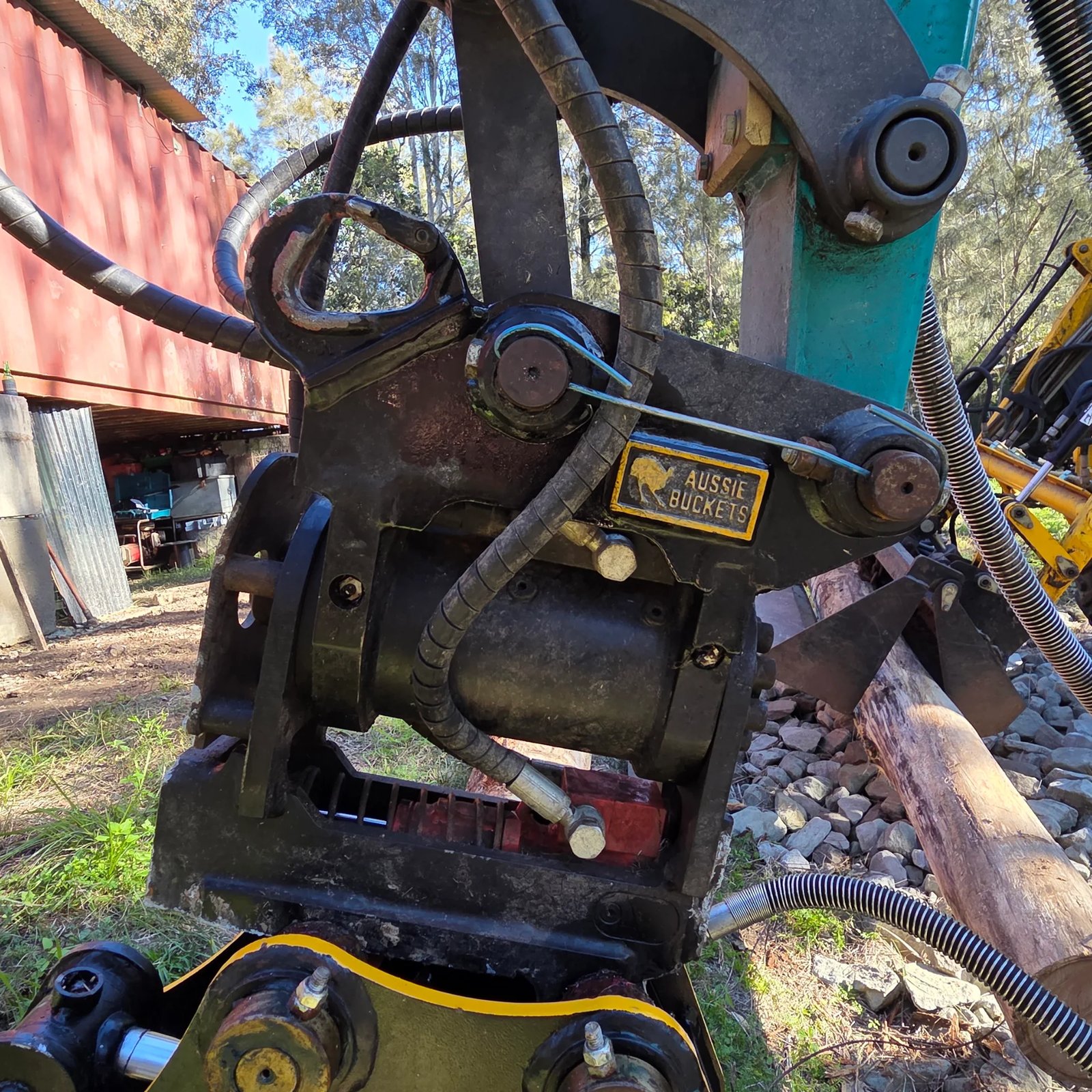

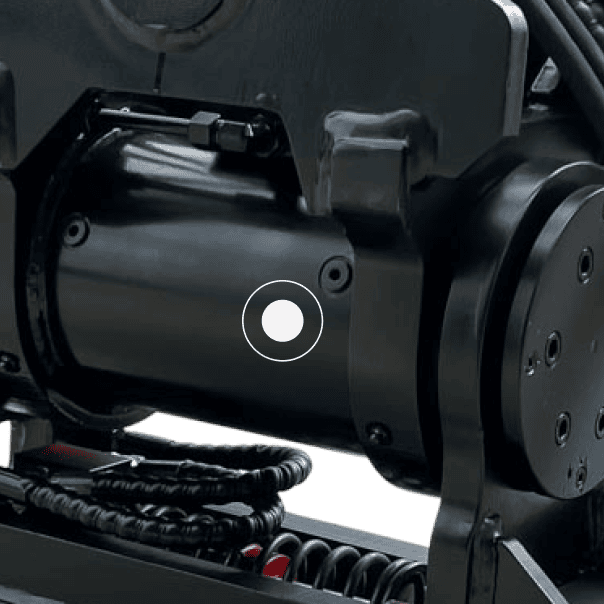

The internal drive drum tilt provides no exposed rams, while allowing 180-degree tilt. Efficiently allow attachments to tilt and operate at tight angles without the need to reposition your excavator, providing maximum versatility and capability.

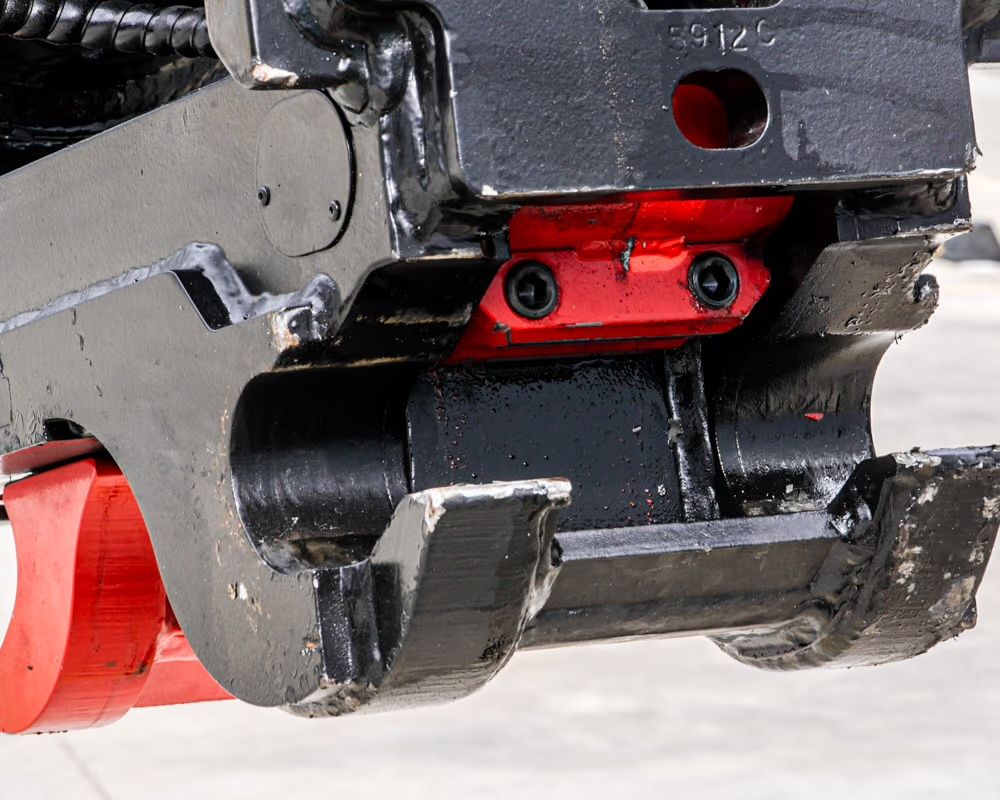

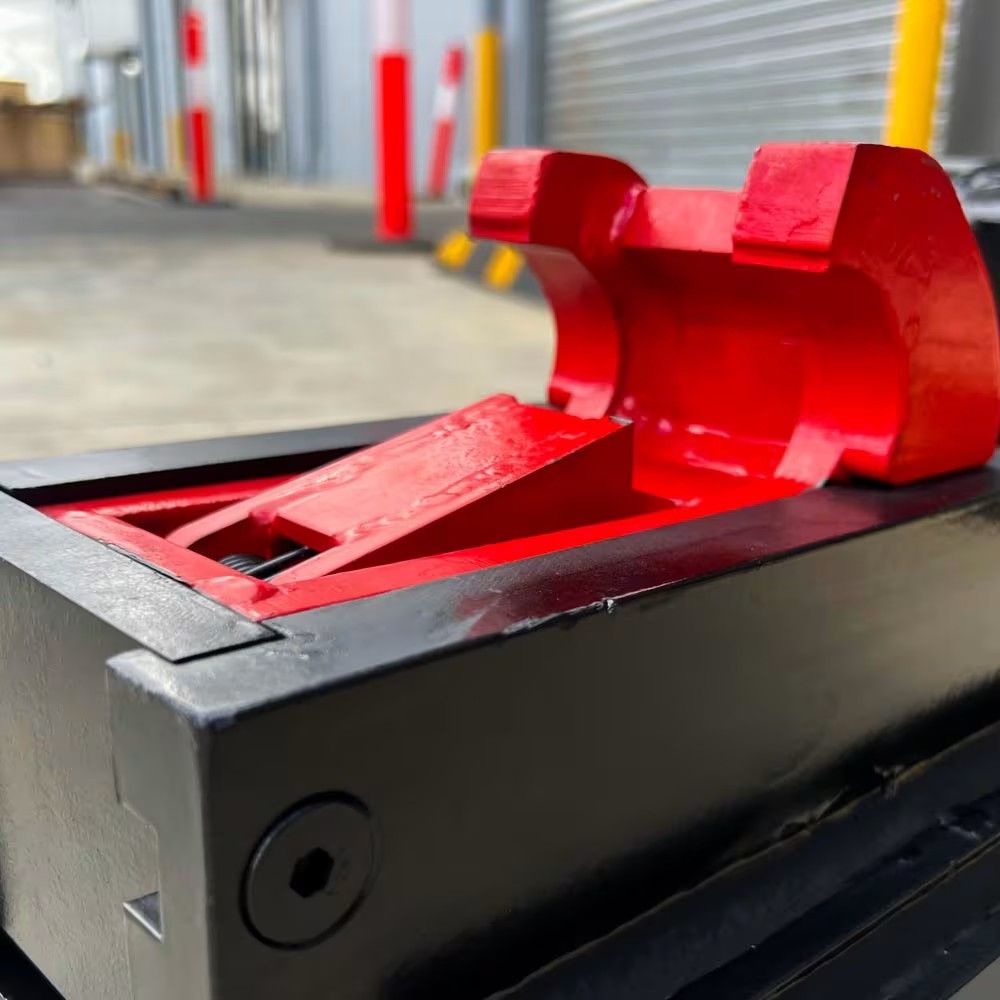

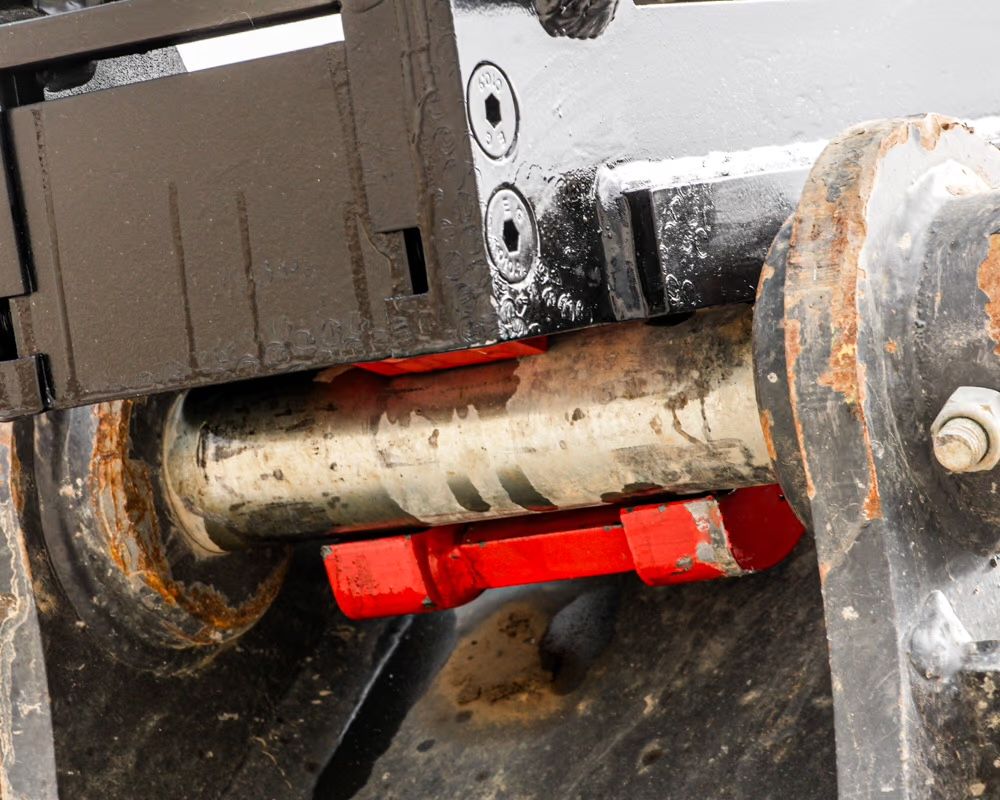

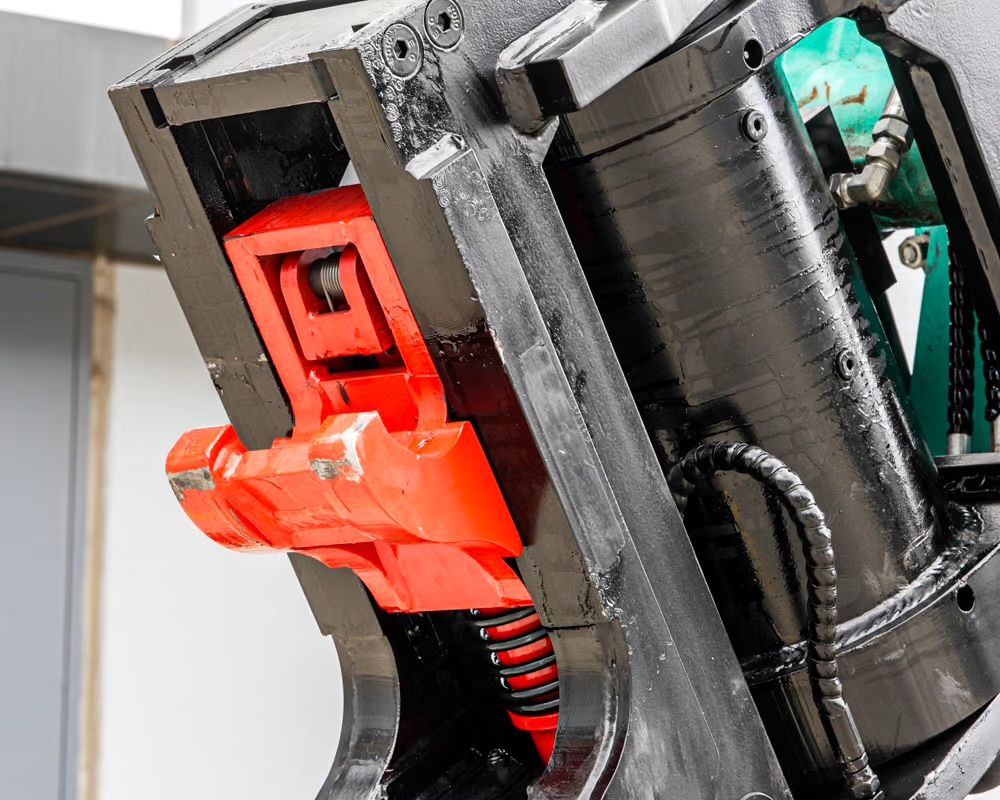

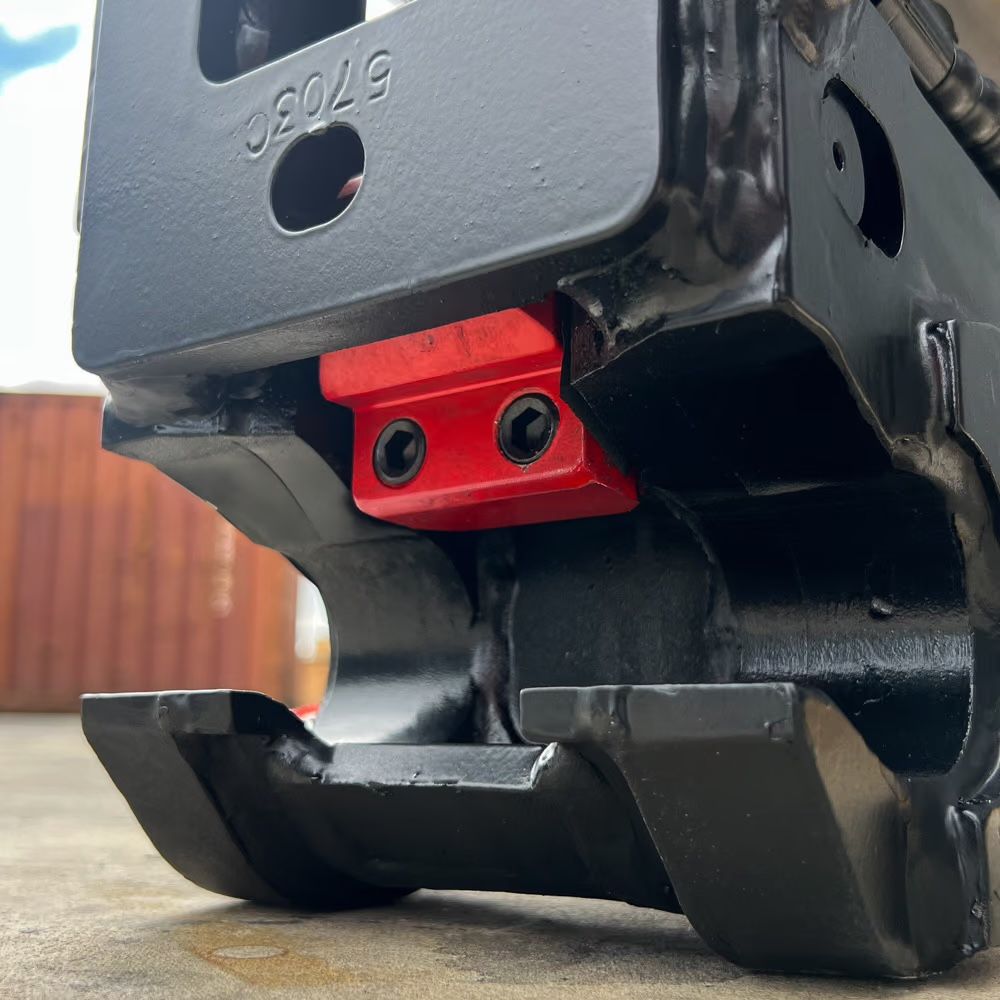

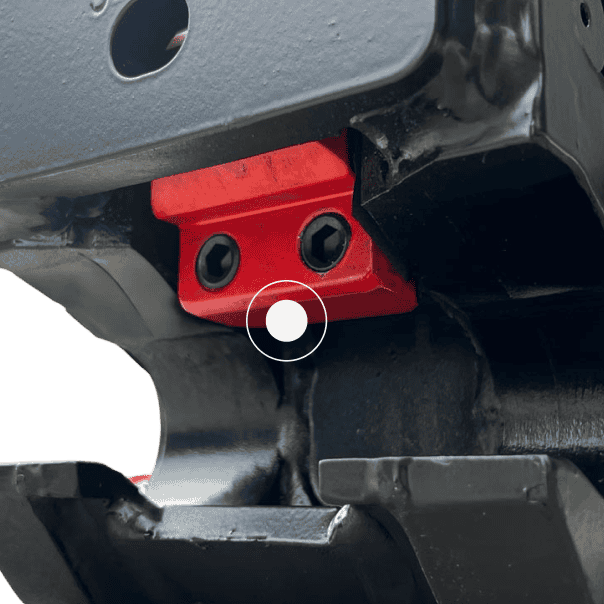

Safety is paramount with its triple locking system, featuring three isolated locking points. This system enhances operational security, and prevents unintentional detachment. Our innovative triple-lock design exceeds Australian regulatory and compliance standards, ensuring absolute peace of mind in every operation.

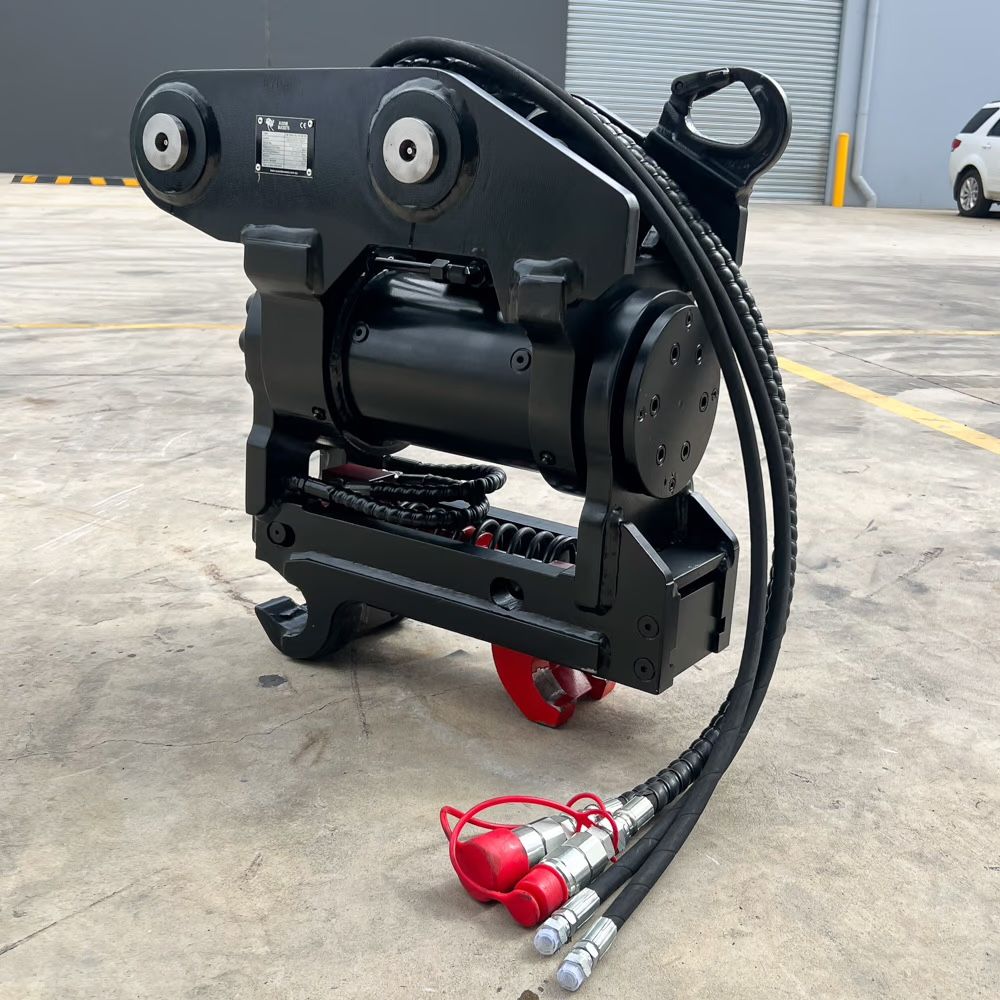

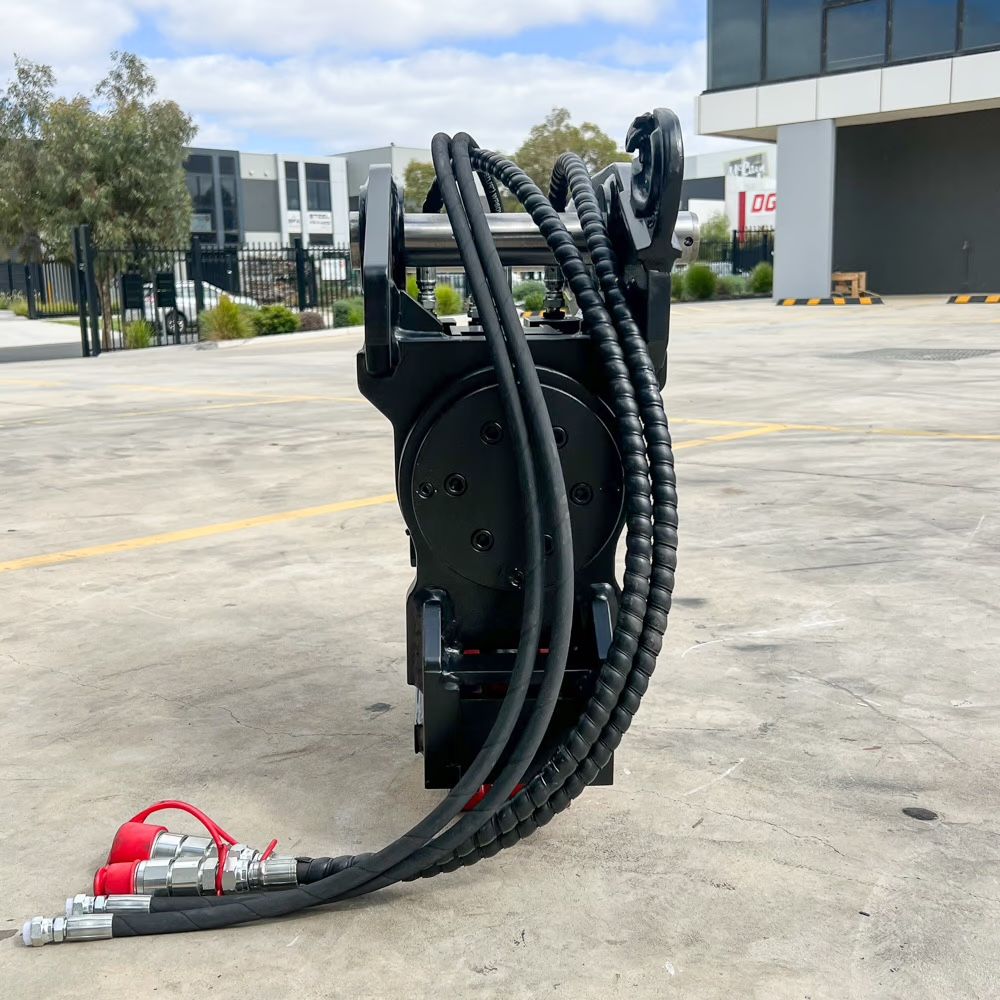

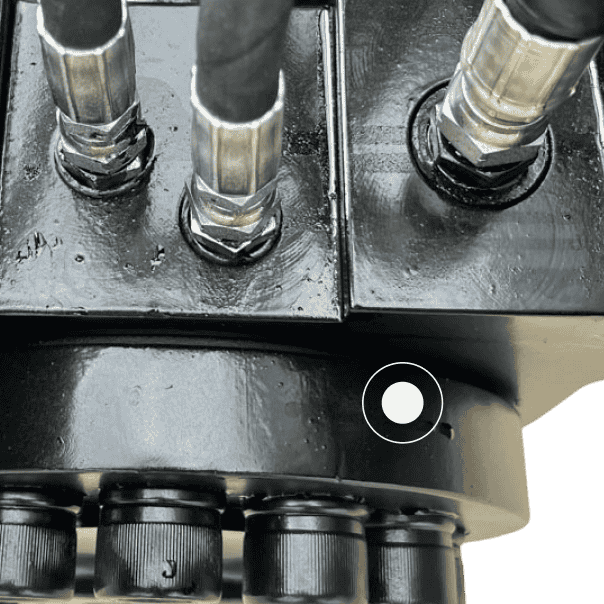

Utilises original UK Hallite oil seals, full electronics and a complete set of spare parts including pins, pipes, buzzer & switch, pilot valve, switch, wire harness, manual kit, bolts and nuts. Get started immediately knowing you have everything you need within the kit.

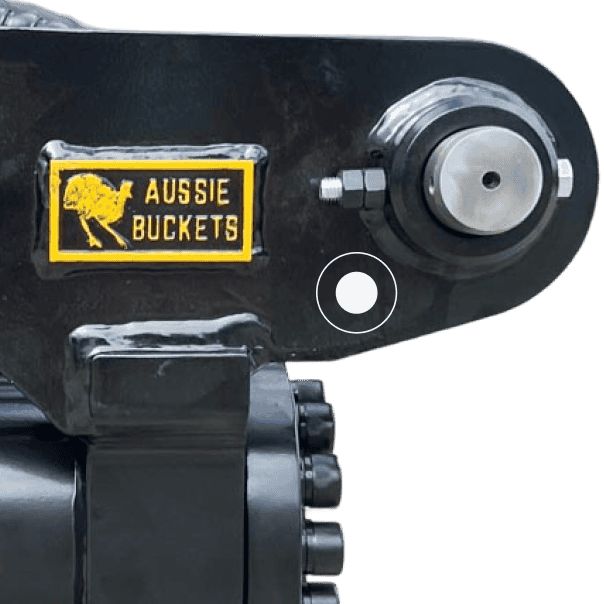

Meets the comprehensive safety and performance standards by being compliant with AS4772:2008. Assurance that the quality and safety are in line with the highest industry regulations.
Eight build sizes covering 0.8 tonne to 36 tonne machines. Pin diameter, weight, tilt degree, drive torque, tilt and hitch pressure, flow rate and lifting capacity are listed per build.
| Excavator size(T) | Pin diameter(mm) | Weight(kg) | Tilt degree(°) | Drive torque(N·m) | Tilt pressure(bar) | Tilt flow rate(L/min) | Hitch pressure(bar) | Hitch flow rate(L/min) | Rated lift point capacity(kg) | Lifting capacity(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.8 – 1.8 | 25 – 32 | 56 | 180 | 930 | 210 | 1.8 – 2.4 | 25 – 300 | 15 – 25 | 1,000 | 1,500 |
| 1.9 – 2.5 | 35 – 40 | 82 | 180 | 1,600 | 210 | 2.8 – 4 | 25 – 300 | 15 – 25 | 1,000 | 1,500 |
| 2.6 – 3.9 | 40 | 120 | 180 | 2,870 | 210 | 4.3 – 6.8 | 25 – 300 | 15 – 25 | 2,000 | 1,500 |
| 4 – 6.9 | 45 – 50 | 180 | 180 | 4,400 | 210 | 7.6 – 10 | 25 – 300 | 15 – 25 | 2,000 | 1,500 |
| Excavator size(T) | Pin diameter(mm) | Weight(kg) | Tilt degree(°) | Drive torque(N·m) | Tilt pressure(bar) | Tilt flow rate(L/min) | Hitch pressure(bar) | Hitch flow rate(L/min) | Rated lift point capacity(kg) | Lifting capacity(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7 – 9.9 | 50 – 55 | 220 | 180 | 7,200 | 210 | 14 – 19 | 25 – 300 | 15 – 25 | 3,000 | 2,250 |
| 10 – 17.9 | 60 – 65 | 410 | 140 | 10,623 | 210 | 18 – 24 | 25 – 300 | 15 – 25 | 5,000 | 4,500 |
| 18 – 25 | 70 – 80 | 766 | 140 | 18,600 | 210 | 28 – 37 | 25 – 300 | 15 – 25 | 5,000 | 4,500 |
| 26 – 36 | 90 – 100 | 1,150 | 120 | 43,000 | 210 | 60 – 80 | 25 – 300 | 15 – 25 | 5,000 | 4,500 |
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
