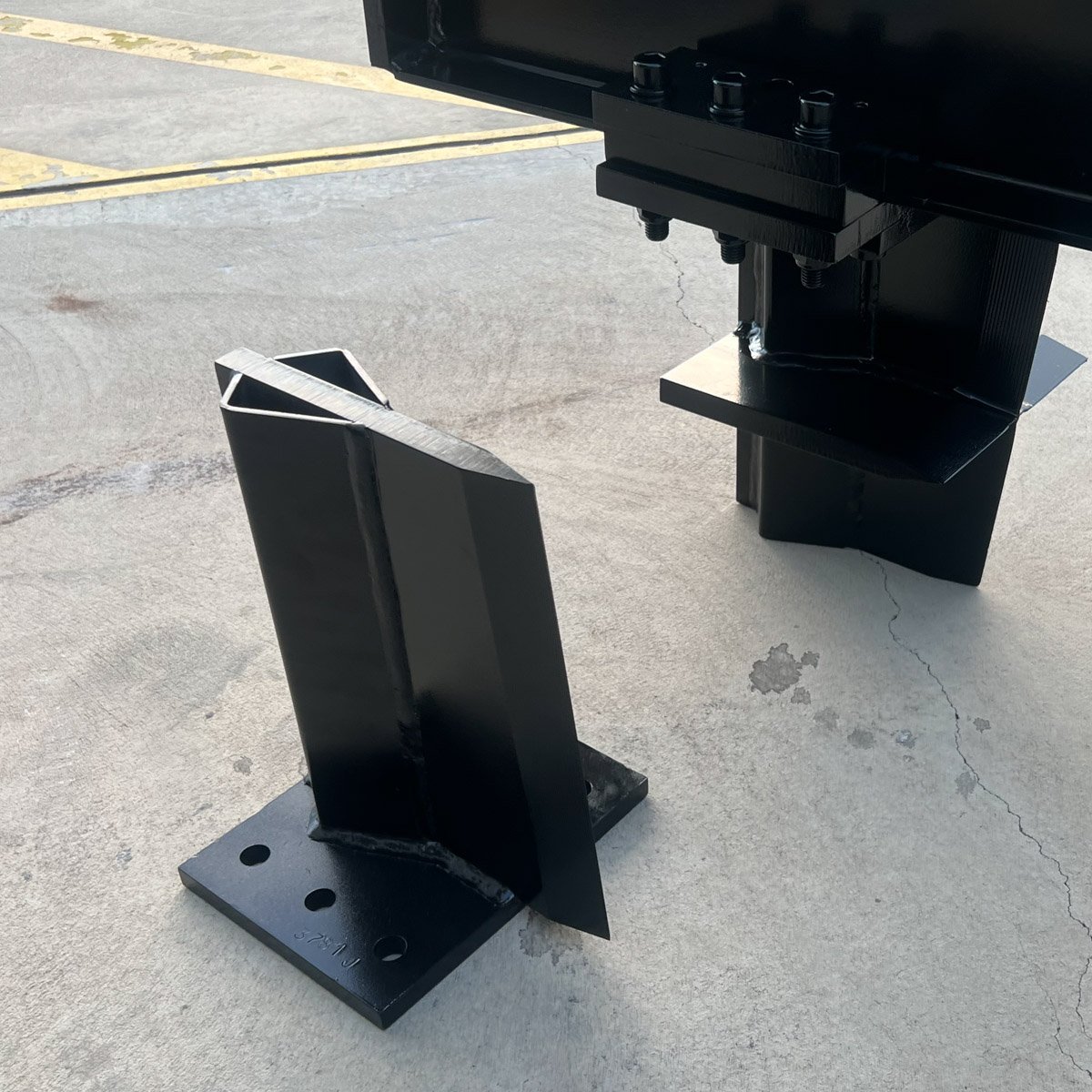

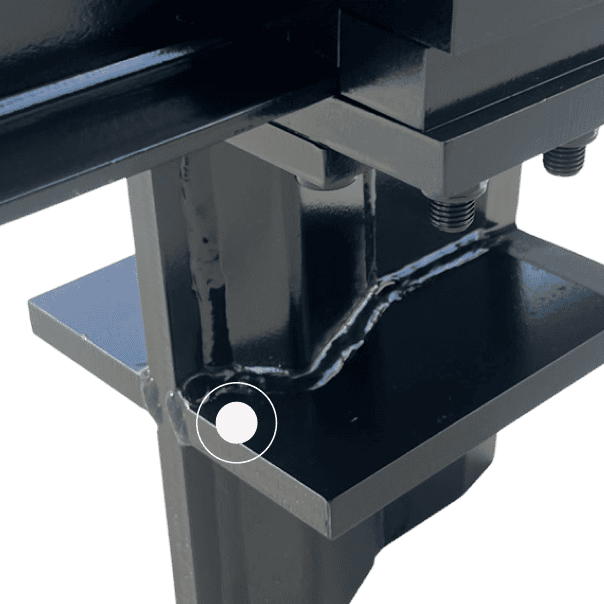

Interchangeable 2-way & 4-way wedges
Both wedges are supplied. The two-way halves knotty or stringy rounds that would jam a four-way; the four-way quarters clean straight timber in one stroke. Swap at the pile to suit the log.
Log Splitter
Available for 1 – 18T
Two-way and four-way wedges, interchangeable.
Starting from
$5,175
Or with AB 0% Finance from $31/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

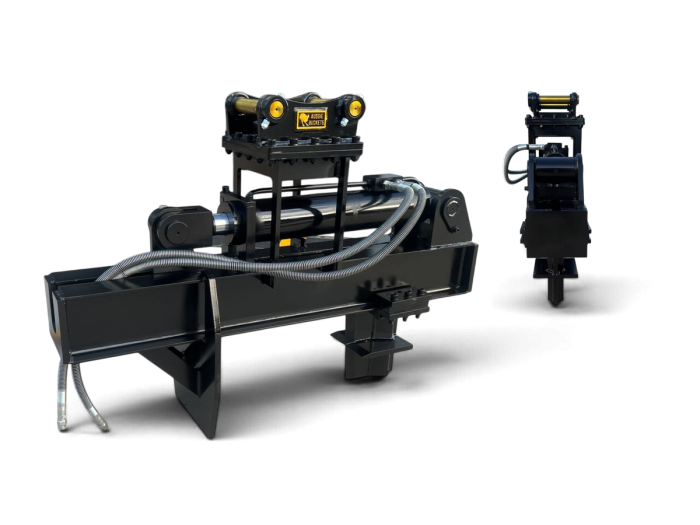

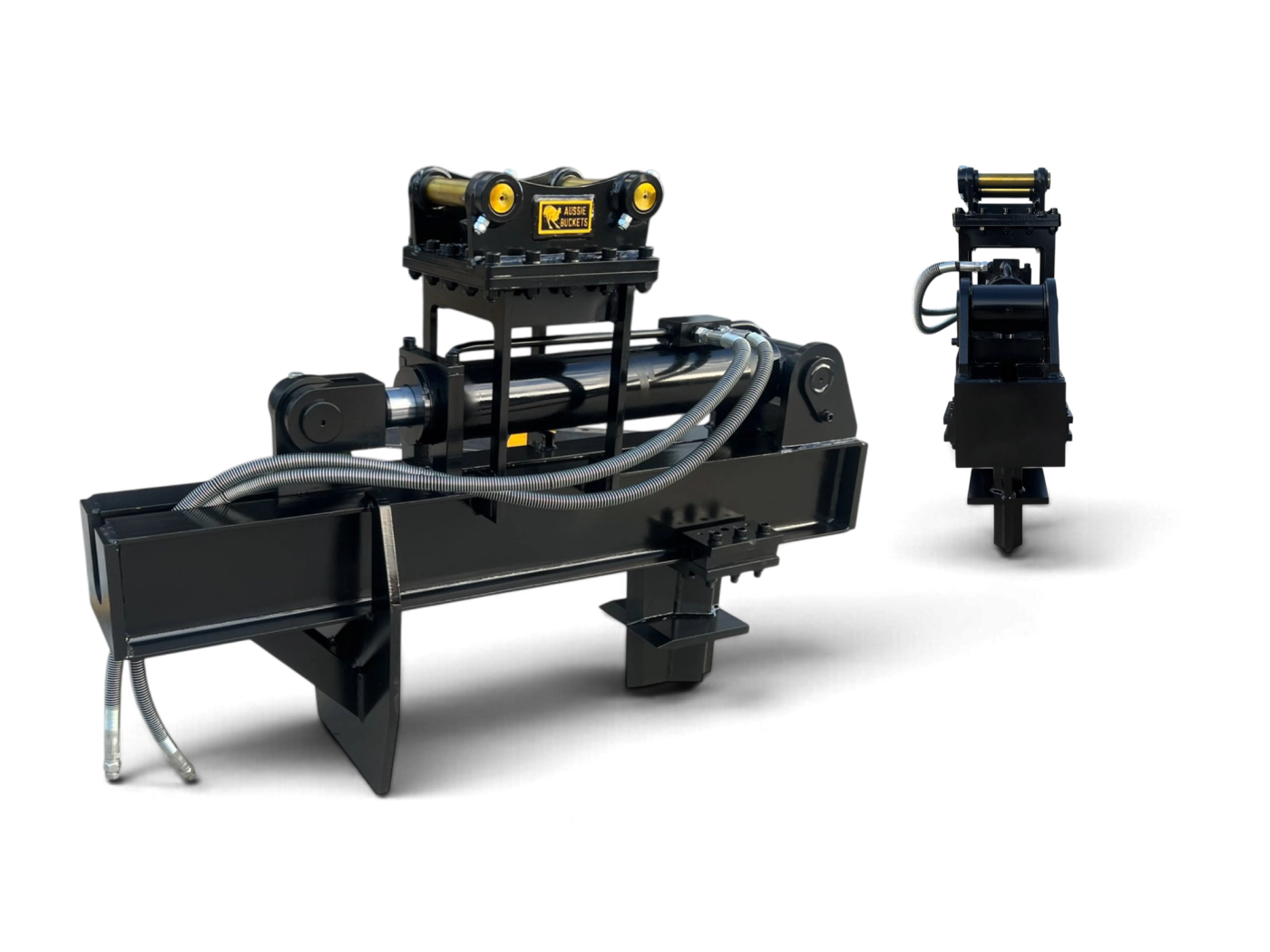

An excavator log splitter for 1–18 tonne machines. Splits at the log pile rather than at a fixed machine, with interchangeable two-way and four-way wedges for clean rounds and knotty hardwood alike.

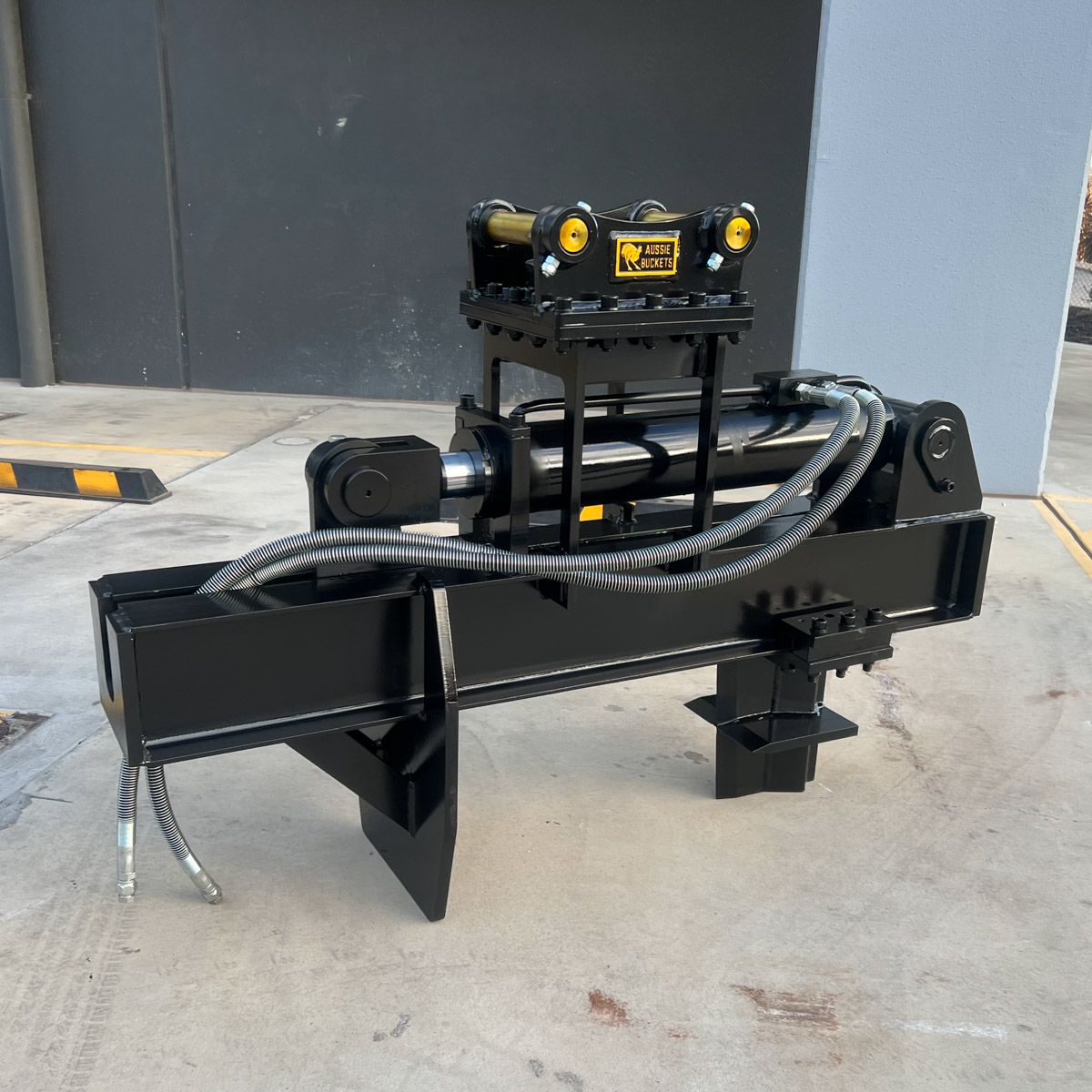

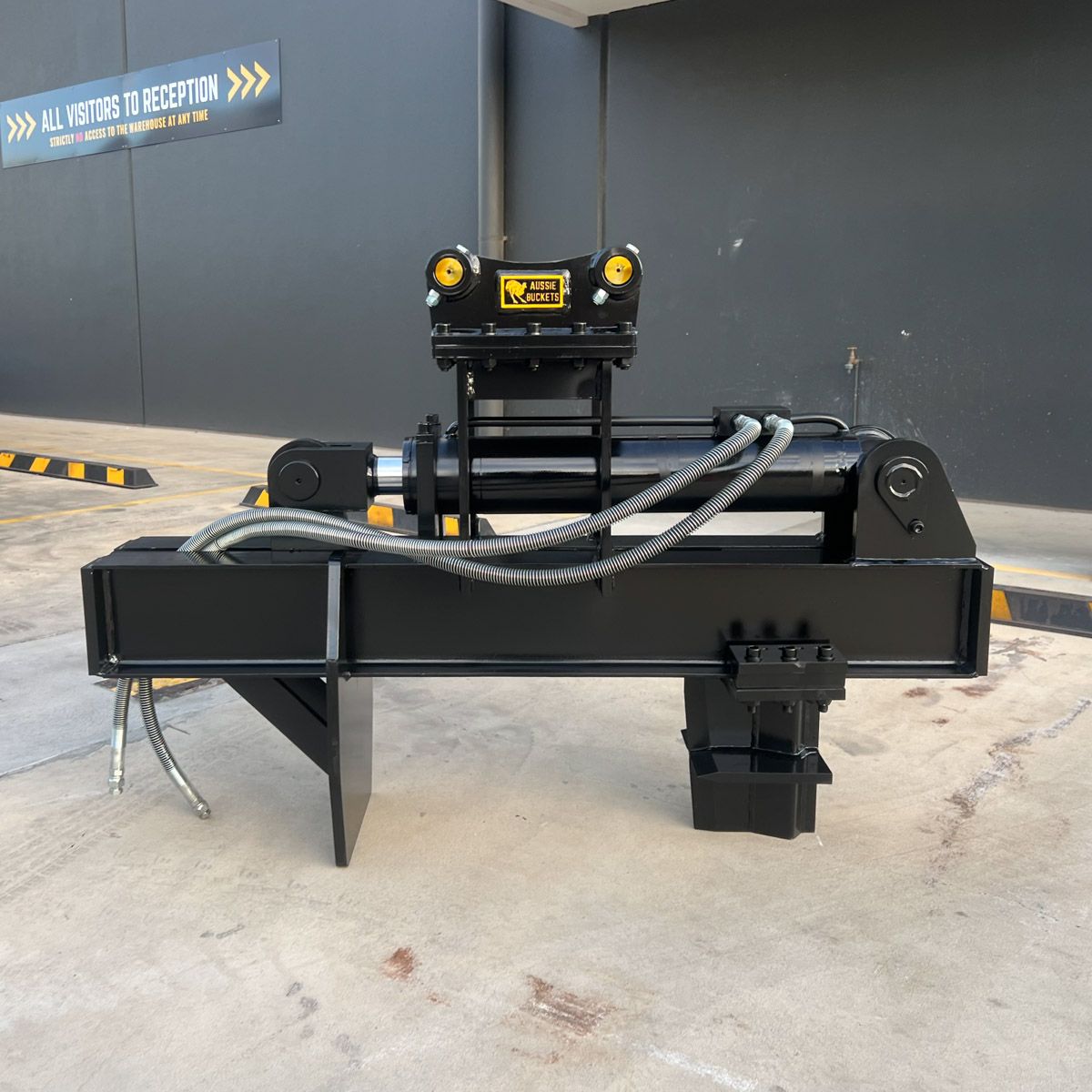

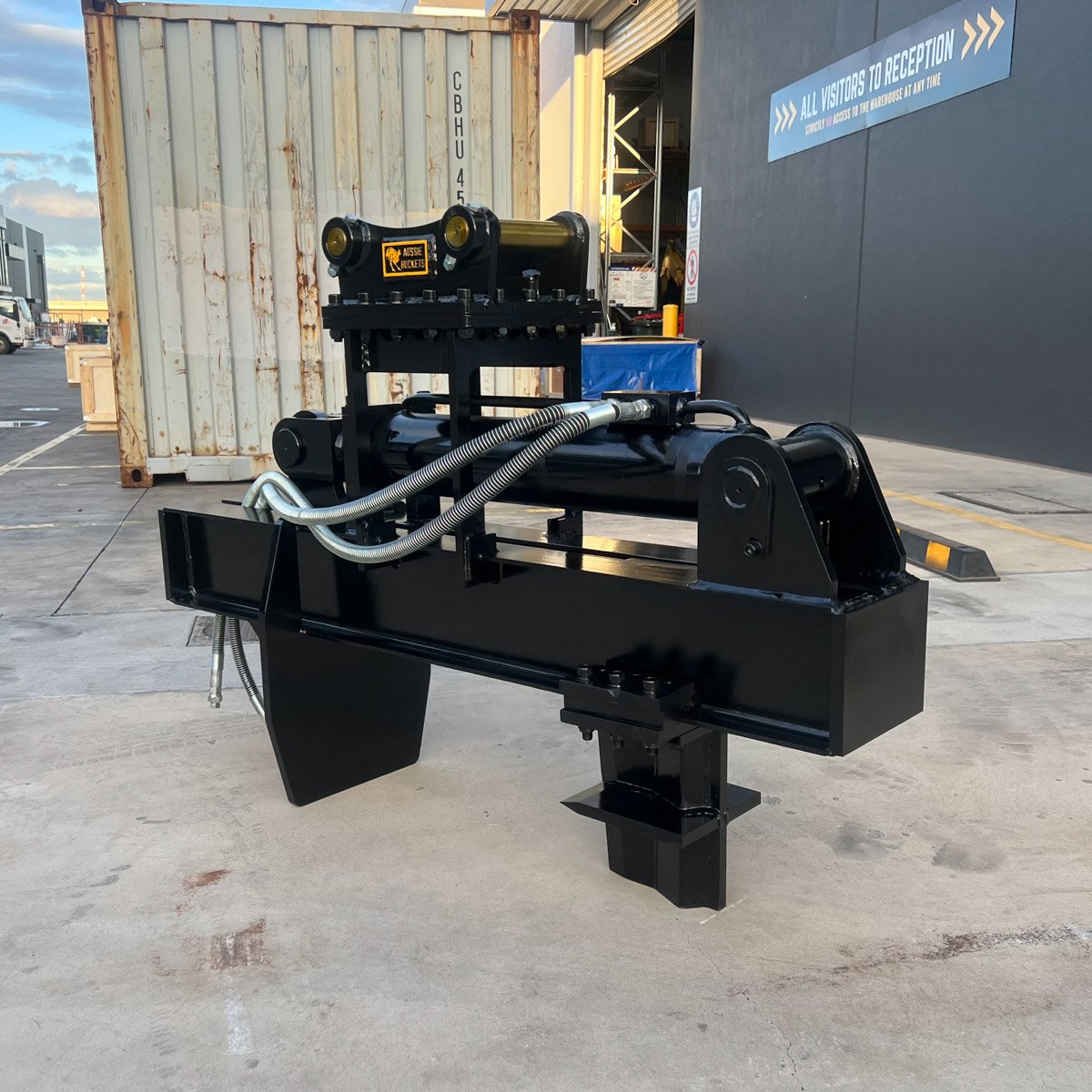

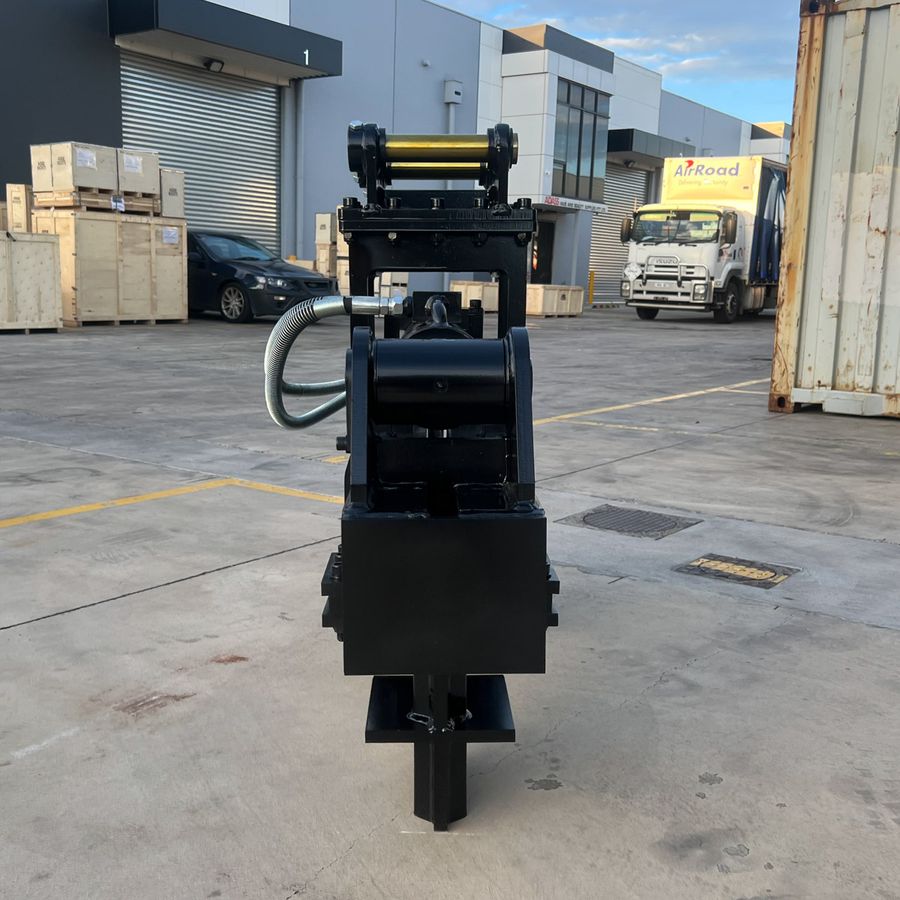

Gallery
14 photos
In action
14
The difference
EveryAussieBucketsexcavatorlogsplitterispurpose-builtforthemachineyourunandprecision-engineeredaroundthepartoffirewoodprocessingthatcostsyou:notjustthesplitting,butthehandlingeithersideofit.Availablefor1–18Tmachinesacrossfivebuilds,withsplittingforcefrom11to25tonnesandamaximumcuttinglengthof610mm.

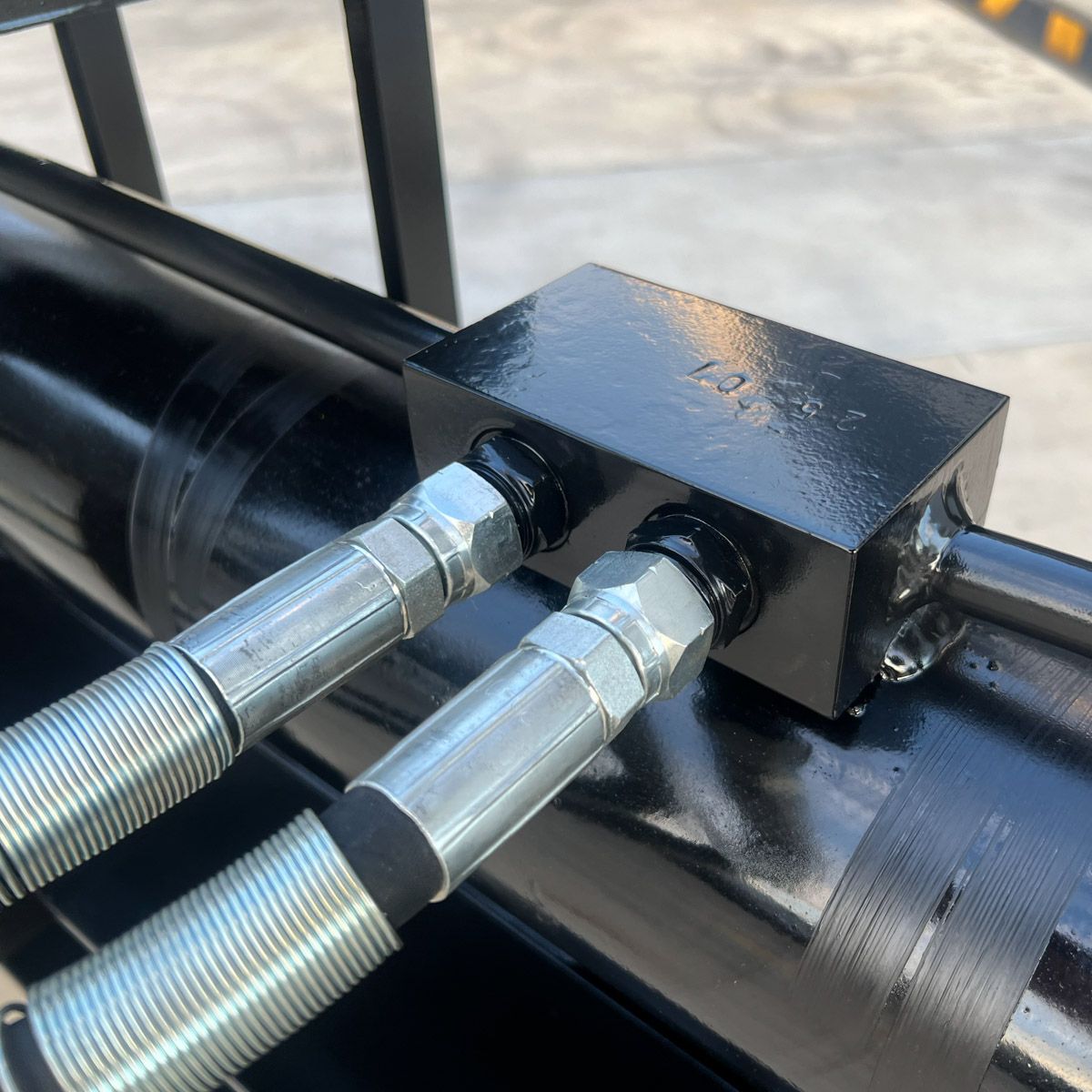

WhatdistinguishesourLogSplitterisitsinterchangeabletwo-wayandfour-waywedges,highsplittingforce,bolt-onheadbracketandintegratedhydraulicprotectionvalve.Comparedtoastandalonesplitter,themachinebringsthetooltothelogpileratherthanthepilebeingcarriedtothetool.
AllLogSplittersareaccompaniedwithourstandard5-yearwarranty.
Whether you know this as a hydraulic log splitter attachment, firewood splitter or timber splitter, this equipment is built for firewood production, timber processing and rural property work. Our excavator log splitter combines lifting, positioning and splitting into one workflow on the machine, with both wedge configurations supplied as standard.
Features

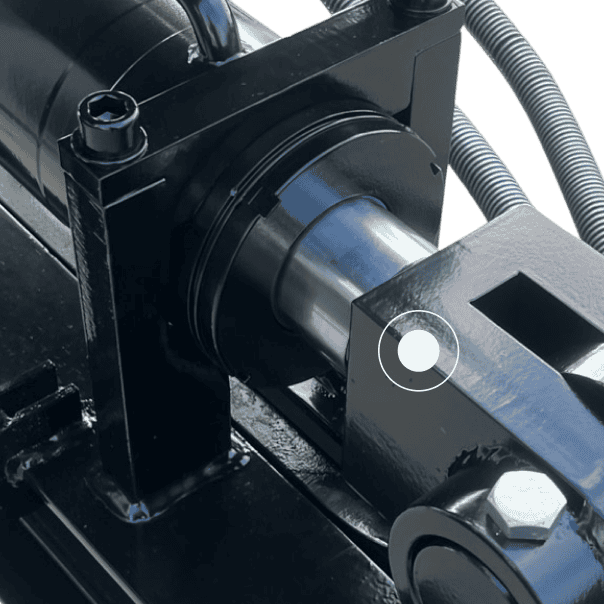

High splitting force
From 11 tonnes on the 1 to 2.7 tonne build to 25 tonnes on the 8 to 18 tonne builds, driven from the auxiliary circuit. Enough for Australian hardwood rounds up to 610 mm long.

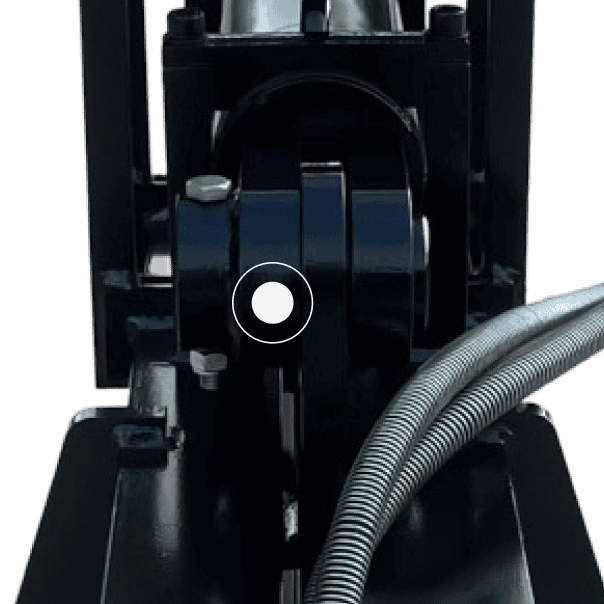

Bolt-on head bracket
The bracket bolts on rather than welding on, so the splitter moves between excavators with different pin sizes. One splitter serves a mixed fleet.

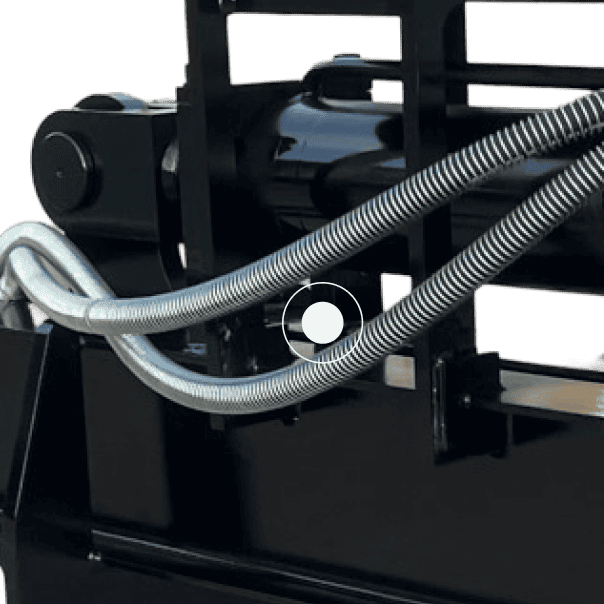

Improved productivity
The machine lifts, positions and splits the round in one workflow. No second handling, no loader feeding a stationary splitter and no one bending to a pile all day.
Technical Breakdown
Five build sizes covering 1 tonne to 18 tonne machines. Total length, max cutting length, blade dimensions, weight, pressure, flow rate and cutting force are listed per build.
| Excavator size(T) | Total length(mm) | Cutting base width(mm) | Max cutting length(mm) | Blade length(mm) | Blade width(mm) | Weight(kg) | Pressure(MPa) | Flow rate(L/min) | Cutting force(T) |
|---|---|---|---|---|---|---|---|---|---|
| 1 – 2.7 | 1,342 | 147 | 520 | 300 | 240 | 185 | 7.5 – 11 | 20 – 50 | 11 |
| 2.8 – 4 | 1,342 | 147 | 520 | 300 | 240 | 185 | 10 – 14 | 45 – 100 | 18 |
| 4.5 – 7 | 1,530 | 180 | 610 | 300 | 275 | 255 | 10 – 14 | 45 – 100 | 18 |
| 8 – 10 | 1,530 | 180 | 610 | 300 | 275 | 255 | 12 – 18 | 50 – 140 | 25 |
| 11 – 18 | 1,540 | 180 | 610 | 300 | 340 | 355 | 12 – 18 | 50 – 140 | 25 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is an excavator log splitter? An excavator log splitter is a hydraulic attachment that drives a wedge through timber using the machine's own circuit, splitting rounds where they lie. Aussie Buckets log splitters cover 1 to 18 tonne machines with interchangeable two-way and four-way wedges and a bolt-on head bracket.
What is the difference between a 2-way and 4-way wedge? A two-way wedge halves the round in one stroke and handles knotty and stringy timber that would jam a four-way. A four-way quarters it in the same stroke, which halves the handling on clean straight rounds. Both are supplied interchangeable, so the choice is made at the pile.
What size excavator does a log splitter need? Five builds cover 1 to 18 tonne machines, with splitting force from 11 to 25 tonnes, cutting length and flow requirement listed per build. Splitting force comes from the auxiliary circuit rather than machine weight, so send your flow and pressure figures with your machine make and model.
Can an excavator log splitter handle hardwood? Yes. Australian hardwood is what most of these are sold to split. Use the two-way wedge on knotty and stringy rounds where a four-way would jam, and the four-way on clean straight timber. Both wedges are supplied and swap over, so the tool suits the log rather than the other way round.
Log splitter or tree shear: which do I need? A tree shear fells and places standing timber. A log splitter processes timber that is already down into firewood. They sit at opposite ends of the same job, and rural and firewood operations commonly run both on the one machine.
How much does an excavator log splitter cost? Aussie Buckets log splitters start at $5,175. Price moves with machine class and splitting capacity, and 0% finance is available on approved purchases. Every splitter is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your machine.
