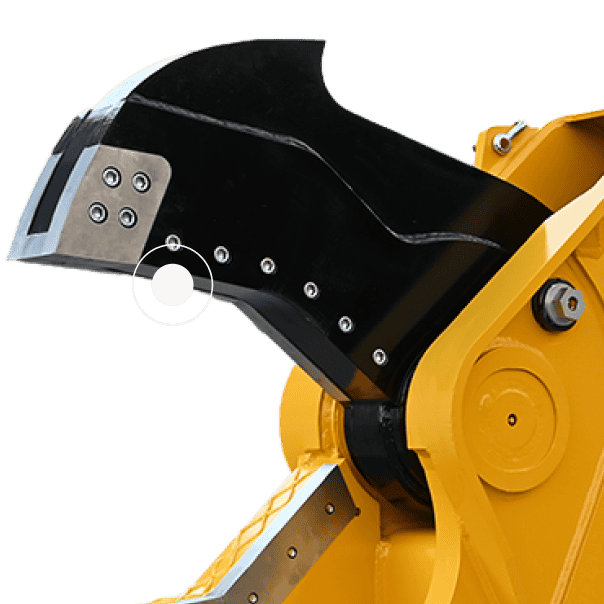

Heavy duty and robust

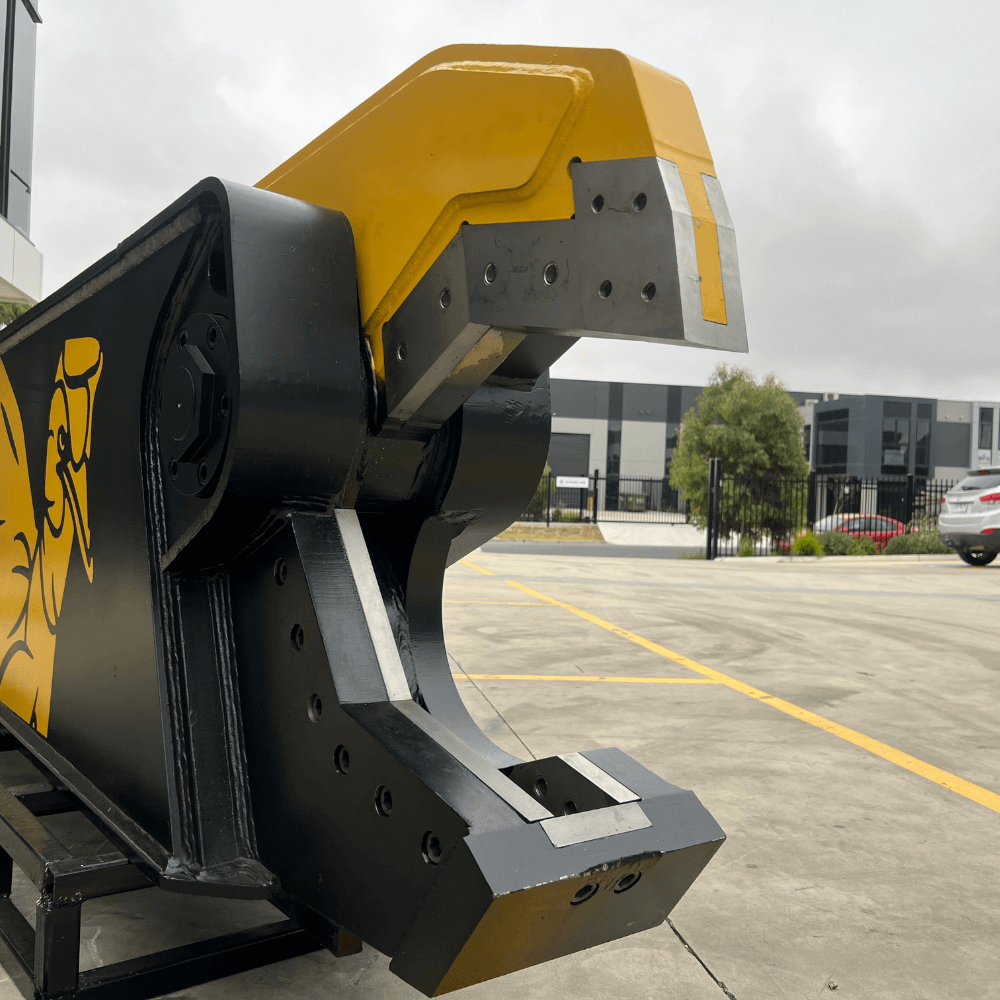

Heavy-duty steel throughout, with HARDOX 500 TUF in the cutting base, beak, jaw and wear parts. The parts that meet the steel are the hardest parts of the shear.

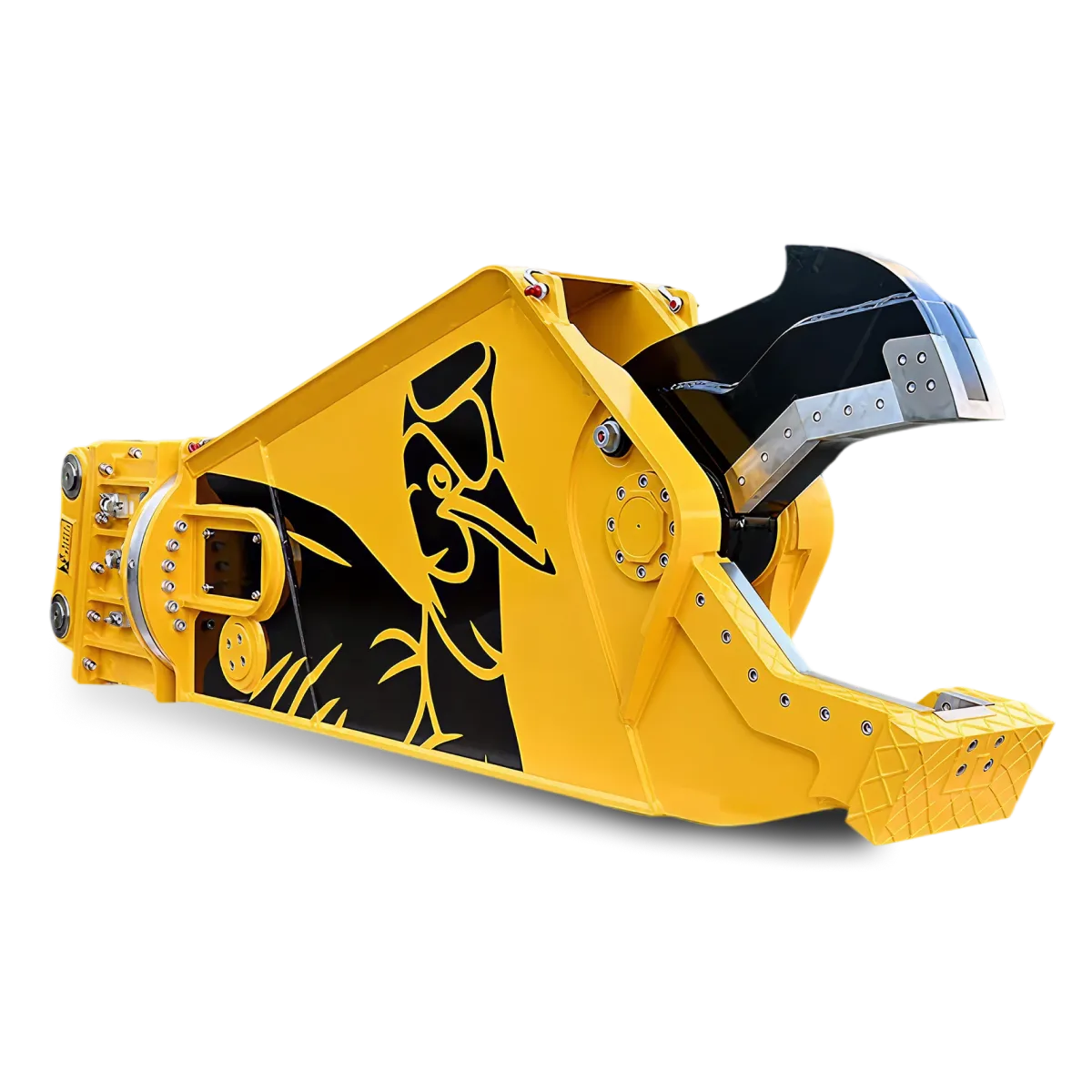

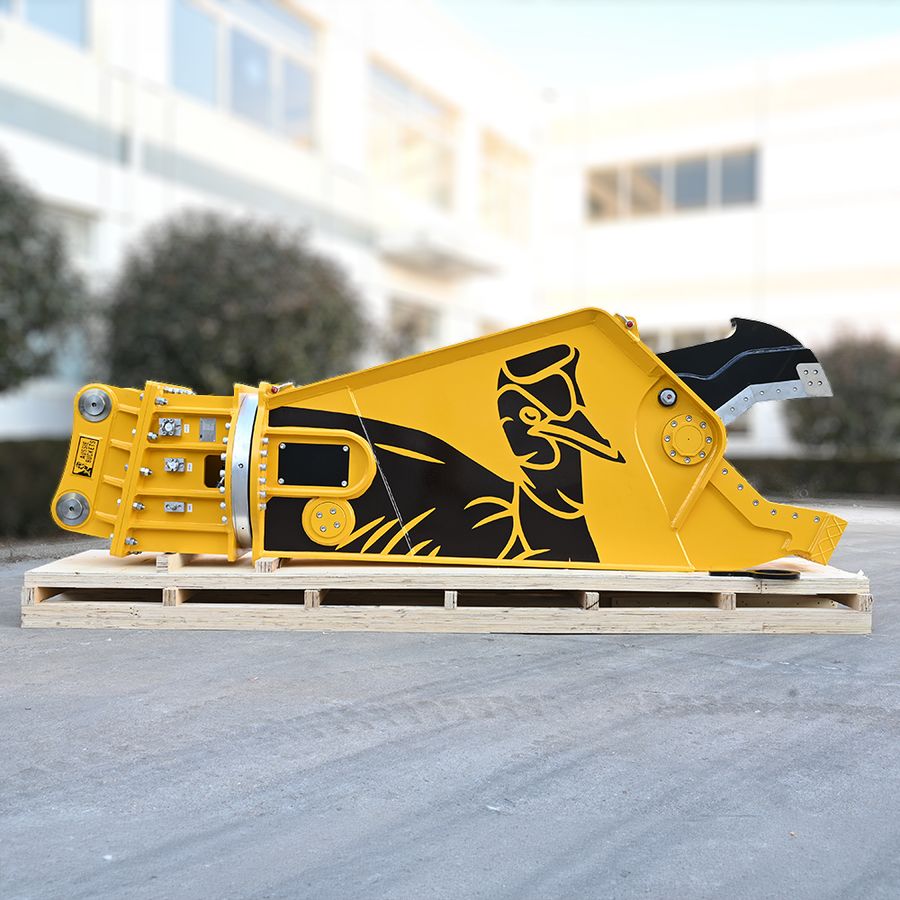

Hydraulic Shear
Available for 5 – 55T
Tip and middle cutting force listed separately.
Starting from
$23,475
Or with AB 0% Finance from $120/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

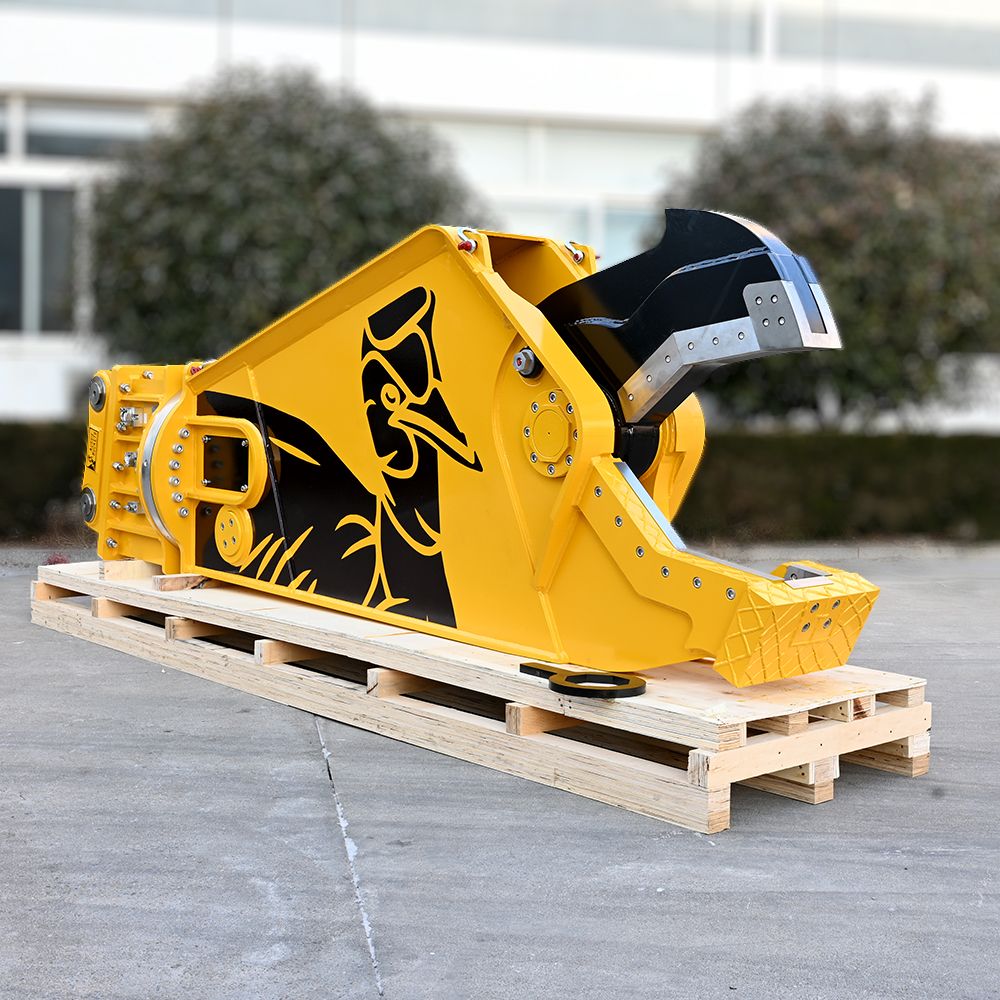

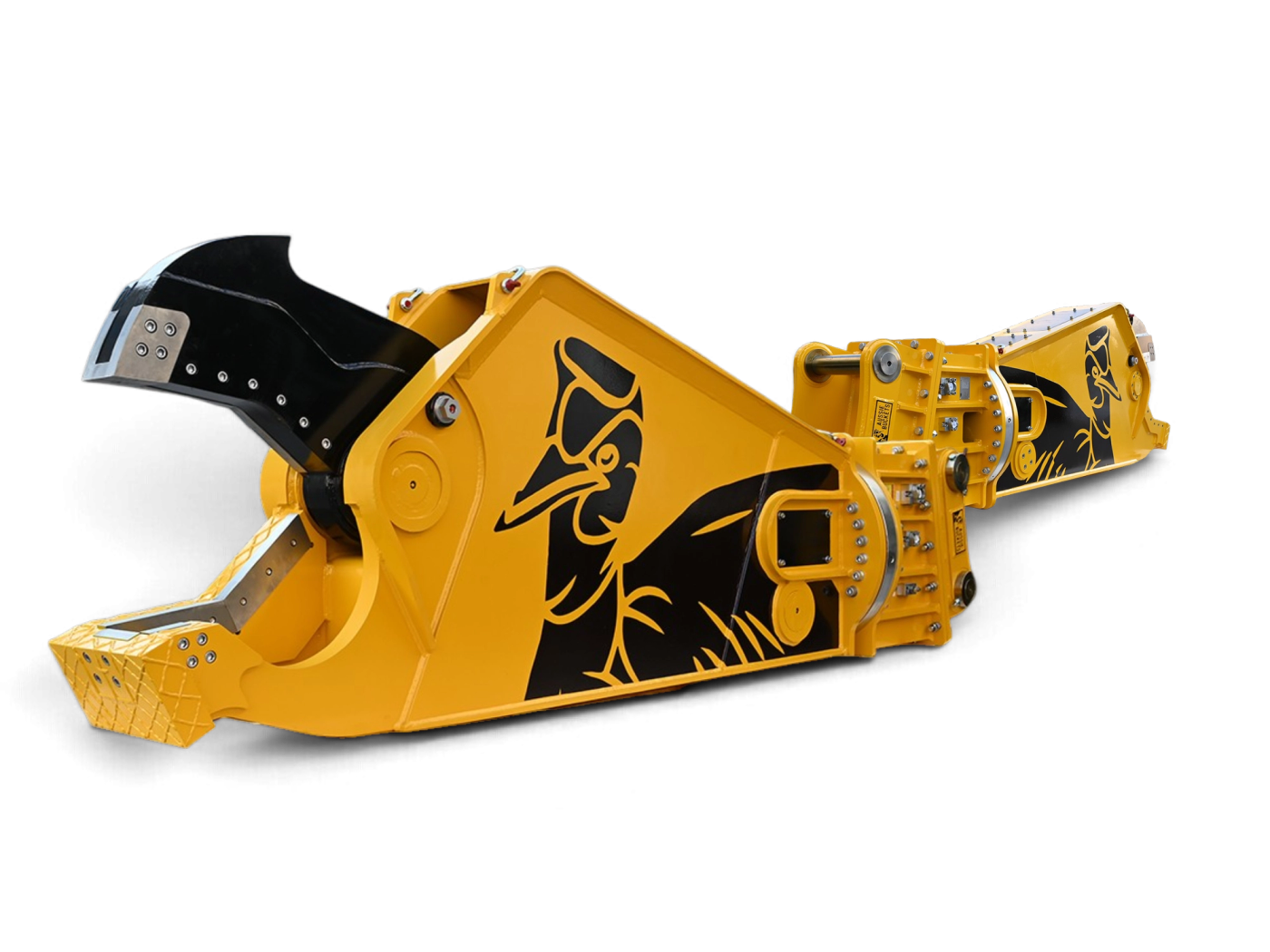

An excavator hydraulic shear for 7–40 tonne machines. Cuts structural steel and scrap on reversible blades, with tip and middle cutting force stated separately so the shear is sized against the sections you cut.

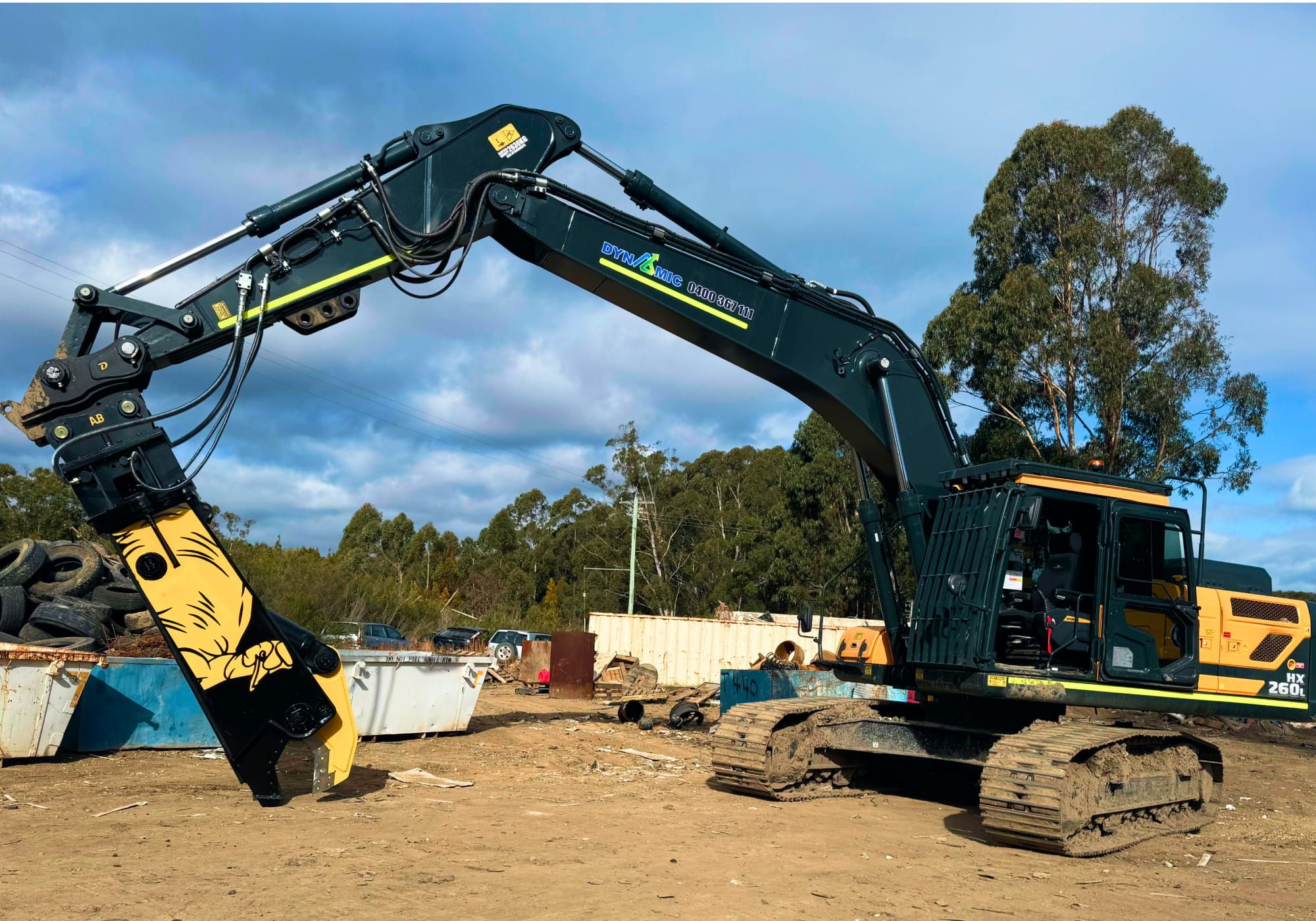

Gallery
1 video · 8 photos
Videos
01
Product
08
The difference
EveryEveryAussieAussieBucketsBucketshydraulichydraulicshearshearisispurpose-builtpurpose-builtforforthethemachinemachineyouyourunrunandandprecision-engineeredprecision-engineeredagainstagainstthethesectionssectionsyouyouactuallyactuallycut,cut,whichwhichisiswhywhytiptipandandmiddlemiddlecuttingcuttingforceforcearearelistedlistedseparatelyseparatelyratherratherthanthanfoldedfoldedintointooneoneheadlineheadlinefigure.figure.AvailableAvailableforfor7–40T7–40Tmachinesmachinesacrossacrossfourfourbuilds,builds,withwithtiptipforceforcefromfrom3636toto122122tonnes.tonnes.
WhatWhatdistinguishesdistinguishesourourHydraulicHydraulicShearShearisisitsitsHARDOXHARDOX500500cuttingcuttingbeak,beak,reversiblereversiblefour-edgefour-edgeblades,blades,dualdualpinionpinionslewslewringringforforpreciseprecise360-degree360-degreerotationrotationandandA-gradeA-gradecomponentscomponentsthroughout.throughout.ComparedComparedtotootherothershearsshearsononthethemarket,market,eacheachbladebladeturnsturnsthroughthroughfourfourworkingworkingedgesedgesbeforebeforeititisisreplaced.replaced.
AllAllHydraulicHydraulicShearsShearsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.

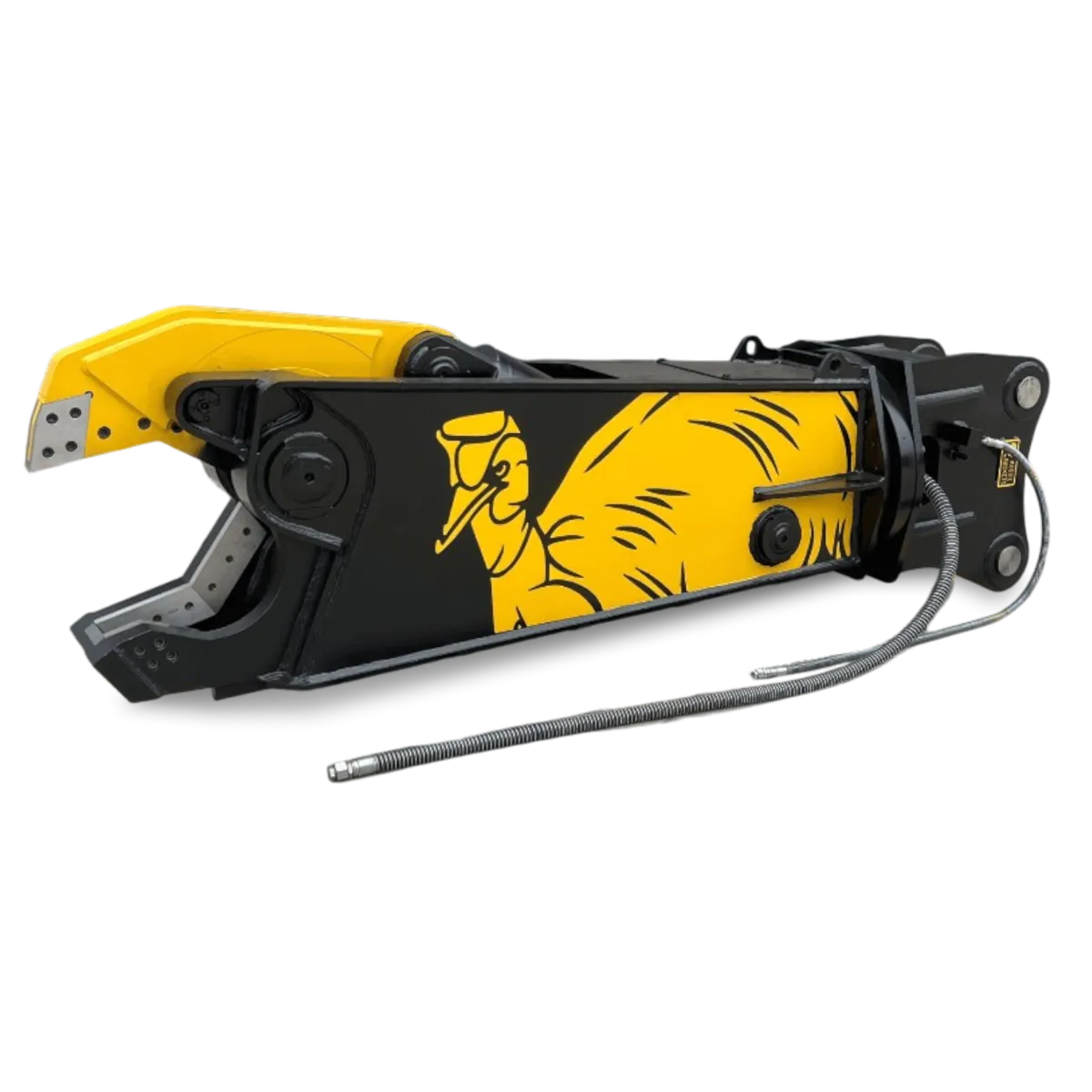

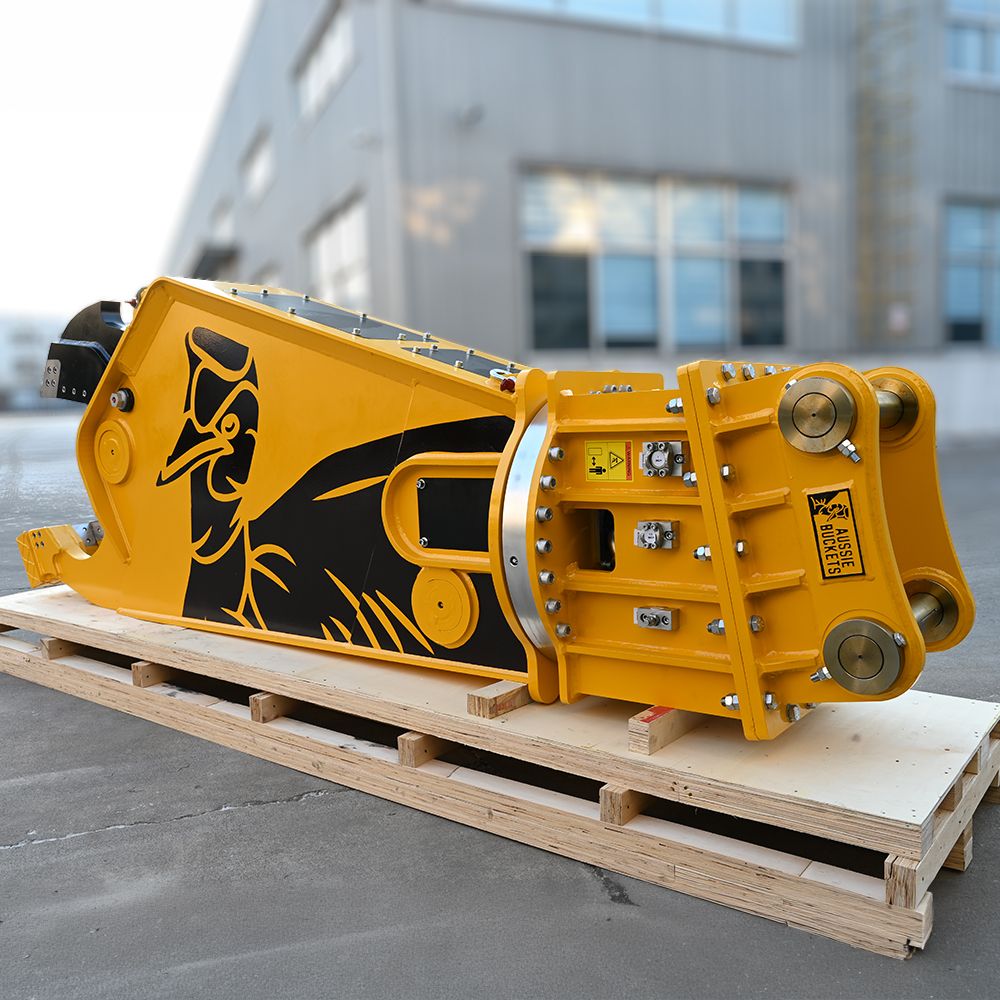

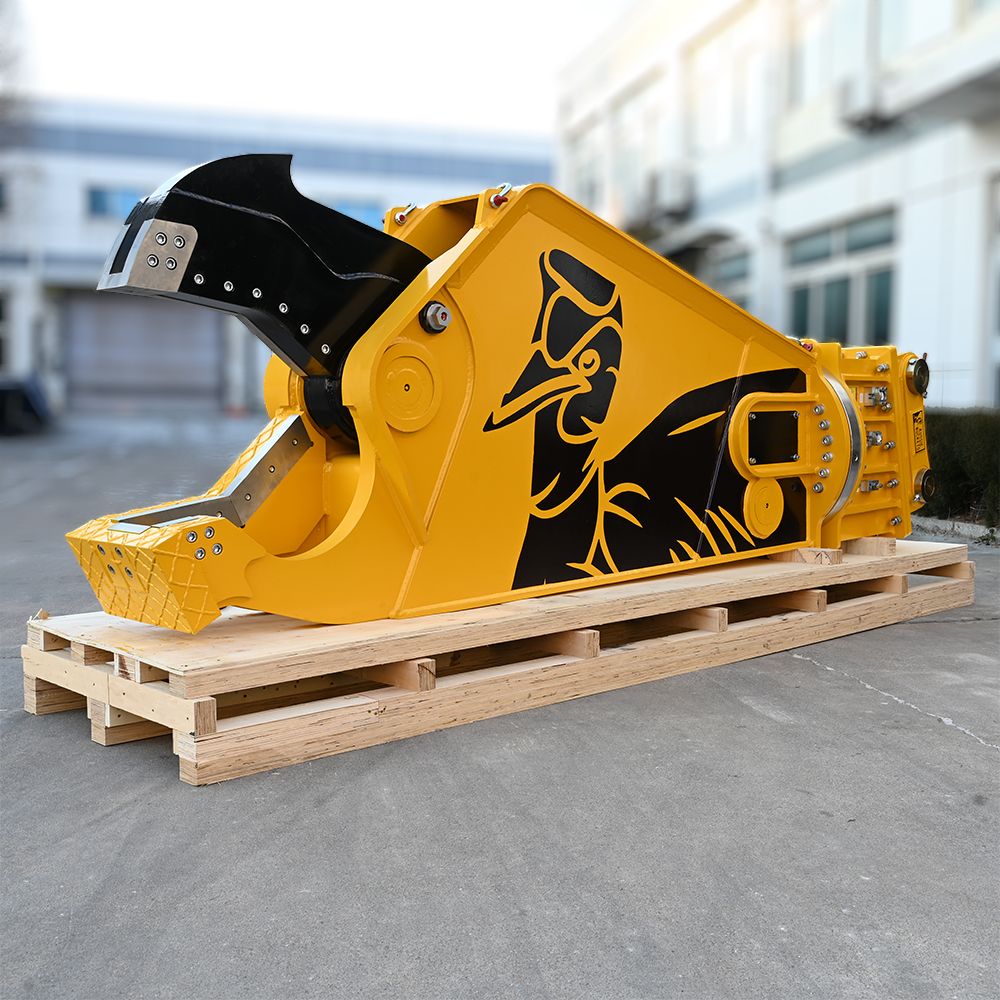

Built for demolition and scrap processing, this excavator shear features a HARDOX 500 cutting beak, reversible four-edge blades and a dual pinion slew ring, with two spare blade kits supplied so the consumable is covered from day one.
Features

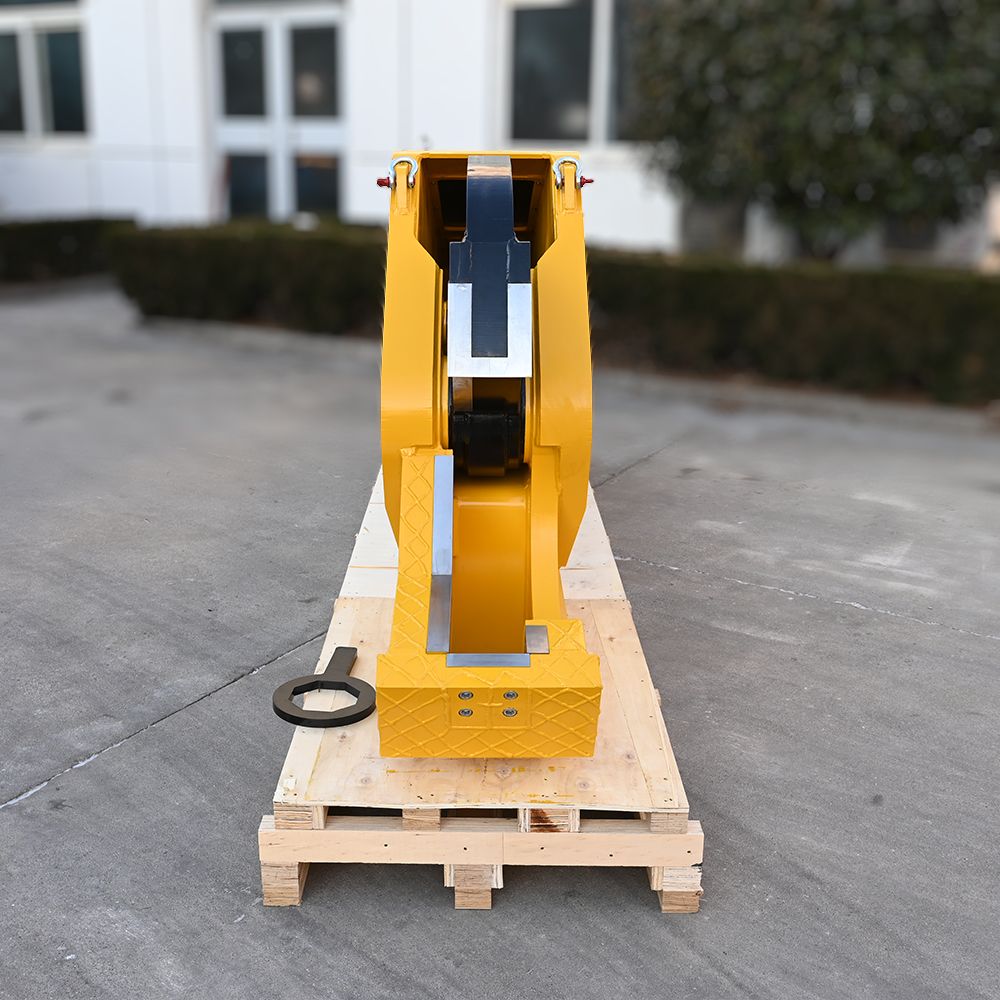

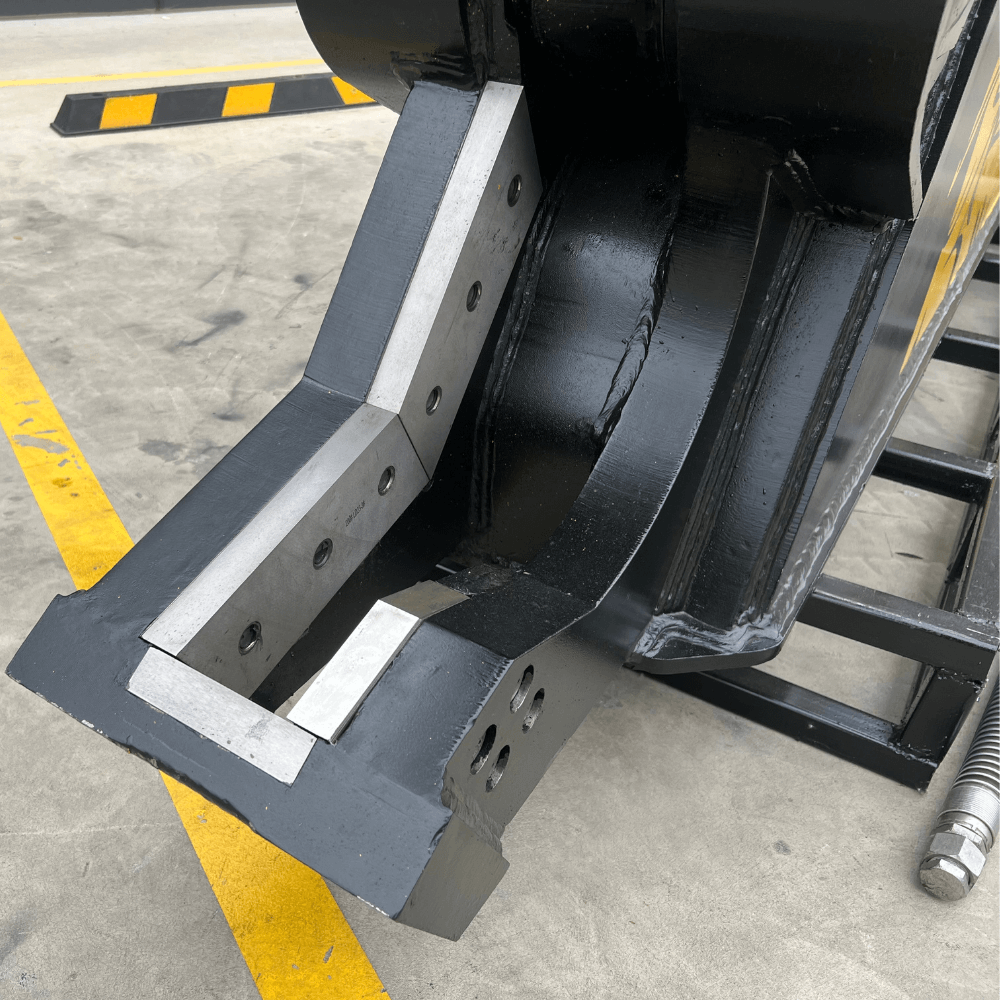

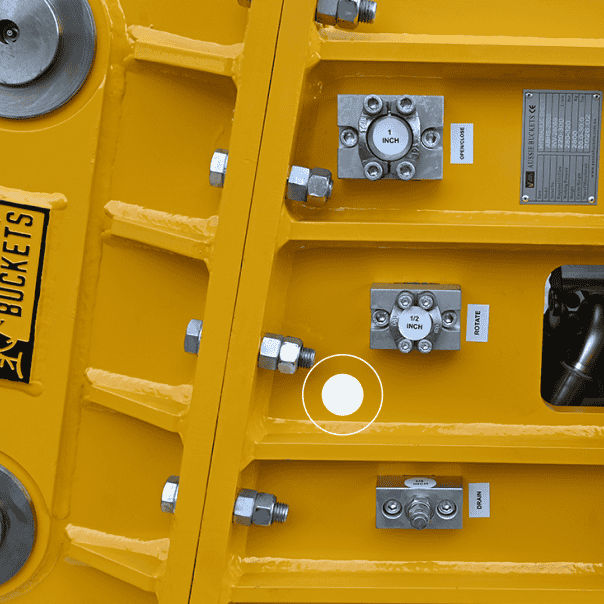

Durable reversible blades

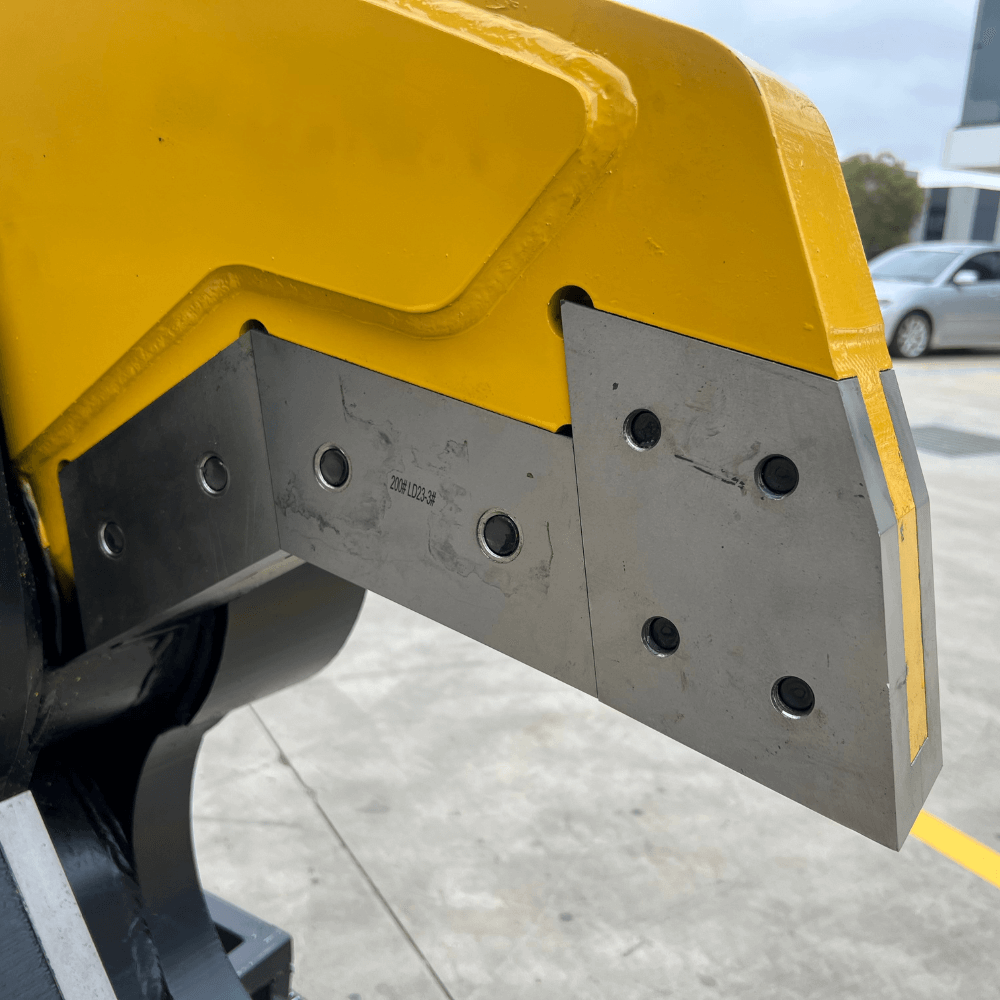

Each replaceable blade flips and rotates to present four cutting edges before it is changed out. Two spare blade kits are supplied with every shear.

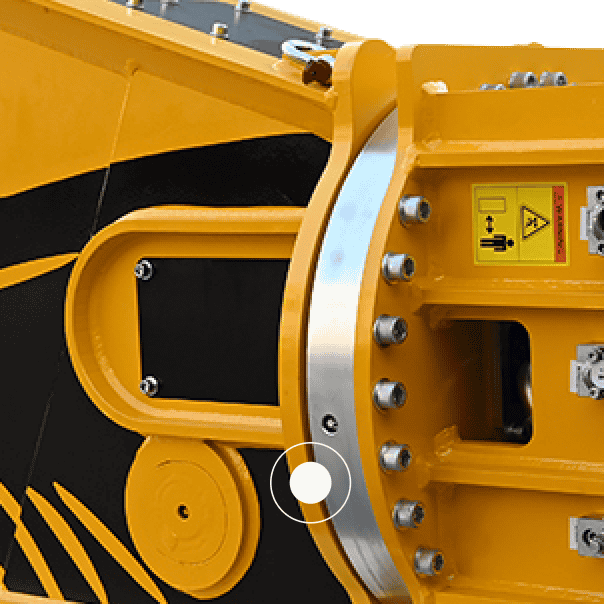

Precise control

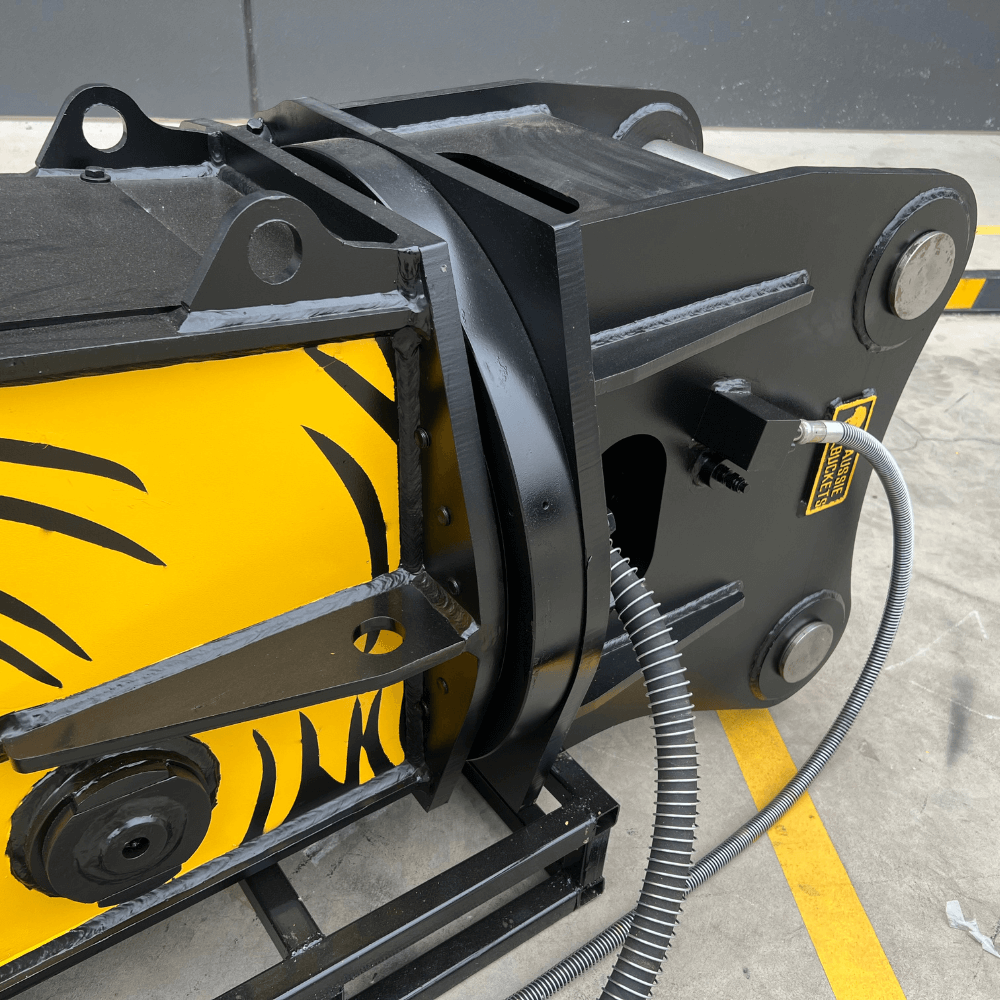

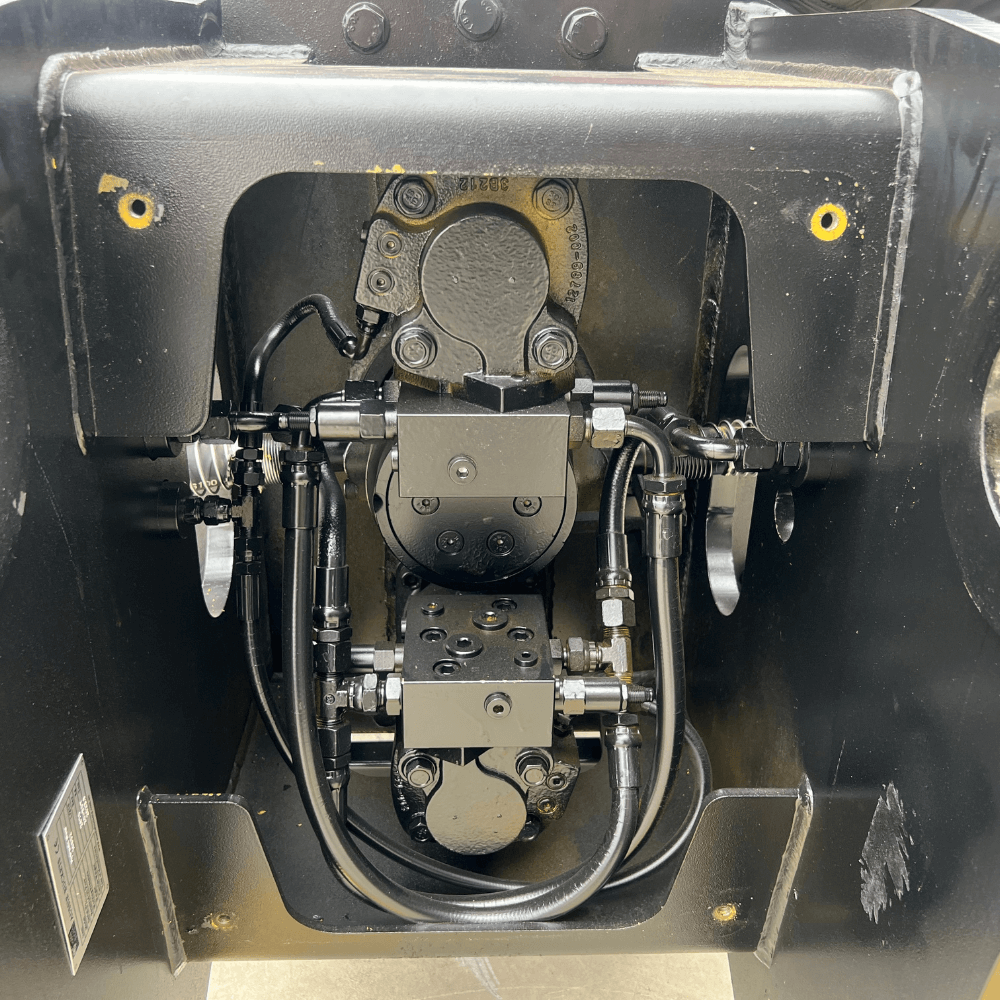

Continuous 360-degree rotation on an Eaton motor built for the loads an excavator puts through the rotator, so the jaw is turned to the section rather than the machine tracking round to it.

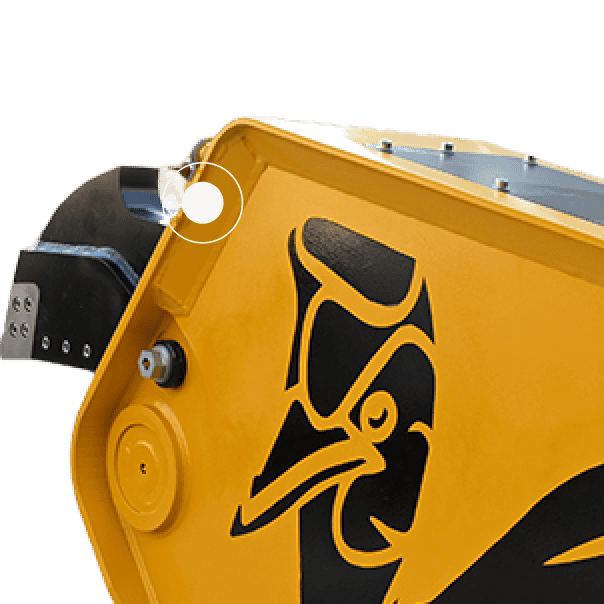

Decreased torsional tension

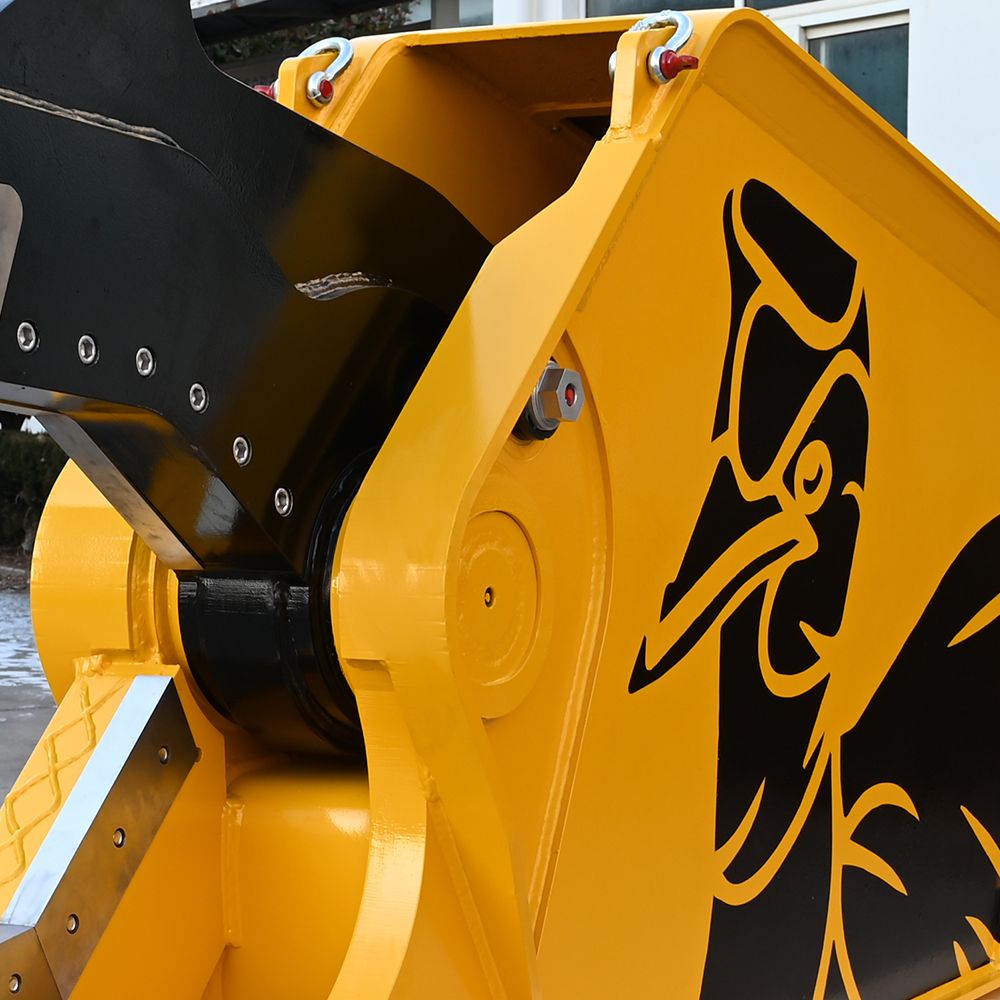

Hardened pins, bearings and larger bushes carry the twisting loads of a cut, protecting the main pivot and keeping the blades aligned through heavy sections.
Technical Breakdown
Four build sizes covering 7 tonne to 40 tonne machines. Weight, jaw opening, jaw depth, overall length, tip force and middle force are listed for each build.
| Excavator size(T) | Weight(kg) | Jaw opening(mm) | Jaw depth(mm) | Length(mm) | Tip force(t) | Middle force(t) | Inner force(t) | Cylinder pressure(bar) | Cylinder flow(L/min) |
|---|---|---|---|---|---|---|---|---|---|
| 7 – 12 | 470 | 340 | 320 | 1,725 | 36 | 63 | 130 | 200 | 60 – 80 |
| 11 – 18 | 1,200 | 357 | 346 | 2,508 | 52 | 110 | 152 | 320 | 100 – 180 |
| 20 – 30 | 2,500 | 440 | 590 | 3,069 | 81 | 141 | 322 | 320 | 150 – 200 |
| 30 – 40 | 3,350 | 630 | 650 | 3,604 | 122 | 233 | 459 | 350 | 250 – 360 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions

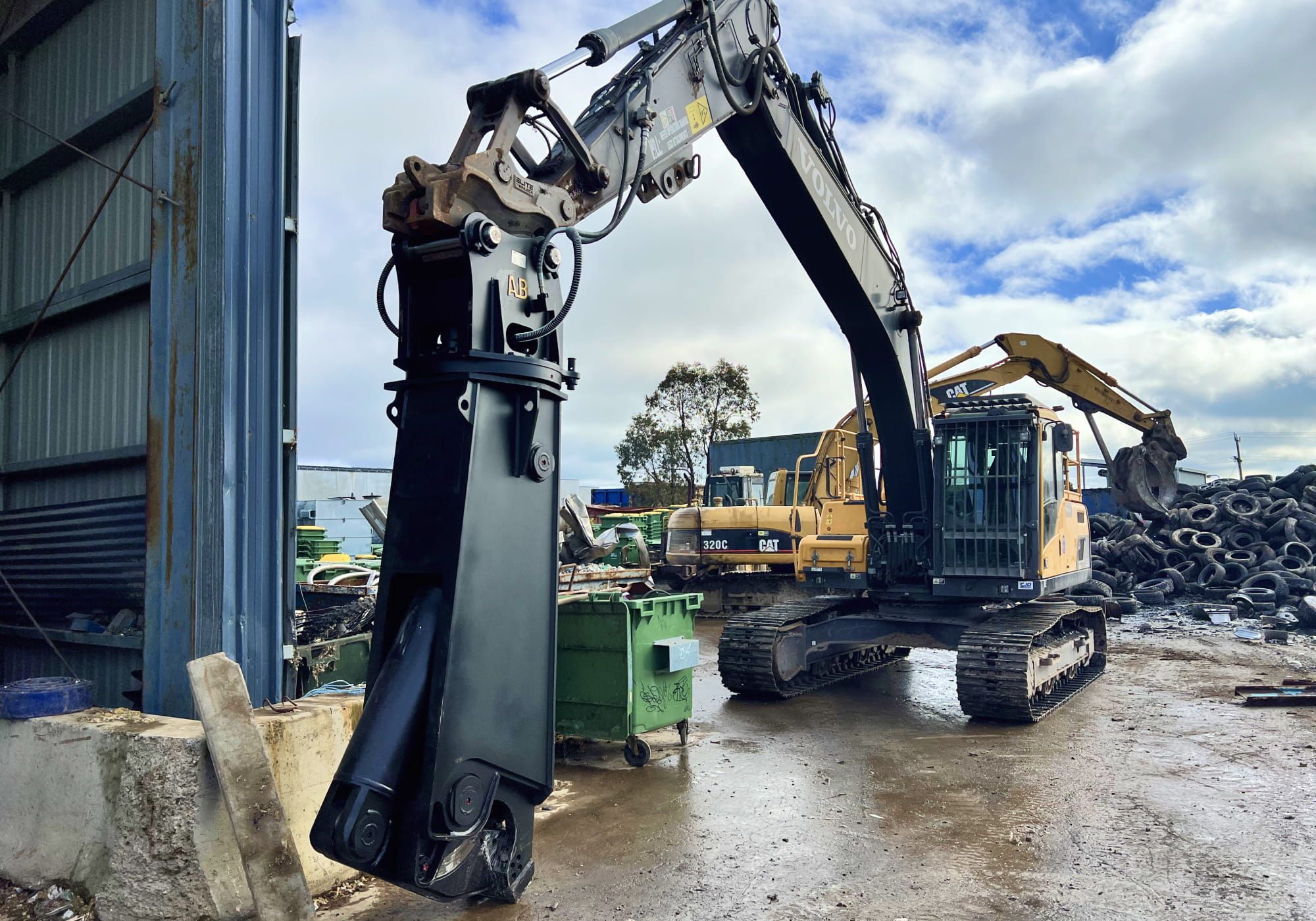

What is a hydraulic shear used for? Cutting structural steel, scrap, pipe, tank and vessel work during demolition and metal recycling. A hydraulic shear closes hardened blades through the section rather than crushing it, which gives sized, handleable scrap. Aussie Buckets shears cover 7 to 40 tonne excavators across four builds.
What is the best excavator shear for processing scrap metal? The right shear is the one sized against the heaviest section you regularly cut, measured at the tip rather than the middle of the jaw. Tip and middle cutting force are listed separately across the Aussie Buckets range for that reason. Send your typical and heaviest sections and we will specify against them.
Can you replace the blades on a hydraulic shear? Yes. Blades are reversible through four edges, so each gives four working faces before it is changed out, and two spare blade kits ship with every shear. On scrap work the blades are the consumable, and specifying them as renewable is what keeps the running cost predictable.
What size excavator does a scrap shear need? Four builds cover 7 to 40 tonne machines, with weight from 470 to 3,350 kg, jaw opening, cutting force and flow requirement listed per build. Shear work loads the machine at reach, so lift capacity matters as much as weight. Send your machine details and the material you are processing.
Hydraulic shear or tree shear: which do I need? A hydraulic shear cuts steel and is built for demolition and metal recycling. A tree shear cuts timber and clamps the stem so the tree can be placed under control. They share a name and nothing else, so specify by the material rather than the word.
How much does an excavator shear cost? Aussie Buckets hydraulic shears start at $23,475. Price moves with machine class and cutting capacity, and 0% finance is available on approved purchases. Every shear is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your machine.
