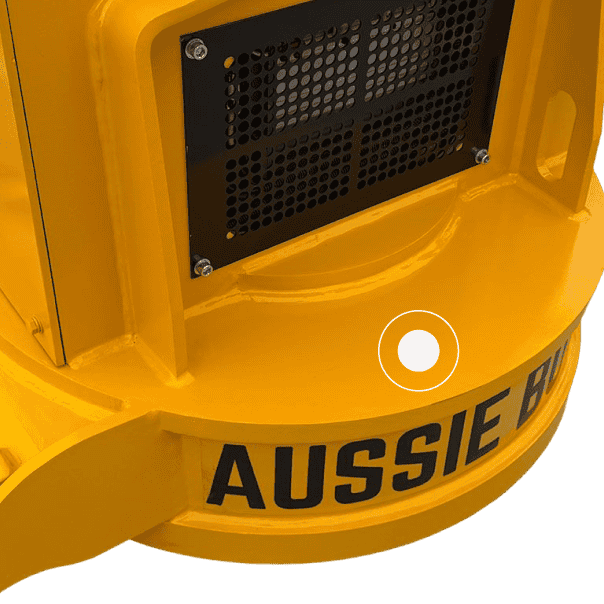

Easy mounting

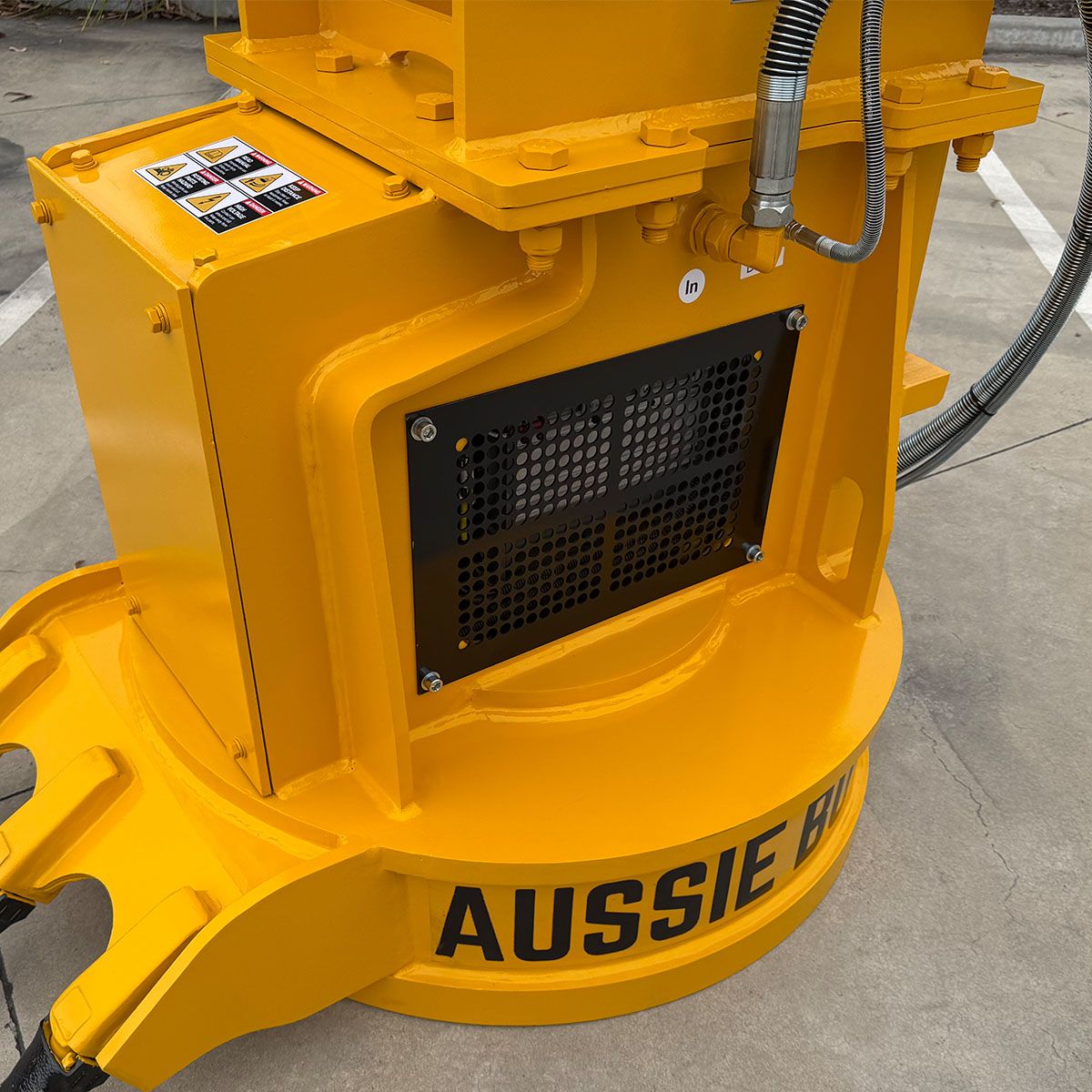

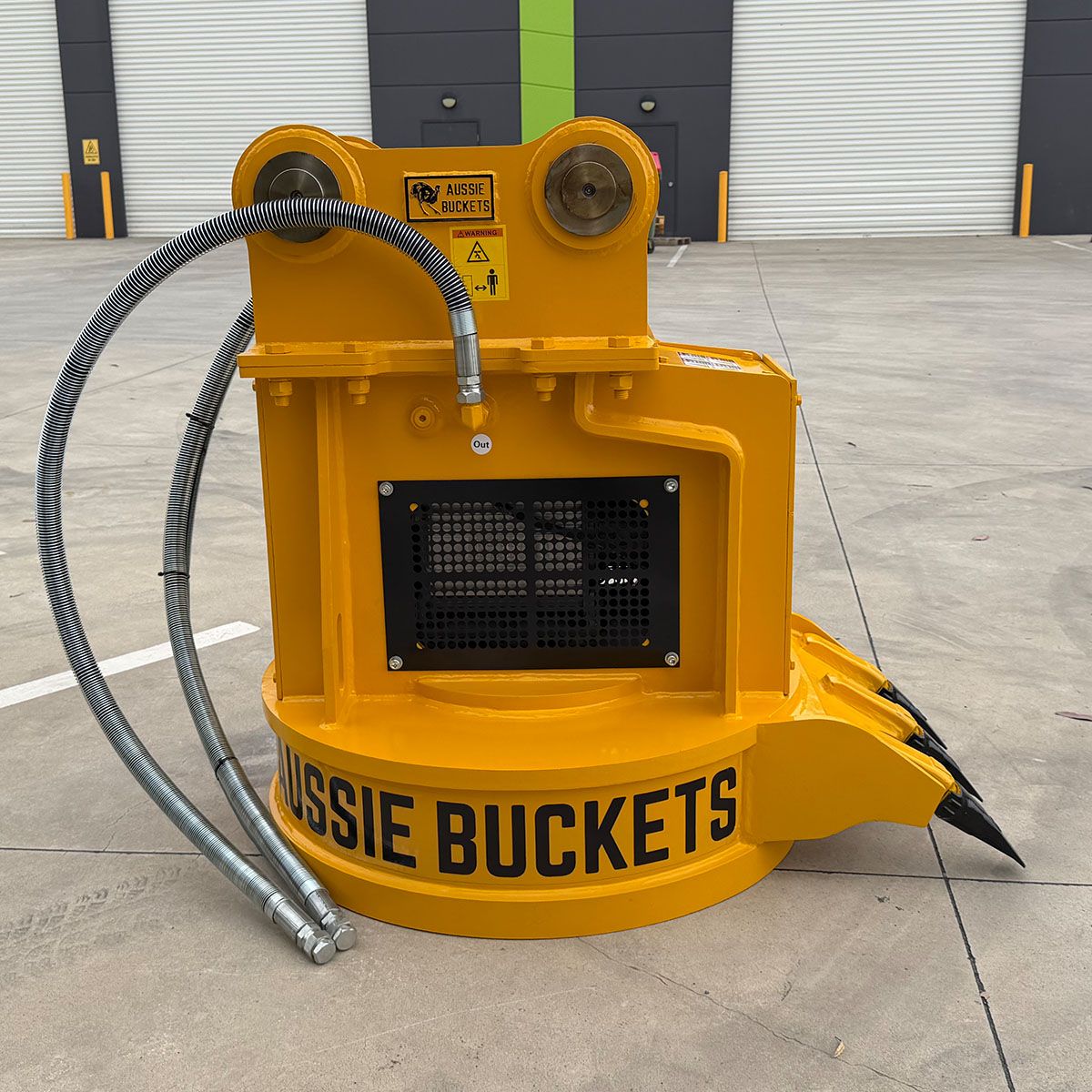

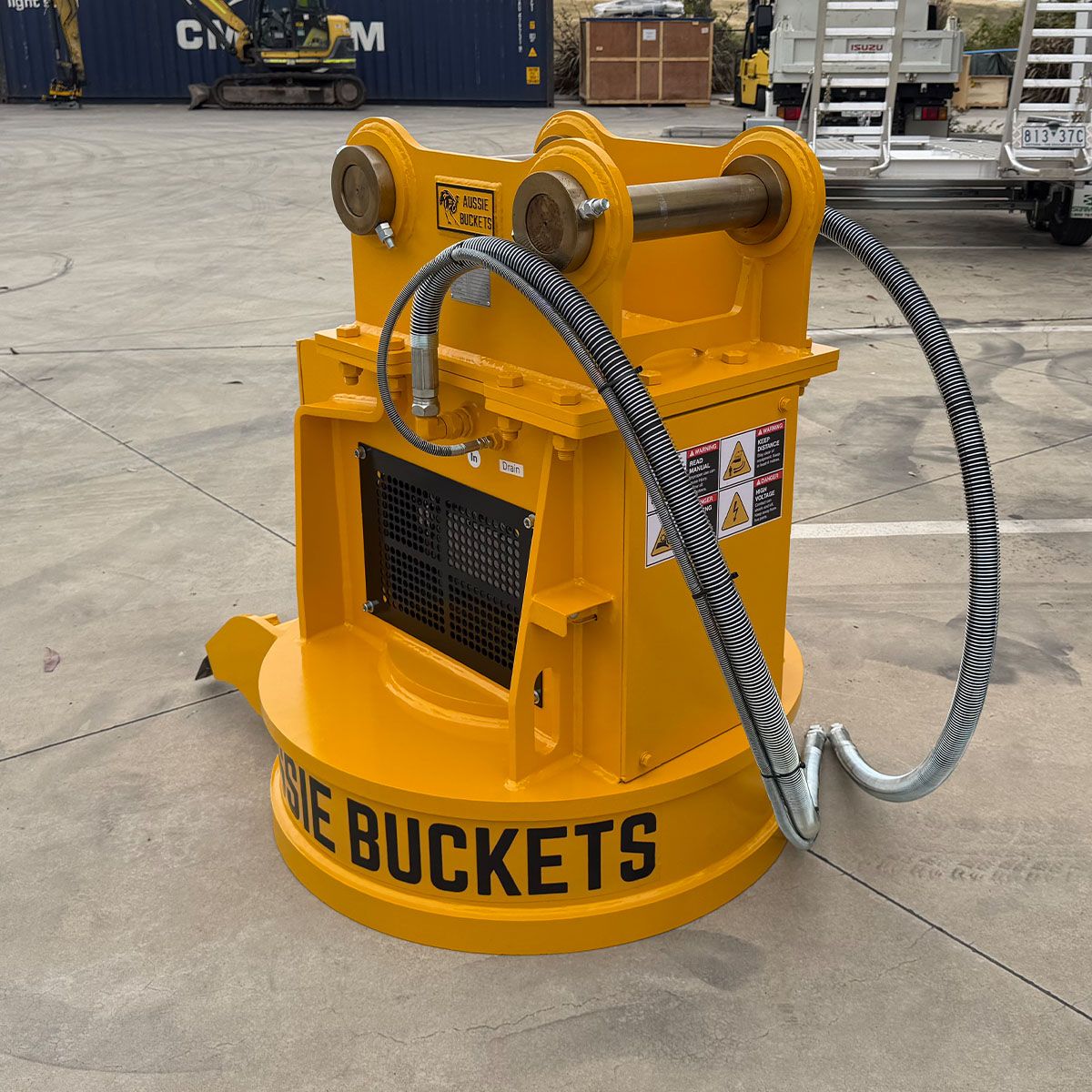

Connects with two hoses, a case drain line and an optional electrical line. Fewer connections than a generator-fed magnet, so it is on the machine and working sooner.

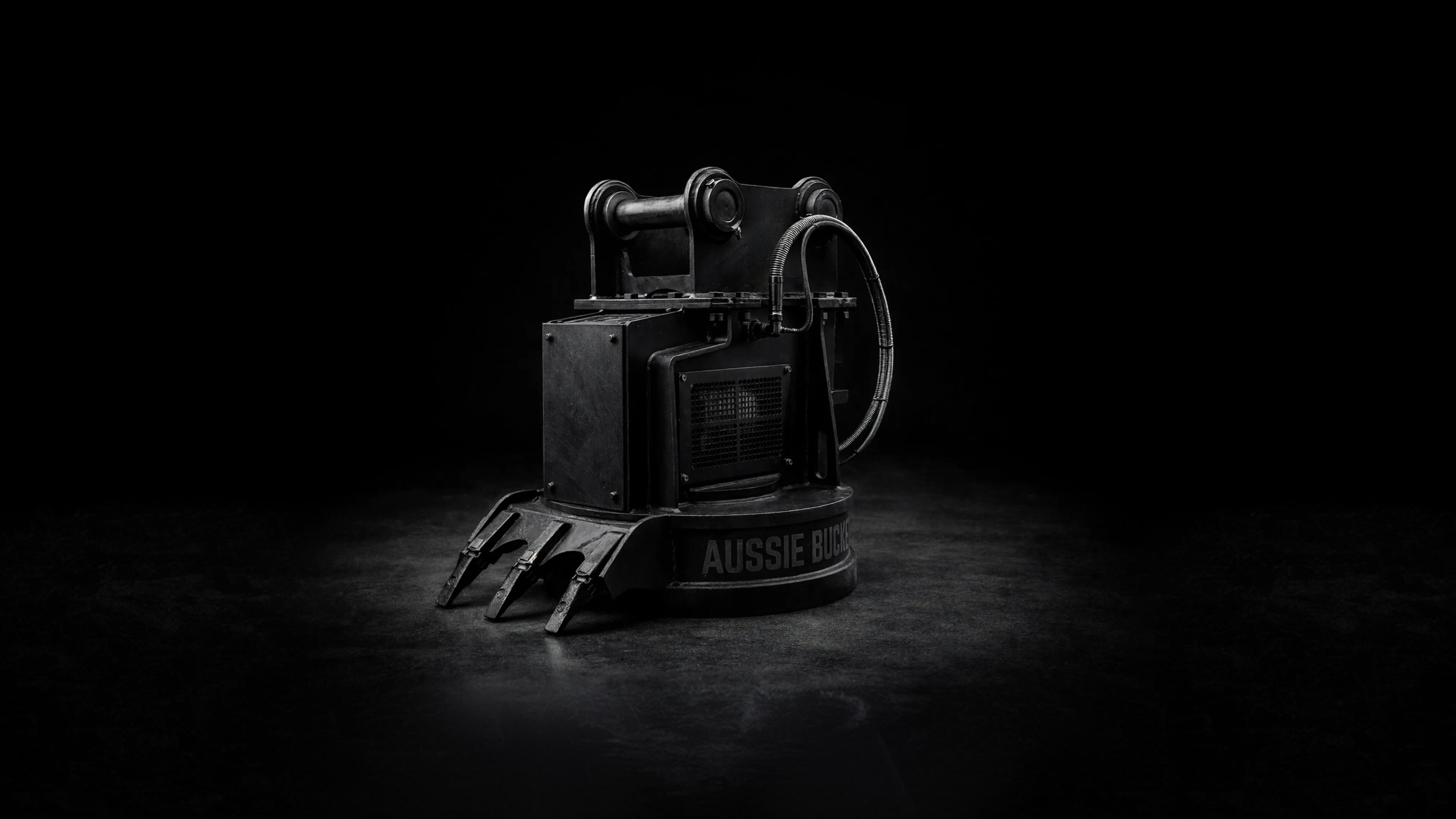

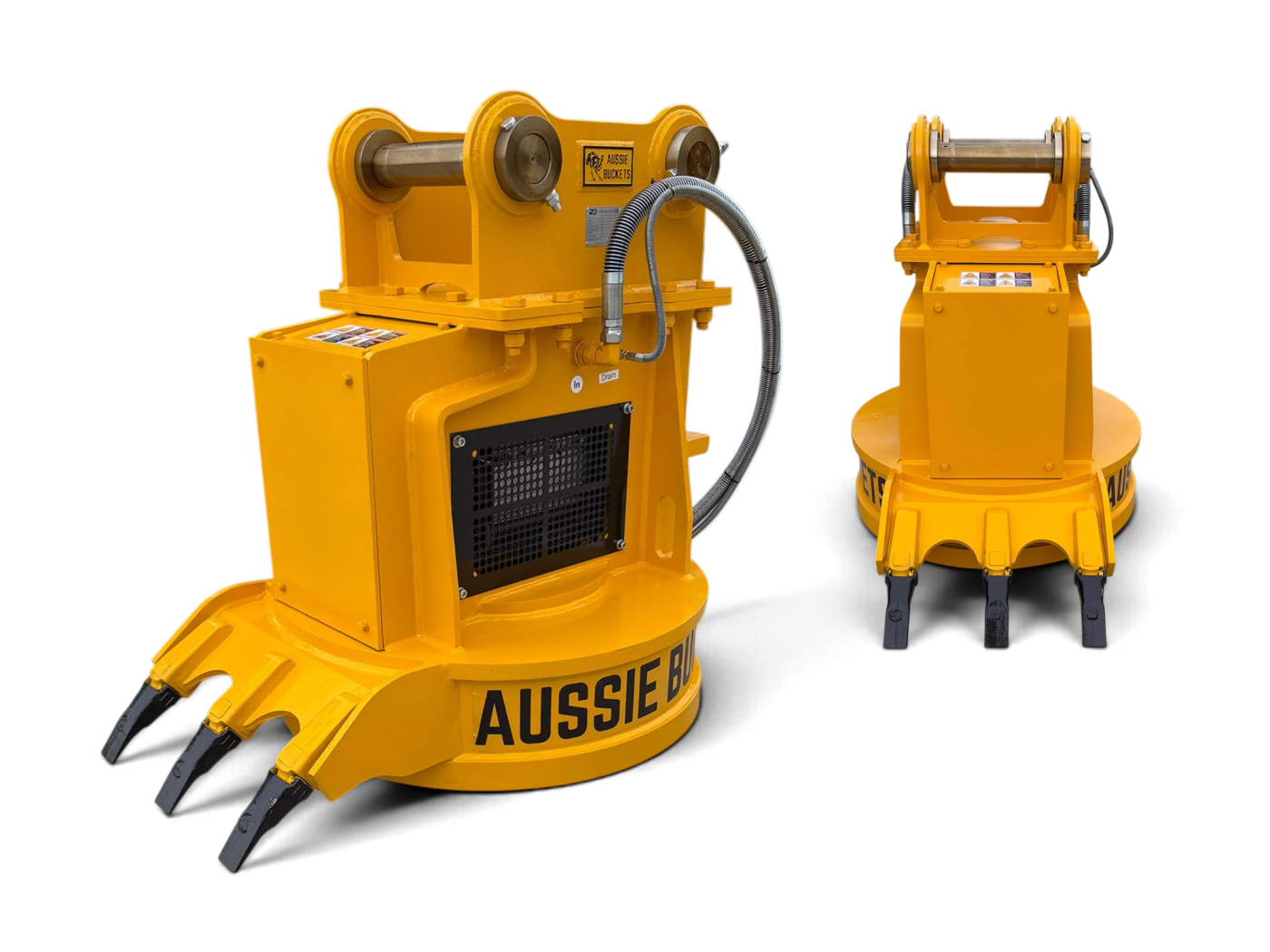

Hydraulic Electromagnet
Available for 20 – 50T
Runs off the machine. No generator.
Starting from
$44,875
Or with AB 0% Finance from $224/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

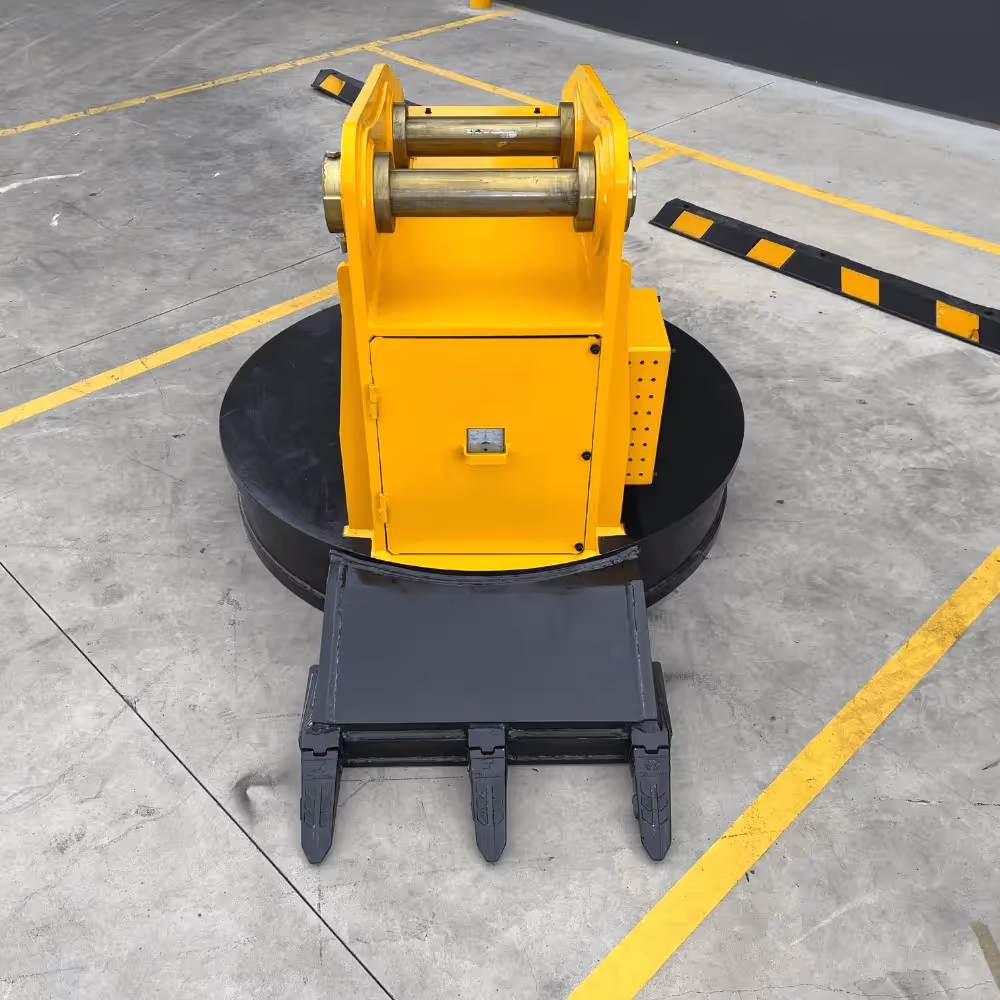

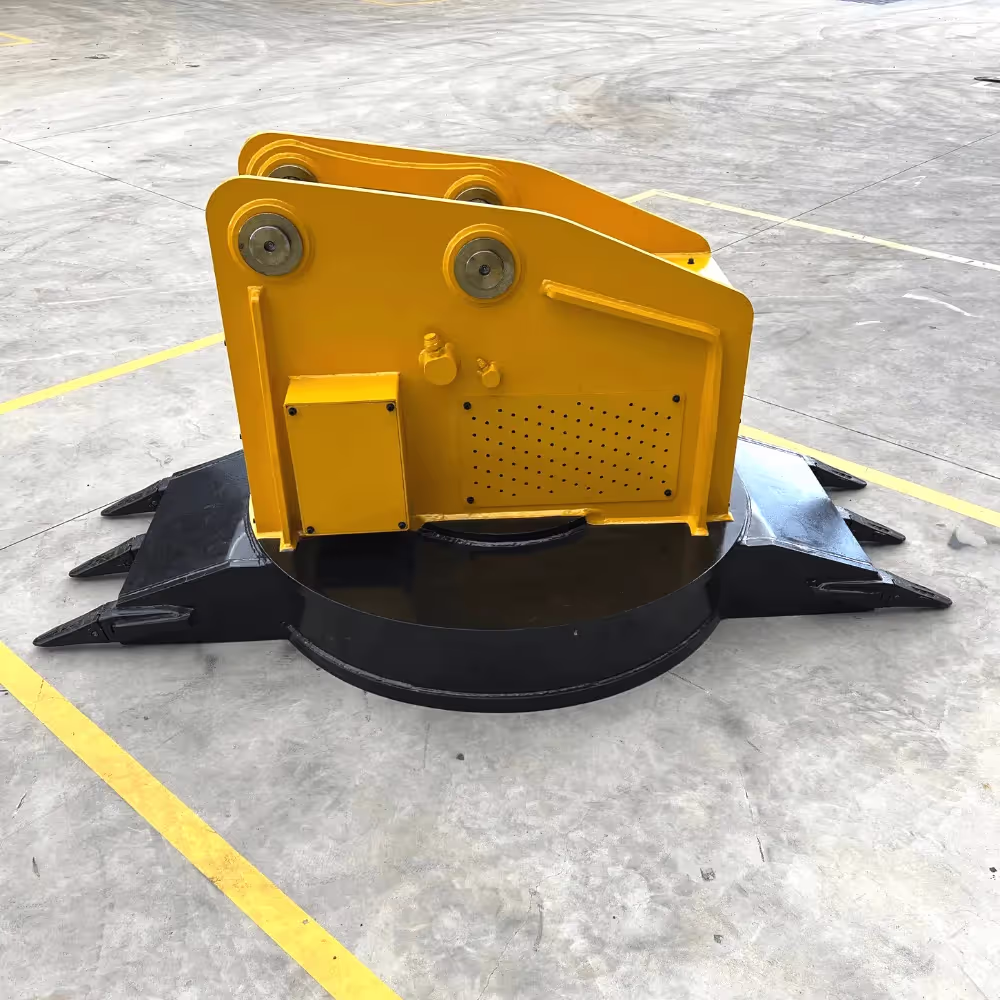

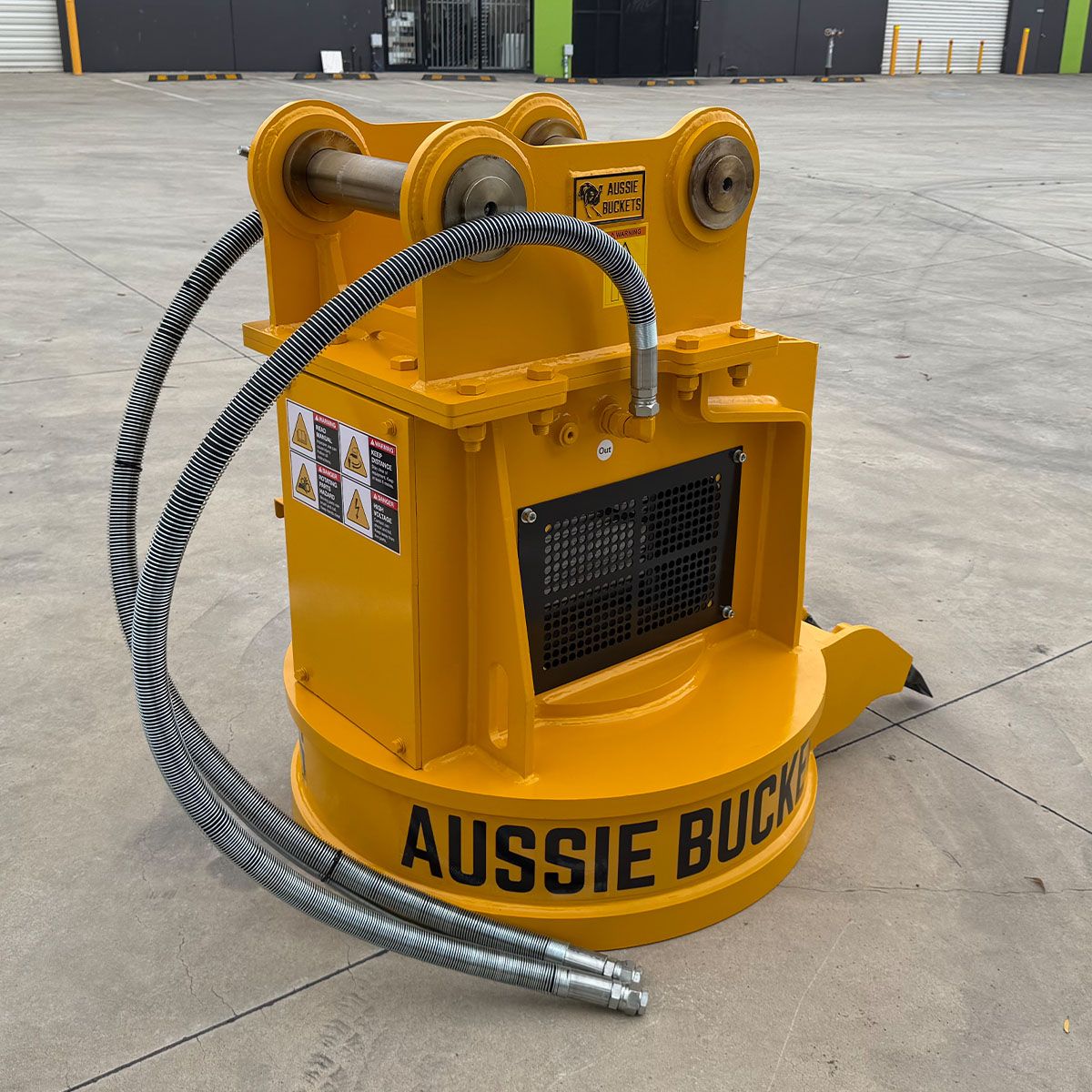

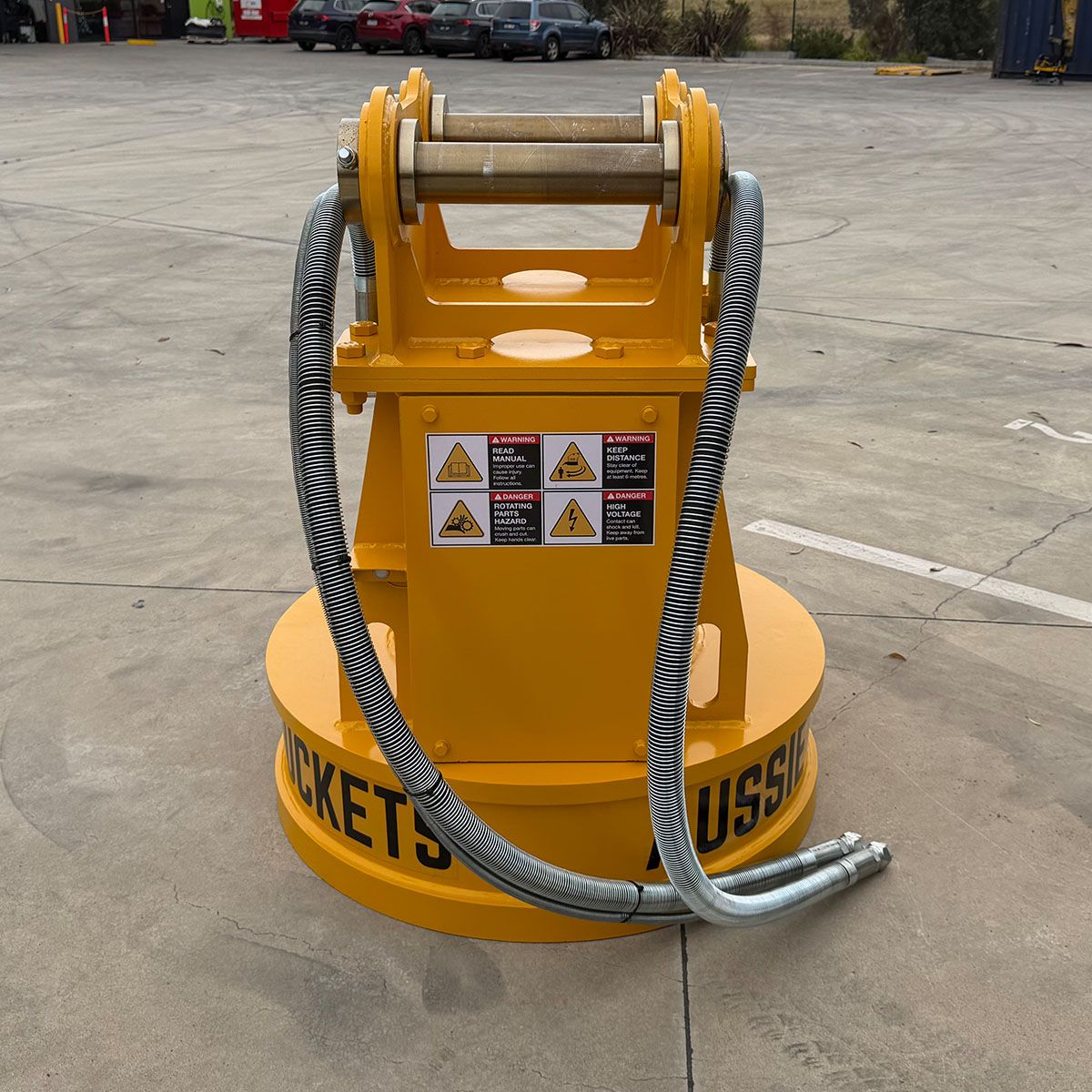

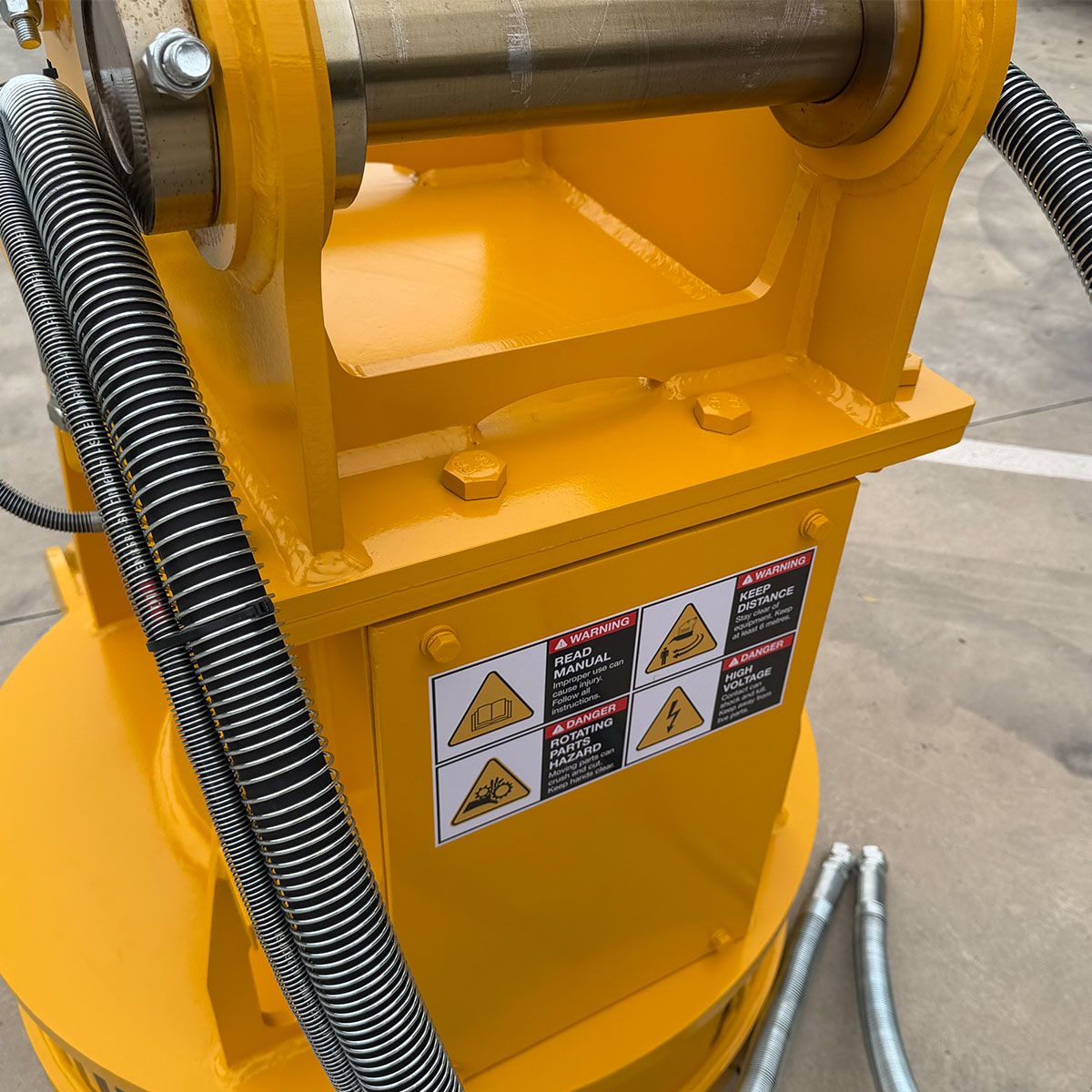

A hydraulic excavator magnet for 13.5–50 tonne machines. Draws power from the machine's own hydraulic circuit, so there is no separate generator to fuel, service or move between sites.
Gallery
12 photos
Product
12
The difference
EveryEveryAussieAussieBucketsBucketshydraulichydraulicelectromagnetelectromagnetisispurpose-builtpurpose-builtforforthethemachinemachineyouyourunrunandandprecision-engineeredprecision-engineeredtotoremoveremovethethethingthingthatthatusuallyusuallycomescomeswithwithone:one:thethegenerator.generator.AvailableAvailableforfor13.5–50T13.5–50Tmachinesmachinesacrossacrossfourfourbuilds,builds,drawingdrawingpowerpowerfromfromthethemachine'smachine'sownownhydraulichydrauliccircuitcircuitandandliftingliftingupuptoto7,7007,700kgkgofofsolidsolidsteel.steel.
WhatWhatdistinguishesdistinguishesourourHydraulicHydraulicElectromagnetElectromagnetisisitsitshydraulichydraulicmotor-drivenmotor-drivenpowerpowergeneration,generation,integratedintegratedsurfacesurfacescraperscraperandandmanifoldmanifolddistributiondistributionblocksblockswithwithcasecasedrain,drain,sosoititmountsmountsandandrunsrunsononthethemachinemachineyouyoualreadyalreadyhave.have.ComparedComparedtotoaagenerator-fedgenerator-fedliftingliftingmagnet,magnet,therethereisisnothingnothingextraextratotofuel,fuel,service,service,trailertrailerbetweenbetweensitessitesororfindfindroomroomforforininaascrapscrapyard.yard.
AllAllHydraulicHydraulicElectromagnetsElectromagnetsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.

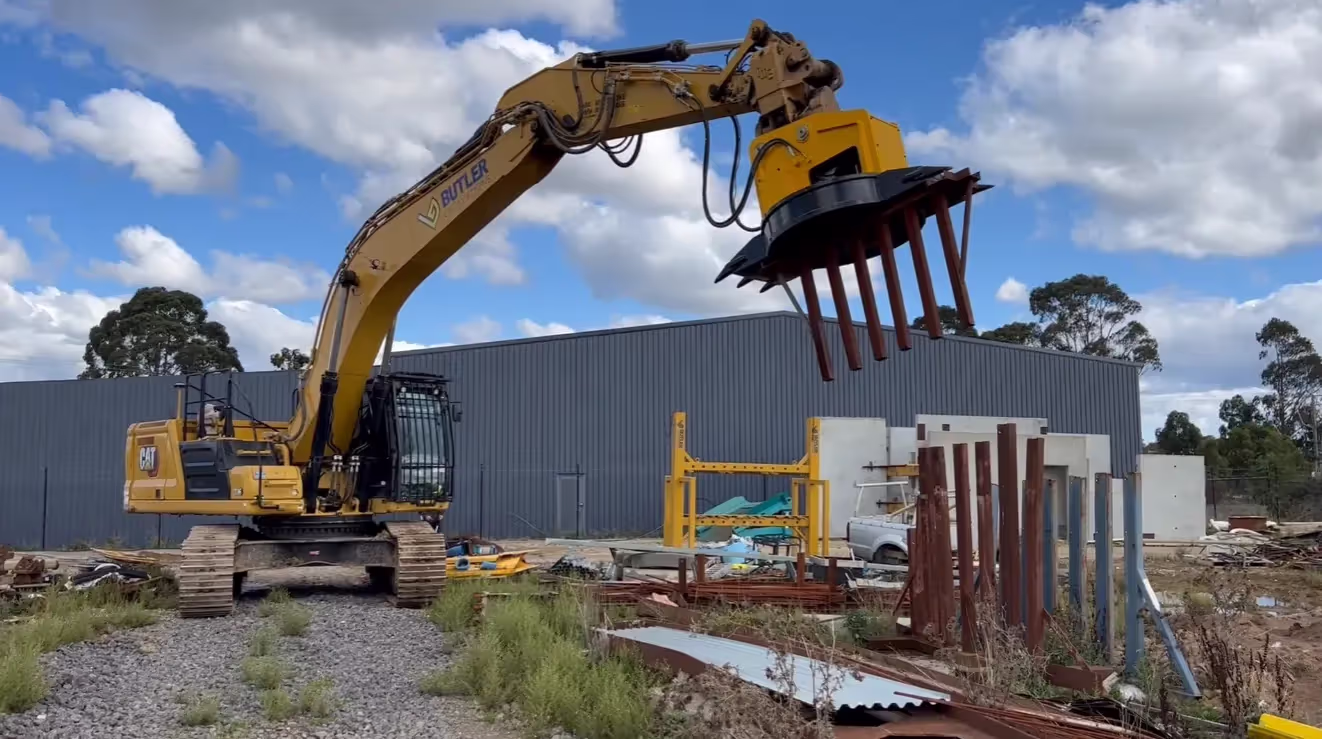

Built for metal recovery, demolition sorting and scrap handling, this hydraulic scrap magnet attachment features hydraulic motor-driven power generation, an integrated surface scraper and manifold distribution blocks, and is tested and certified in Australia by a licensed electrician.
Features

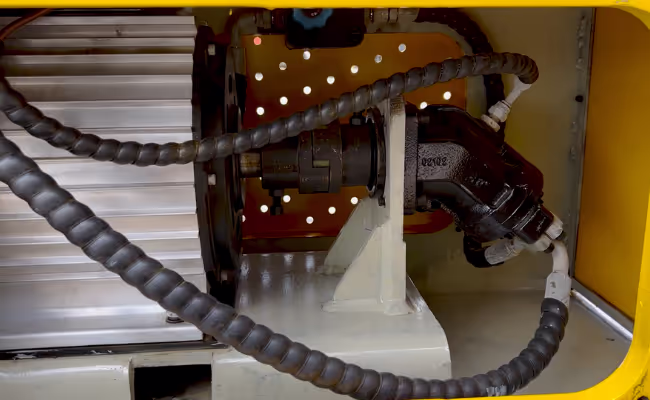

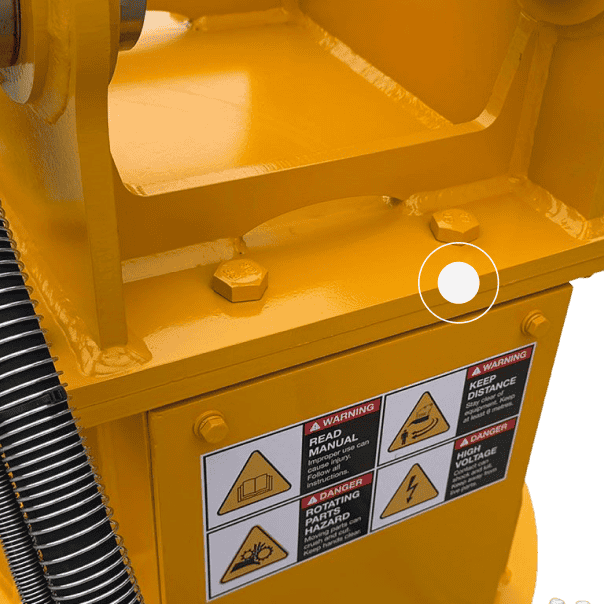

Hydraulic control
The hydraulic motor drives a built-in generator that energises the magnet, so the machine's own circuit supplies consistent power. No external generator, no cable run and fewer points of failure.

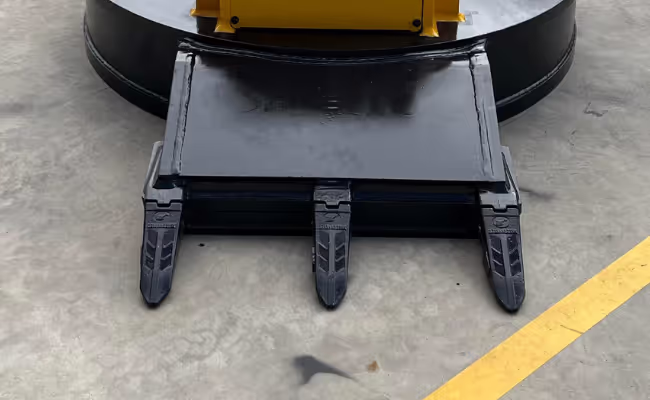

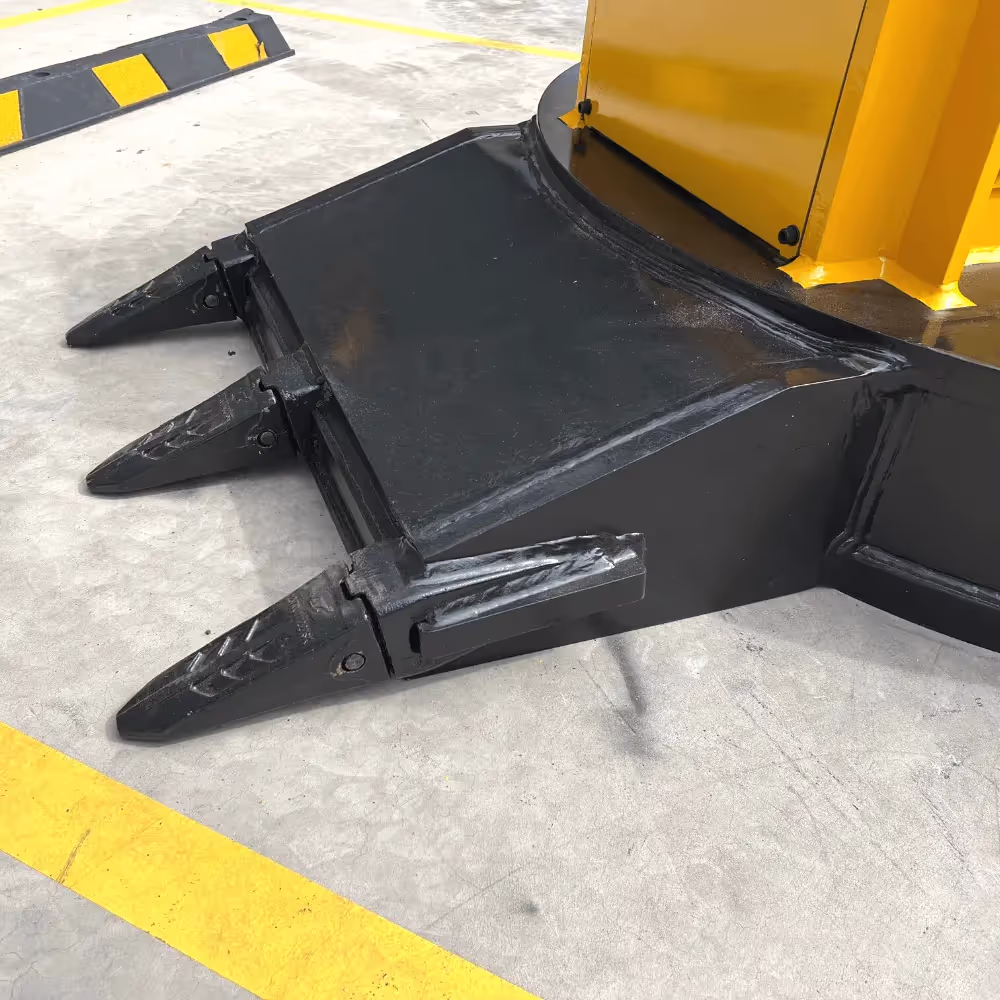

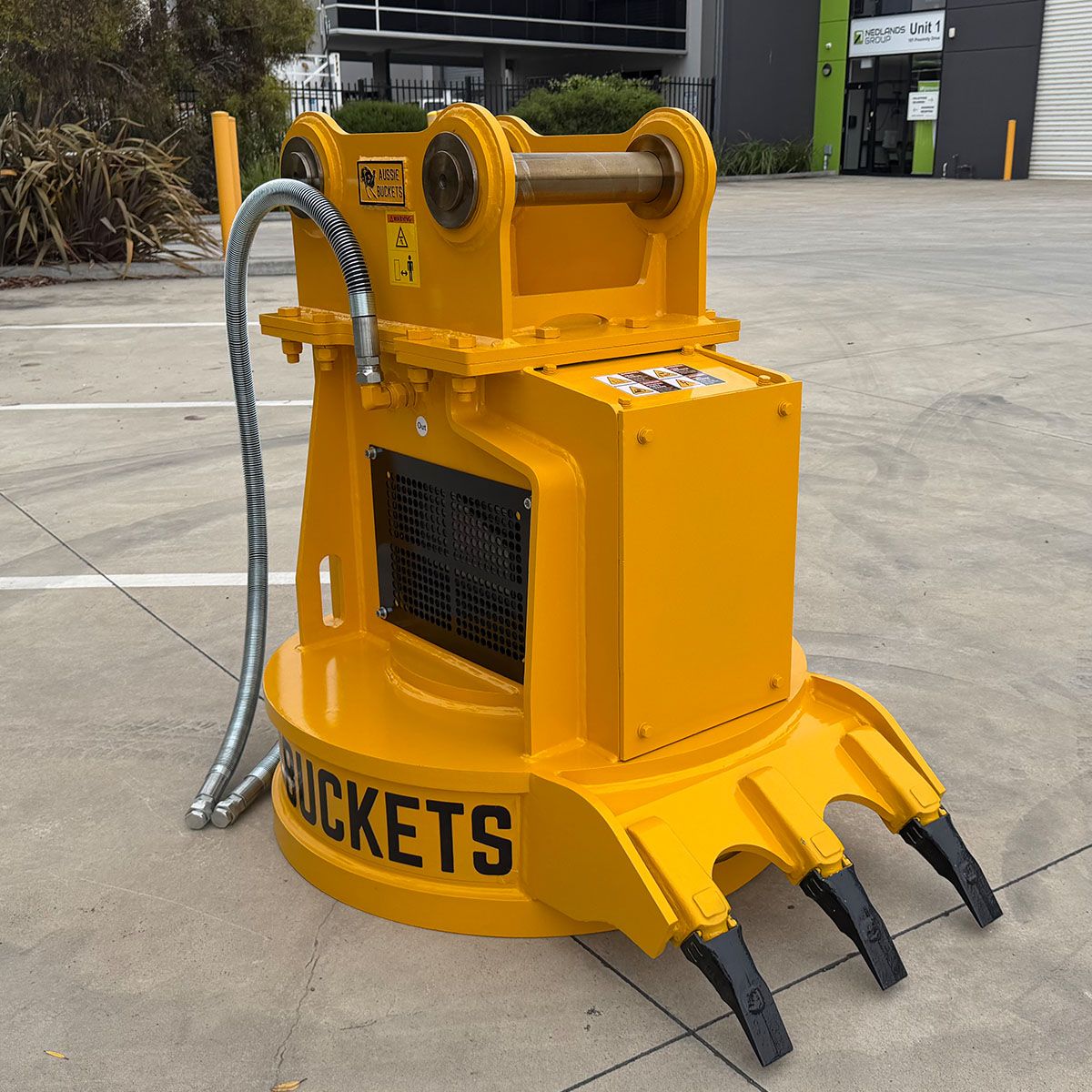

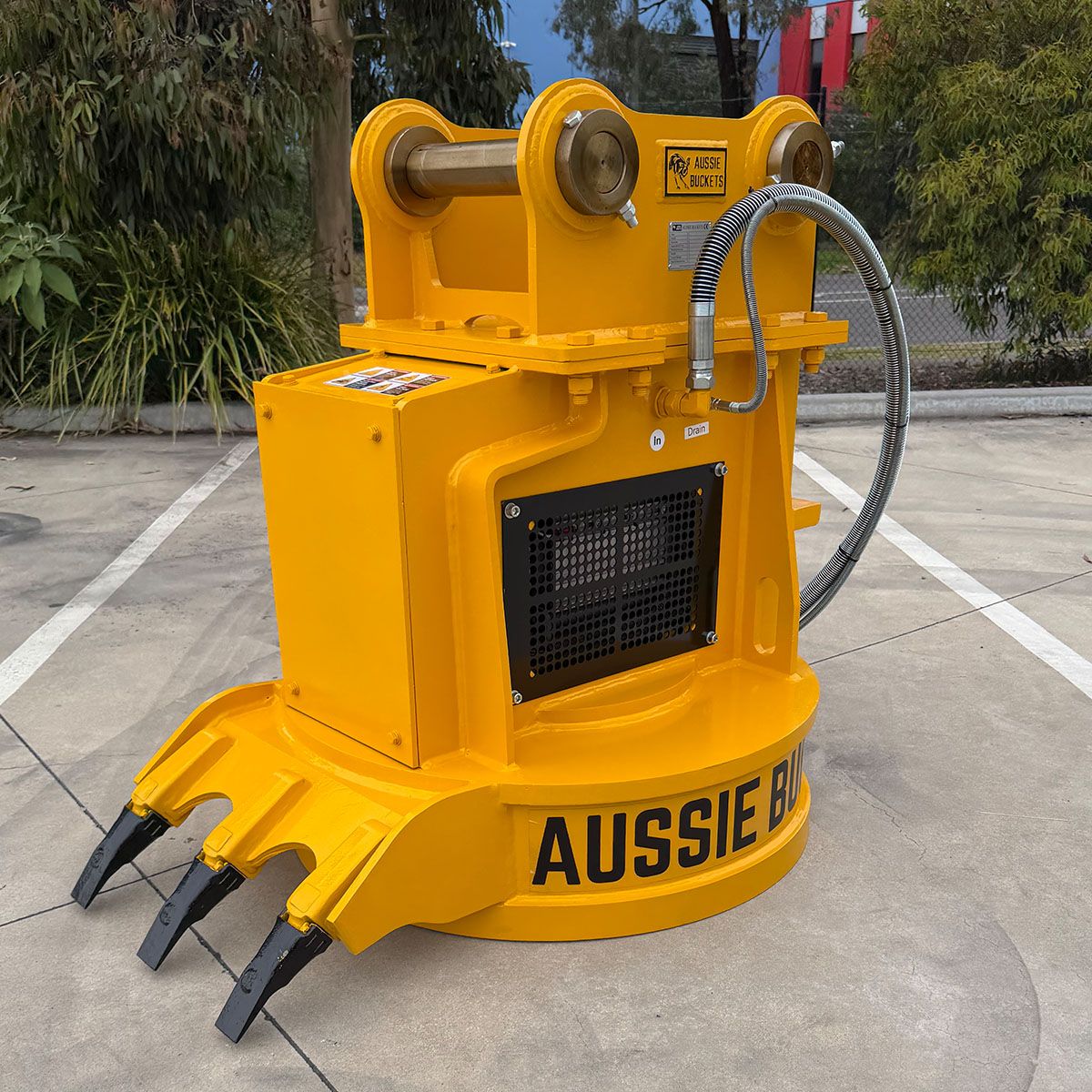

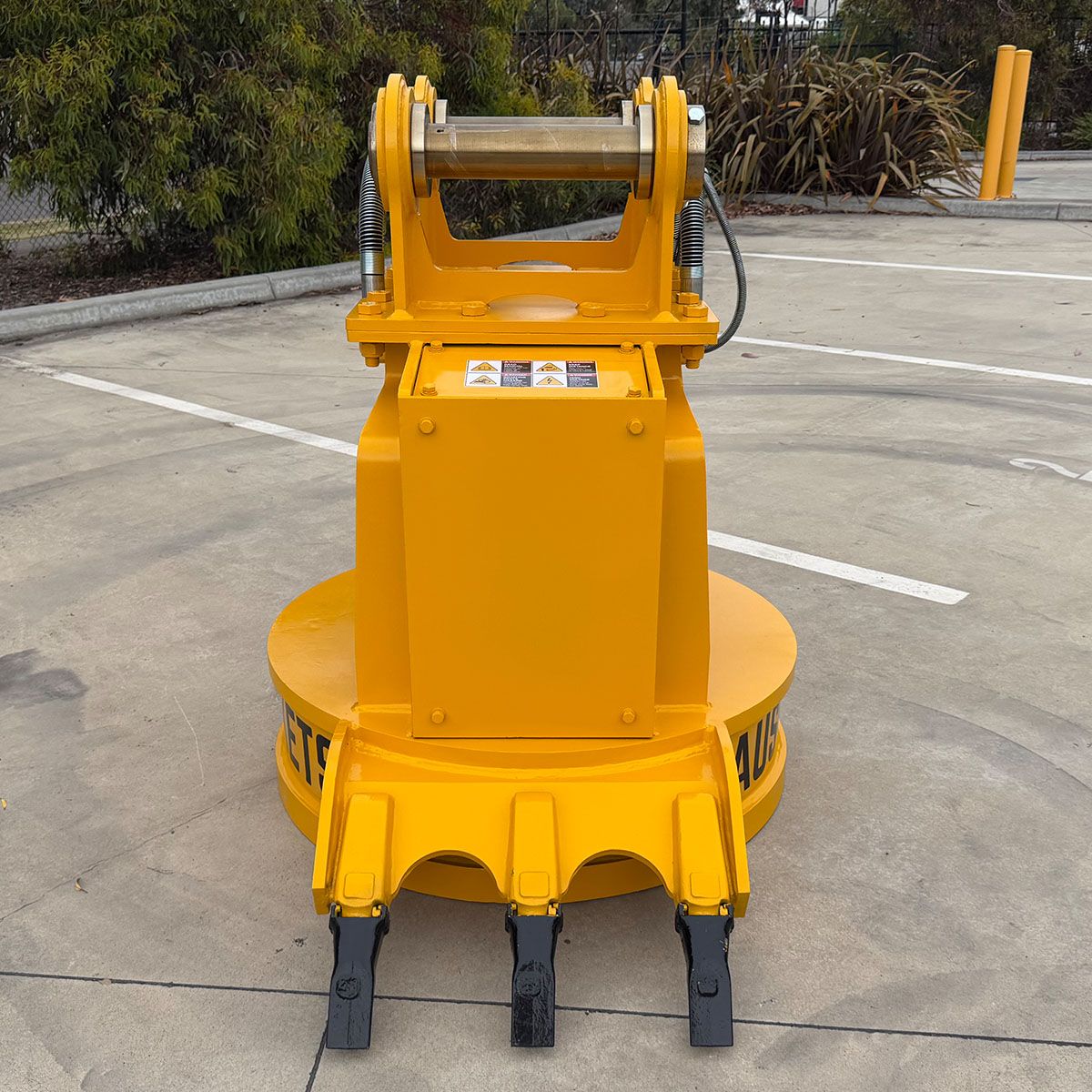

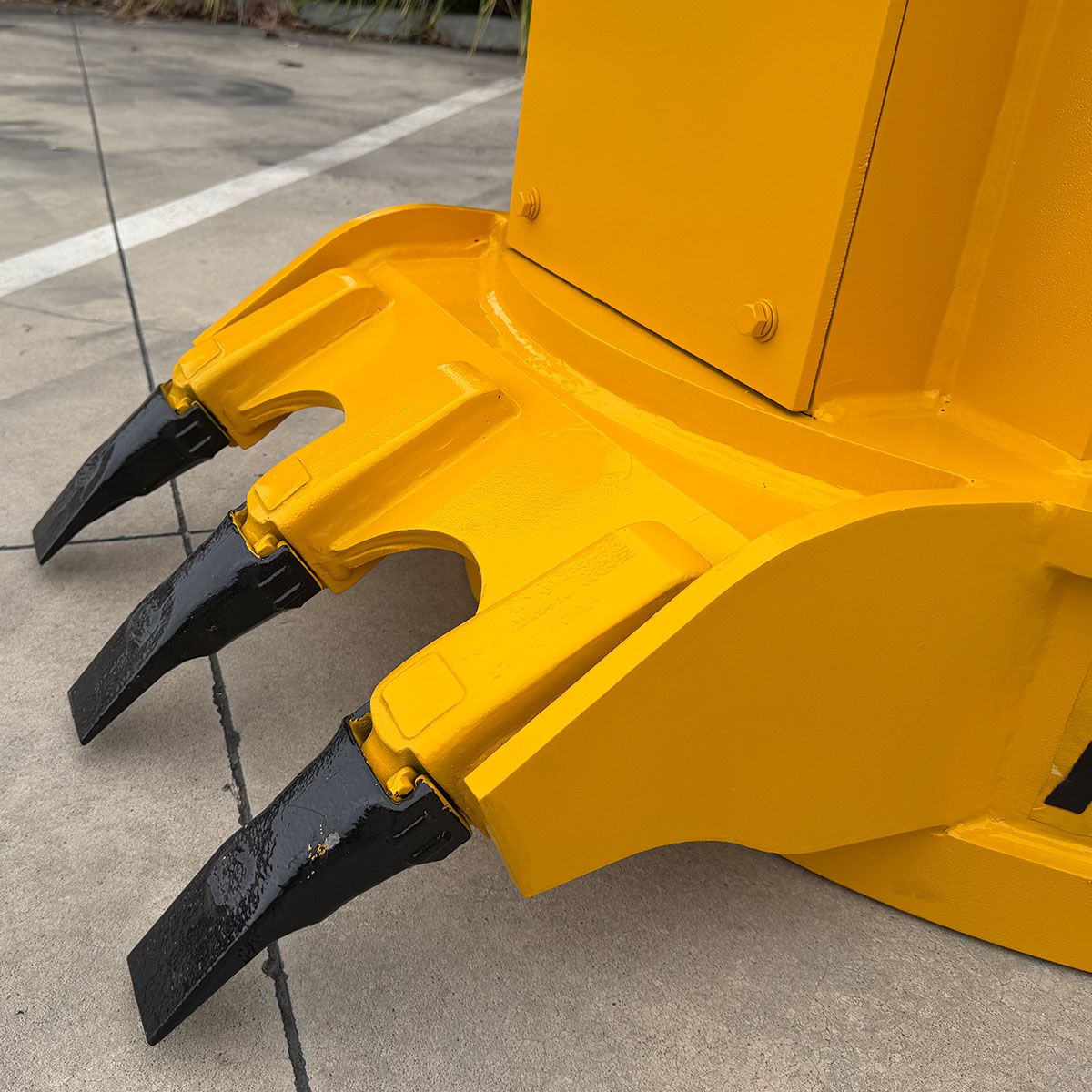

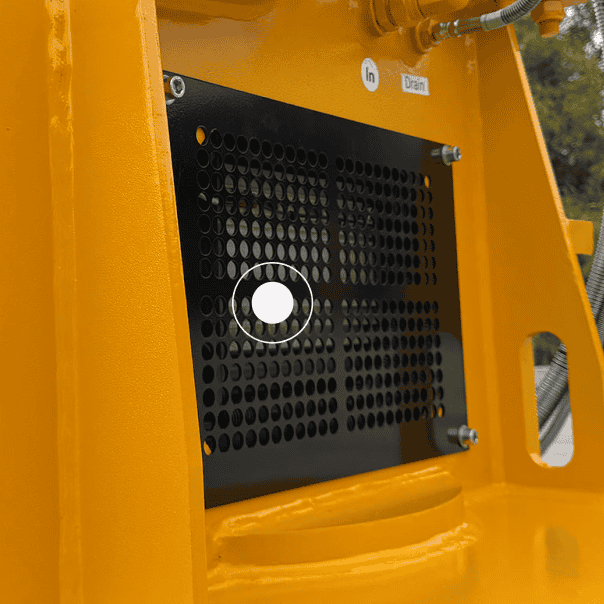

Surface scraper
A scraper with replaceable teeth lets the magnet work a floor clean over several passes and helps separate steel from concrete, without a second machine on the job.

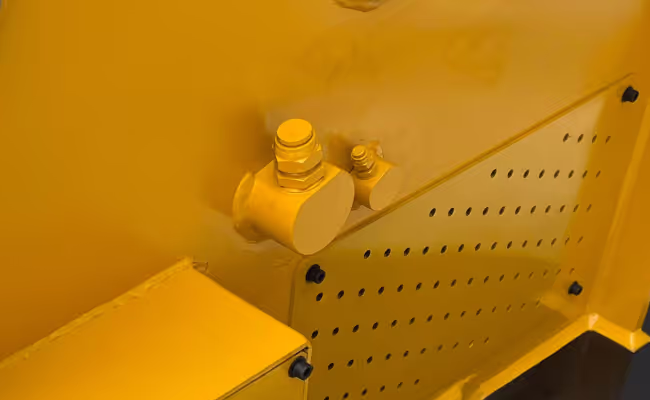

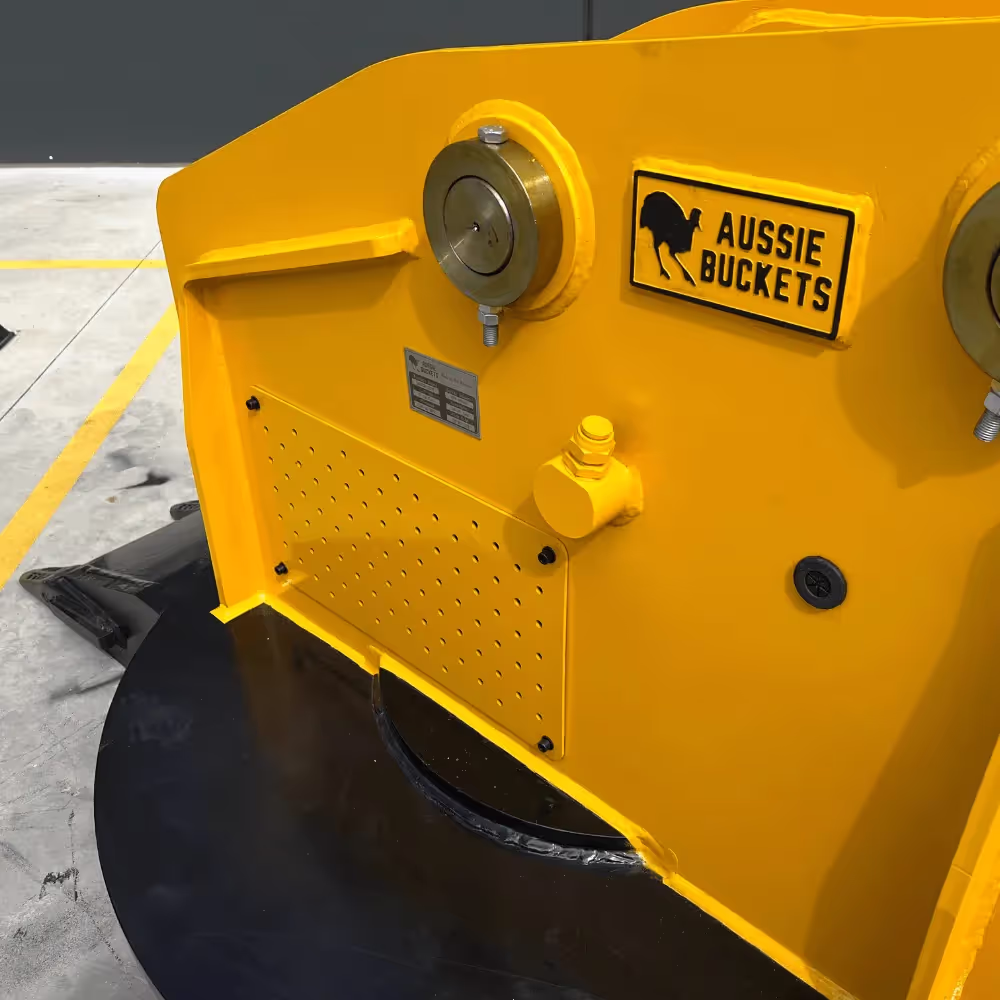

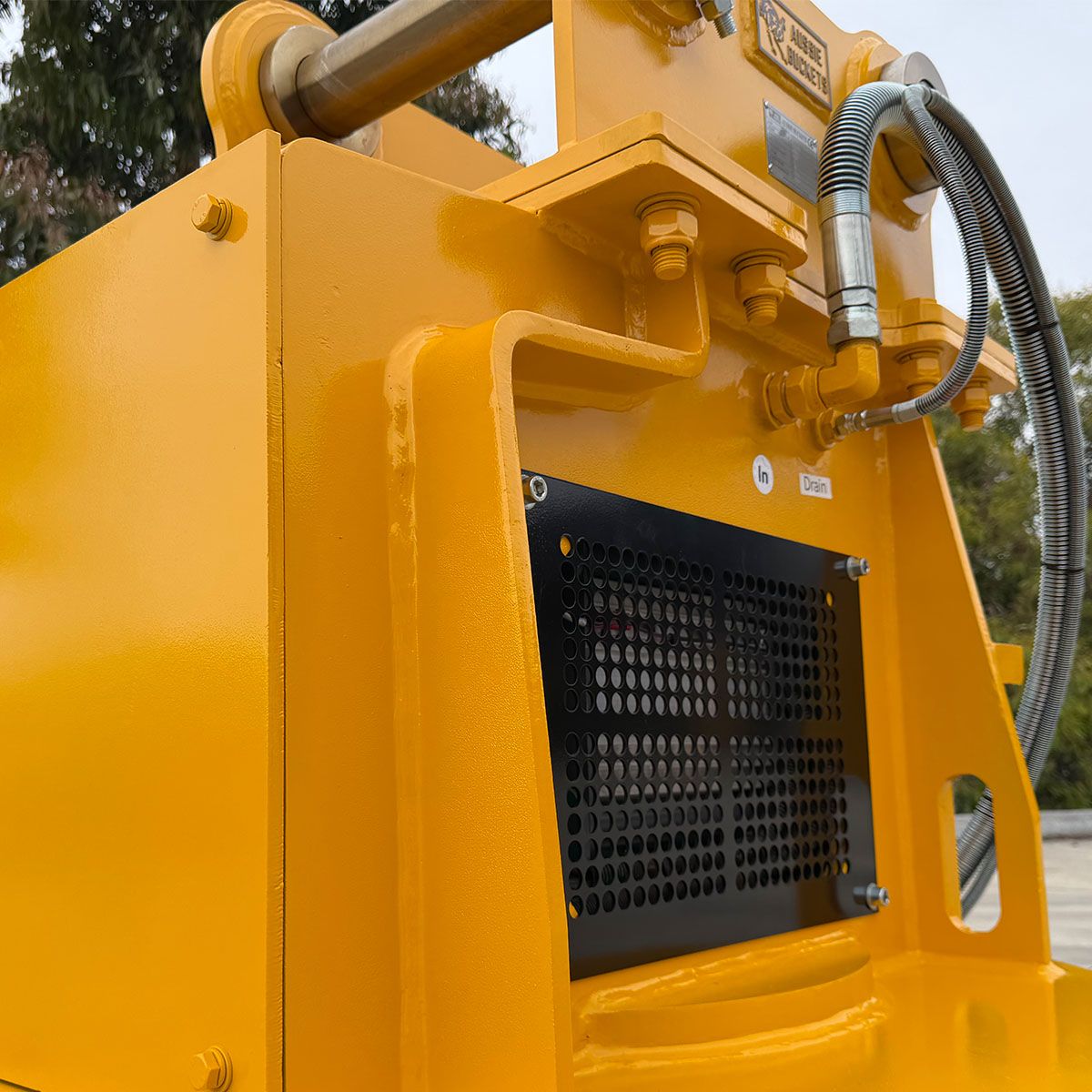

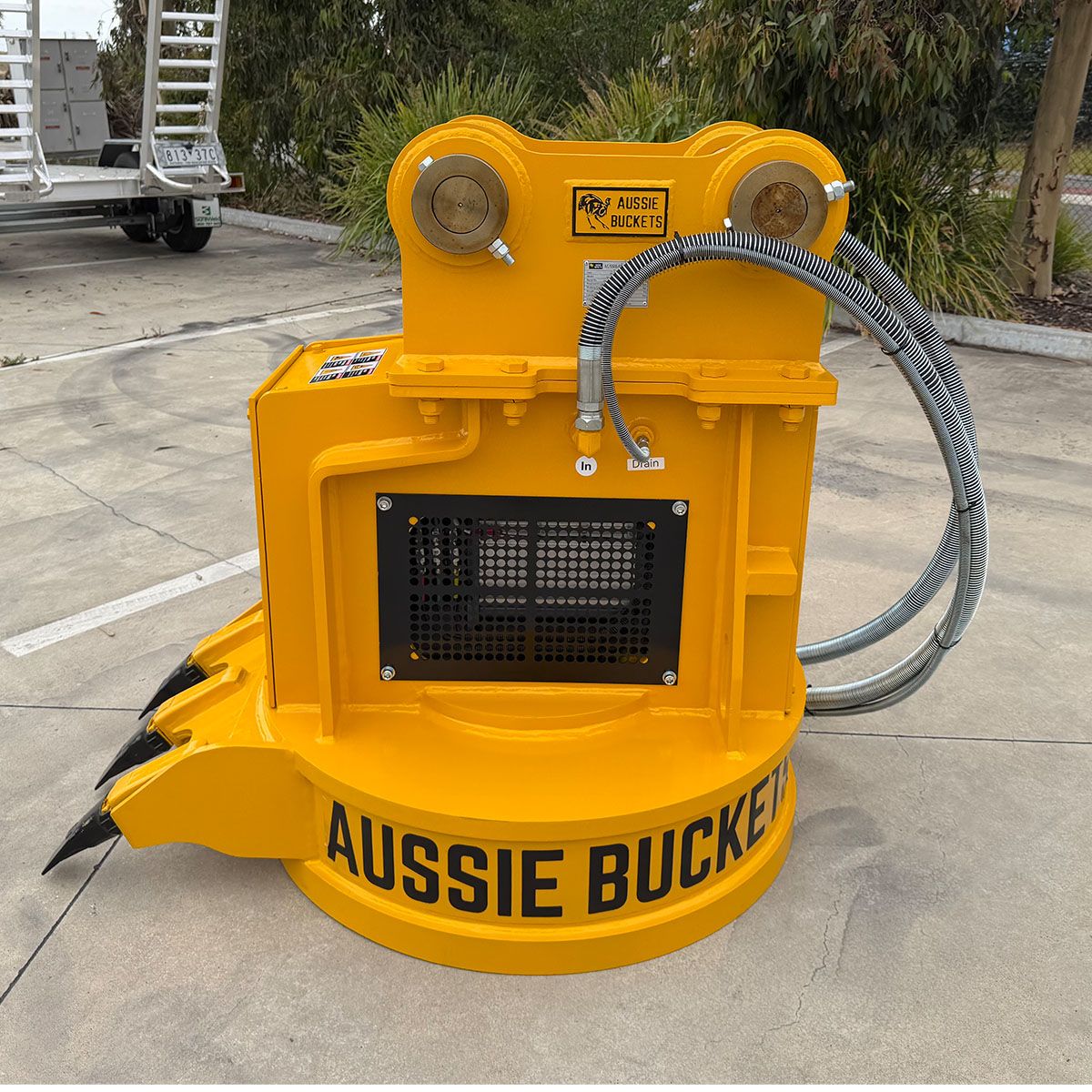

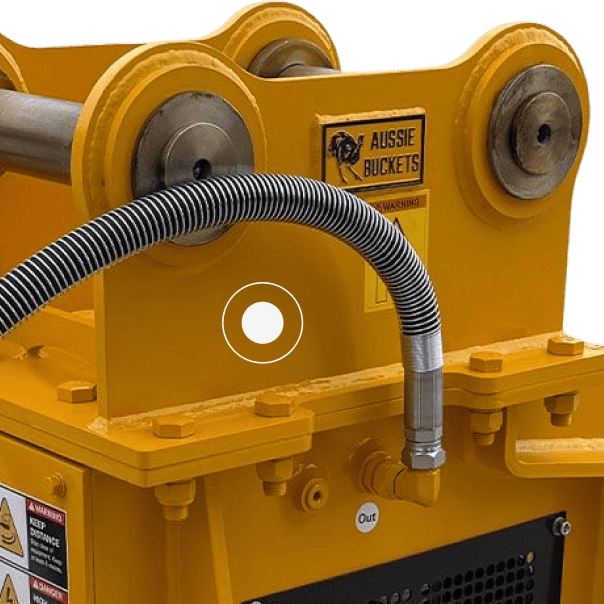

Manifold distribution blocks & case drain
The case drain returns excess fluid to tank so pressure never builds in the motor casing, and the manifold block sits protected between the ears. Cooler running, longer motor life.
Technical Breakdown
Four build sizes covering 13.5 tonne to 50 tonne machines. Weight, magnet diameter, height, flow rate, operating pressure, power consumption and lifting capacity are listed per build.
| Excavator size(T) | Weight(kg) | Diameter(mm) | Height(mm) | Flow rate(L/min) | Pressure(bar) | Power consumption(kW) | Lifting capacity (solid)(kg) | Lifting capacity (loose)(kg) |
|---|---|---|---|---|---|---|---|---|
| 13.5 – 20 | 1,300 | 800 | 950 | 100 – 140 | 180 | 3.9 | 3,000 | 250 – 480 |
| 20 – 30 | 1,500 | 1,000 | 1,050 | 120 – 160 | 210 | 8 | 5,500 | 500 – 700 |
| 26 – 35 | 1,833 | 1,200 | 1,090 | 140 – 180 | 220 | 15 | 7,500 | 1,000 – 1,300 |
| 32 – 50 | 2,500 | 1,300 | 1,150 | 160 – 200 | 250 | 20 | 7,700 | 1,000 – 1,400 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is a hydraulic excavator magnet? A hydraulic excavator magnet is an attachment that generates a magnetic field from the machine's own hydraulic circuit to lift and separate ferrous metal. It is also called a hydraulic electromagnet or scrap magnet. Aussie Buckets electromagnets cover 13.5 to 50 tonne machines across four builds.
Does an excavator magnet need a generator? Not this one. The Aussie Buckets hydraulic electromagnet draws its power from the machine's hydraulic circuit, so there is no separate generator to fuel, service or move between sites. That is the main cost difference between a hydraulic magnet and a conventional generator-driven one.
What can an excavator magnet lift? Ferrous scrap: steel offcuts, reinforcement, plate, turnings, car bodies and mixed yard material. Rated lift runs from 3,000 kg of solid plate on the smallest build to 7,700 kg on the largest, and far less for loose turnings, because surface contact matters as much as mass. Non-ferrous metals are not picked up.
What size excavator does a scrap magnet need? Four builds cover 13.5 to 50 tonne machines, with magnet diameter from 800 to 1,300 mm, weight and flow requirement listed per build. The circuit has to supply the magnet as well as the machine's own functions, so send your auxiliary flow and pressure figures with your machine details.
Electromagnet or sorting grab: which do I need? A magnet picks ferrous metal out of mixed material and drops it when the current is switched off, the fastest way to separate steel from concrete and rubble. A sorting grab picks by shape and handles everything, steel or not. Recovery from mixed debris takes the magnet; loading sized material takes the grab.
How much does an excavator scrap magnet cost? Aussie Buckets hydraulic electromagnets start at $44,875. Price moves with machine class and magnet size, and 0% finance is available on approved purchases. Every magnet is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your machine.
