Available for 1 – 35T
Balance valves hold if line pressure drops.
Starting from $3,275
$2,620
Or with AB 0% Finance from $21/week (ex. GST)

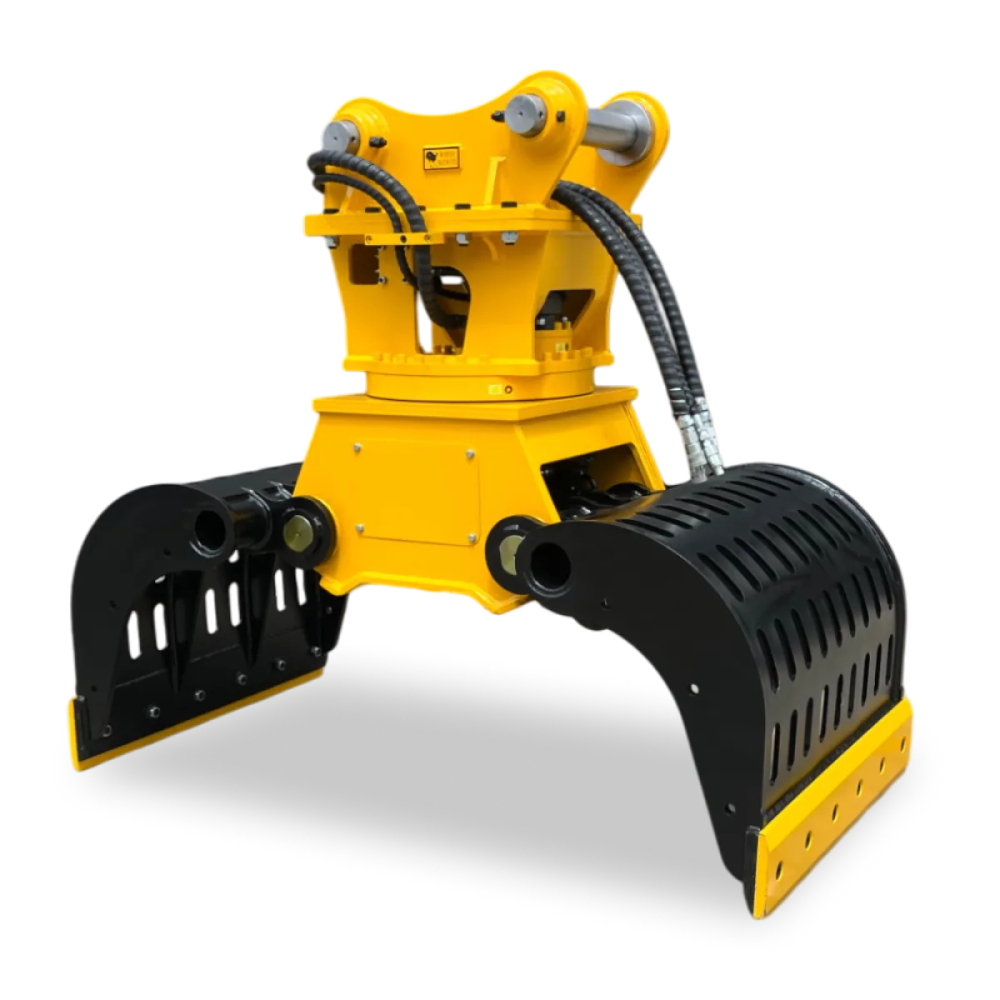

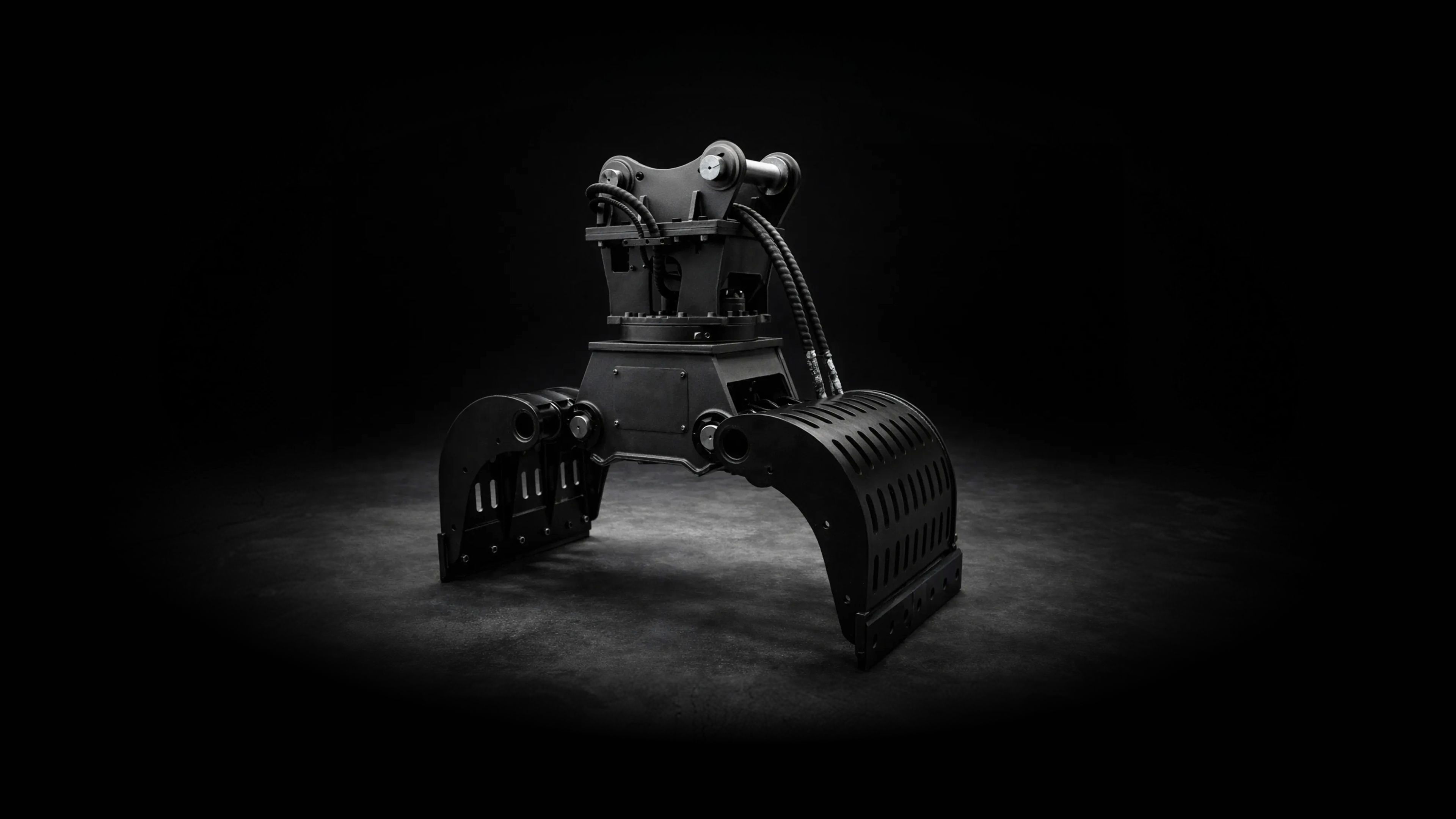

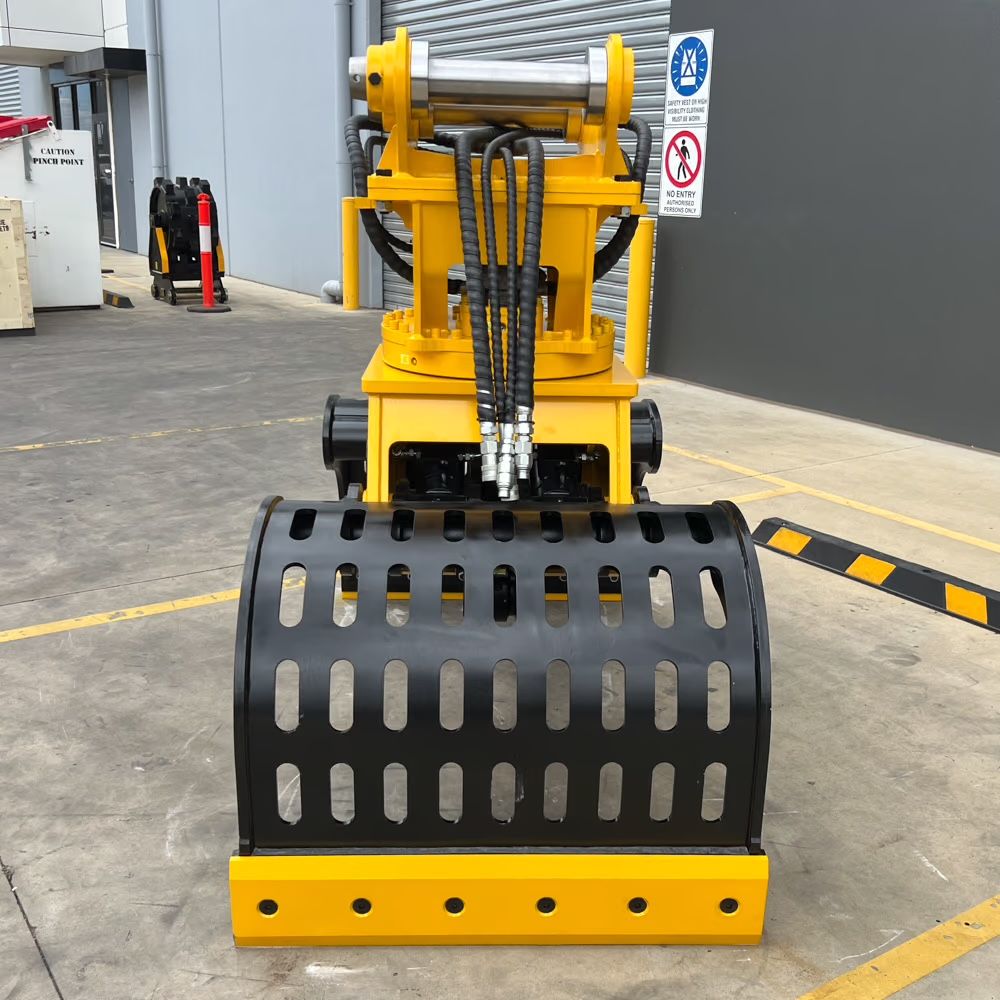

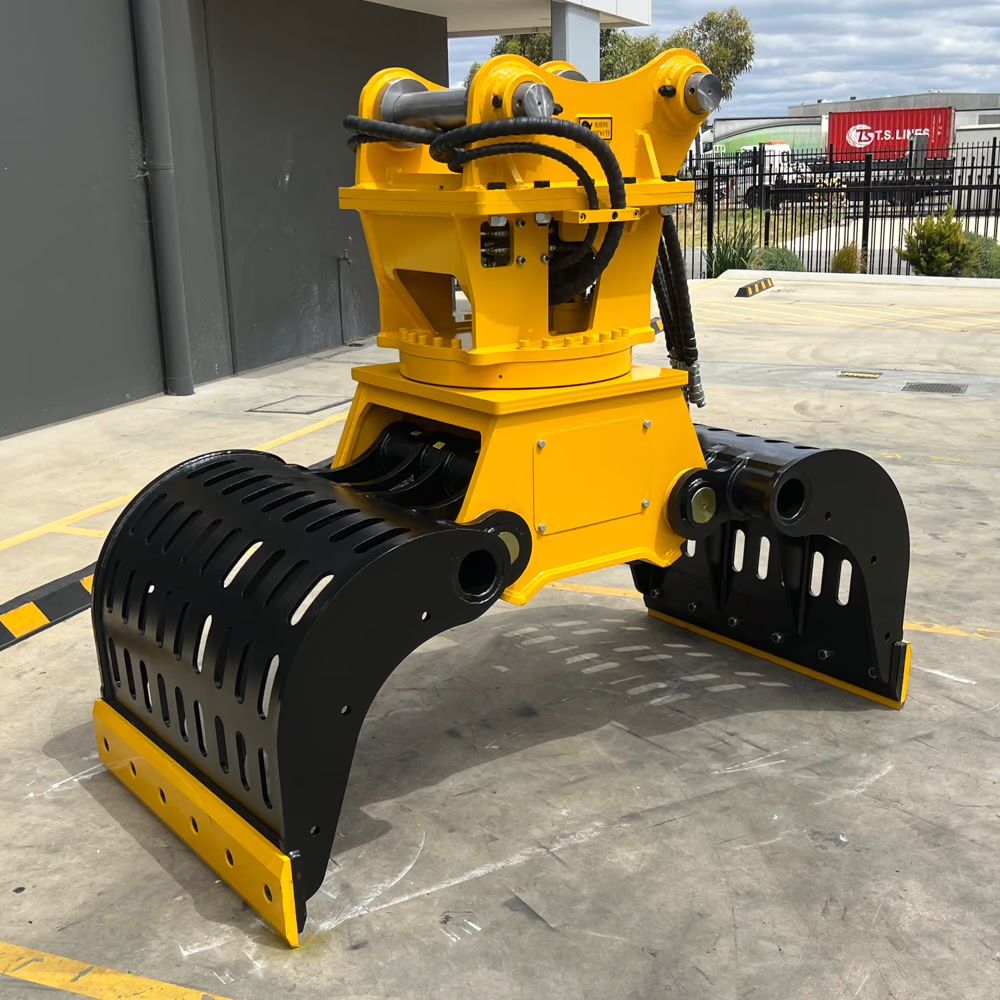

A sorting grab for 1–35 tonne excavators in fourteen builds. Fixed and rotating configurations with integrated balance and brake valves, so the load is held if line pressure drops during a lift.
2 videos · 14 photos
02
02
12
The difference
EveryEveryAussieAussieBucketsBucketssortingsortinggrabgrabisispurpose-builtpurpose-builtforforthetheexcavatorexcavatoryouyourunrunandandprecision-engineeredprecision-engineeredforforthethethingthingthatthatdecidesdecideswhetherwhetherititisissafe:safe:whatwhathappenshappenstotothetheloadloadwhenwhenlinelinepressurepressurefallsfallsawayawaymid-lift.mid-lift.AvailableAvailableforfor1–35T1–35Tmachinesmachinesacrossacrossfourteenfourteenbuilds,builds,ininfixedfixedandandrotatingrotatingconfigurations.configurations.

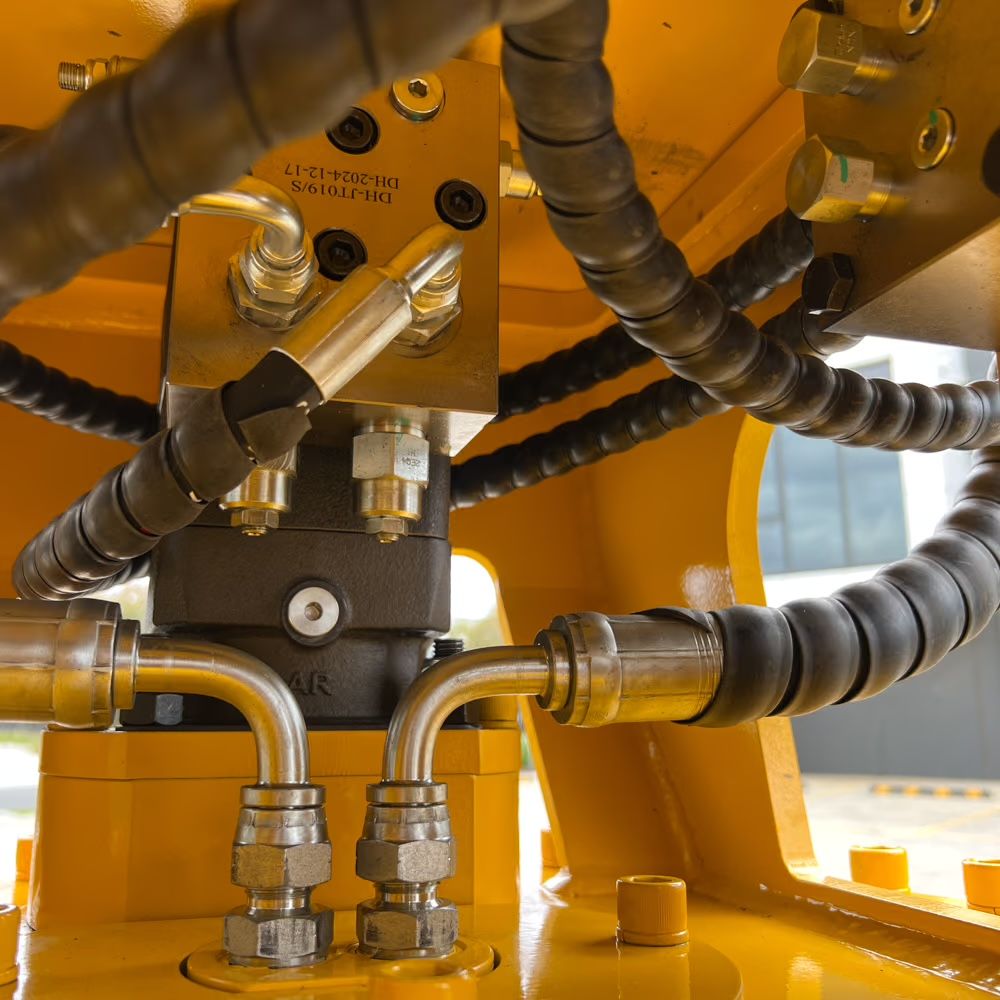

WhatWhatdistinguishesdistinguishesourourSortingSortingGrabGrabSeriesSeriesisisitsitsintegratedintegratedbalancebalanceandandbrakebrakevalvesvalvesthatthatholdholdthethejawjawclosed,closed,powerfulpowerfulcylinderscylindersforforhighhighclampingclampingforce,force,andandreplaceablereplaceablereversiblereversiblecuttingcuttingedgesedgesononthethewearingwearingfaces.faces.ComparedComparedtotootherotherrecyclingrecyclinggrabsgrabsononthethemarket,market,thetheloadloadstaysstaysininthethejawjawwhenwhenthethehydraulicshydraulicsstopstopholdingholdingit.it.
AllAllSortingSortingGrabsGrabsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.

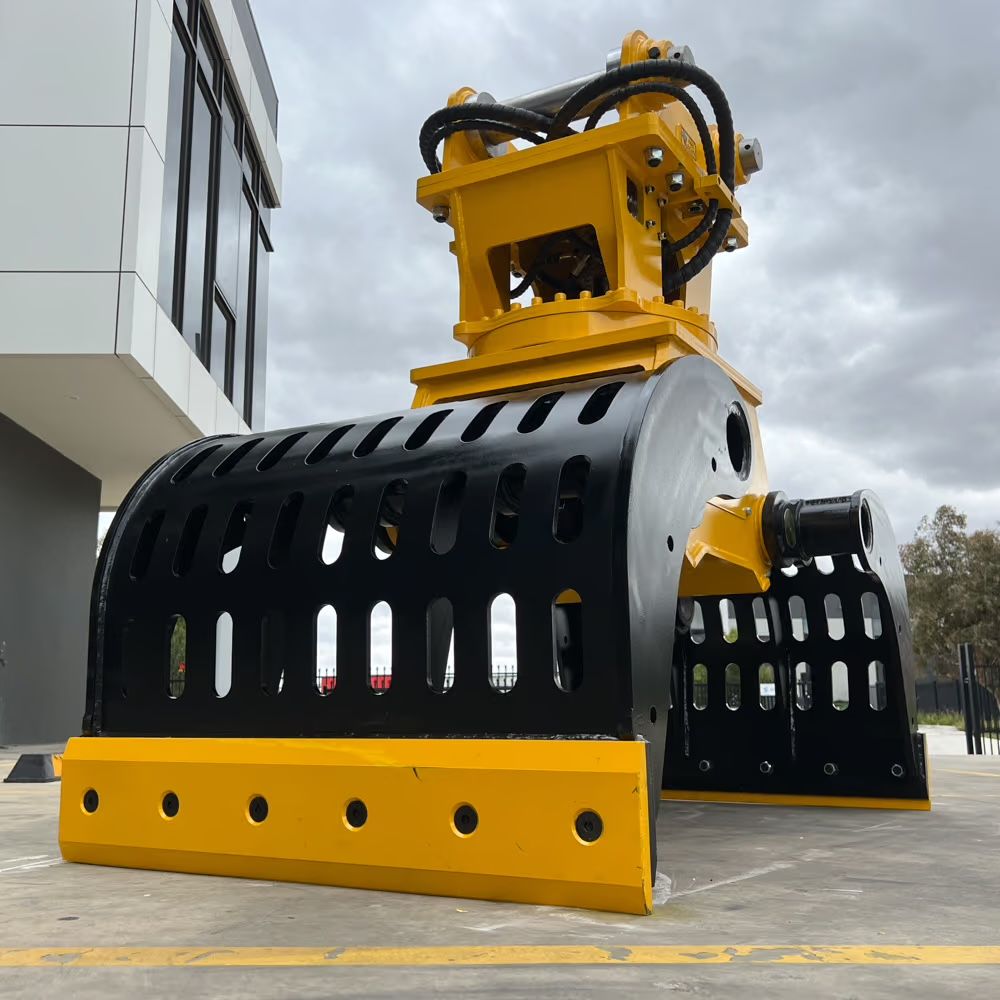

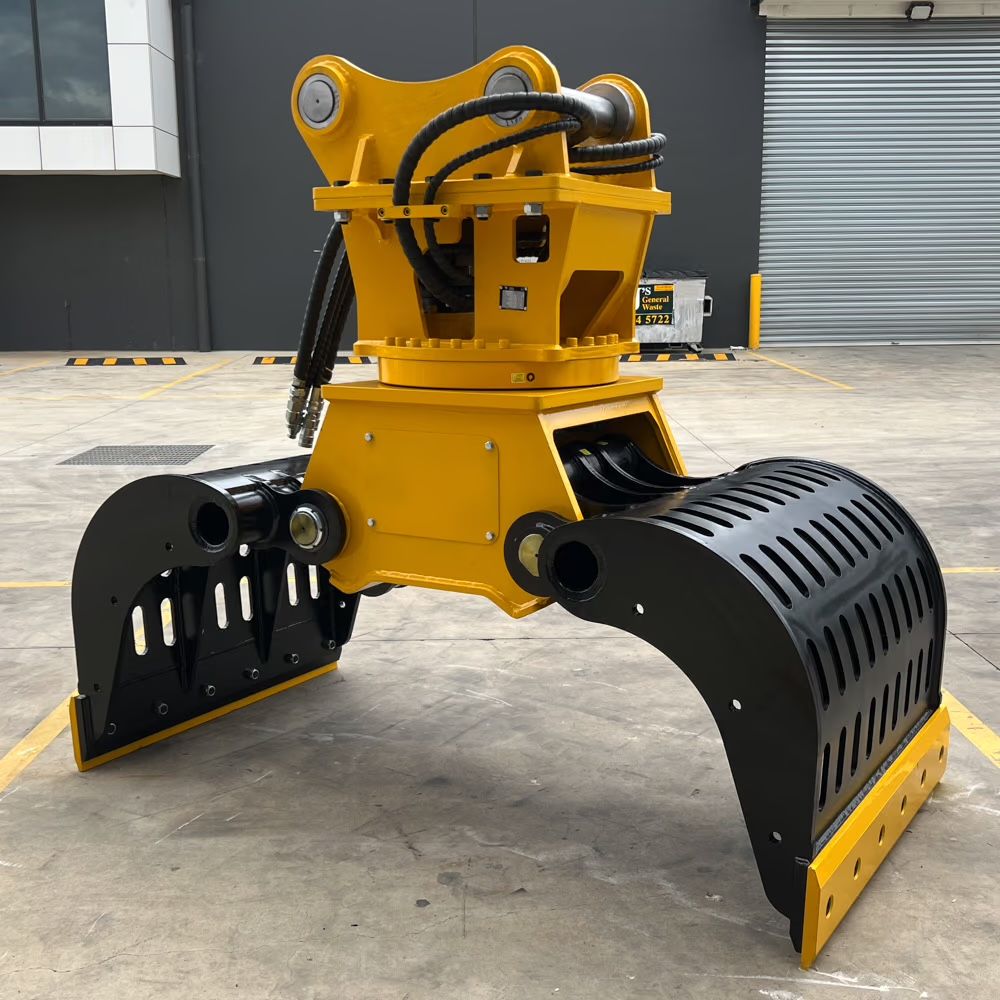

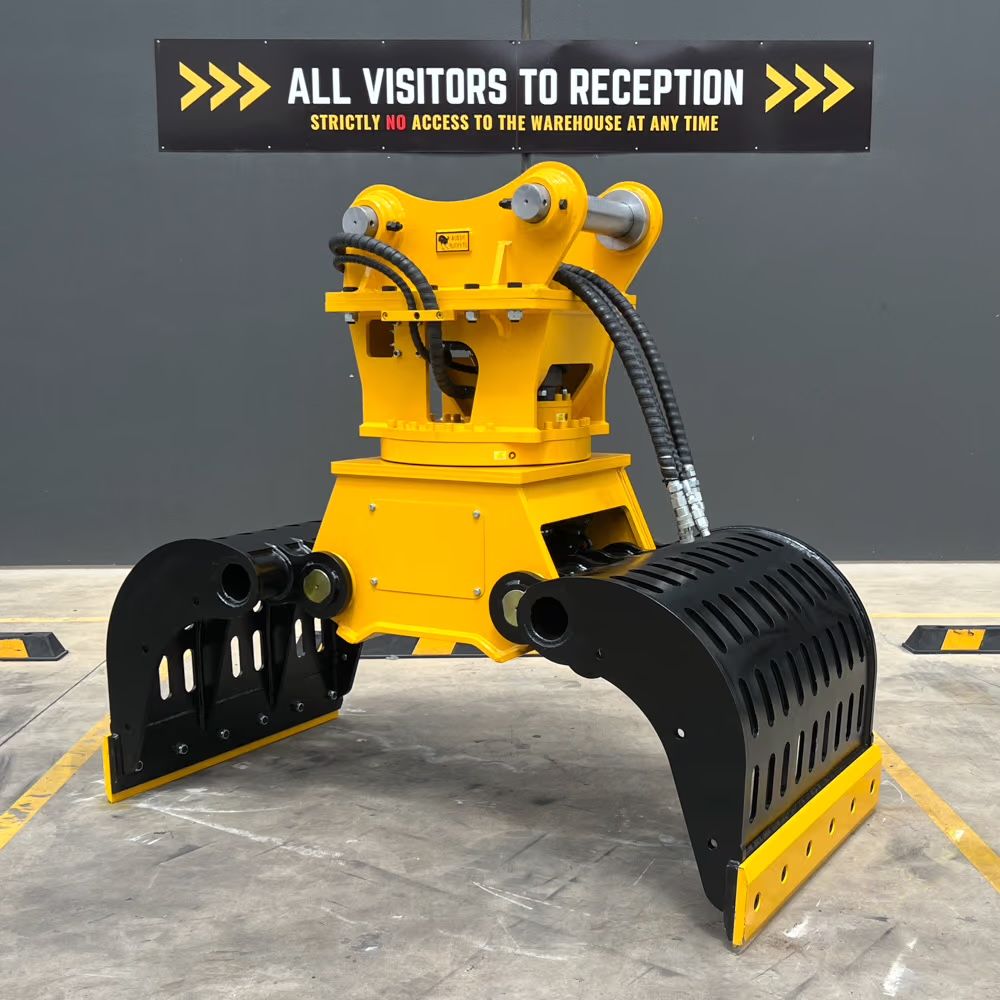

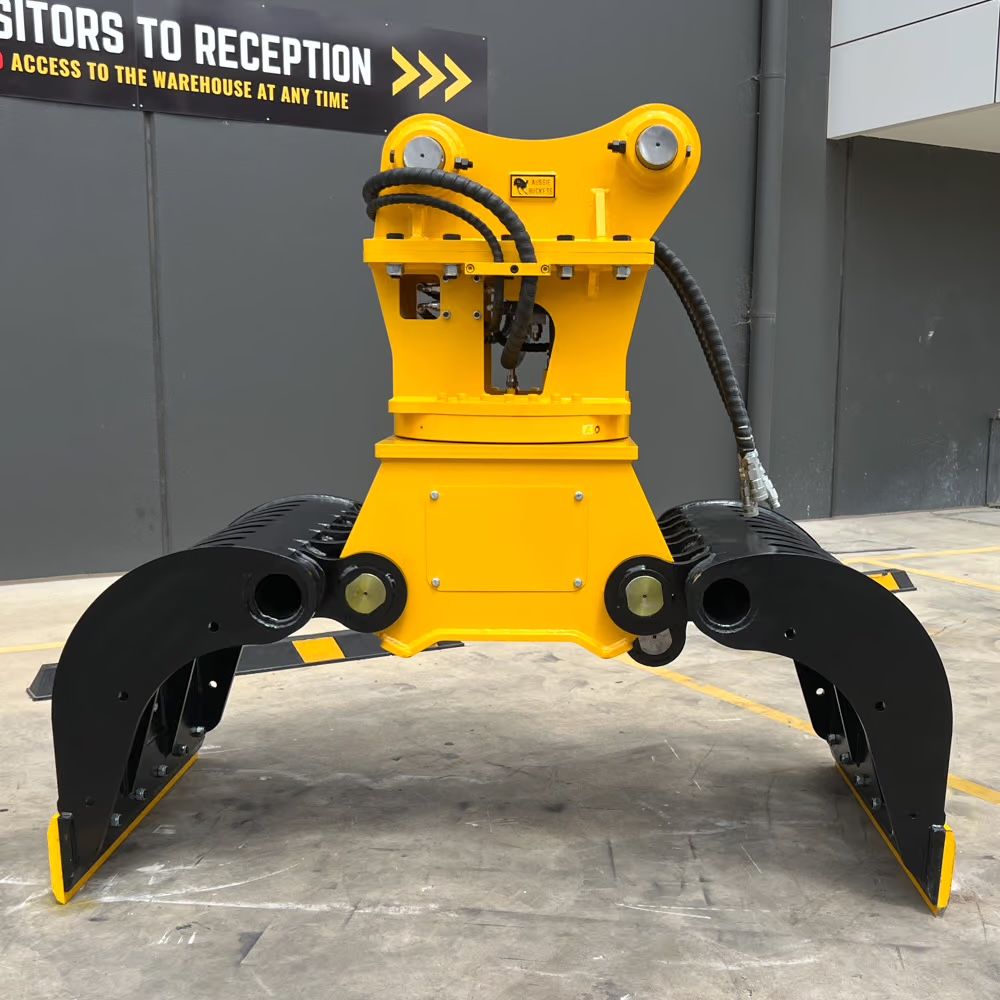

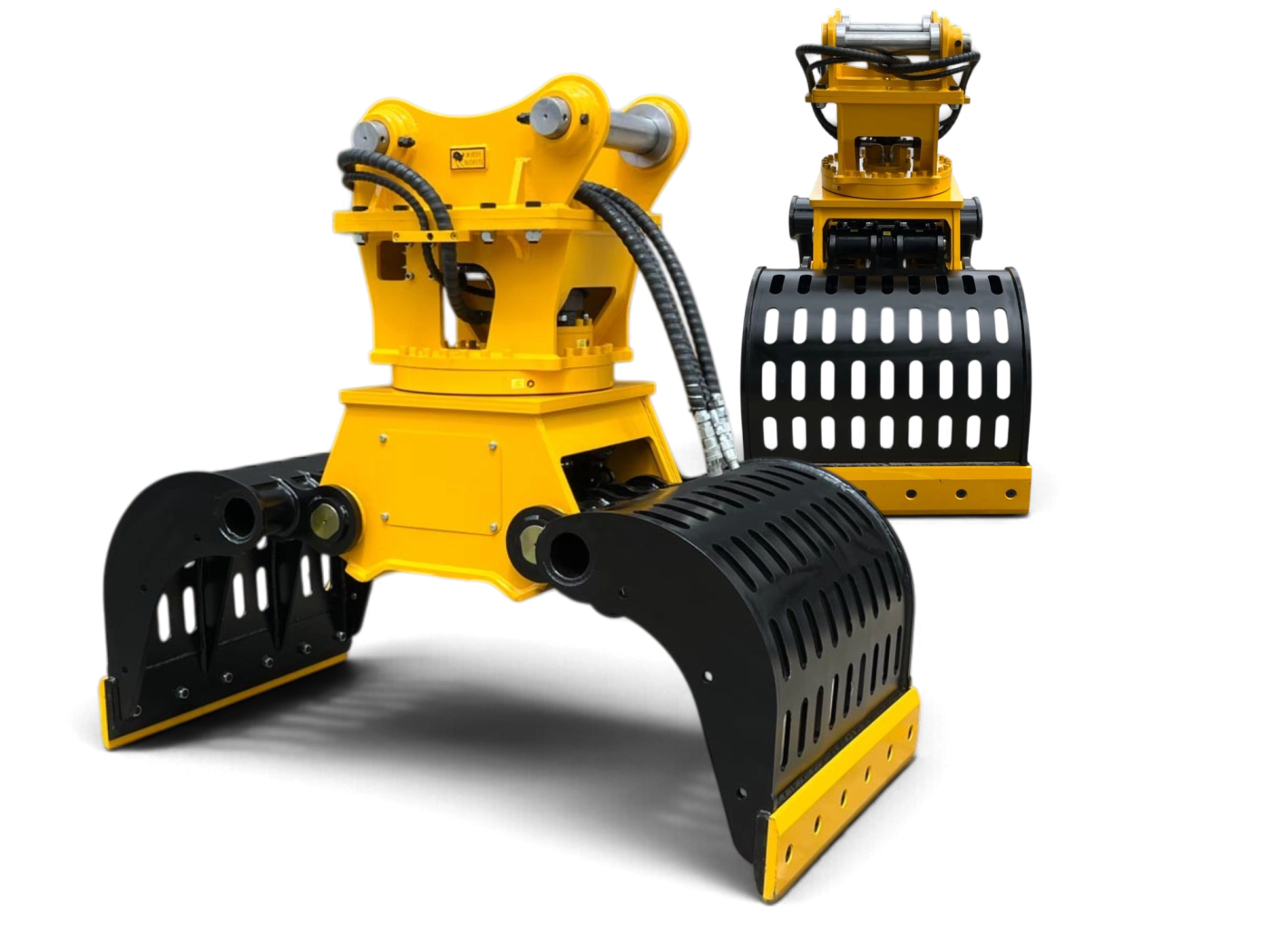

Built for efficient sorting and handling, this excavator sorting grab features powerful hydraulic cylinders, replaceable reversible cutting edges, and optional 360° continuous rotation for versatile operation across both fixed and rotating configurations.
Features

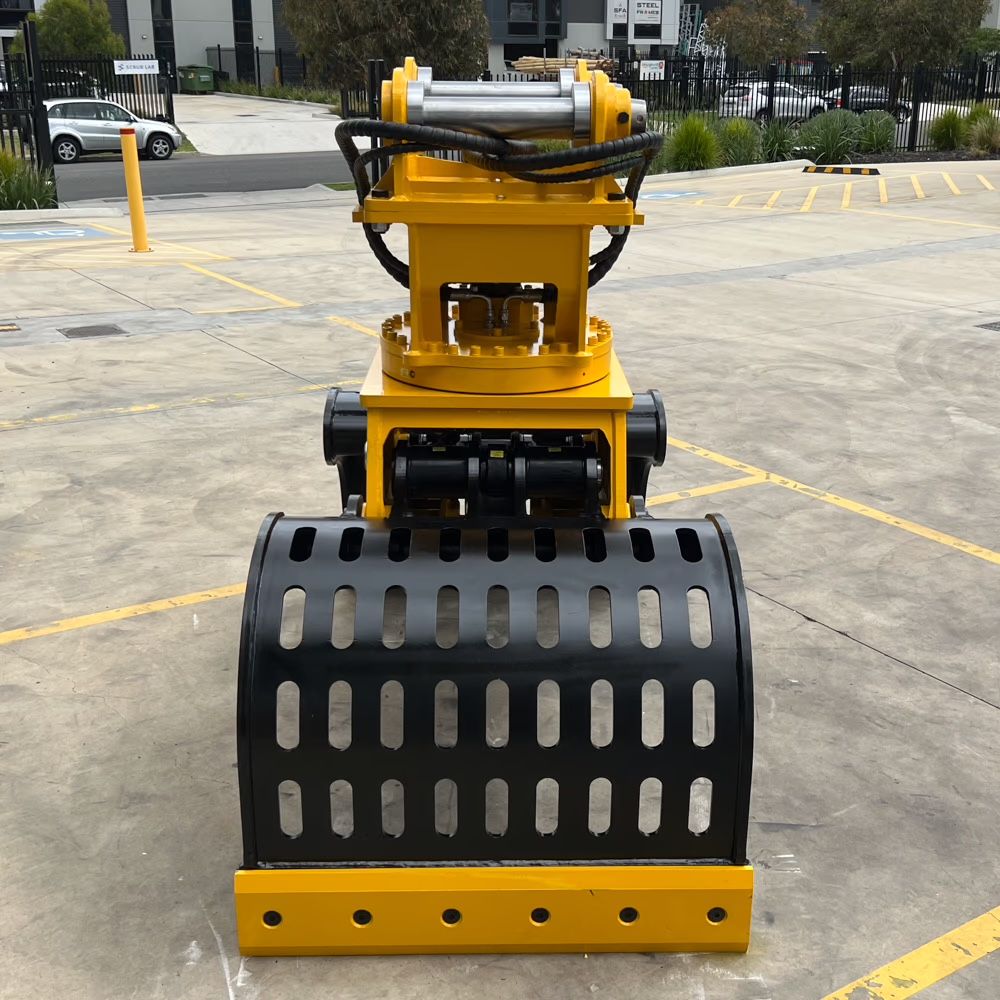

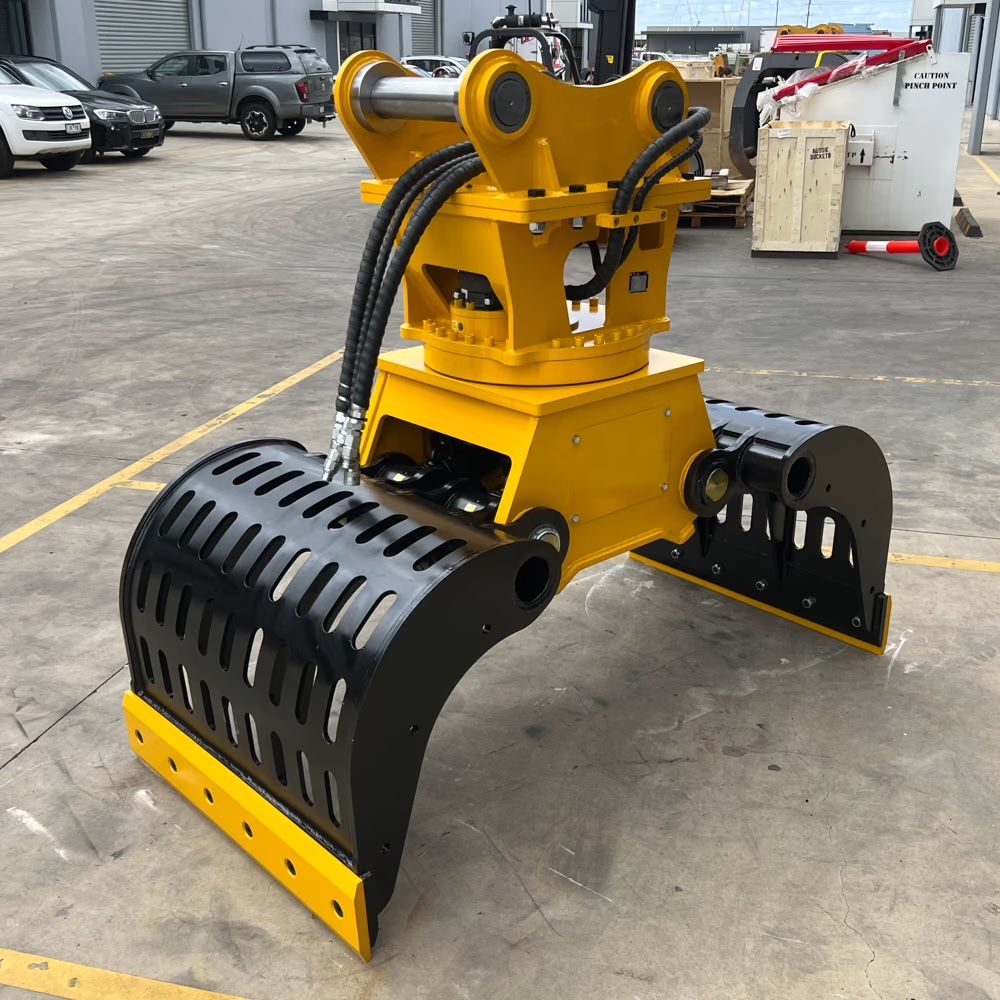

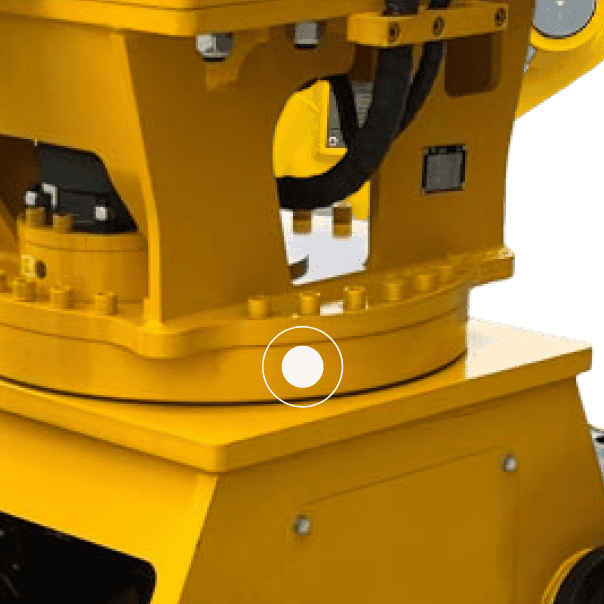

Enables continuous rotation without any stops or restrictions thanks to a 360-degree rotating slew ring and fluid coupling. This allows operators to precisely position the grab to easily handle materials without the need to reposition the excavator.

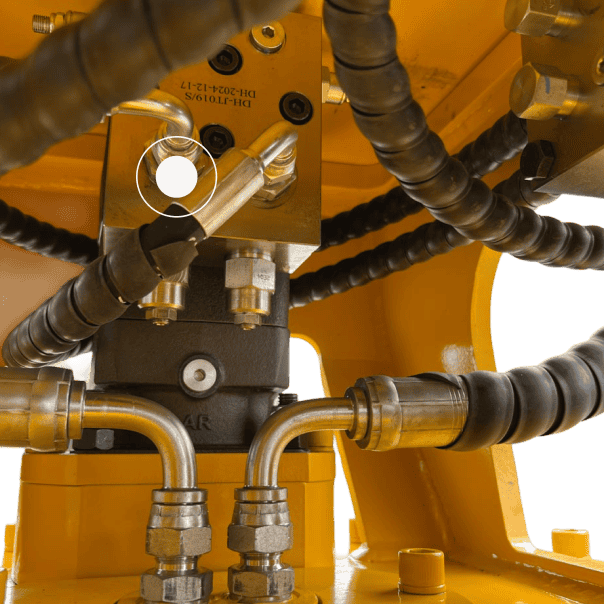

Manufactured with advanced hydraulic systems to deliver consistent and strong clamping pressure. This ensures a firm grip on materials, while minimising the risk of materials dropping and allowing for handling of a wide variety of materials.

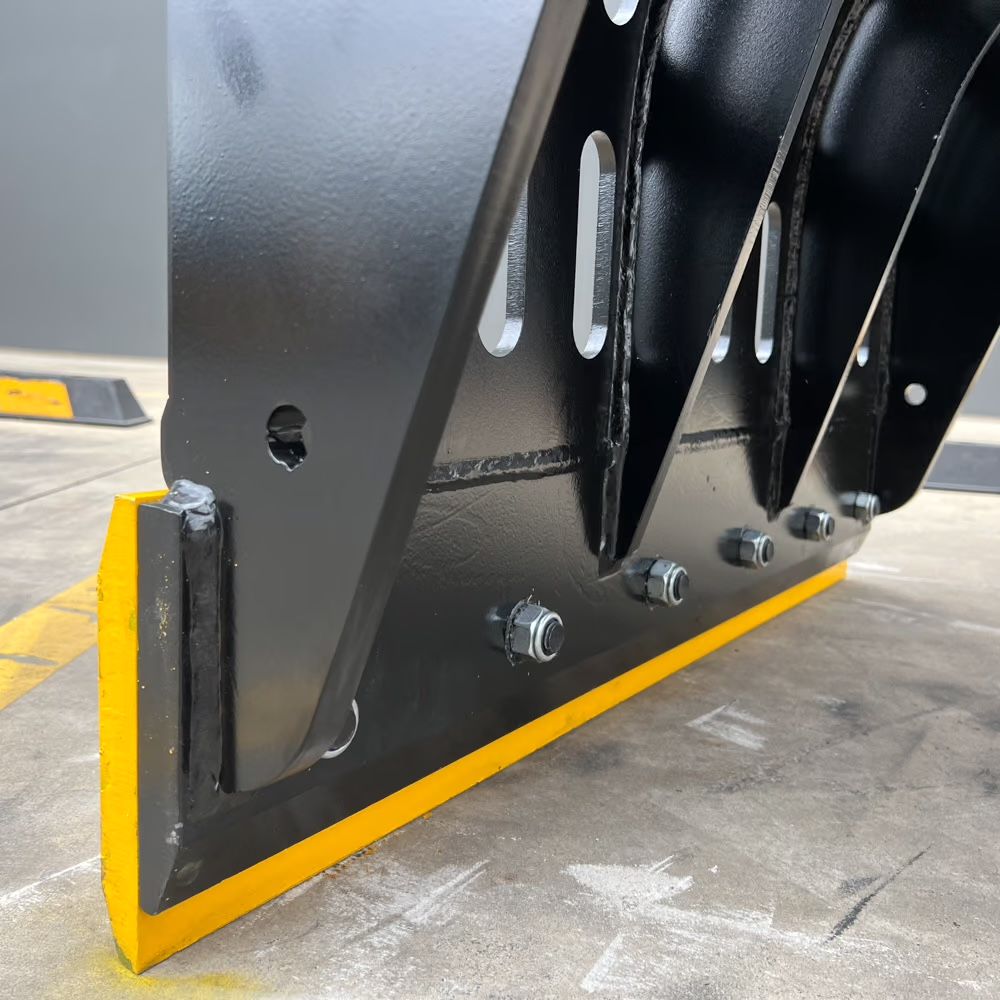

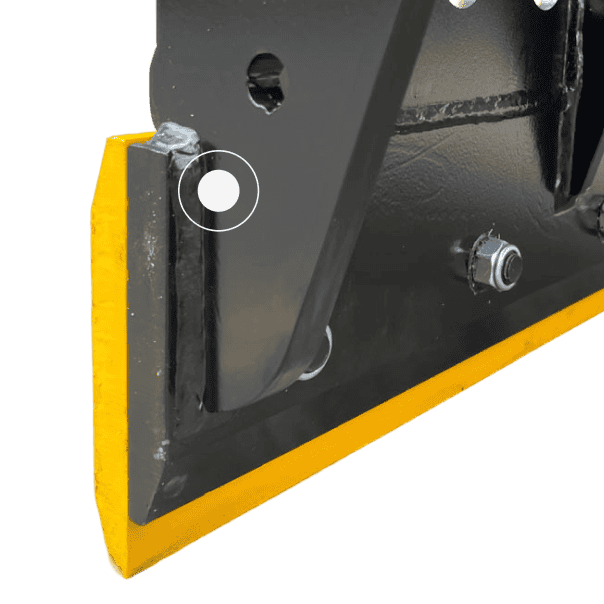

Cutting edges that can be replaced when worn out and are reversible, allowing for extended use. This extends the life of the grab, allowing for simple maintenance, without the need for replacement of the entire unit.

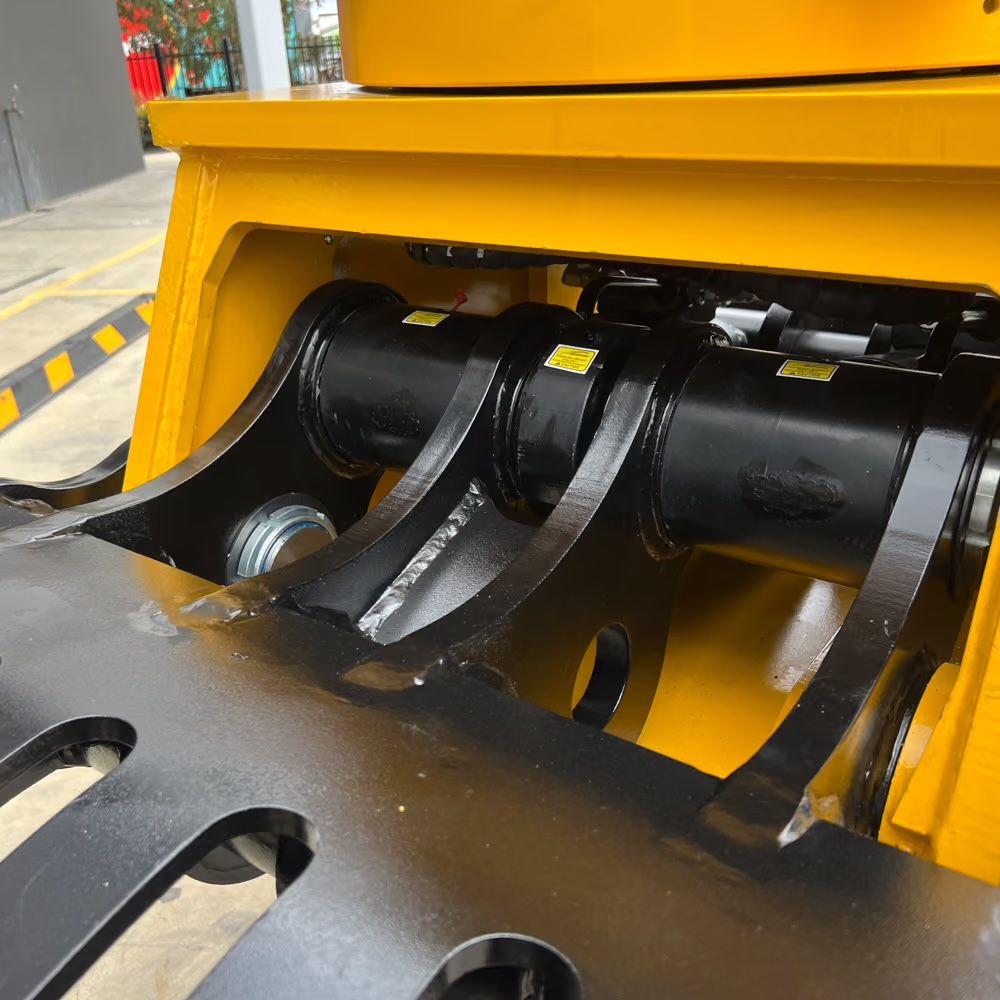

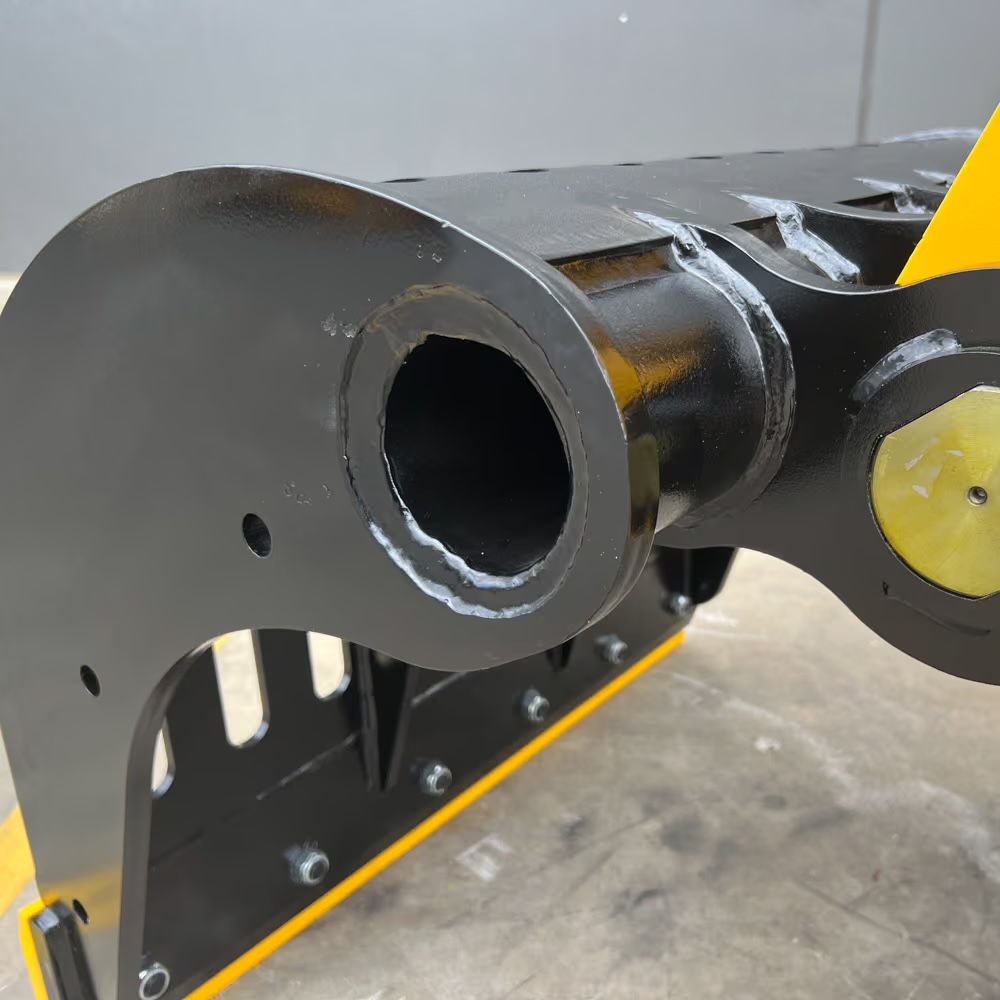

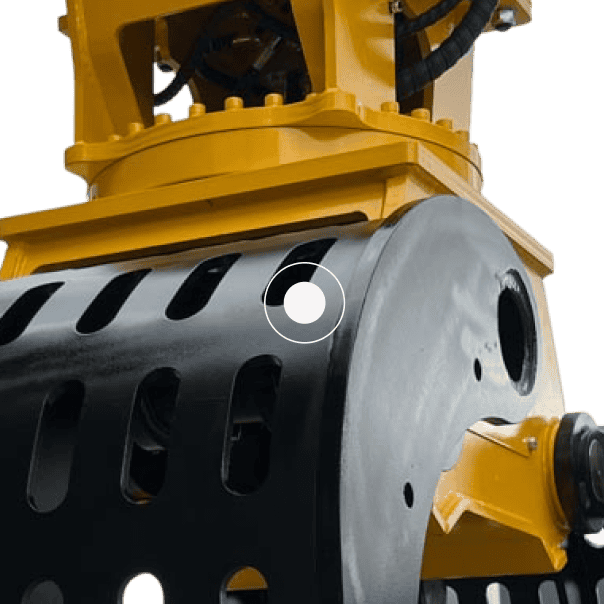

Larger models are equipped with dual rams, while smaller models are equipped with a single powerful ram. Both of these configurations include reinforced link arms to allow for precise cutting edge alignment. This allows for maximum power output in both models without compromising on strength and efficiency.
Fourteen build sizes covering 1 tonne to 35 tonne machines, in fixed and rotating configurations. Weight, max open, max closed, width and ram count are listed per build.
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 195 | 850 | 582 | 425 | 1 | 90 – 110 bar | 20 – 30 L/min | 3.8 | — |
| Fixed | 96 | 850 | 582 | 425 | 1 | — | — | 3.8 | 160 – 250 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 220 | 1,160 | 779 | 450 | 1 | 90 – 110 bar | 20 – 30 L/min | 5.3 | — |
| Fixed | 160 | 1,160 | 779 | 450 | 1 | — | — | 5.3 | 160 – 250 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 330 | 1,400 | 837 | 500 | 1 | 130 – 150 bar | 30 – 40 L/min | 8.8 | — |
| Fixed | 245 | 1,400 | 837 | 500 | 1 | — | — | 8.8 | 250 – 280 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 460 | 1,500 | 884 | 600 | 1 | 130 – 150 bar | 30 – 40 L/min | 10 | — |
| Fixed | 316 | 1,500 | 884 | 600 | 1 | — | — | 10 | 250 – 280 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 960 | 1,700 | 1,055 | 800 | 1 | 130 – 150 bar | 40 – 50 L/min | 17.2 | — |
| Fixed | 613 | 1,700 | 1,055 | 800 | 1 | — | — | 17.2 | 250 – 280 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 1,500 | 1,950 | 1,179 | 1,030 | 2 | 130 – 150 bar | 40 – 50 L/min | 19.6×2 | — |
| Fixed | 974 | 1,950 | 1,179 | 1,030 | 2 | — | — | 19.6×2 | 280 – 300 bar |
| Type | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor pressure | Motor flow | Cylinder force(t) | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 2,100 | 2,400 | 1,379 | 1,200 | 2 | 130 – 150 bar | 40 – 50 L/min | 23.7×2 | — |
| Fixed | 1,500 | 2,400 | 1,379 | 1,200 | 2 | — | — | 23.7×2 | 300 – 350 bar |
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
