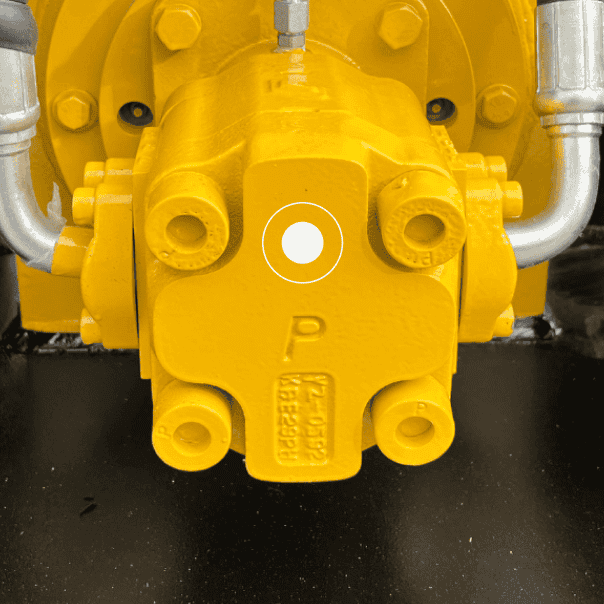

Advanced hydraulic motor

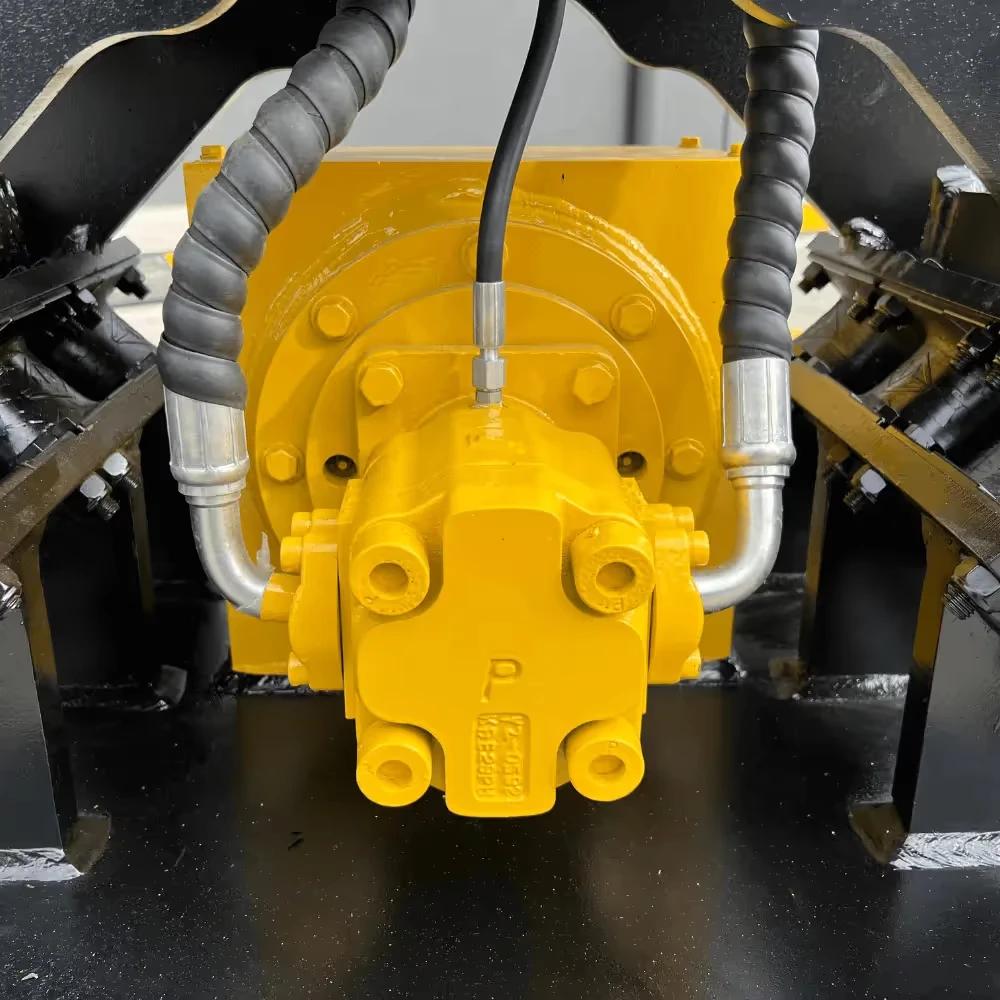

An American Permco hydraulic motor with a priority valve regulates oil flow to the plate, so it compacts at full force on the machine's circuit without the motor being over-driven.

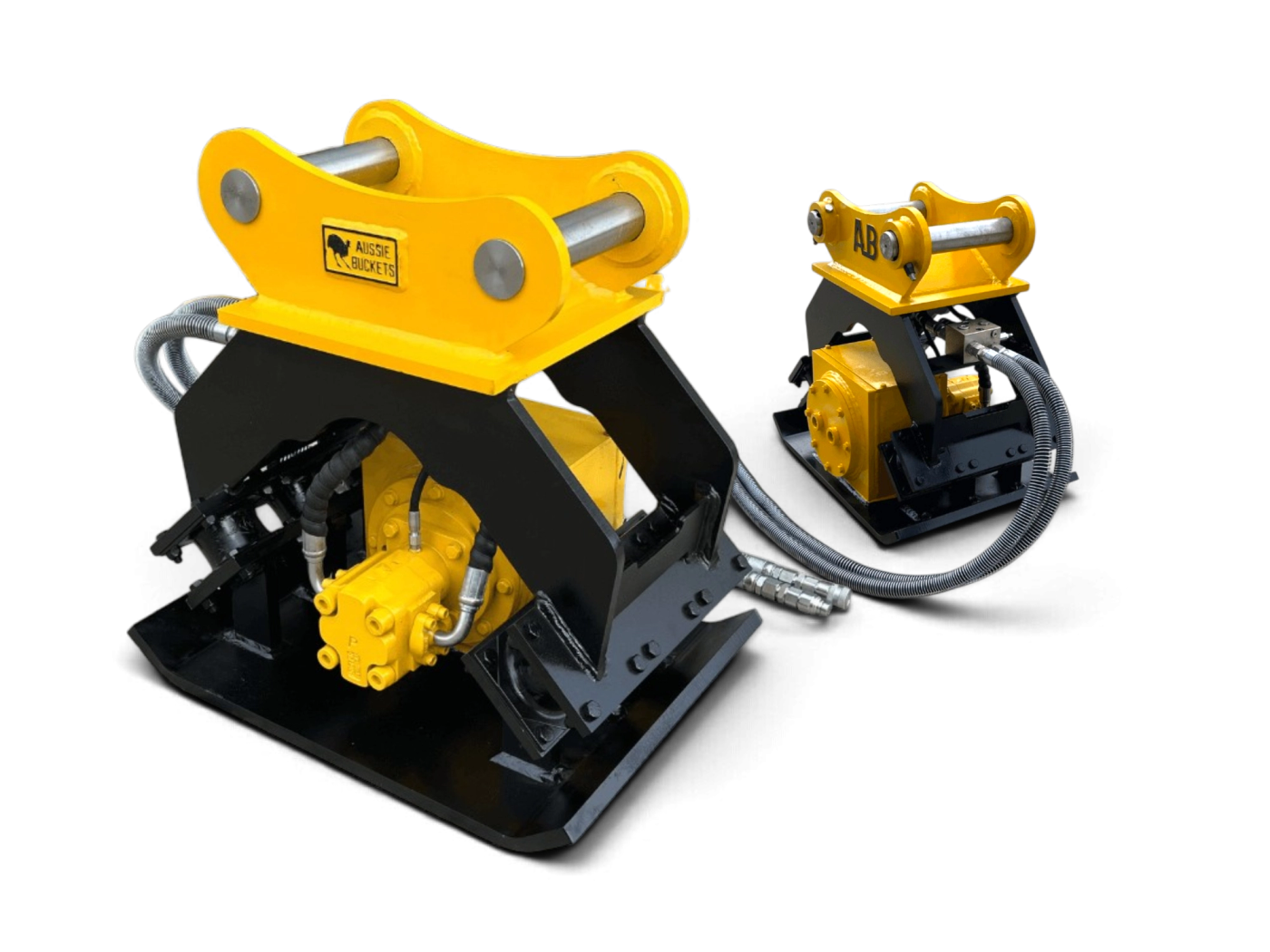

Vibrating Compaction Plate
Available for 2.5 – 38T
No greasing. Sealed, cradle-mounted motor.
Starting from
$4,975
Or with AB 0% Finance from $30/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery
An excavator plate compactor for 2.5–38 tonne machines. Compacts trench bases, foundations and backfill directly from the cab, in ground where a walk-behind plate cannot safely go.
Gallery
2 videos · 14 photos
Videos
02

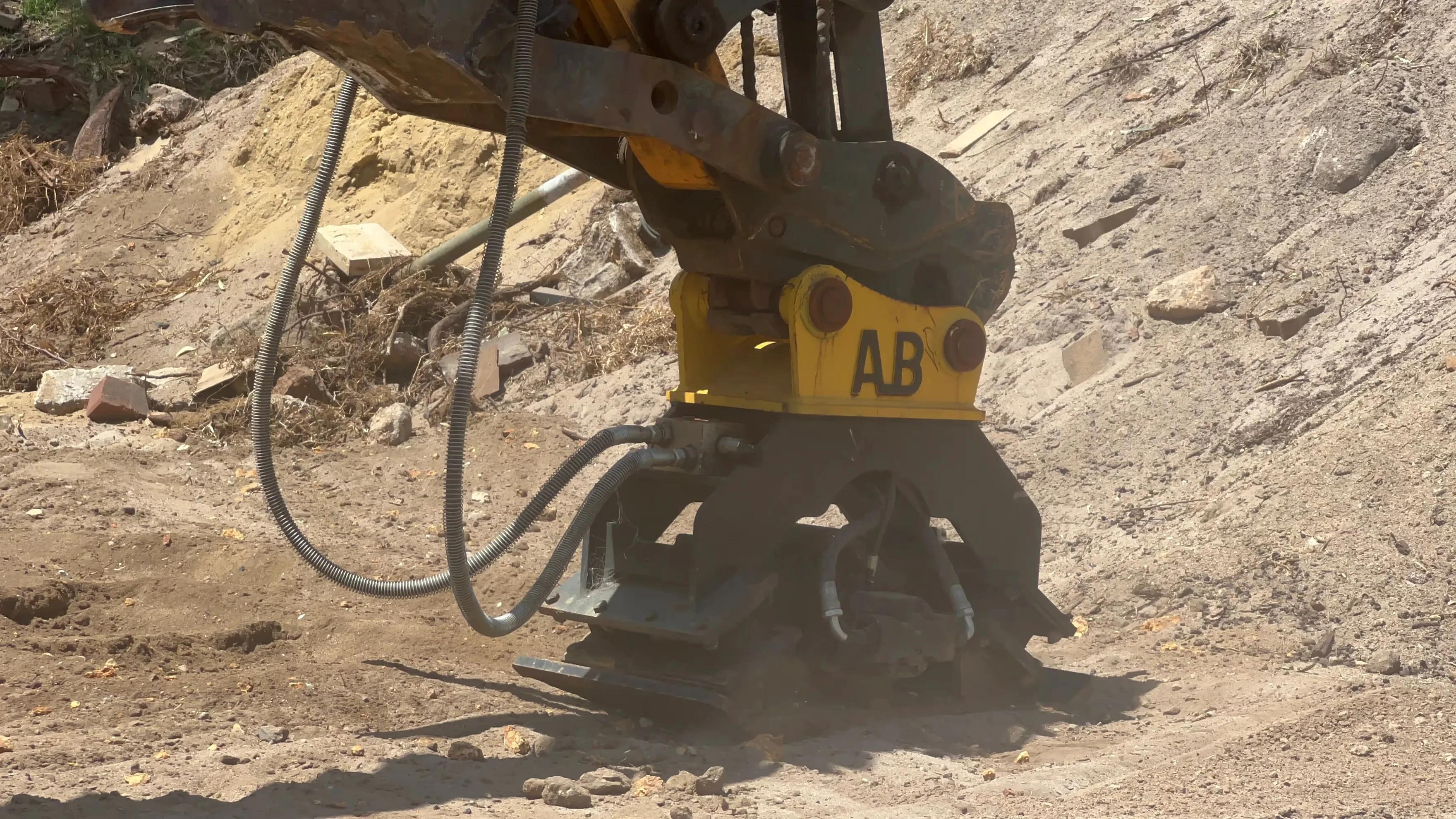

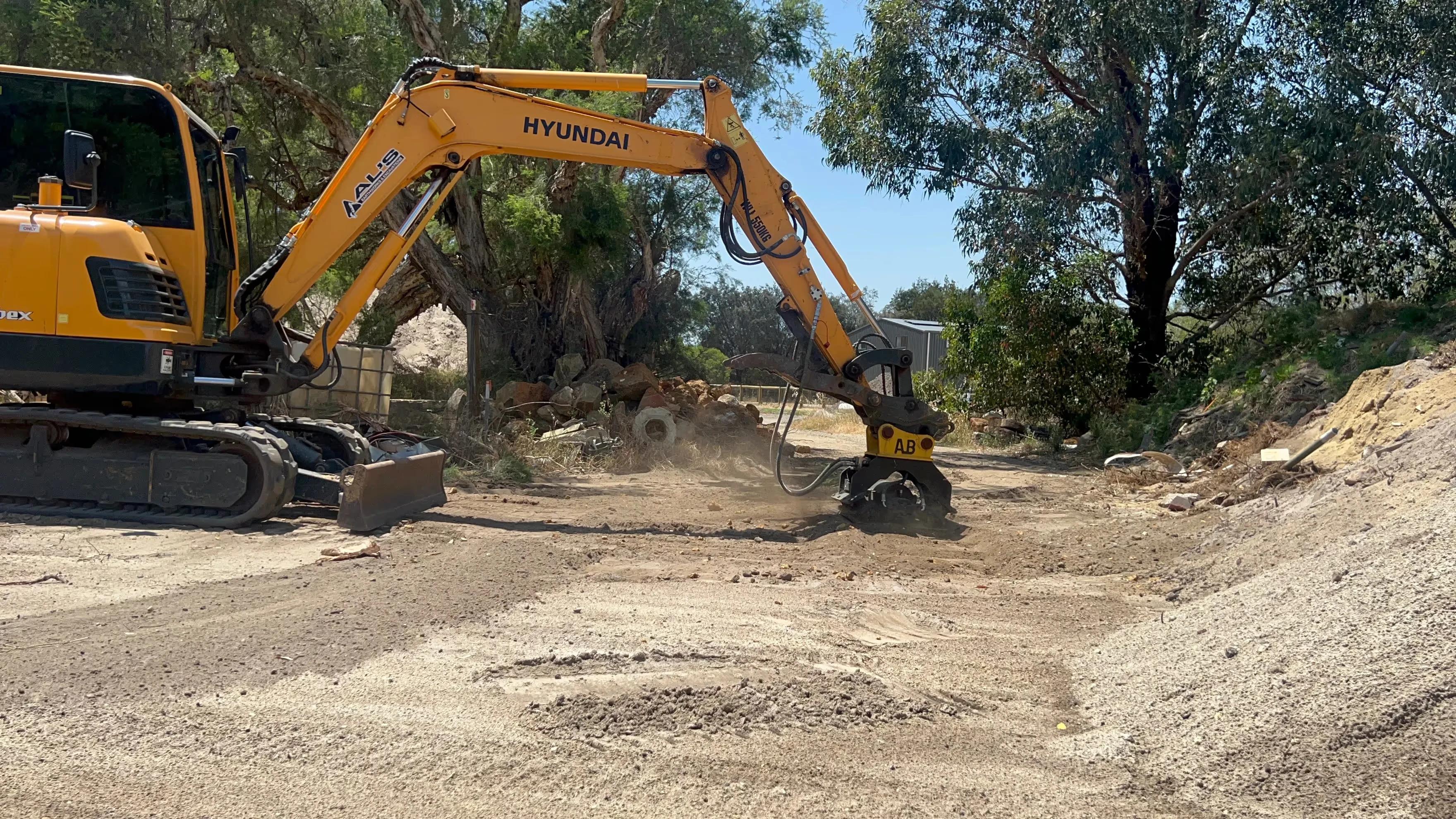

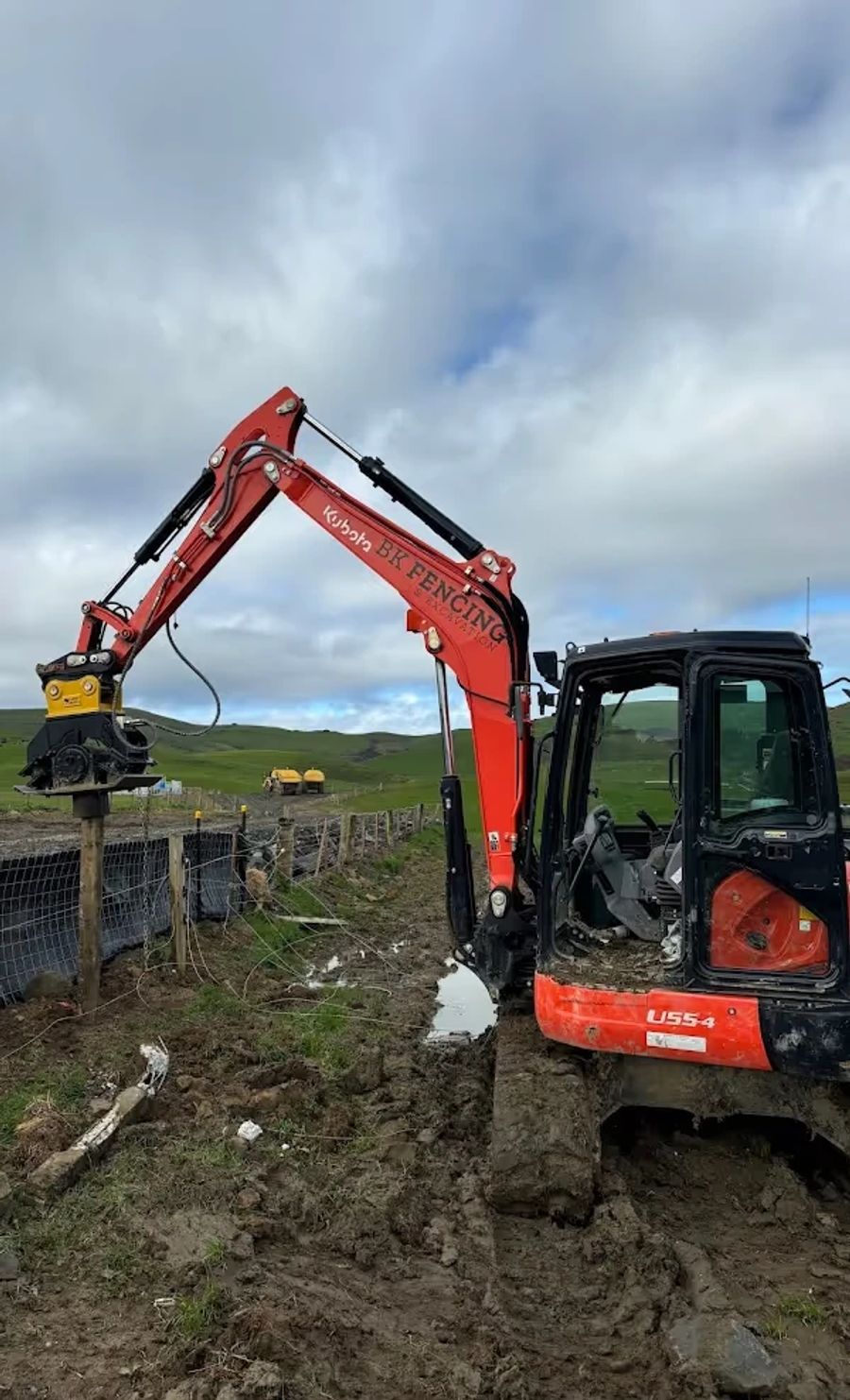

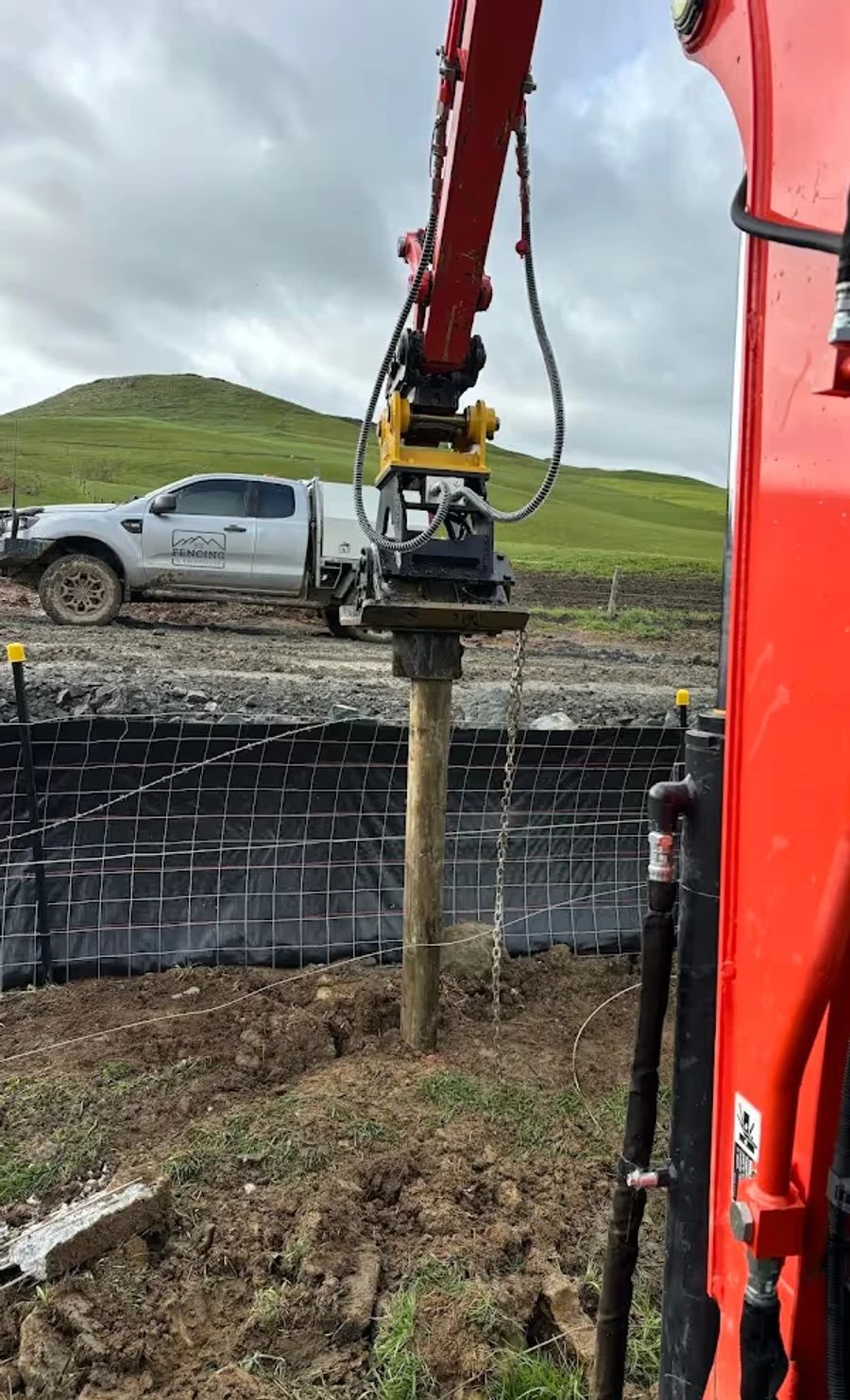

In action
04
Product
10
The difference
EveryAussieBucketsexcavatorcompactionplateispurpose-builtforthemachineyourunandprecision-engineeredforthegroundyou'recompacting:trenchbases,batters,foundationsandbackfillnobodyshouldstandintocompact.Availablefor2.5–38Tmachinesacrossfivebuilds,onanAmericanPermcohydraulicmotor.
WhatdistinguishesourVibratingCompactionPlateisitsadvancedvibration-dampeningrubbersandprotectivemotorcradle,sealedwithnogreasepoints.Comparedtoothervibeplatesonthemarket,thedailyservicingstopisnotthere,andtheoperatorneverleavesthecabtocompactatrench.
AllVibratingCompactionPlatesareaccompaniedwithourstandard5-yearwarranty.

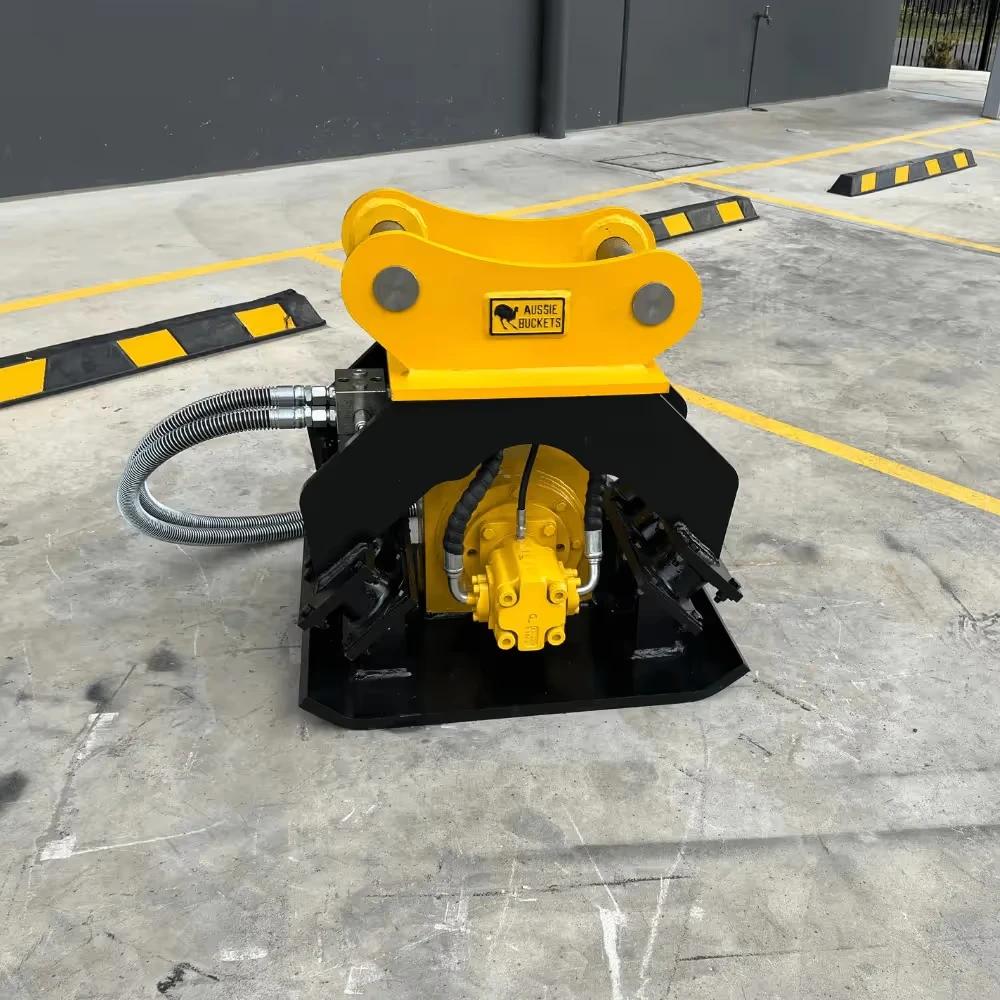

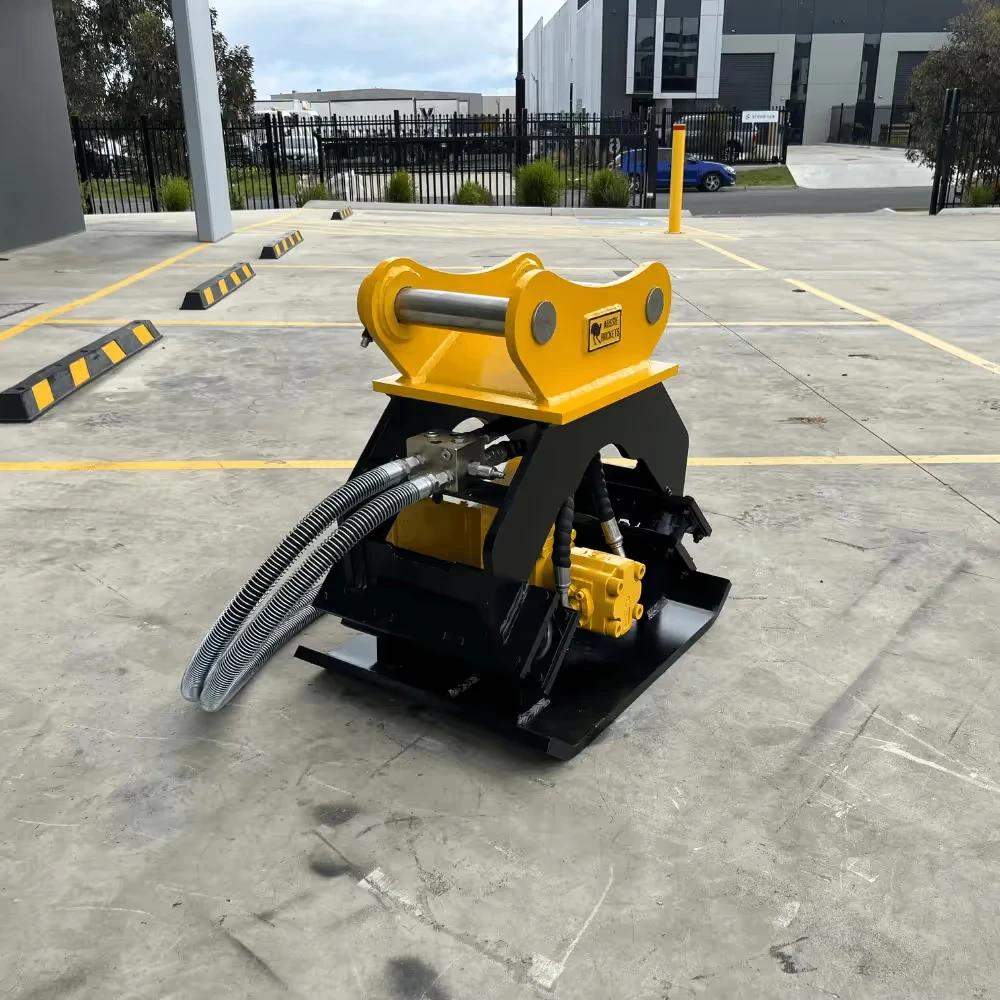

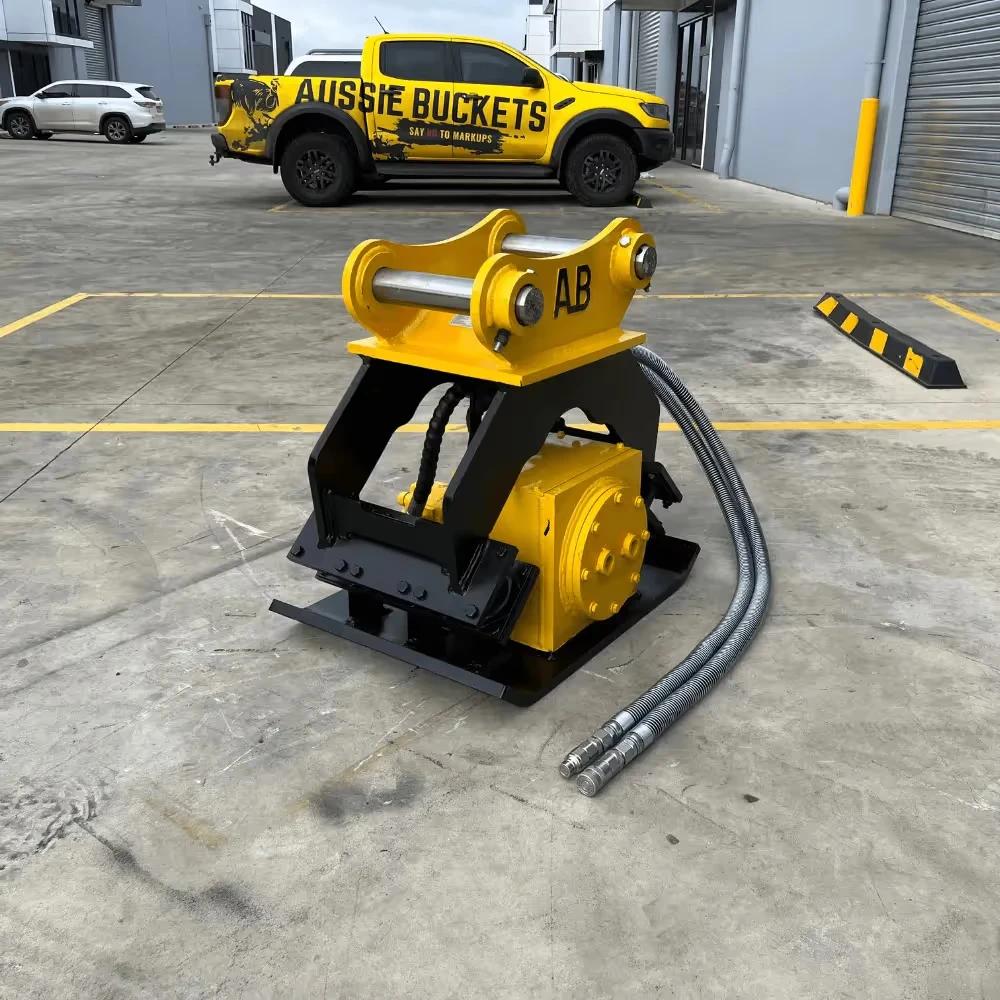

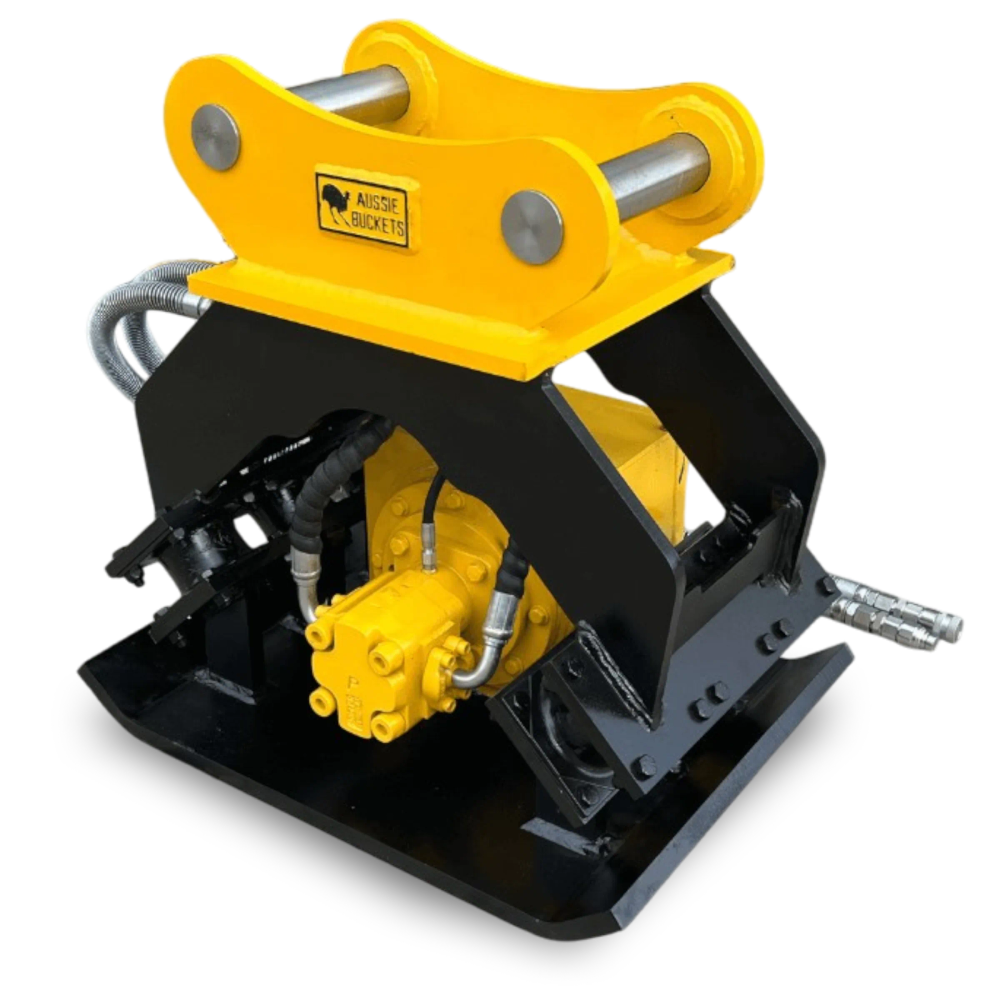

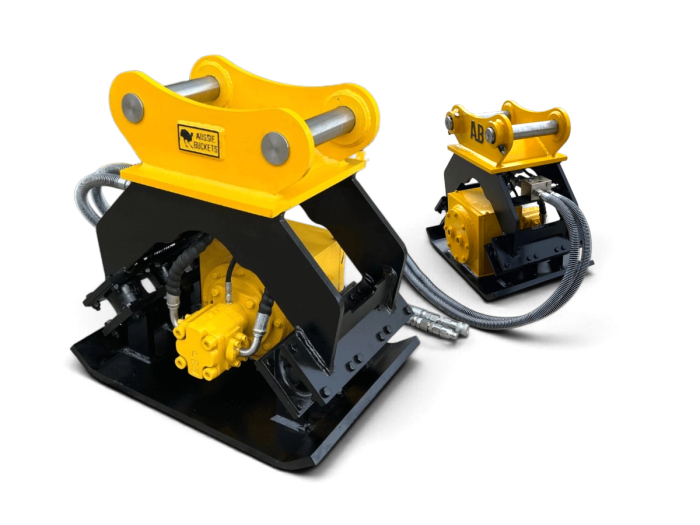

Built for trench bases, pipe surrounds and confined ground, this excavator vibrating plate features an American Permco hydraulic motor, advanced vibration-dampening rubbers and a protective motor cradle, and ships with all hoses and pins.
Features

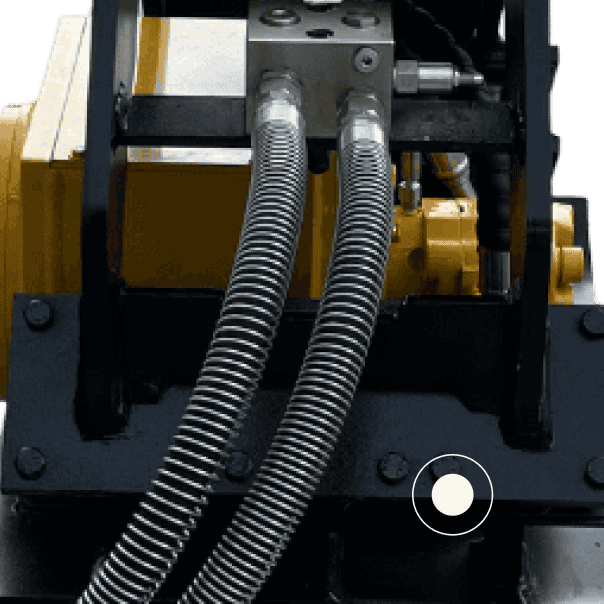

Superior design

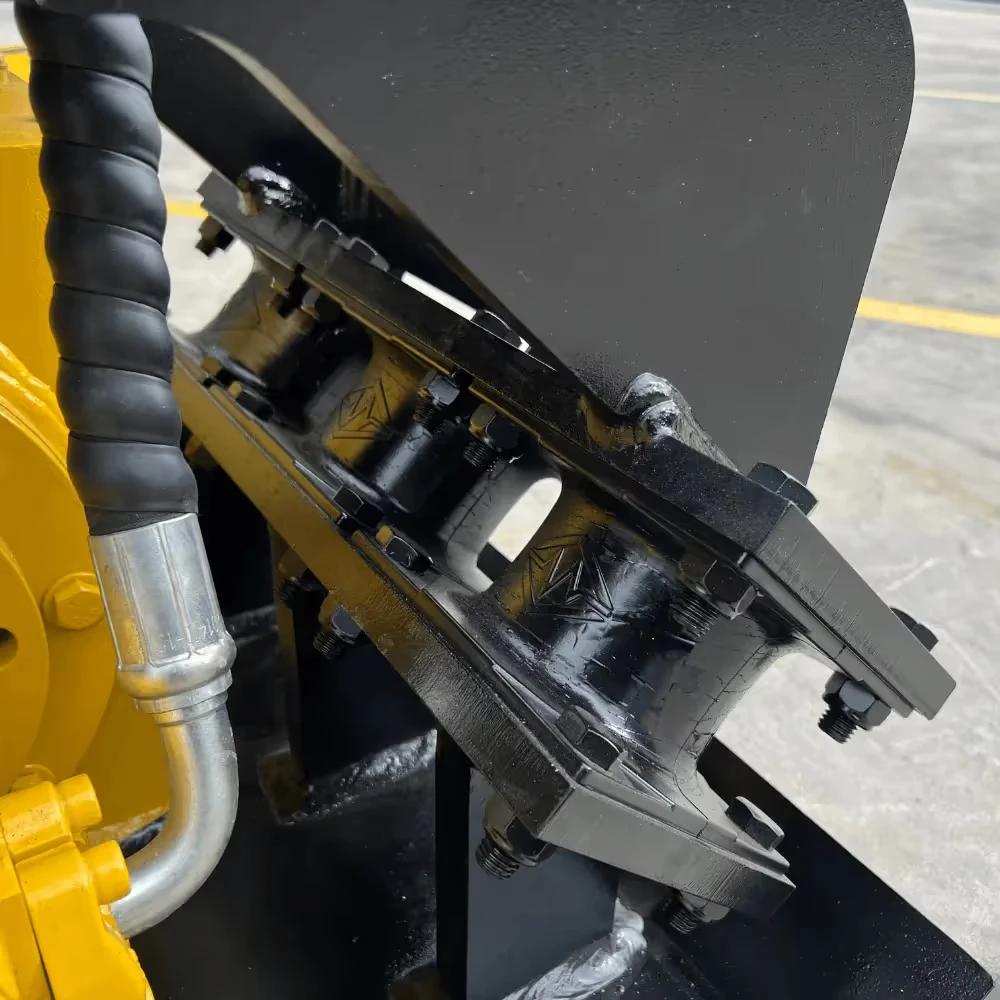

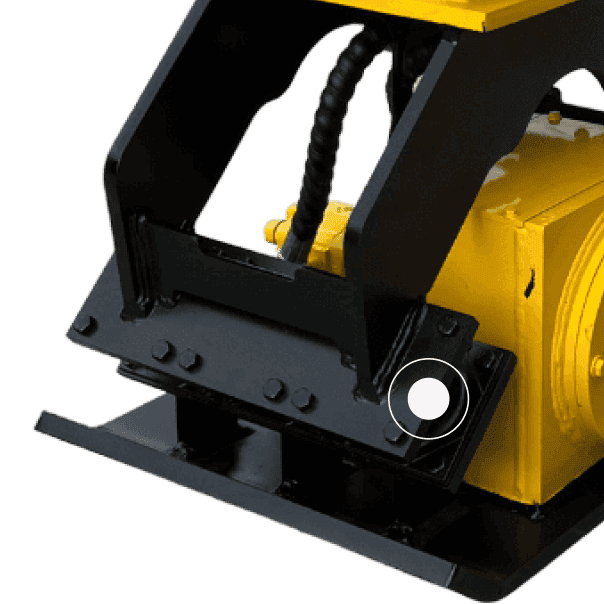

Sealed with no grease points, so there is no daily servicing stop and nothing to miss on a wet job. Angled dampening rubbers cut the vibration reaching the machine and the operator.

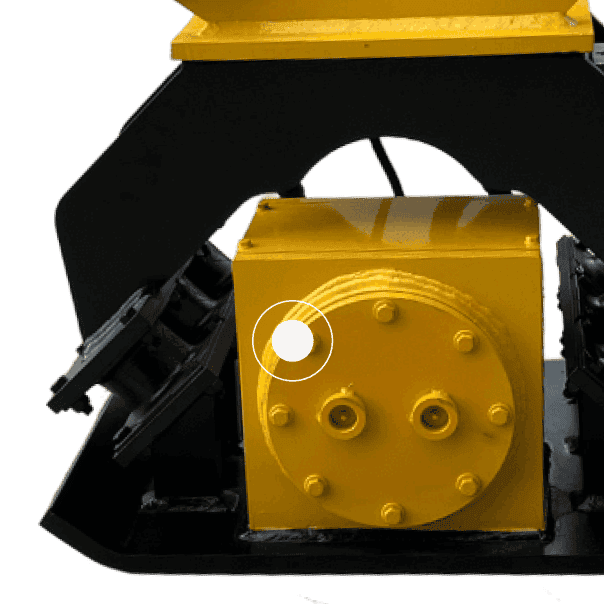

Protected motor & hydraulics
The motor and hydraulics sit inside a protective cradle with spring-guarded hoses, so trench walls, rock and backfill hit the housing rather than the parts that run the plate.
Technical Breakdown
Five build sizes covering 2.5 tonne to 38 tonne machines. Plate size, weight, flow rate and operating pressure are listed per size for high-frequency work in trenches and confined ground.
| Excavator size(T) | Weight(kg) | Plate size(mm) | Pressure(bar) | Flow rate(L/min) |
|---|---|---|---|---|
| 2.5 – 5 | 210 | 745×460 | 140 – 160 | 30 – 35 |
| 5.5 – 11 | 300 | 795×500 | 140 – 160 | 30 – 35 |
| 12 – 18 | 570 | 1,000×850 | 140 – 160 | 40 – 60 |
| 19 – 26 | 785 | 1,313×895 | 210 | 60 – 120 |
| 28 – 38 | 1,280 | 1,582×1,080 | 210 | 60 – 120 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is an excavator plate compactor? An excavator plate compactor is a hydraulic attachment that vibrates against the ground to compact soil, backfill and trench bases from the machine. It is also called a compaction plate, vibe plate, vibratory tamper or vibro plate. Aussie Buckets builds five sizes covering 2.5 to 38 tonne excavators.
What size compaction plate suits my excavator? Aussie Buckets builds five sizes covering 2.5 tonne to 38 tonne machines, from a 745 by 460 mm plate at 210 kg to 1,582 by 1,080 mm at 1,280 kg. Send your machine make, model and auxiliary flow and we will match the plate and confirm the bracket before the build starts.
What is the difference between an excavator plate and a walk-behind? An excavator-mounted plate compacts from the machine, which reaches trench bases, batters and confined ground a walk-behind cannot safely enter. It also removes the need for anyone to stand in an open trench to compact it, which is the reason most civil contractors move to one.
Does an excavator compaction plate need greasing? No. The Aussie Buckets design is sealed with no grease points, and the motor is cradle-mounted inside the housing with spring-guarded hoses. That removes the daily greasing stop and the wear that comes from missing one on a wet job.
Can a compaction plate work in a trench? Yes, trench work is what the high-frequency plate is built for. The cradle-mounted motor and guarded hose routing keep hydraulics away from the trench wall, and the plate reaches ground an operator should not stand on. Trench base and pipe surround compaction are its primary applications.
Compaction plate or compaction wheel: which do I need? A compaction plate vibrates a flat foot against the surface and is the tool for trench bases, pipe surrounds and finished formation. A compaction wheel rolls drums through backfill in lifts and covers ground faster on long trench runs. Plate for the base and the finish, wheel for bulk backfill volume.
How much does an excavator plate compactor cost? Aussie Buckets compaction plates start at $4,975. Price moves with plate size and machine class, and 0% finance is available on approved purchases. Every plate ships with hoses and pins and is protected by a 5-year warranty. Get a tailored quote against your machine details.
