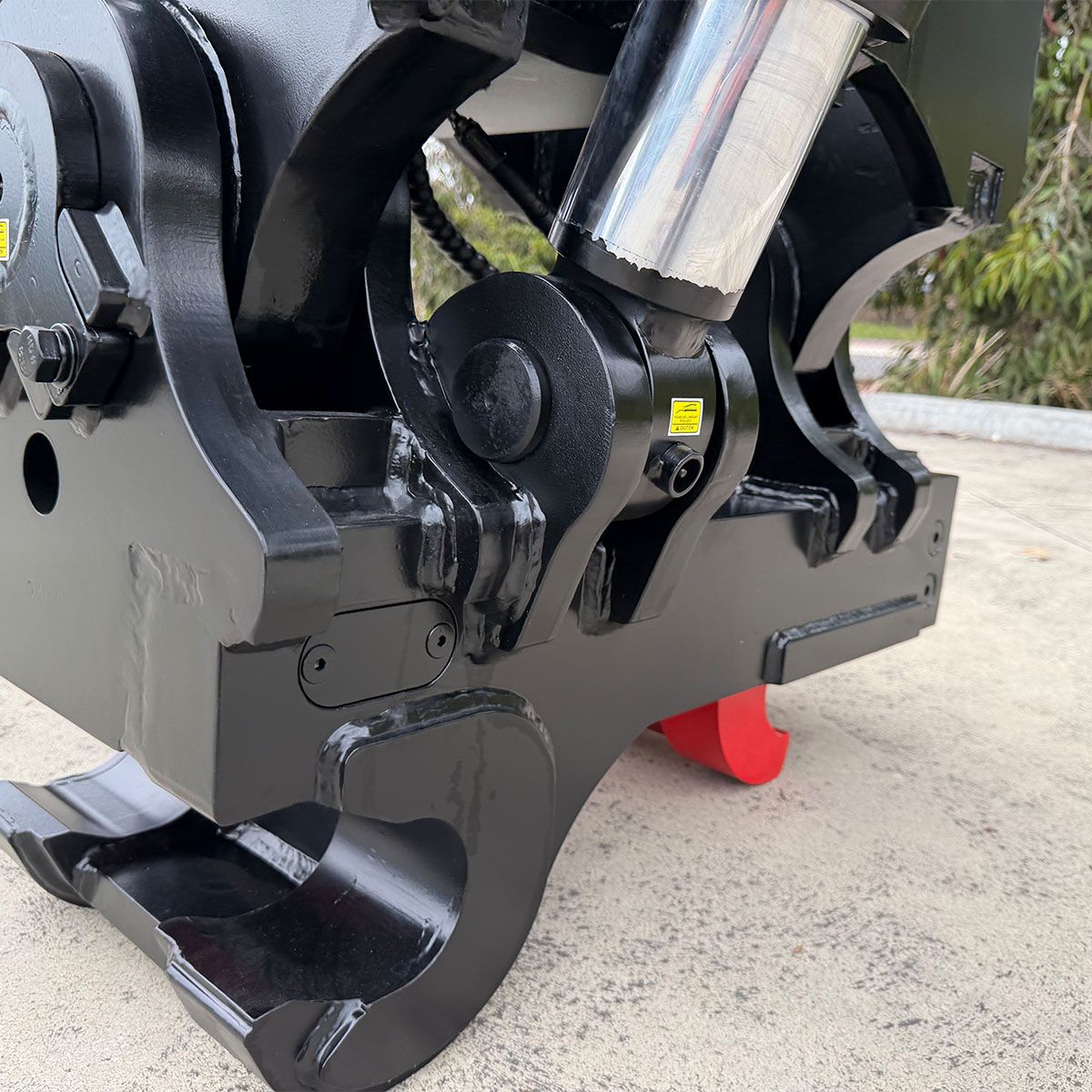

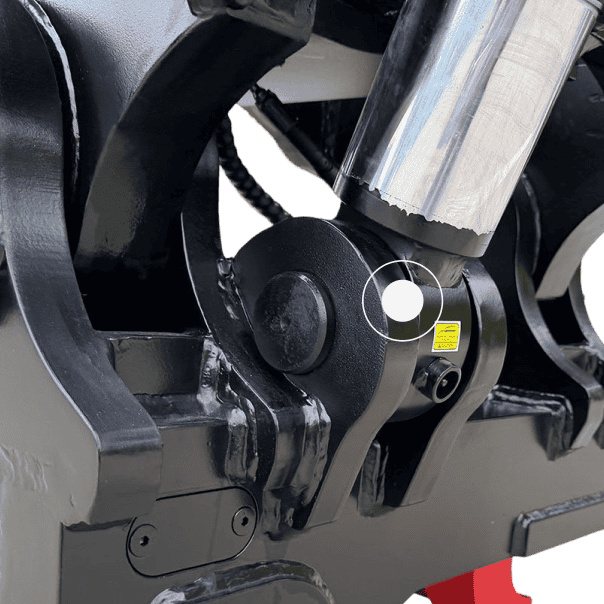

Twin oversized rams
Direct hydraulic power delivers massive, consistent tilting torque and superior holding strength under extreme loads – eliminates drifting and provides firm control where rotary systems can falter.

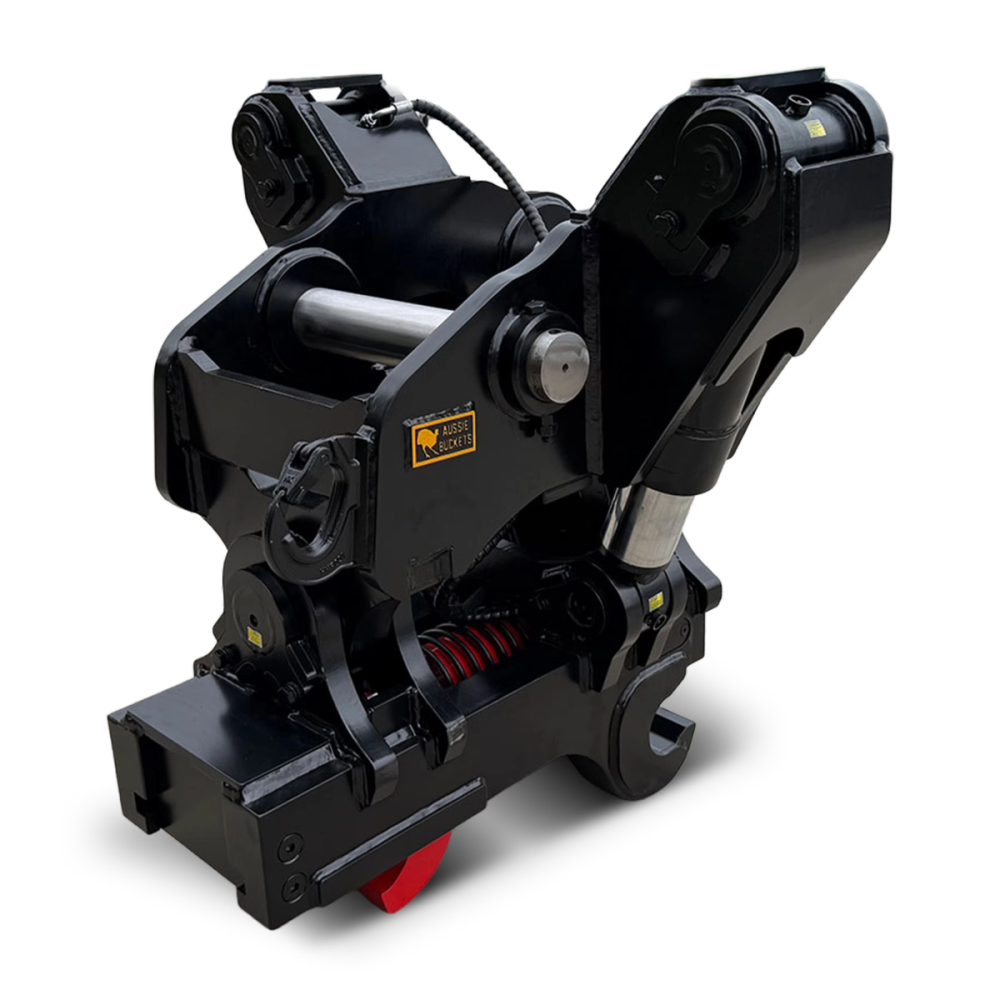

TwinTilt Hitch
Available for 18 – 52T
Twin oversized rams. AS4772:2008 compliant.
Starting from $17,975
$12,583
Or with AB 0% Finance from $93/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

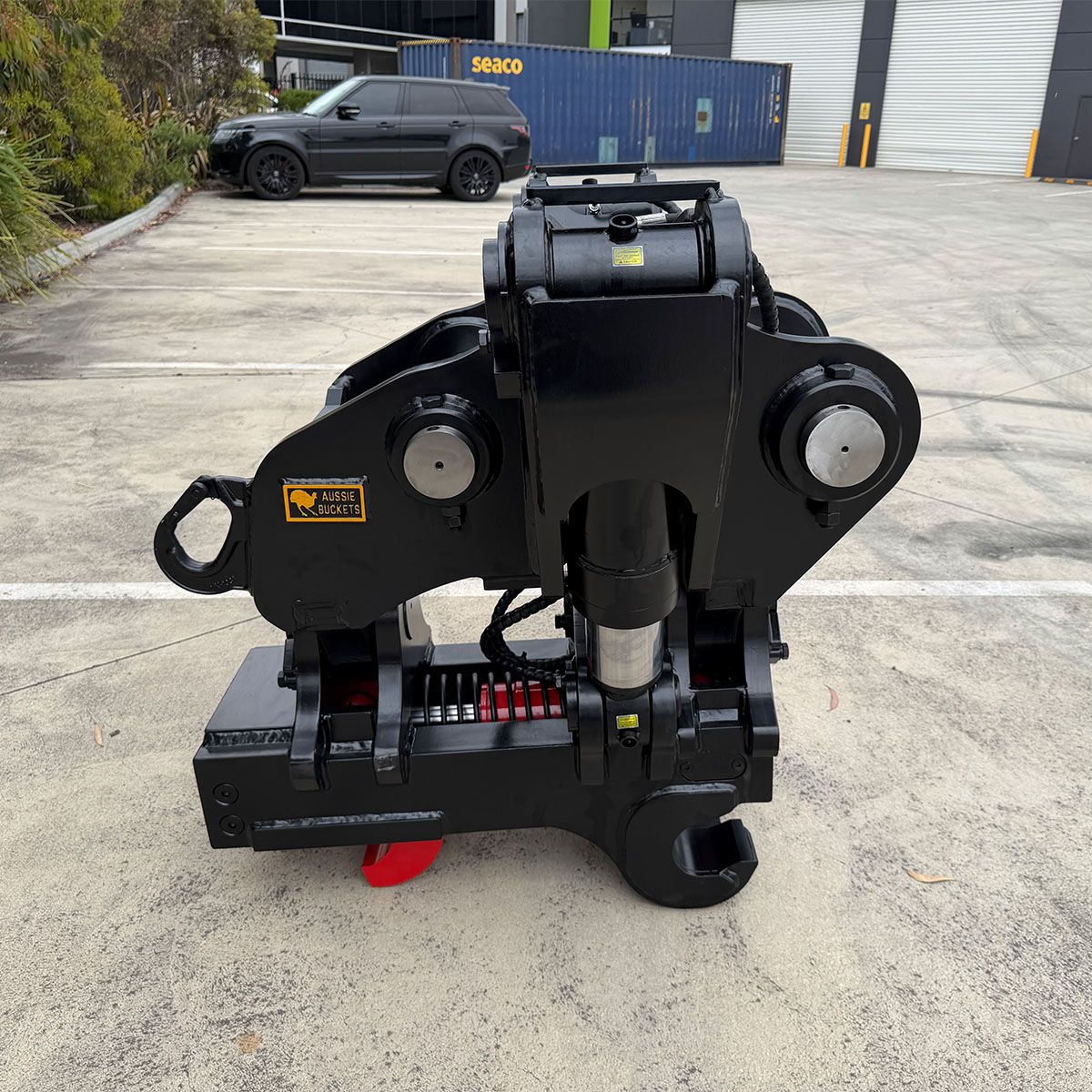

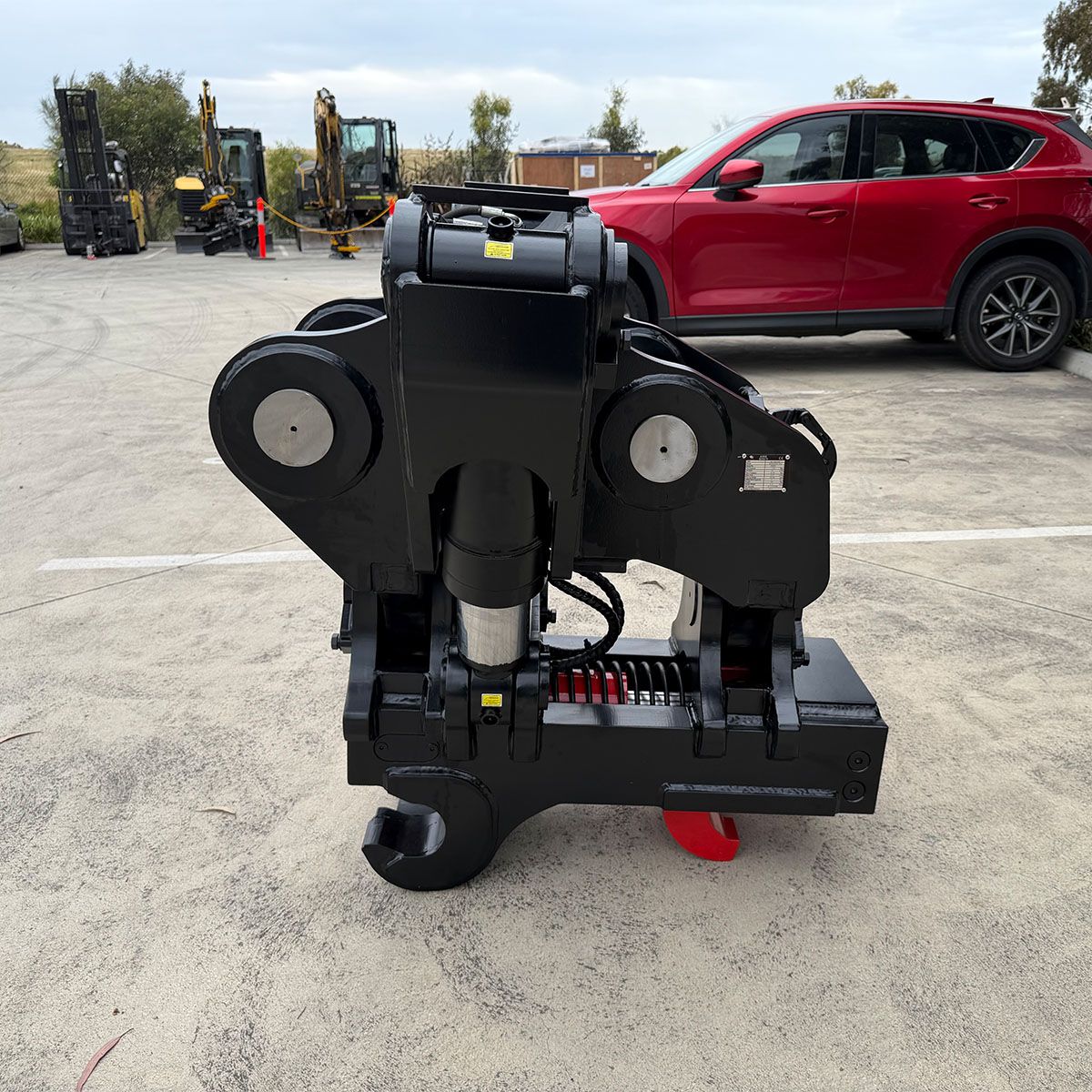

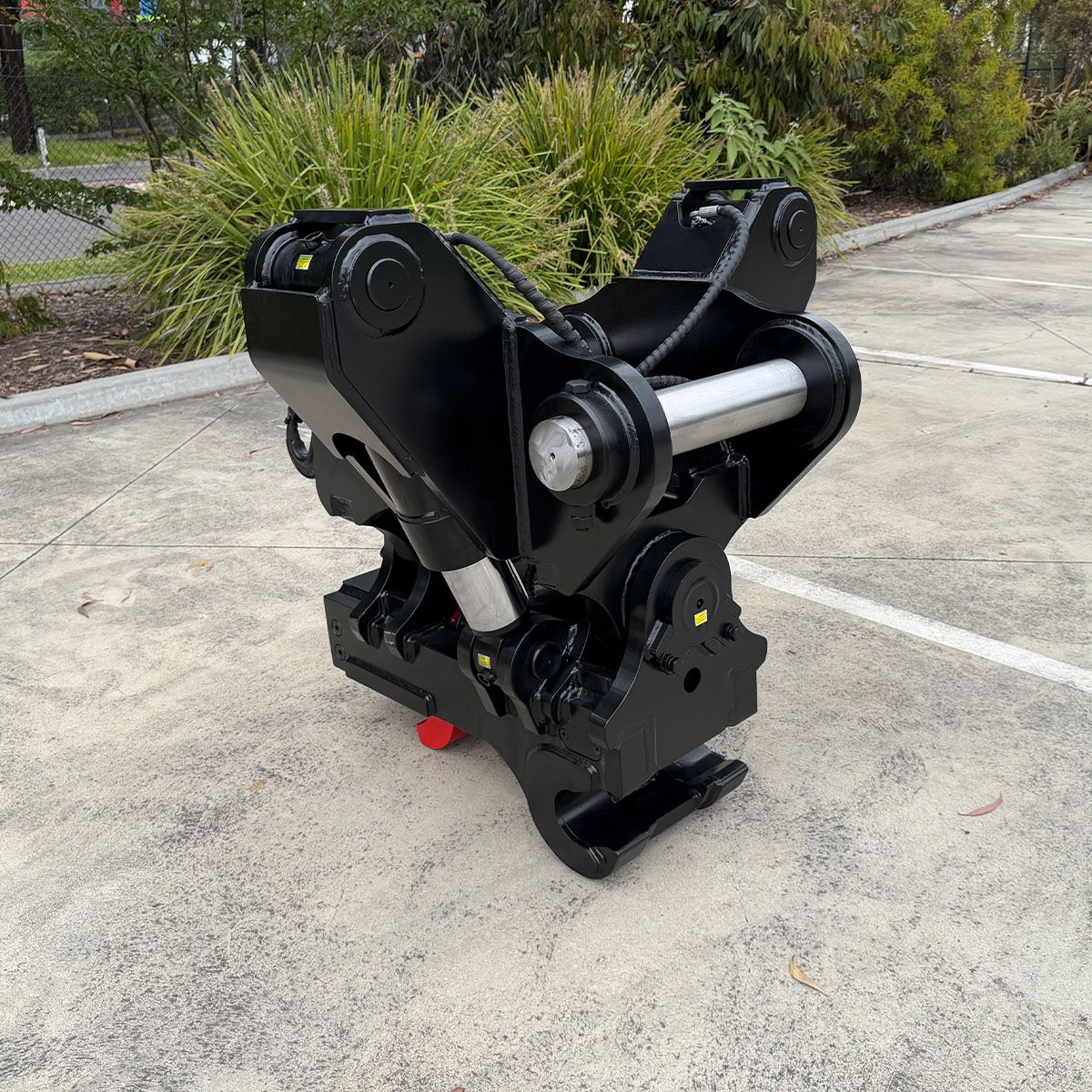

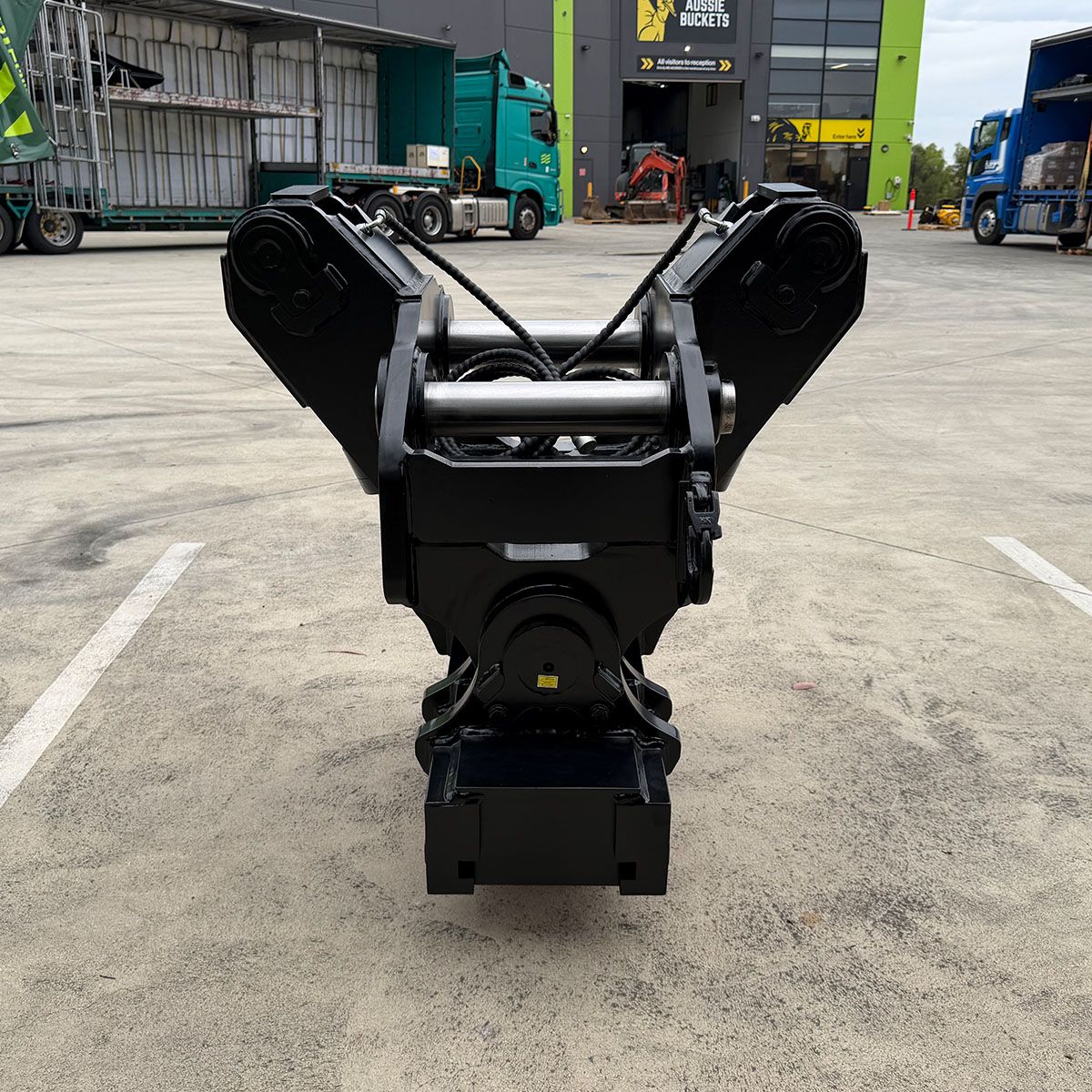

The TwinTilt hitch for 18–52 tonne excavators. A 90-degree tilt range on two oversized rams that share the offset load, where a single ram drifts off grade under working pressure.
Gallery
12 photos
Product
12
The difference
EveryEveryAussieAussieBucketsBucketsTwinTiltTwinTilthitchhitchisispurpose-builtpurpose-builttotoyouryourownownpinpindiametersdiametersandandcentrescentresandandprecision-engineeredprecision-engineeredforforthethelarge-machinelarge-machineproblemproblemaasingle-ramsingle-ramcouplercouplercannotcannotsolve:solve:holdingholdinggradegradewhenwhenthetheloadloadsitssitsoffoffcentre.centre.AvailableAvailableforfor18–52T18–52Tmachinesmachinesacrossacrossfivefivebuilds,builds,throughthroughaa90-degree90-degreeprecisionprecisiontilttiltrange.range.
WhatWhatdistinguishesdistinguishesthetheTwinTiltTwinTiltisisitsitstwintwinoversizedoversizedrams,rams,triple-locktriple-locksafety,safety,hardenedhardenedcomponentscomponentsthroughout,throughout,certifiedcertifiedliftingliftingeyeeyeandandaalow-profilelow-profileprotectedprotectedbuild,build,compliantcompliantwithwithAS4772:2008.AS4772:2008.ComparedComparedtotoaasingle-ramsingle-ramtilttiltcoupler,coupler,twotworamsramssharesharethetheload,load,sosothetheangleangleisisheldheldratherratherthanthannursed.nursed.
AllAllTwinTiltTwinTiltHitchesHitchesareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for operators who need full plane control from a single hitch, the TwinTilt features independent dual-axis hydraulic cylinders, triple-lock retention, and Australian standard compliance for precise, confident attachment positioning at any working angle.
Features

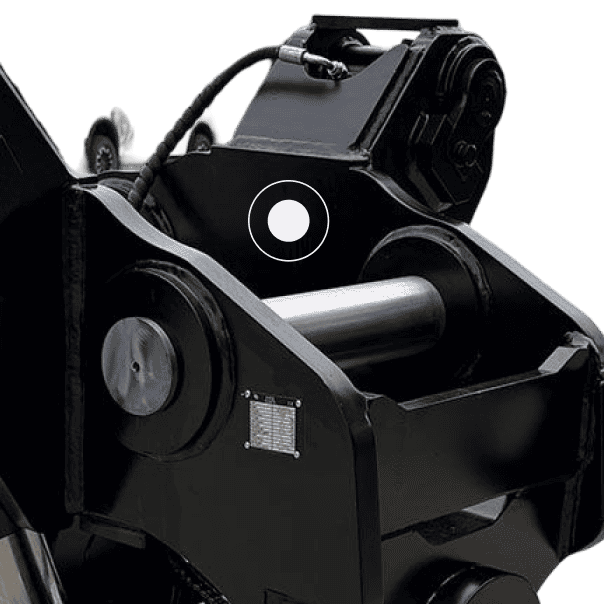

Low-profile optimised design
Class-leading pin-to-pin height retains maximum excavator breakout force and tip performance, outperforming bulkier alternatives for deeper digs and heavier lifts.

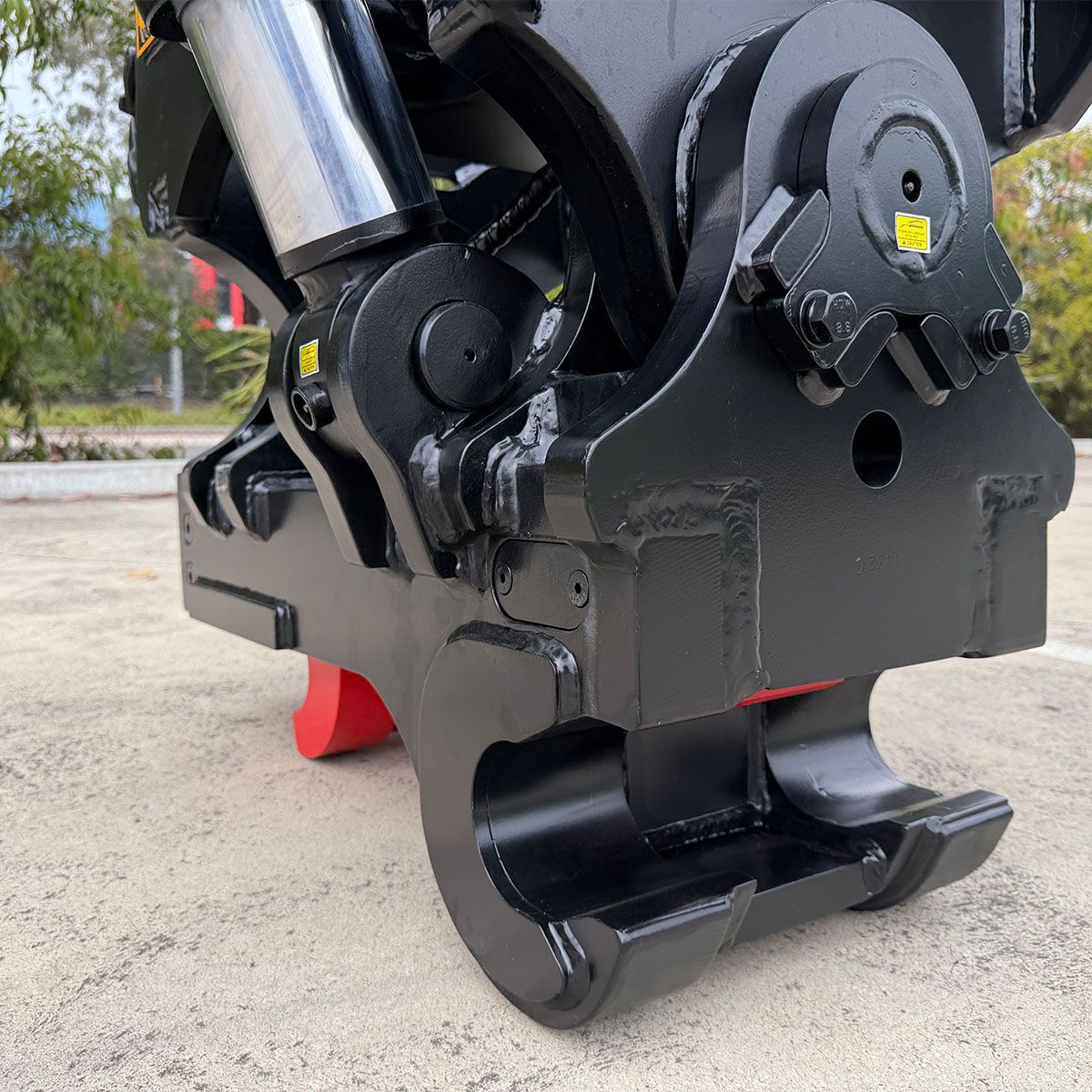

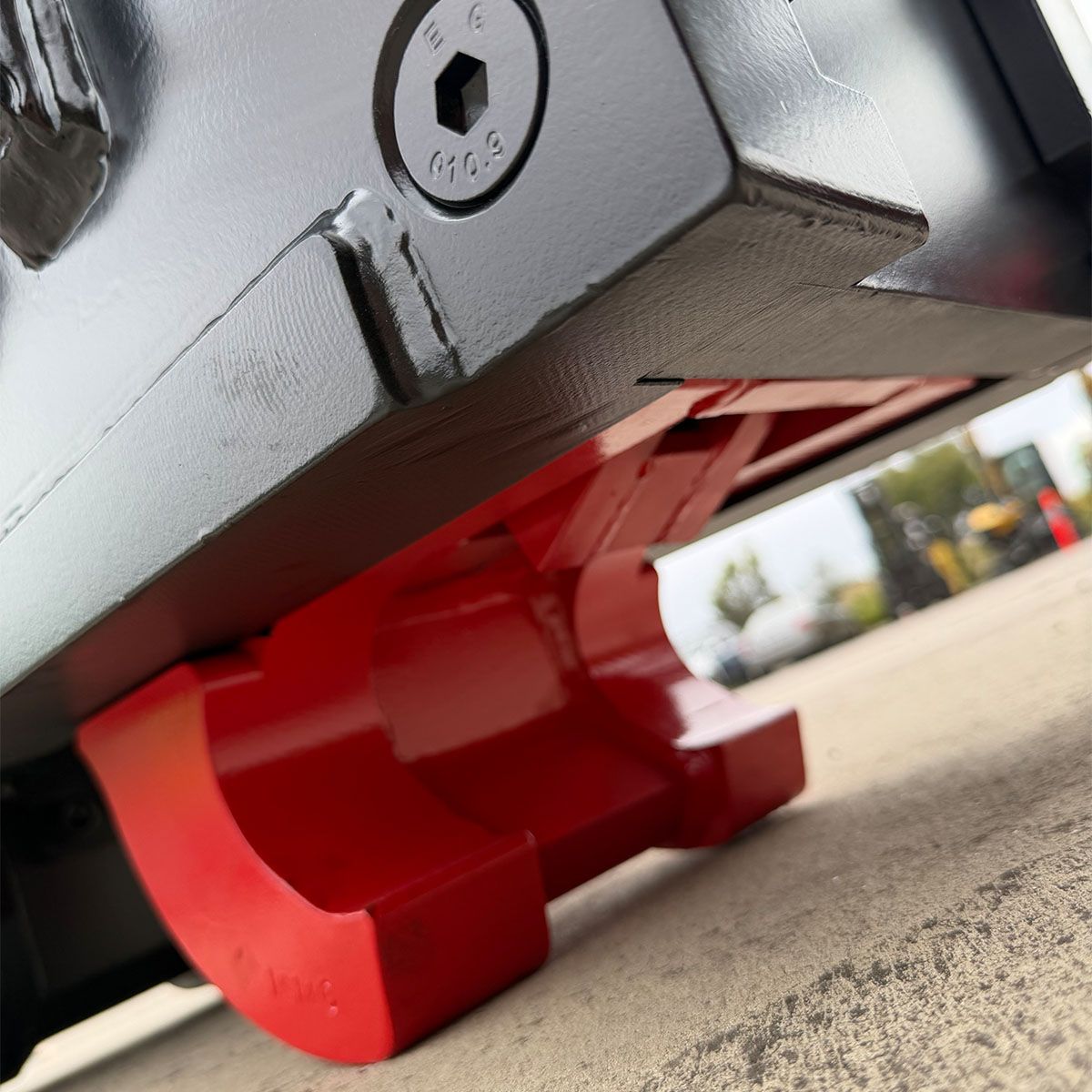

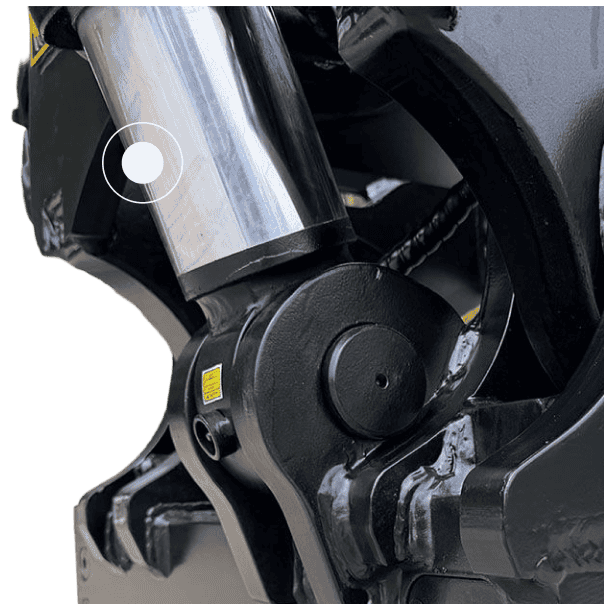

Triple-lock safety
Three mechanical locking points plus hydraulic backup – ultra-secure, automatic single-cycle attach/detach from the cab for unmatched safety and speed.

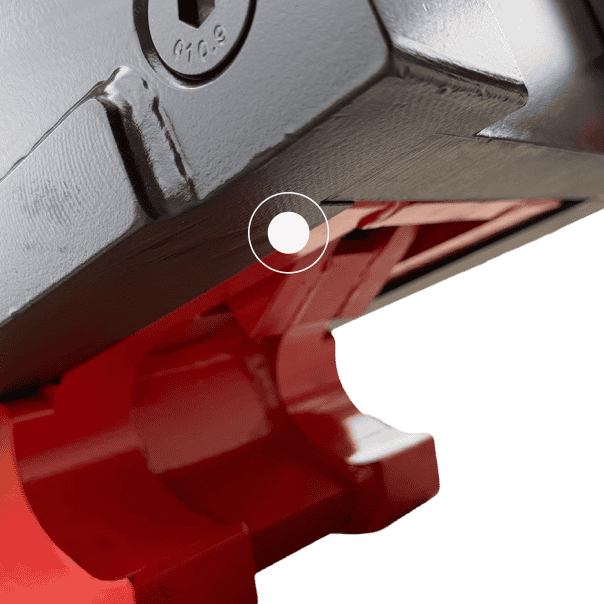

AS4772:2008 compliant
Meets the comprehensive safety and performance standards by being compliant with AS4772:2008. Rest assured knowing that the quality and safety are in line with the highest industry regulations.
Technical Breakdown
Five build sizes covering 18 tonne to 52 tonne machines. Pin diameter, weight, tilt degree, tilt pressure and tilt flow rate are listed for each build.
| Excavator size(T) | Pin diameter(mm) | Weight(kg) | Tilt degree(°) | Tilt pressure(bar) | Tilt flow rate(L/min) | Rated lift capacity(kg) |
|---|---|---|---|---|---|---|
| 18 – 23 | 80 | 650 | ±45 | ≥350 | >20 | 5,000 |
| 24 – 28 | 80 / 90 | 700 | ±45 | ≥350 | >20 | 5,000 |
| 29 – 36 | 90 / 100 | 1,000 | ±45 | ≥350 | >20 | 5,000 |
| 35 – 42 | 100 / 110 | 1,100 | ±45 | ≥350 | >20 | 8,000 |
| 40 – 52 | 110 / 120 | 1,430 | ±45 | ≥350 | >20 | 10,000 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleTilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Rock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is a TwinTilt hitch? The TwinTilt is a tilting quick hitch driven by two oversized rams rather than one, giving a 90-degree tilt range with the offset load shared between them. Aussie Buckets TwinTilt hitches cover 18 to 52 tonne excavators across five builds, with triple-lock safety and AS4772:2008 compliance.
Why twin rams instead of one? A single ram carries the whole offset load and gives fractionally under working pressure, which shows up as the grade drifting across a pass. Two oversized rams share that load, so the angle is held. On machines finishing to survey tolerance that difference is the reason to specify it.
Is the TwinTilt hitch certified? Yes. The TwinTilt is built to AS4772:2008, carries triple-lock safety that holds the attachment independently of hydraulic pressure, and includes a certified lifting eye. Every build is protected by a 5-year warranty and lifetime technical support.
How far does the TwinTilt hitch tilt? The TwinTilt covers a 90-degree precision tilt range, 45 degrees either side of centre, across all five builds for 18 to 52 tonne machines. The range is held under load by the twin rams rather than falling away as working pressure comes on.
TwinTilt hitch or hydraulic tilting hitch: which do I need? The standard hydraulic tilting hitch covers 0.8 to 36 tonne machines and tilts further on the smaller builds. The TwinTilt is the large-machine option for 18 to 52 tonne excavators, where holding grade under an offset load matters more than tilt range. Machine size and tolerance decide it.
How much does a TwinTilt hitch cost? Aussie Buckets TwinTilt hitches start at $17,975. Price moves with machine size and pin specification, and 0% finance is available on approved purchases. Every hitch is protected by a 5-year warranty. Get a tailored quote with your machine make, model and pin sizes.
