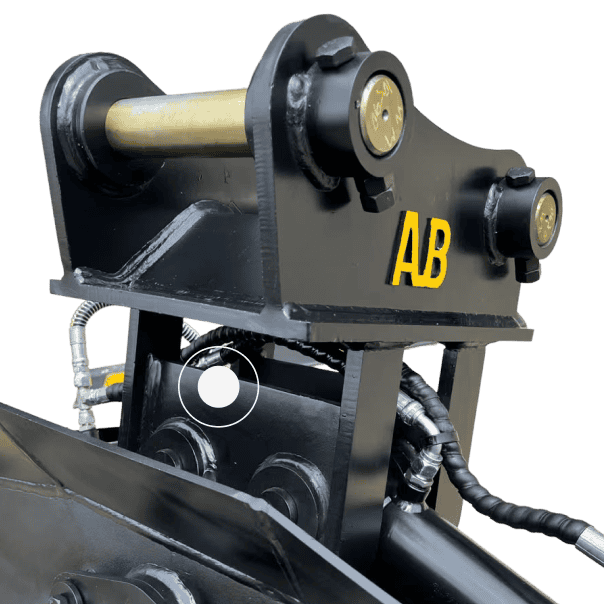

Full 45-degree tilt capability
Up to 45-Degree tilt function on both sides, which provides high-precision overall grading, levelling and trimming applications, increasing efficiency without the need for excavator repositioning.

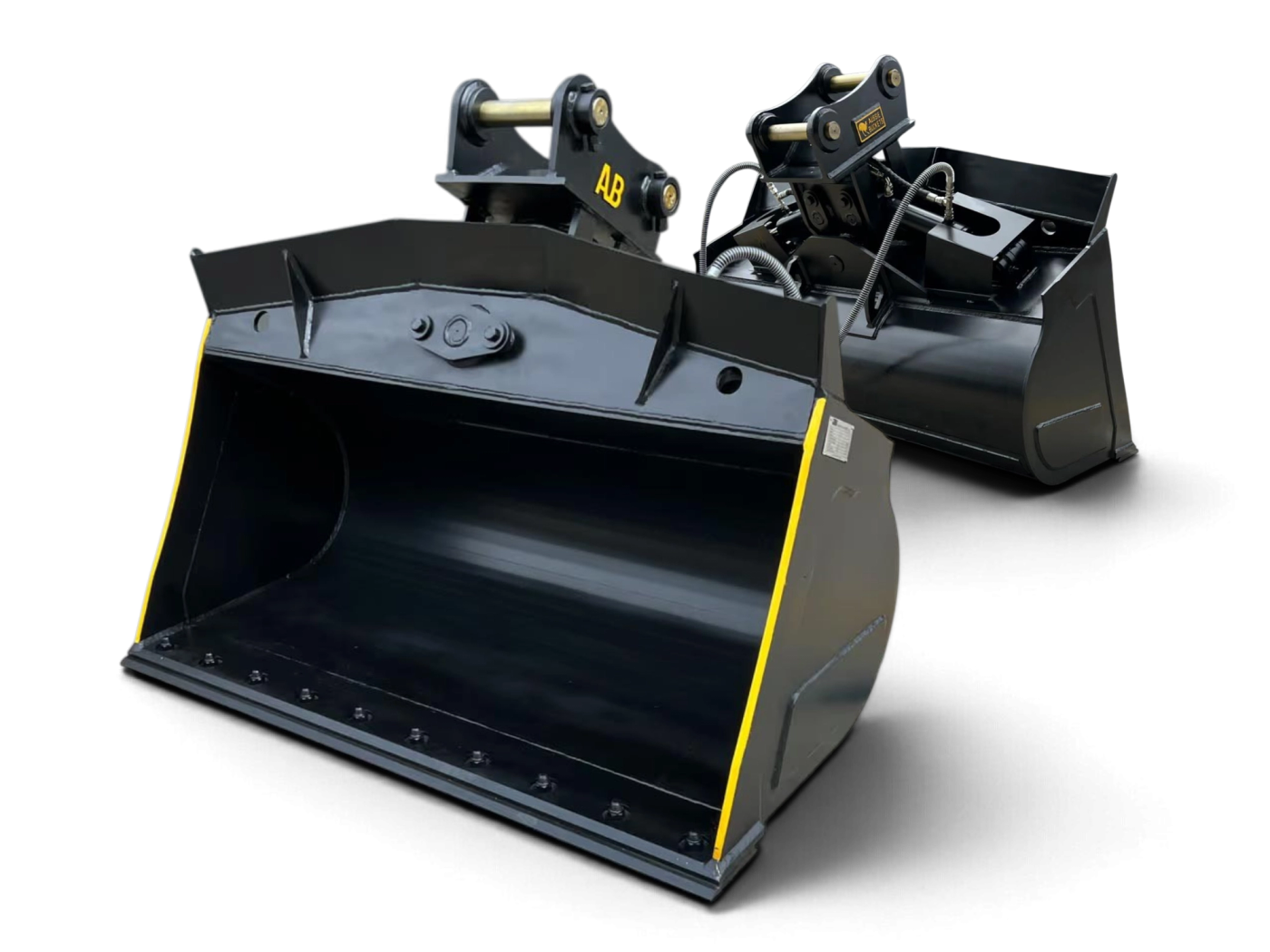

Tilting Bucket
Available for 1.2 – 55T
Full 45° each way on twin dual-acting rams.
Starting from
$2,075
Or with AB 0% Finance from $16/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

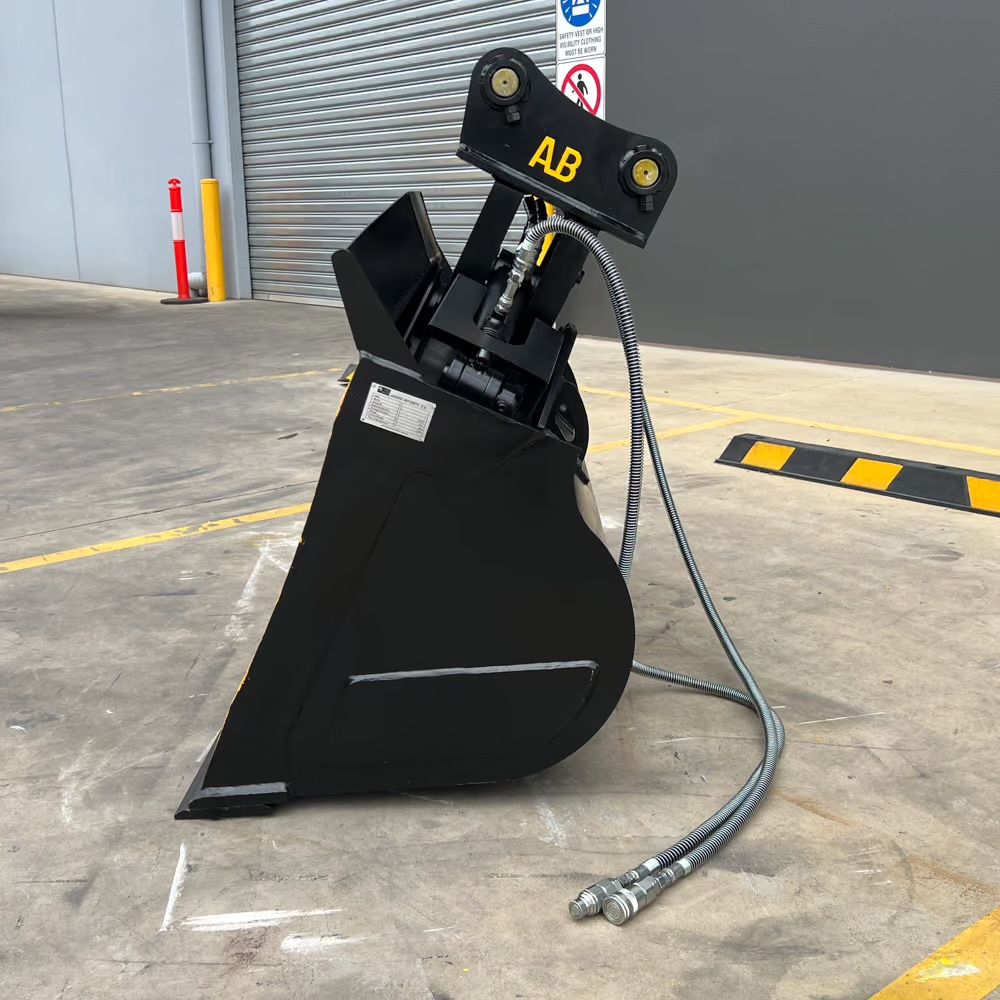

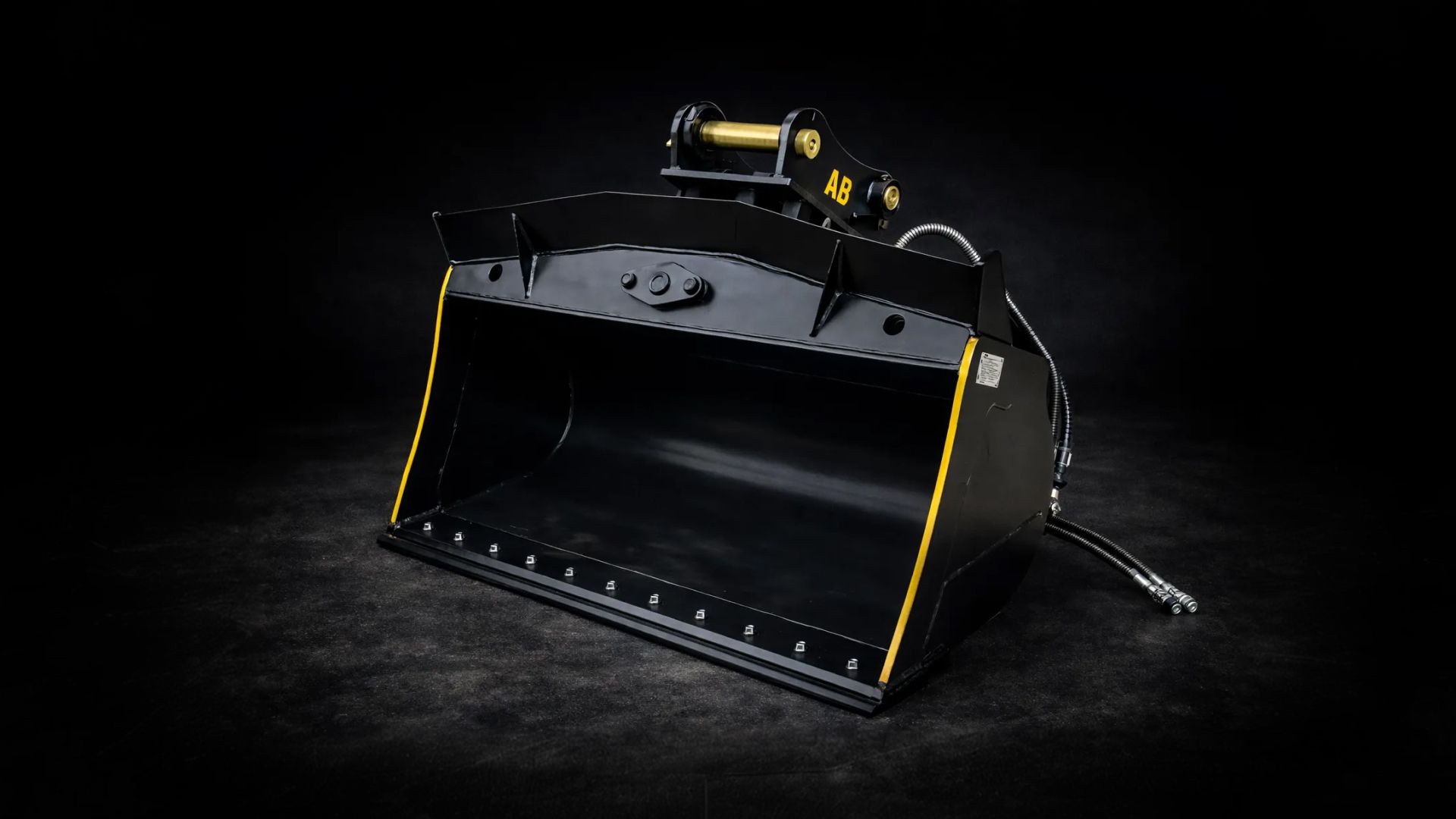

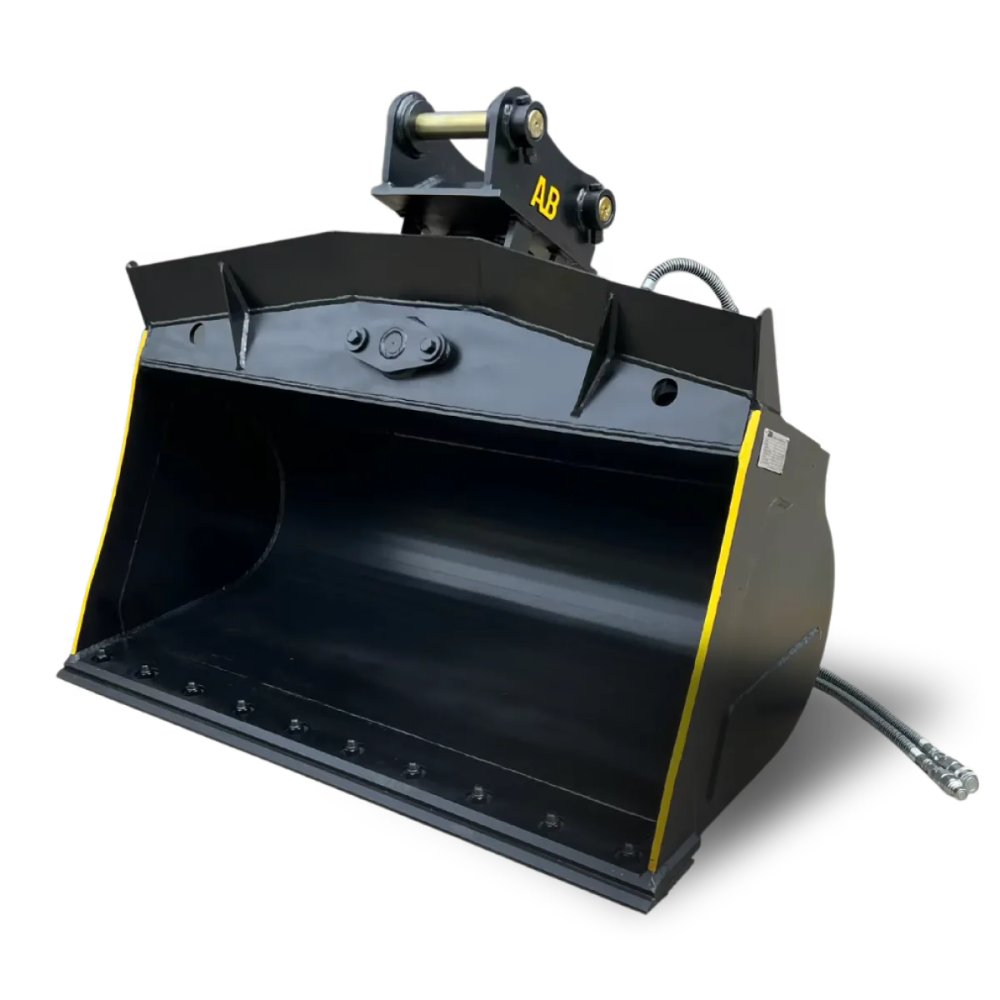

A tilting bucket for 1.2–55 tonne excavators in widths to 2,500 mm. Tilts a full 45 degrees either side of centre on twin dual-acting cylinders that hold the angle under an uneven load.
Gallery
10 photos
Product
10
The difference
EveryEveryAussieAussieBucketsBucketstiltingtiltingbucket,bucket,alsoalsoknownknownasasaatilttiltbucket,bucket,tiltingtiltingmudmudbucketbucketorortiltingtiltinggradinggradingbucket,bucket,isispurpose-builtpurpose-builtforforthetheexcavatorexcavatoryouyourunrunandandprecision-engineeredprecision-engineeredforforworkworkthatthatisisneverneversquaresquaretotothethemachine:machine:batters,batters,draindrainfalls,falls,kerbkerblineslinesandandpadspadstrimmedtrimmedtotoaaconsistentconsistentgrade.grade.AvailableAvailableforfor1.2–55T1.2–55Tmachinesmachinesacrossacrosssixteensixteenbuilds,builds,ininwidthswidthstoto2,5002,500mm.mm.
WhatWhatdistinguishesdistinguishesourourTiltingTiltingBucketBucketisisitsitsfullfull45-degree45-degreetilttilteithereithersidesideofofcentrecentreononpowerfulpowerfultwintwindual-actingdual-actingcylinders,cylinders,withwithaareversiblereversiblebolt-onbolt-onedge,edge,heavyheavydutydutywearwearprotection,protection,materialmaterialshroudshroudandandefficientefficienthosehoserouting.routing.ComparedComparedtotootherothertilttiltbucketsbucketsononthethemarket,market,thethecylinderscylindersholdholdthetheangleanglewhenwhenthetheloadloadsitssitsonononeonecorner.corner.
AllAllTiltingTiltingBucketsBucketsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for accuracy and flexibility, this Tilting Bucket delivers smooth tilt movement, improved control, and efficient performance on uneven terrain.
Features

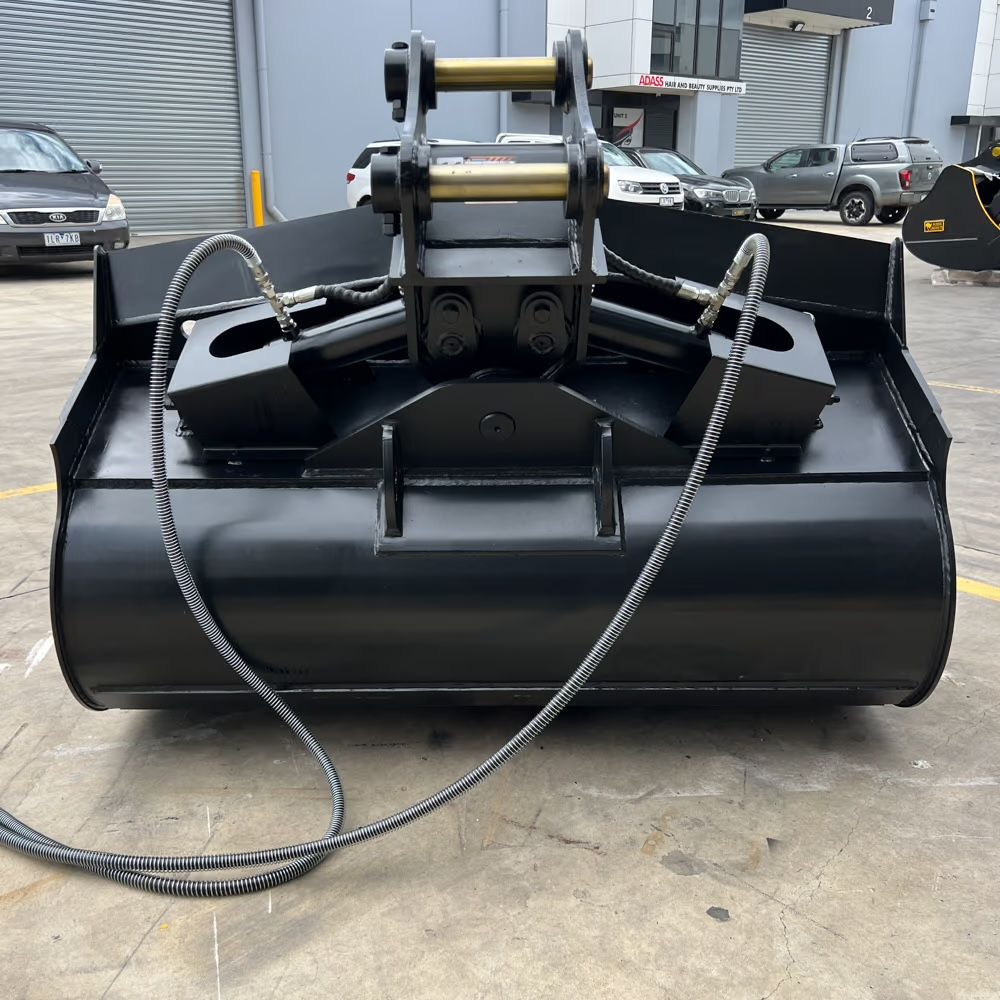

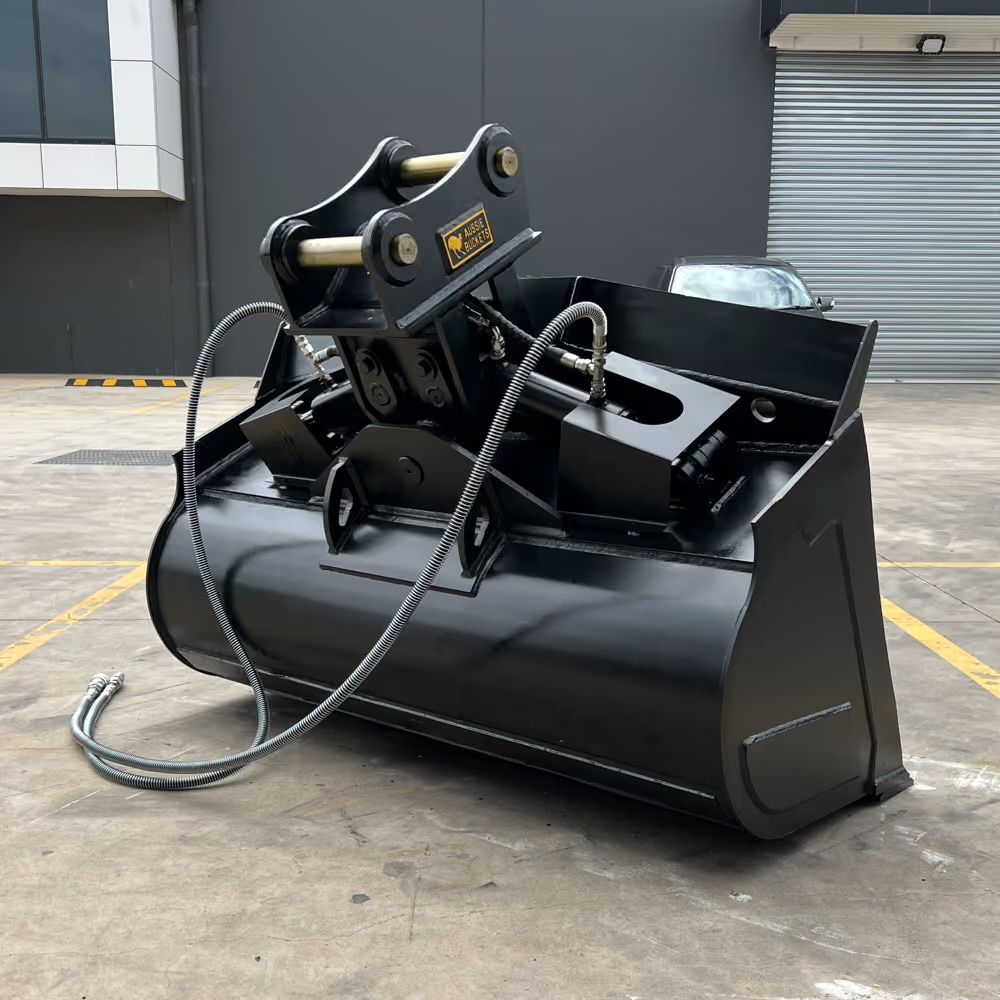

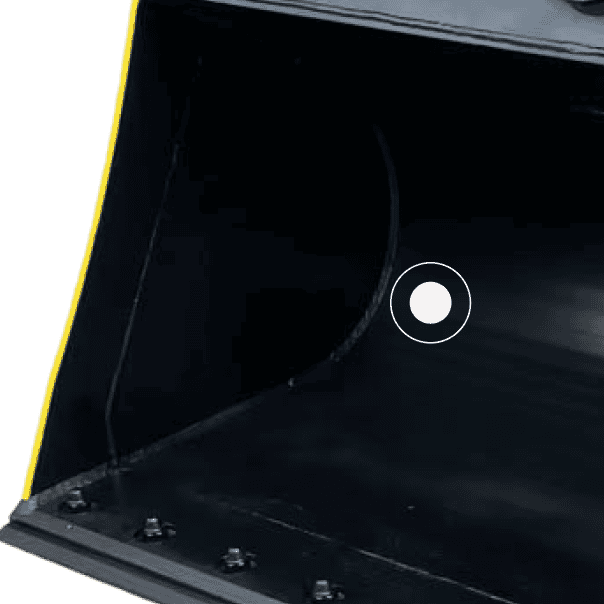

Powerful twin dual-acting cylinders
Using a dual-cylinder configuration allows a consistent operating experience by maintaining one cylinder in the push and another in the pull stroke when operating in either direction.

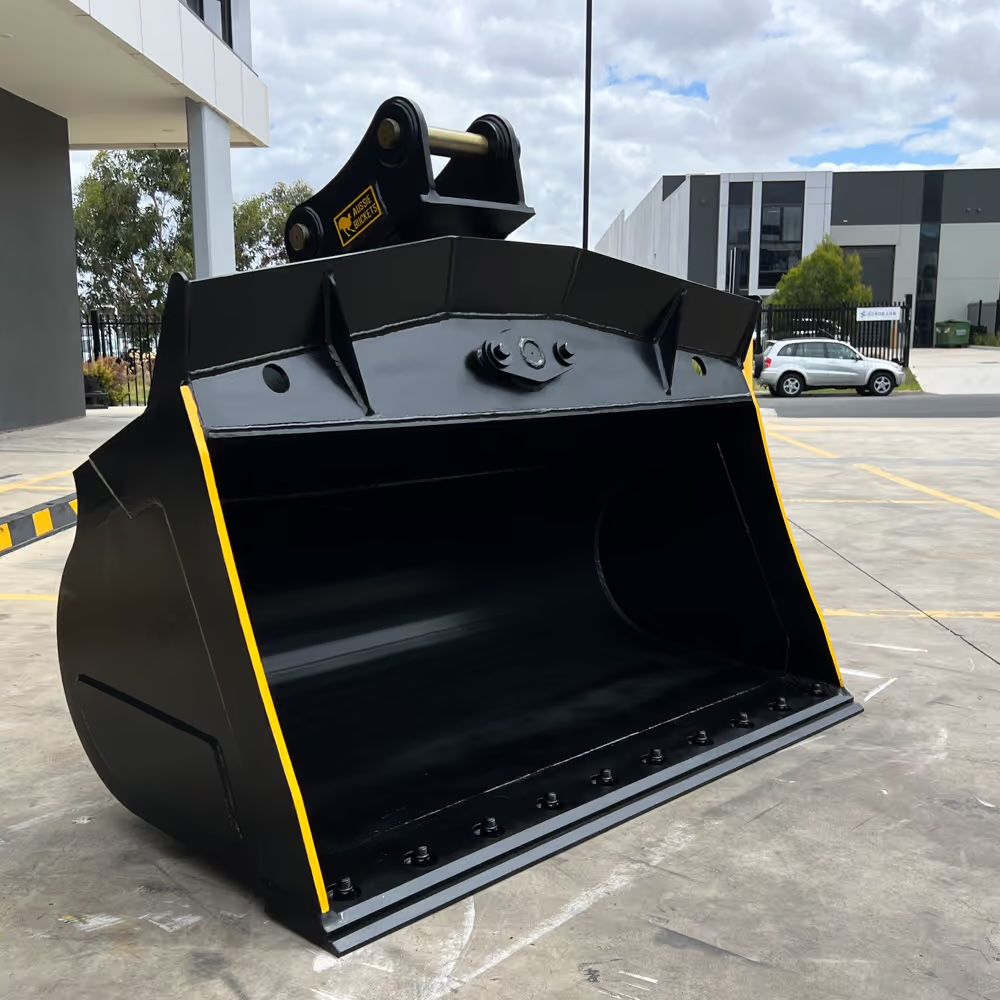

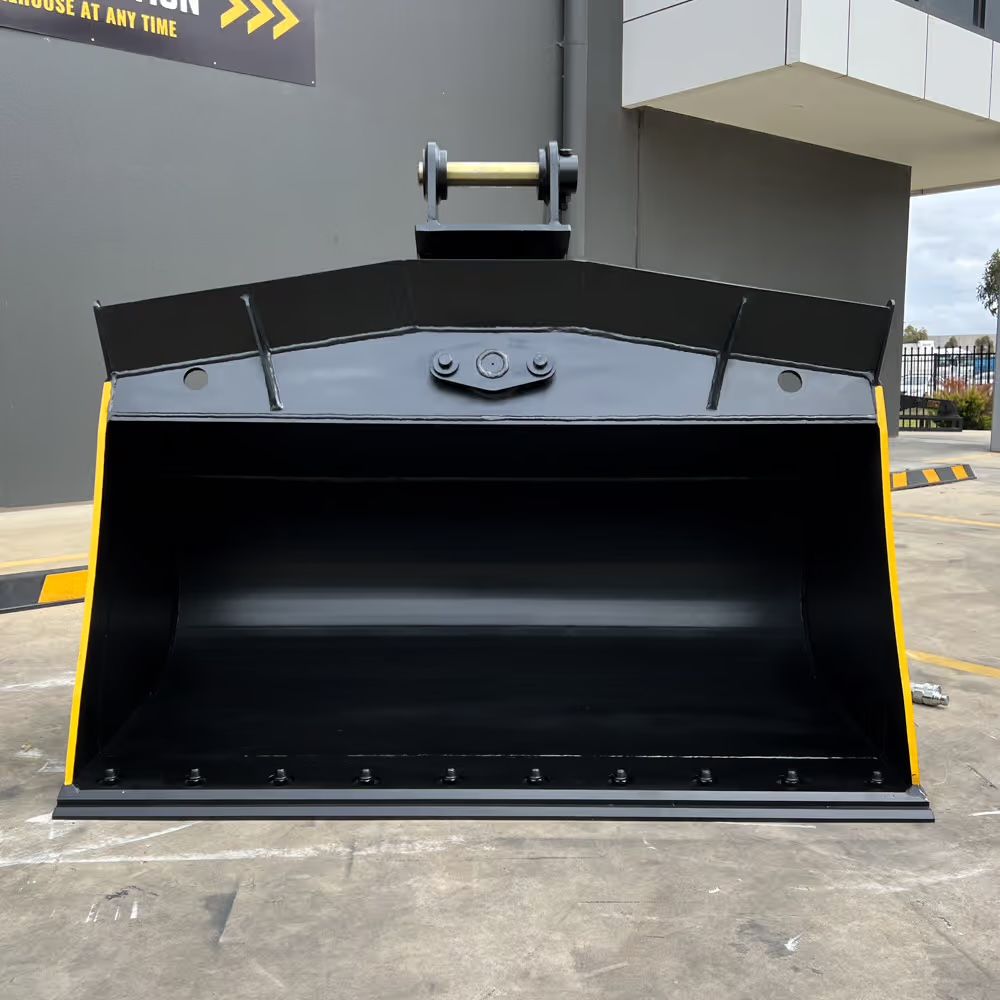

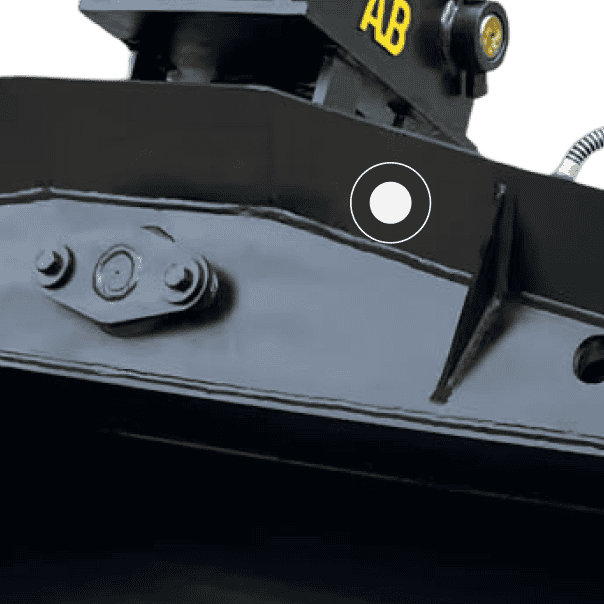

Reversible bolt-on edge
Doubles the lifespan over a welded edge and prevents the need for future maintenance, saving time and money.

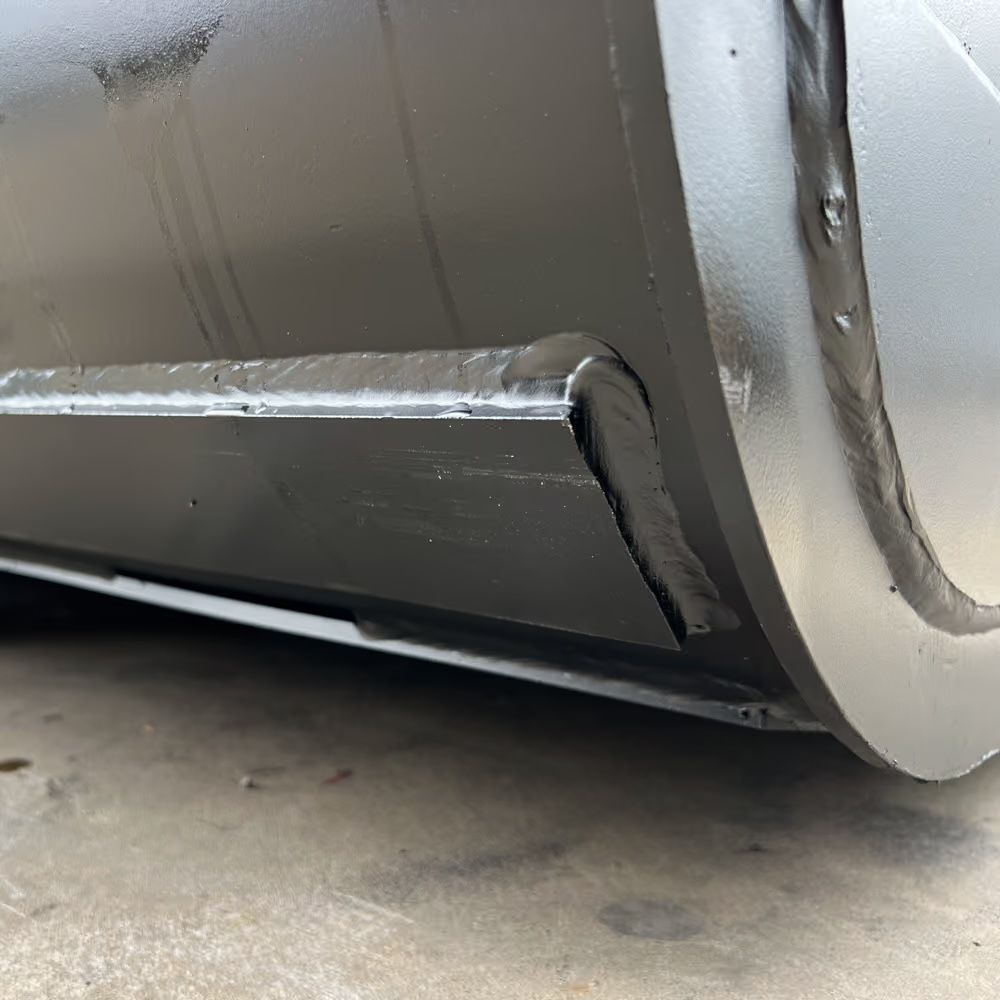

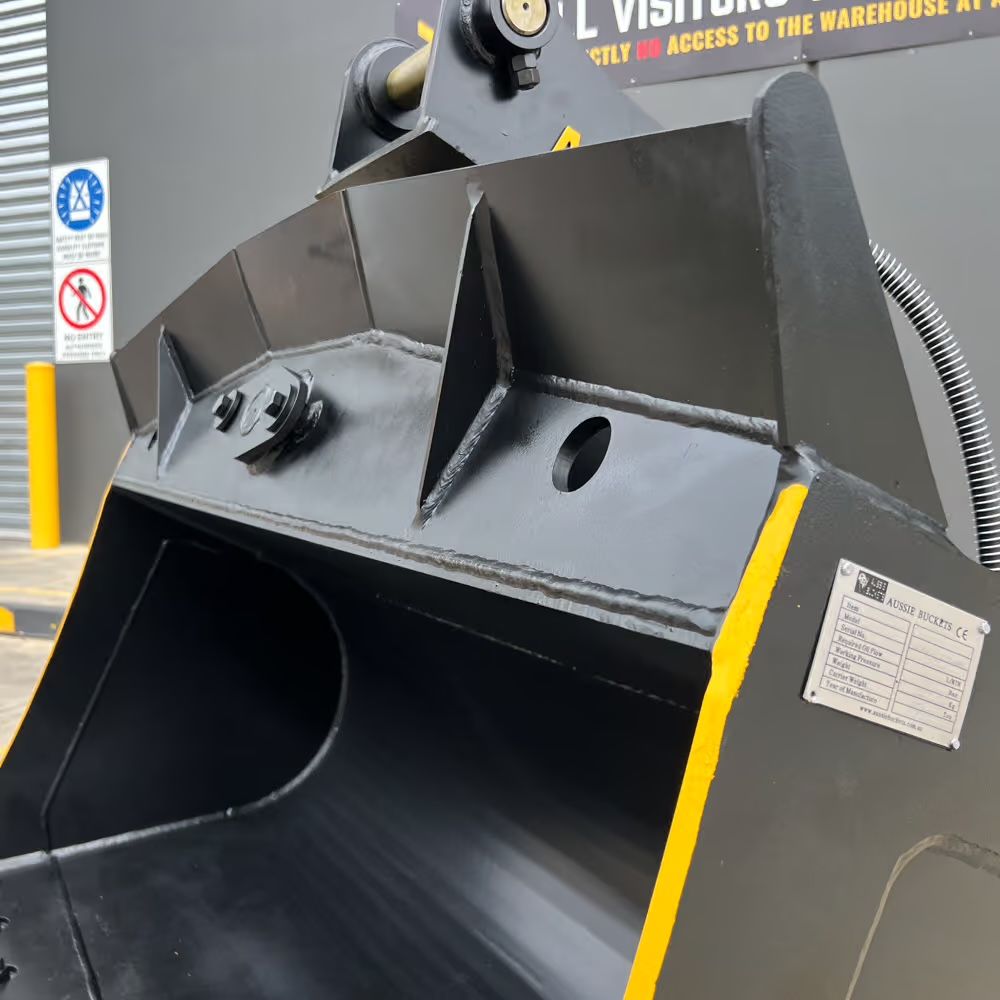

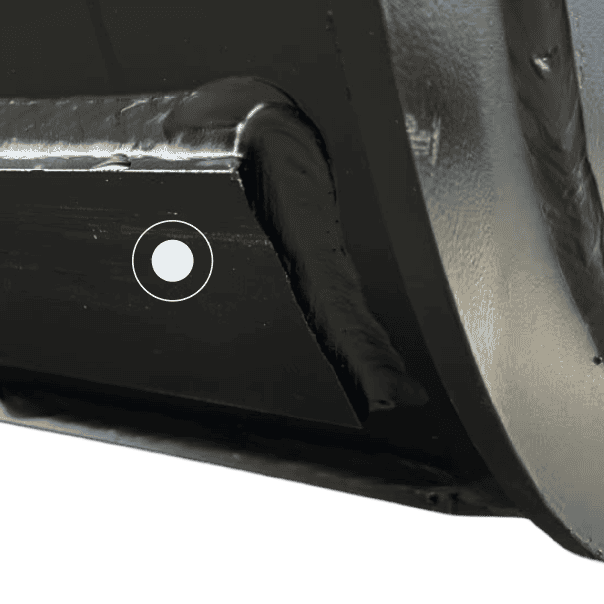

Heavy duty wear protection
Ram Bash Plates, heavy-duty lip and wear-resistant steel plates for enhanced strength and low long-term maintenance.
Technical Breakdown
Sixteen build sizes covering 1.2 tonne to 55 tonne machines, in widths up to 2,500 mm. Weight, heaped capacity, flow rate and pressure are listed for each build.
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 900 | 150 | 0.067 | 25 – 30 | 140 – 160 |
| 1,000 | 160 | 0.075 | 25 – 30 | 140 – 160 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,000 | 160 | 0.075 | 30 – 40 | 180 – 200 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,000 | 160 | 0.075 | 30 – 40 | 180 – 200 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,000 | 202 | 0.16 | 30 – 40 | 180 – 200 |
| 1,200 | 224 | 0.19 | 30 – 40 | 180 – 200 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,200 | 310 | 0.30 | 35 – 50 | 180 – 200 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,500 | 475 | 0.51 | 50 – 60 | 180 – 200 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,500 | 702 | 0.62 | 80 – 100 | 230 – 250 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,800 | 890 | 0.85 | 90 – 110 | 230 – 250 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 1,800 | 1,189 | 1.00 | 110 – 130 | 240 – 260 |
| 2,000 | 1,280 | 1.17 | 110 – 130 | 240 – 260 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 2,000 | 1,420 | 1.50 | 140 – 180 | 250 – 320 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 2,100 | 1,880 | 1.80 | 140 – 180 | 250 – 320 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Flow rate(L/min) | Pressure(bar) |
|---|---|---|---|---|
| 2,400 | 2,480 | 2.50 | 140 – 180 | 250 – 320 |
| 2,500 | 2,672 | 2.60 | 140 – 180 | 250 – 320 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Frequently asked questions
What is a tilting bucket? A tilting bucket is an excavator bucket that angles left and right hydraulically, letting the operator cut a batter or grade to fall without repositioning the machine. Aussie Buckets tilting buckets cover 1.2 to 55 tonne machines in sixteen builds, tilting a full 45 degrees either side of centre.
How far does a tilting bucket tilt? Aussie Buckets tilting buckets tilt a full 45 degrees either side of centre, giving 90 degrees of total range. The angle is held by twin dual-acting cylinders rather than a single ram, which is what stops the blade drifting off grade when the load sits on one corner.
What is the difference between a tilt bucket and a tilt hitch? A tilt bucket tilts only itself. A tilt hitch sits between the machine and any attachment, so every bucket and tool in your fleet gains tilt. A tilt bucket costs less if only one bucket needs to angle; a tilt hitch is the better investment across several attachments. Aussie Buckets builds both.
What size tilt bucket fits a 1.7 tonne excavator? The range starts at 1.2 tonne, so a 1.7 tonne machine is covered by the smaller builds. Width, weight and cylinder specification are listed per build. Send your machine make, model, hitch and pin sizes and we will match the bucket and confirm fitment before manufacture.
What is a tilting mud bucket? A tilting mud bucket is a wide, toothless bucket with hydraulic tilt, used for batter finishing, drain falls and clean-up work where the surface has to be left smooth. It is the same tool as a tilting bucket specified with a flat bolt-on edge rather than teeth.
How much does an excavator tilting bucket cost? Aussie Buckets tilting buckets start at $2,075. Price moves with width, machine class and wear specification, and 0% finance is available on approved purchases. Every bucket is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your machine.
