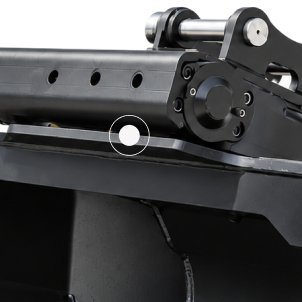

Continuous 360° rotation
Smooth, unrestricted rotation through 360°, so batters, edges and obstacles are worked from one machine position. Motors carry inbuilt relief valves for carefree operation.

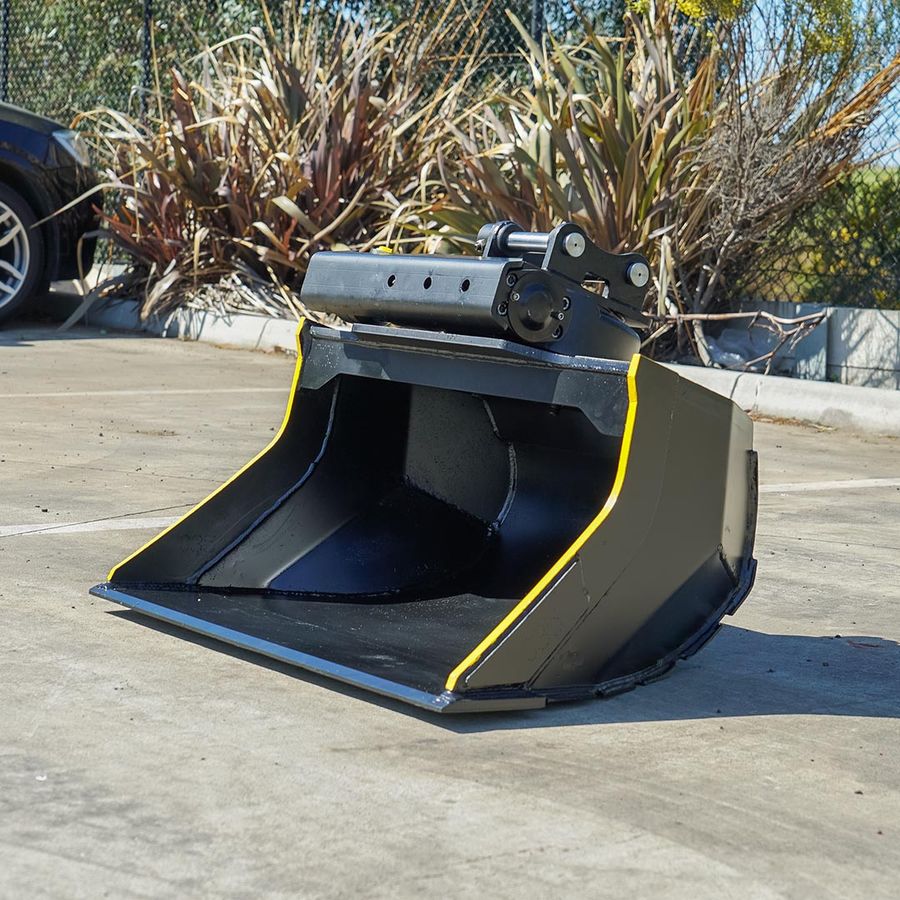

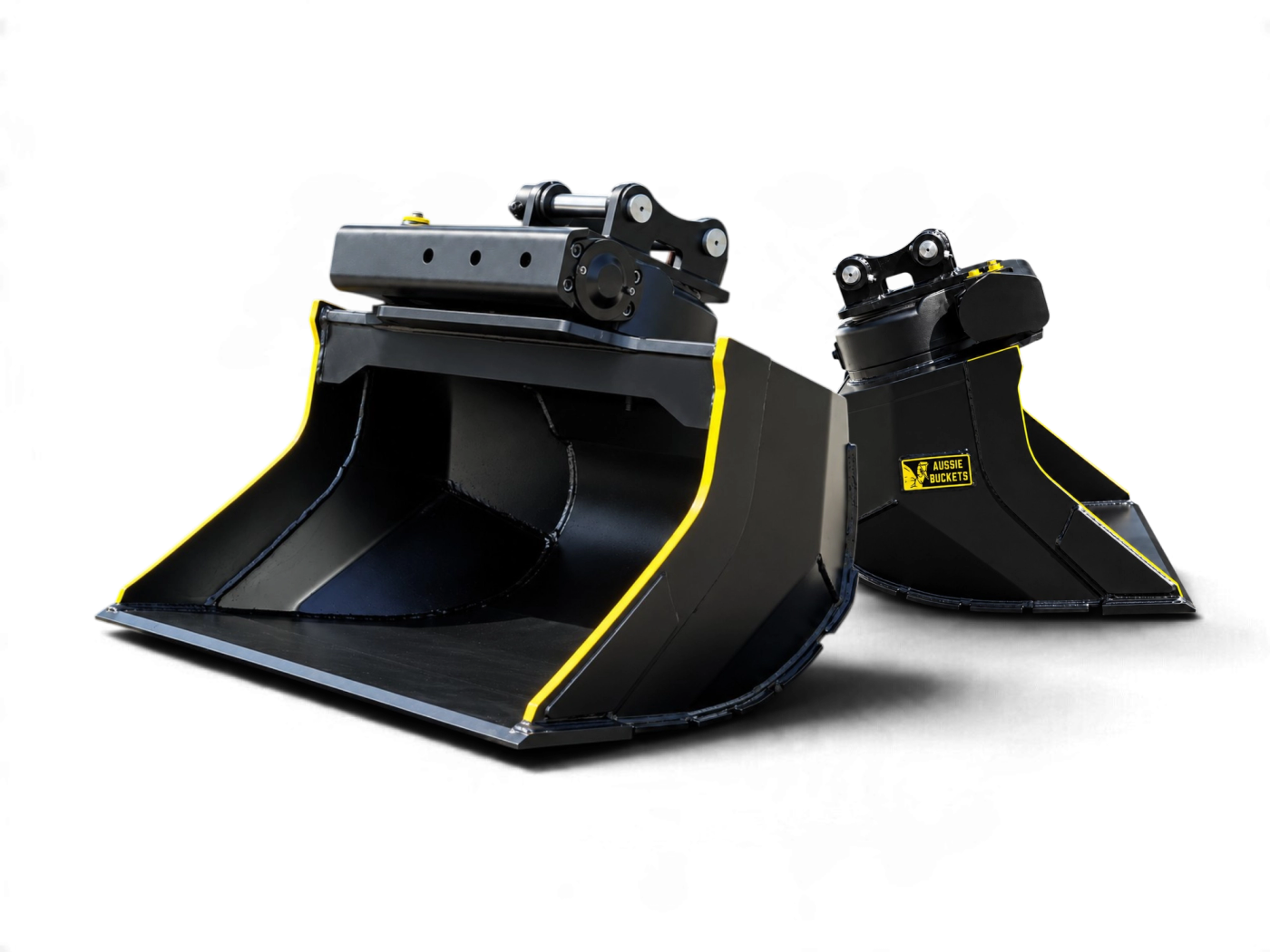

Rotating Grading Bucket
Available for 3 – 24T
Starting from $4,025
$2,818
Or with AB 0% Finance from $25/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery
A rotating grading bucket for 3–24 tonne excavators in thirteen widths. A wide, shallow grading profile with continuous 360° hydraulic rotation on two hoses and no case drain, plus an optional reversible bolt-on edge.
Gallery
8 photos
Product
08
The difference
EveryAussieBucketsrotatinggradingbucketispurpose-builtforthelevellingandfinishingdemandsofAustraliancivil,landscapingandroadworkssites,withtheaddedflexibilityofcontinuous360°hydraulicrotation.Thewide,shallowprofilespreadssoil,gravelandsandevenlyacrossthecuttingedge,andtherotationletstheoperatorworkaroundobstacles,shapebattersandfinishedgeswithoutconstantlyrepositioningtheexcavator.
Rotationrunsonamotorwithinbuiltreliefvalves,fedbytwohydraulichoseswithnocasedrain,soinstallationisstraightforwardonanymachinewithaspareauxiliarycircuit.Thirteenwidthscover3to24tonnemachines,withareversiblebolt-onedgeavailabletoextendcuttingedgelife.
AllRotatingGradingBucketsareaccompaniedwithourstandard5-yearwarranty.
Also known as a rotary grading bucket, 360 grading bucket or rotating finishing bucket, the Rotating Grading Bucket comes in thirteen widths for 3–24T machines, so the bucket is matched to the machine, the material and the width of finish you need to leave.
Features

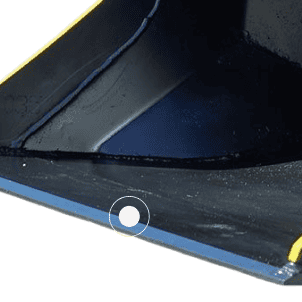

Reversible bolt-on edge
When one side of the cutting edge wears, the edge is turned to present a fresh working surface. Lower replacement cost, less downtime and consistent grading performance.

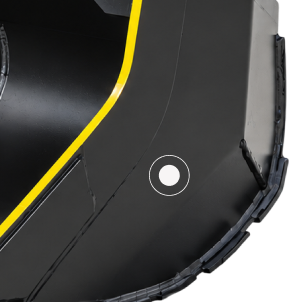

Low sidewall design
Low side walls stop material building up and blocking, so soil, gravel and sand spread to the full width in fewer passes. Lighter, wider and shallower, it handles easily in tight spaces.

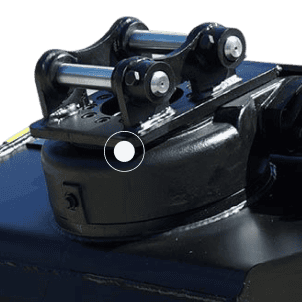

Two hoses, no case drain
The rotation runs on two hydraulic hoses with no case drain line, so installation is straightforward on any excavator with a spare auxiliary circuit.
Technical Breakdown
Thirteen builds covering 3 tonne to 24 tonne machines. Width, weight, heaped capacity, lip thickness, flow, pressure and rotation speed are listed per build.
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 900 | 180 | 0.135 | 16 | 30 – 60 | 160 | 5.1 – 10.2 |
| 1,000 | 190 | 0.153 | 16 | 30 – 60 | 160 | 5.1 – 10.2 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 1,100 | 278 | 0.231 | 16 | 30 – 60 | 160 | 3.9 – 7.7 |
| 1,200 | 292 | 0.256 | 16 | 30 – 60 | 160 | 3.9 – 7.7 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 1,300 | 420 | 0.433 | 16 | 30 – 60 | 160 | 3 – 6.1 |
| 1,400 | 440 | 0.472 | 16 | 30 – 60 | 160 | 3 – 6.1 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 1,400 | 580 | 0.564 | 25 | 60 – 80 | 180 | 5.6 – 7.4 |
| 1,500 | 605 | 0.611 | 25 | 60 – 80 | 180 | 5.6 – 7.4 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 1,500 | 700 | 0.640 | 25 | 60 – 80 | 180 | 5.6 – 7.4 |
| 1,600 | 730 | 0.690 | 25 | 60 – 80 | 180 | 5.6 – 7.4 |
| Width(mm) | Weight(kg) | Heaped capacity(m³) | Lip thickness(mm) | Flow rate(L/min) | Pressure(bar) | Rotation speed(RPM) |
|---|---|---|---|---|---|---|
| 1,600 | 935 | 0.978 | 25 | 70 – 80 | 180 | 4.2 – 4.8 |
| 1,700 | 975 | 1.054 | 25 | 70 – 80 | 180 | 4.2 – 4.8 |
| 1,800 | 1,020 | 1.130 | 25 | 70 – 80 | 180 | 4.2 – 4.8 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Frequently asked questions
What is a rotating grading bucket used for? A rotating grading bucket is built for precision grading, levelling and finishing, with continuous 360° hydraulic rotation. The wide, shallow profile spreads soil, gravel and sand evenly across the cutting edge, and the rotation lets the operator shape batters, finish edges and work around obstacles without repositioning the excavator. It suits civil, landscaping, roadworks and general earthmoving.
What size excavator do I need for a rotating grading bucket? The range covers 3 to 24 tonne excavators across thirteen builds, from a 900 mm bucket at 180 kg for 3 to 4 tonne machines up to an 1,800 mm bucket at 1,020 kg for 20 to 24 tonne machines. Get a tailored quote and we'll match the width and hydraulic specification to your machine.
What hydraulics does a rotating grading bucket need? Two hydraulic hoses on a spare auxiliary circuit, with no case drain line. Builds for 3 to 11 tonne machines run on 30 to 60 L/min at 160 bar, 12 to 18 tonne builds on 60 to 80 L/min at 180 bar, and 20 to 24 tonne builds on 70 to 80 L/min at 180 bar. The motors carry inbuilt relief valves, so the rotation is protected against pressure spikes.

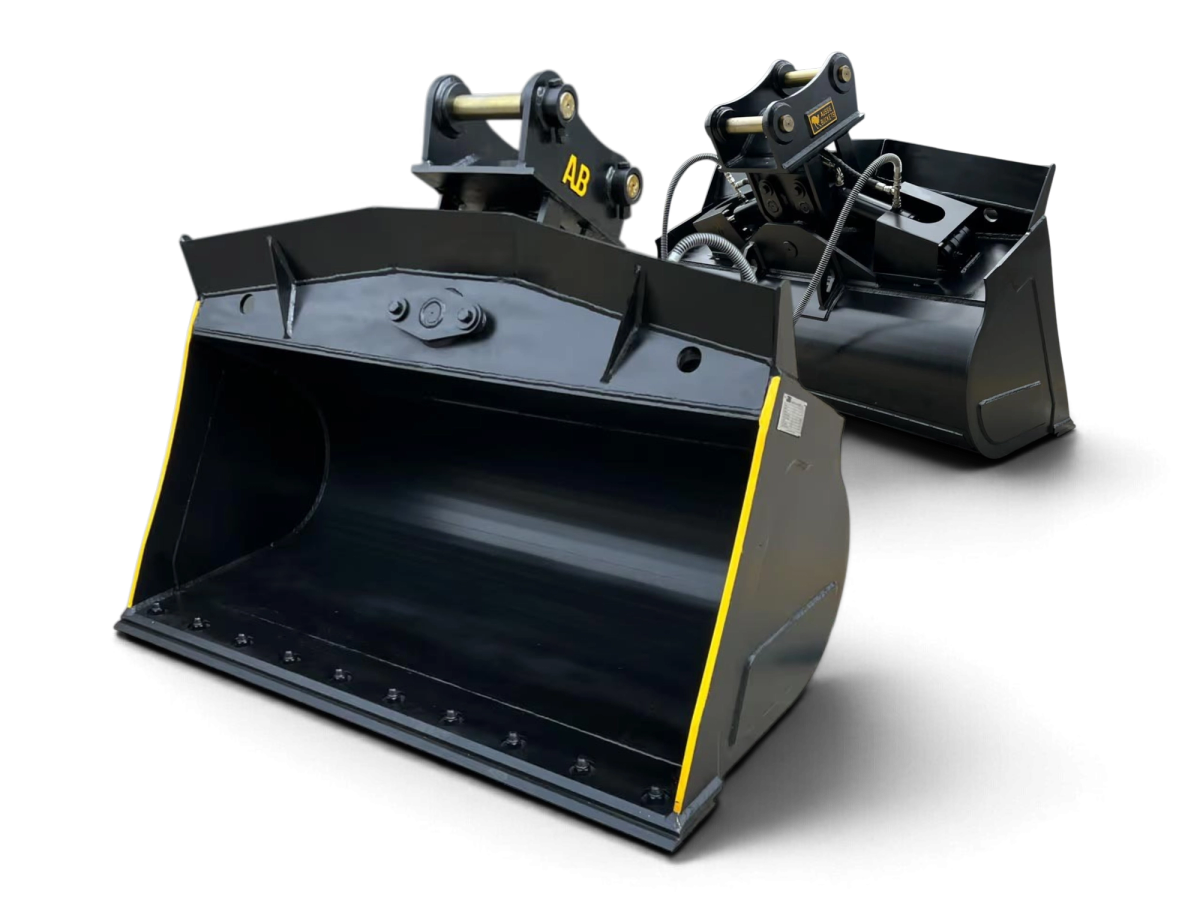

Rotating grading bucket vs. tilting bucket: what's the difference? A tilting bucket tilts 45 degrees each way for battering slopes, but the bucket stays square to the machine. A rotating grading bucket turns continuously through 360 degrees, so the cutting edge can be set to any angle without tracking the machine round. Slope work takes the tilting bucket; finishing edges, working around obstacles and grading at an angle take the rotating grading bucket.
How does the reversible bolt-on edge work? The cutting edge is bolted on rather than welded. When one side wears, the edge is unbolted, turned to present a fresh working surface and bolted back on, which doubles the service life of each edge and keeps replacement to a job done on site rather than in a workshop. It is available as an option on every build.
How much does a rotating grading bucket cost? Aussie Buckets rotating grading buckets start at $4,025. Price moves with width and machine class, from the 900 mm build for 3 to 4 tonne machines up to the 1,800 mm build for 20 to 24 tonne machines, and 0% finance is available on approved purchases. Every bucket is protected by a 5-year warranty. Get a tailored quote against your machine.
