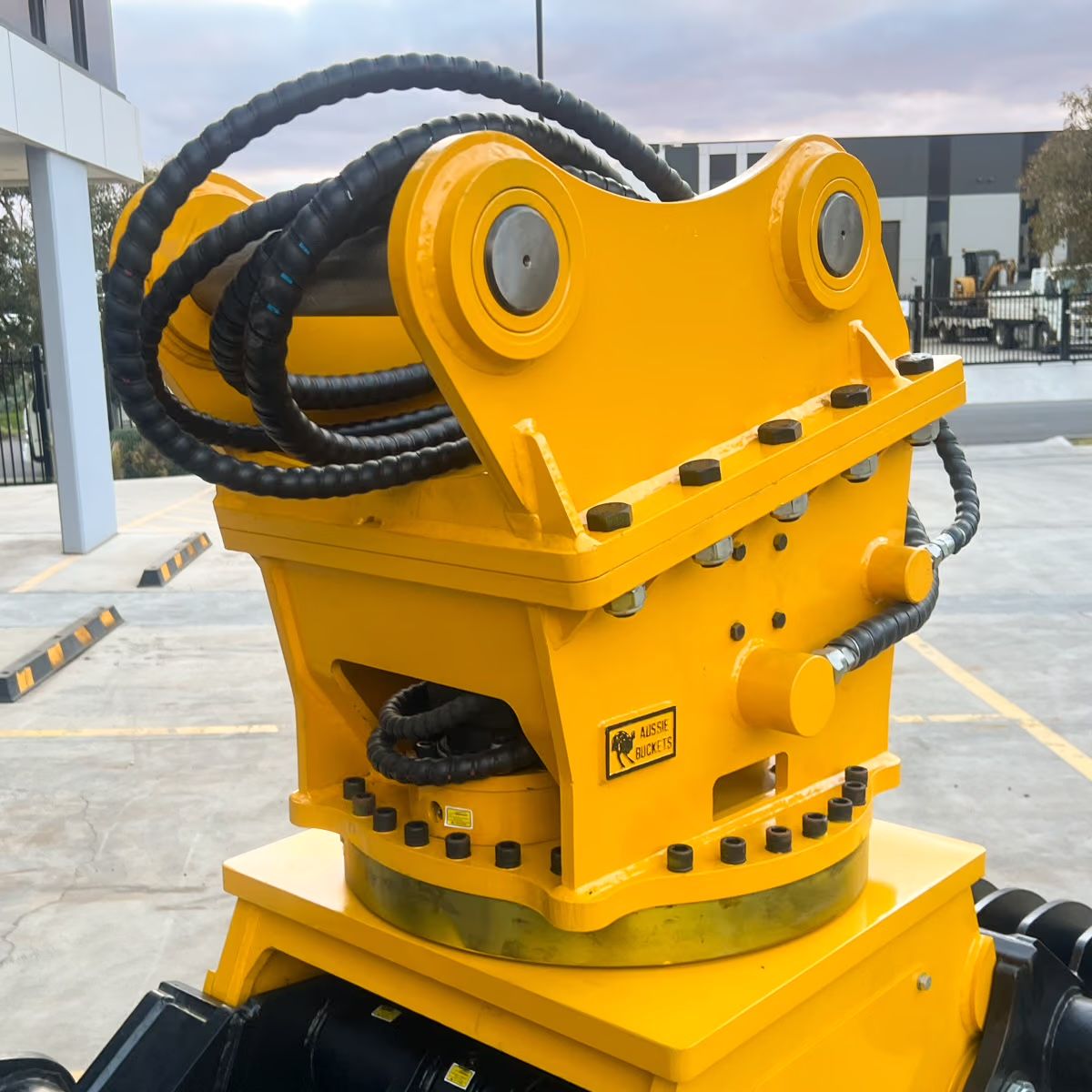

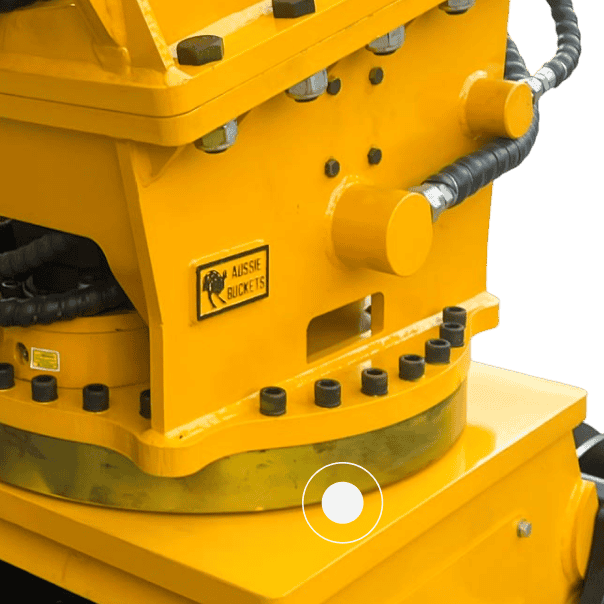

Continuous 360° rotation

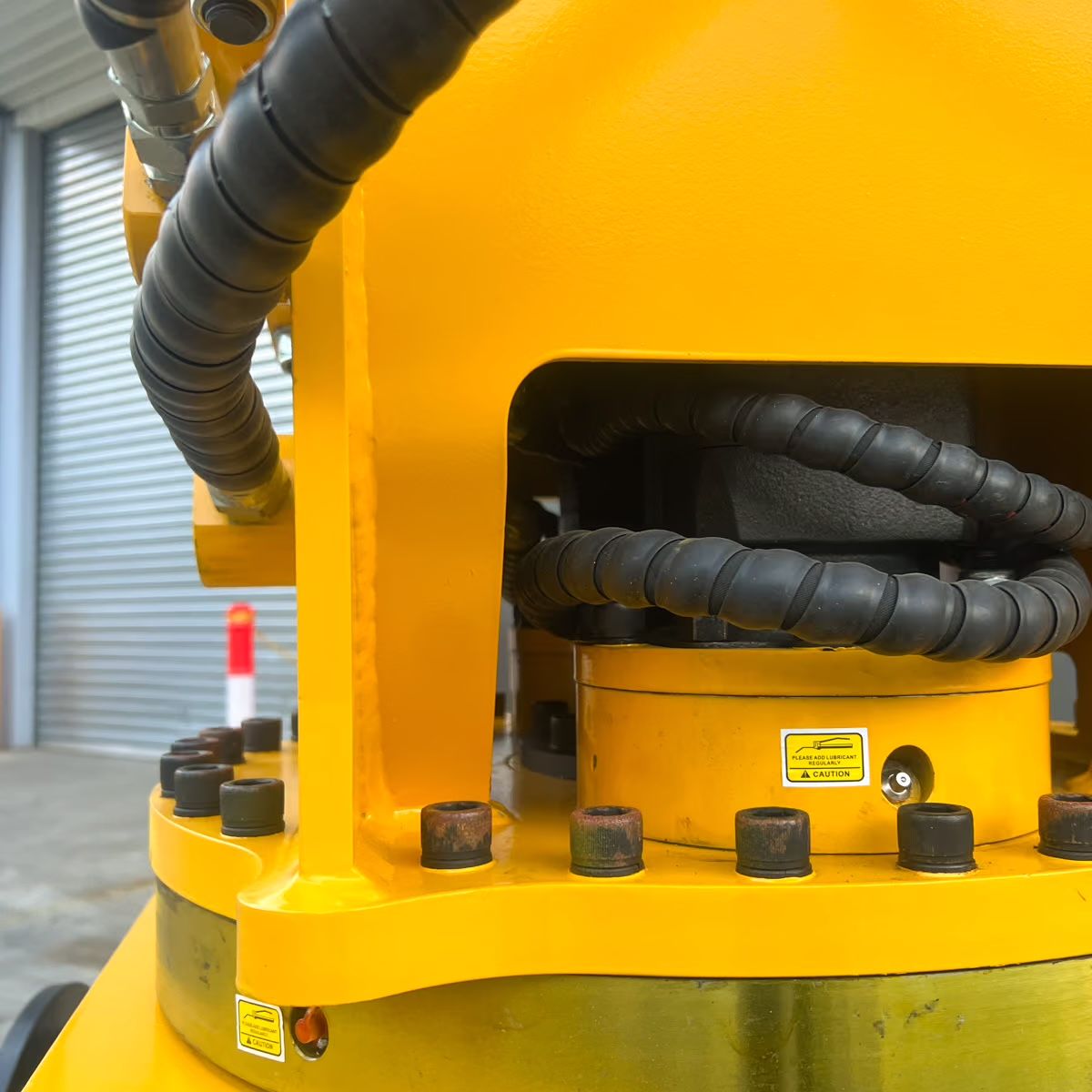

Smooth and unrestricted rotation for efficient demolition work and material placement, utilising single or dual motors with in-built relief valves, to enable carefree operation.

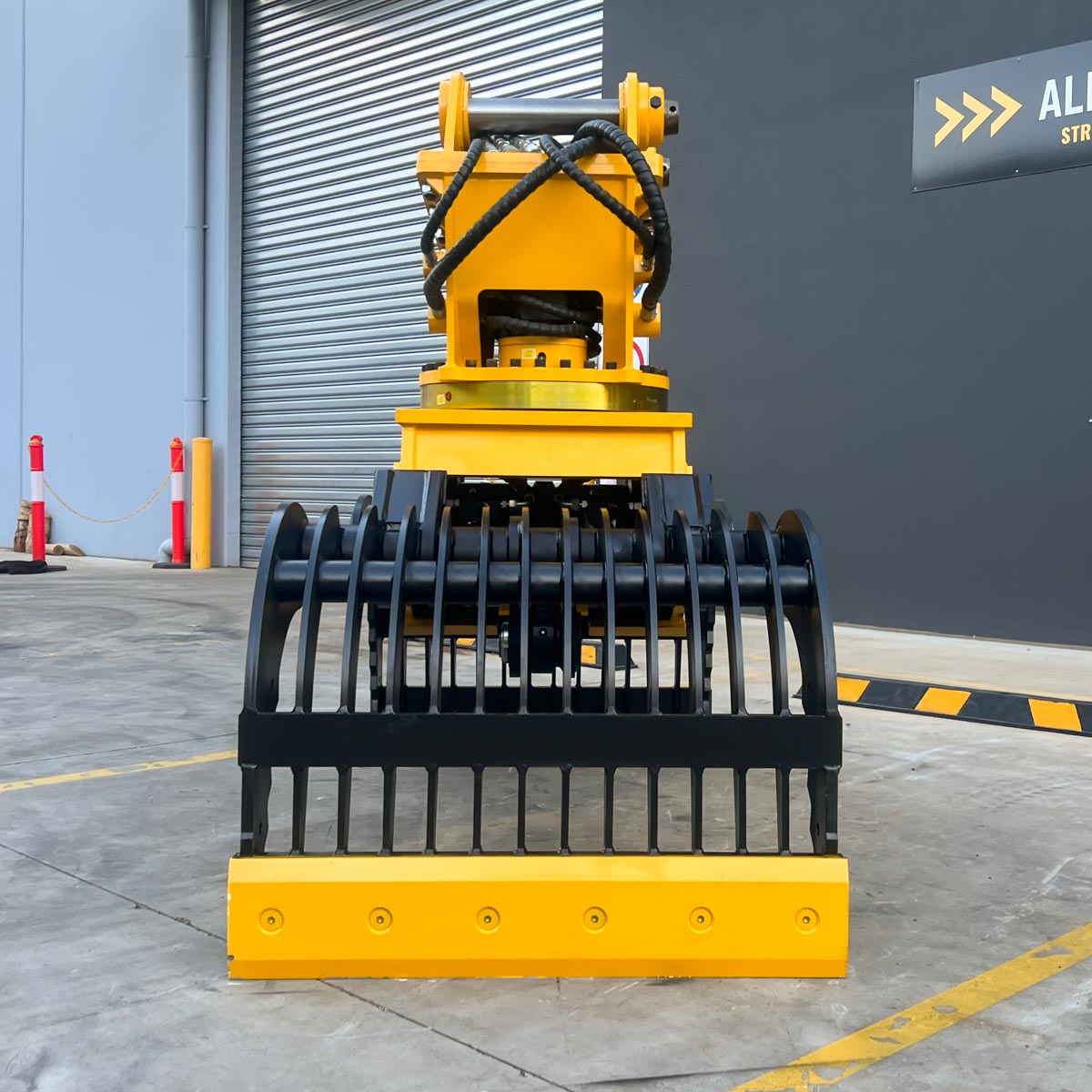

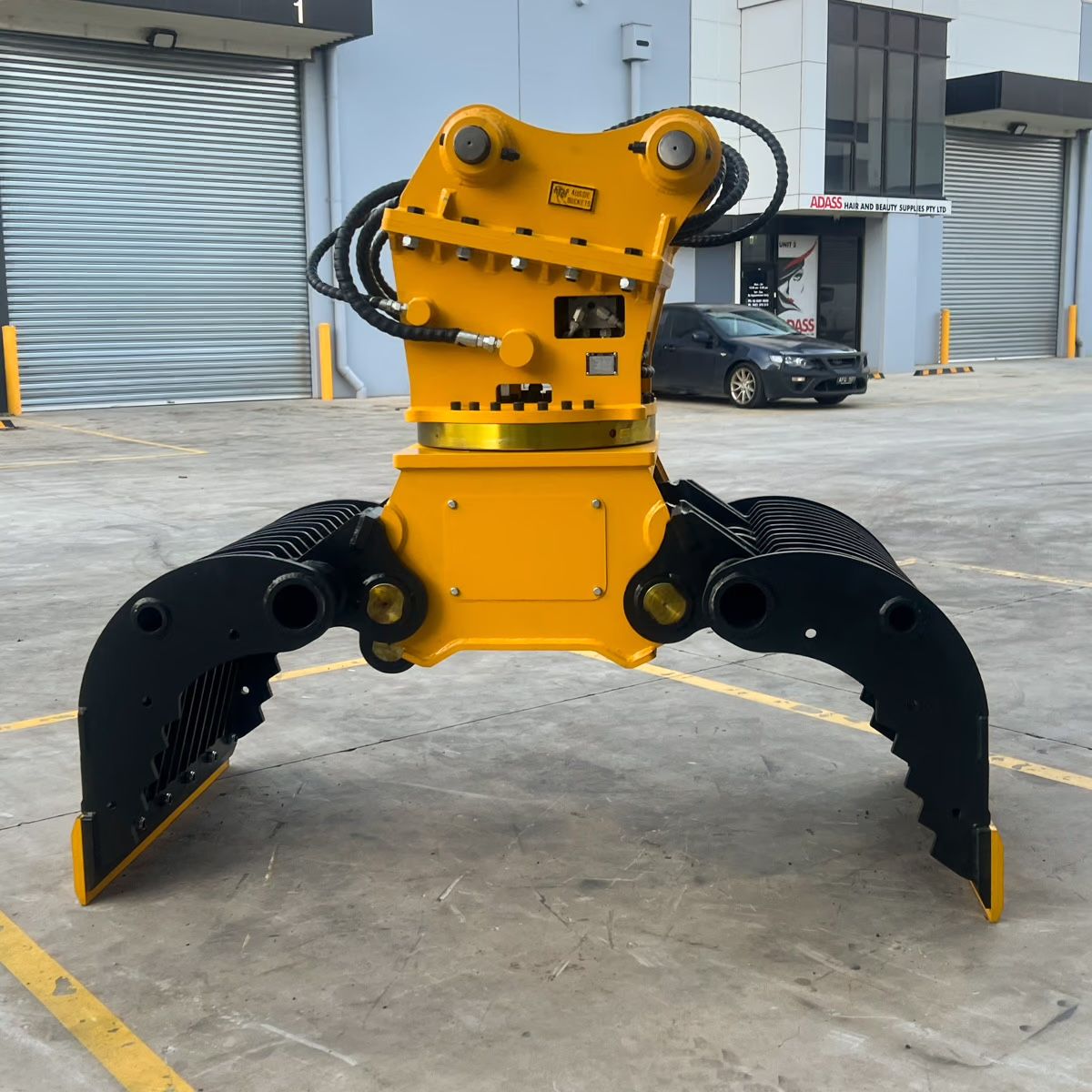

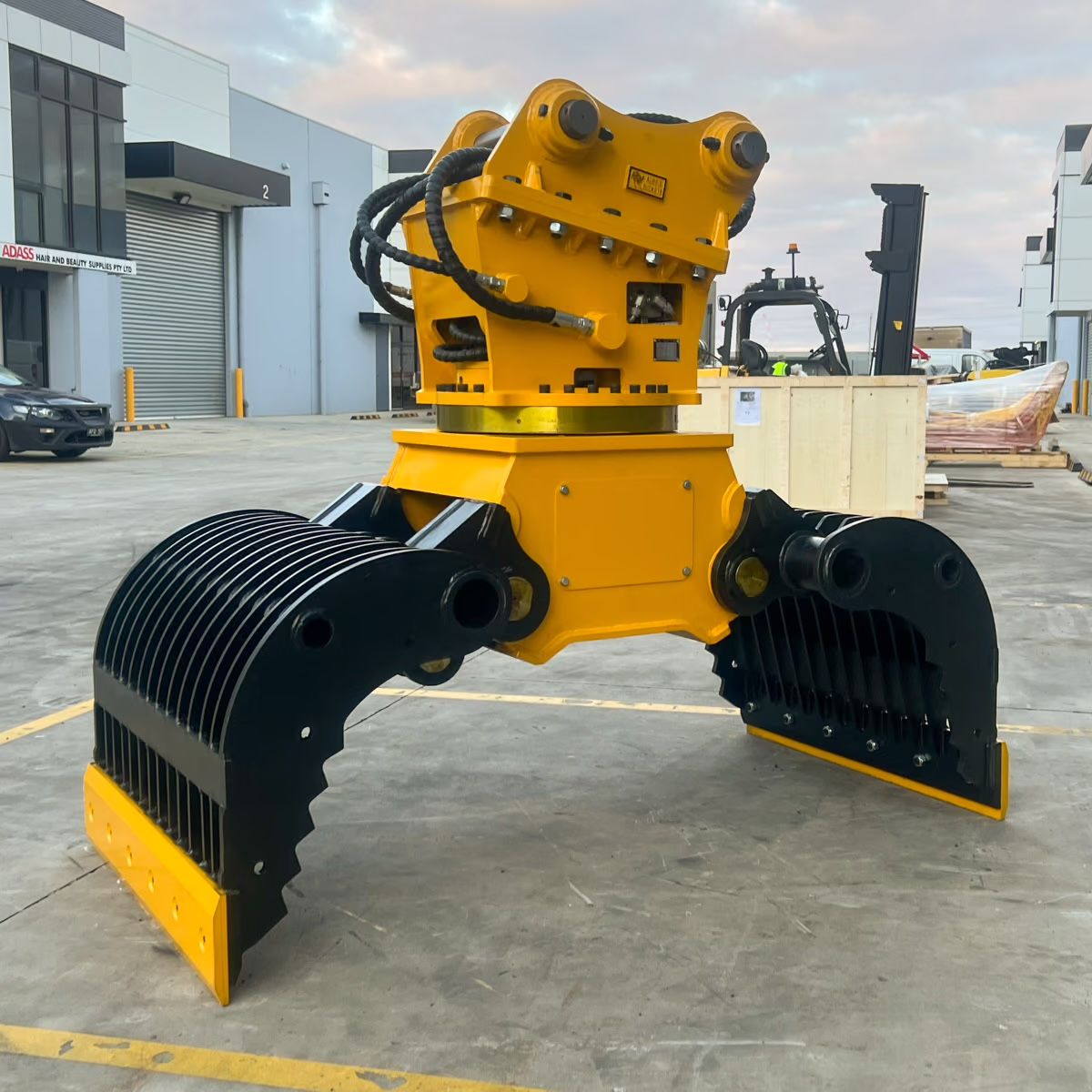

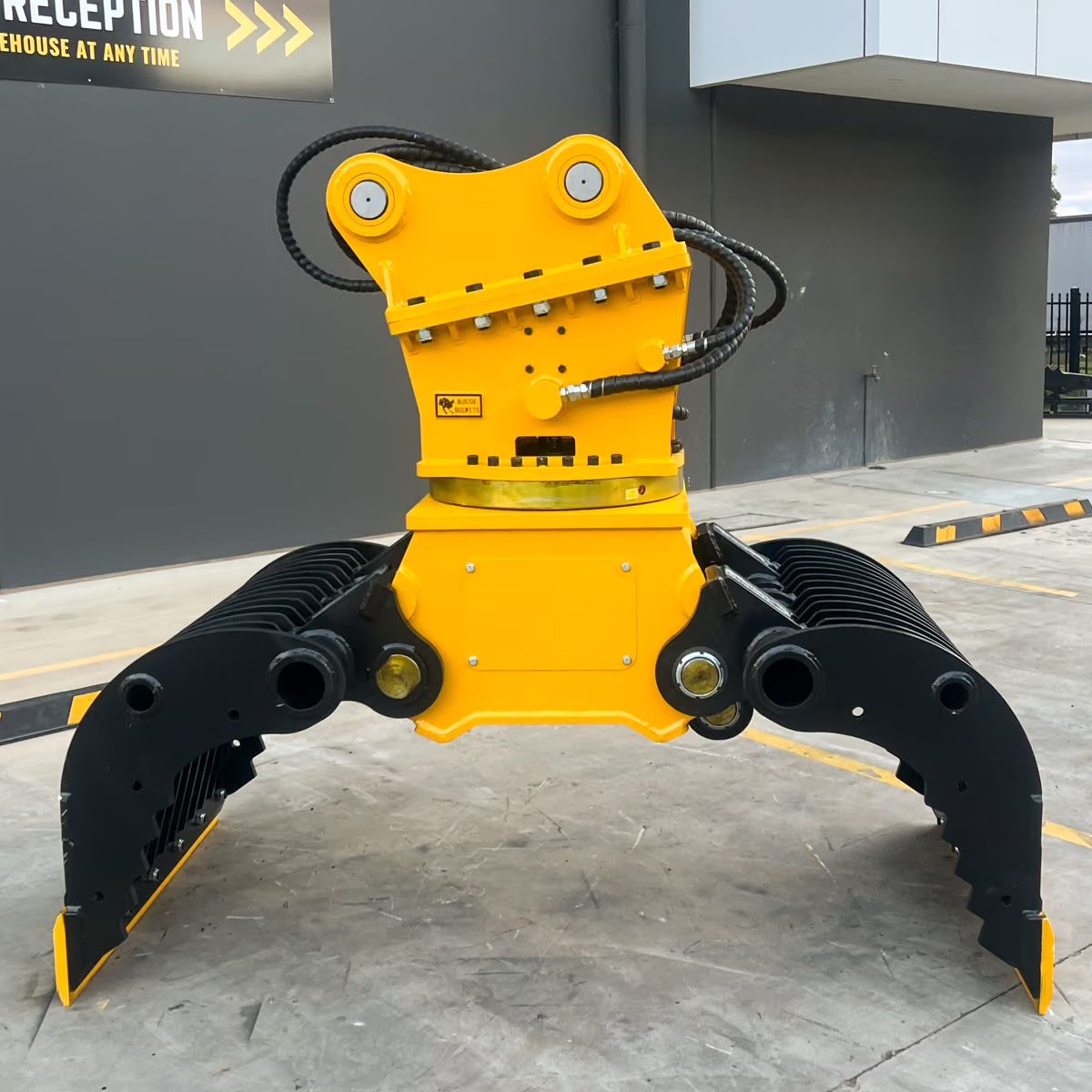

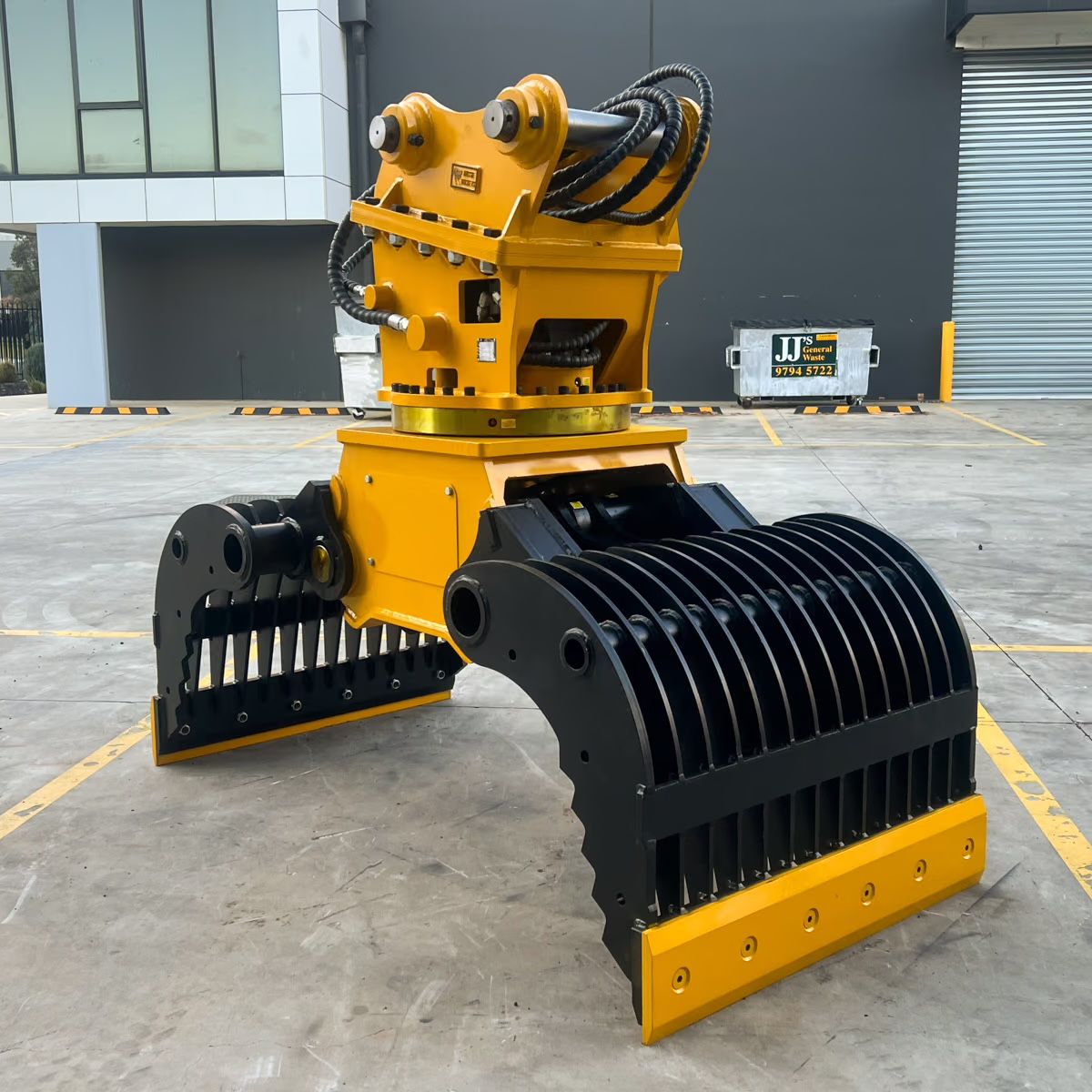

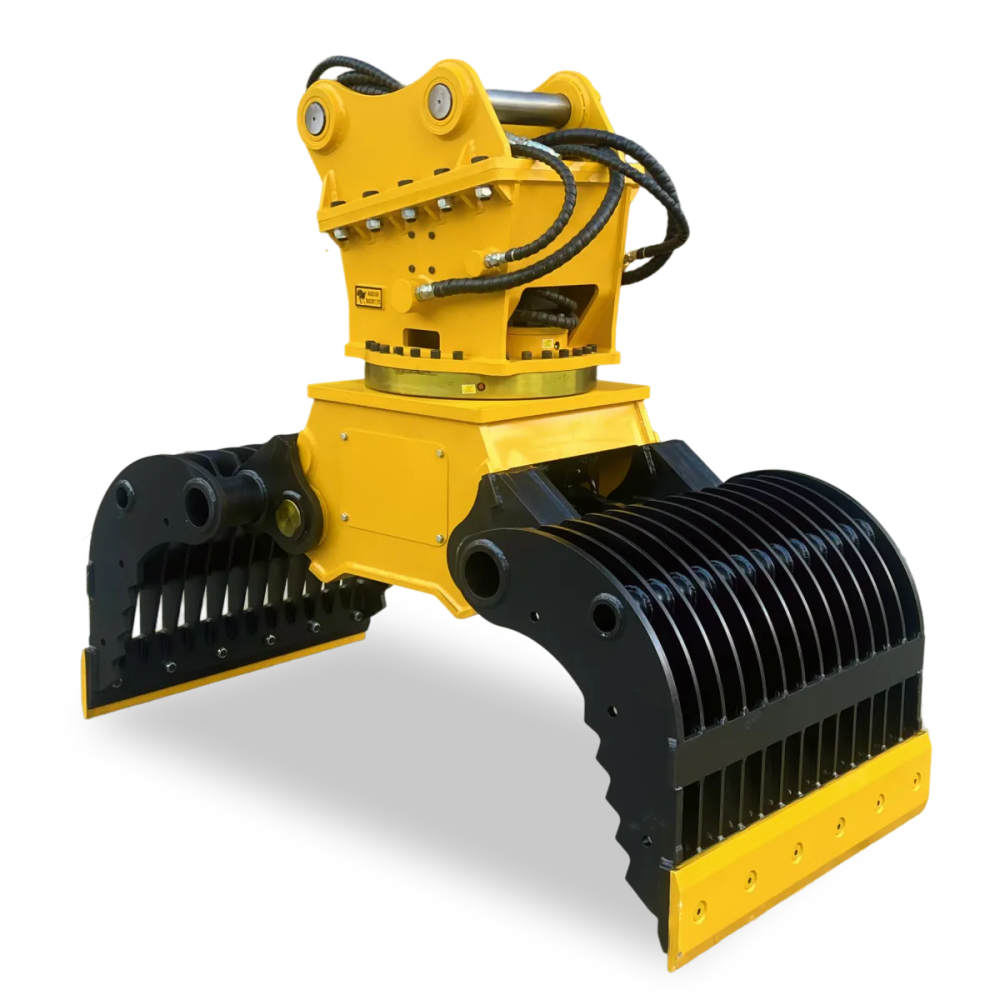

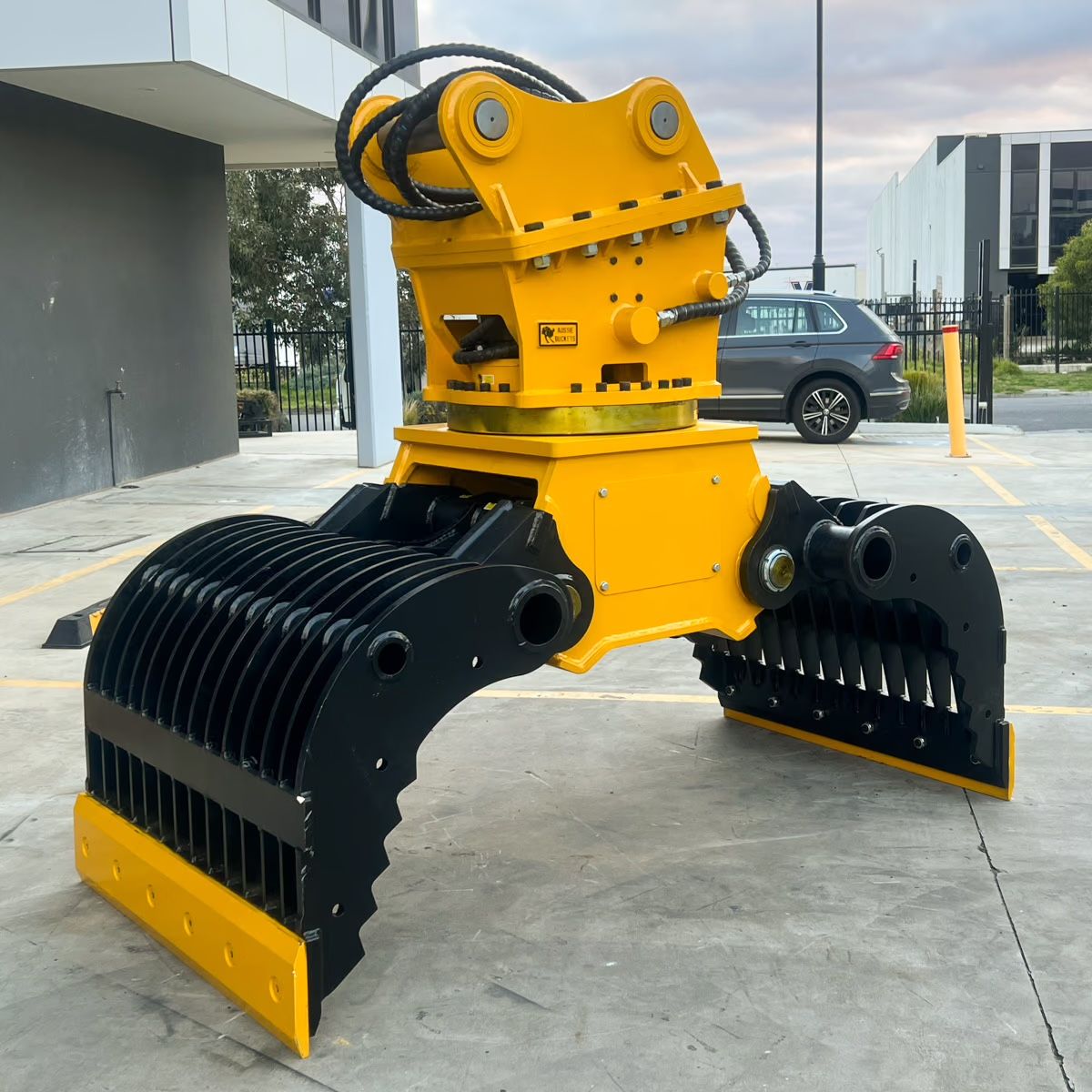

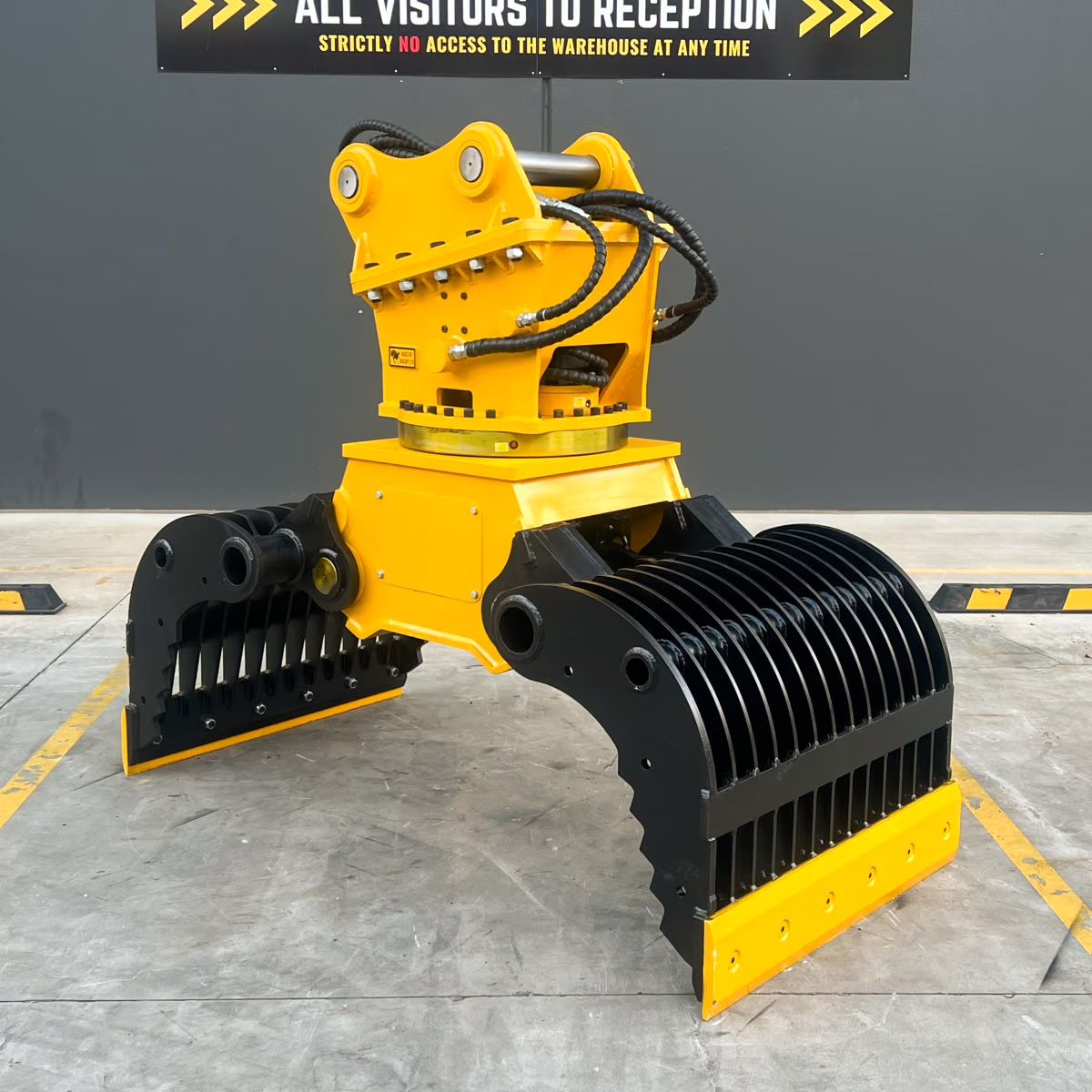

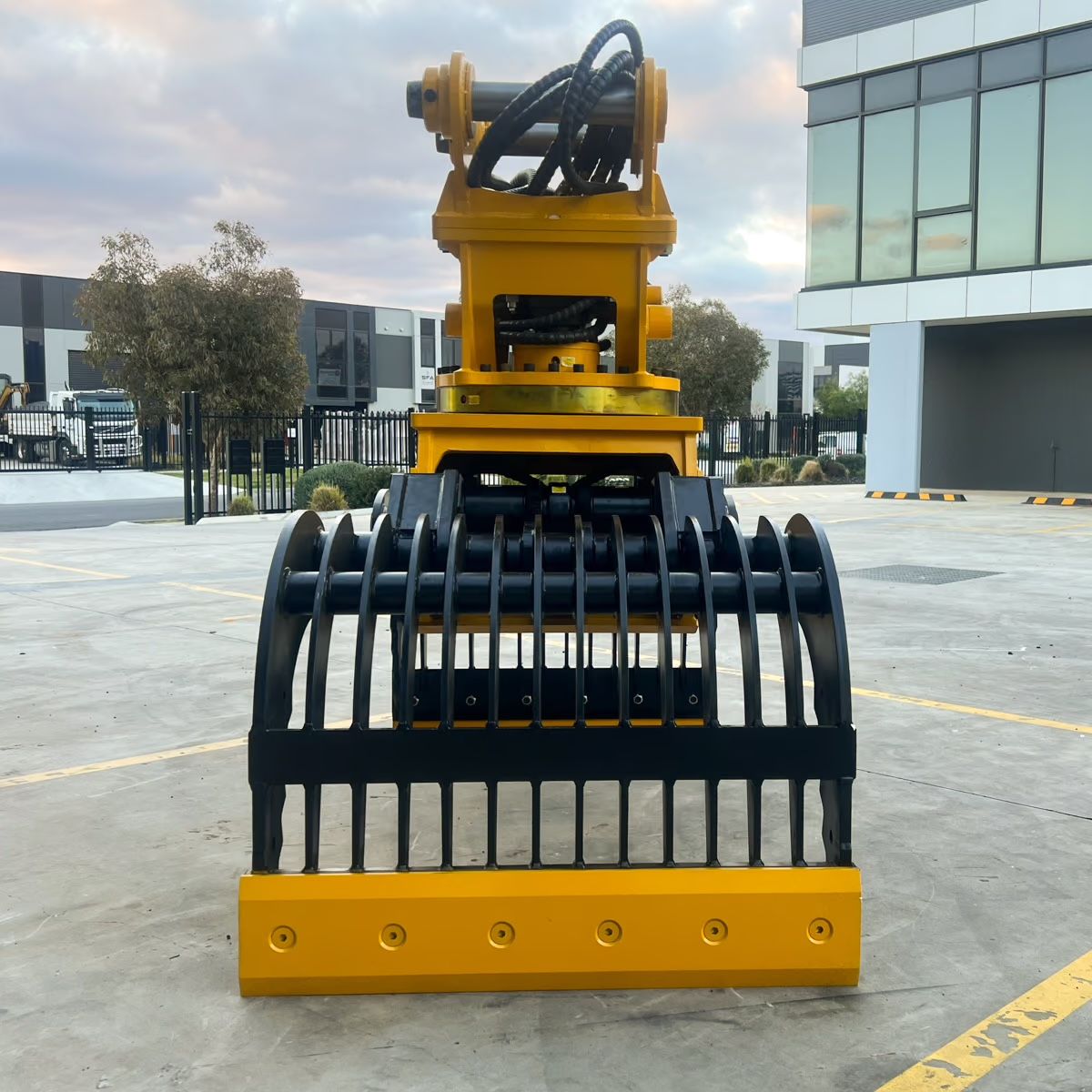

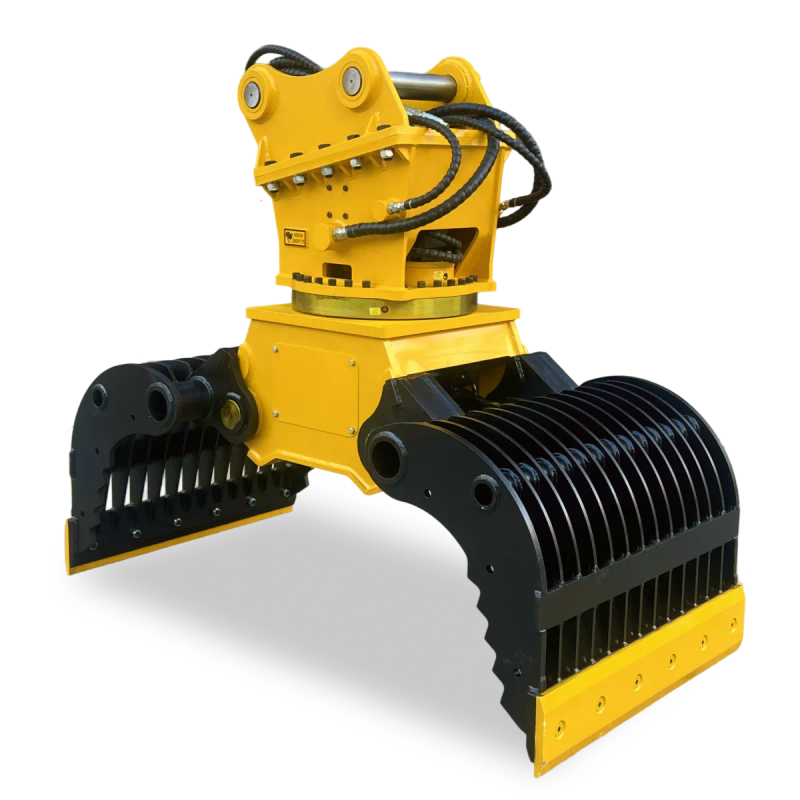

Rotating Demolition Grab
Available for 4 – 45T
Serrated jaws bite concrete rather than slide.
Starting from $13,575
$10,860
Or with AB 0% Finance from $72/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

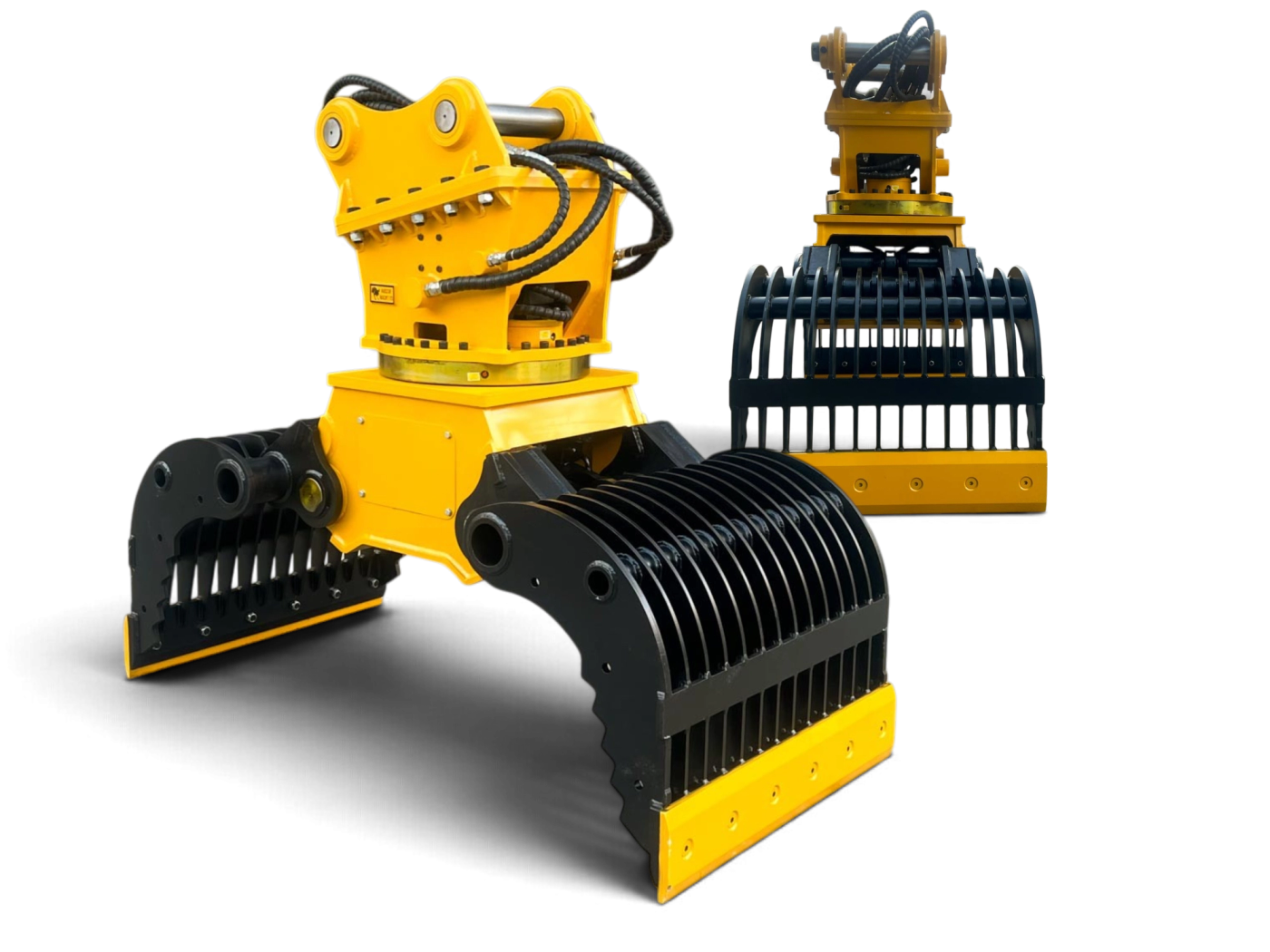

A rotating demolition grab for 4–45 tonne excavators. Serrated jaw edges bite into concrete and structural steel, with continuous 360-degree rotation and single or dual ram configurations.
Gallery
14 photos
Product
14
The difference
EveryEveryAussieAussieBucketsBucketsrotatingrotatingdemolitiondemolitiongrabgrabisispurpose-builtpurpose-builtforforthetheexcavatorexcavatoryouyourunrunandandprecision-engineeredprecision-engineeredforforaafacefacethatthatdoesdoesnotnotwantwanttotobebegripped:gripped:concrete,concrete,structuralstructuralsteel,steel,brickworkbrickworkandandmixedmixeddemolitiondemolitionarisings.arisings.AvailableAvailableforfor4–45T4–45Tmachinesmachinesacrossacrosssixsixbuilds,builds,ininsinglesingleandanddualdualramramconfigurations.configurations.

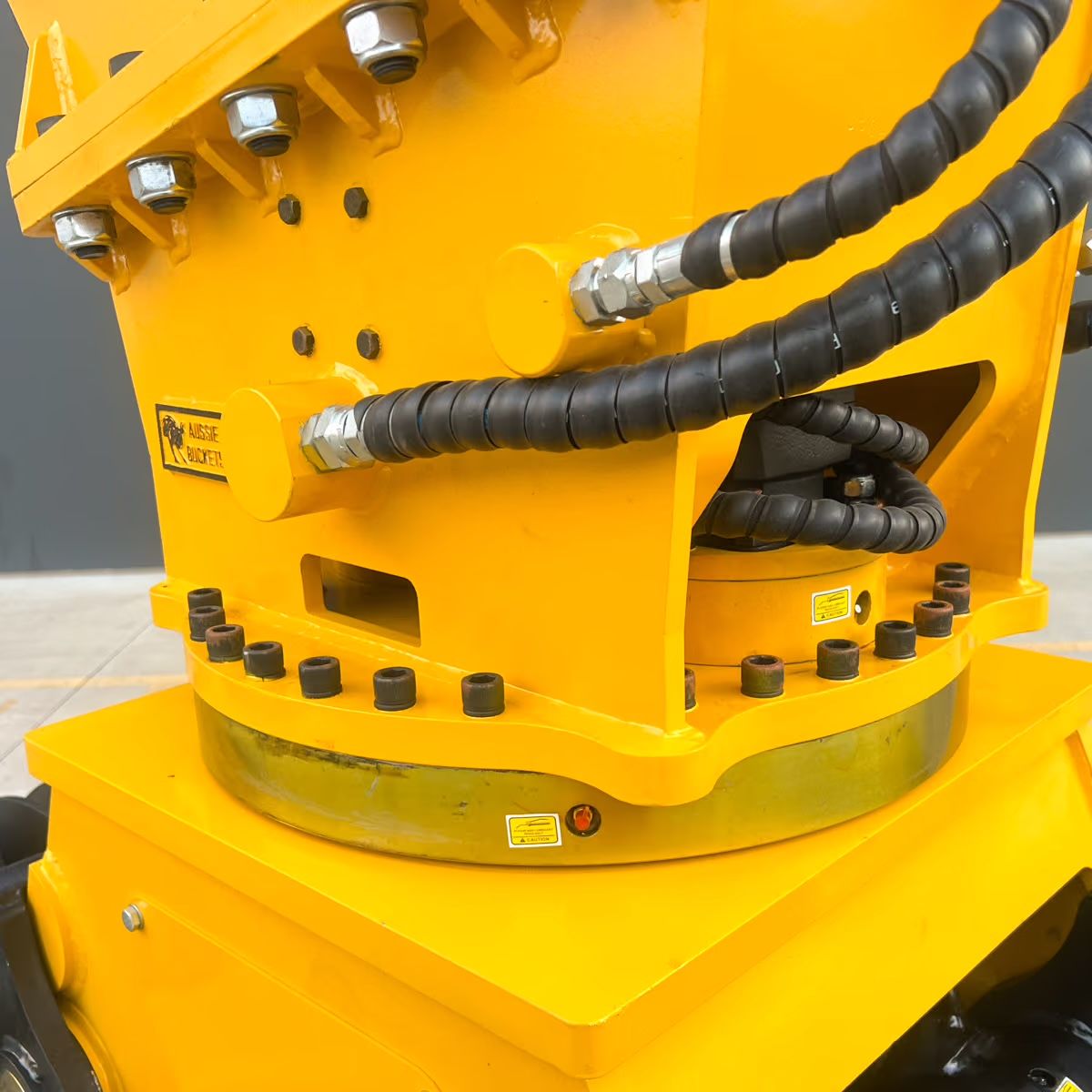

WhatWhatdistinguishesdistinguishesourourRotatingRotatingDemolitionDemolitionGrabGrabisisitsitscontinuouscontinuous360-degree360-degreerotationrotationononaaslewslewring,ring,serratedserratedjawjawedges,edges,replaceablereplaceablereversiblereversiblecuttingcuttingedgesedgesandandshieldedshieldedhydraulichydrauliccylinders.cylinders.ComparedComparedtotootherotherdemolitiondemolitiongrabsgrabsononthethemarket,market,thetheramsramsareareprotectedprotectedbecausebecausedemolitiondemolitiondropsdropsthingsthingsononthethetool.tool.
AllAllRotatingRotatingDemolitionDemolitionGrabsGrabsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for precision demolition and material handling, this excavator demolition grab features serrated jaw edges, replaceable reversible cutting edges, and 360° rotation via slew ring for efficient handling of concrete, timber, and scrap with minimal machine repositioning.
Features

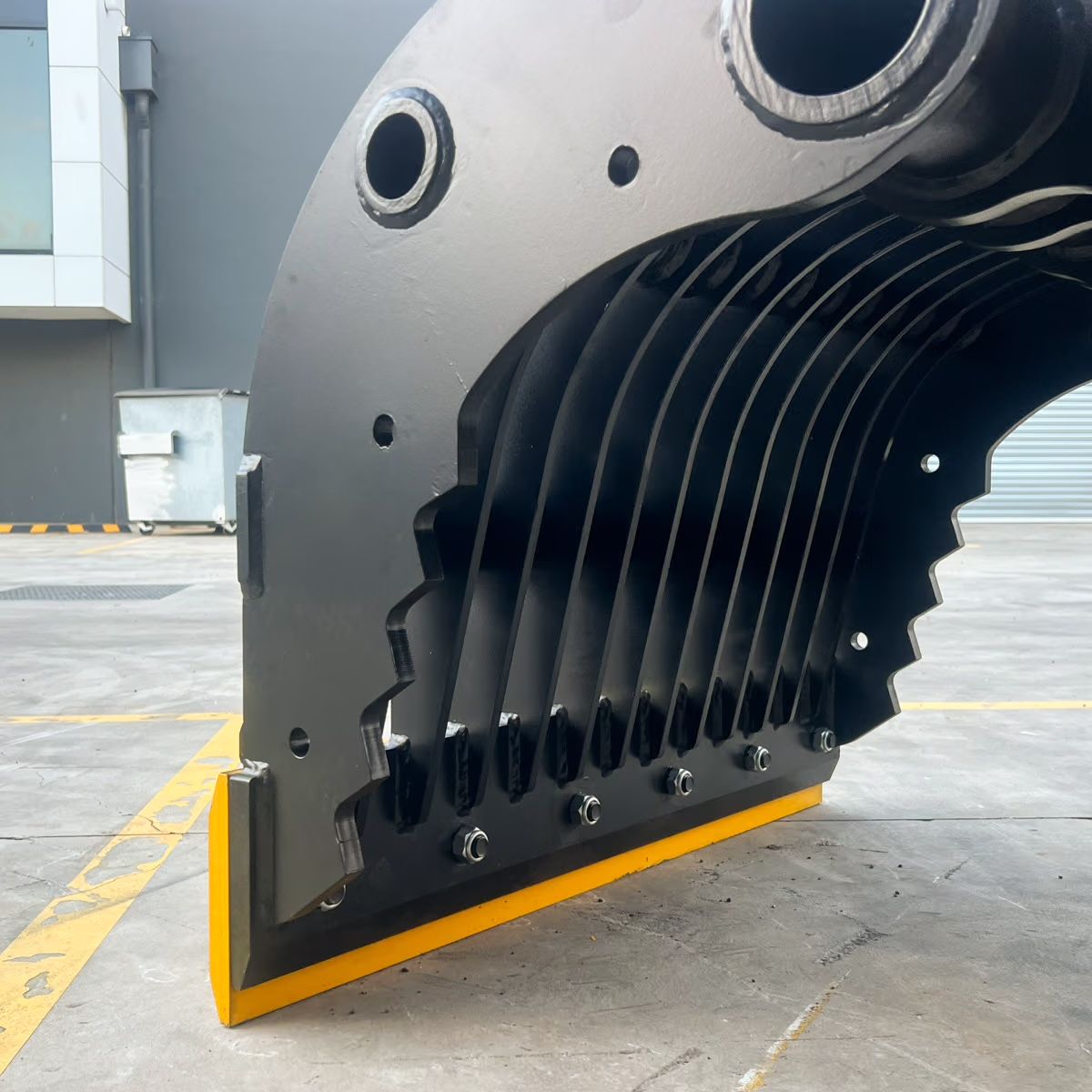

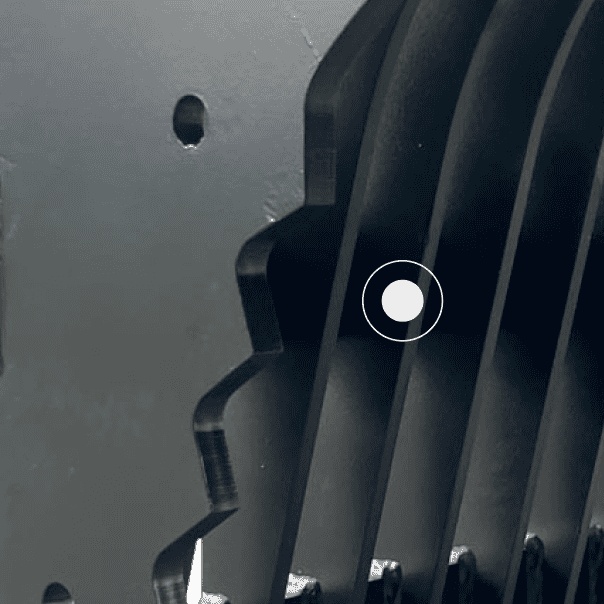

Serrated jaw edges
Deliver superior grip on slippery or irregular materials, improving control during demolition and sorting tasks.

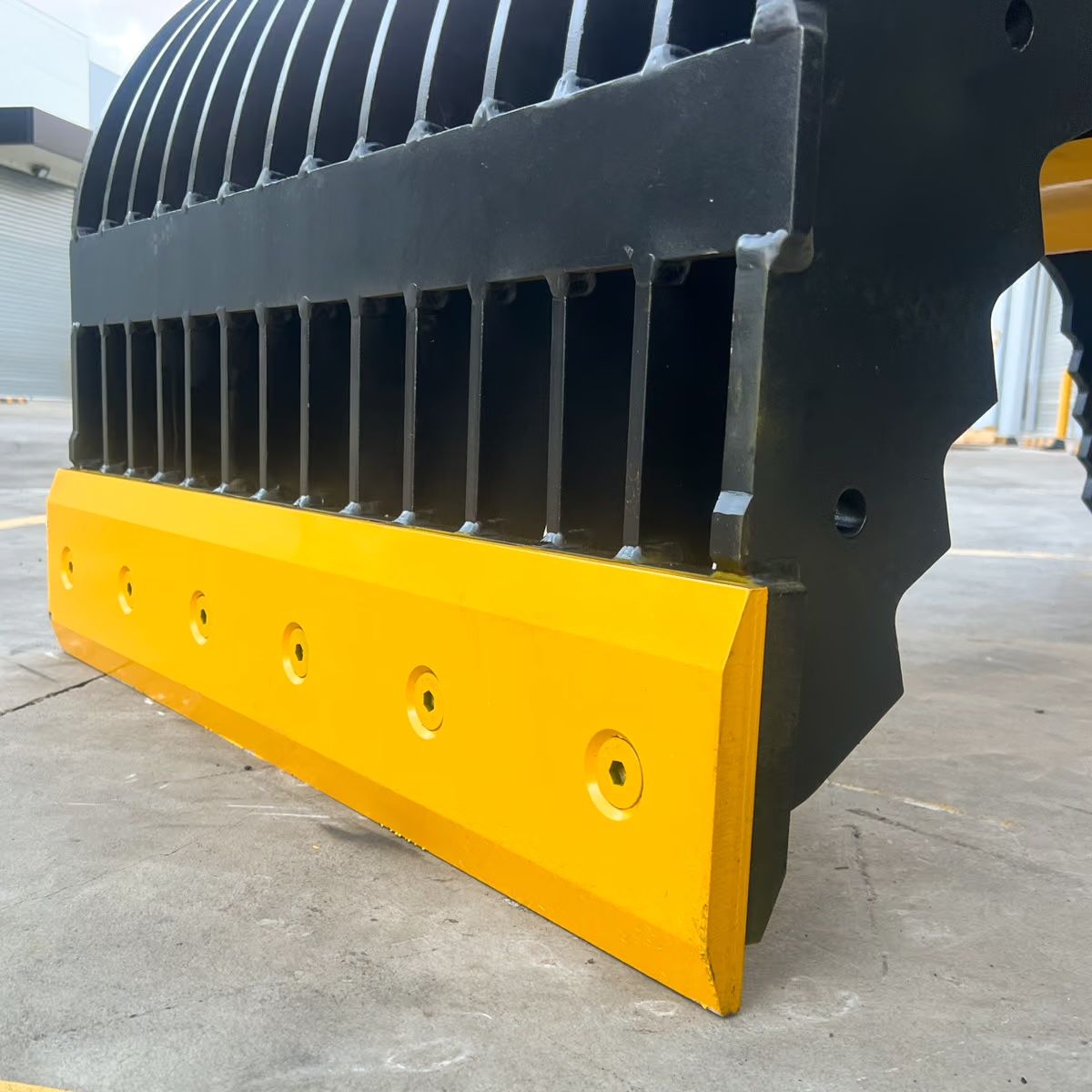

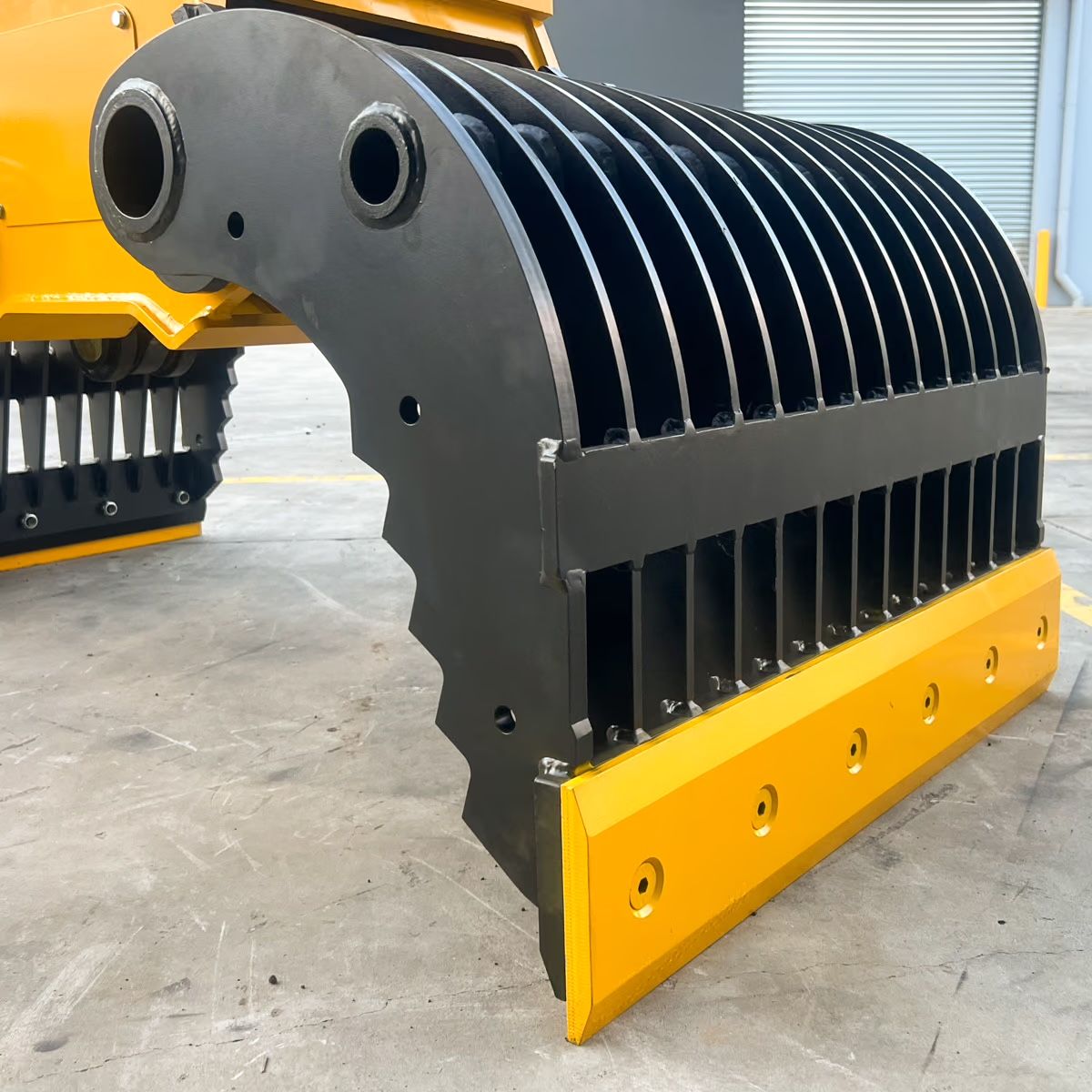

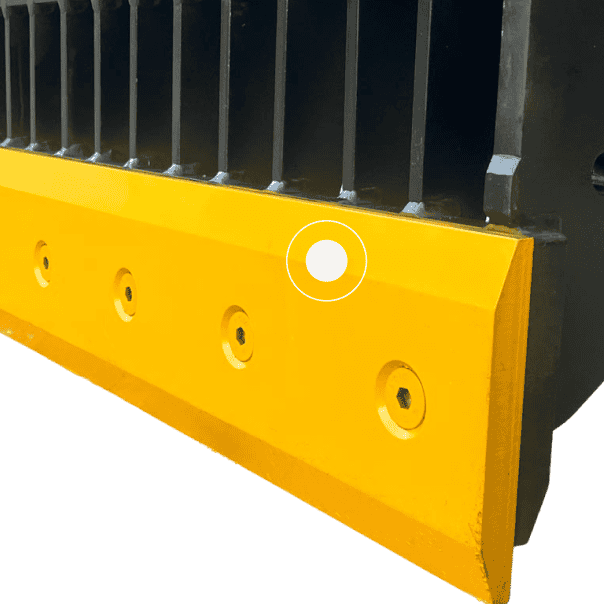

Replaceable & reversible cutting edges
Extend service life and reduce maintenance costs with cutting edges that can be flipped or swapped out when worn.

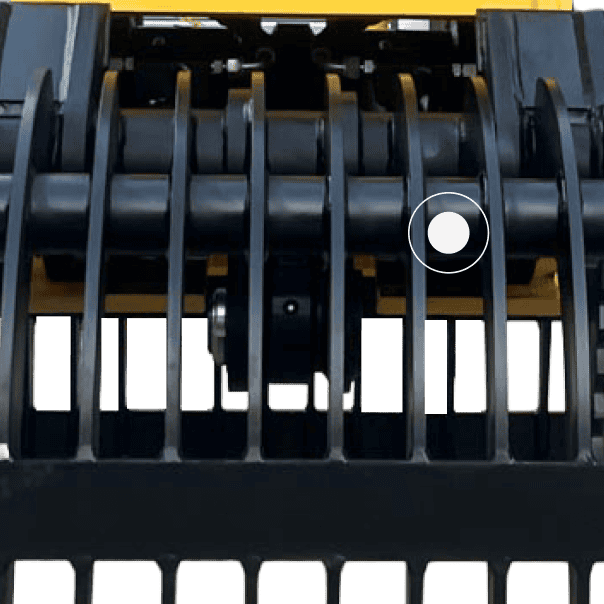

Hydraulic cylinder protection
Cylinders are equipped with premium seals and balance valve/s, to prevent unexpected jaw opening and ensure safe, reliable performance.
Technical Breakdown
Six build sizes covering 4 tonne to 45 tonne machines. Weight, max open, max closed, width and ram configuration are listed for each build.
| Excavator size(T) | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor | Motor pressure(bar) | Motor flow(L/min) | Cylinder force(t) |
|---|---|---|---|---|---|---|---|---|---|
| 4 – 6 | 500 | 1,400 | 837 | 500 | 1 | Parker | 130 – 150 | 30 – 40 | 8.8 |
| 7 – 9 | 580 | 1,500 | 884 | 600 | 1 | Parker | 130 – 150 | 30 – 40 | 10 |
| 10 – 16 | 1,100 | 1,700 | 1,055 | 800 | 2 | 2× Parker | 130 – 150 | 40 – 50 | 17.2 |
| Excavator size(T) | Weight(kg) | Max open(mm) | Max closed(mm) | Width(mm) | Rams | Motor | Motor pressure(bar) | Motor flow(L/min) | Cylinder force(t) |
|---|---|---|---|---|---|---|---|---|---|
| 17 – 25 | 1,750 | 1,950 | 1,179 | 1,030 | 2 | 2× M+S | 130 – 150 | 80 – 100 | 19.6×2 |
| 26 – 35 | 2,350 | 2,400 | 1,379 | 1,200 | 2 | 2× M+S | 130 – 150 | 80 – 100 | 23.7×2 |
| 30 – 45 | 2,500 | 2,500 | 1,700 | 1,300 | 2 | 2× M+S | 130 – 150 | 80 – 100 | 27.5×2 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleMechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is a rotating demolition grab? A rotating demolition grab is an excavator attachment with heavy serrated jaws that grip, sort and pull apart demolition material, turning continuously through 360 degrees on its own motor. Aussie Buckets rotating demolition grabs cover 4 to 45 tonne machines across six builds.
What is the difference between a demolition grab and a sorting grab? A demolition grab is heavier, with serrated jaws built to bite concrete and structural steel during a pull. A sorting grab is built for separating and loading material that is already down, with lighter construction and higher throughput. Many sites need both; the pull decides which you specify first.
Single or dual ram: which do I need? A single ram is simpler and suits lighter sorting and loading duty. Dual rams give higher closing force and hold an awkward load squarely, which is what structural demolition asks for. Aussie Buckets builds both across the range, so the choice follows the work rather than the machine.
What size rotating demolition grab do I need? Six builds cover 4 to 45 tonne machines, with jaw opening, closing force, weight and flow requirement listed per build. Demolition work loads the attachment at reach, so lift capacity matters alongside machine weight. Send your machine details and the structures you are taking down.
Can you replace the cutting edges on a demolition grab? Yes. The cutting edges are replaceable and reversible, so each gives a second working face before it is changed out. On demolition work the edges are what wear first, and making them renewable is what stops edge wear deciding when the whole attachment is retired.
How much does a rotating demolition grab cost? Aussie Buckets rotating demolition grabs start at $13,575. Price moves with machine class, jaw opening and ram configuration, and 0% finance is available on approved purchases. Every grab is protected by a 5-year warranty. Get a tailored quote against your machine.
