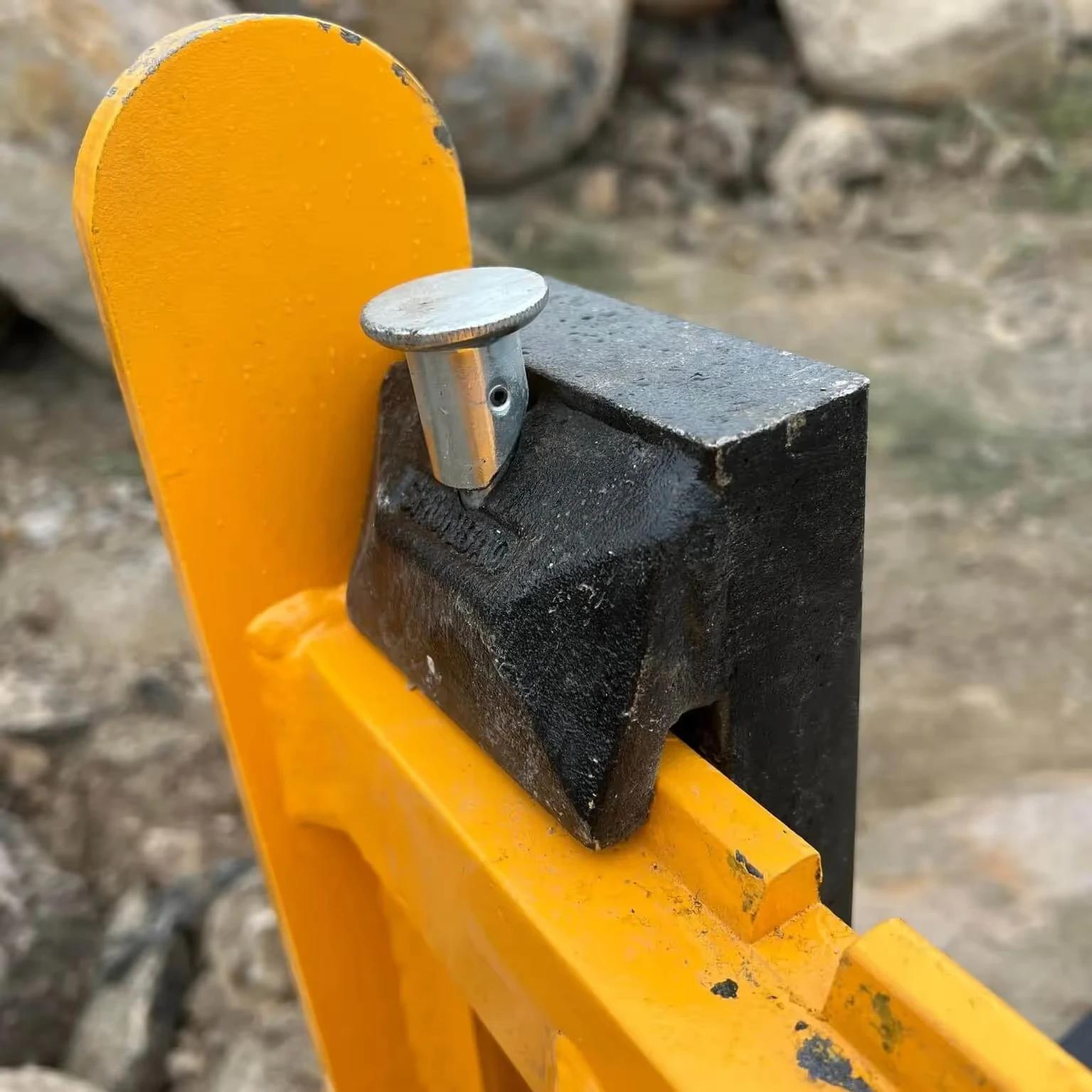

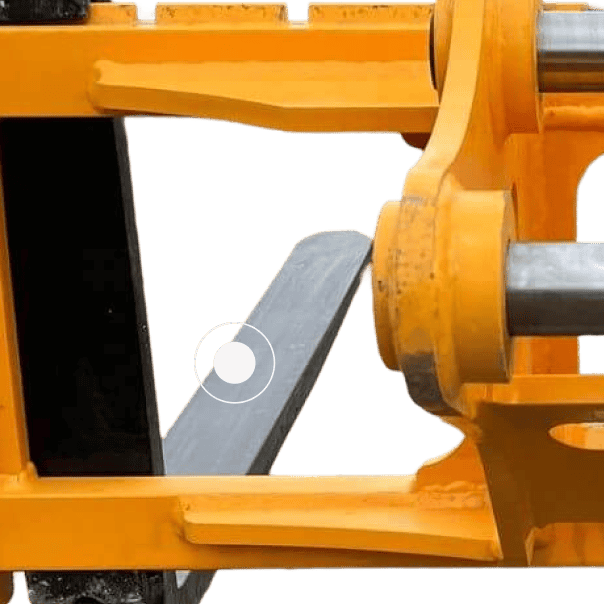

Adjustable width with spring-loaded locking clip
Fork spacing adjusts by hand on spring-loaded retention pins and a sliding mount, with no tools and no loose hardware. The same set takes a standard pallet and a wider bundled load.

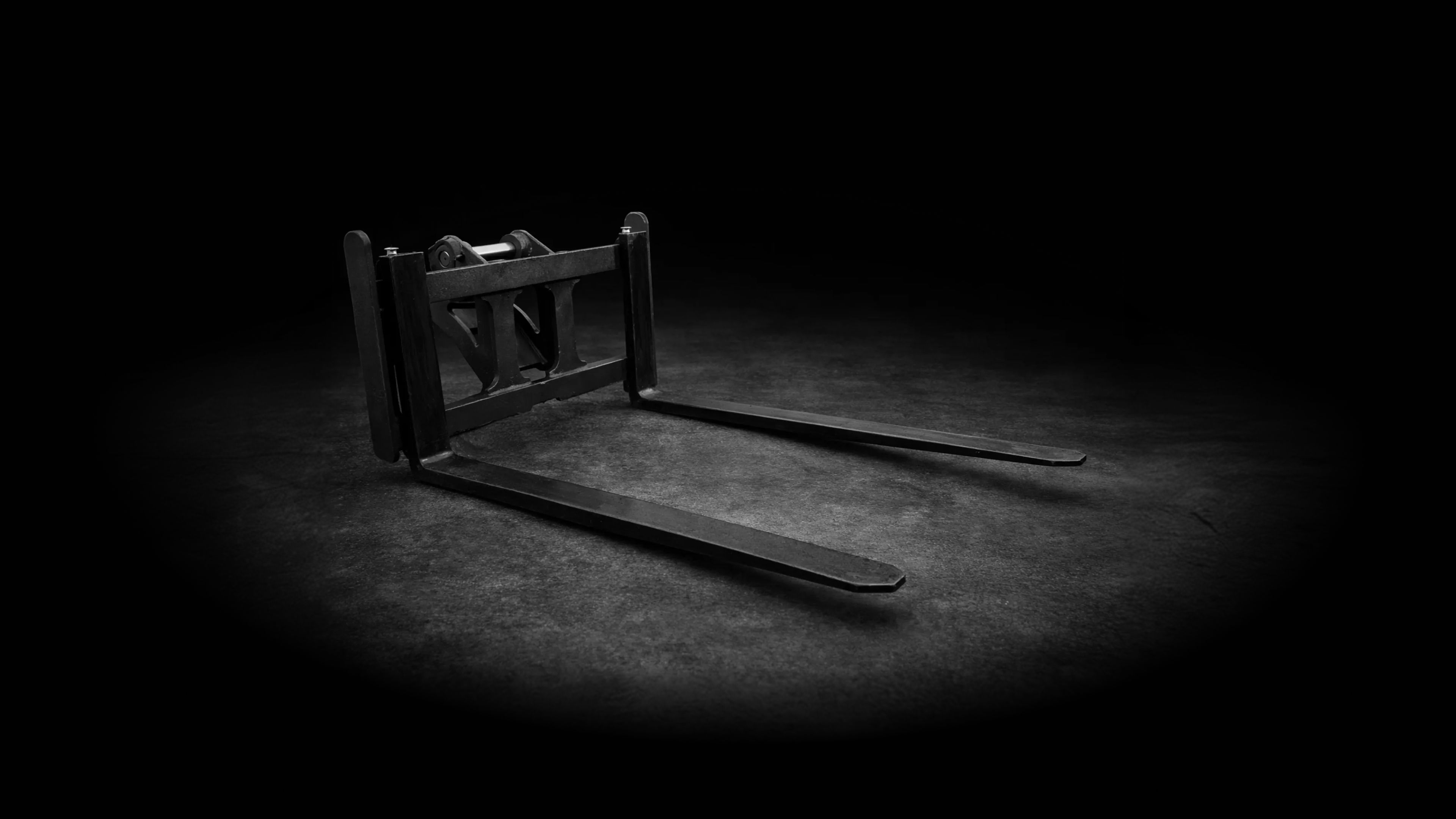

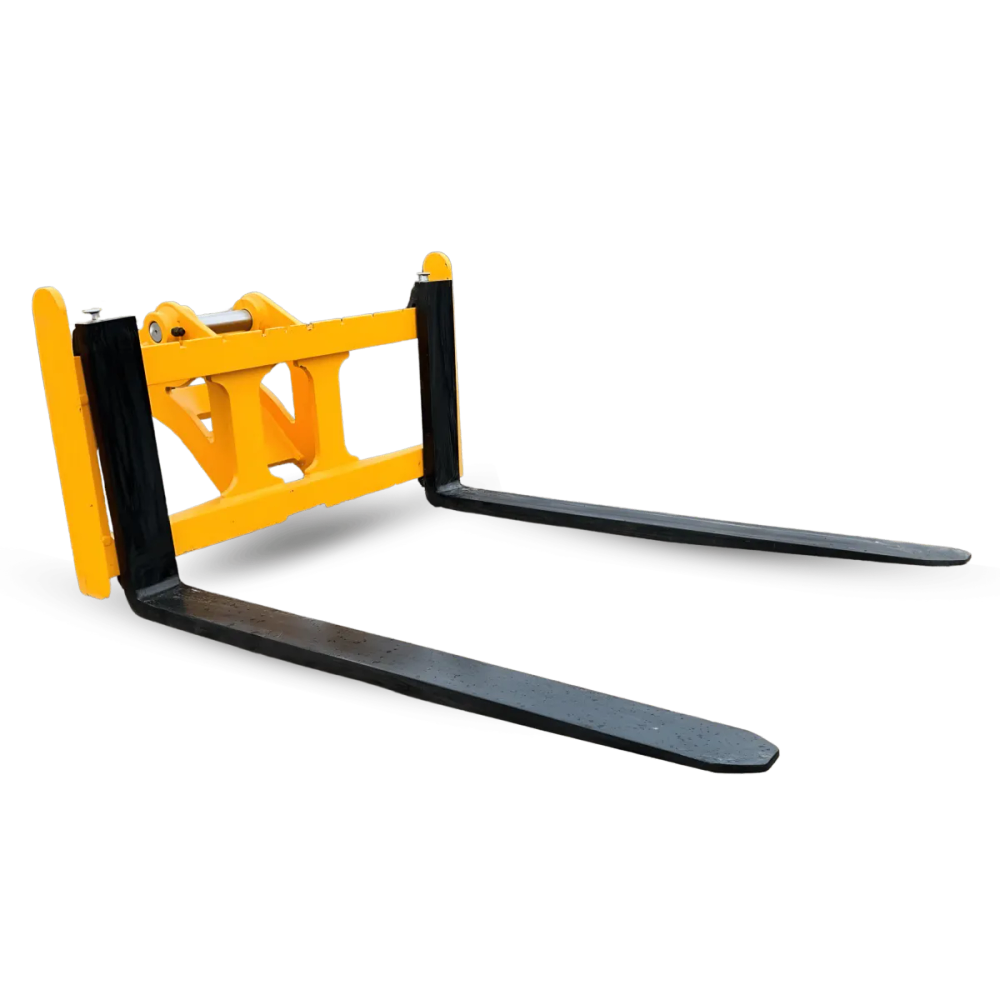

Excavator Pallet Forks
Available for 1.7 – 36T
Width adjusts on a spring-loaded locking clip.
Starting from
$2,375
Or with AB 0% Finance from $17/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

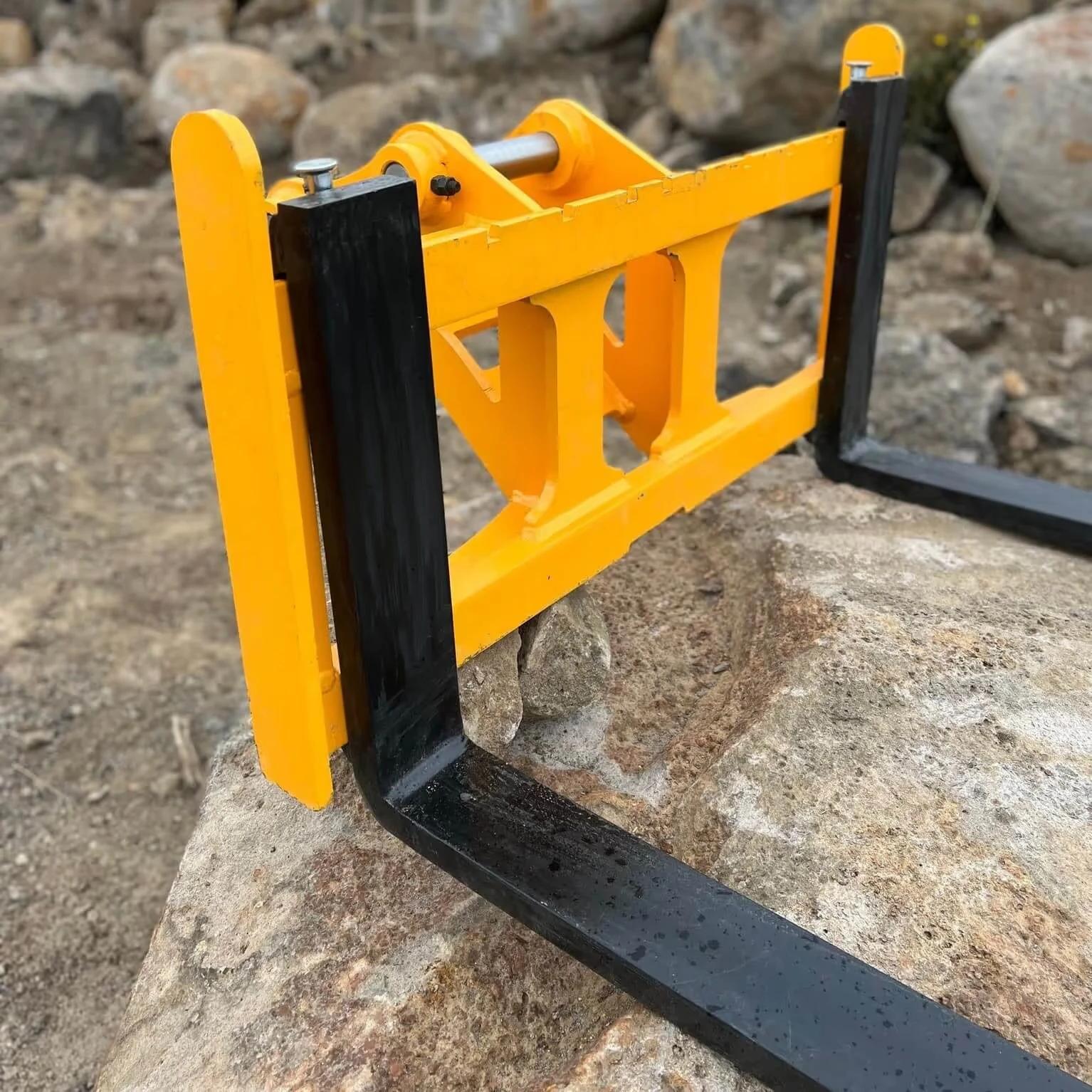

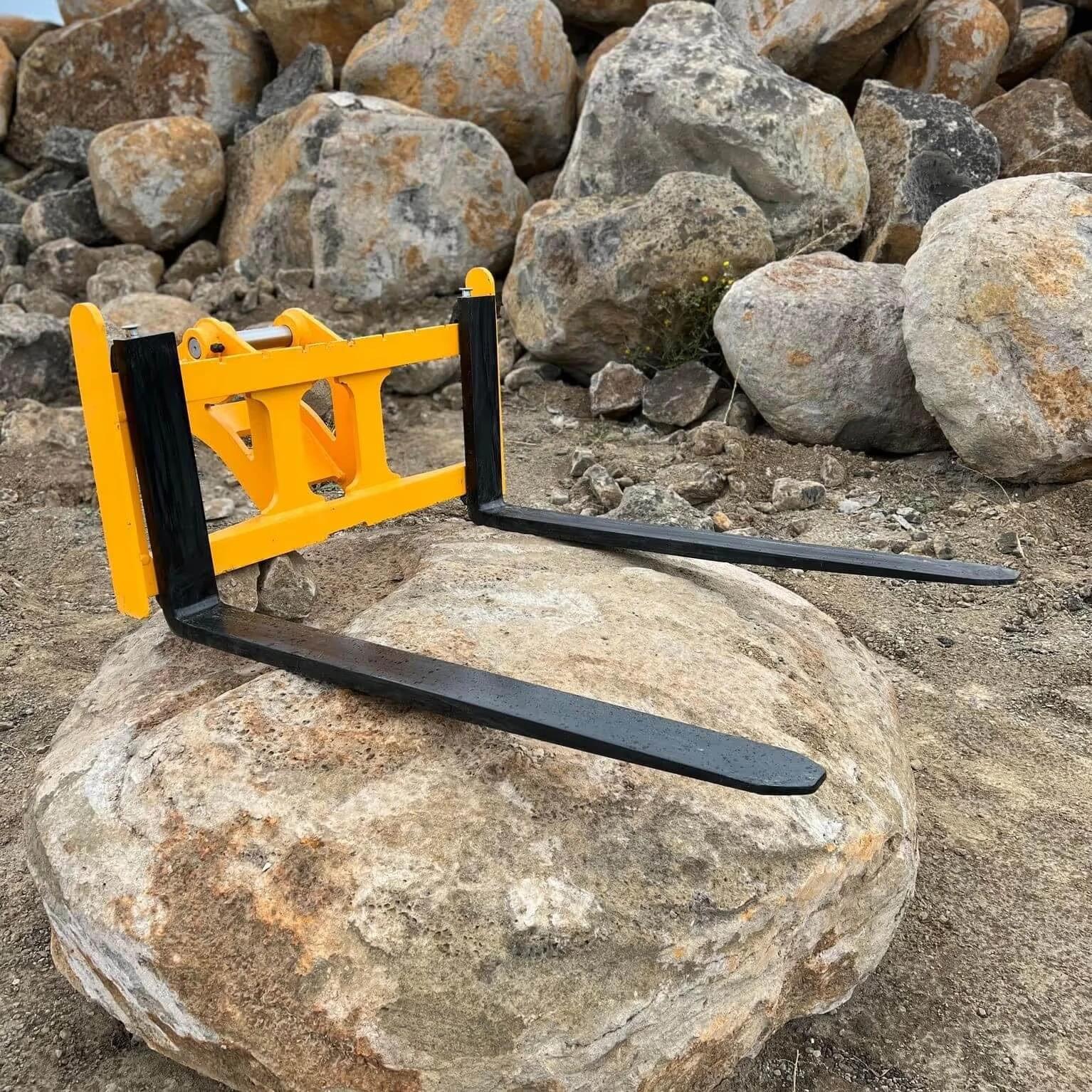

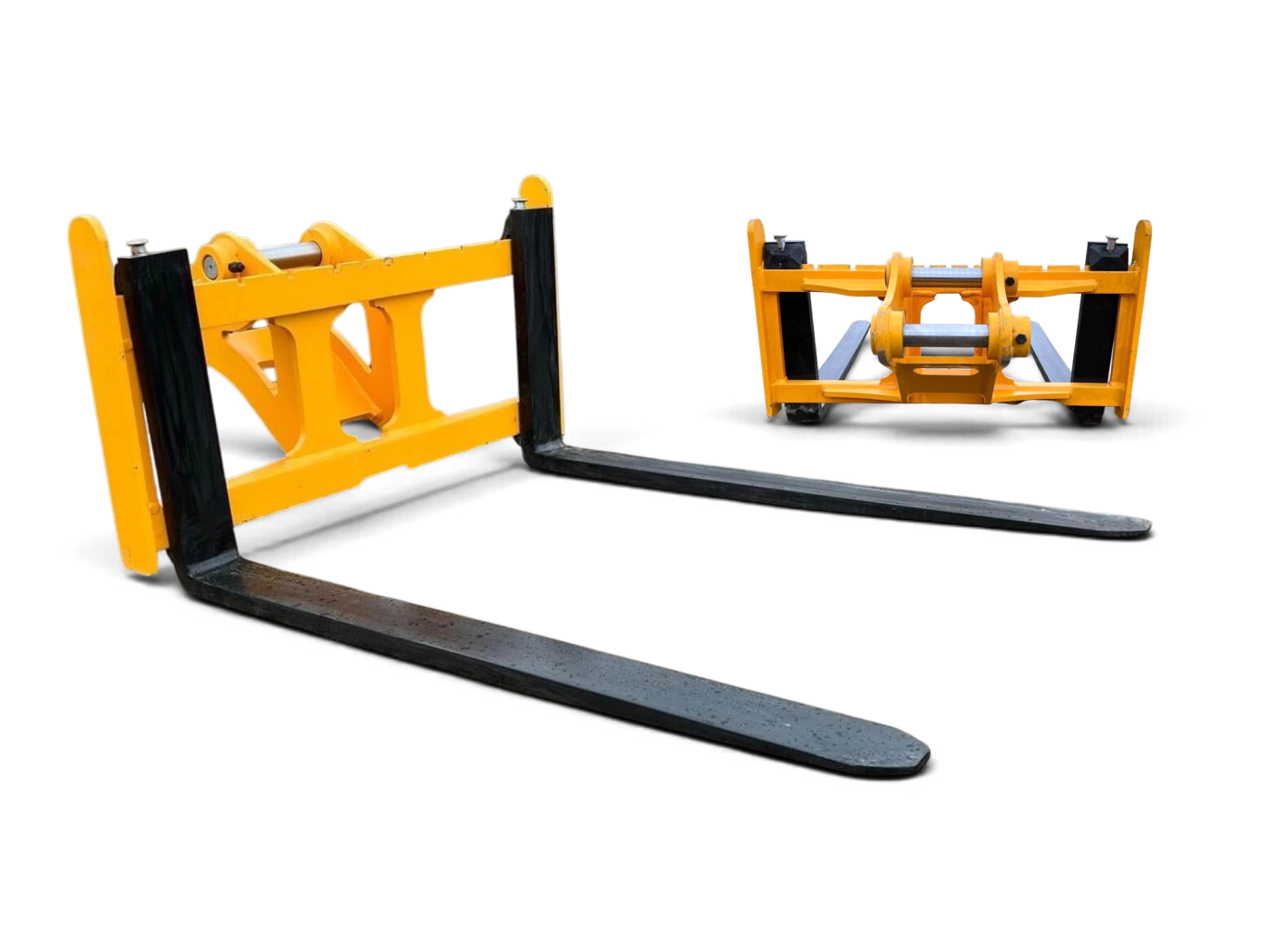

Excavator pallet forks for 1.7–36 tonne machines in seven builds. Move pallet freight, blocks and bundled material around site without bringing in a forklift or telehandler, with rated lift listed per size.
Gallery
5 photos
Product
05
The difference
EveryEverysetsetofofAussieAussieBucketsBucketsexcavatorexcavatorpalletpalletforksforksisispurpose-builtpurpose-builtforforthethemachinemachineyouyourunrunandandprecision-engineeredprecision-engineeredaroundaroundaamachinemachinethatthatisisalreadyalreadyononsitesiteandandalreadyalreadypaidpaidfor.for.AvailableAvailableforfor1.7–36T1.7–36Tmachinesmachinesacrossacrosssevensevenbuilds,builds,withwithratedratedliftingliftingcapacitycapacityfromfrom1,0001,000toto5,0005,000kgkglistedlistedperpersizesizeandandaawidthwidththatthatadjustsadjustsononaaspring-loadedspring-loadedclip.clip.
WhatWhatdistinguishesdistinguishesourourExcavatorExcavatorPalletPalletForksForksisisthethe400-grade400-gradesteelsteelconstruction,construction,integratedintegratedheadheadbracketbracketandandadjustableadjustablewidthwidthlockinglockingclip,clip,withwitheveryeverybuildbuildload-testedload-testedbeforebeforeititleavesleavesus.us.ComparedComparedtotohiringhiringaaforkliftforkliftontoontogroundgroundititcannotcannotcross,cross,palletspalletsandandbundlesbundlesmovemoveononthethemachinemachinethatthatisisalreadyalreadythere.there.
AllAllExcavatorExcavatorPalletPalletForksForksareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for site logistics on rough ground, these excavator pallet forks feature spring-loaded adjustable locking clips, an integrated head bracket and 400-grade steel construction for safe, efficient load handling with rated capacity stated per build.
Features

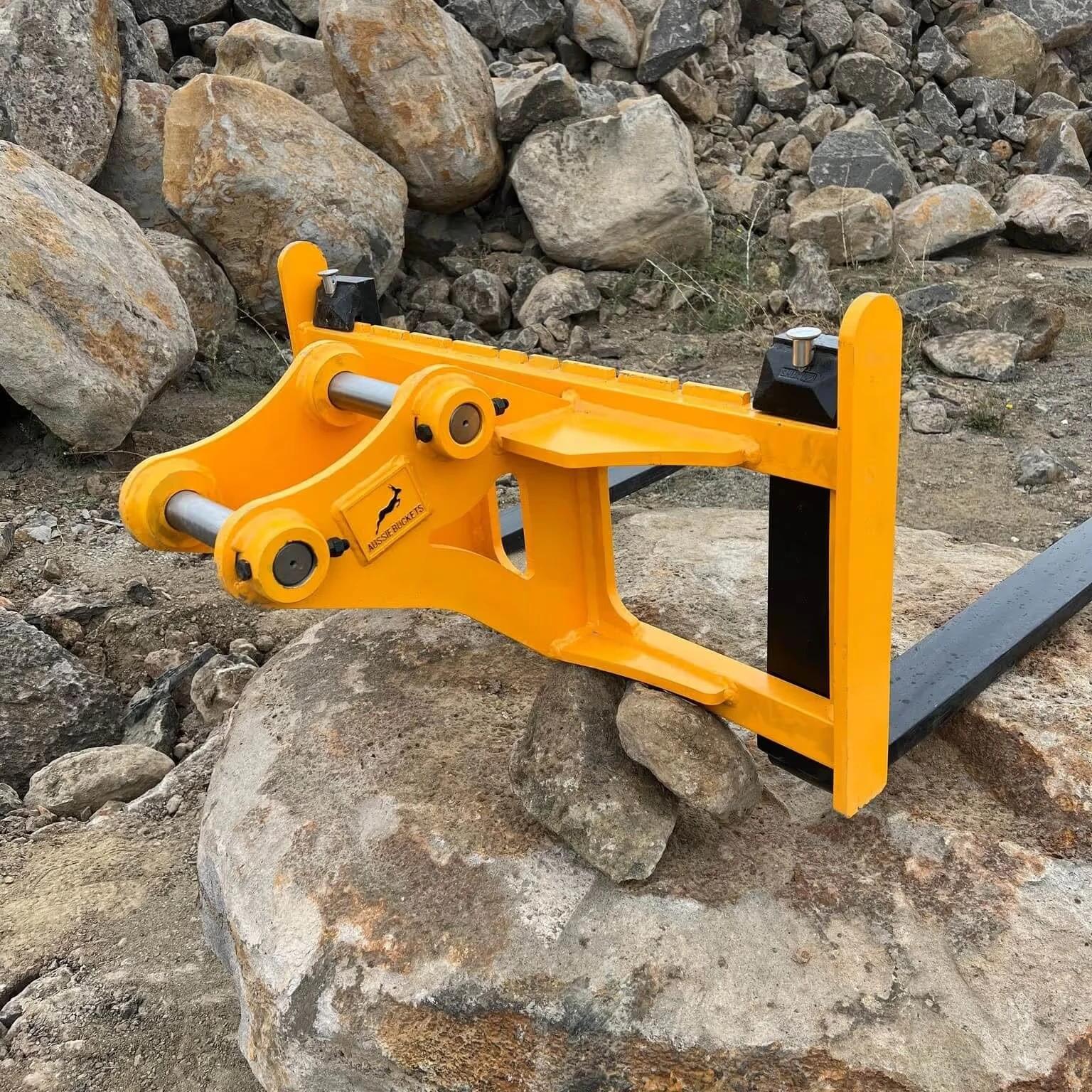

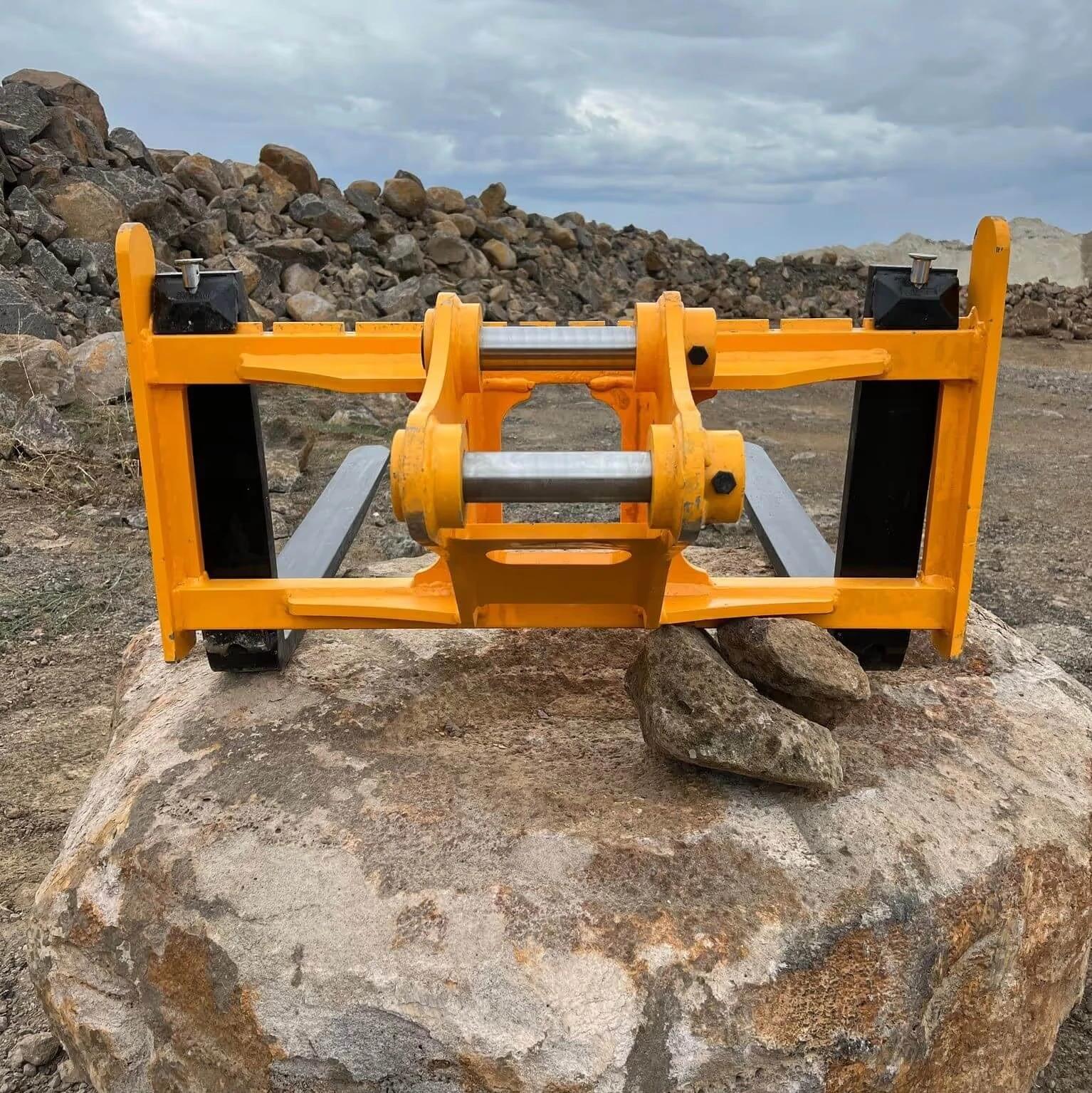

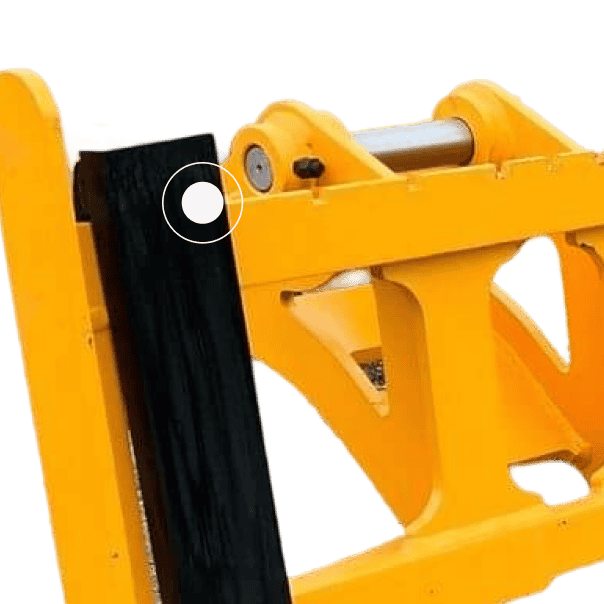

Integrated head bracket
The head bracket is welded into the fork frame rather than bolted on, so the connection to the machine carries the full rated load without add-on plates to work loose.

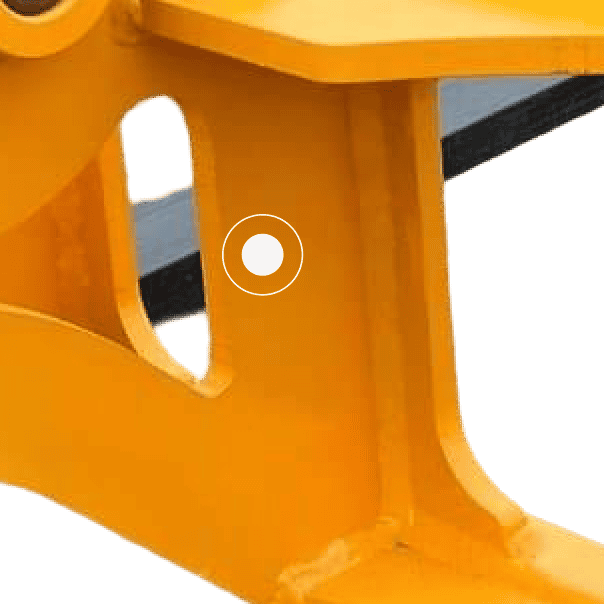

Quality assurance testing
Every set is load tested before dispatch to verify its rated capacity, from 1,000 kg on the smallest build to 5,000 kg on the largest. The figure on the spec sheet is a tested one.
Technical Breakdown
Seven build sizes covering 1.7 tonne to 36 tonne machines. Frame width, frame height, fork length, lifting capacity and weight are listed for each build.
| Excavator size(T) | Frame width(mm) | Frame height(mm) | Fork length(mm) | Lifting capacity(kg) | Weight(kg) |
|---|---|---|---|---|---|
| 1.7 – 2.8 | 800 | 455 | 1,070 | 1,000 | 146 |
| 3 – 4.8 | 1,000 | 600 | 1,070 | 2,000 | 166 |
| 5 – 9 | 1,000 | 695 | 1,220 | 2,500 | 223 |
| 10 – 18 | 1,000 | 820 | 1,220 | 3,000 | 340 |
| Excavator size(T) | Frame width(mm) | Frame height(mm) | Fork length(mm) | Lifting capacity(kg) | Weight(kg) |
|---|---|---|---|---|---|
| 20 – 24 | 1,350 | 1,050 | 1,520 | 3,000 | 480 |
| 25 – 29 | 1,500 | 1,050 | 1,670 | 5,000 | 580 |
| 30 – 36 | 1,500 | 1,050 | 1,820 | 5,000 | 600 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleRock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Auger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What are excavator pallet forks? Excavator pallet forks are a fork attachment that pins to the machine like any other tool, letting an excavator lift and place palletised and bundled material. Aussie Buckets pallet forks cover 1.7 to 36 tonne machines across seven builds, with rated lifting capacity listed per size.
Can an excavator be used as a forklift? With a purpose-built fork attachment and within its rated capacity, yes, and on rough or soft ground it reaches places a forklift cannot. It is not a substitute for a forklift on hardstand production work, but on a construction site it saves hiring one in for occasional lifts.
How wide do excavator pallet forks adjust? Fork spacing adjusts on a spring-loaded locking clip, with the range listed per build across the seven sizes covering 1.7 to 36 tonne machines. Adjustment is made by hand without tools, so the same forks take a standard pallet and a wider bundled load.
What can excavator pallet forks lift? Rated lifting capacity runs from 1,000 kg on the 1.7 to 2.8 tonne build to 5,000 kg on the 25 to 36 tonne builds, and every build is load tested as part of quality assurance. Actual safe load on the day also depends on your machine's lift chart at the reach you are working.
Excavator pallet forks or tiltrotator pallet forks: which do I need? Excavator Pallet Forks pin straight onto a standard hitch through an integrated head bracket. Tiltrotator Pallet Forks are built to mount on a tiltrotator, for machines running Engcon, Rototilt or Steelwrist systems, and gain tilt and rotate on the load. The mounting on your machine decides it.
What size pallet forks fit my excavator? Seven builds cover 1.7 to 36 tonne machines. Send your machine make, model, hitch and pin sizes along with the loads you are handling and we will match the build and confirm fitment before manufacture starts. Every build is protected by a 5-year warranty.
How much do excavator pallet forks cost? Aussie Buckets excavator pallet forks start at $2,375. Price moves with machine class and rated capacity, and 0% finance is available on approved purchases. Every set is protected by a 5-year warranty and lifetime technical support. Get a tailored quote against your machine.
