Available for 0.5 – 120T
Starting from
$8,875
Or with AB 0% Finance from $49/week (ex. GST)

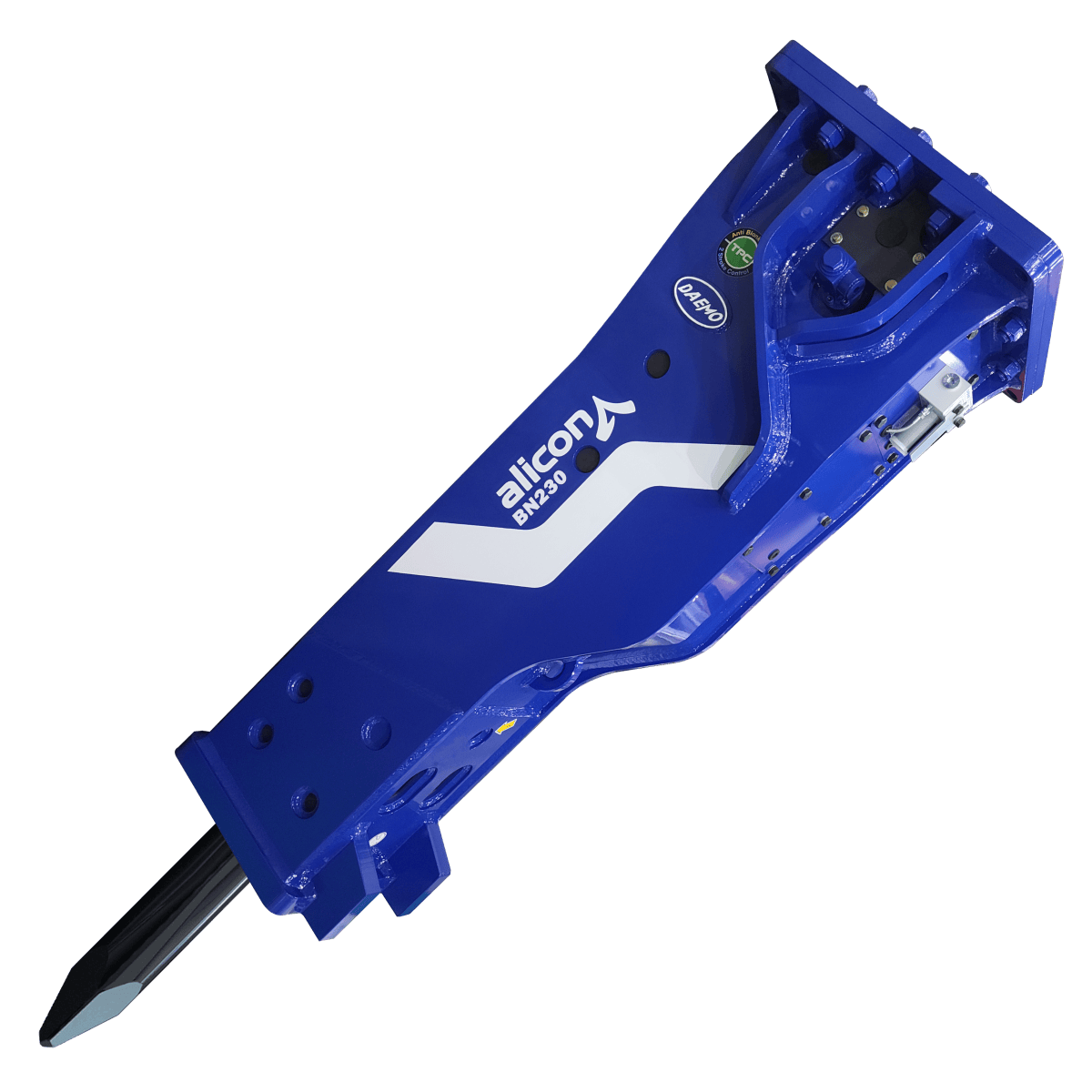

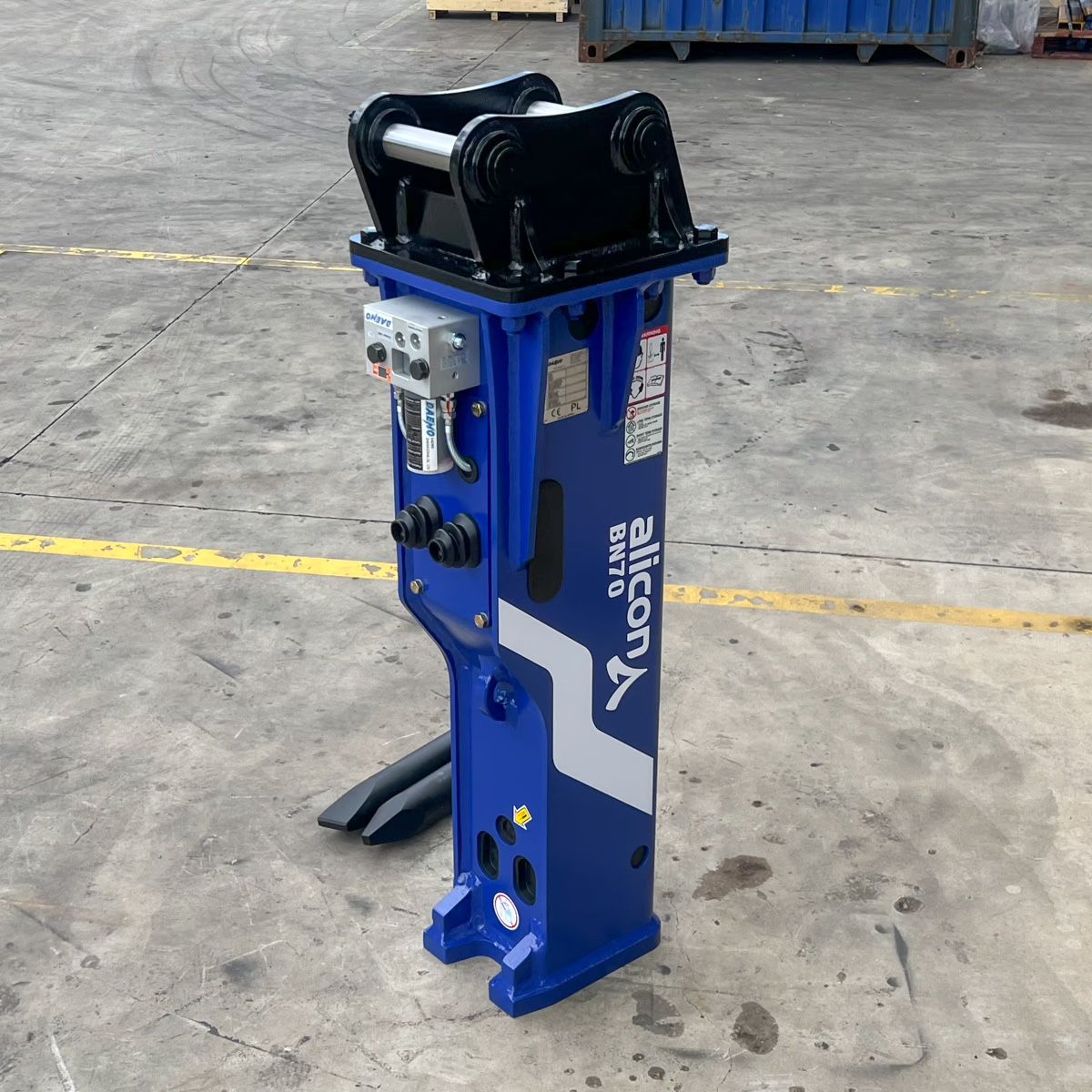

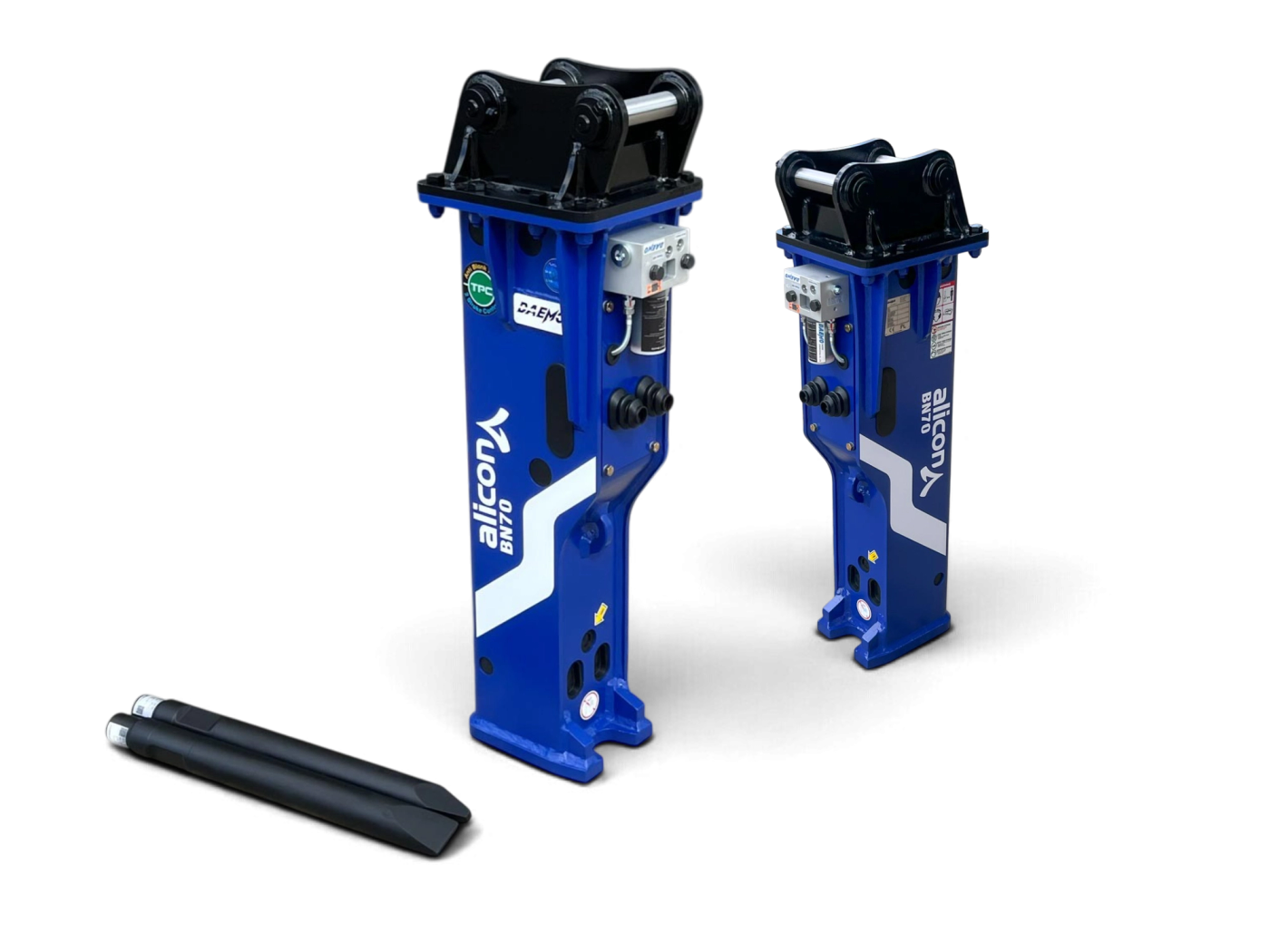

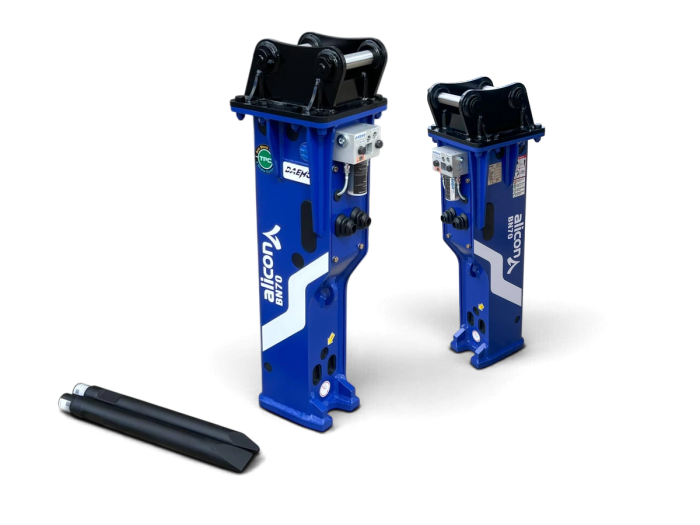

The DAEMO Smart Breaker Series for 0.5–120 tonne excavators. Four model lines from the base ALICON to the SMe, with stroke that adjusts to the material so breaking rate and consumable life both hold up.
2 videos · 18 photos
02
18
The difference
EveryDAEMOSmartBreaker,alsoknownasasmarthammer,autostrokebreakerorhydraulicbreaker,ispurpose-builtfortheexcavatoryourunandprecision-engineeredaroundthetrade-offeverybreakeroperatormakesbyhand:longstrokebreakshardrockfaster,shortstrokesavesthetoolinsoftground.Availablefor0.5–120Tmachinesacrossfourmodellines,fromtheALICONthroughtotheSMe,withstrokematchedtothematerialautomatically.

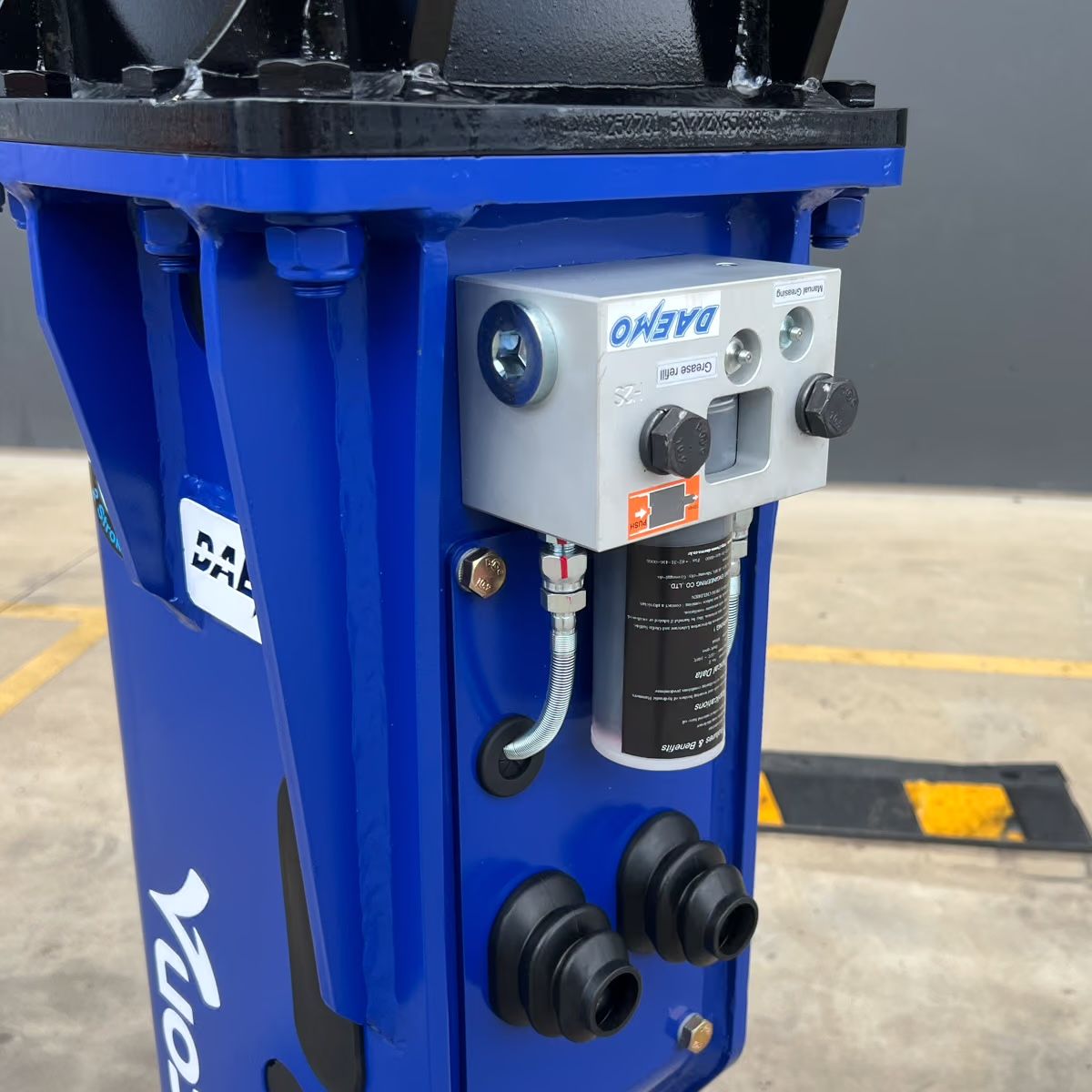

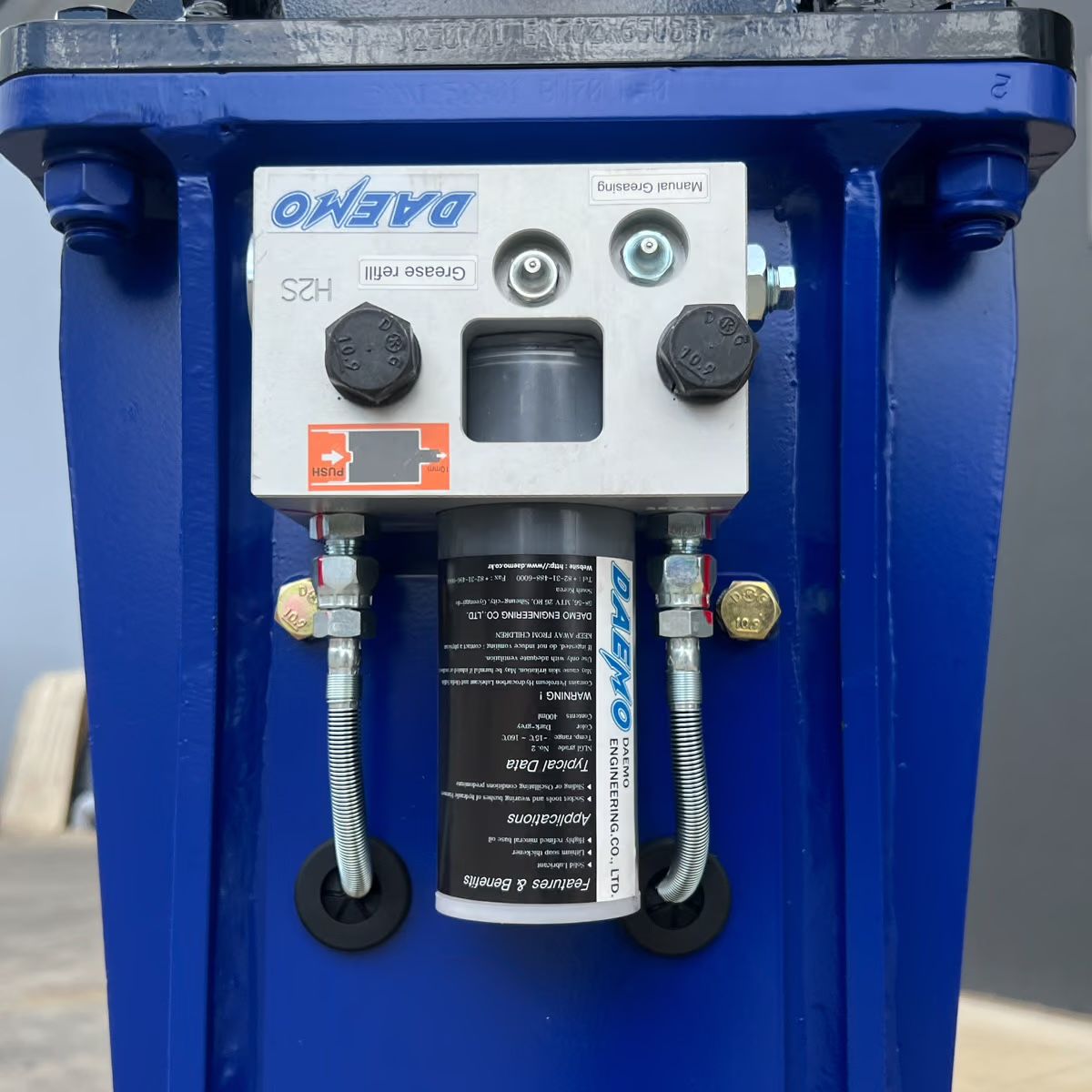

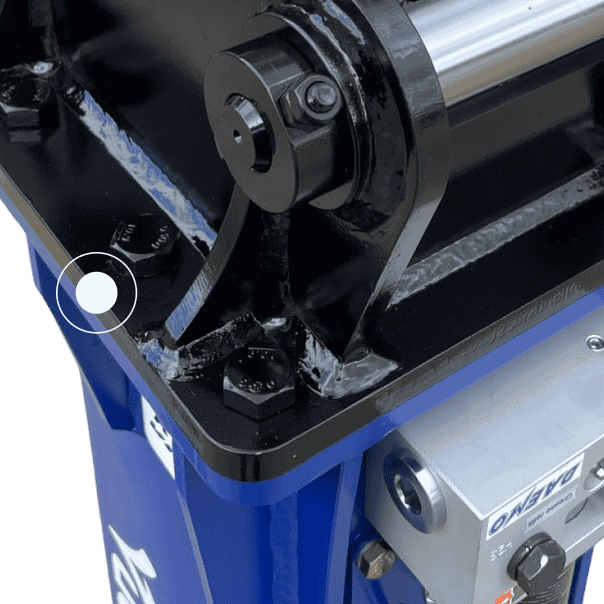

WhatdistinguishestheDAEMOSmartBreakerSeriesisitselectronicandhydraulicautostrokeadjustment,anti-blankfiringprotection,autogreasinganddustprotectiononselectedmodels.Comparedtoaconventionalhammer,theadjustmentthatnormallycostsyouatoolorashifthappensonitsown,beforethedamageisdone.
AllDAEMOSmartBreakersareaccompaniedwithourstandard5-yearwarranty.
Built with proven rock-breaking technology, this smart breaker series features electronic stroke adjustment, auto-greasing, and anti-blank firing protection for efficient material breaking, reduced component wear, and extended operational life.
Features

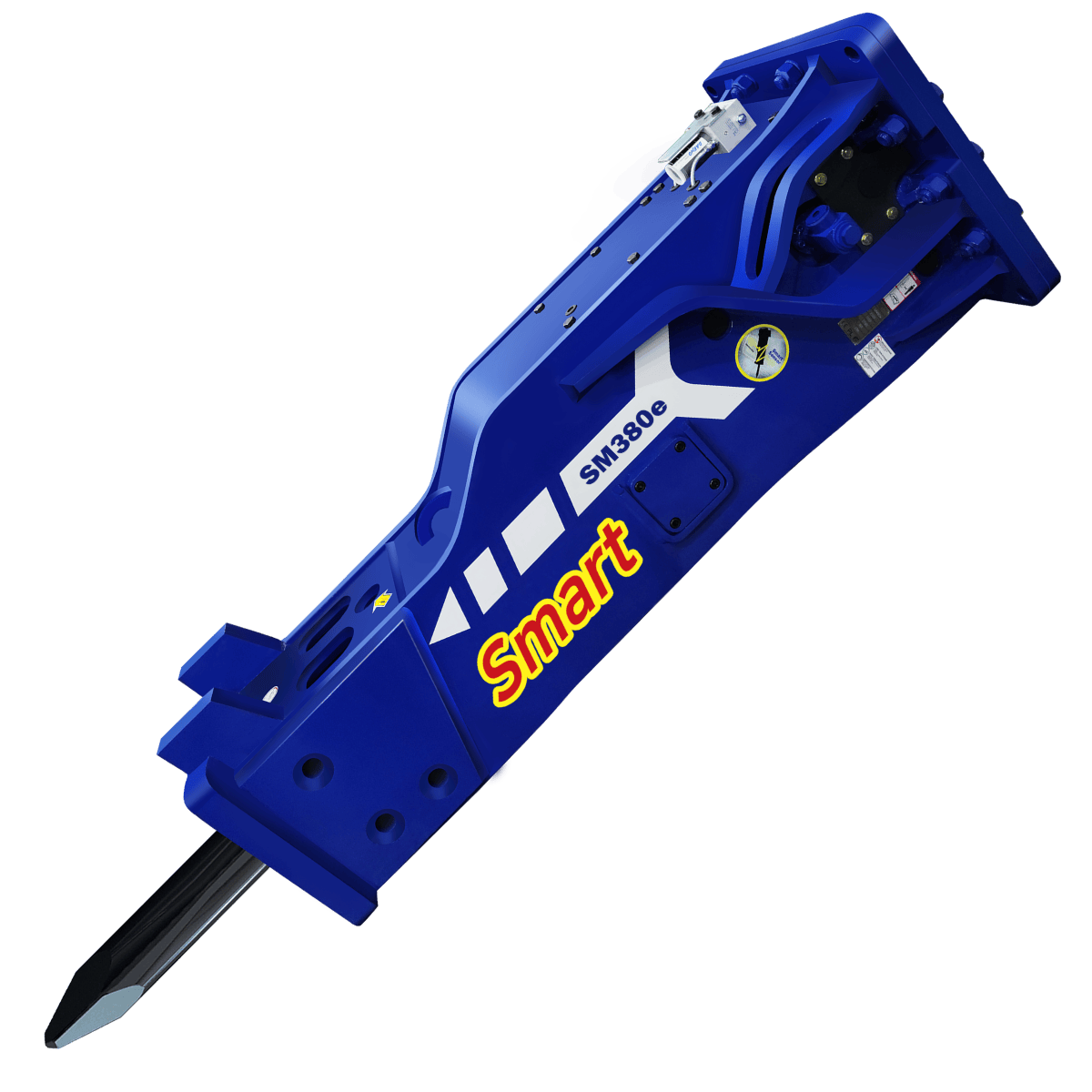

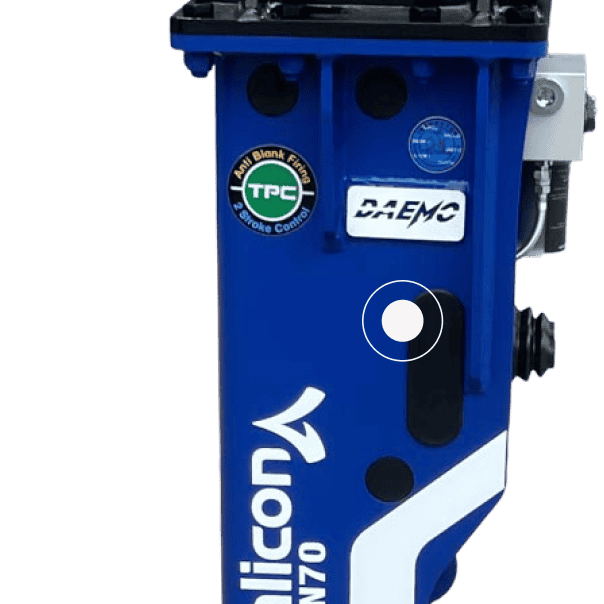

The SMe features an electronically controlled system that adjusts to three stroke settings:
• Long: Heavy impact force, slow impact rate
• Mid: Medium impact force, medium impact rate
• Short: Light impact force, fast impact rate

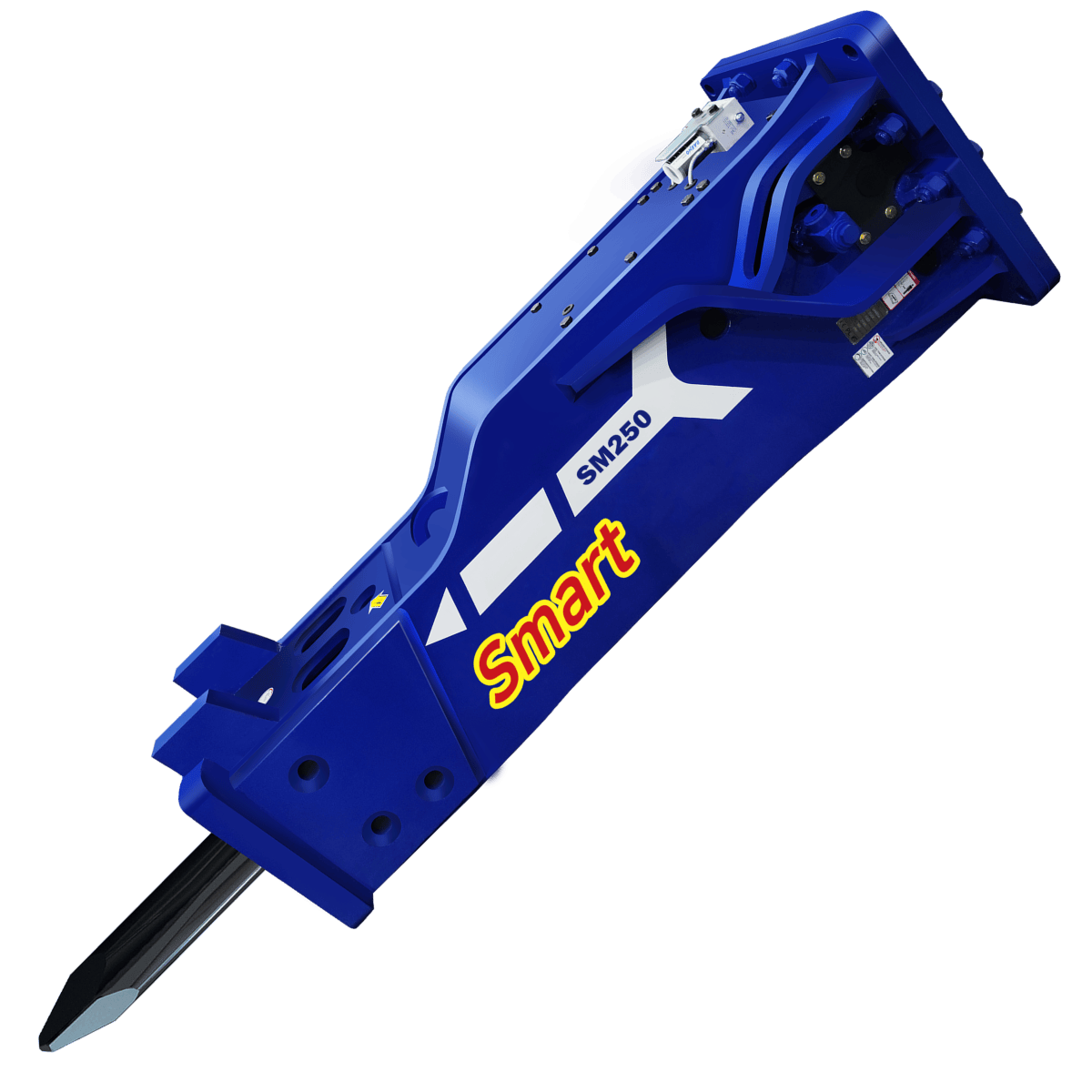

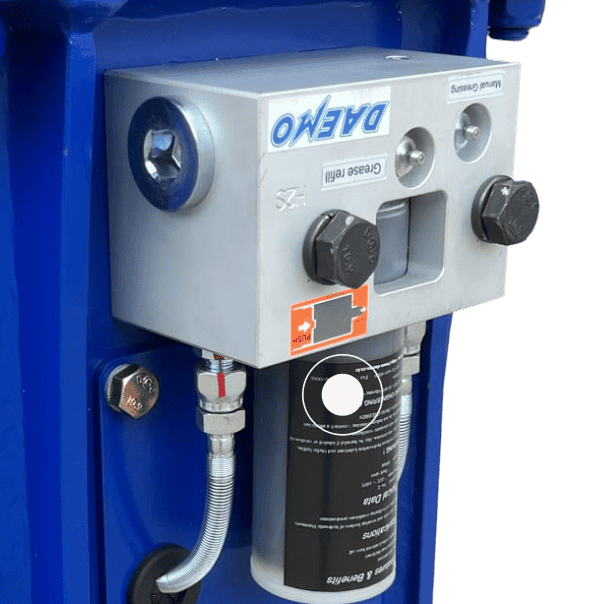

The SM includes a hydraulically controlled system that adjusts to two stroke settings:
• Long: Heavy impact force, slow impact rate
• Short: Light impact force, fast impact rate

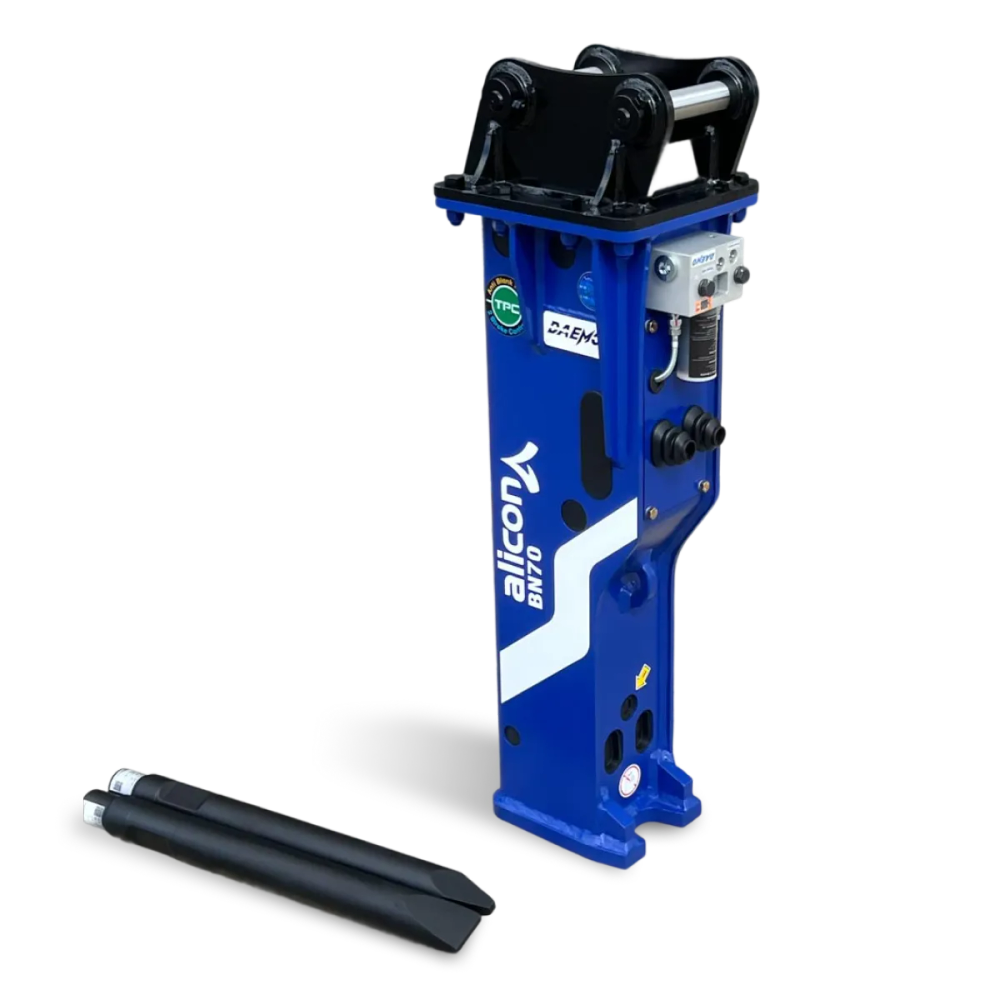

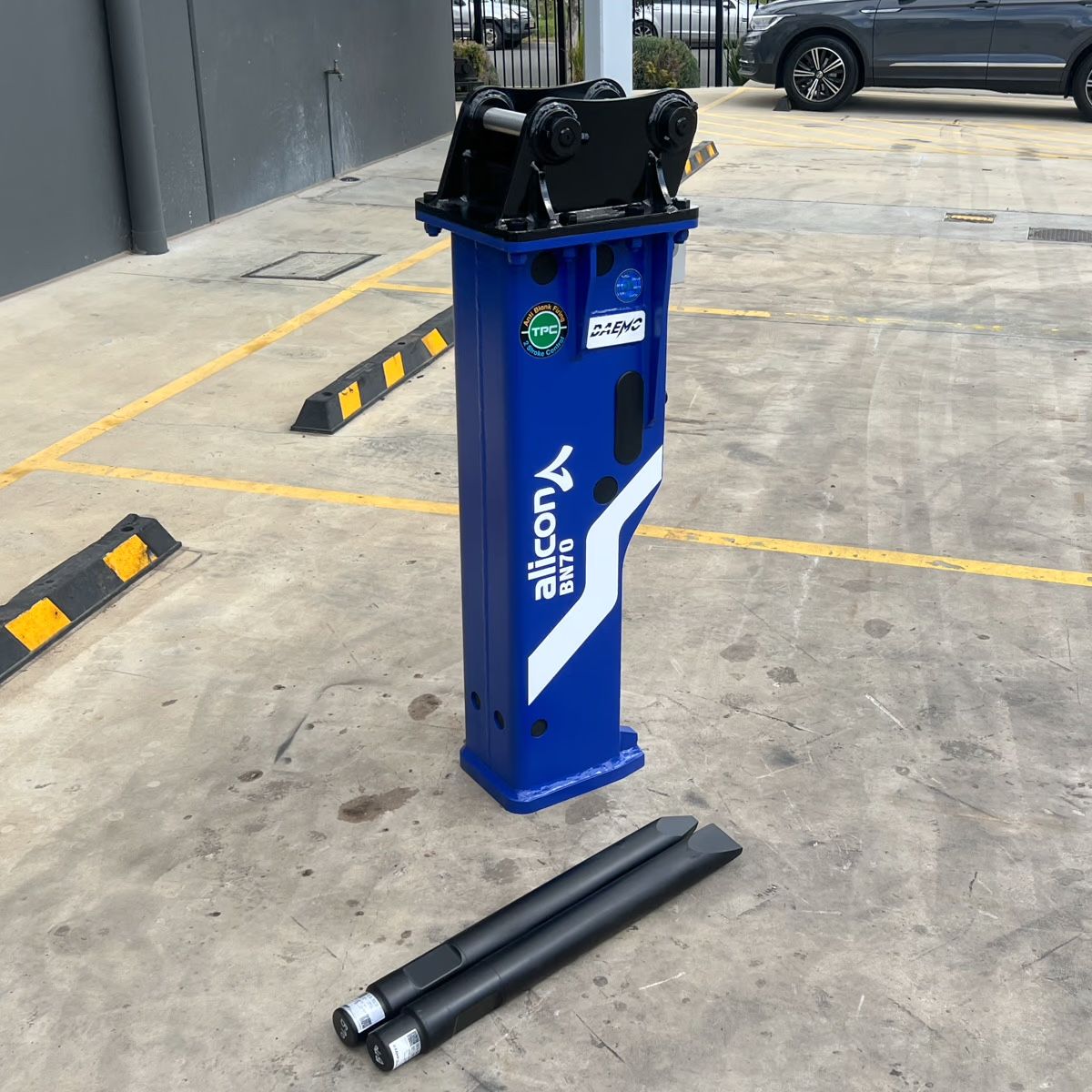

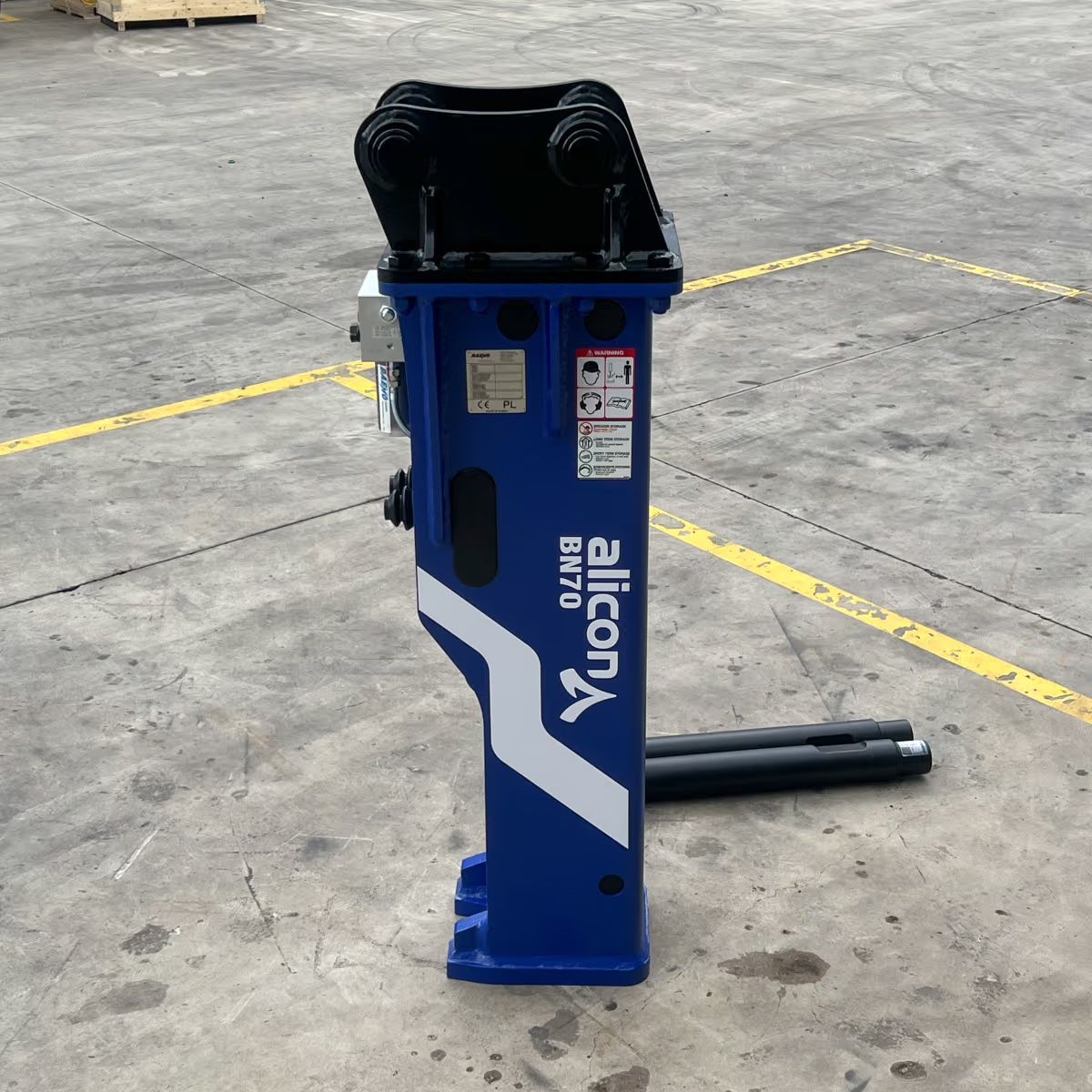

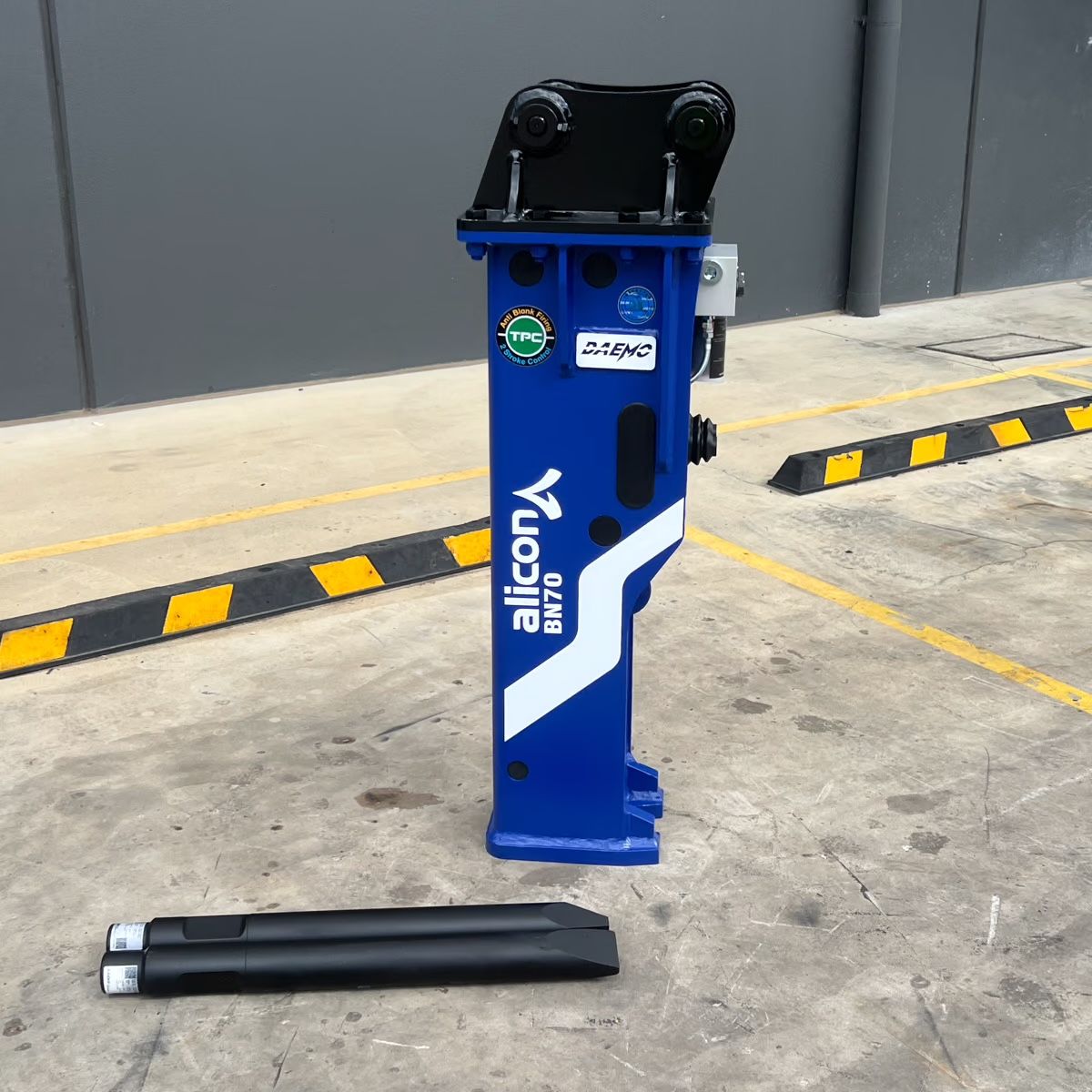

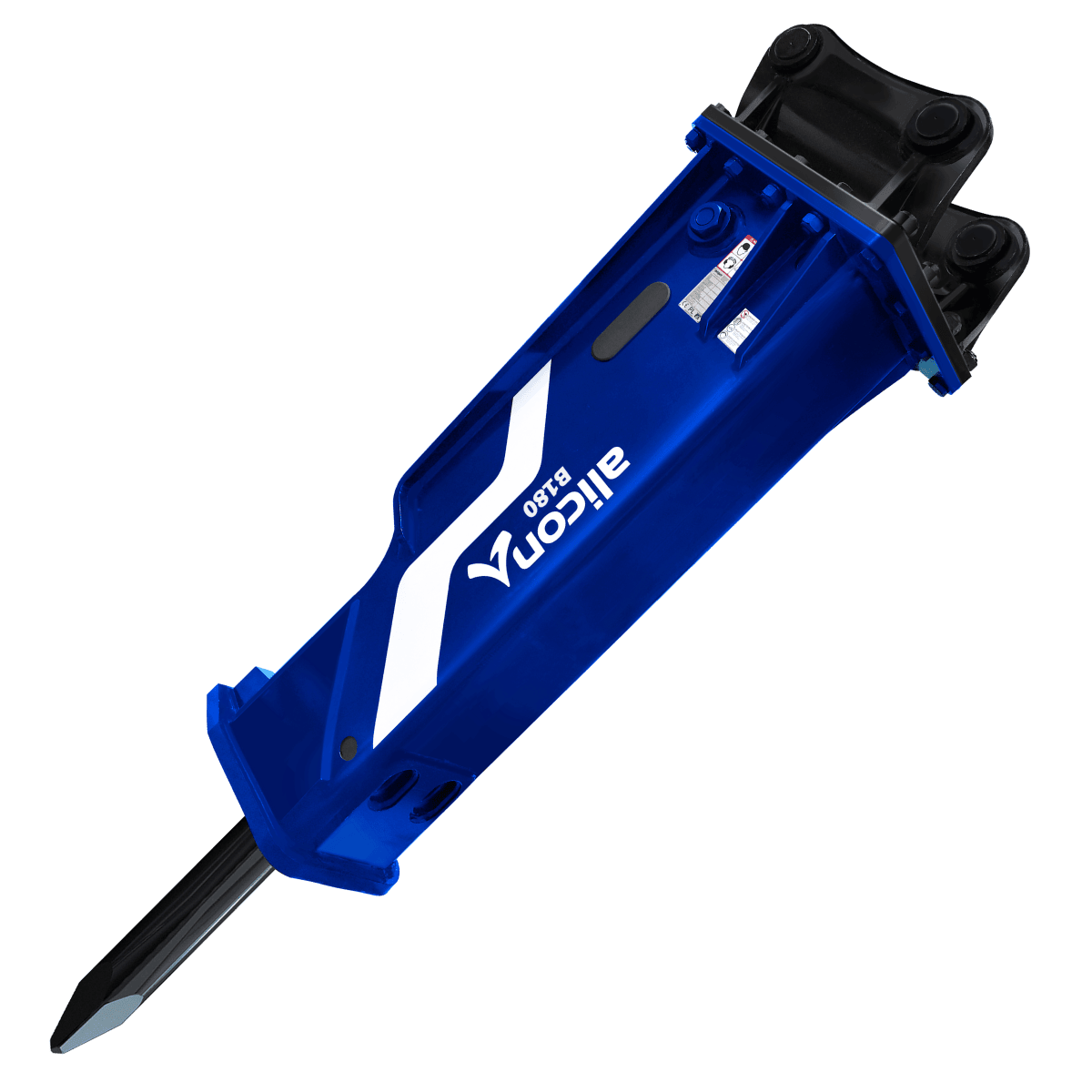

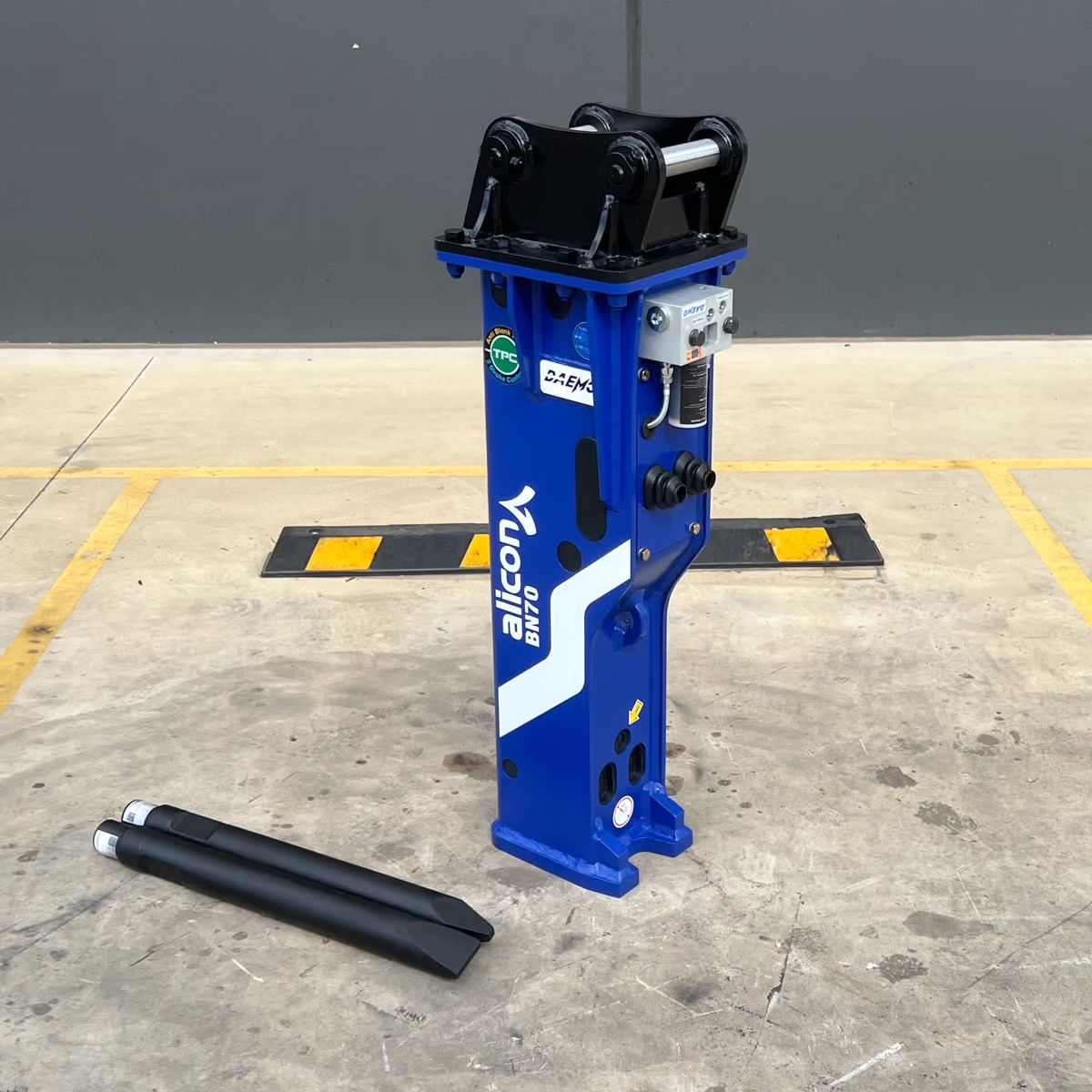

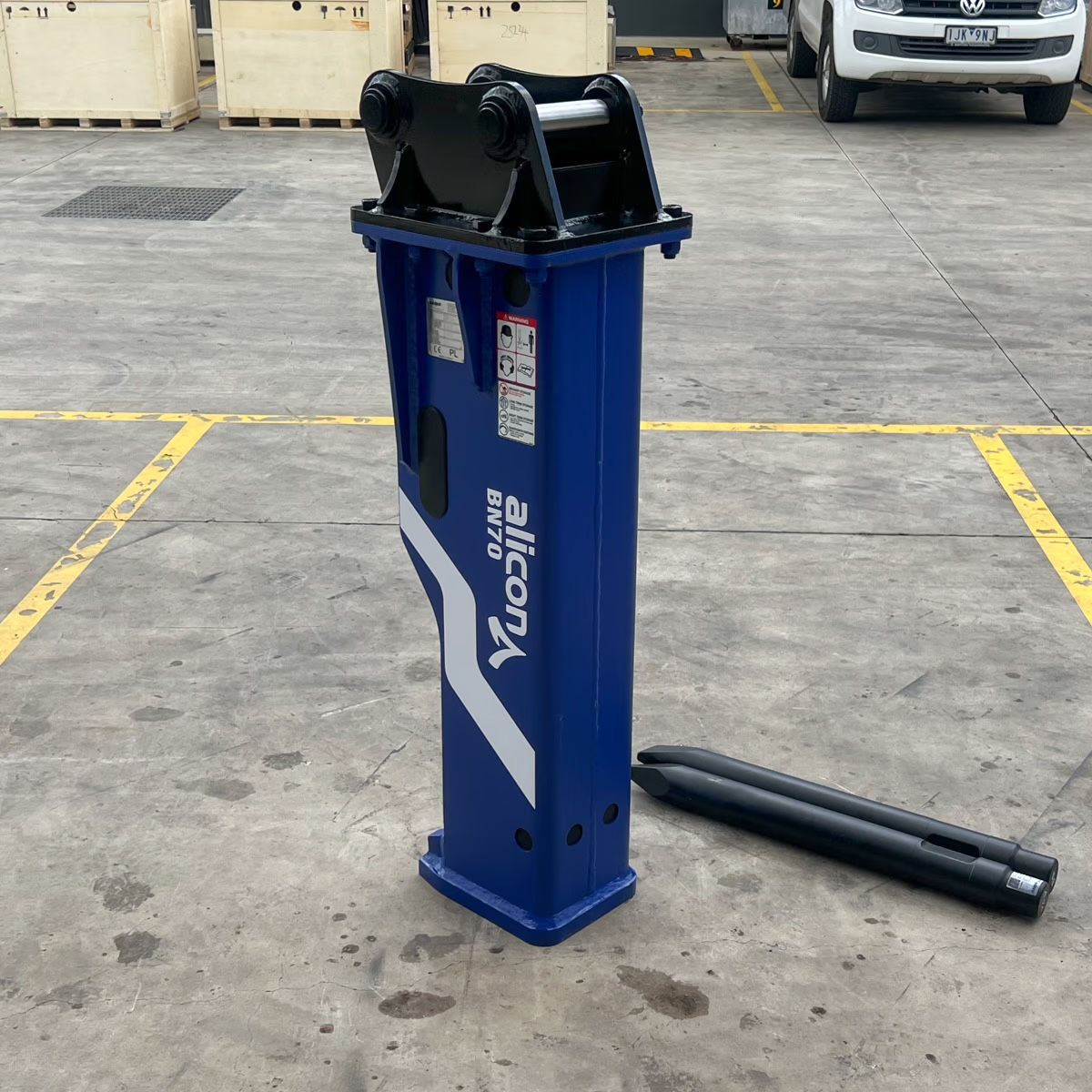

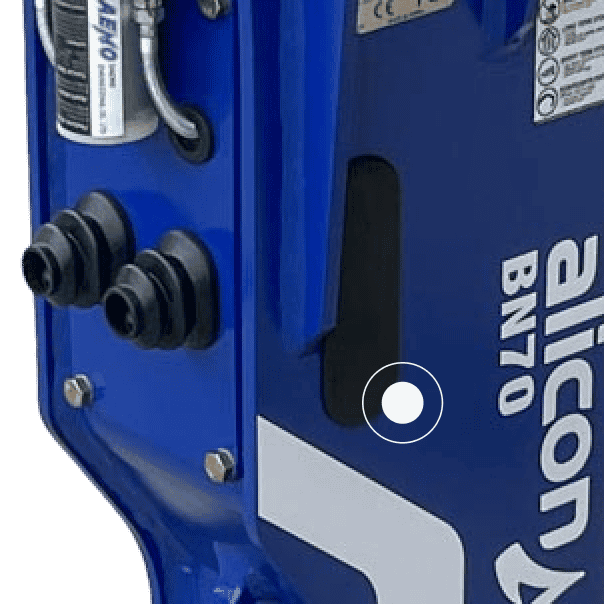

The BN and ALICON feature a hydraulically controlled system with two stroke settings:
• Long: Heavy impact force, slow impact rate
• Short: Light impact force, fast impact rate. The operator must exit the machine to manually adjust the stroke on the breaker.

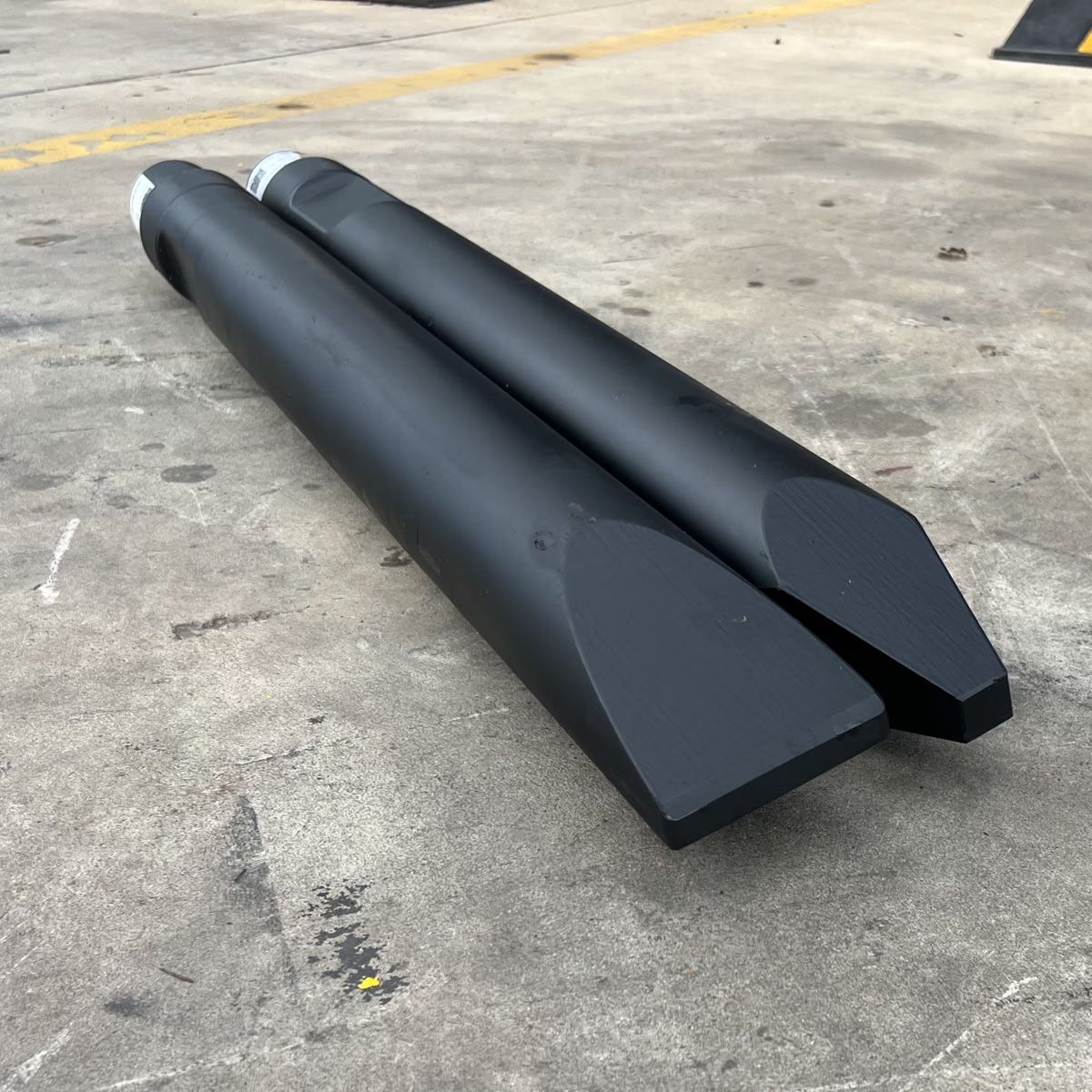

This system reduces damage to parts such as the chisel, chisel pin, t-bolt, and front head for stress-free operation.
Seven build sizes covering 18 tonne to 100 tonne machines. Weight, impact energy, overall length, chisel diameter, chisel working length and operating pressure are listed per build.
| Excavator size(T) | Weight(kg) | Impact energy(J) | Overall length(mm) | Chisel diameter(mm) | Chisel working length(mm) | Pressure | Flow rate(L/min) | Impact rate(BPM) |
|---|---|---|---|---|---|---|---|---|
| 18 – 25 | 1,780 | 4,792 | 2,877 | 140 | 706 | 130 – 180 kgf/cm² | 130 – 170 | 250 – 650 |
| 22 – 29 | 2,068 | 7,271 | 2,898 | 145 | 702 | 140 – 180 kgf/cm² | 150 – 210 | 250 – 650 |
| 25 – 30 | 2,700 | 8,041 | 3,195 | 150 | 750 | 150 – 180 kgf/cm² | 170 – 240 | 270 – 650 |
| 28 – 36 | 3,110 | 9,503 | 3,297 | 160 | 772 | 150 – 180 kgf/cm² | 190 – 260 | 260 – 650 |
| Excavator size(T) | Weight(kg) | Impact energy(J) | Overall length(mm) | Chisel diameter(mm) | Chisel working length(mm) | Pressure | Flow rate(L/min) | Impact rate(BPM) |
|---|---|---|---|---|---|---|---|---|
| 35 – 55 | 3,770 | 11,803 | 3,505 | 175 | 805 | 150 – 180 kgf/cm² | 220 – 280 | 250 – 600 |
| 55 – 75 | 4,500 | 15,063 | 3,740 | 180 | 818 | 150 – 180 kgf/cm² | 250 – 330 | 220 – 550 |
| 75 – 100 | 6,240 | 19,168 | 4,155 | 200 | 930 | 150 – 180 kgf/cm² | 300 – 400 | 200 – 480 |
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
