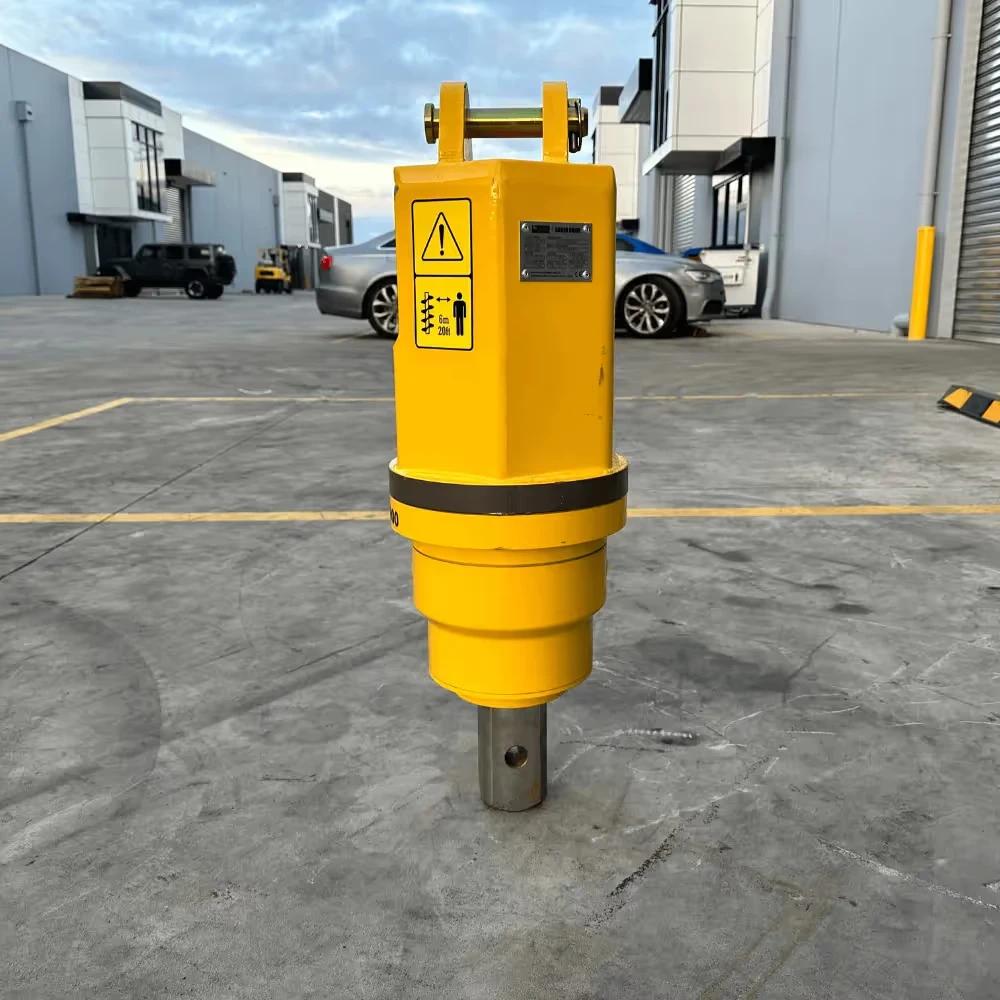

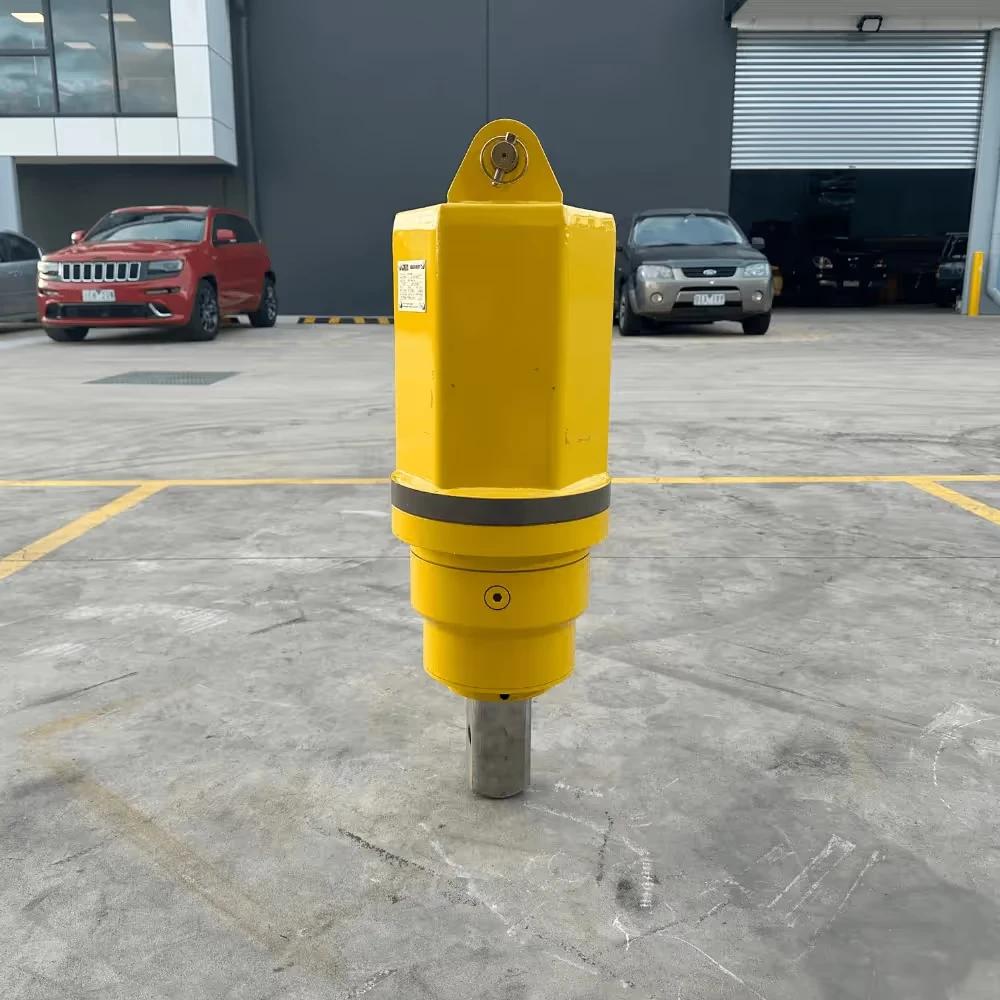

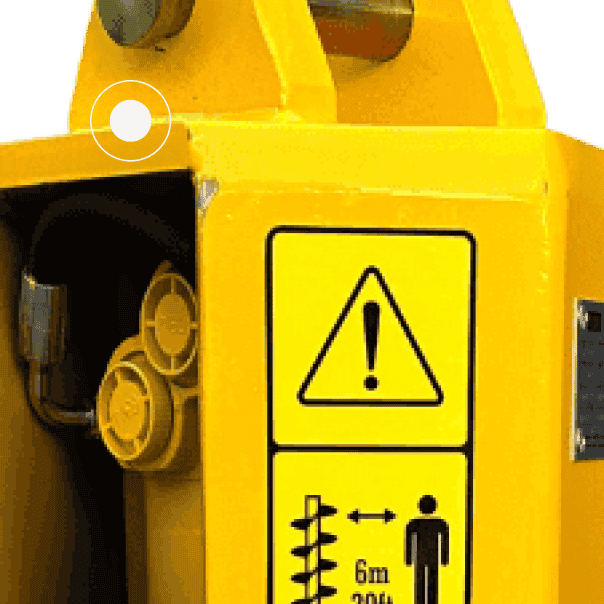

Helix housing design
The hexagonal helix housing gives the drive its torsional rigidity, so it resists flex and distortion when boring through layered ground and rock. A stiffer housing is a longer-lived gearbox.
Auger Series
Available for 0.5 – 45T
Drive, auger and hitch supplied as one kit.
Starting from
$1,675
Or with AB 0% Finance from $14/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

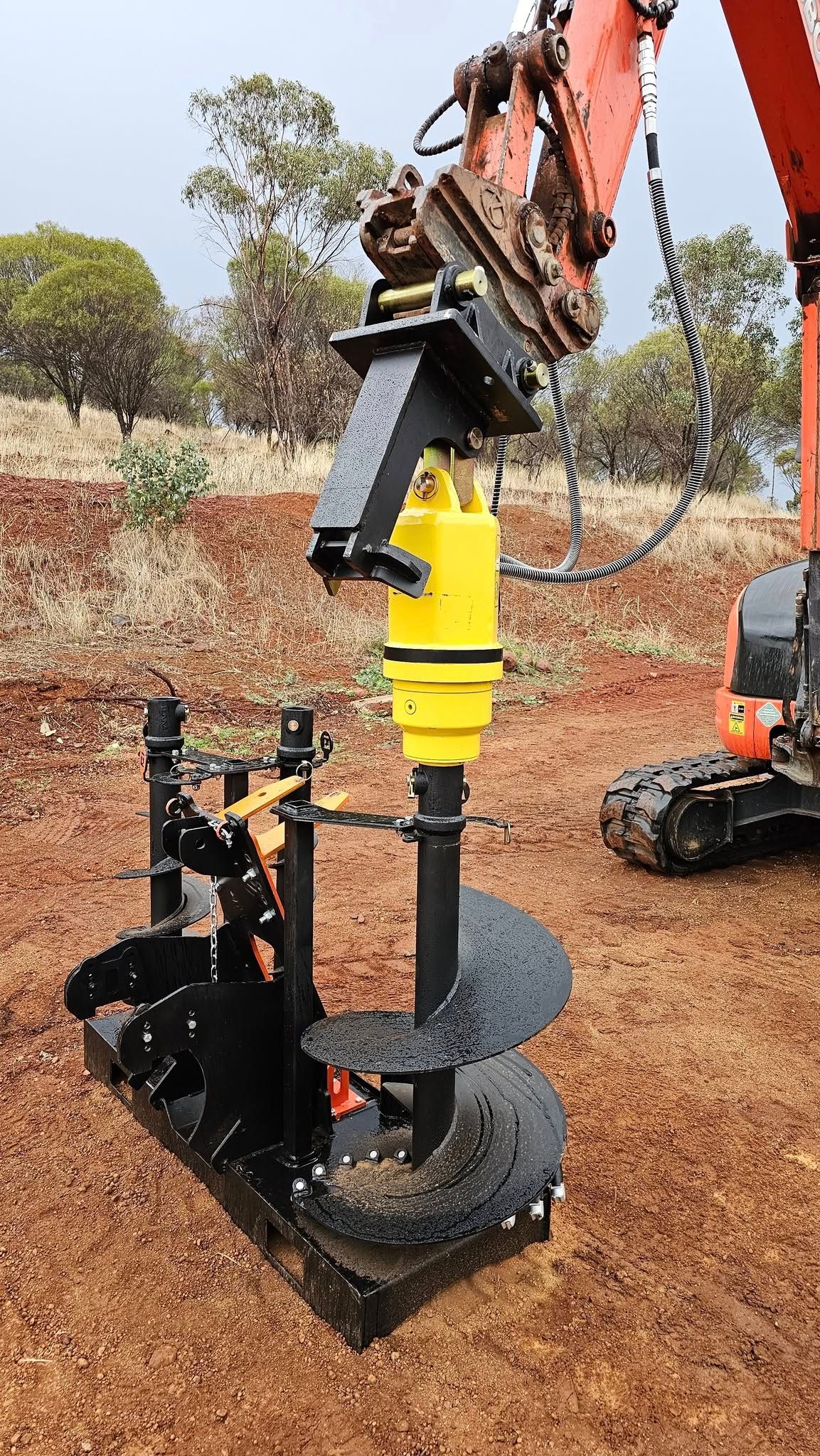

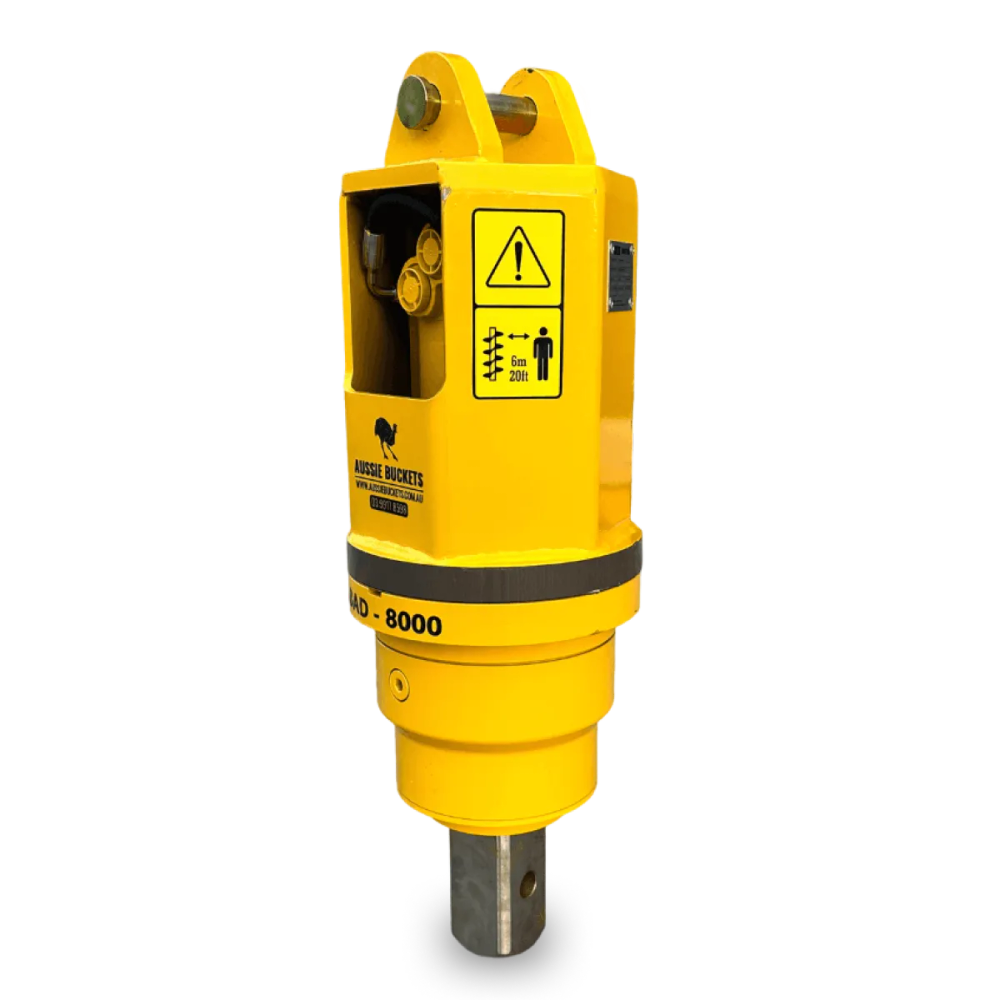

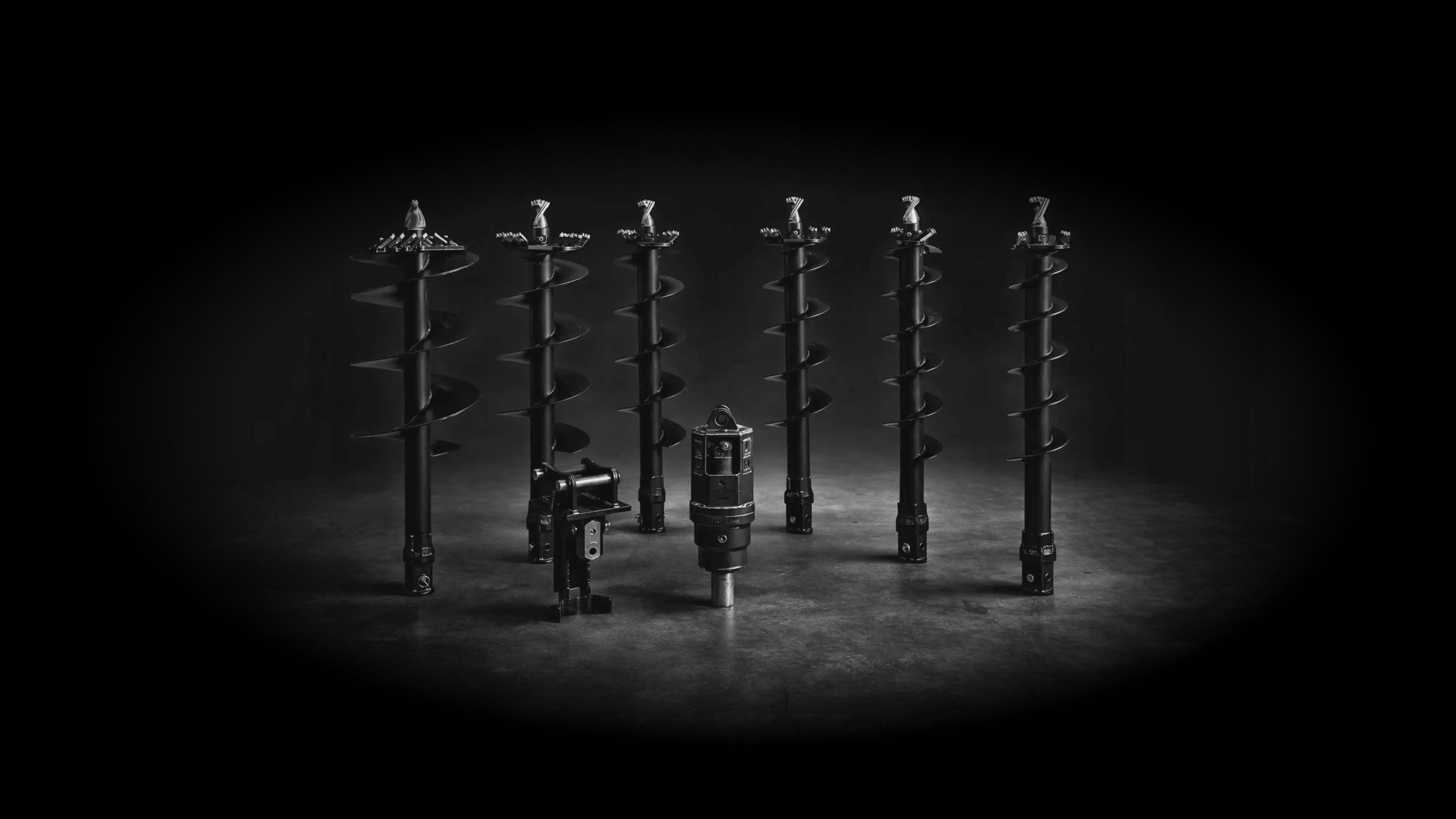

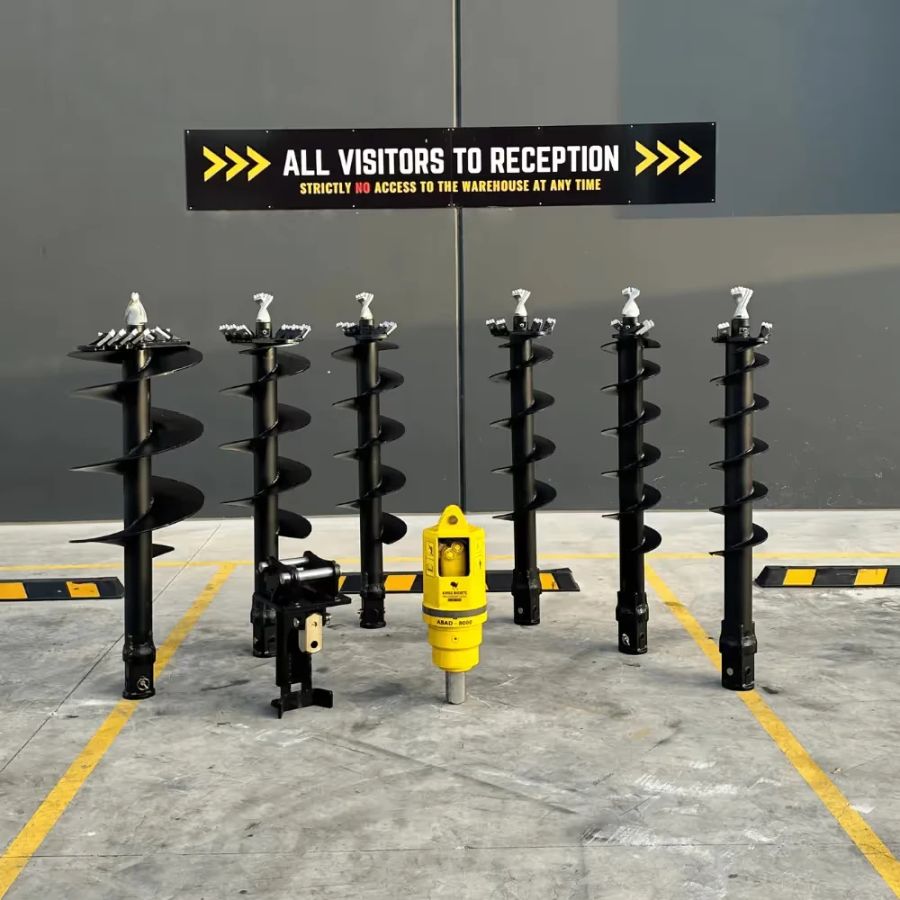

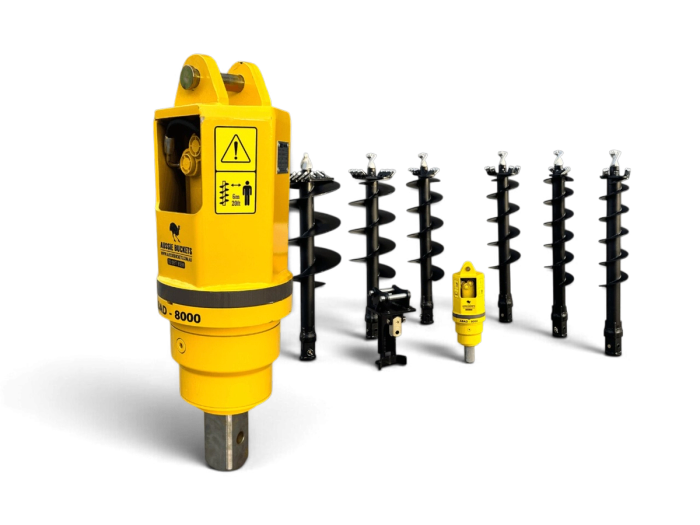

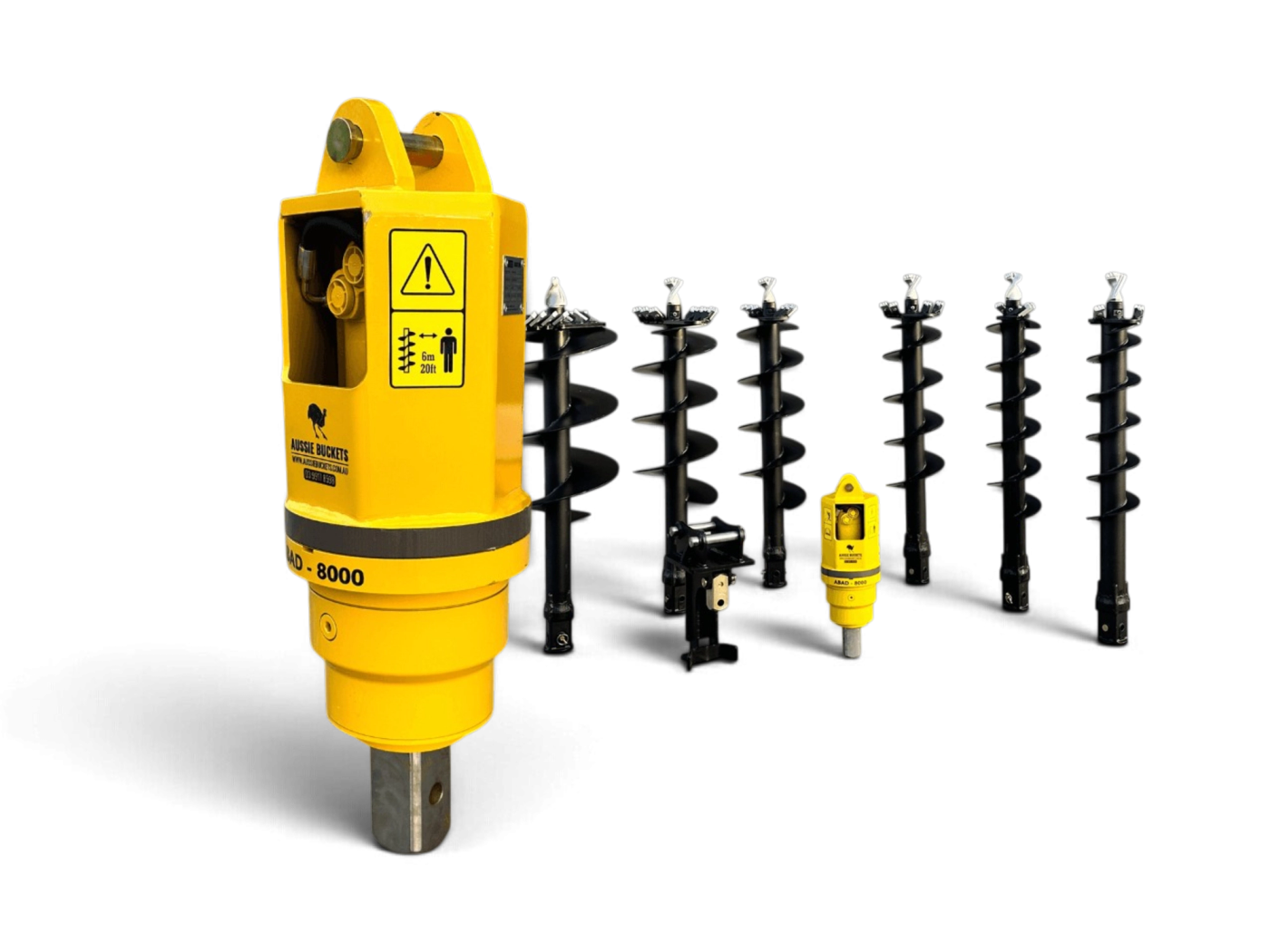

An excavator auger attachment for 0.5–45 tonne machines, supplied as a complete kit with the auger drive, auger and hitch. Earth, combination and rock augers are available to match the ground you are drilling.
Gallery
1 video · 21 photos

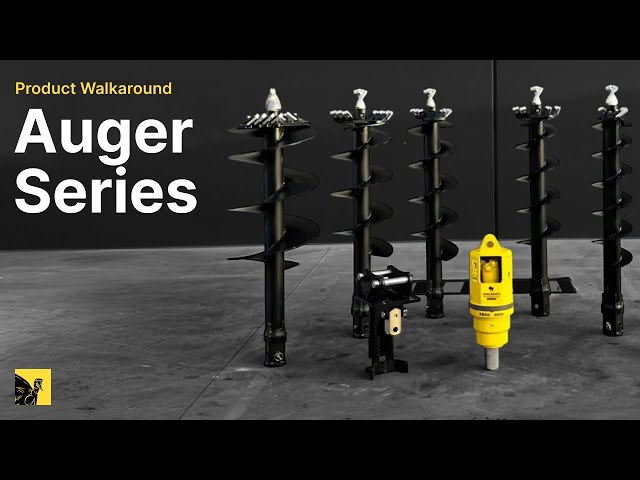

Videos
01

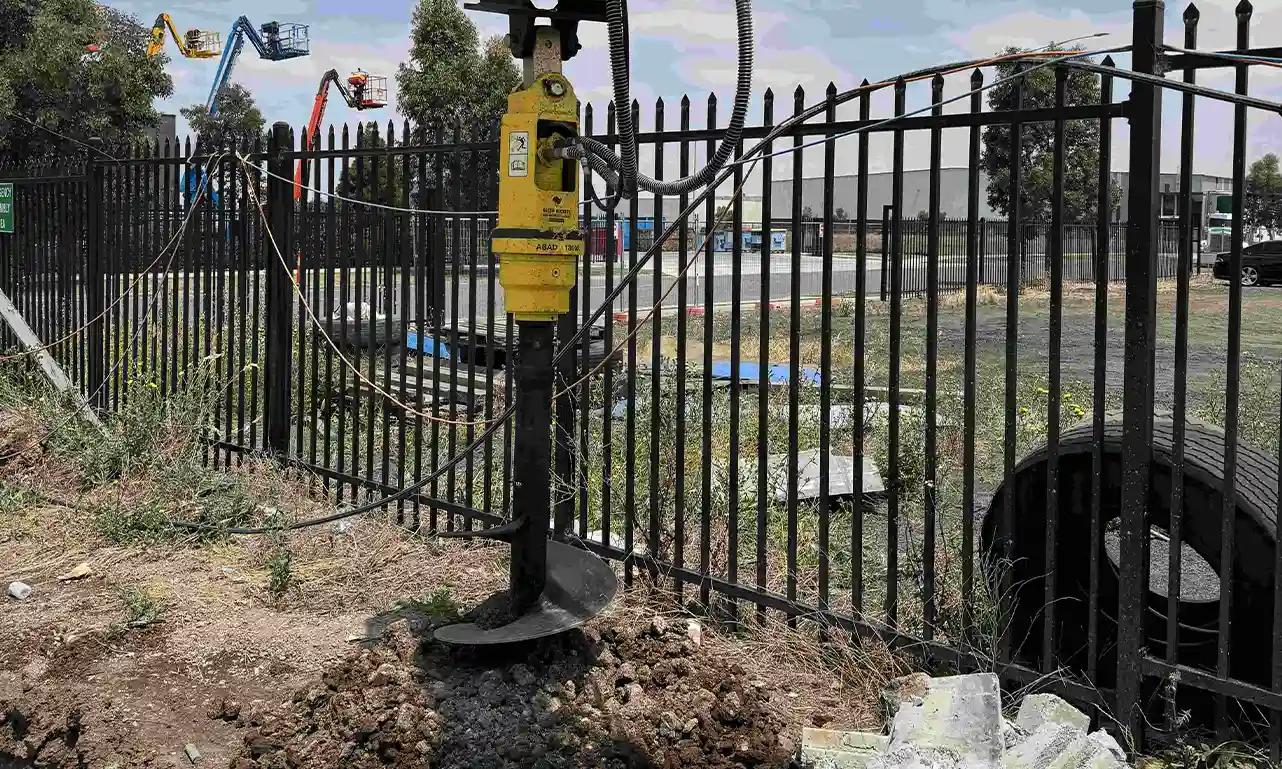

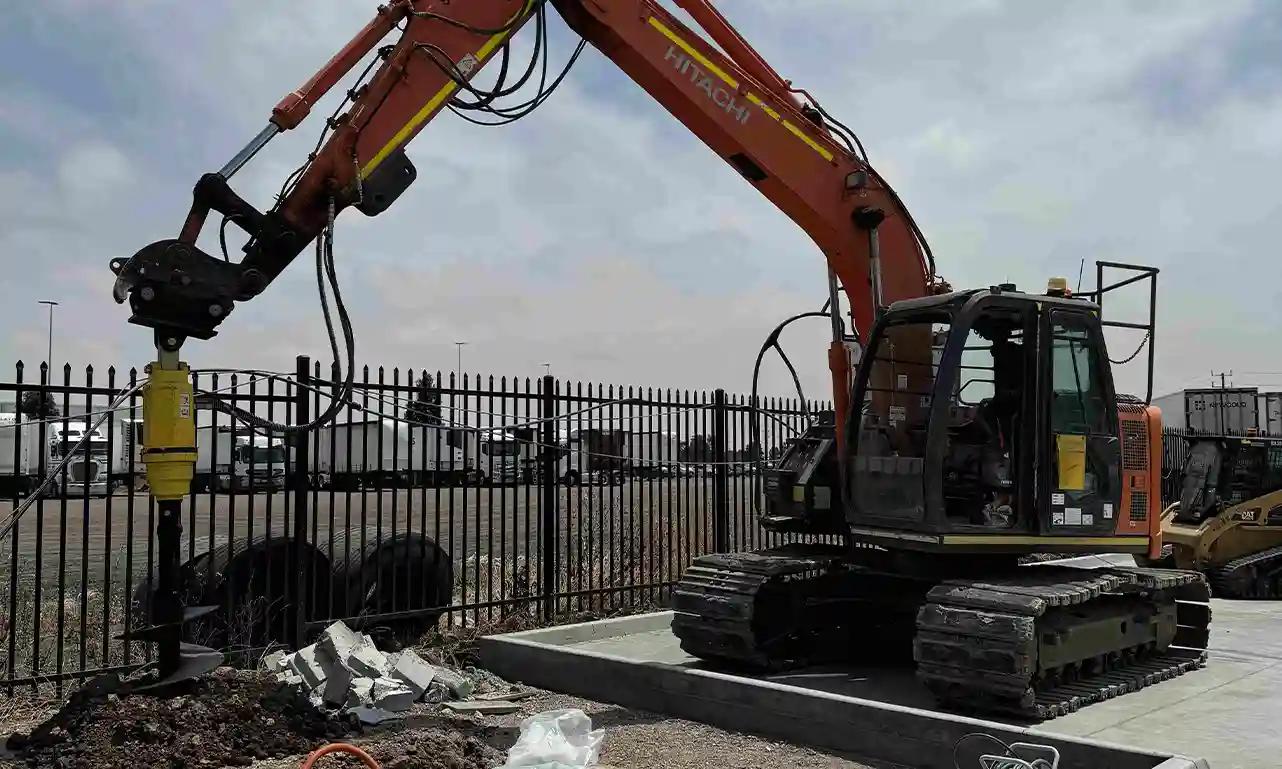

In action
11
Product
10
The difference
EveryEveryAussieAussieBucketsBucketsexcavatorexcavatoraugeraugerisispurpose-builtpurpose-builtforforthethemachinemachineyouyourunrunandandprecision-engineeredprecision-engineeredforforthethegroundgroundyou'reyou'reboring:boring:soil,soil,clay,clay,shale,shale,sandstonesandstoneandandhardhardrock,rock,eacheachwithwithitsitsownownauger.auger.AvailableAvailableforfor0.5–45T0.5–45Tmachinesmachinesacrossacrossfourfourdrivedriveclasses,classes,ononananepicyclicepicyclicplanetaryplanetarygearboxgearboxwithwithcasecasedrainsdrainsfittedfittedasasstandard.standard.
WhatWhatdistinguishesdistinguishesourourAugerAugerSeriesSeriesisisitsitshelixhelixhousinghousingdesign,design,epicyclicepicyclicplanetaryplanetarygearboxgearboxandandthethefactfactthatthatdrive,drive,augeraugerandandhitchhitcharearesuppliedsuppliedtogethertogetherasasoneonecompletecompletekit.kit.ComparedComparedtotootherotheraugeraugerdrivesdrivesononthethemarket,market,theretherearearenonothreethreeseparatelyseparatelysourcedsourcedpartspartstotomakemakeagreeagreewithwitheacheachotherotherbeforebeforethethefirstfirstholeholeisisbored.bored.
AllAllAugerAugerSeriesSeriesdrivesdrivesareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for footings, piers, fence lines and tree planting, this excavator auger attachment post hole digger pairs an EN-series gear steel drive with earth, combination and rock augers, so the flight, the torque and the machine agree from the first hole.
Features

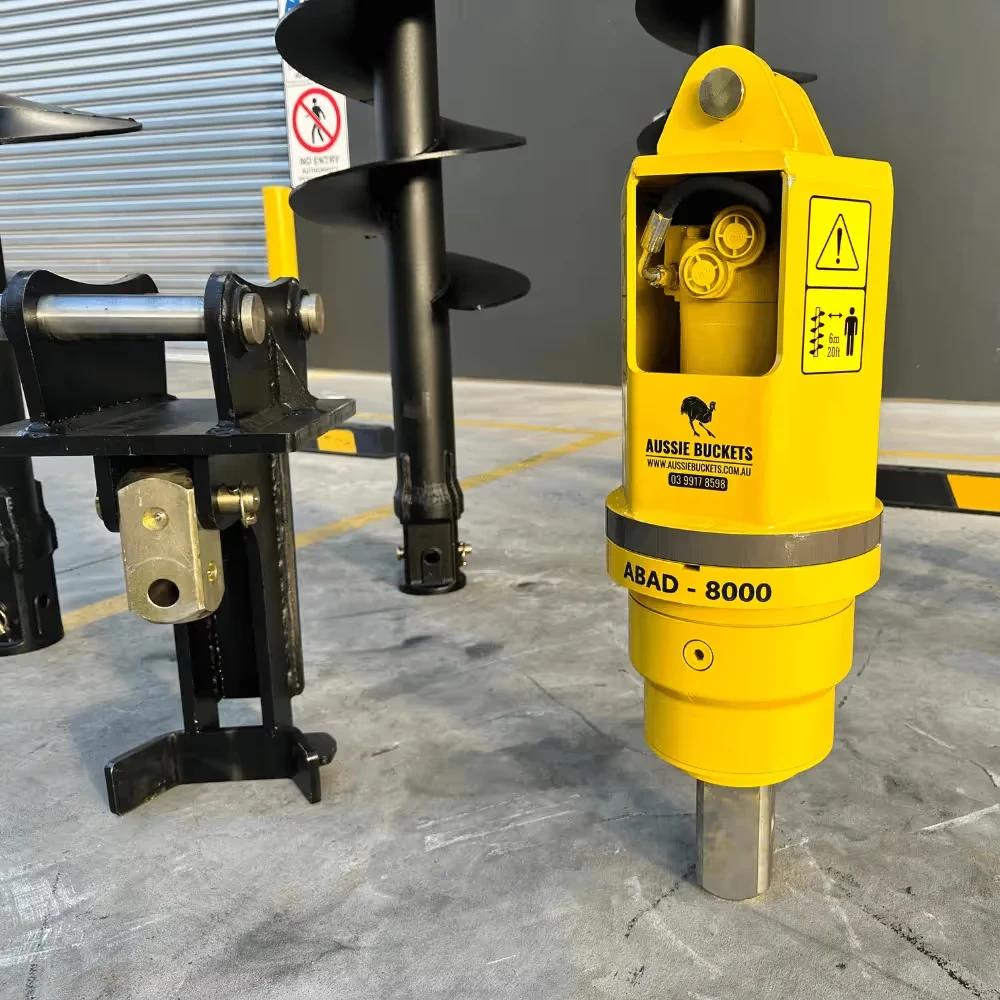

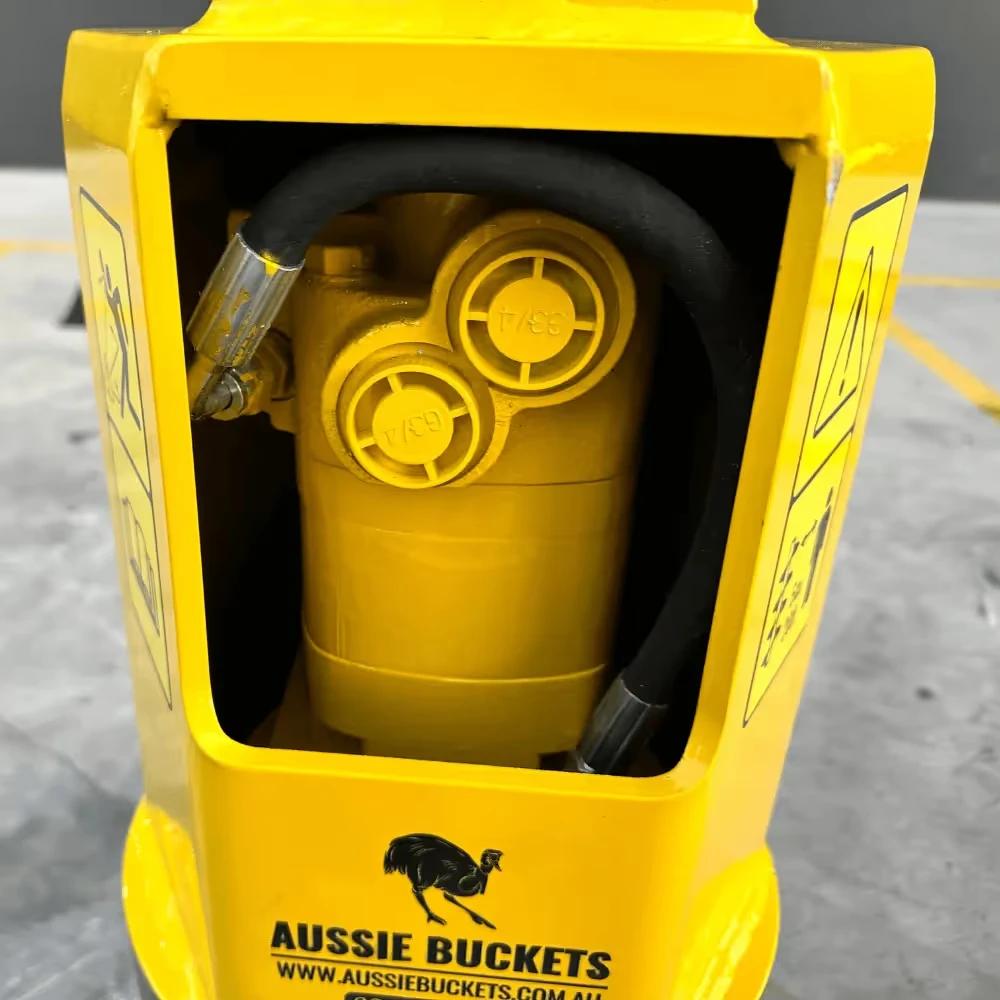

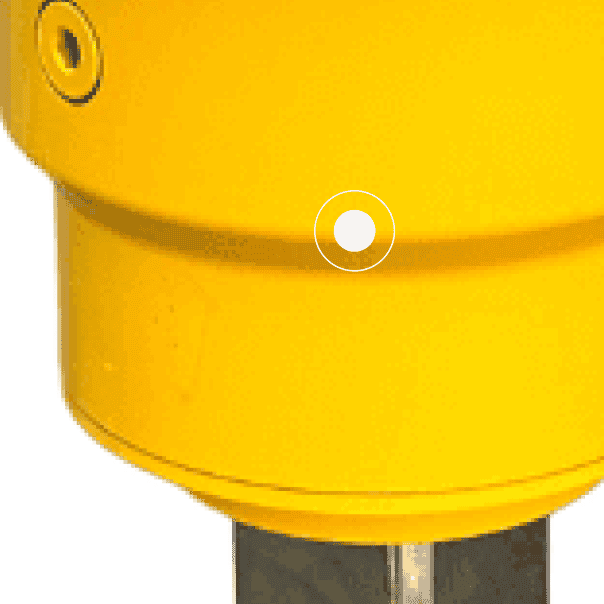

Epicyclic planetary gearbox
Multiple planetary gears rotate around a central sun gear, spreading the load across more contact points. More torque reaches the auger, and the gearbox runs cooler for it.

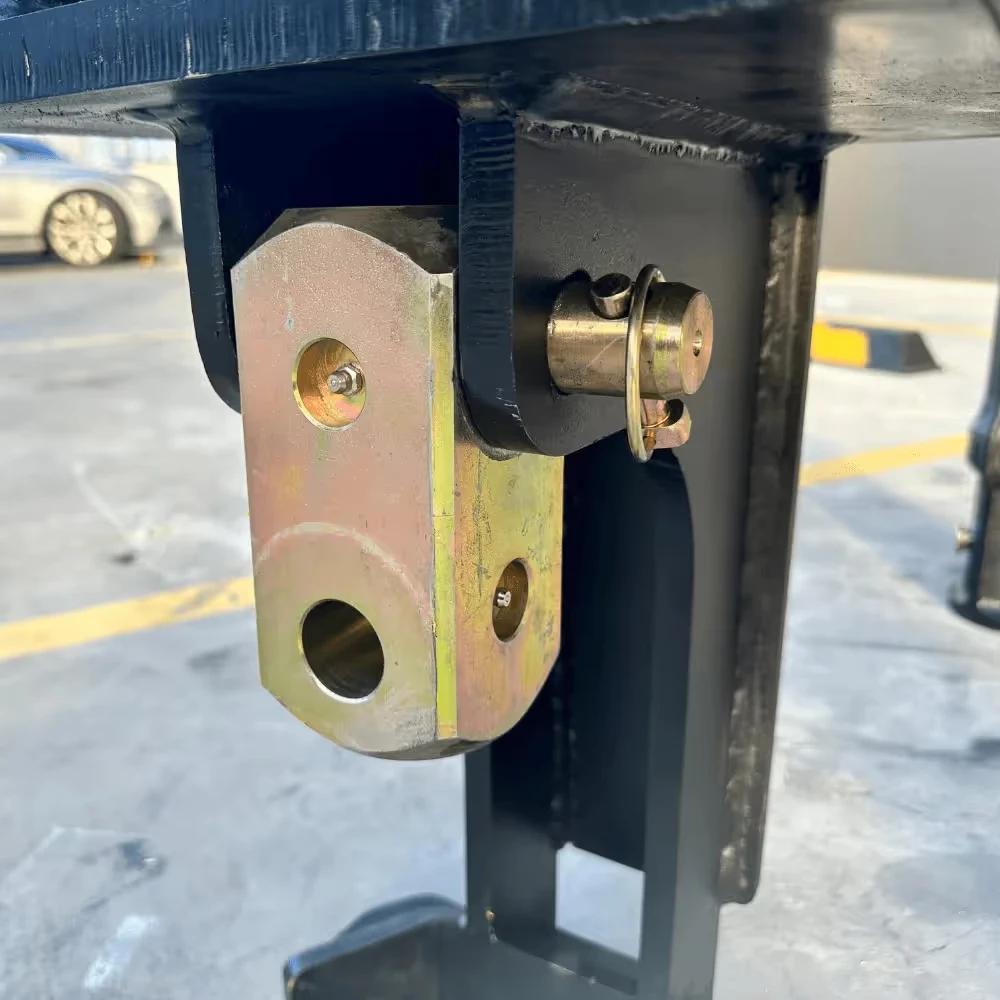

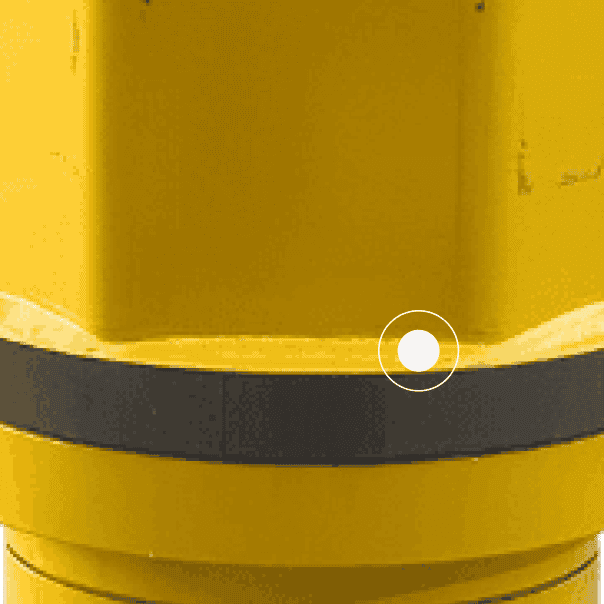

Versatile excavator hitch
The supplied hitch is matched to your machine's pin and hitch sizes, so the drive fits first time and moves easily on and off between drilling jobs and transport.

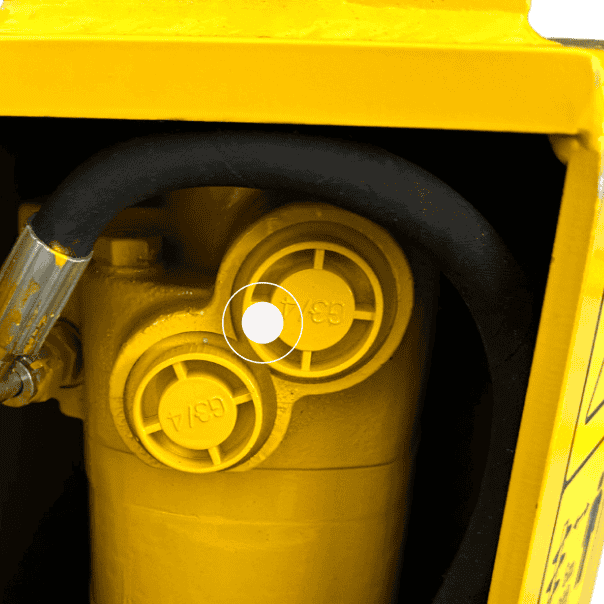

Complete kit
Drive, auger, hitch, hoses and couplers arrive as one matched kit specified against your machine and your ground. Nothing to source separately before the first hole is bored.
Technical Breakdown
Four drive classes covering 0.5 tonne to 45 tonne machines. Max torque output, auger diameter range, rated power and recommended flow and pressure are listed per class.
| Excavator size(T) | Max torque output(N·m) | Auger diameter range(mm) | Max power(kW) | Rated power (70%)(kW) | Recommended flow rate(L/min) | Recommended pressure(bar) | Machine relief pressure(bar) | Rotation speed(RPM) | Weight(kg) | Length(mm) | Hub size | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 – 1.8 | 1,000 | 150 – 300 | 13 | 9.1 | 20 – 40 | 150 – 170 | 190 | 70 | 35 | 550 | 65mm Round | G1/G2/G3 |
| 0.5 – 2.5 | 1,900 | 150 – 400 | 19 | 13.3 | 27 – 75 | 70 – 240 | 225 | 0 – 131 | 41 | 606 | 65mm Round | G1/G2/G3 |
| 2 – 4 | 3,000 | 150 – 600 | 23 | 16.1 | 27 – 75 | 70 – 240 | 225 | 0 – 105 | 41 | 606 | 65mm Round | G1/G2/G3 |
| 3.5 – 6 | 5,000 | 150 – 800 | 27 | 18.9 | 50 – 95 | 80 – 240 | 190 | 0 – 80 | 66 | 687 | 65mm Round | G2/G3 |
| Excavator size(T) | Max torque output(N·m) | Auger diameter range(mm) | Max power(kW) | Rated power (70%)(kW) | Recommended flow rate(L/min) | Recommended pressure(bar) | Machine relief pressure(bar) | Rotation speed(RPM) | Weight(kg) | Length(mm) | Hub size | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5 – 8 | 8,000 | 150 – 1,000 | 38 | 26.6 | 60 – 135 | 80 – 260 | 190 | 0 – 63 | 124 | 808 | 75mm Square | G4 |
| 5 – 10 | 10,000 | 150 – 1,000 | 45 | 31.5 | 60 – 135 | 80 – 260 | 260 | 0 – 63 | 131 | 808 | 75mm Square | G4 |
| 10 – 15 | 18,000 | 150 – 1,200 | 50 | 35 | 80 – 170 | 80 – 240 | 260 | 20 – 42 | 165 | 937 | 75mm Square | G4 |
| 15 – 25 | 30,000 | 150 – 1,600 | 54 | 37.8 | 80 – 170 | 160 – 260 | 260 | 0 – 20 | 240 | 1,158 | 75mm Square | G4 |
| Excavator size | Max torque output(N·m) | Auger diameter range(mm) | Max power(kW) | Rated power (70%)(kW) | Recommended flow rate(L/min) | Recommended pressure(bar) | Machine relief pressure(bar) | Rotation speed(RPM) | Weight(kg) | Length(mm) | Hub size | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 – 45 T | 50,000 | 300 – 1,800 | 95 | 66.5 | 100 – 300 | 220 – 350 | 300 | 0 – 33 | 490 | 1,354 | 110mm Square | G5 |
| 26 – 45 T | 80,000 | 300 – 2,000 | 117 | 81.9 | 200 – 400 | 220 – 350 | 300 | 0 – 23 | 895 | 1,572 | 110mm Square | G5 |
| 32 – 52 T · G6 | 111,800 | 450 – 2,000 | 114 | 79.8 | 200 – 300 | 180 – 260 | 350 | 0 – 10 | 1,050 | 1,500 | 160mm Square | G6 |
| 32 – 52 T · G6 High | 130,000 | 450 – 2,000 | 133 | 93.1 | 240 – 320 | 180 – 250 | 350 | 0 – 10 | 1,250 | 1,600 | 160mm Square | G6 |
| 32 – 52 T · G7 | 180,000 | 450 – 2,000 | 155 | 108.5 | 300 – 420 | 180 – 240 | 350 | 0 – 9 | 1,450 | 1,600 | 160mm Square | G7 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
What they say about our gear
See all reviews on GoogleAuger & Drive
Purchased a new Auger and drive with Aussie Buckets. The whole process including checking my dimensions I provided were correct was very easy, even for a backyard excavator operator. Now making tree planting and farm fencing a breeze.
Tilt Hitch & Auger Drive Package
Have bought a tilt hitch and now an auger drive package through the team, can't fault them at all, from Hayden in sales to the whole team. Will definitely be purchasing my equipment through Aussie buckets in the future
Hydraulic Grab & Auger
Great company to deal with. Excellent quality hydraulic grab attachment. The company was so nice to deal with I placed another order for a different attachment. Also kept me updated on my order from start to finish. Received my new auger and it is an amazing piece of kit coupled with a 350mm auger and I got the 1m extension also. Had a bit of time to test everything out and the grab is great for moving posts rocks and anything else to save my back. The auger has plenty of torque and because I'm in a bit of rocky ground I got the combination auger and it's busting through it quite well. Still very happy with my order and Aussie Buckets support and after sale check in just to see how everything is going.
Rock Breaker & Mud Sieve Buckets
After receiving our first order which had a rock breaker and some mud sieve buckets we knew we'd come back for more, just placed the 3rd order, great service and advice from the sales team, the quality and finish of the attachments are better than I can get locally and a better price.
Rock Breaker
Good service answered any questions i had about matching the new rockbreaker to my machinery. And does the job intend for. Prompt delivery and hassle free. Definitely recommend Aussie Buckets.
Mechanical Grab
We bought a mechanical grab for 20T excavator. Good communication during the whole process via email or phone. Good quality product which we haven't had a problem with at all. They also offered to help install when we picked up but was not required. All departments from order to pickup were very helpful.
Rock Bucket with Ripper Tooth
Great rock bucket. Very effective for separating large rocks out of fill material. The ripper tooth is solid and well fabricated. I am very satisfied with my purchase after several weeks of use.
Ripper & Rake
Recently bought a ripper and a rake for a 8ton digger, both great quality attachments. The guys at Aussie buckets are very easy to deal with, straight forward for ordering and purchasing. The rake is great for any job in grass or vegetation, even when mixed with rocks or rubbish.
Grab Bucket
Purchased a grab bucket through Aussie Buckets. Andrew and the team were super helpful and very thorough with all the measurements, information and communication. Bucket arrived today and have easily attached and straight into work. Super happy and will purchase more attachments with Aussie Buckets again.
Hydraulic Grab
Recently purchased a hydraulic grab for my mini excavator, great piece of equipment, great quality and pricing also customer service was fantastic. Easy partial assembly required, great bit of kit.
Hydraulic Grab
The hydraulic grab is better than any Christmas pressi. I use it on my farm dealing with trees and firewood. Also pipe laying. Try lifting 450 dia 12m long HDPE pipe and the grab fits perfect. OK the little Kubota knows it got a big fish on the hook but I can do what I can't do otherwise. Great choice - by me, great product thanks to you.
Rotating Grab
Great product, great service, Nick made the process very easy. The rotating grab has been an awesome addition for our scrap metal yard. Cheers from YP Recycling
5 Finger Grab
Great team at Aussie Buckets. Very helpful and thorough in getting the correct dimensions. Regular updates on manufacture progress. And the 5 Finger Grab fitted perfectly and wow how powerful and useful. Tripled the use of my little 1.6 Takeuchi.
Hydraulic Grab
Huge thanks to Hayden and the whole team at Aussie Buckets!! Great price and really fantastic service. I purchased a hydraulic grab for my 305CR, great communication from the team throughout the order and delivery process and the attachment went straight onto the machine effortlessly and is very well built! I have already ordered a ripper and will be saving up for a stick rake next!!
Hydraulic Grab
We bought a hydraulic grab for our 5t excavator from Aussie Buckets and couldn't be happier. The square edged jaws help with gripping material while filtering out the dirt. So far, our customers have loved using it
Heavy Duty Stick Rake
I recently took delivery of the 1200mm wide heavy duty stick rake from Aussie Buckets. I was very impressed with the price I received and the staff kept me up to date during the procurement process. I love the design and the quality. I would very much recommend this product and I will look to source some more attachments through them in the future!
Hydraulic Grab
We purchased the hydraulic grab for our Kubota 1.7T for the purpose of moving rocks and logs which it does with ease. Exceptional design and construction I would highly recommend Aussie Buckets.
Rock Hammer
Needed a new rock hammer. Aussie Buckets delivered a quality product that is exactly what I required. Definitely would recommend
Frequently asked questions
What is an excavator auger attachment? An excavator auger attachment is a hydraulic drive that spins an auger to bore holes for footings, piers, fence posts and tree planting. It is also called an auger drive or post hole digger. The drive supplies torque, the auger cuts, and Aussie Buckets supplies both with the hitch as one matched kit.
What size auger drive fits a 1.7 tonne excavator? The 0.5 to 1.8 tonne drive class suits a 1.7 tonne excavator. Max torque output, auger diameter range and recommended flow and pressure are listed per class. Send your auxiliary flow figures and your machine make and model, and we will confirm the match before the build.

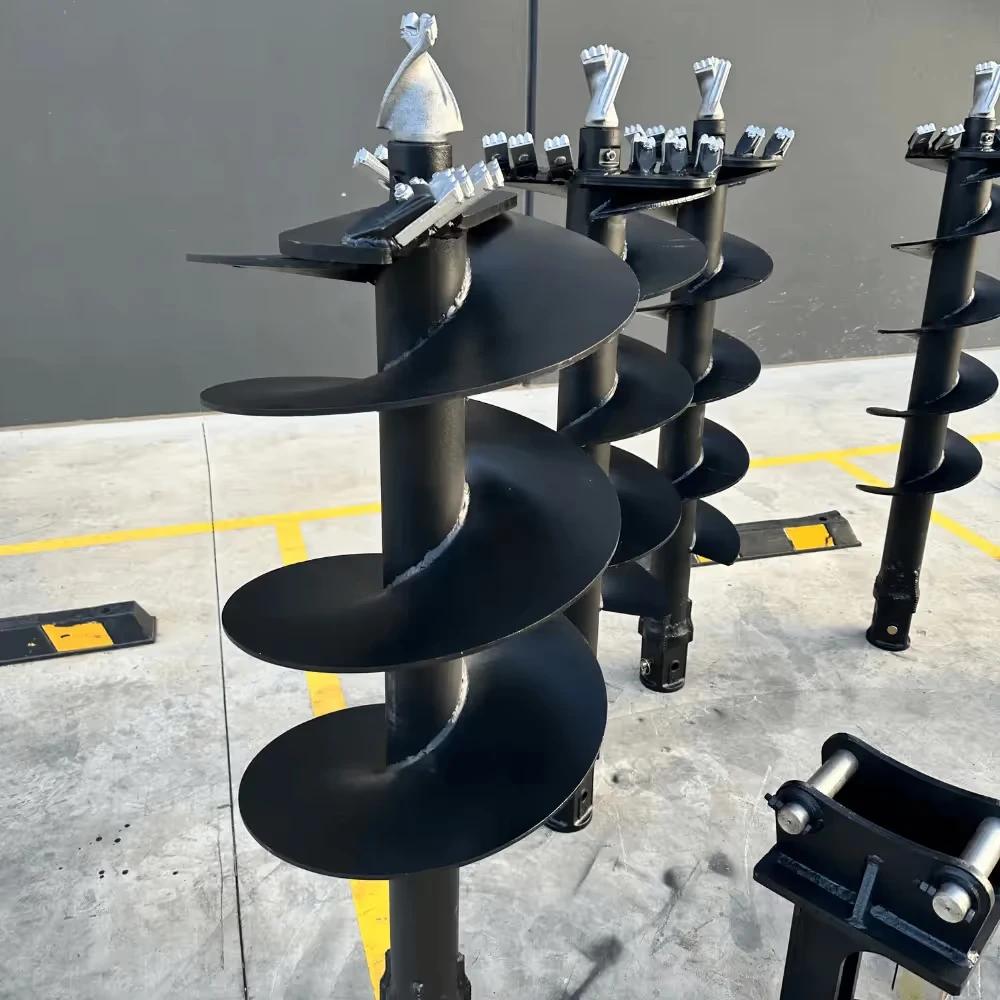

What auger diameters are available? Auger diameter range is listed per drive class, from 150 mm on the smallest drives to 2,000 mm on the largest, and the auger is matched to the drive rather than sold as a loose part. Tell us the hole diameter and depth you need and we will specify the auger with the drive.

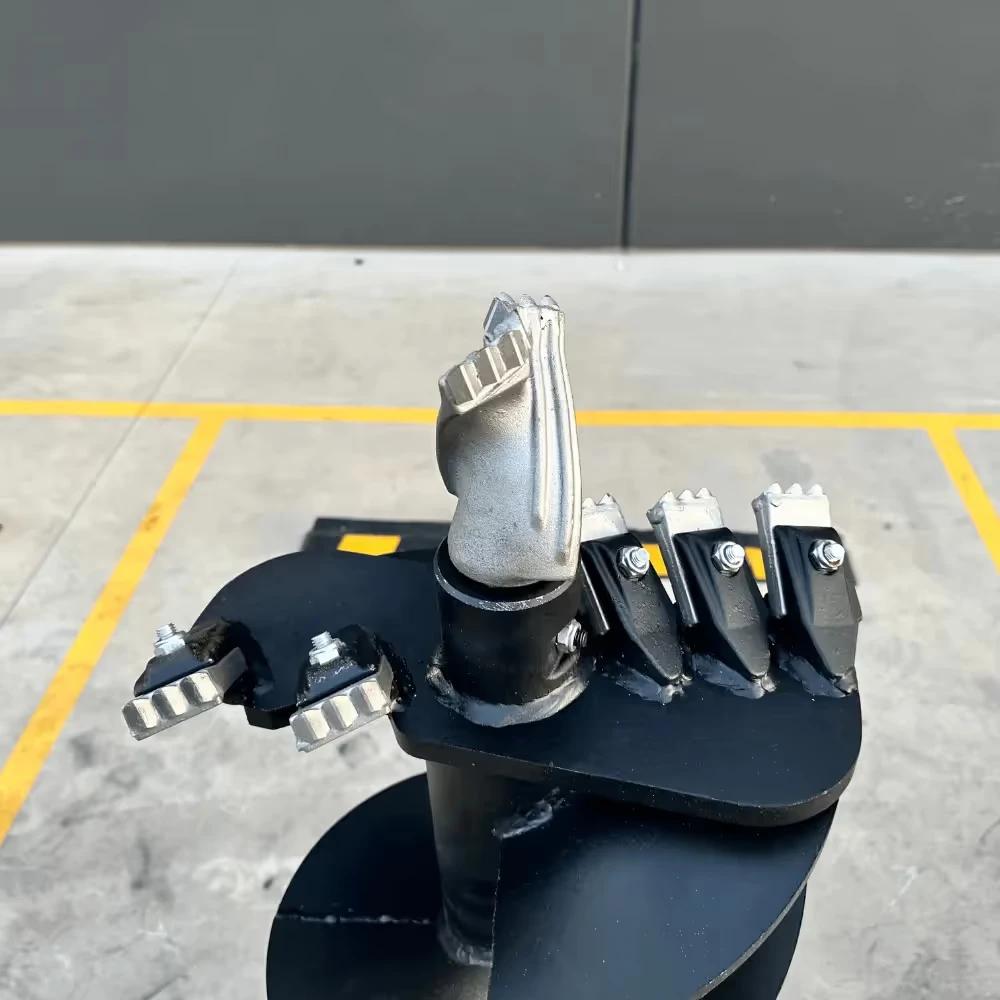

What is the difference between an earth, combination and rock auger? Earth augers suit soil and clay. Combination augers add carbide inserts for mixed ground with rubble or shale. Rock augers carry full carbide teeth for sandstone and hard rock. The right choice depends on what you are drilling, so talk to a specialist about the ground before specifying.
What hydraulic flow does an excavator auger need? Recommended flow rate and pressure are listed for each drive class. Running below the recommended flow costs torque and slows the hole; running above it heats the motor. Match the drive to the circuit, not to machine weight alone, and send your auxiliary figures with your enquiry.

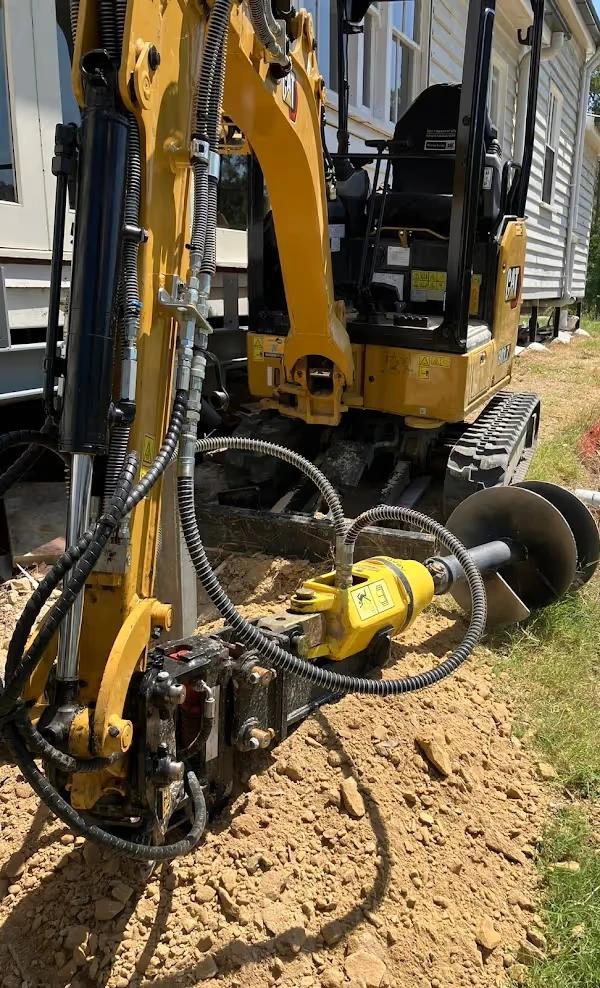

Can you fit an auger to a mini excavator? Yes. The smallest drive class starts at 0.5 tonne, which covers mini excavators down to the 0.8 and 1.7 tonne machines used on fencing, landscaping and small footing work. The drive, auger and hitch are matched to the machine's auxiliary circuit rather than assumed from its weight.
How much does an excavator auger cost? Aussie Buckets auger drives start at $1,675 as a complete kit with drive, auger and hitch. Price moves with drive class and auger specification, and 0% finance is available on approved purchases. Every kit is protected by a 5-year warranty. Get a tailored quote against your ground conditions.
