Available for 1 – 25T
Opens for a bundle, closes on a single log.
Starting from
$3,775
Or with AB 0% Finance from $24/week (ex. GST)

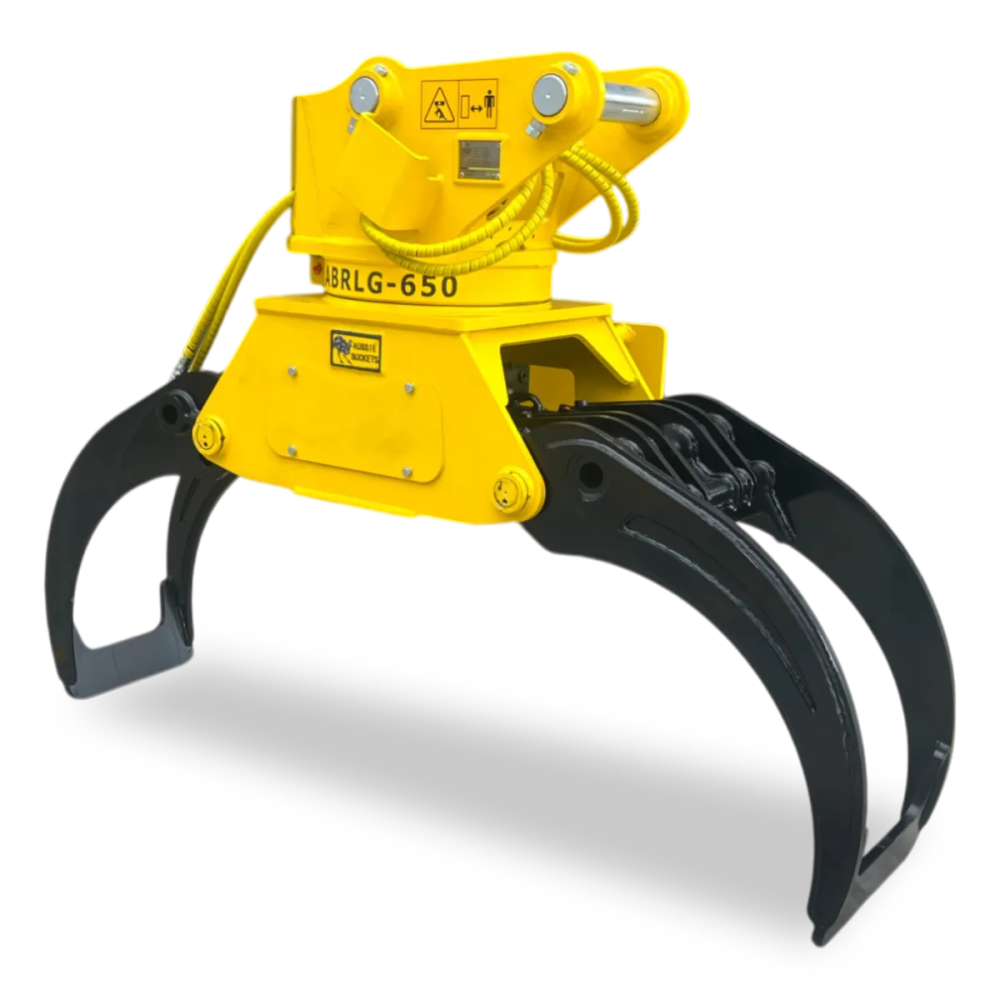

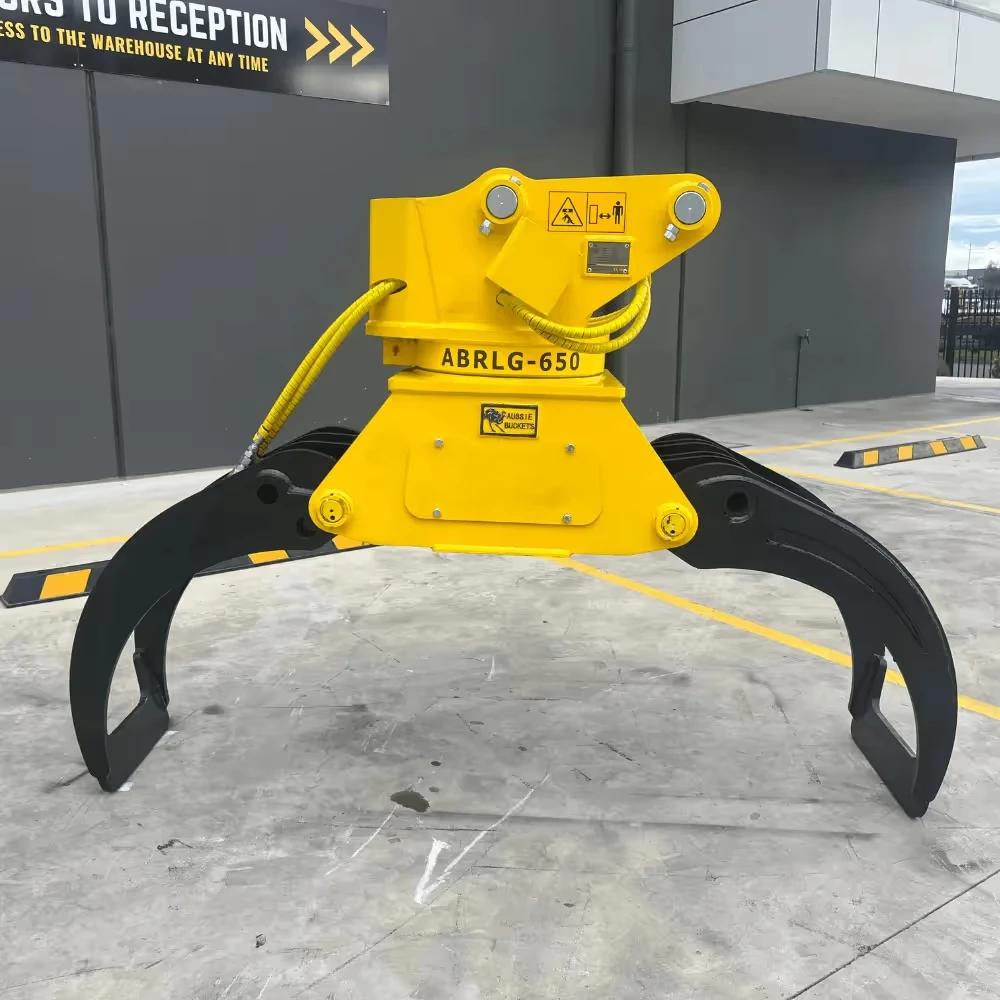

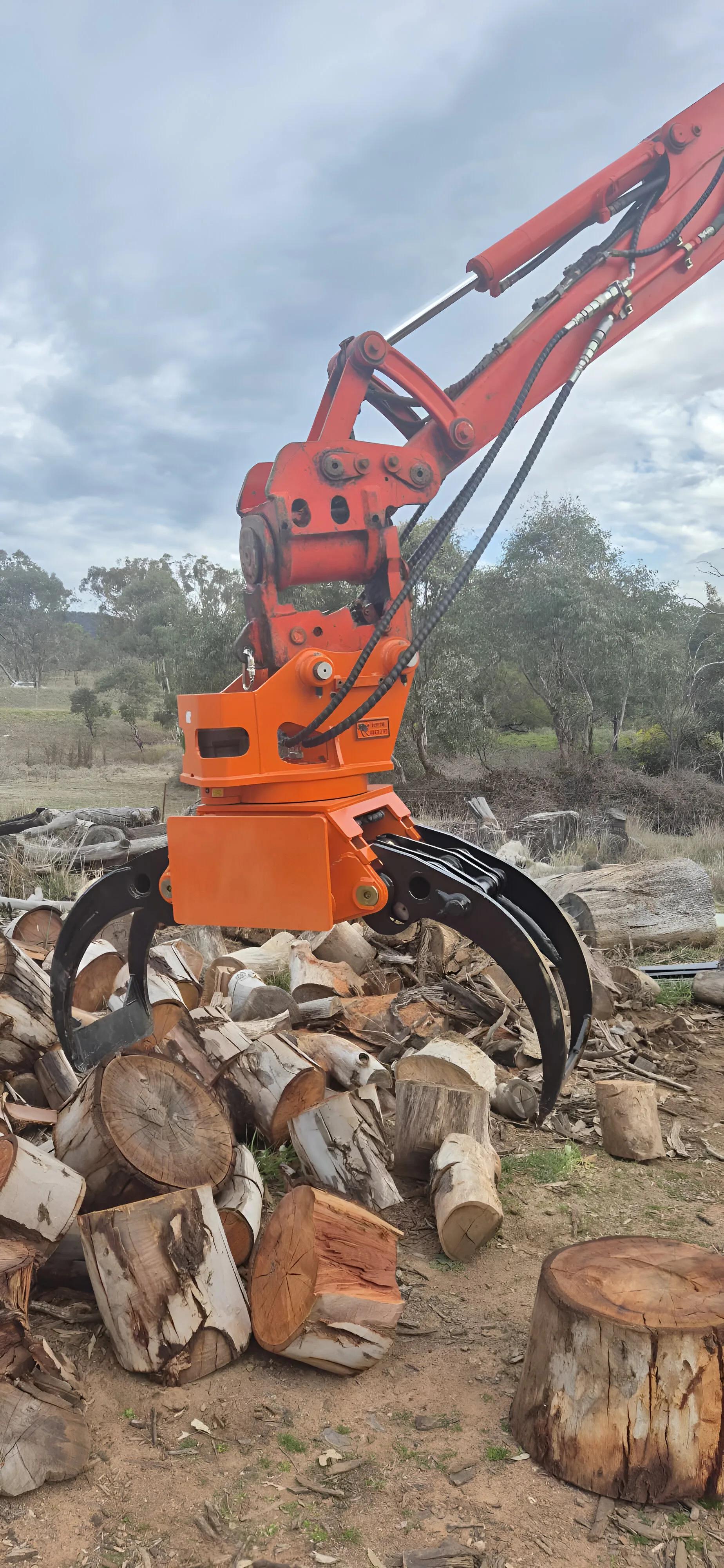

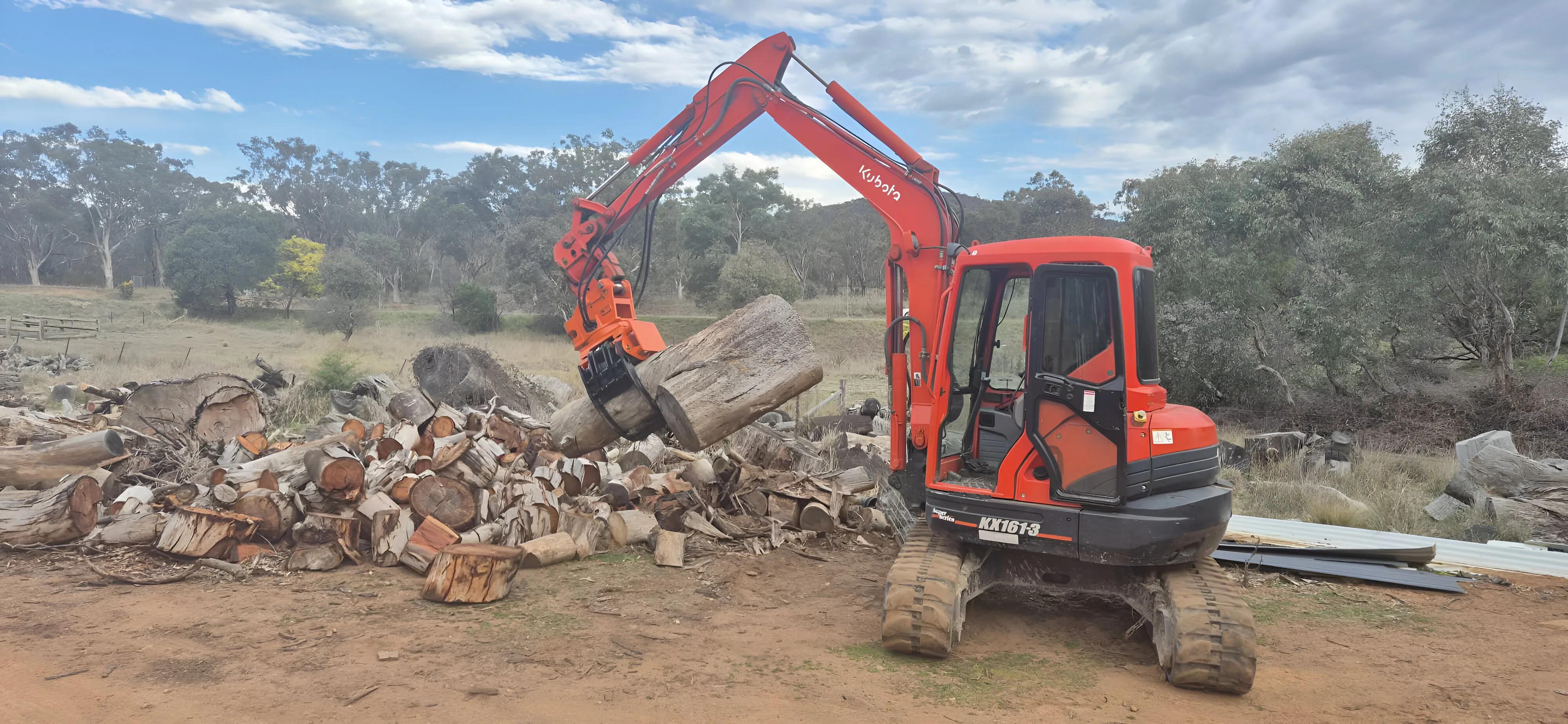

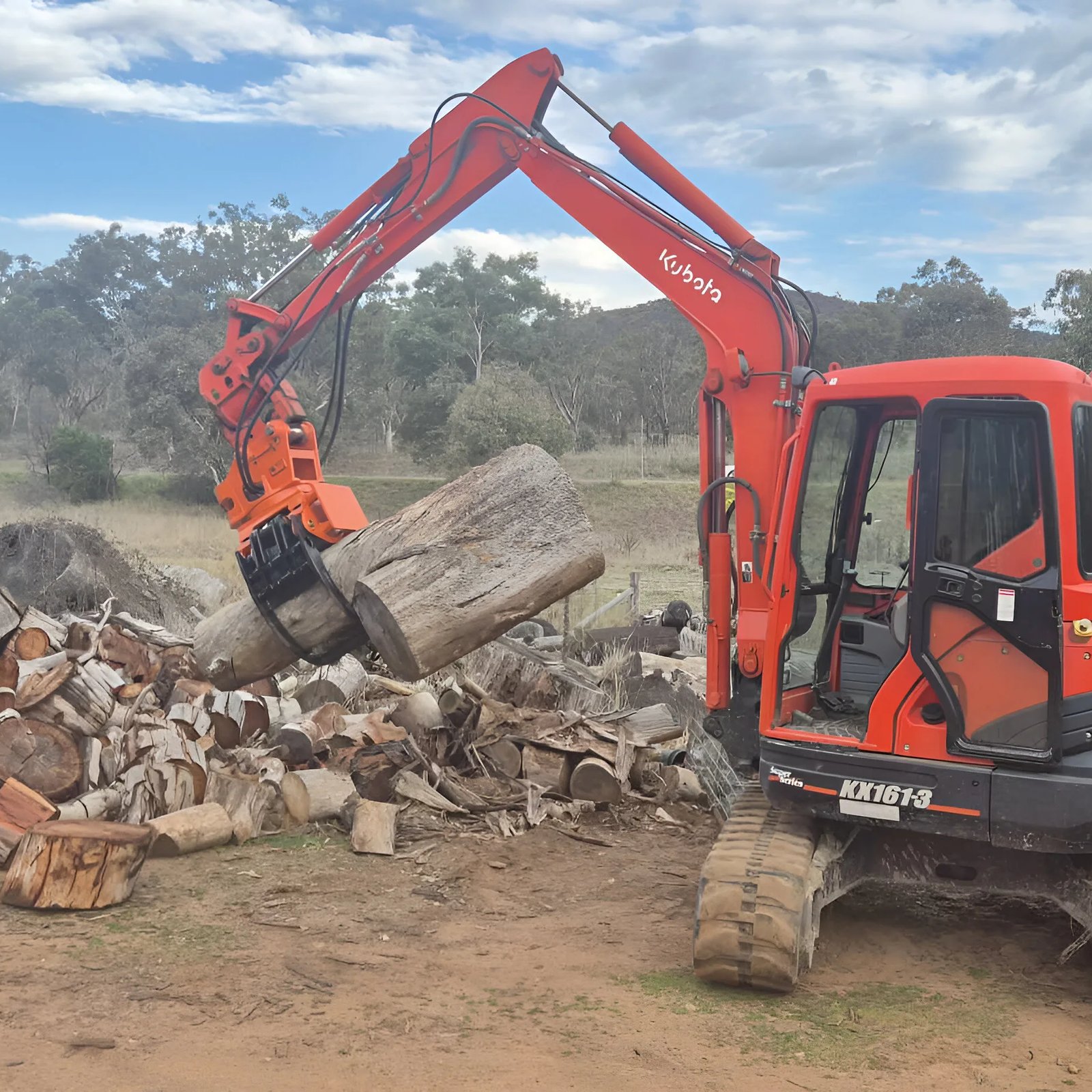

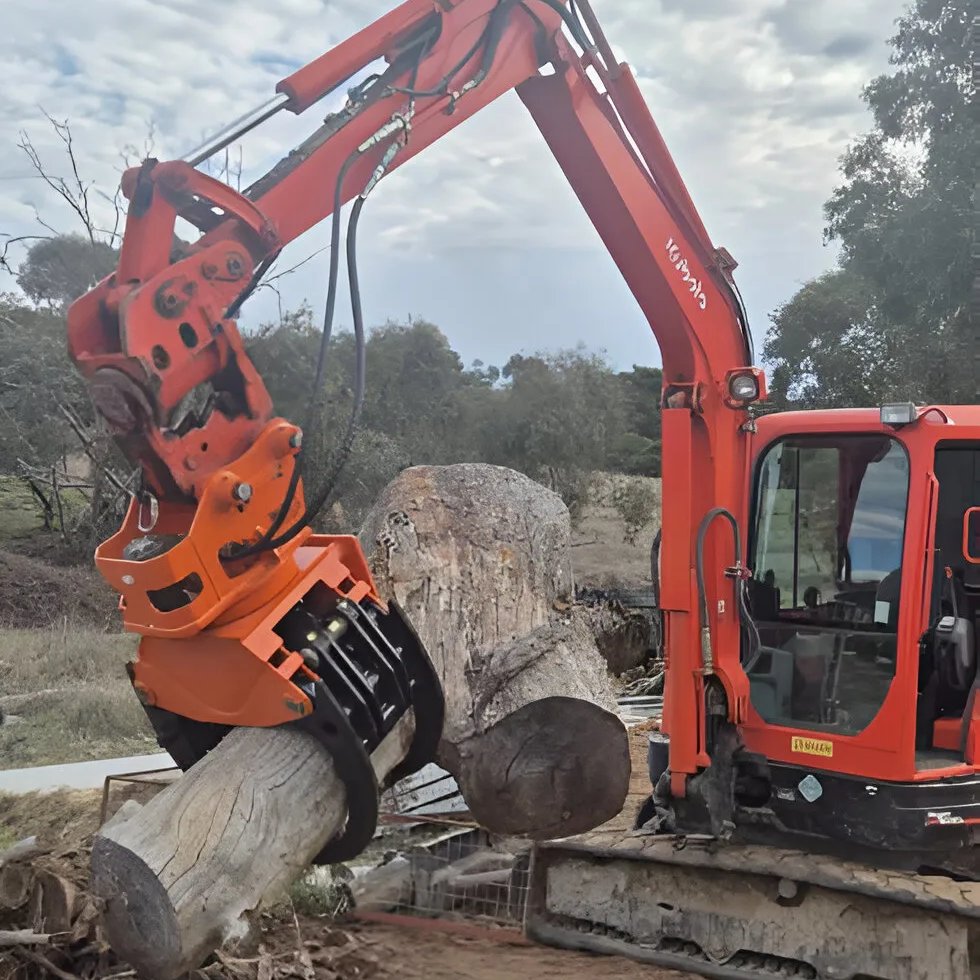

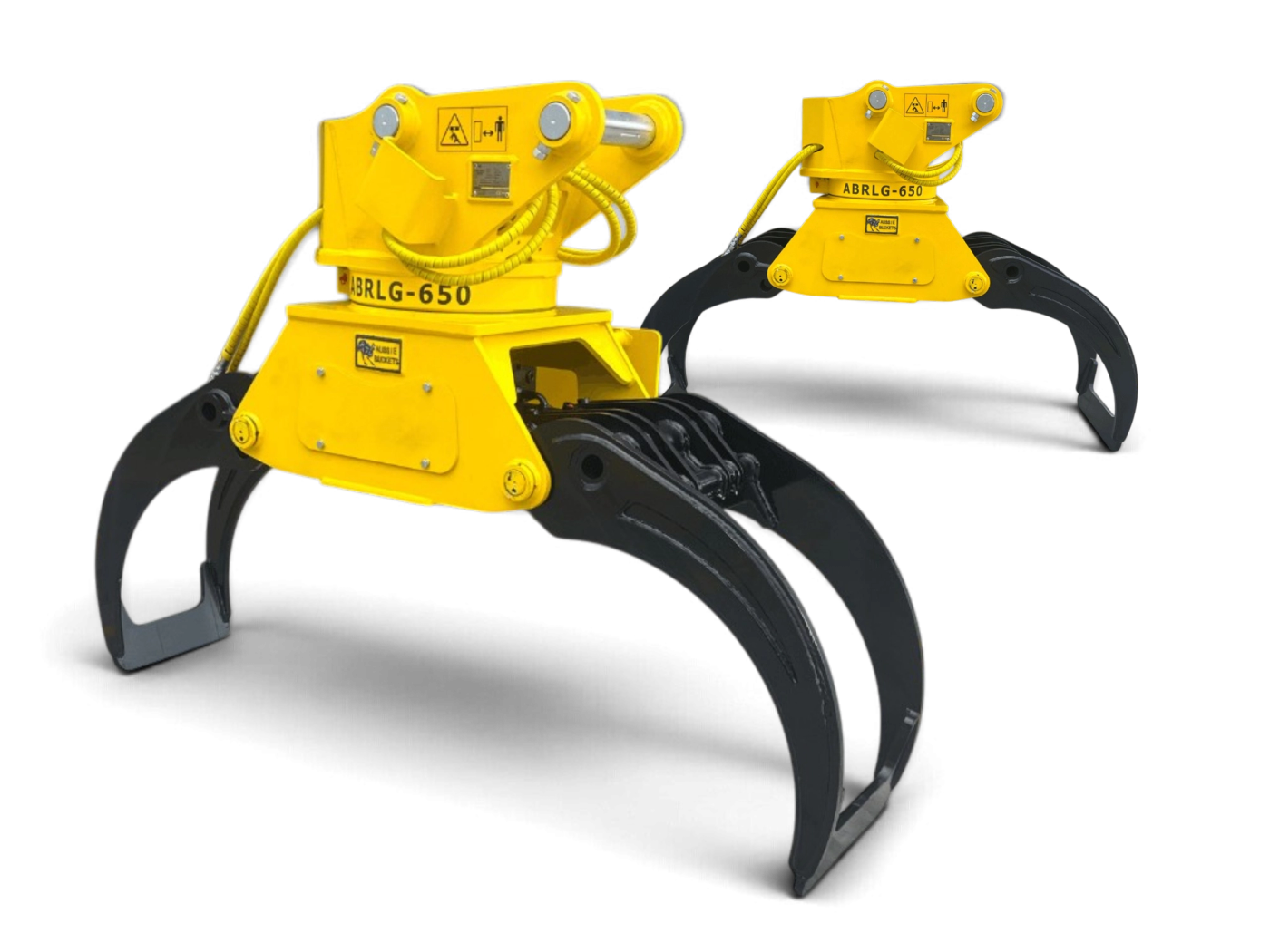

A log grab for 1–25 tonne excavators in thirteen builds. Fixed and 360-degree rotating configurations, with interlocking clamps that open wide for a bundle and close tight enough on one log.

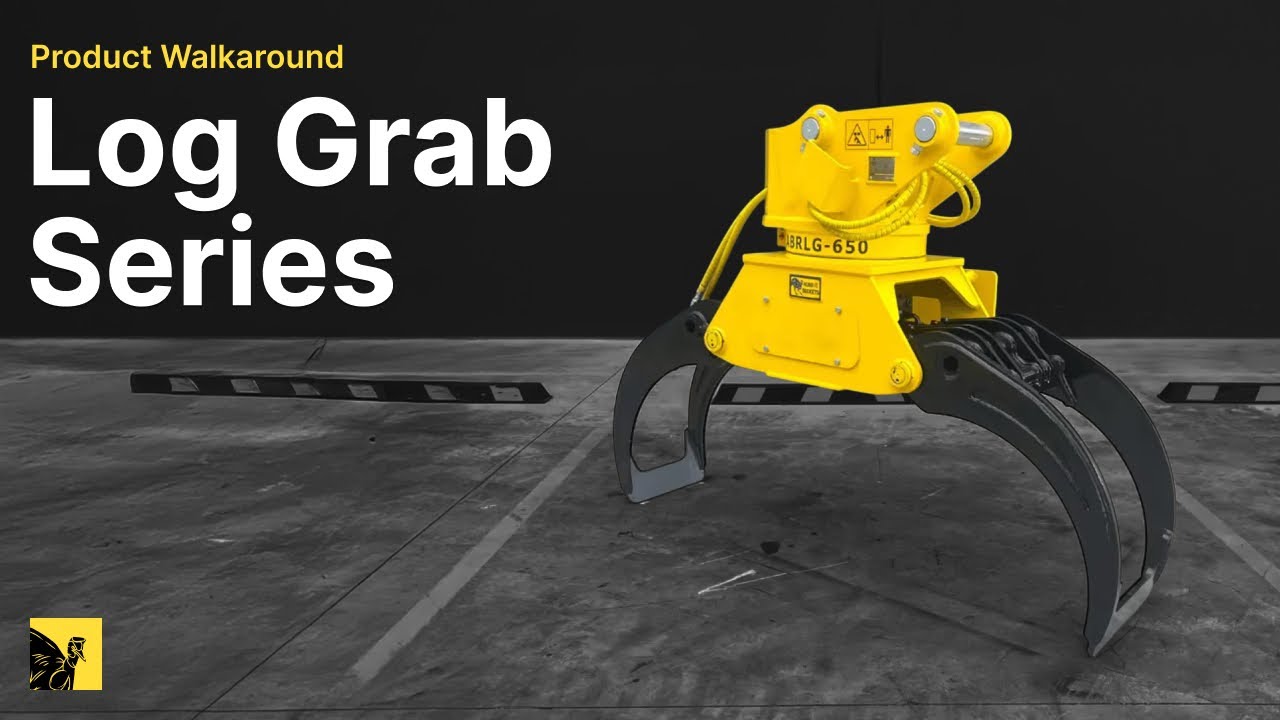

1 video · 13 photos
01
03
10
The difference
EveryEveryAussieAussieBucketsBucketslogloggrabgrabisispurpose-builtpurpose-builtforforthetheexcavatorexcavatoryouyourunrunandandprecision-engineeredprecision-engineeredforforthetherangerangeaatimbertimberjobjobasksasksfor:for:aafullfullbundlebundleininoneonebite,bite,andandaasinglesingleloglogheldheldsecurelysecurelyenoughenoughtotoplaceplaceit.it.AvailableAvailableforfor1–25T1–25Tmachinesmachinesacrossacrossthirteenthirteenbuilds,builds,ininfixedfixedandand360-degree360-degreecontinuouslycontinuouslyrotatingrotatingconfigurations.configurations.

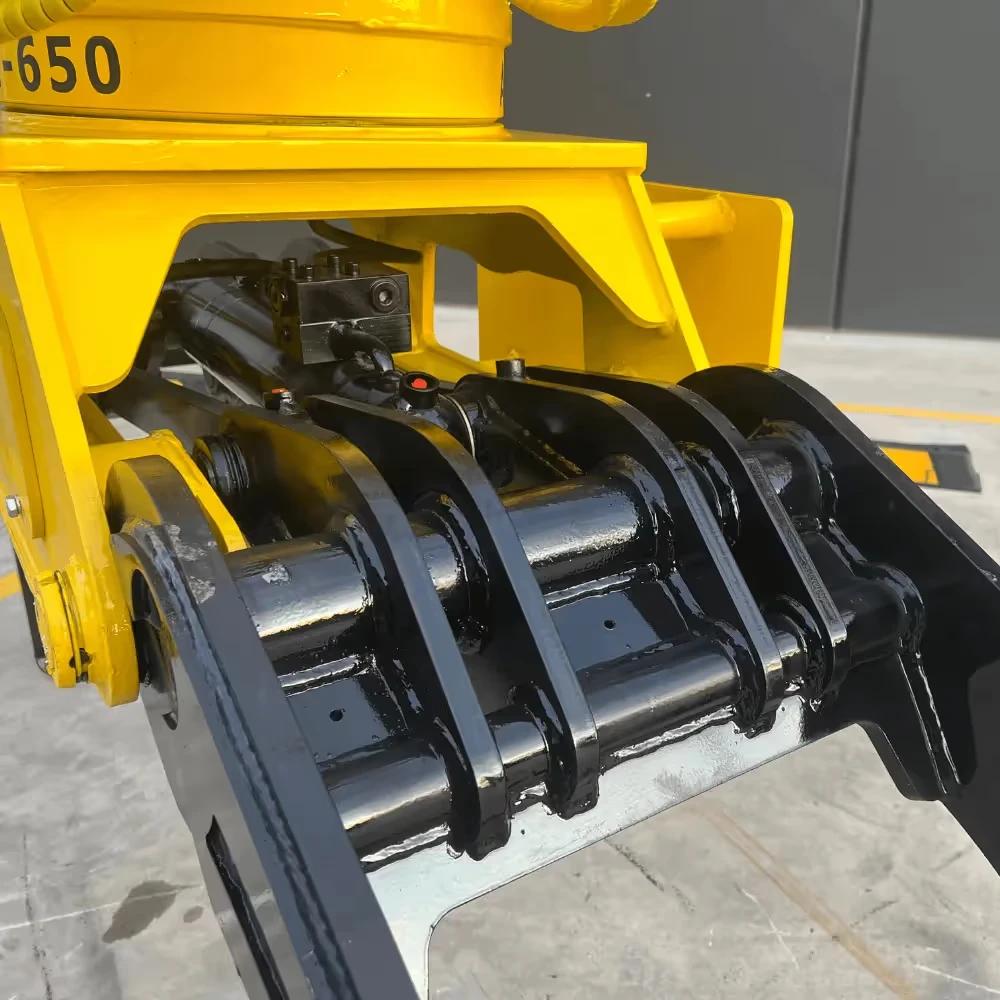

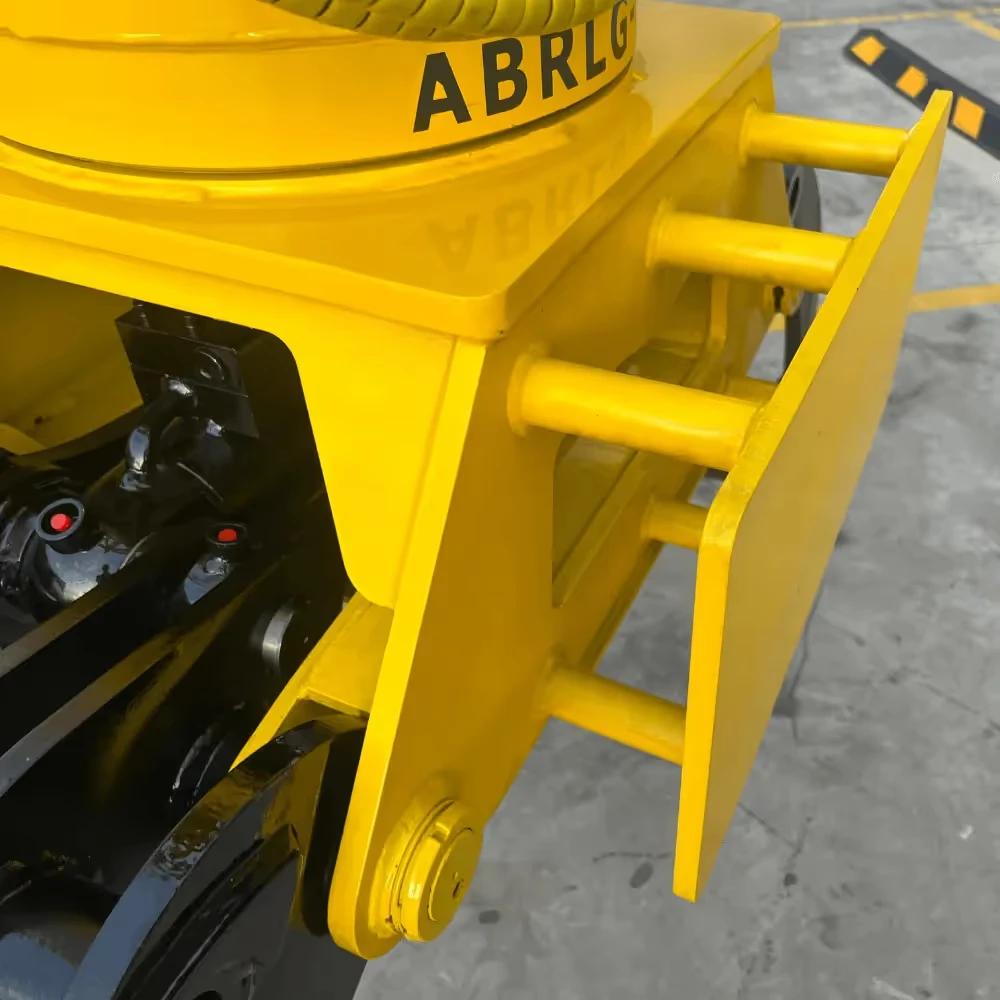

WhatWhatdistinguishesdistinguishesourourLogLogGrabGrabSeriesSeriesisisitsitsinterlockinginterlockingclamps,clamps,largelargeopeningopeningandandsmallsmallclose,close,reinforcedreinforcedlinklinkarmarmandandrodsrodsandandcylinderscylindersprotectedprotectedbehindbehindananexternalexternalbashbashplate.plate.ComparedComparedtotootherothertimbertimbergrabsgrabsononthethemarket,market,thetheramsramsareareshieldedshieldedbecausebecausefallingfallingtimbertimberlandslandsononthetheattachmentattachmentholdingholdingit.it.
AllAllLogLogGrabsGrabsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.

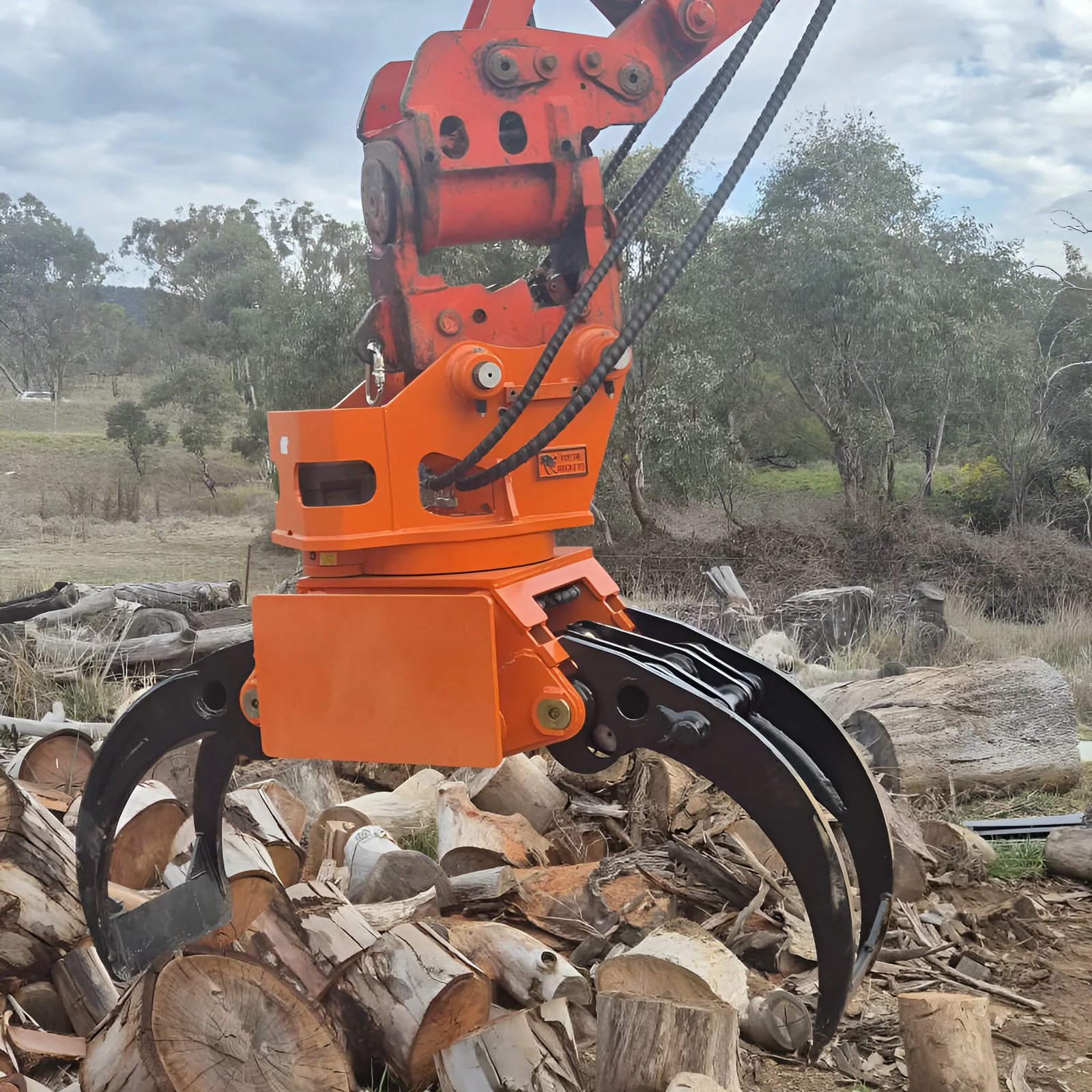

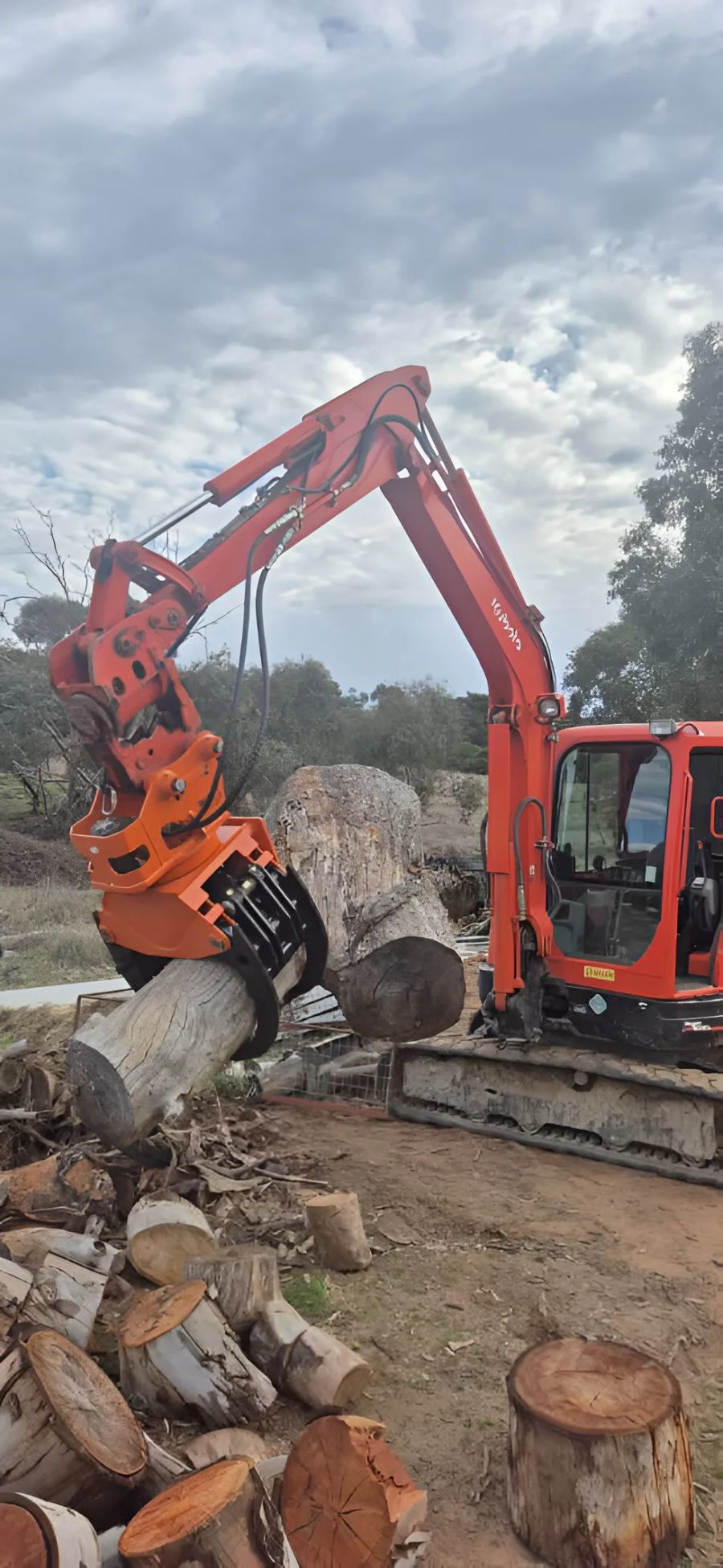

Built for efficient timber handling in demanding forestry conditions, this excavator log grab features interlocking clamps, optional 360° continuous rotation, and a reinforced link arm for secure grip across varying log sizes with external bash plate protection.
Features

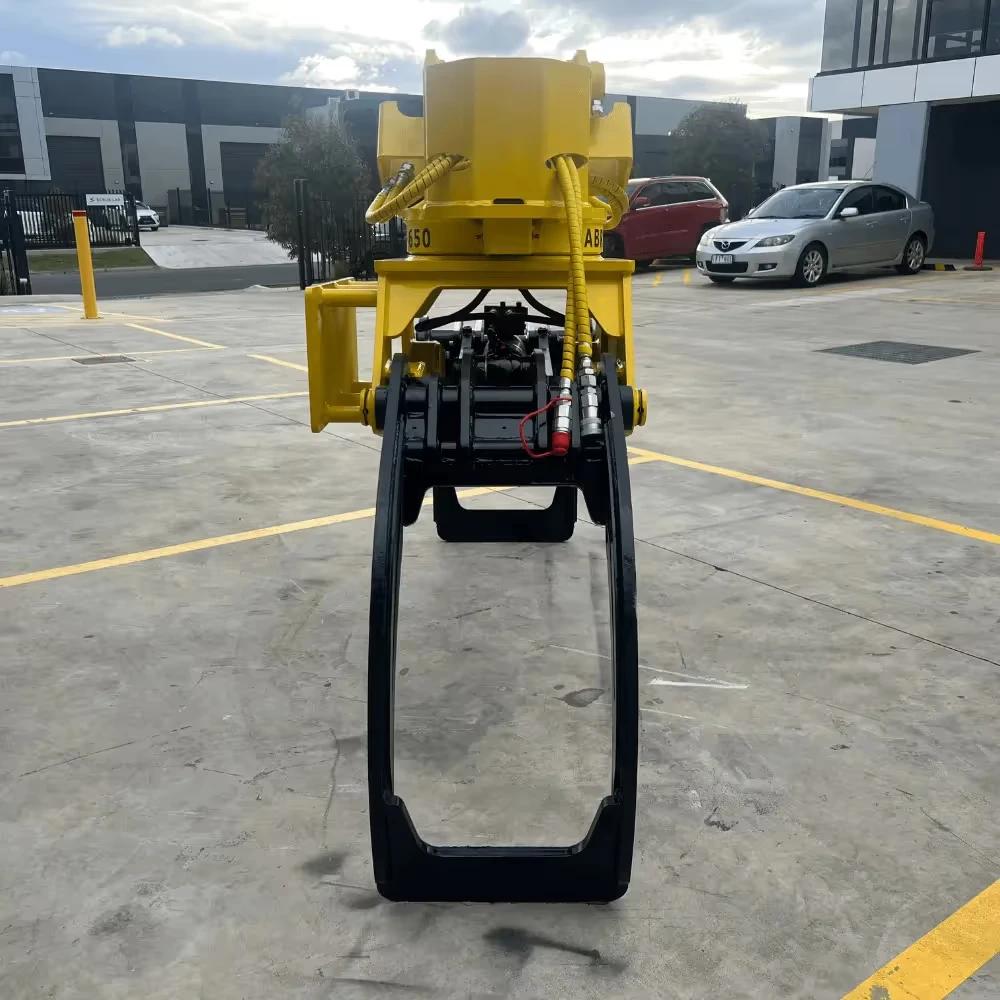

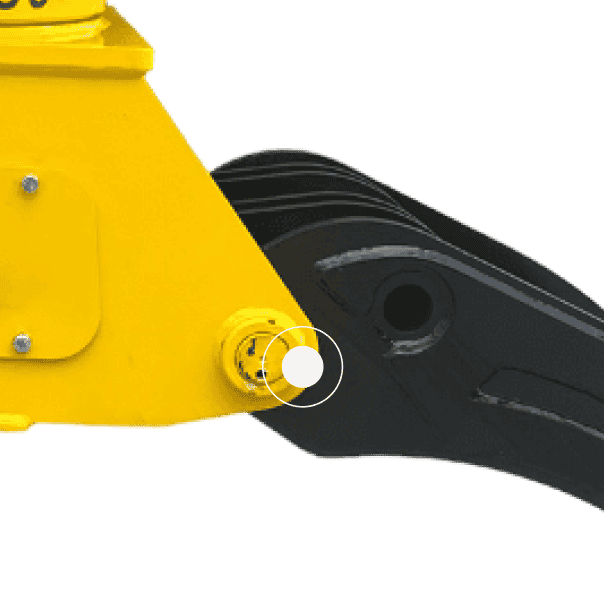

Unlike the Rotating Swing Log Grapple, the Rotating Fixed Log Grapple is mounted in a stationary position, without a pendulum motor. This provides stable and precise control during tasks that require no swing. This allows for precise placement and stacking of logs, with greater accuracy and control.

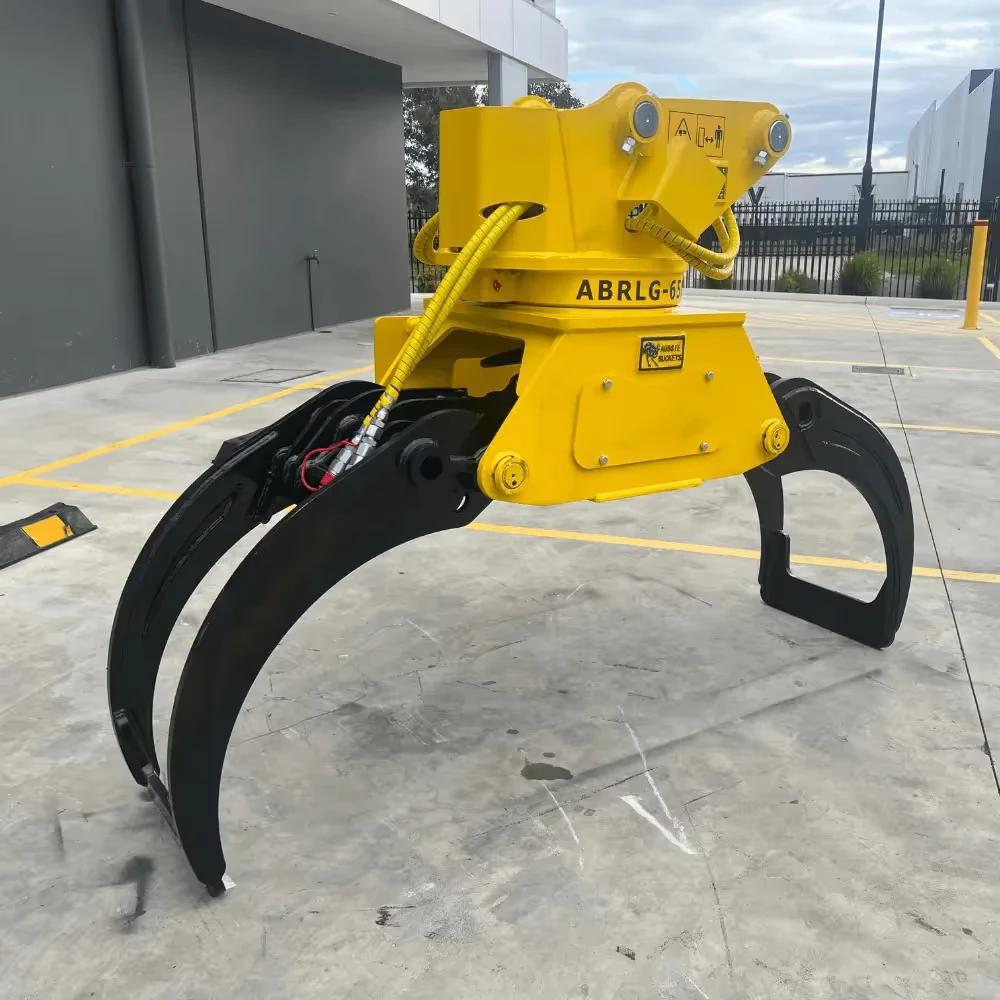

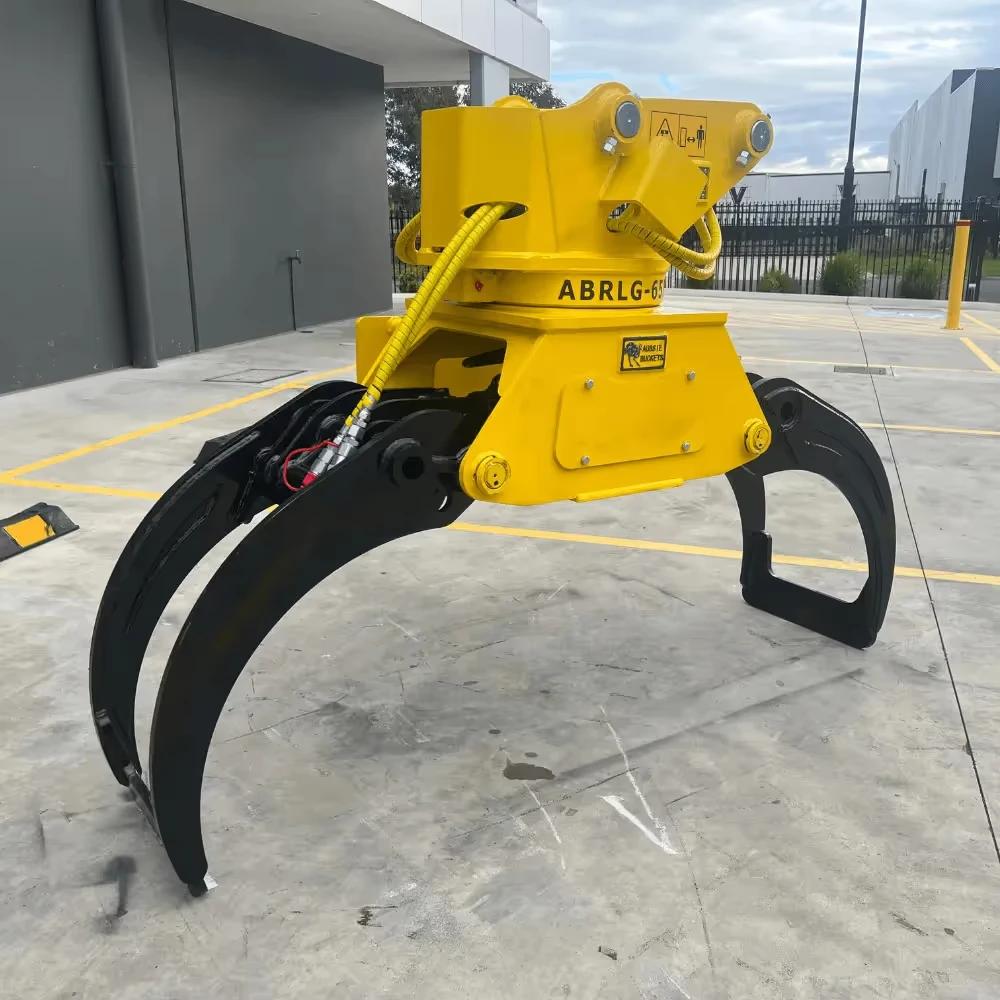

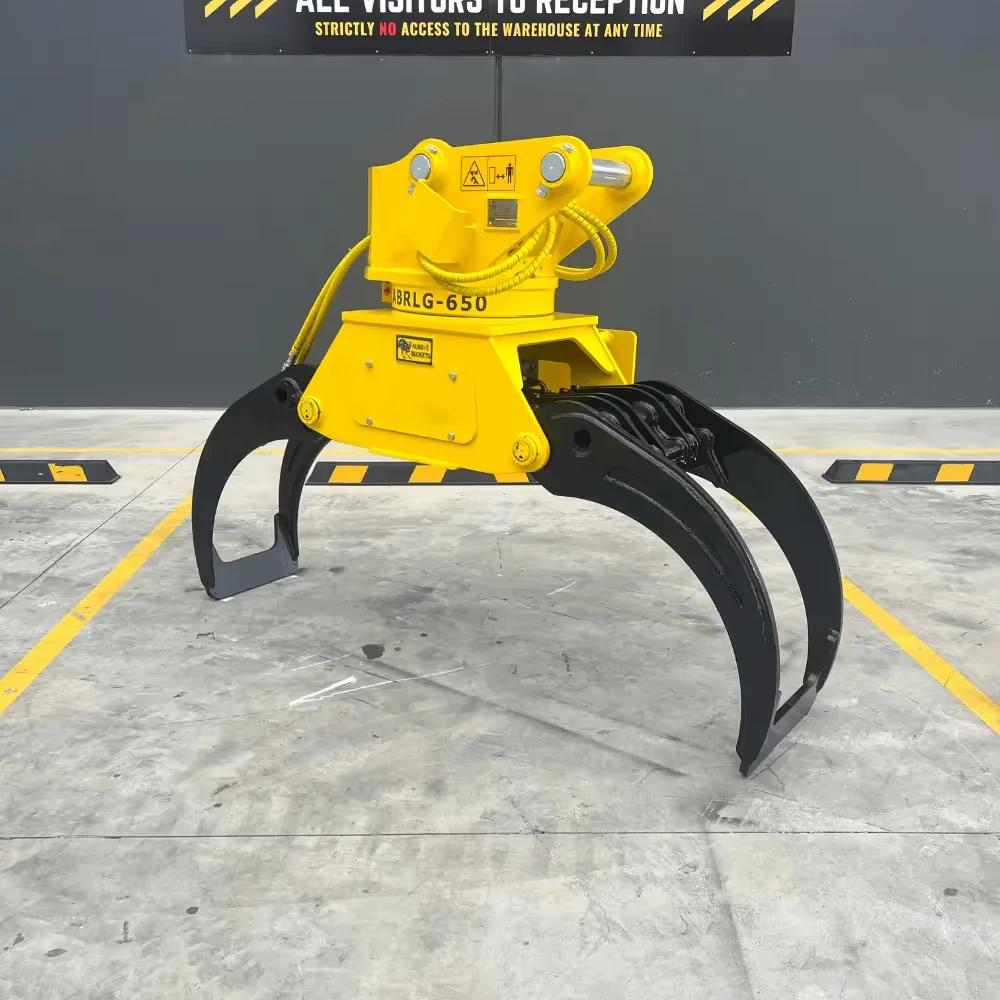

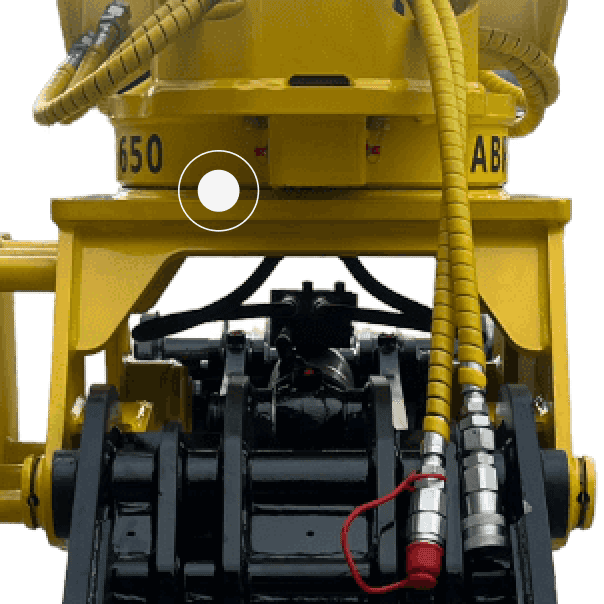

Equipped with an advanced rotating motor that allows for continuous 360-degree rotation. This system uses an external mesh gear and an offset single pinion drive system, enabling seamless manoeuvring of logs in any direction. Simplified repositioning without the need to move the excavator can drastically improve efficiency, while also providing superior visibility and control during operation.

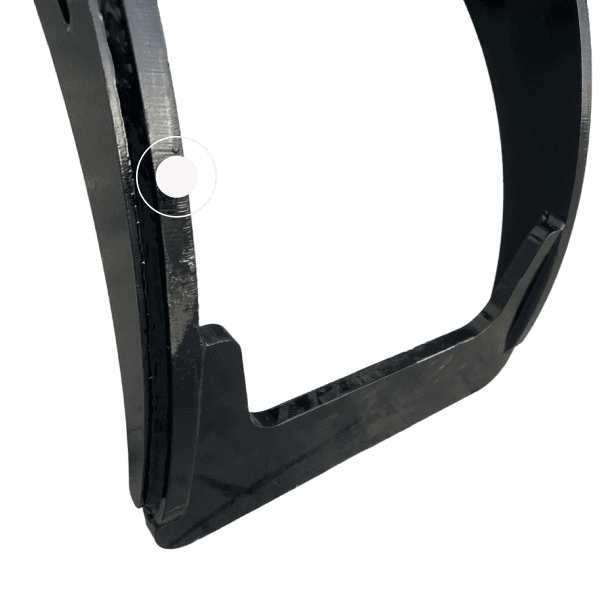

Tightly grip logs of varying sizes, ensuring a secure grip during transport and handling. This drastically reduces the risk of dropping or losing logs during movement and increases the safety of the operation, particularly when transporting large or heavy logs.

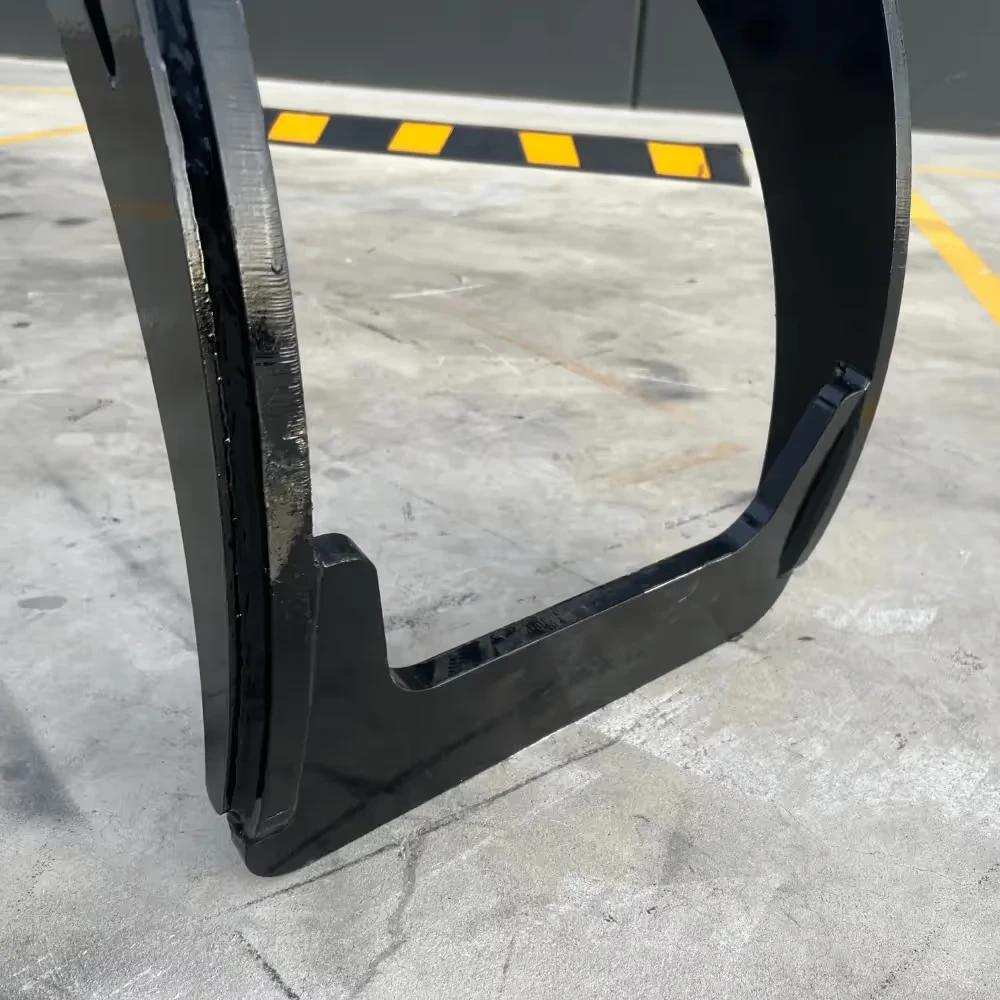

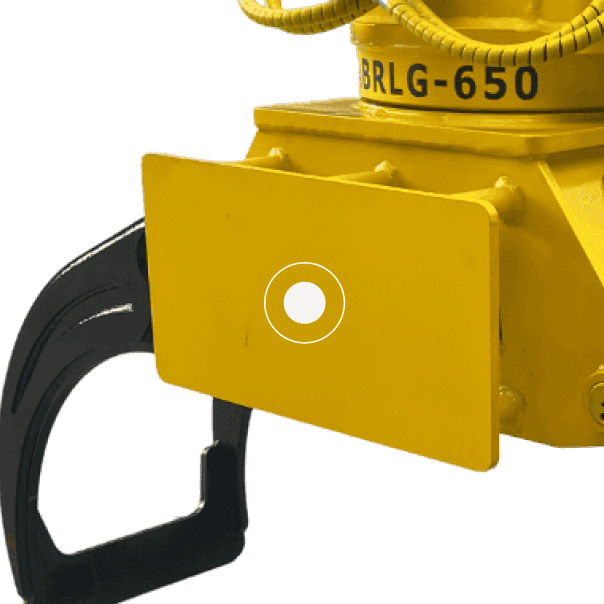

The large opening allows for bigger logs and trees to be grabbed, while the capability to close tightly ensures that objects are held securely, including smaller branches and logs. This provides versatility in handling different sized materials with ease, while ensuring the risk of logs slipping or dropping is minimised.
Thirteen build sizes covering 1 tonne to 25 tonne machines, in fixed and rotating configurations. Weight, width, max opening, min and max grip and cylinder force are listed per build.
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Cylinder pressure(bar) |
|---|---|---|---|---|---|---|---|
| Fixed | 110 | 307 | 906 | 65 | 291 | 2 | 110 – 140 |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 260 | 407 | 1,222 | 75 | 457 | 3 | Parker | 90 – 110 bar | — |
| Fixed | 220 | 407 | 1,222 | 75 | 457 | 3 | — | — | 110 – 140 bar |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 320 | 407 | 1,322 | 85 | 498 | 6 | Parker | 110 – 120 bar | — |
| Fixed | 320 | 407 | 1,322 | 85 | 498 | 6 | — | — | 160 – 200 bar |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 600 | 470 | 1,525 | 120 | 494 | 9 | Parker | 110 – 120 bar | — |
| Fixed | 400 | 470 | 1,525 | 120 | 494 | 9 | — | — | 160 – 200 bar |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 770 | 644 | 1,816 | 130 | 570 | 12 | M+S w/ Relief Valve | 130 – 150 bar | — |
| Fixed | 440 | 644 | 1,816 | 130 | 570 | 12 | — | — | 180 – 230 bar |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Cylinder pressure(bar) |
|---|---|---|---|---|---|---|---|
| Fixed | 480 | 488 | 1,950 | 126 | 610 | 12 | 180 – 230 |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure(bar) |
|---|---|---|---|---|---|---|---|---|
| Rotating | 860 | 488 | 1,950 | 126 | 610 | 12 | M+S w/ Relief Valve | 130 – 150 |
| Type | Weight(kg) | Width(mm) | Max opening(mm) | Min grip(mm) | Max grip(mm) | Cylinder force(t) | Motor | Motor pressure | Cylinder pressure |
|---|---|---|---|---|---|---|---|---|---|
| Rotating | 1,260 | 604 | 2,530 | 143 | 756 | 13 | M+S w/ Relief Valve | 130 – 150 bar | — |
| Fixed | 860 | 604 | 2,530 | 143 | 756 | 13 | — | — | 180 – 230 bar |
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
