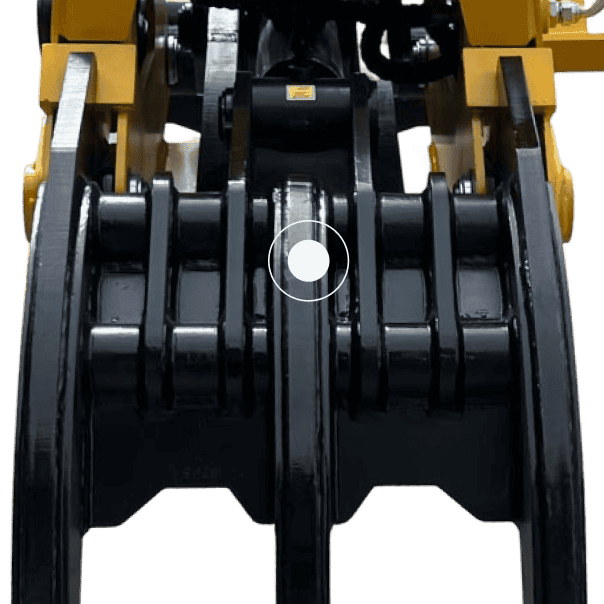

Full interlocking capabilities
Coming in a tine style configuration, this grab can close right in on itself and open nice and wide, for versatility across a diverse range of material sizes.

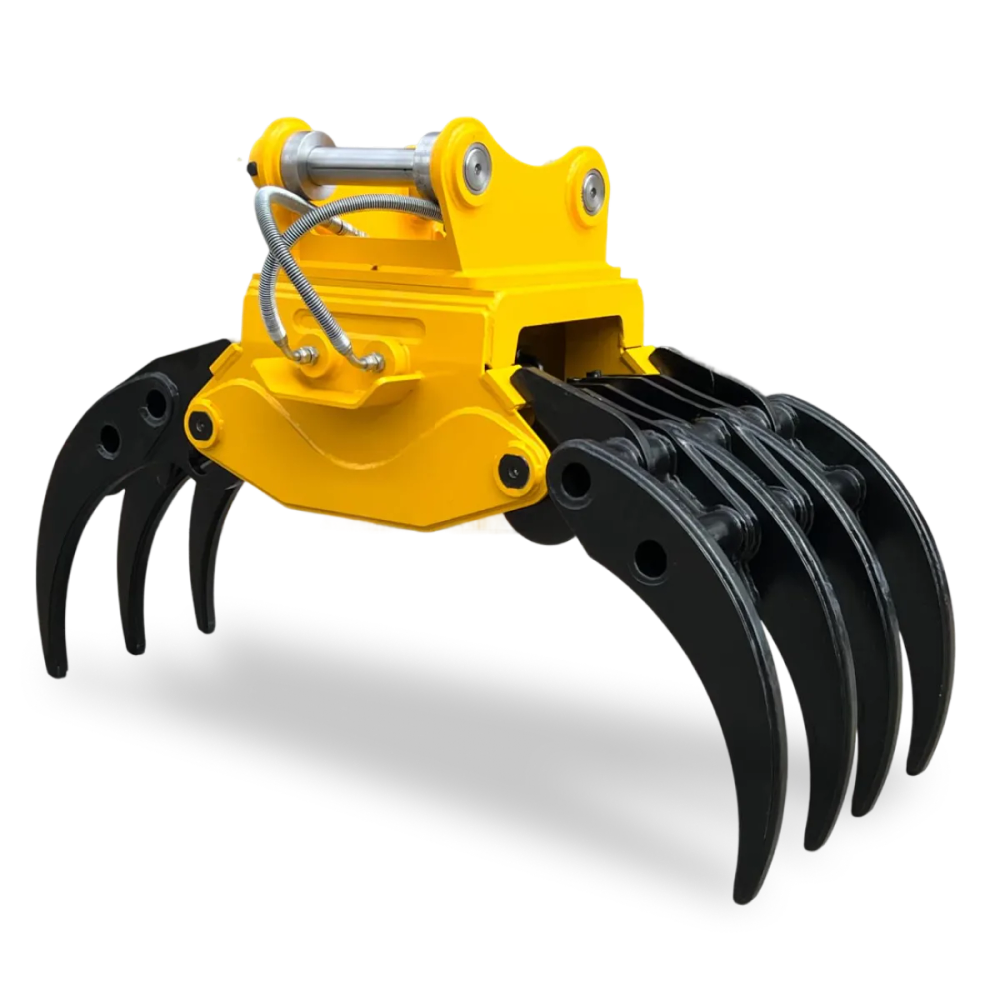

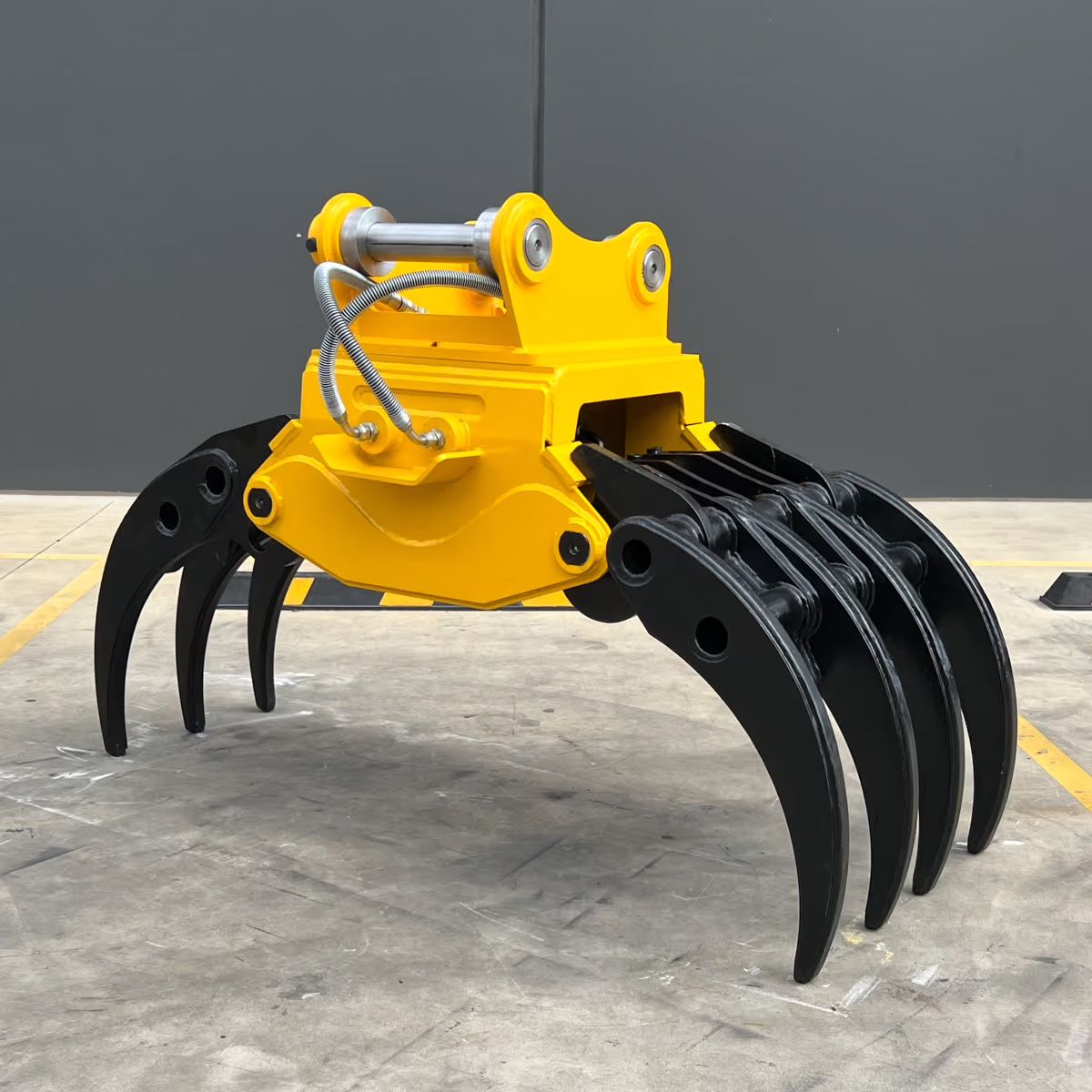

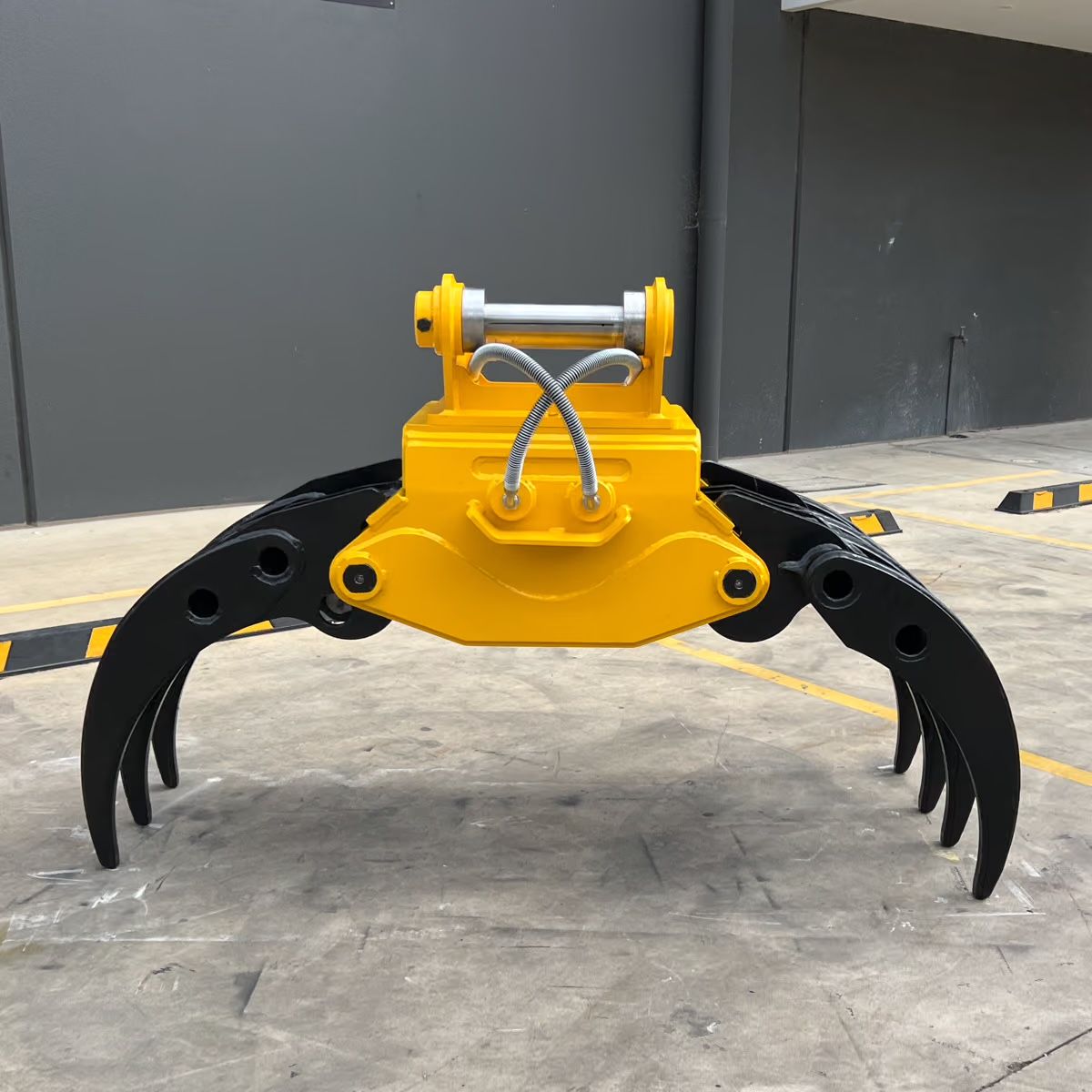

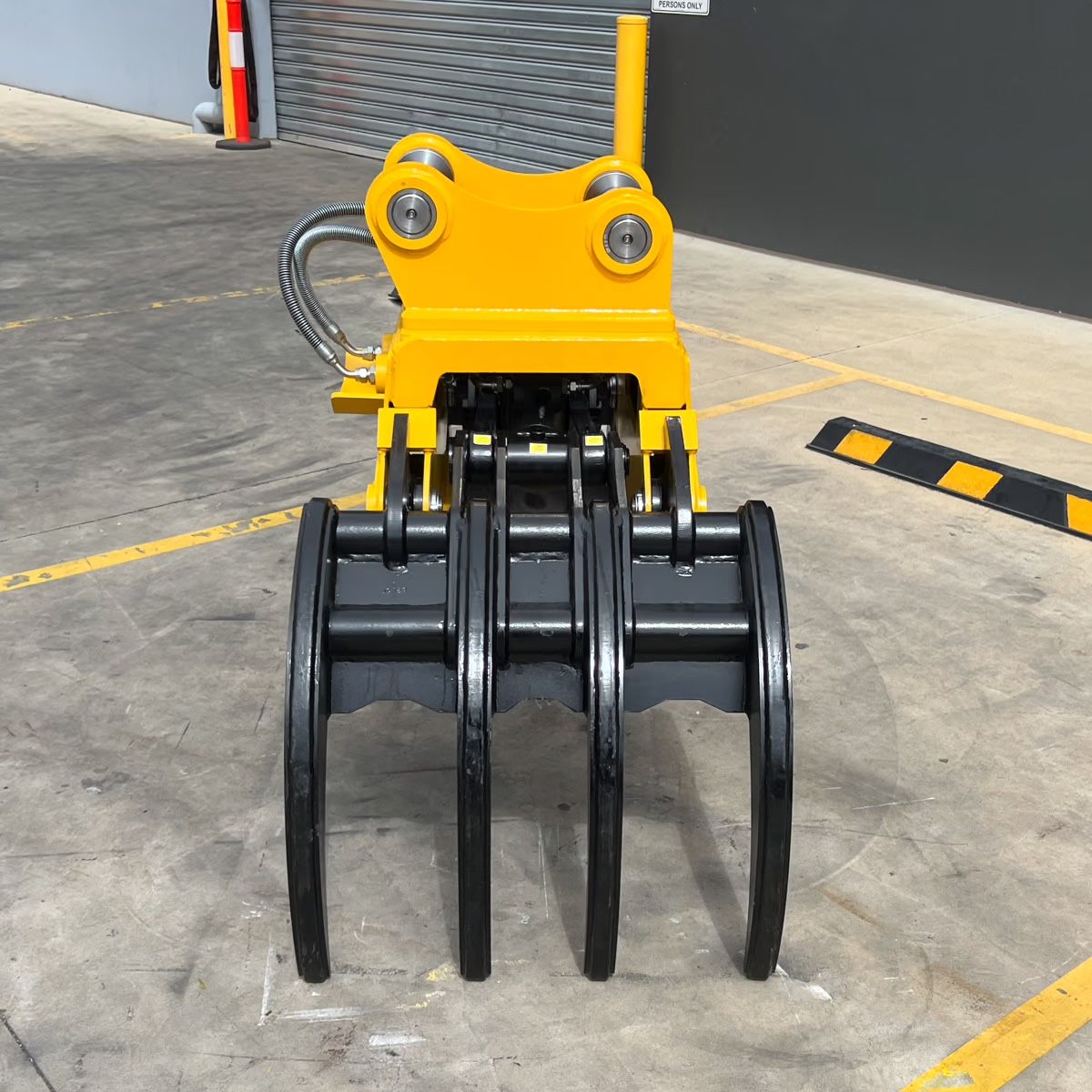

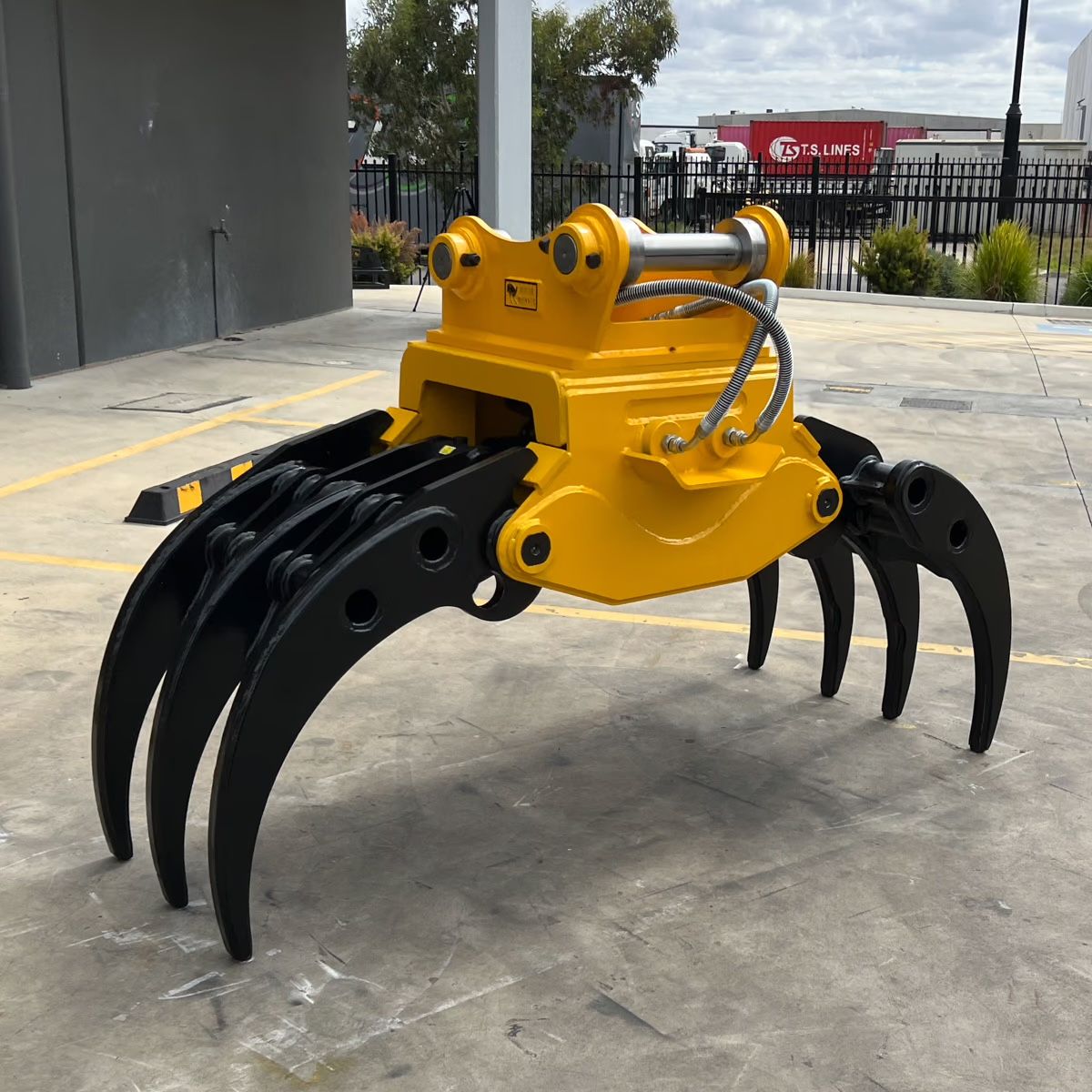

Finger Grab
Available for 1 – 25T
Suits tiltrotators, quick hitches and tilt hitches.
Starting from
$5,975
Or with AB 0% Finance from $35/week (ex. GST)
- 5 year
warranty - Lifetime
support - Nationwide
delivery

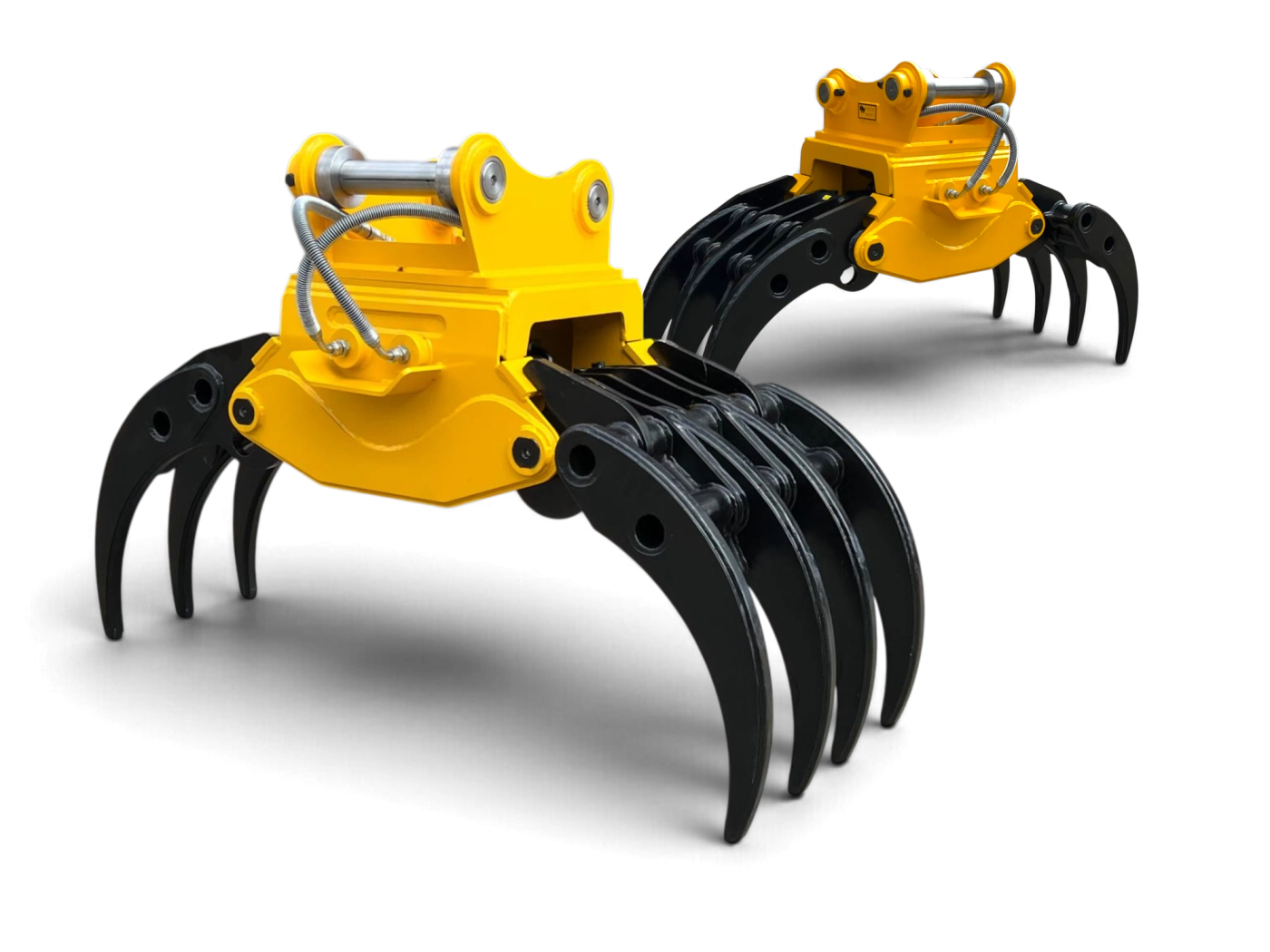

A finger grab for 1–25 tonne excavators in fixed and rotating builds. Full interlocking tynes hold logs, scrub and irregular material, and the range mounts to tiltrotators as readily as a direct pin.

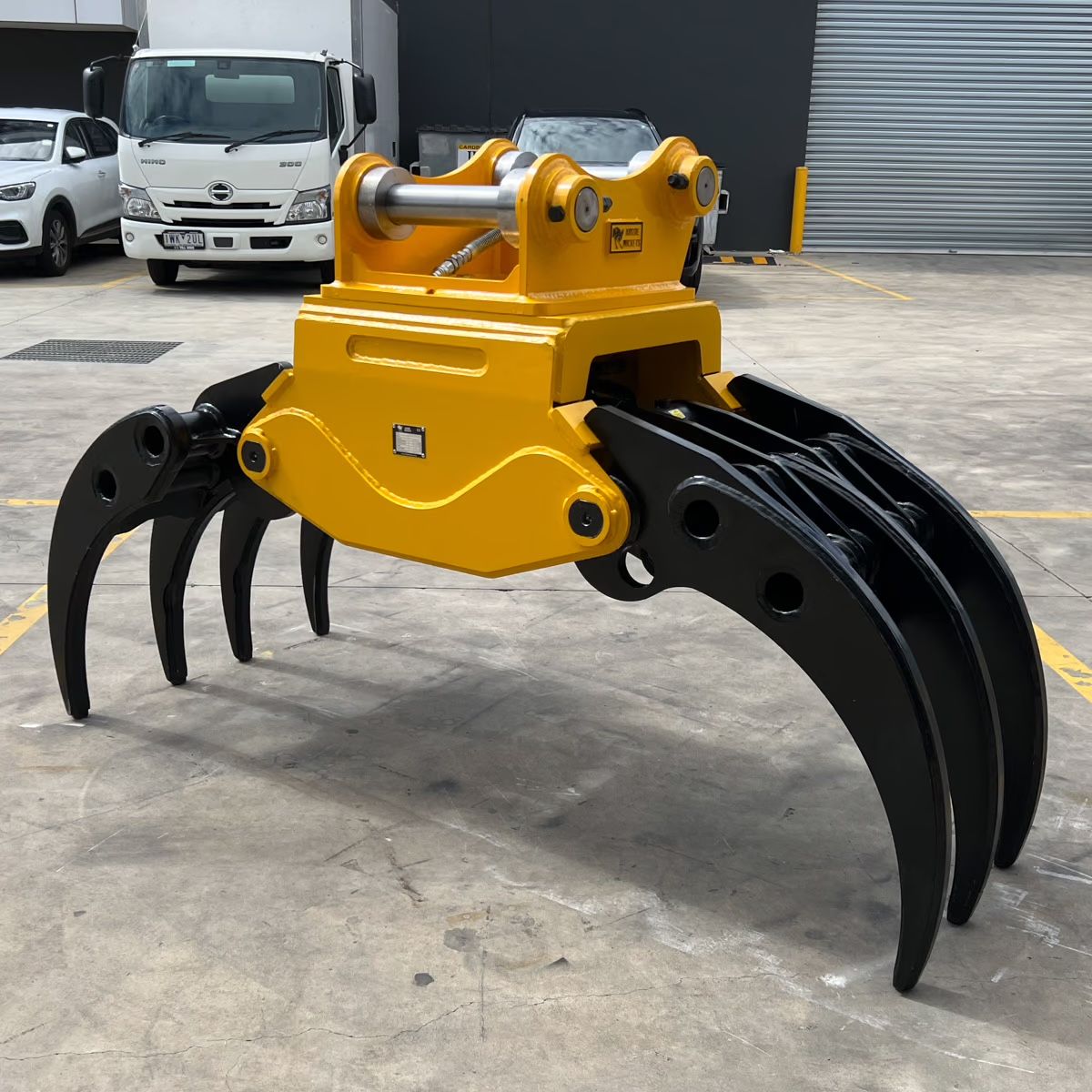

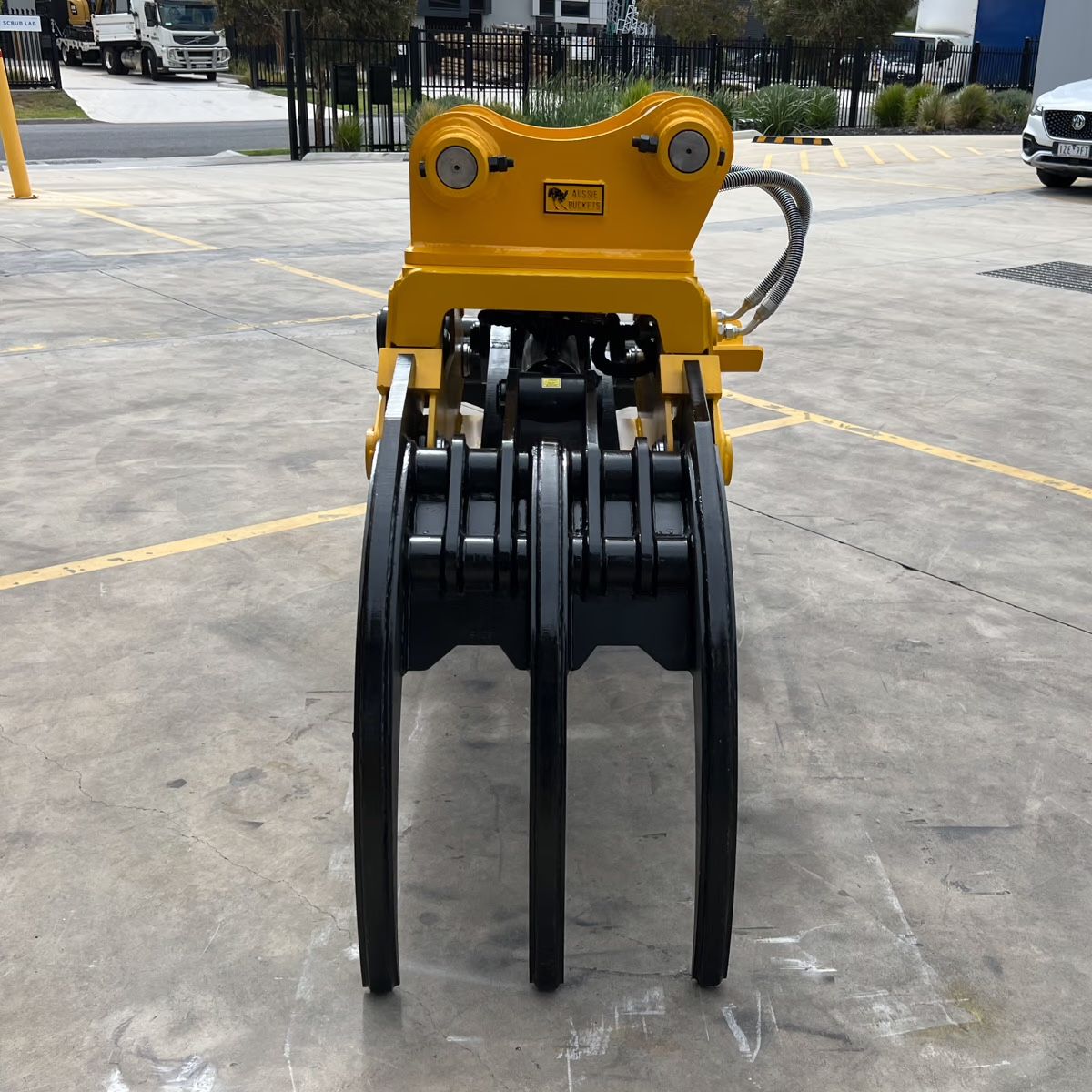

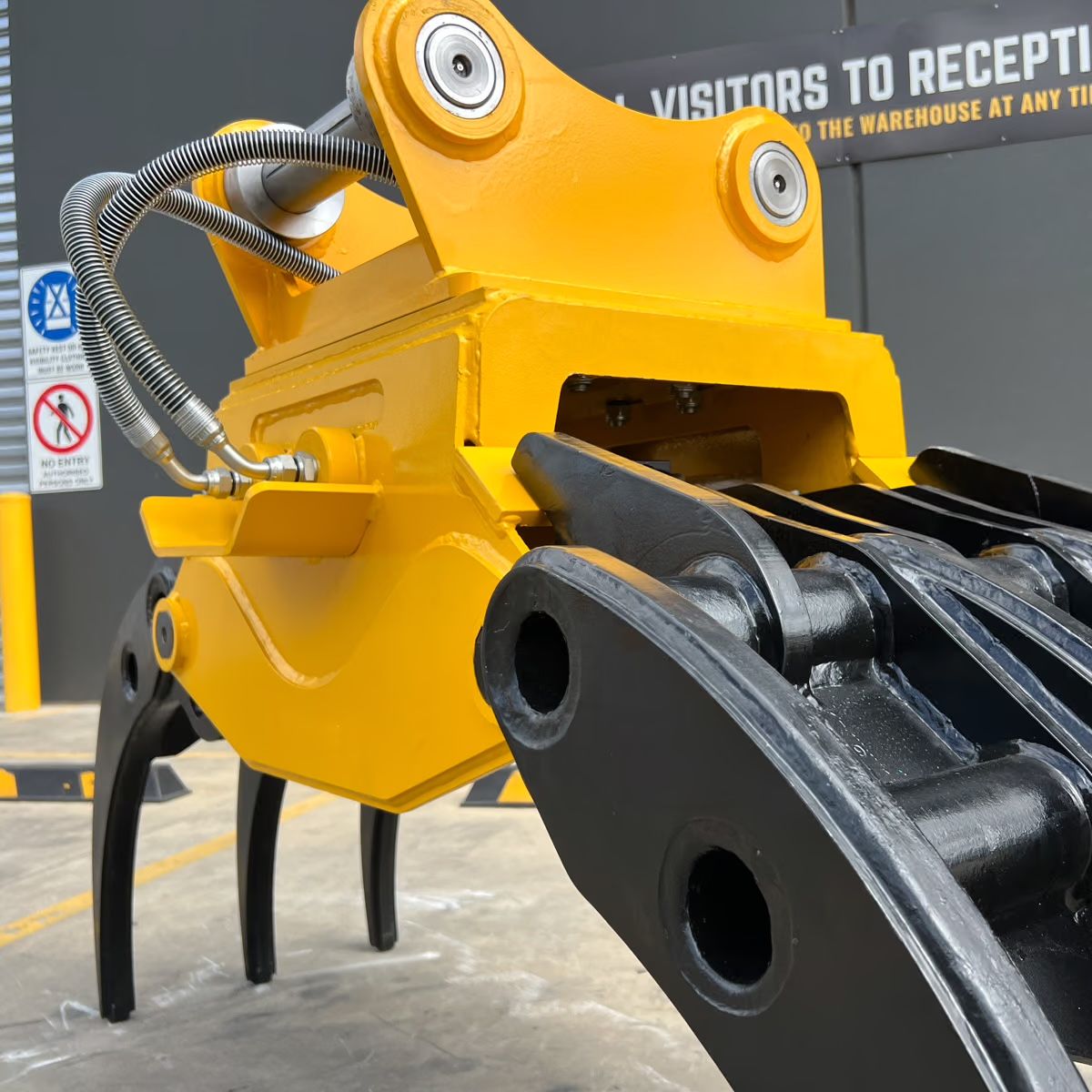

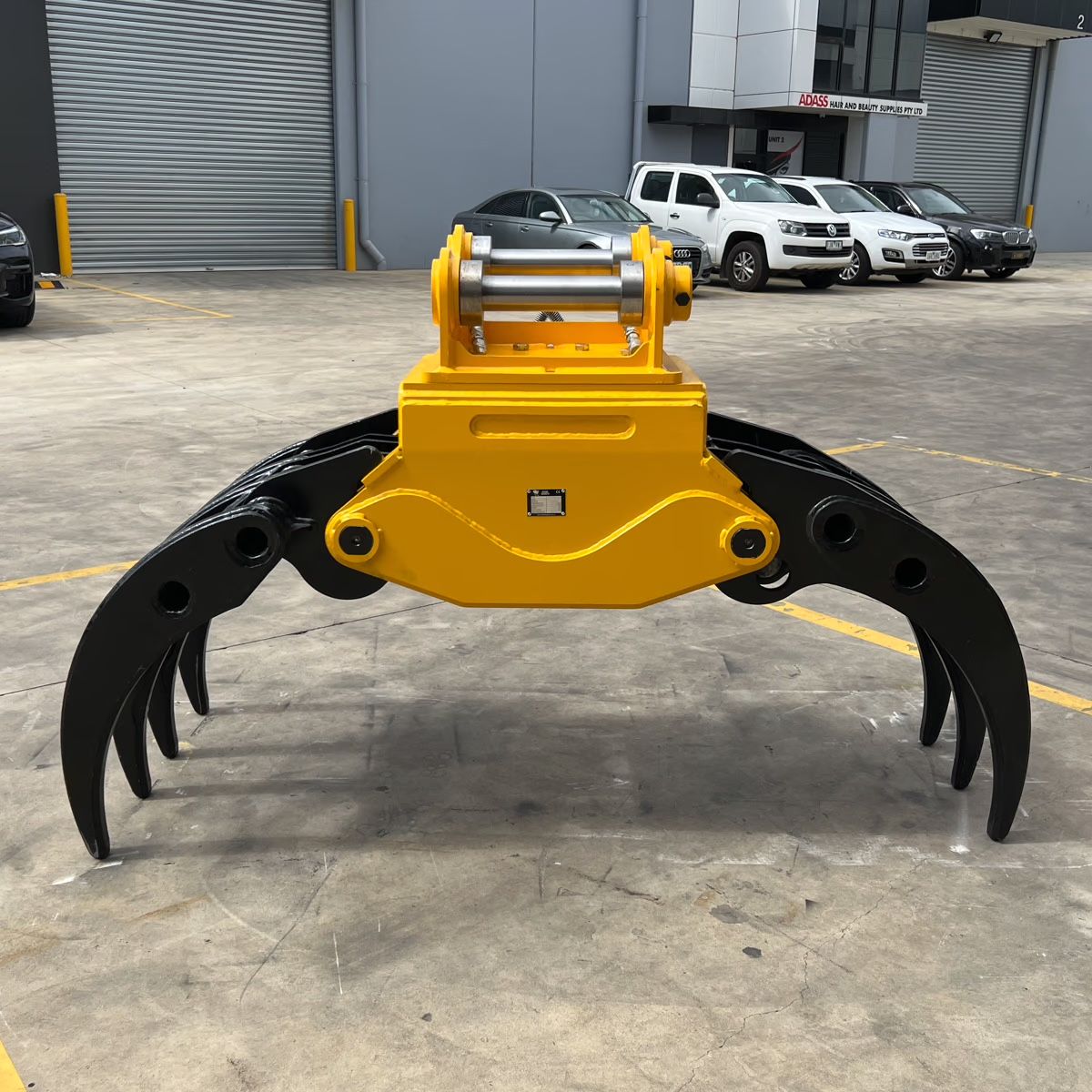

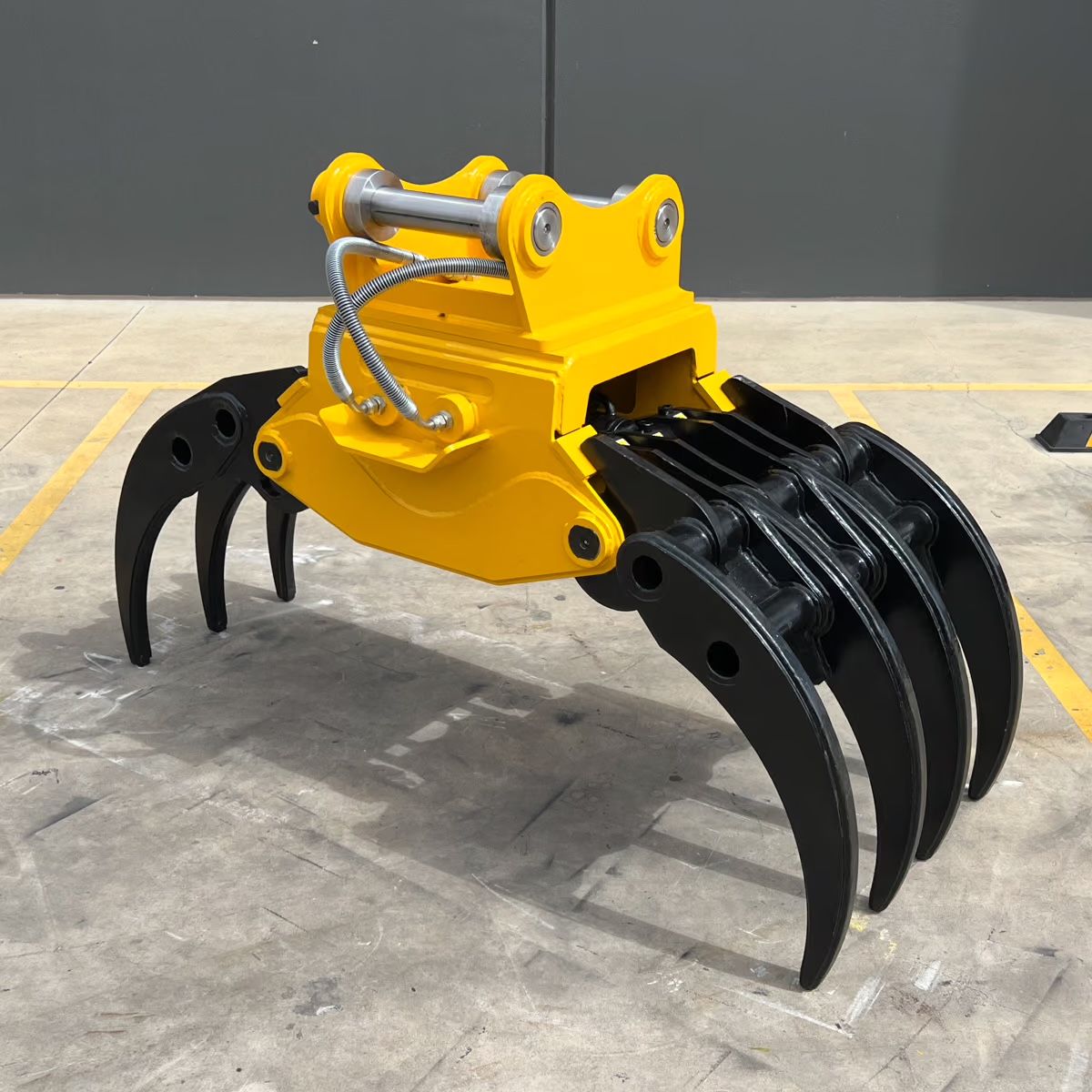

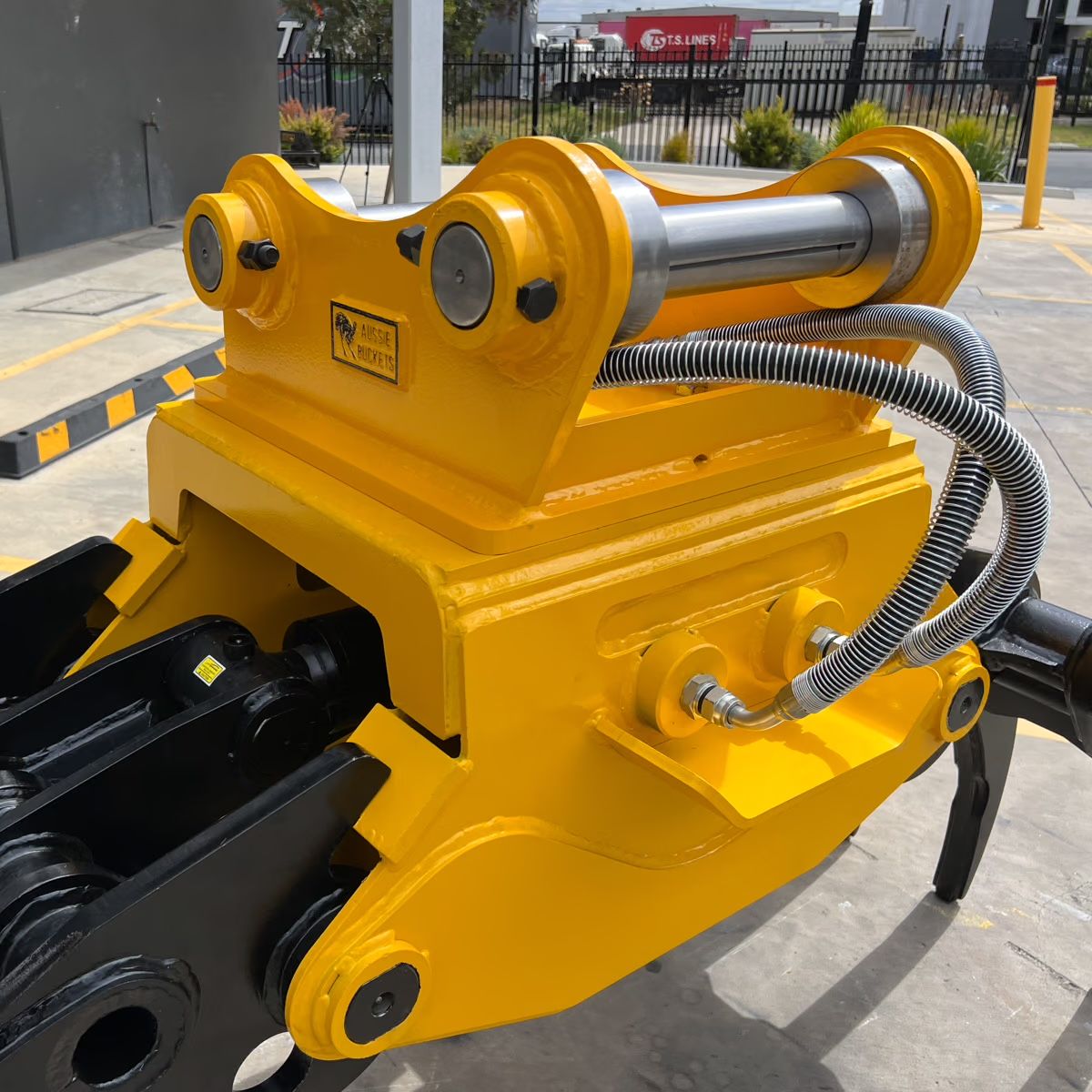

Gallery
1 video · 12 photos

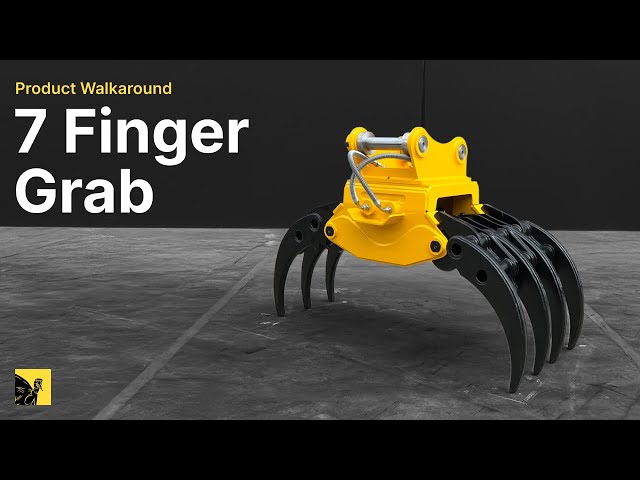

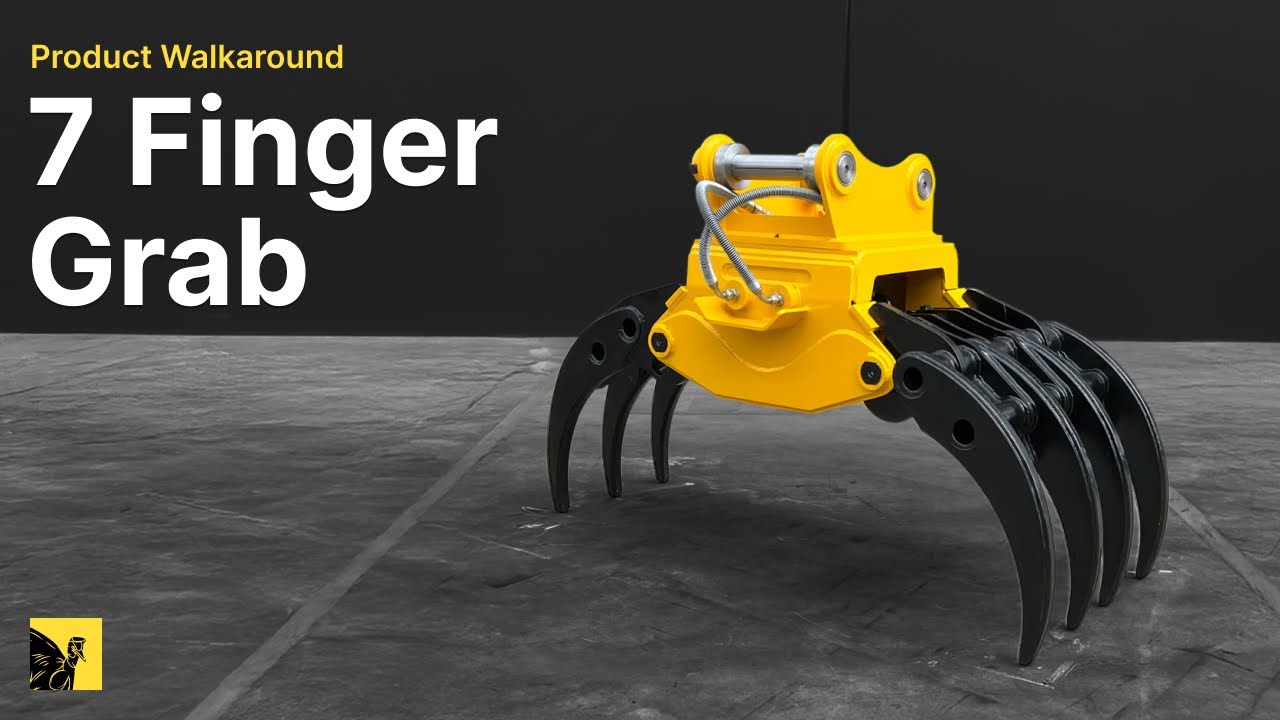

Videos
01
Product
12
The difference
EveryEveryAussieAussieBucketsBucketsfingerfingergrab,grab,alsoalsoknownknownasasaaboxboxfingerfingergrab,grab,tynetynegrabgrabororbrushbrushgrab,grab,isispurpose-builtpurpose-builtforforthetheexcavatorexcavatoryouyourunrunandandprecision-engineeredprecision-engineeredforformaterialmaterialthatthatisisallallshapeshapeandandnonodensity:density:clearedclearedscrub,scrub,logs,logs,cutcuttimbertimberandandirregularirregulardemolitiondemolitionwaste.waste.AvailableAvailableforfor1–25T1–25Tmachinesmachinesacrossacrosssevensevenbuilds,builds,ininfixedfixedandandrotatingrotatingconfigurations.configurations.
WhatWhatdistinguishesdistinguishesourourFingerFingerGrabGrabisisitsitssolidsolidfingerfingerconstructionconstructionandandfullfullinterlockinginterlockingcapability,capability,closingclosingthethetynestynespastpasteacheachotherotherononaacentralisedcentralisedhydraulichydraulicram.ram.ComparedComparedtotootherothergrabsgrabsononthethemarket,market,thetherangerangemountsmountstototiltrotators,tiltrotators,quickquickhitcheshitchesandandtilttilthitcheshitchesasasreadilyreadilyasasititdoesdoestotoaadirectdirectpin.pin.
AllAllFingerFingerGrabsGrabsareareaccompaniedaccompaniedwithwithourourstandardstandard5-year5-yearwarranty.warranty.
Built for secure and precise material handling, this excavator finger grab features a centralised hydraulic ram, solid interlocked tine configuration, and fixed or rotating options for efficient sorting and lifting across a wide range of material sizes.
Features

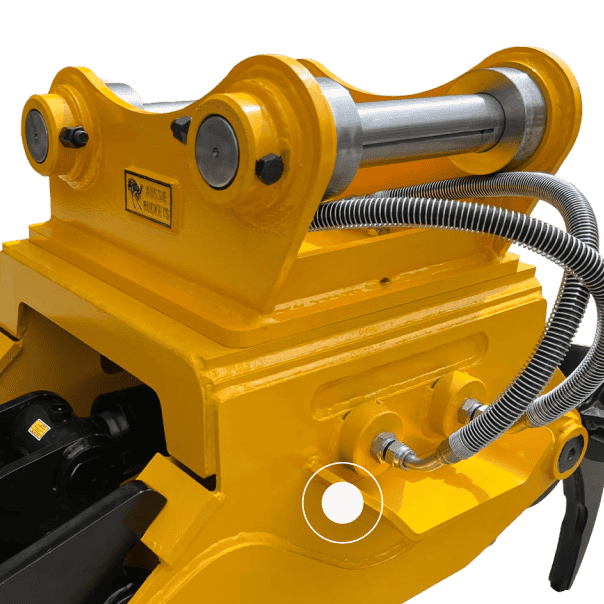

Multiple variations
Suitable for Tilt Rotators, Quick and Tilt Hitches as well as coming in Fixed and Rotating variants on request.

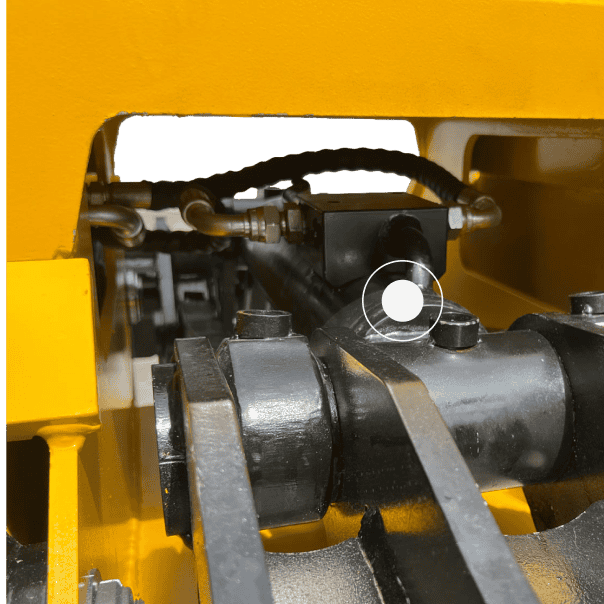

Superior handling

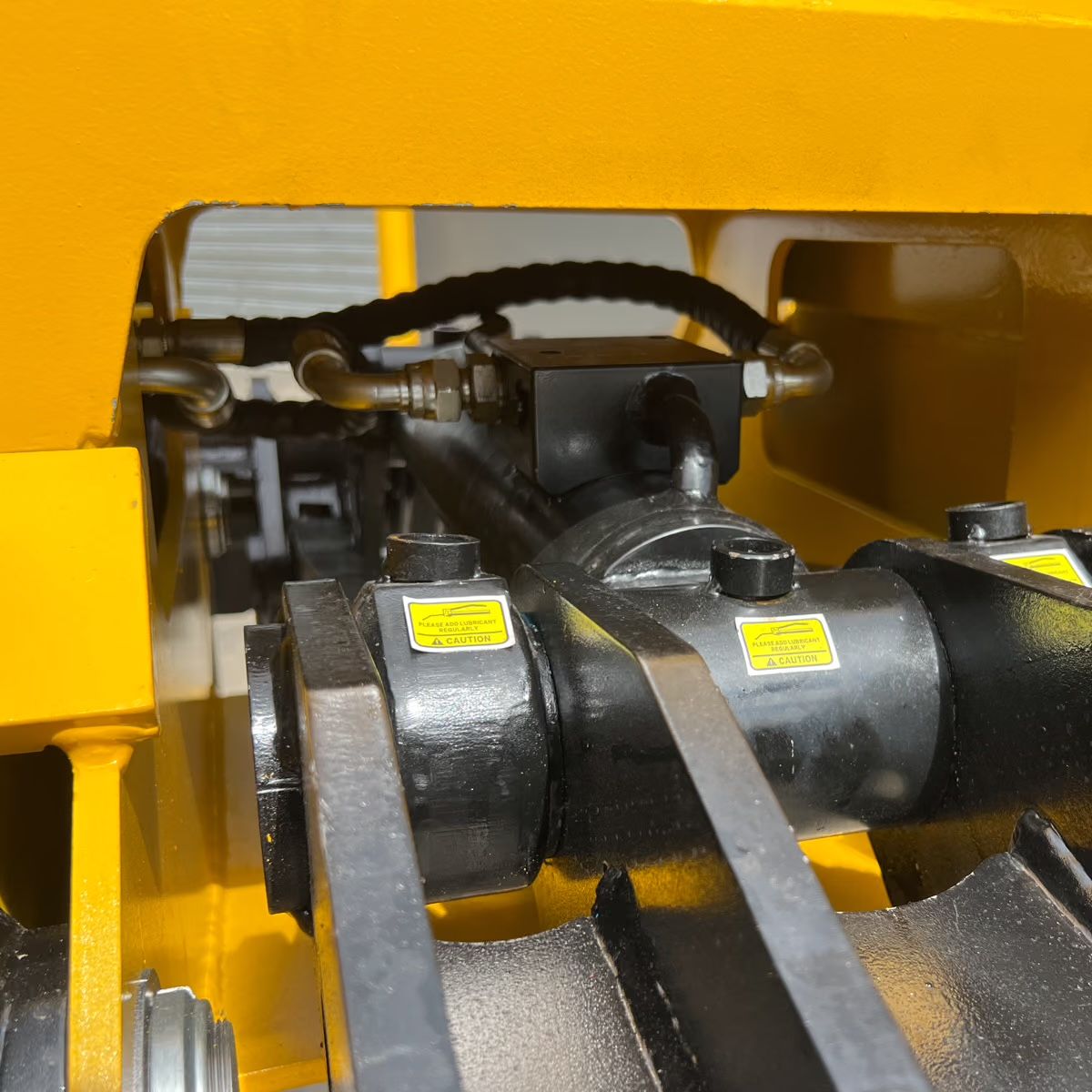

Utilising a centralised Hydraulic Ram with a manifold block with a balance valve to ensure a secure hold, as well as link arms to ensure an even grabbing motion.

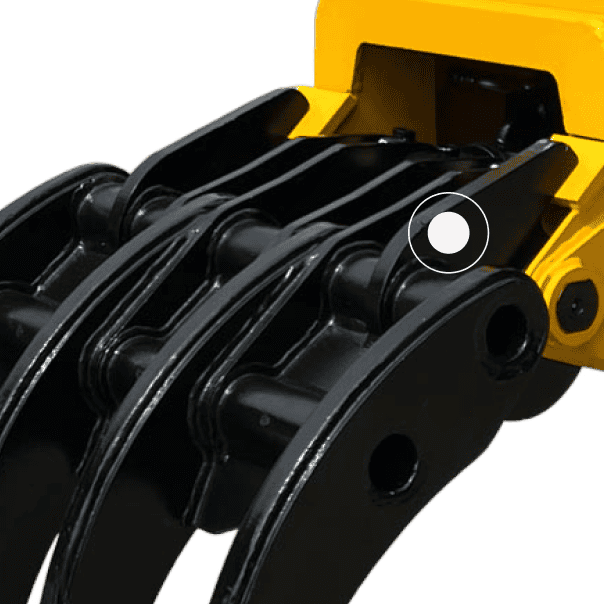

Solid finger construction
Built from a durable solid plate and reinforced to ensure maximum longevity of the unit, giving the operator the ability to throw these into any situation.
Technical Breakdown
Seven build sizes covering 1 tonne to 25 tonne machines. Weight, lesser and greater finger dimensions, max opening, cylinder force and pressure are listed per build.
| Excavator size(T) | Weight(kg) | Lesser finger(mm) | Greater finger(mm) | Max opening(mm) | Cylinder force(t) | Pressure(bar) | Flow rate(L/min) |
|---|---|---|---|---|---|---|---|
| 1.0 – 1.9 | 110 | 255 | 323 | 901 | 2 | 110 – 140 | 4 – 10 |
| 2 – 2.9 | 130 | 330 | 410 | 1,098 | 3 | 110 – 140 | 10 – 30 |
| 3 – 3.9 | 290 | 366 | 450 | 1,271 | 3 | 110 – 140 | 20 – 30 |
| 4 – 5.9 | 350 | 376 | 474 | 1,324 | 6 | 160 – 200 | 25 – 40 |
| Excavator size(T) | Weight(kg) | Lesser finger(mm) | Greater finger(mm) | Max opening(mm) | Cylinder force(t) | Pressure(bar) | Flow rate(L/min) |
|---|---|---|---|---|---|---|---|
| 6 – 10 | 450 | 404 | 504 | 1,497 | 9 | 160 – 200 | 40 – 45 |
| 11 – 17.9 | 812 | 505 | 760 | 1,747 | 12 | 180 – 230 | 45 – 55 |
| 18 – 25 | 980 | 688 | 1,000 | 1,944 | 13 | 180 – 230 | 50 – 75 |
Built to fit the machine you run
Nothing here is an off-the-shelf pattern that you have to make work. Every unit is manufactured to your machine's tonnage, hitch and pin centres, so it bolts up to Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, CASE, Kubota, Yanmar and Takeuchi alike. Send us the make, model and pin sizes and we match the bracket before it ships - if your machine isn't on this list, it still fits.
